Unitronics

UniStream®

Built-in

Installation Guide

US5-B5-RA28, US5-B10-RA28,

US5-B5-TA30, US5-B10-TA30

US7-B5-RA28, US7-B10-RA28,

US7-B5-TA30, US7-B10-TA30

US10-B5-RA28, US10-B10-RA28,

US10-B5-TA30, US10-B10-TA30

This guide provides basic installation information for specific UniStream® models with

built-in I/O. Technical specifications may be downloaded from the Unitronics website.

General Features

Unitronics’ UniStream®Built-in series are PLC+HMI All-in-One programmable controllers

that comprise a built-in CPU, an HMI panel, and built-in I/Os.

The series is available in two versions: UniStream Built-in and UniStream Built-in Pro.

Note that a model number that includes:

B5 refers to UniStream Built-in

B10 refers to UniStream Built-in Pro.

B10 models offer additional features, detailed below.

HMI

Resistive Color Touch-screens

Rich graphic library for HMI design

Power

Features

Built-in Trends and Gauges, auto-tuned PID, data tables, data

sampling, and Recipes

UniApps™: Access & edit data, monitor, troubleshoot & debug and

more –via HMI or remotely via VNC

Security: Multi-level password protection

Alarms: Built-in system, ANSI/ISA standards

I/O

Options

Built-in I/O configuration, varies according to model

Local I/O via UAG-CX series I/O expansion adapters and standard

UniStream Uni-I/O™ modules

Remote I/O via EX-RC1

COM

Options

Built-in ports: 1 Ethernet, 1 USB host, 1 Mini-B USB device port

Serial and CANbus ports may be added via UAC-CX modules

COM

Protocols

Fieldbus: CANopen, CAN Layer2, MODBUS, EtherNetIP and more.

Implement any serial RS232/485, TCP/IP, or CANbus third-party

protocols via Message Composer

Advanced: SNMP Agent/Trap, e-mail, SMS, modems, GPRS/GSM,

VNC Client, FTP Server/Client

Programming

Software

All-in-One software for hardware configuration, communications, and

HMI /PLC applications, available as a free download from Unitronics.

Differences

between B5

and B10

Feature

B10 (Pro)

System Memory

3GB

6GB

Audio Jack

Yes

Video/RSTP Support

Yes

Web Server

Yes

SQL Client

Yes

UniStream®Built-in

Unitronics

Before You Begin

Before installing the device, the user must:

Read and understand this document.

Verify the Kit Contents.

Alert Symbols and General Restrictions

When any of the following symbols appear, read the associated information carefully.

Symbol

Meaning

Description

Danger

The identified danger causes physical and property damage.

Warning

The identified danger could cause physical and property damage.

Caution

Use caution.

All examples and diagrams are intended to aid understanding, and do not guarantee

operation. Unitronics accepts no responsibility for actual use of this product based on

these examples.

Please dispose of this product according to local and national standards and regulations.

This product should be installed only by qualified personnel.

Failure to comply with appropriate safety guidelines can cause severe injury or

property damage.

Do not attempt to use this device with parameters that exceed permissible levels.

Do not connect/disconnect the device when power is on.

Environmental Considerations

Ventilation: 10mm space is required between the device top/bottom edges and the

enclosure’s walls

Do not install in areas with: excessive or conductive dust, corrosive or flammable

gas, moisture or rain, excessive heat, regular impact shocks or excessive vibration,

in accordance with the standards and limitations given in the product’s technical

specification sheet.

Do not place in water or let water leak onto the unit.

Do not allow debris to fall inside the unit during installation.

Install at maximum distance from high-voltage cables and power equipment.

UniStream®Built-in

Unitronics

Kit Contents

1 PLC+HMI controller

4,8 mounting brackets (US5/US7, US10)

1 panel mounting seal

2 panel supports (US7/US10 only)

1 power terminal block

2 I/O terminal blocks (provided only with

models comprising built-in I/Os)

1 Battery

Product Diagram

Front and Rear View

Screen

Protection

A plastic sheet attached to the screen for protection. Remove it

during installation of the HMI Panel.

Battery Cover

The battery is supplied with the unit, but must be installed by the

user.

Power Supply

Input

Connection point for the controller power source.

Connect the Terminal Block supplied with the kit to the end of the

power cable.

microSD Slot

Supports standard microSD cards.

USB Host port

Provides the interface for external USB devices.

Ethernet port

Supports high-speed Ethernet communications.

USB Device

Use for application download and direct PC-UniStream

communication.

I/O Expansion

Jack

Connection point for an I/O Expansion Port.

Ports are supplied as part of I/O Expansion Model Kits. Kits are

available by separate order.

Note that UniStream®Built-in is compatible only with adapters

from the series UAG-CX.

Audio Jack

Pro models only. This 3.5mm Audio jack enables you to connect

external audio equipment.

Built-in I/O

Model-dependent. Present in models with built-in I/O configurations.

Uni-COM™ CX

Module Jack

Connection point for up to 3 stack-on modules. These are available

by separate order.

UniStream®Built-in

Unitronics

Installation Space Considerations

Allocate space for:

the controller

any modules that will be installed

access to ports, jacks, and the microSD card slot

For exact dimensions, please refer to the Mechanical Dimensions shown below.

Mechanical Dimensions

UniStream 5”

UniStream®Built-in

Unitronics

UniStream 7"

UniStream®Built-in

Unitronics

UniStream 10.1"

NOTE

Allow space for modules to be snapped onto the back of the controller, if required by

your application. Modules are available by separate order.

UniStream®Built-in

Unitronics

Panel Mounting

NOTE

Mounting panel thickness must be less or equal to 5mm (0.2”).

Ensure that the space considerations are met.

1. Prepare a panel cut-out according to the dimensions as shown in the previous section.

2. Slide the controller into the cut-out, ensuring that the Panel Mounting Seal is in place

as shown below.

3. Push the mounting brackets into their slots on the sides of the panel as shown below.

4. Tighten the bracket screws against the panel. Hold the brackets securely against the

unit while tightening the screws.

When properly mounted, the panel is squarely situated in the panel cut-out as shown

below.

Caution

The necessary torque is 0.35 N·m (3.5 kgf·cm).

UniStream 5”

UniStream 7”

UniStream®Built-in

Unitronics

UniStream 10.1”

UniStream®Built-in

Unitronics

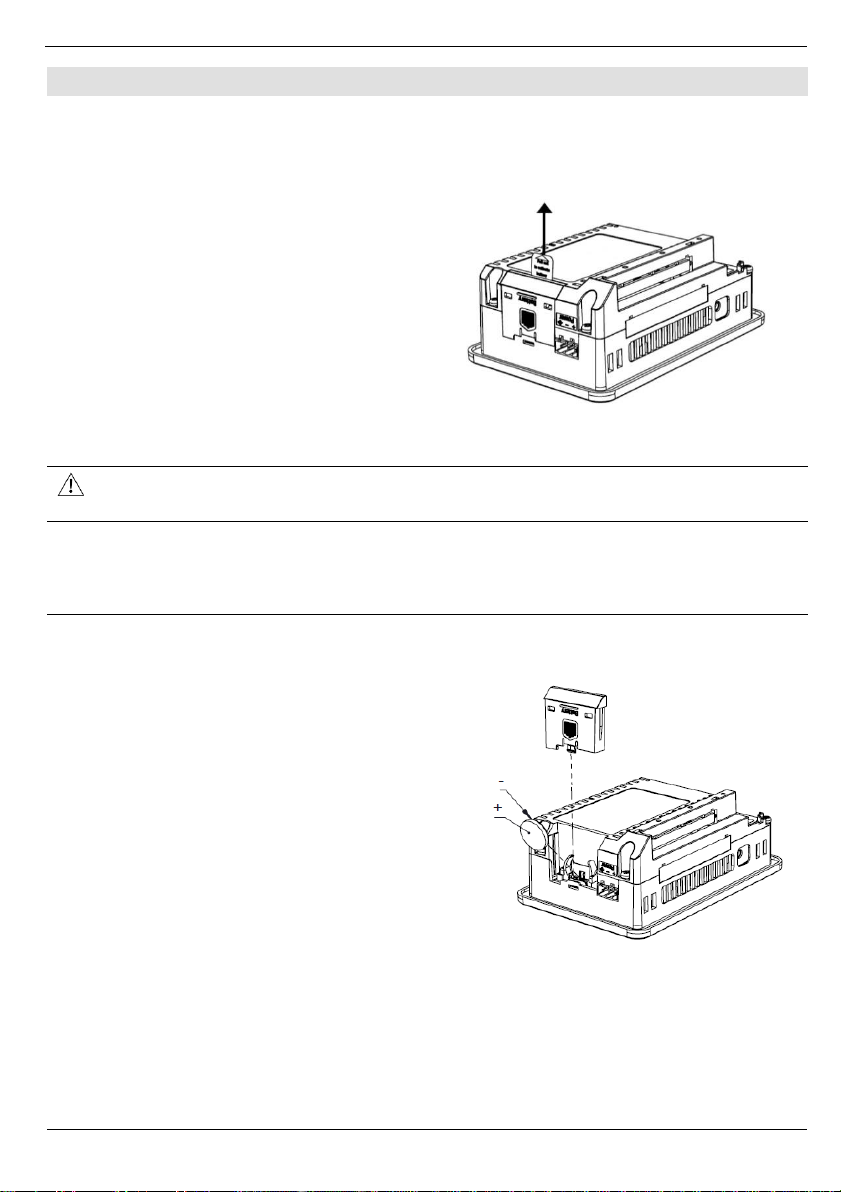

Battery: Back-up, First Use, Installation, and Replacement

Back-up

In order to preserve back-up values for RTC and system data in the event of power off, the

battery must be connected.

First Use

The battery is protected by a removable cover

on the side of the controller.

The battery is supplied installed inside the

unit, with a plastic tab preventing contact

which must be removed by the user.

Battery Installation and Replacement

Use proper precautions to prevent Electro-Static Discharge (ESD) while servicing

the battery.

Caution

To preserve back-up values for RTC and system data during battery

replacement, the controller must be powered.

Note that disconnecting the battery halts the preservation of back-up values

and causes them to be deleted.

1. Remove the battery cover from the controller as shown in the accompanying figure:

- Press the tab on the module to disengage it.

- Slide it up to remove it.

2. If you are replacing the battery, remove the

battery from its slot on the side of the

controller.

3. Insert the battery, ensuring that the polarity

is aligned with the polarity marking as shown

in the accompanying figure.

4. Replace the battery cover.

5. Dispose of the used battery according to local

and national standards and regulations.

UniStream®Built-in

Unitronics

Wiring

This equipment is designed to operate only at SELV/PELV/Class 2/Limited Power

environments.

All power supplies in the system must include double insulation. Power supply

outputs must be rated as SELV/PELV/Class 2/Limited Power.

Do not connect either the ‘Neutral’ or ‘Line’ signal of the 110/220VAC to device’s 0V

point.

Do not touch live wires.

All wiring activities should be performed while power is OFF.

Use over-current protection, such as a fuse or circuit breaker, to avoid excessive

currents into the power supply connection point.

Unused points should not be connected (unless otherwise specified). Ignoring this

directive may damage the device.

Double-check all wiring before turning on the power supply.

Caution

To avoid damaging the wire, use a maximum torque of 0.5 N·m (5 kgf·cm).

Do not use tin, solder, or any substance on stripped wire that might cause the

wire strand to break.

Install at maximum distance from high-voltage cables and power equipment.

Wiring Procedure

Use crimp terminals for wiring; use 26-12 AWG wire (0.13 mm2–3.31 mm2 )

1. Strip the wire to a length of 7±0.5mm (0.250–0.300 inches).

2. Unscrew the terminal to its widest position before inserting a wire.

3. Insert the wire completely into the terminal to ensure a proper connection.

4. Tighten enough to keep the wire from pulling free.

Wiring Guidelines

In order to ensure that the device will operate properly and to avoid electromagnetic

interference:

Use a metal cabinet. Make sure the cabinet and its doors are properly earthed.

Use wires that are properly sized for the load.

Use shielded twisted pair cables for wiring High Speed and Analog I/O signals.

In either case, do not use the cable shield as a signal common / return path.

Route each I/O signal with its own dedicated common wire. Connect common wires

at their respective common (CM) points at the controller.

Individually connect each 0V point and each common (CM) point in the system to the

power supply 0V terminal, unless otherwise specified.

Individually connect each functional ground point ( ) to the earth of the system

(preferably to the metal cabinet chassis).

Use the shortest and thickest wires possible: less than 1m (3.3’) in length, minimum

thickness 14 AWG (2 mm2).

Connect the power supply 0V to the earth of the system.

Ce manuel convient aux modèles suivants

Autres manuels Unitronics Contrôleurs

Unitronics

Unitronics UniStream USC-B5-TA32 Manuel utilisateur

Unitronics

Unitronics Jazz OPLC JZ20-R10 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B5-R38 Manuel utilisateur

Unitronics

Unitronics Vision V130-33-R34 Manuel utilisateur

Unitronics

Unitronics UniStream Manuel utilisateur

Unitronics

Unitronics V130-33-TR6 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V350-35-TR20 Manuel utilisateur

Unitronics

Unitronics M91-19-R1 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V350-35-TA24 Manuel utilisateur

Unitronics

Unitronics MJ20-MEM1 Manuel utilisateur

Unitronics

Unitronics Vision V130-J-TA24 Manuel utilisateur

Unitronics

Unitronics Vision V350-35-TU24 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130-33-B1 Manuel utilisateur

Unitronics

Unitronics Samba OPLC Series Manuel utilisateur

Unitronics

Unitronics VisionV120-22-UN2 Manuel utilisateur

Unitronics

Unitronics Vision OPLC V130 Manuel utilisateur

Unitronics

Unitronics UniStream USC-B5-B1 Manuel utilisateur

Unitronics

Unitronics Vision V350-35-T2 Manuel utilisateur

Unitronics

Unitronics Jazz JZ10-11-R16L Manuel utilisateur

Unitronics

Unitronics Samba SM70-J-TA22 Manuel utilisateur

Unitronics

Unitronics UniStream USC-C3-R20 Manuel utilisateur

Unitronics

Unitronics Vision V570-57-T40B Manuel utilisateur

Unitronics

Unitronics Vision130 Manuel utilisateur

Unitronics

Unitronics Jazz OPLC JZ20-T40 Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
