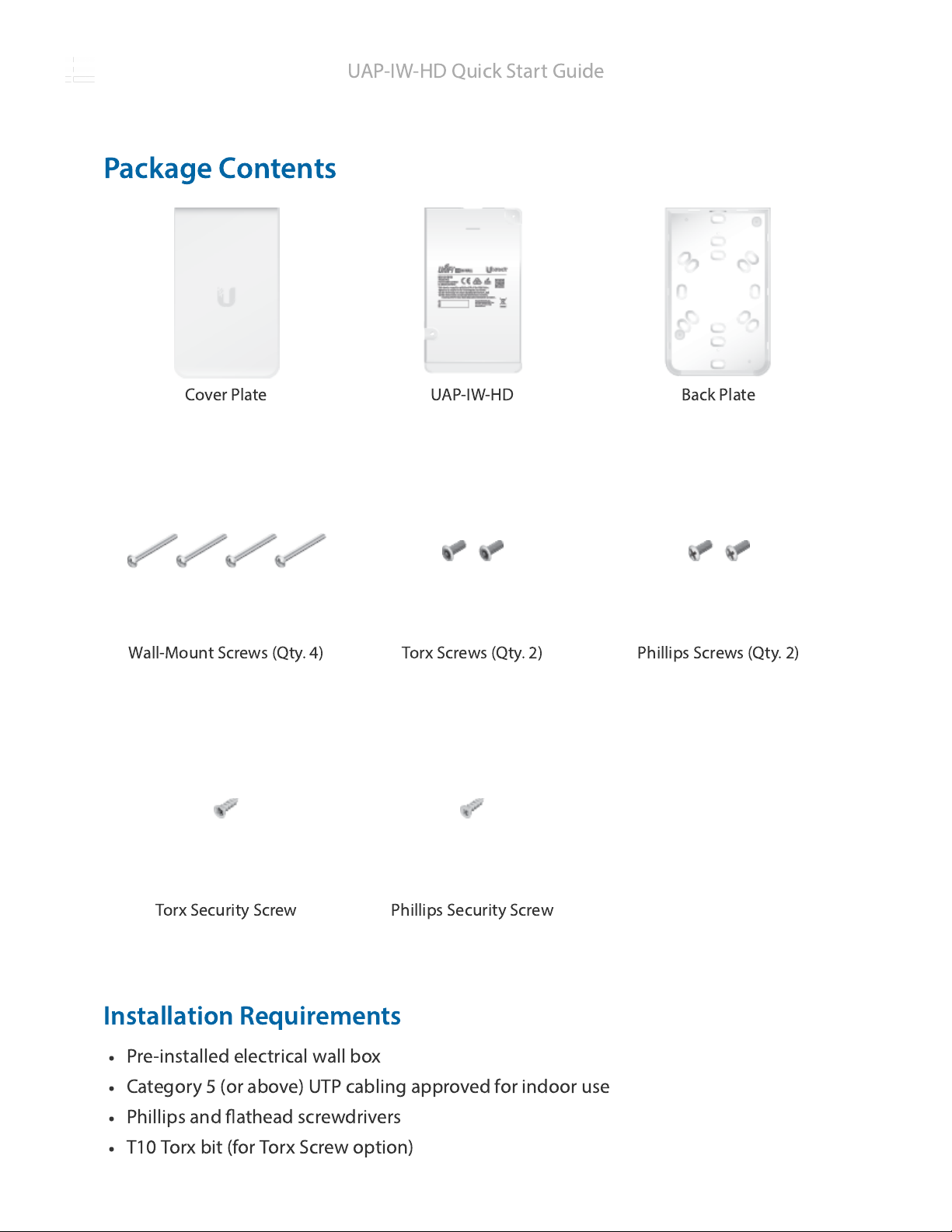

Cover Plate UAP-IW-HD Back Plate

Wall-Mount Screws (Qty. 4) Torx Screws (Qty. 2) Phillips Screws (Qty. 2)

Torx Security Screw Phillips Security Screw

Package Contents

Installation Requirements

Pre-installed electrical wall box

Category 5 (or above) UTP cabling approved for indoor use

Phillips and athead screwdrivers

T10 Torx bit (for Torx Screw option)

UAP-IW-HD Quick Start Guide

PoE In + Data

UniFi Switch with PoE

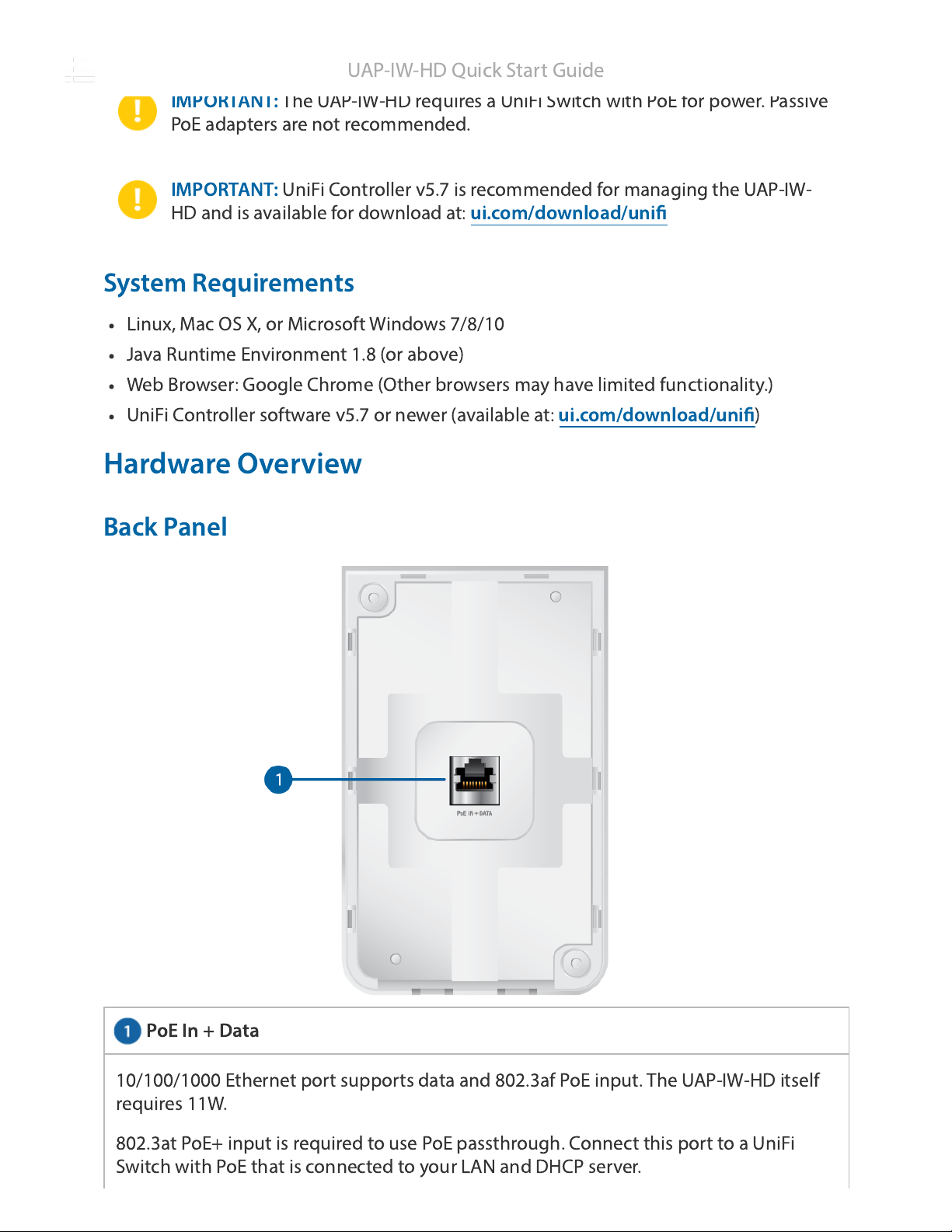

IMPORTANT:

The UAP-IW-HD requires a UniFi Switch with PoE for power. Passive

PoE adapters are not recommended.

IMPORTANT:

UniFi Controller v5.7 is recommended for managing the UAP-IW-

HD and is available for download at:

ui.com/download/uni

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 (or above)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.7 or newer (available at:

ui.com/download/uni

)

Hardware Overview

Back Panel

10/100/1000 Ethernet port supports data and 802.3af PoE input. The UAP-IW-HD itself

requires 11W.

802.3at PoE+ input is required to use PoE passthrough. Connect this port to a UniFi

Switch with PoE that is connected to your LAN and DHCP server.

UAP-IW-HD Quick Start Guide

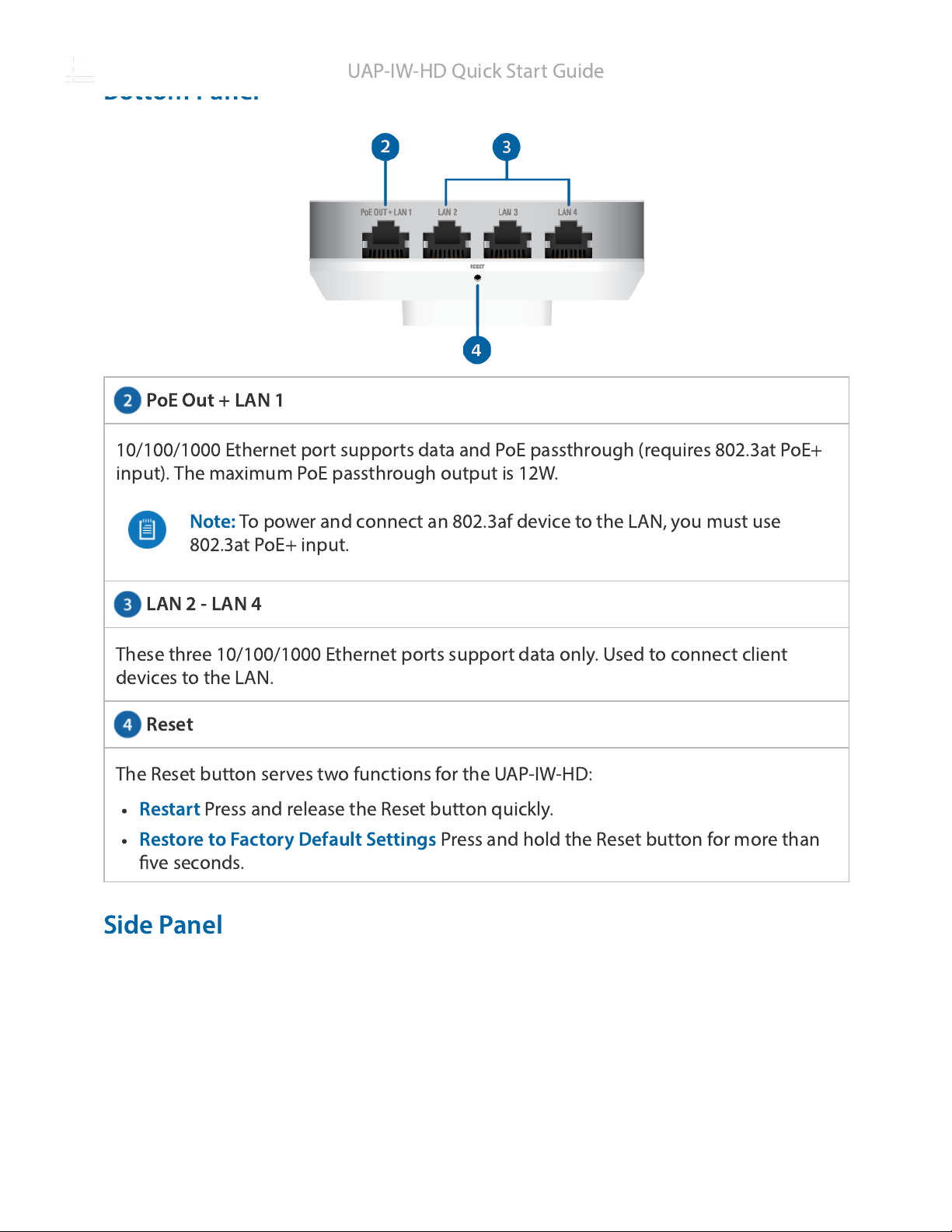

PoE Out + LAN 1

LAN 2 - LAN 4

Reset

Bottom Panel

10/100/1000 Ethernet port supports data and PoE passthrough (requires 802.3at PoE+

input). The maximum PoE passthrough output is 12W.

Note:

To power and connect an 802.3af device to the LAN, you must use

802.3at PoE+ input.

These three 10/100/1000 Ethernet ports support data only. Used to connect client

devices to the LAN.

The Reset button serves two functions for the UAP-IW-HD:

Restart

Press and release the Reset button quickly.

Restore to Factory Default Settings

Press and hold the Reset button for more than

ve seconds.

Side Panel

UAP-IW-HD Quick Start Guide

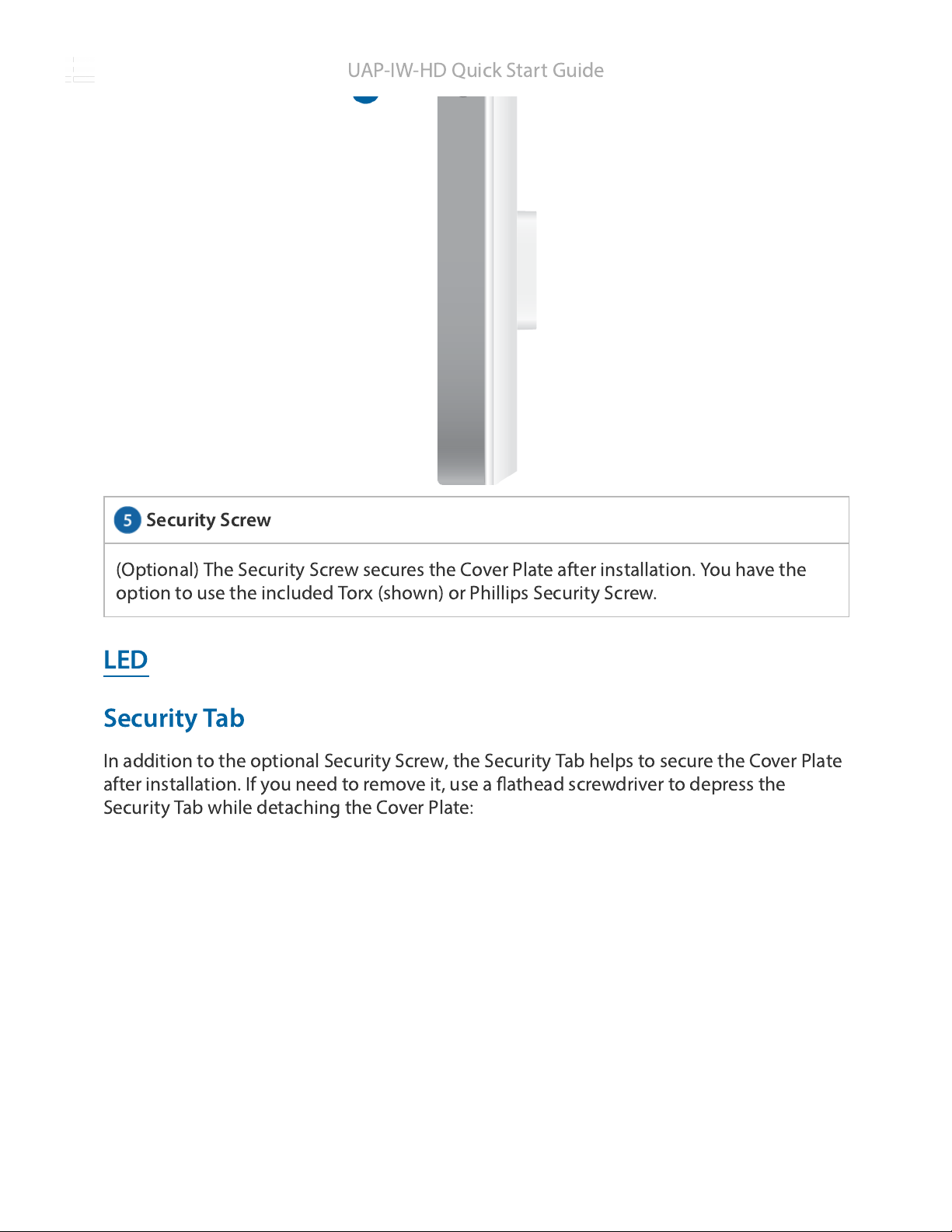

Security Screw

(Optional) The Security Screw secures the Cover Plate after installation. You have the

option to use the included Torx (shown) or Phillips Security Screw.

LED

Security Tab

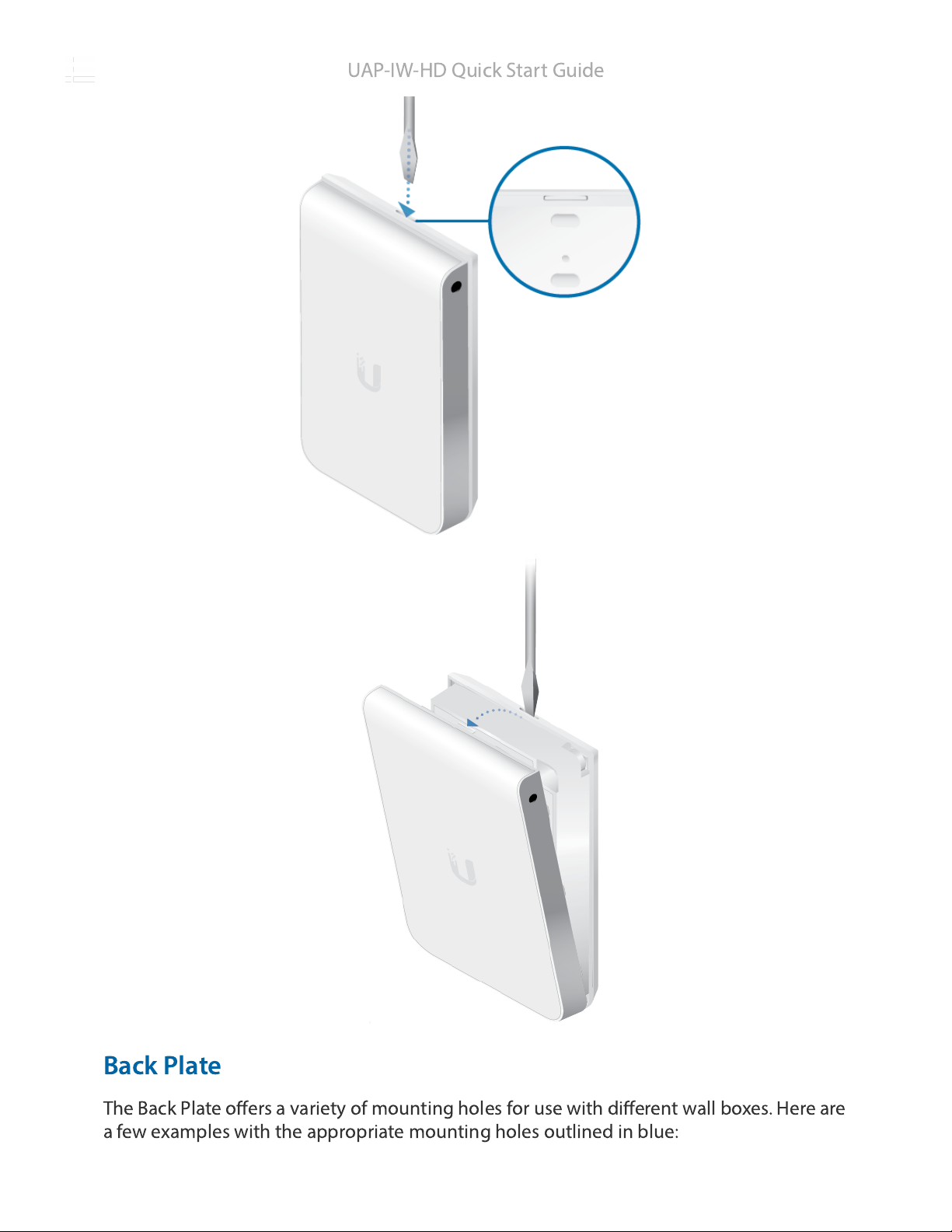

In addition to the optional Security Screw, the Security Tab helps to secure the Cover Plate

after installation. If you need to remove it, use a athead screwdriver to depress the

Security Tab while detaching the Cover Plate:

UAP-IW-HD Quick Start Guide

Back Plate

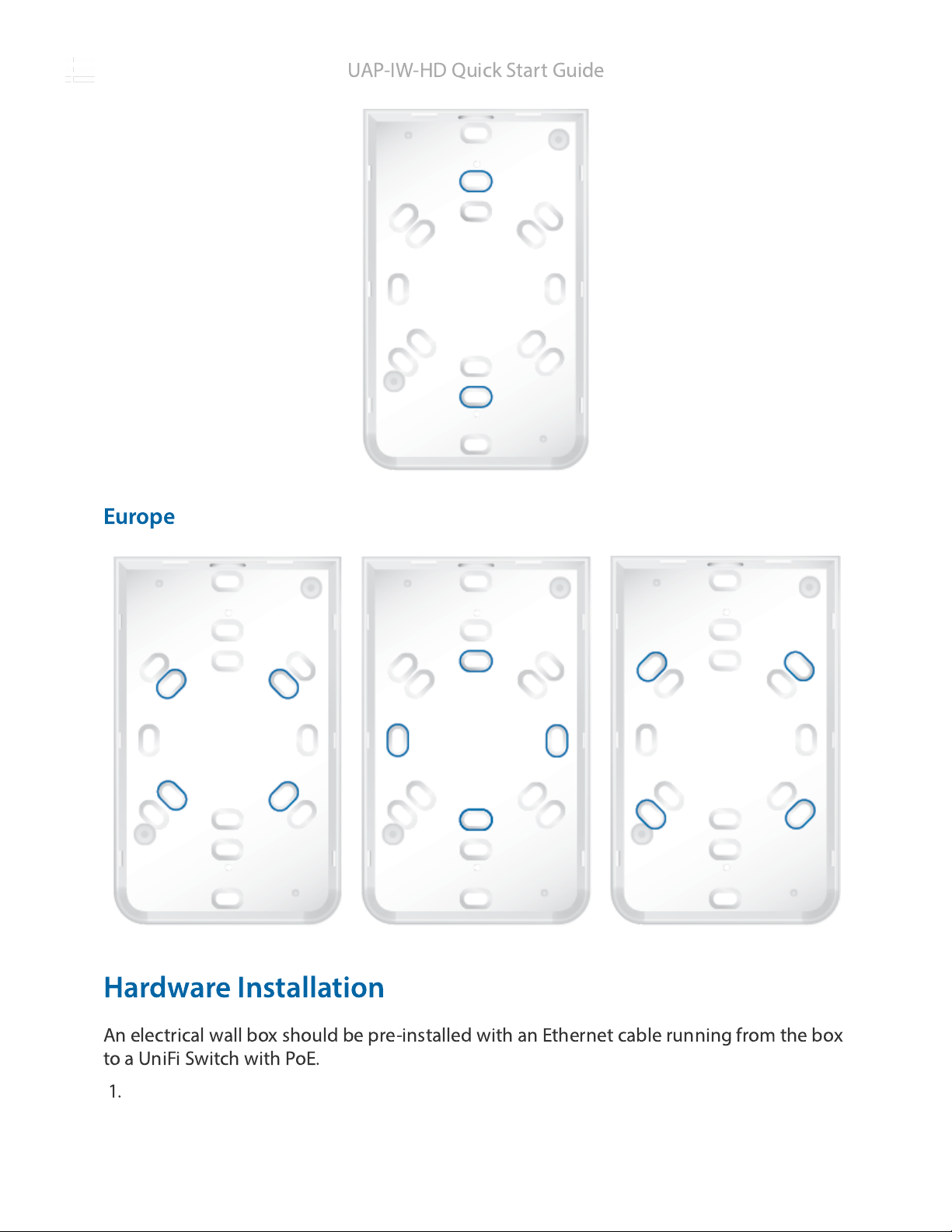

The Back Plate oﬀers a variety of mounting holes for use with diﬀerent wall boxes. Here are

a few examples with the appropriate mounting holes outlined in blue:

UAP-IW-HD Quick Start Guide

USA or China

Europe

Hardware Installation

An electrical wall box should be pre-installed with an Ethernet cable running from the box

to a UniFi Switch with PoE.

1.

UAP-IW-HD Quick Start Guide

2.

3.

UAP-IW-HD Quick Start Guide

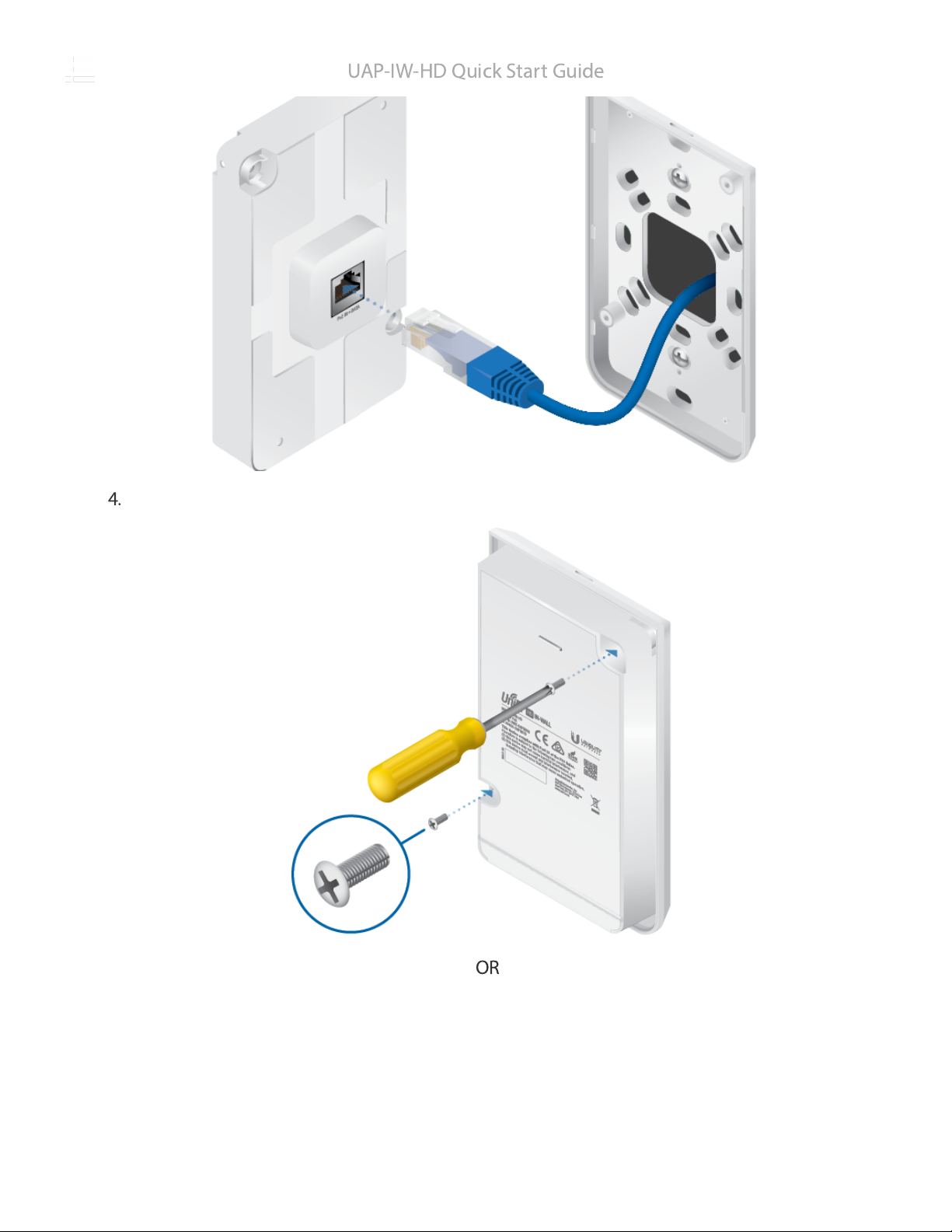

4.

OR

UAP-IW-HD Quick Start Guide

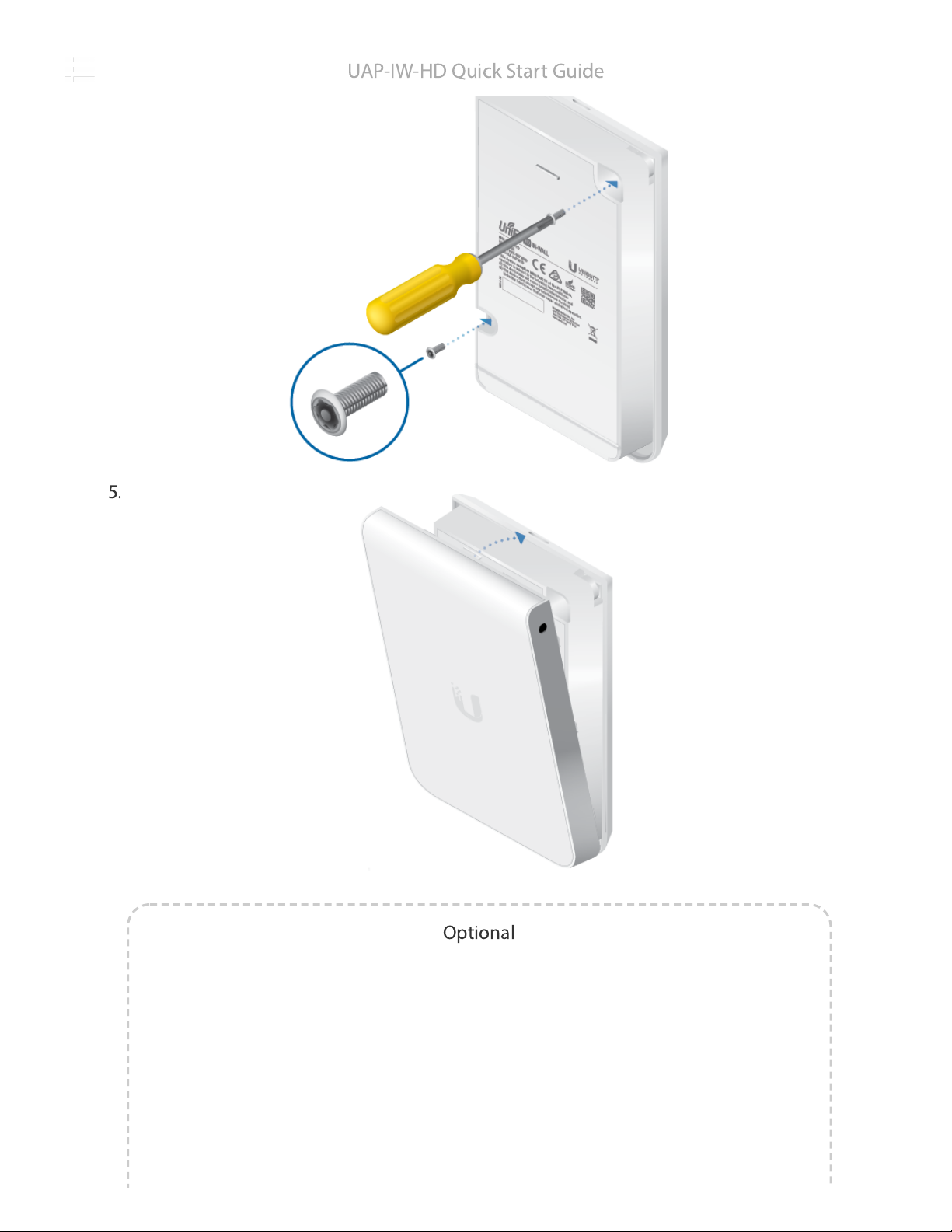

5.

Optional

UAP-IW-HD Quick Start Guide

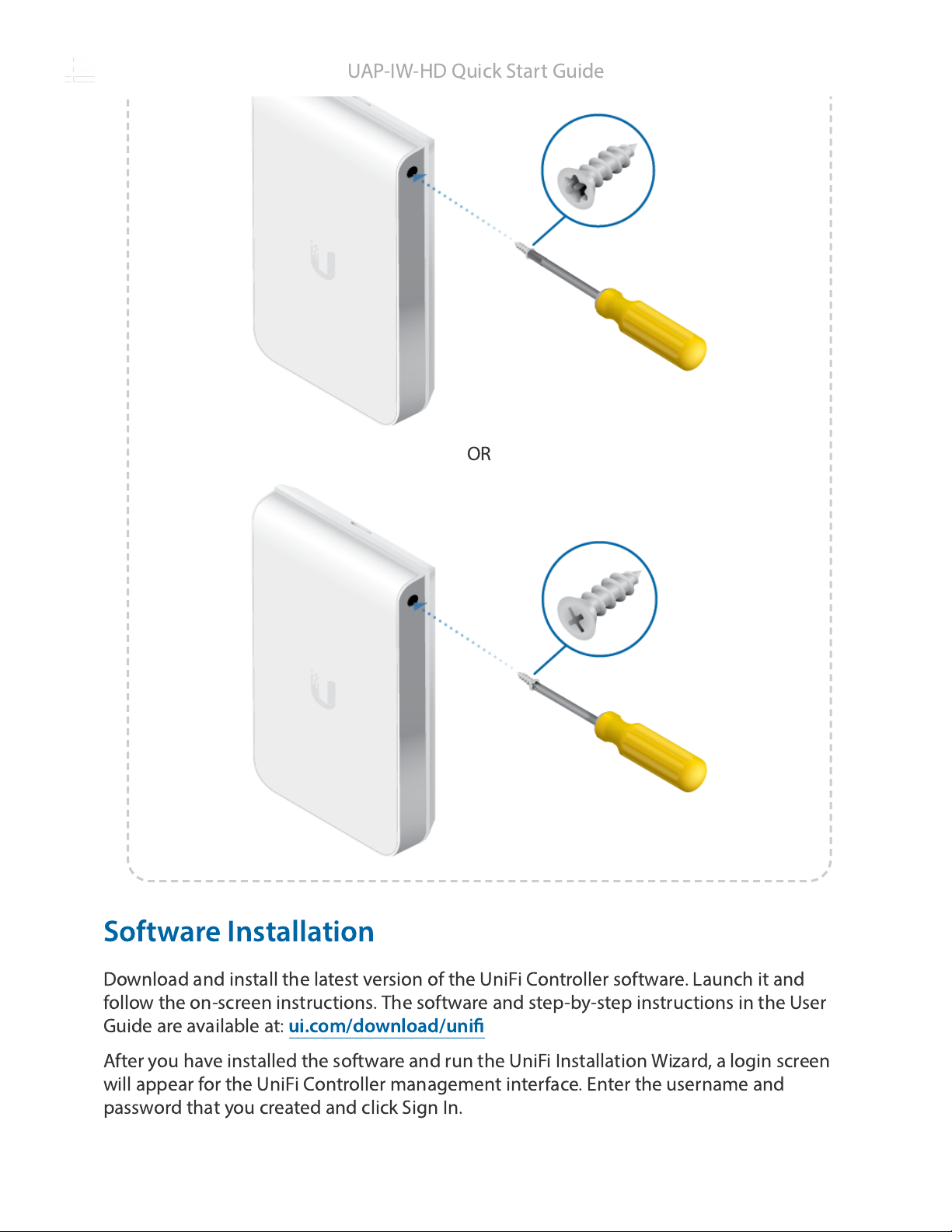

OR

Software Installation

Download and install the latest version of the UniFi Controller software. Launch it and

follow the on-screen instructions. The software and step-by-step instructions in the User

Guide are available at:

ui.com/download/uni

After you have installed the software and run the UniFi Installation Wizard, a login screen

will appear for the UniFi Controller management interface. Enter the username and

password that you created and click Sign In.
