Ubiquiti UniFi UAP-IW-HD Manuel utilisateur

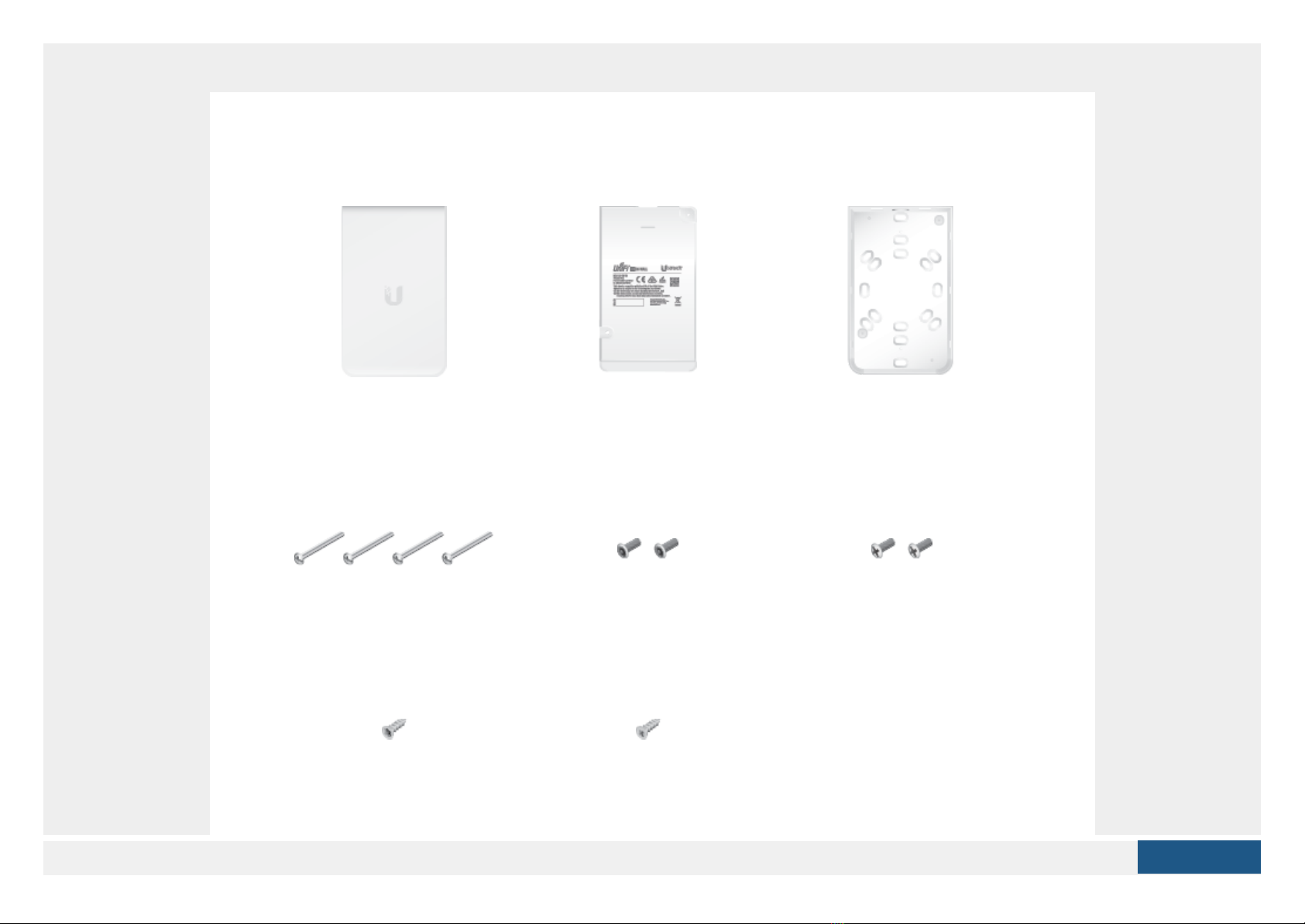

Cover Plate UAP-IW-HD Back Plate

Wall-Mount Screws (Qty. 4) Torx Screws (Qty. 2) Phillips Screws (Qty. 2)

Package Contents

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Torx Security Screw Phillips Security Screw

Installation Requirements

Pre-installed electrical wall box

Category 5 (or above) UTP cabling approved for indoor use

Phillips and flathead screwdrivers

T10 Torx bit (for Torx Screw option)

UniFi Switch with PoE

IMPORTANT: The UAP-IW-HD requires a UniFi Switch with PoE for power.

Passive PoE adapters are not recommended.

IMPORTANT: UniFi Controller v5.7 is recommended for managing the UAP-

IW-HD and is available for download at: ui.com/download/unifi

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 (or above)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.7 or newer (available at: ui.com/download/unifi)

Hardware Overview

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

PoE In + Data

Back Panel

10/100/1000 Ethernet port supports data and 802.3af PoE input. The UAP-IW-HD

itself requires 11W.

802.3at PoE+ input is required to use PoE passthrough. Connect this port to a UniFi

Switch with PoE that is connected to your LAN and DHCP server.

Bottom Panel

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

PoE Out + LAN 1

LAN 2 - LAN 4

Reset

10/100/1000 Ethernet port supports data and PoE passthrough (requires 802.3at

PoE+ input). The maximum PoE passthrough output is 12W.

Note: To power and connect an 802.3af device to the LAN, you must use

802.3at PoE+ input.

These three 10/100/1000 Ethernet ports support data only. Used to connect client

devices to the LAN.

The Reset button serves two functions for the UAP-IW-HD:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more than

five seconds.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Security Screw

Side Panel

(Optional) The Security Screw secures the Cover Plate after installation. You have

the option to use the included Torx (shown) or Phillips Security Screw.

LED

Security Tab

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

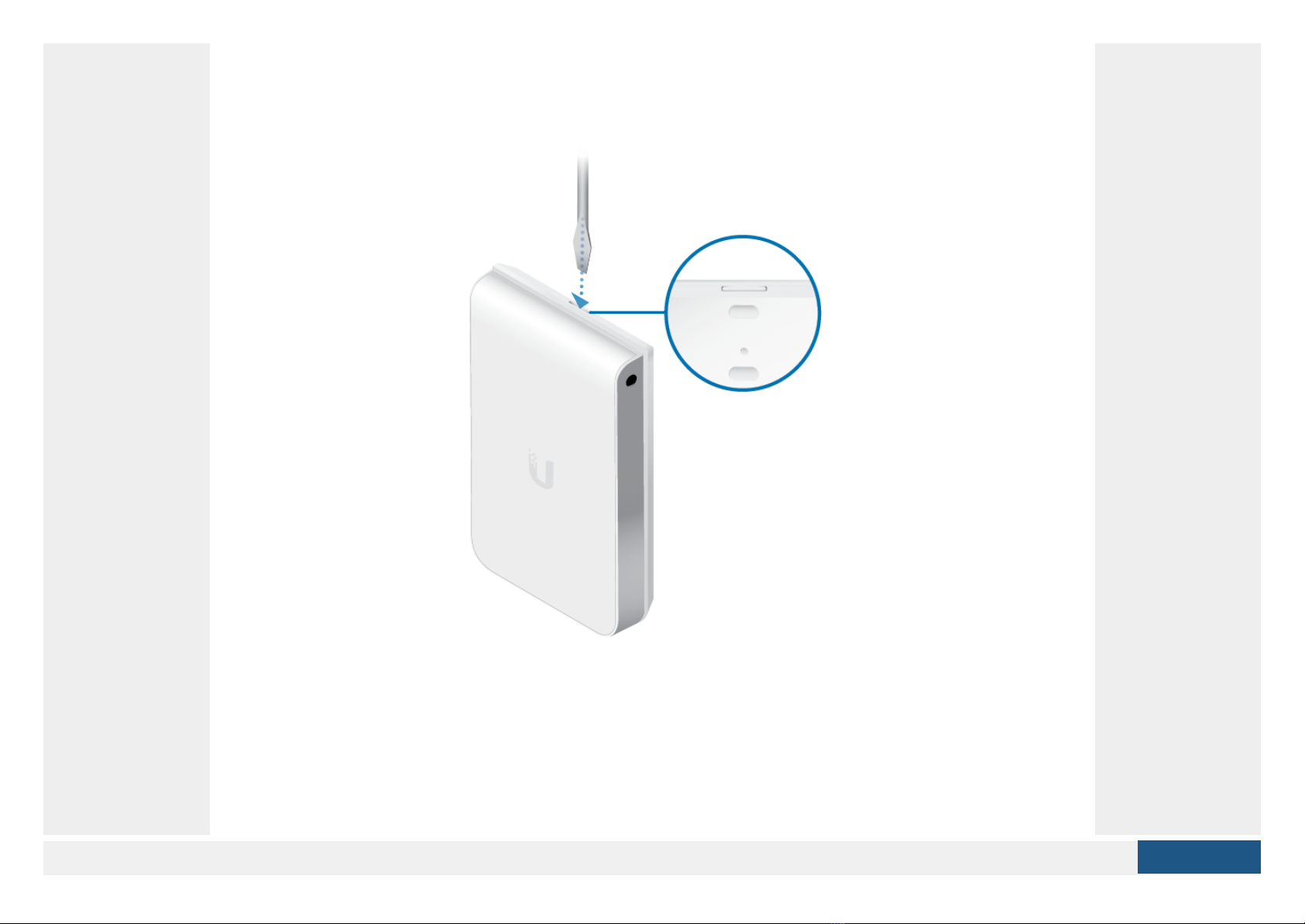

In addition to the optional Security Screw, the Security Tab helps to secure the Cover

Plate after installation. If you need to remove it, use a flathead screwdriver to depress

the Security Tab while detaching the Cover Plate:

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

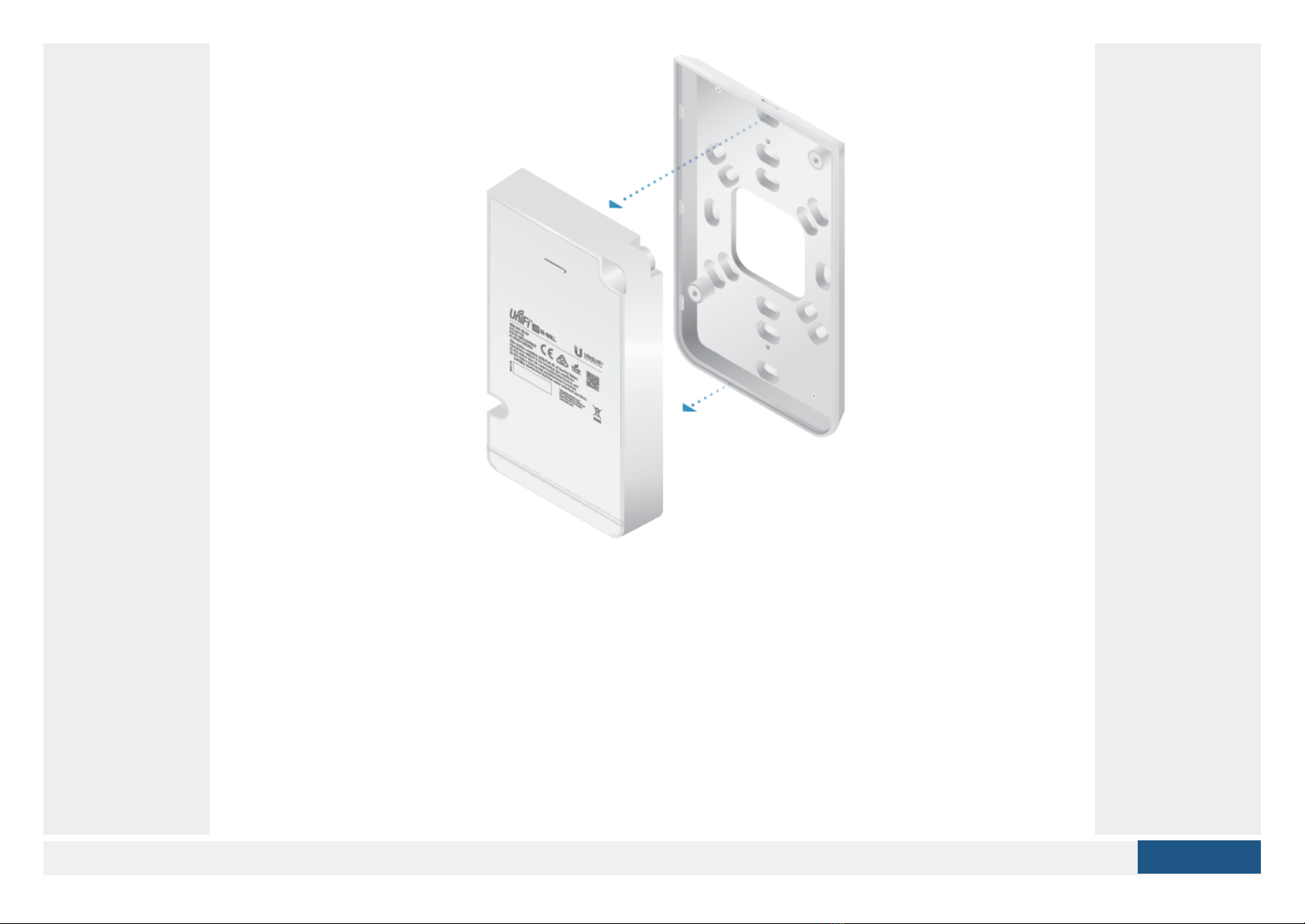

Back Plate

The Back Plate offers a variety of mounting holes for use with different wall boxes. Here

are a few examples with the appropriate mounting holes outlined in blue:

USA or China

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Europe

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Hardware Installation

An electrical wall box should be pre-installed with an Ethernet cable running from the

box to a UniFi Switch with PoE.

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD
