US-XG-6POE Quick Start Guide

dl.ubnt.com/qsg/US-XG-6POE/US-XG-6POE_EN.html

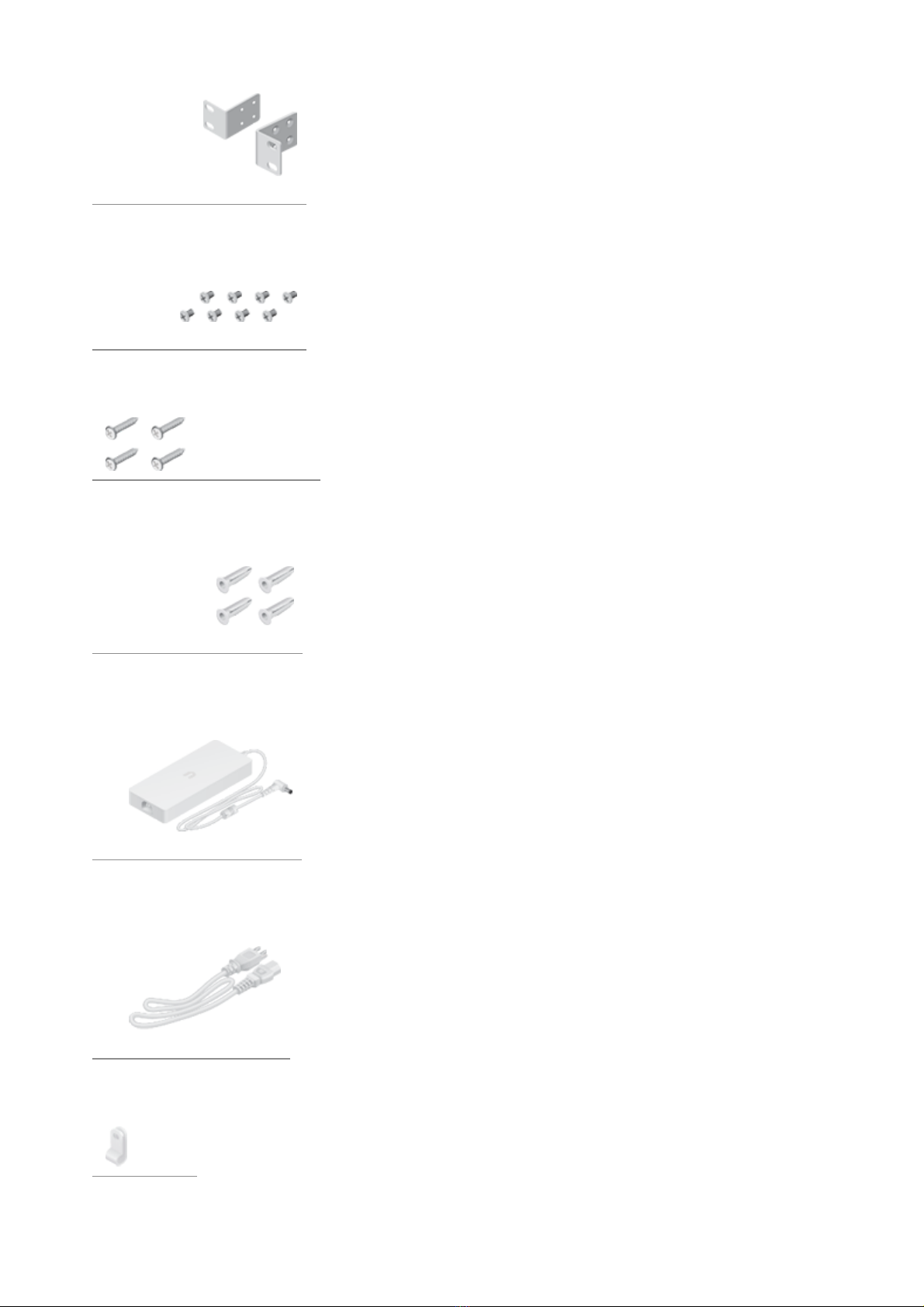

Package Contents

UniFi Switch

2/19

Mount Brackets (Qty. 2)

Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4)

Screw Anchors (Qty. 4)

Power Adapter

Power Cord

Cable Clip

3/19

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.8 or above recommended

Web Browser: Google Chrome (Other browsers may have limited functionality)

UniFi Controller software v5.8.x (or newer), available at: ui.com/download/unifi

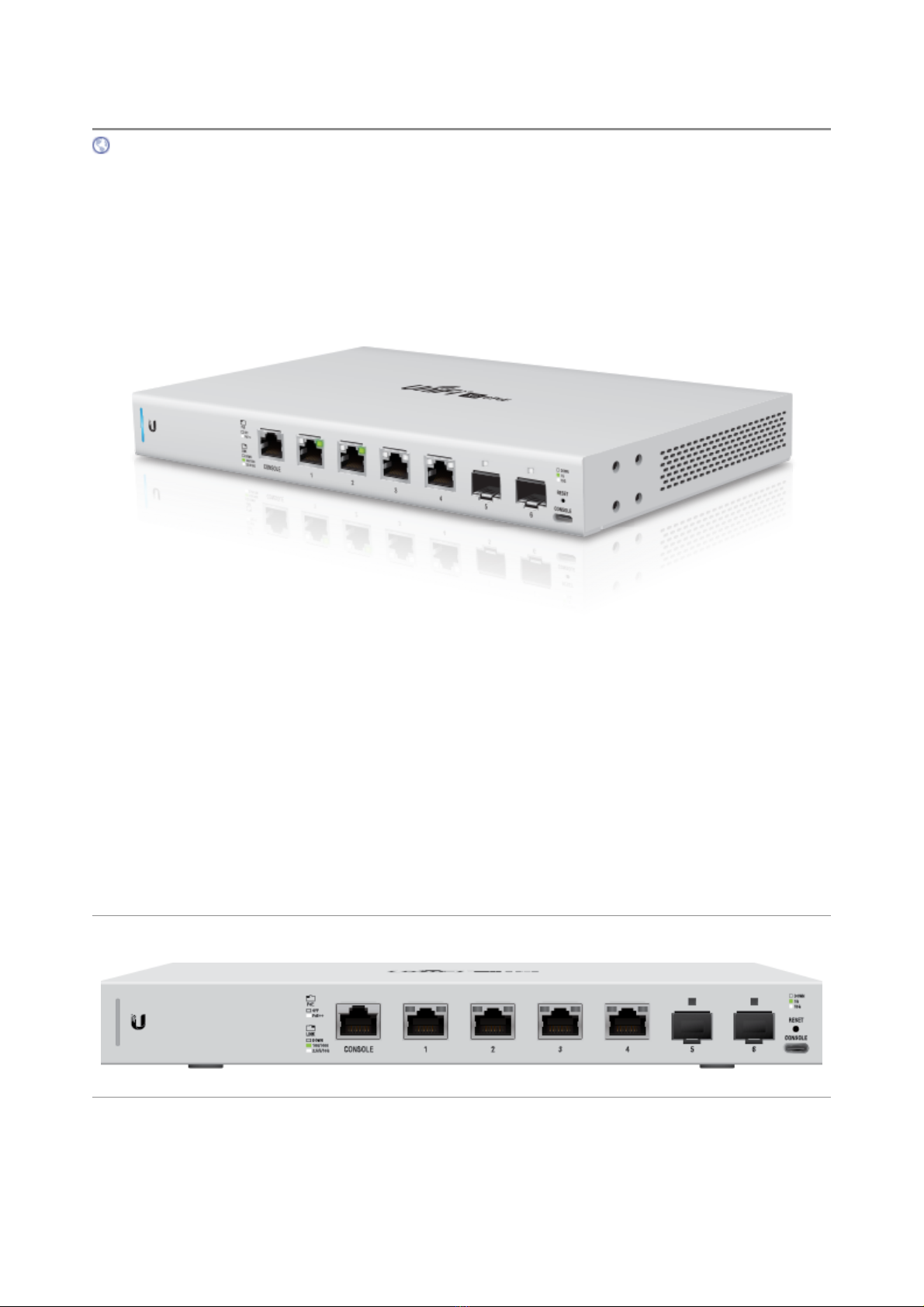

Hardware Overview

System LED

Flashing

White

Initializing.

Steady

White

Factory defaults, waiting for adoption.

Alternating

White/Blue

Device is busy; do not touch or unplug it. This usually indicates that a

process such as a firmware upgrade is taking place.

Steady

Blue

Successfully adopted by a network and working properly.

4/19

Flashing

Blue

This is used to locate a device.

When you click Locate in the UniFi Controller software, the System LED

will flash blue. The software will also display the location of the UniFi

Switch on the map.

RJ45 PoE LED (Ports 1 - 4)

Off PoE Disabled

White 802.3af/at/bt PoE

RJ45 Link/Speed/Activity LED (Ports 1 - 4)

Off No Link

Green Link Established at 1 Gbps

Flashing Indicates Activity

White Link Established at 10 Gbps

Flashing Indicates Activity

SFP+ Link/Speed/Activity LED (Ports 5 - 6)

Off No Link

Green Link Established at 1 Gbps

Flashing Indicates Activity

White Link Established at 10 Gbps

Flashing Indicates Activity

RJ45 Console Port

5/19

RJ45 serial console port for Command Line Interface (CLI) management. Use an RJ45-

to-DB9, serial console cable, also known as a rollover cable, to connect the Console

port to your computer. Then configure the following settings as needed:

Baud rate 115200

Data bits 8

Parity NONE

Stop bits 1

Flow control NONE

RJ45 (Ports 1 - 4)

RJ45 ports support 100 Mbps or 1/2.5/5/10 Gbps Ethernet connections and

802.3af/at/bt PoE output.

SFP+ (Ports 5 - 6)

Hot-swappable SFP+ ports support 1/10 Gbps connections.

USB Console Port

USB Type C console port for Command Line Interface (CLI) management.

Reset Button

This button serves two functions for the UniFi Switch:

Restart Press and release the Reset button quickly.

Restore to Factory Default Settings Press and hold the Reset button for more

than five seconds.

DC Input

6/19

Optional DC input for connecting a stand-alone or redundant DC power source (not

included) with minimum power: 40W, 44 to 57VDC.

Note: Ensure the polarity is correct: red is positive (+) and black is negative

(-).

You can use the redundant DC power source as a hot spare; if there is no longer power

through the Power port, the UniFi Switch will switch to the DC power source without

interrupting its operation.

Power Port

Connect the included Power Adapter to the Power port.

Ground

Ancillary grounding point for enhanced ESD protection.

Hardware Installation

The UniFi Switch can be mounted on a horizontal or vertical surface.

WARNING: The US-XG-6POE must not be stacked. Do not place it on top of

another switch. Do not place anything on top of the US-XG-6POE.

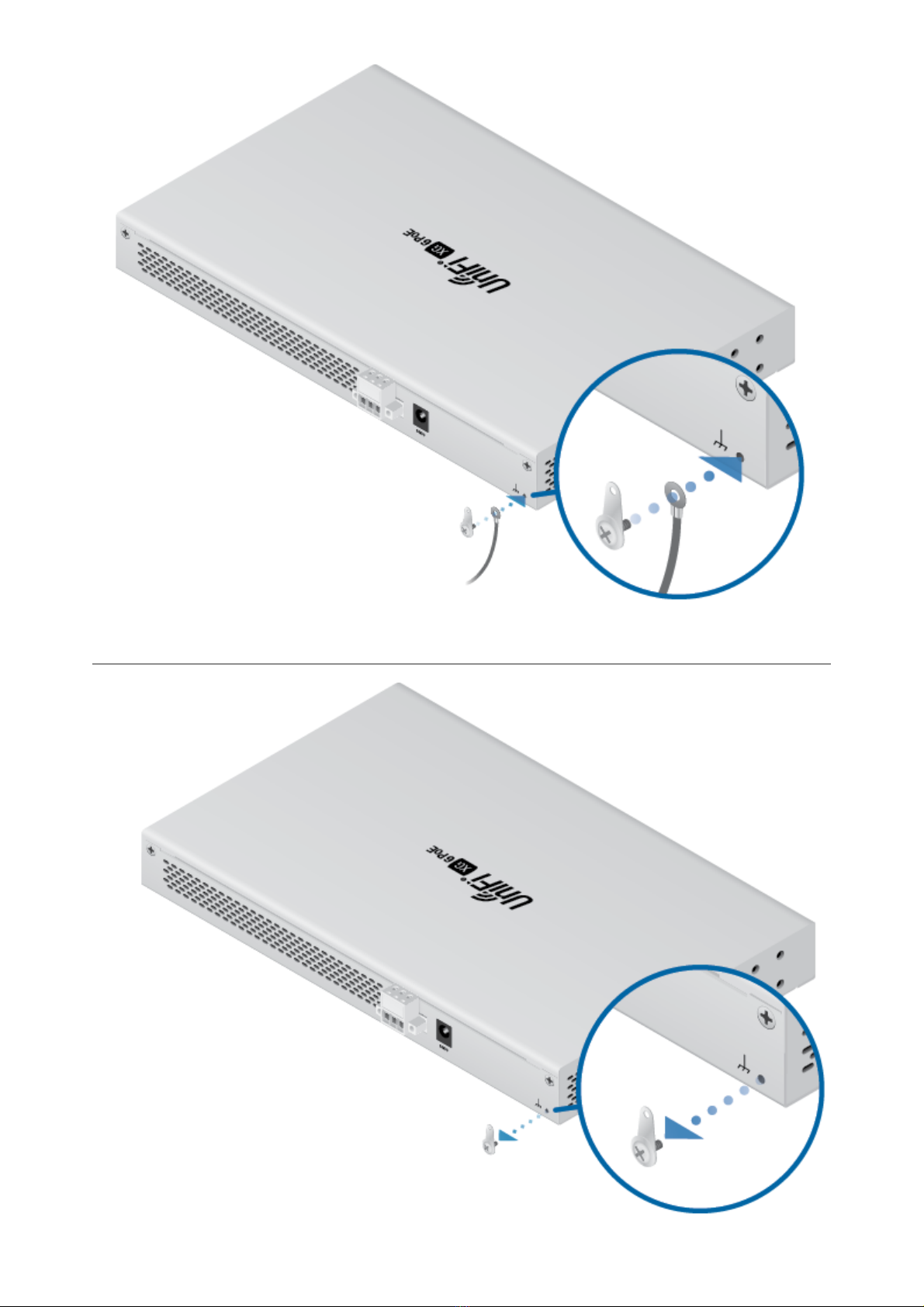

Grounding (Recommended)

The UniFi Switch is grounded through the Power Adapter; however, you can add optional

ESD grounding for enhanced ESD protection.

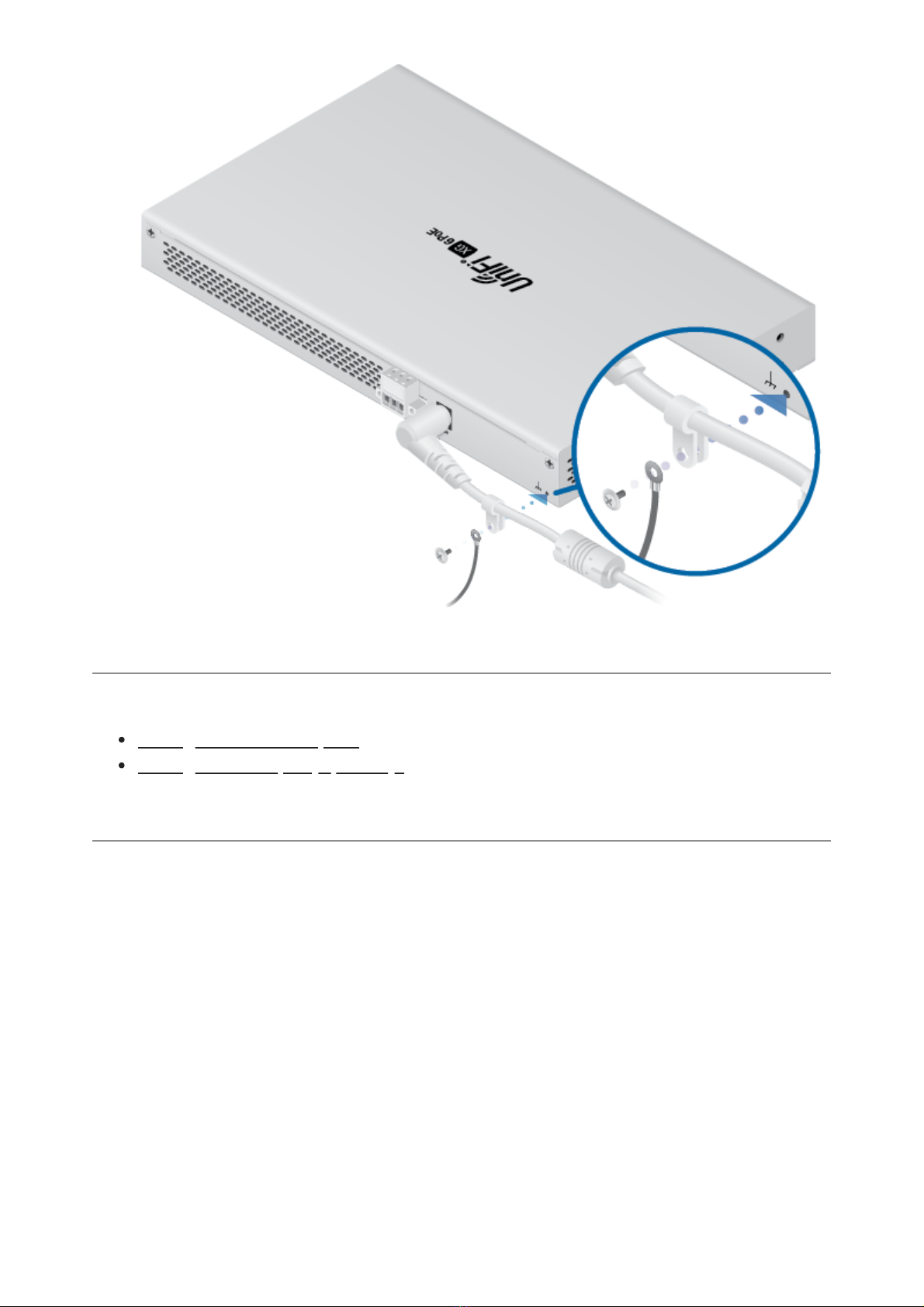

Note: You also have the option to use the Cable Clip to secure the cord of the

Power Adapter. For instructions, proceed to "Using the Cable Clip (Optional)".

7/19

Using the Cable Clip (Optional)

8/19

9/19

Connecting Power

You have two options:

"Using the Power Adapter"

"Using the DC Input (Optional)"

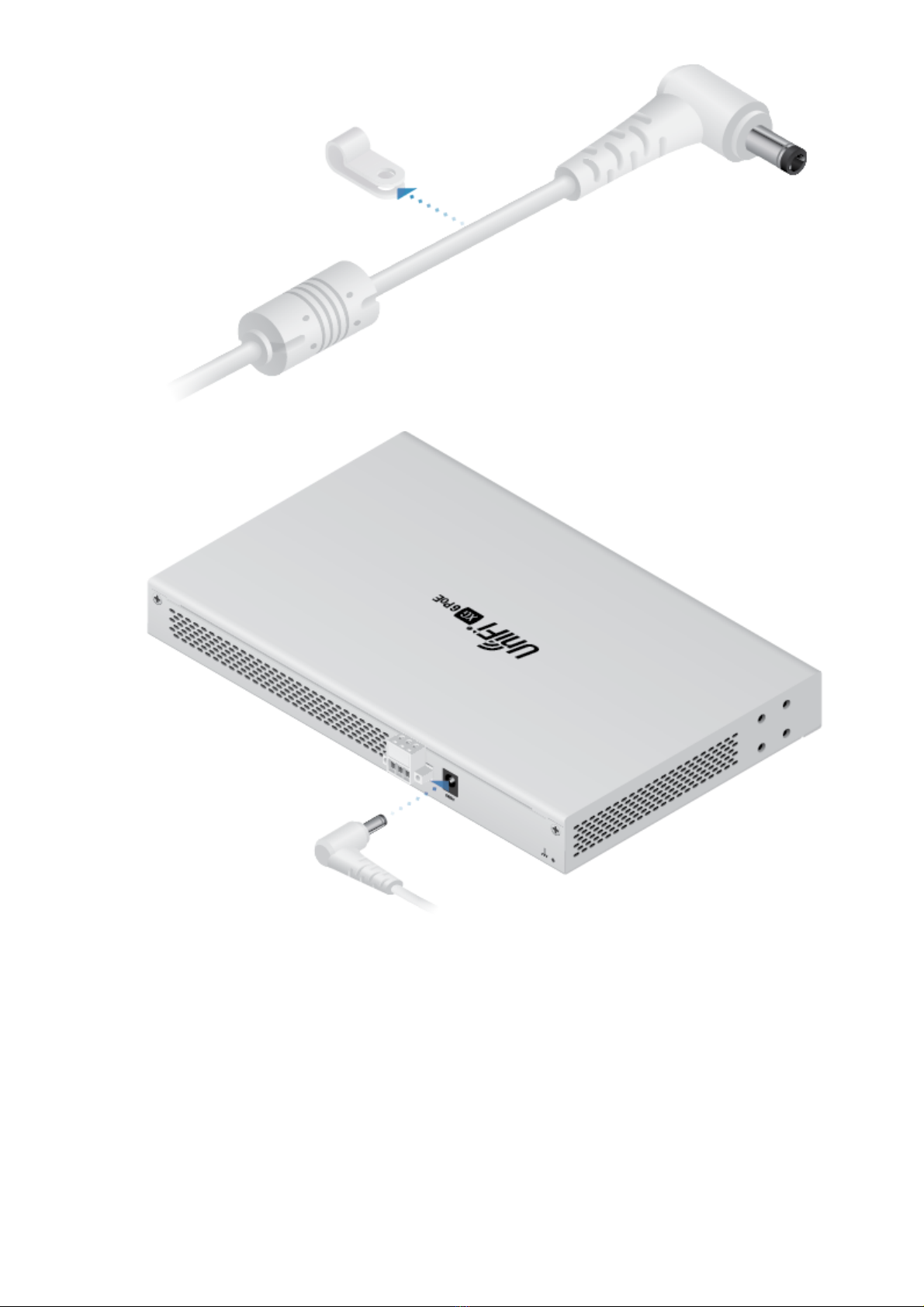

Using the Power Adapter

10/19

Using the DC Input (Optional)

For stand-alone power or redundant backup, connect a DC power source to the UniFi

Switch.
