Ubiquiti UniFi Switch 48 US-48-500W Manuel utilisateur

Managed PoE+ Gigabit

Switch with SFP+

Models: US-48-500W, US-48-750W

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi®

Switch with SFP+ and SFP. The UniFi Controller software and

User Guide are available for download at:

downloads.ubnt.com/unifi

This Quick Start Guide is designed to guide you through the

installation and show you how to access the Configuration

Interface. This Quick Start Guide also includes the warranty

terms, and is for use with the UniFi Switch with SFP+ and SFP,

modelUS‑48‑500W or US‑48‑750W. (The hardware description

and installation instructions are the same for both models.)

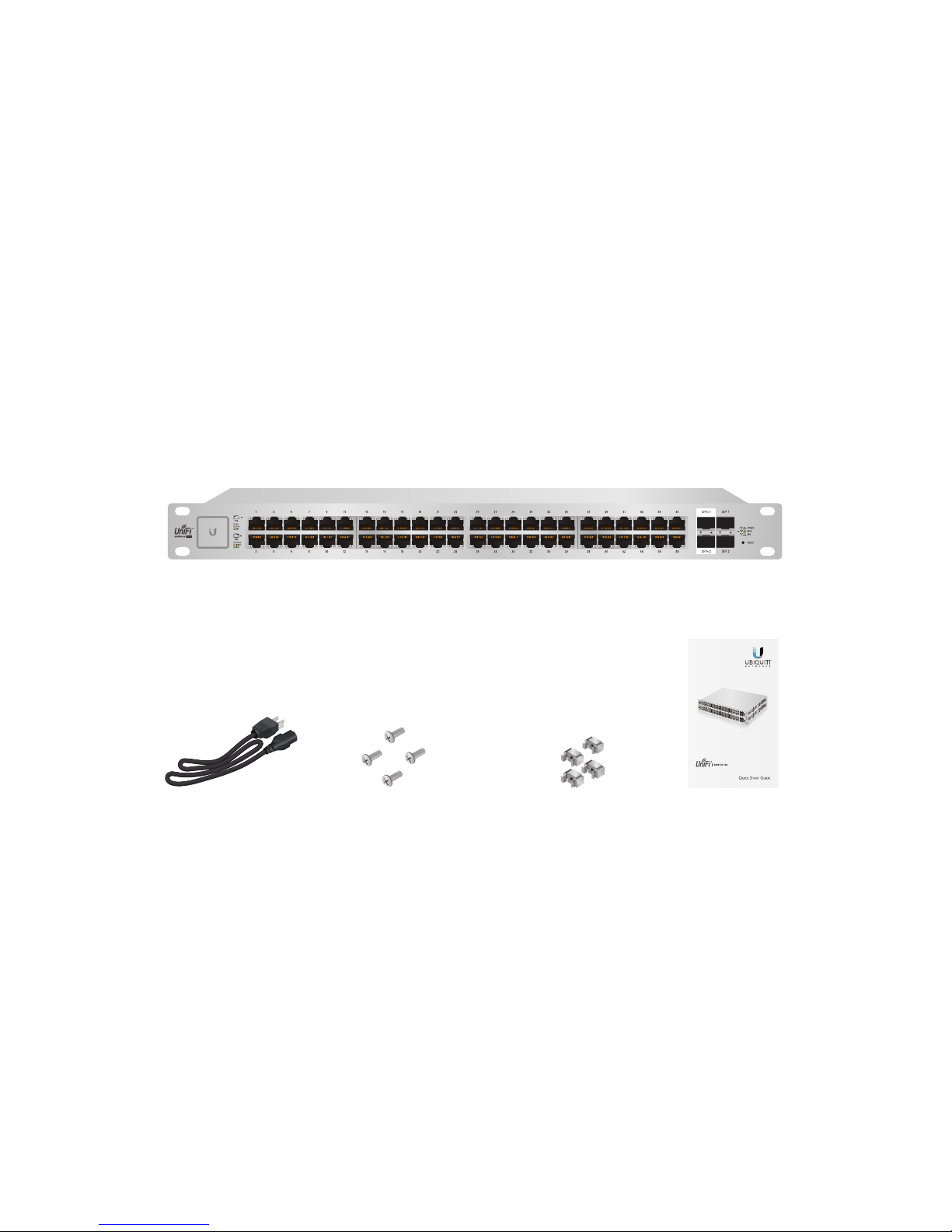

Package Contents

UniFi Switch

Managed PoE+ Gigabit

Switch with SFP+

Models: US-48-500W, US-48-750W

Power Cord Mounting Screws

(#10‑32 x 5/8", Qty. 4)

Cage Nuts

(#10‑32 x 5/8", Qty. 4)

Quick Start

Guide

System Requirements

• Linux, MacOSX, or Microsoft Windows 7/8

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft

Internet Explorer 8 (or above)

responsibility to follow local country regulations and indoor cabling requirements.

Network Topology Requirements

• A DHCP‑enabled network for the UniFi Switch to obtain an

IPaddress (connected devices will also obtain IP addresses

after deployment)

• A management station running the UniFi Controller

software, located either on‑site and connected to the same

Layer2 network, or off‑site in a cloud or NOC

UniFi Switch

UniFi

Security

Gateway

Internet

O-Site

Cloud/NOC

On-Site

Management

Station

UAP-AC UAP-PRO

LAN

WAN

NetworkHealth

www WAN LAN

WLAN

VOIP

www WAN LAN WLAN VOIP

DNS

GATEWAY

ACTIVECLIENTS

DOWN

SWITCHES

USERS

GUESTS

DOWN

APS

USERS

GUESTS

DOWN

PHONES

EXTENSION

CALLSIN

CALLSOUT

XXX.XXX.XXX.XXX

XXX.XXX.XXX.XXX 192

162

DASHBOARD

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

SETTINGS

CURRENTSITE

Default

REFRESHRATE

2minutes

NetworkHealth

www WAN LAN

WLAN

VOIP

www WAN LAN WLAN VOIP

DNS

GATEWAY

ACTIVECLIENTS

DOWN

SWITCHES

USERS

GUESTS

DOWN

APS

USERS

GUESTS

DOWN

PHONES

EXTENSION

CALLSIN

CALLSOUT

XXX.XXX.XXX.XXX

XXX.XXX.XXX.XXX 192

162

DASHBOARD

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

SETTINGS

CURRENTSITE

Default

REFRESHRATE

2minutes

UAP-Outdoor+

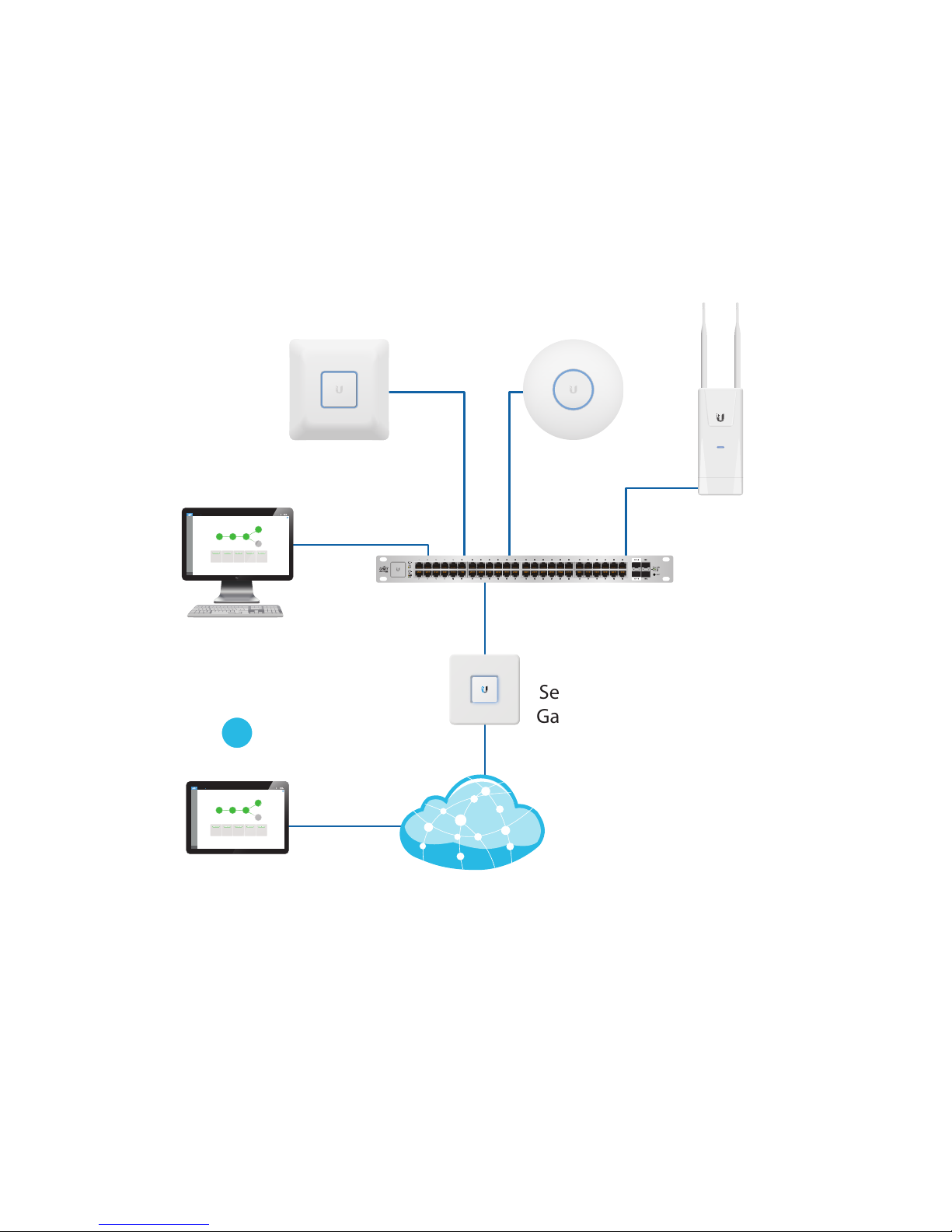

Sample Network Diagram

All UniFi devices support off‑site management controllers.

For setup details, refer to the User Guide on the website:

documentation.ubnt.com/unifi

Hardware Overview

Front Panel System LED

System

State Status

White Factory defaults, waiting for integration.

Flashing White Initializing.

Alternating

White/Blue

Device is busy; do not use or unplug it.

This usually indicates that a process such

as a firmware upgrade is taking place.

Blue Successfully integrated into a network

and working properly.

Flashing Blue

This is used to locate a device.

When you click Locate in the UniFi

Controller software, the System LED

will flash blue. The software will also

display the location of the UniFi Switch

on the map.

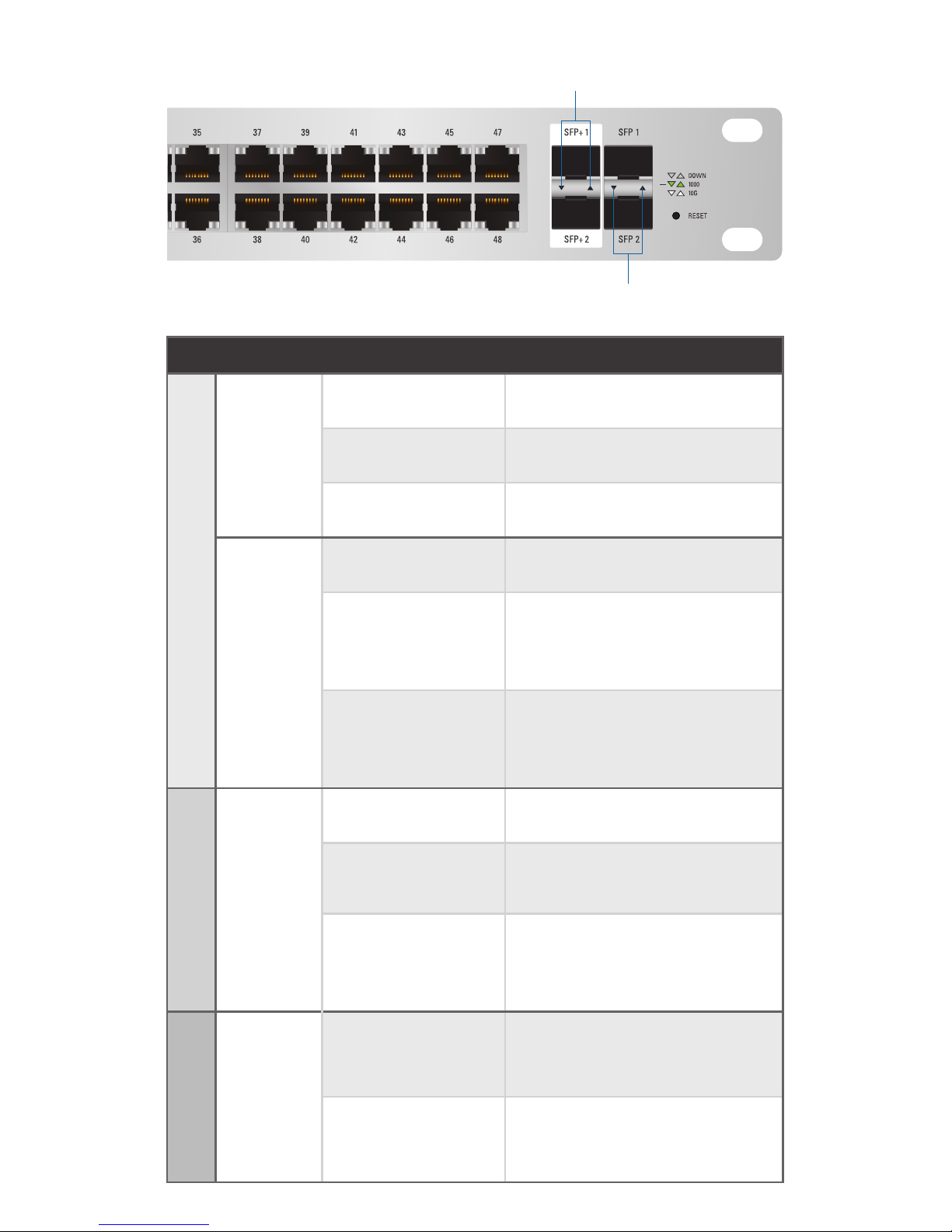

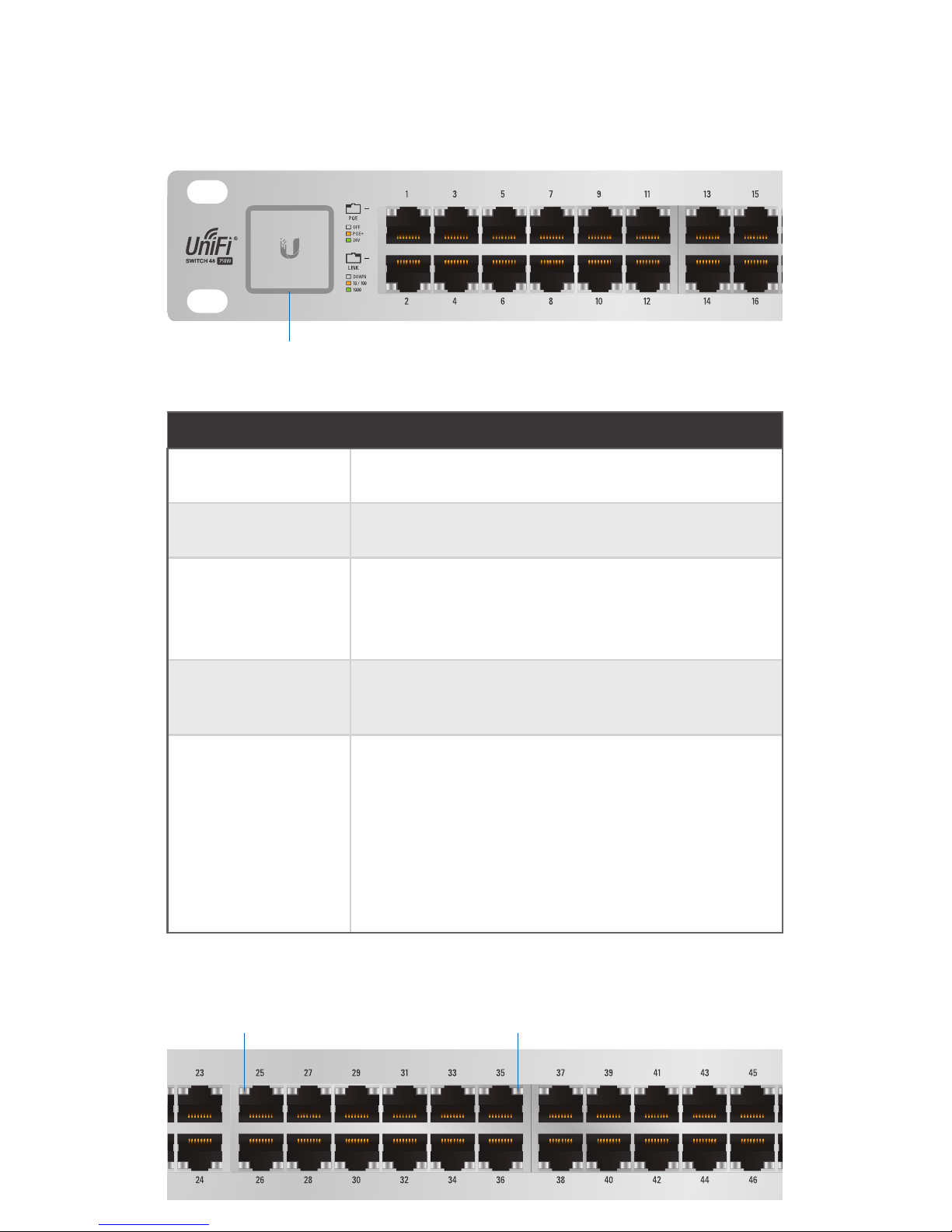

Front Panel Port LEDs

RJ45: PoE RJ45: Speed/Link/Act

SFP: Speed/Link/Act

SFP+: Speed/Link/Act

LED State Status

RJ45 1‑48

PoE

Off No PoE

Amber IEEE 802.3af/802.3at

Green 24V Passive

Speed/

Link/

Act

Off No Link

Amber

Link Established at

10/100Mbps

Flashing Indicates Activity

Green

Link Established at

1000Mbps

Flashing Indicates Activity

SFP+ 1‑2

Speed/

Link/

Act

Off No Link

Green Link Established at 1Gbps

Flashing Indicates Activity

White

Link Established at

10Gbps

Flashing Indicates Activity

SFP 1‑2

Speed/

Link/

Act

Off No Link

Green Link Established at 1Gbps

Flashing Indicates Activity

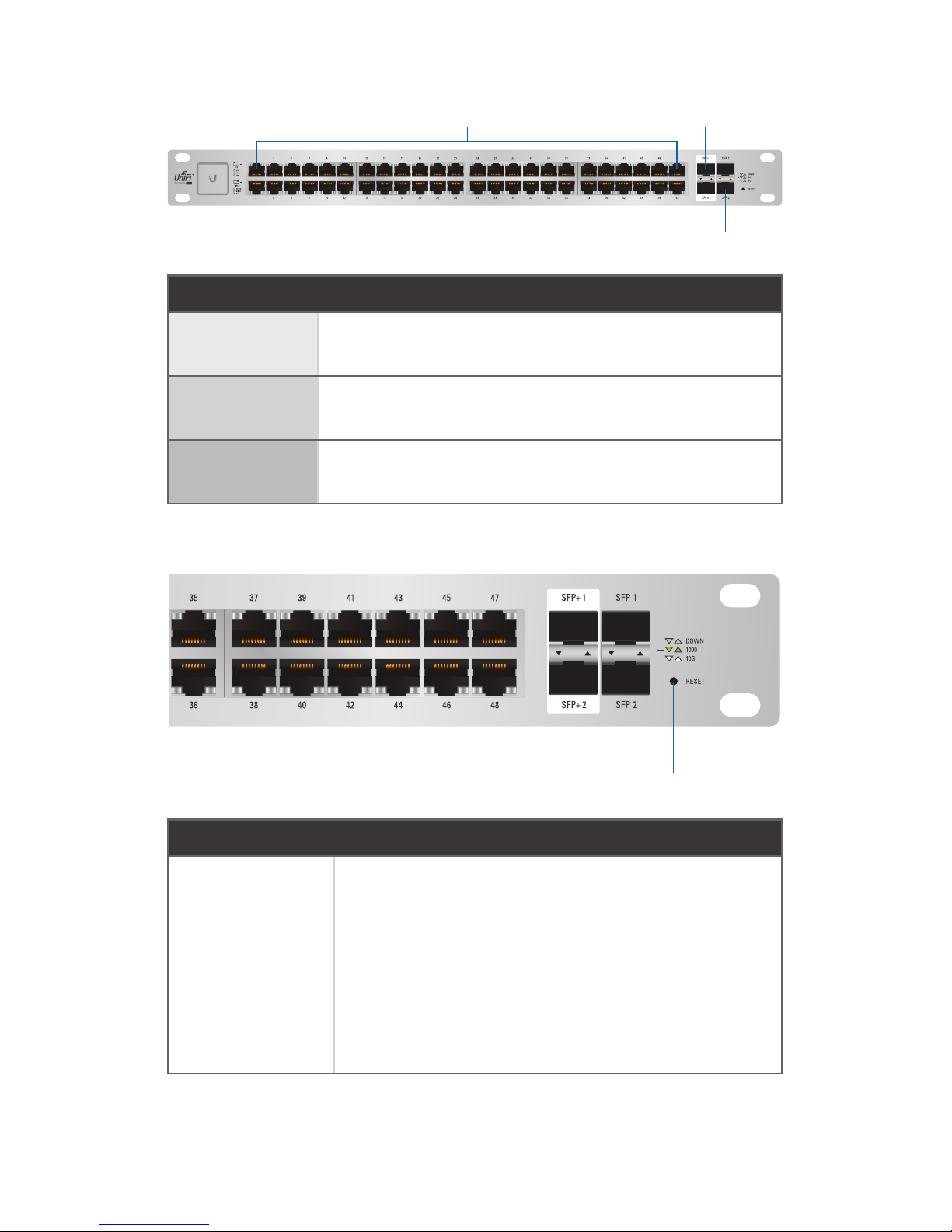

Front Panel Ports

RJ45 1-48

SFP 1-2

SFP+ 1-2

Port Description

RJ45 1‑48 RJ45 ports support Power over Ethernet (PoE)

and 10/100/1000 Ethernet connections.

SFP+ 1‑2 Hot‑swappable SFP+ ports support

1/10Gbps connections.

SFP 1‑2 Hot‑swappable SFP ports support 1 Gbps

connections.

Front Panel Button

Reset

Button Description

Reset

This button serves two functions for the

UniFi Switch:

• Restart Press and release the Reset

button quickly.

• Restore to Factory Default

Settings Press and hold the Reset button

for more than five seconds.

*640-00116-04*

640-00116-04

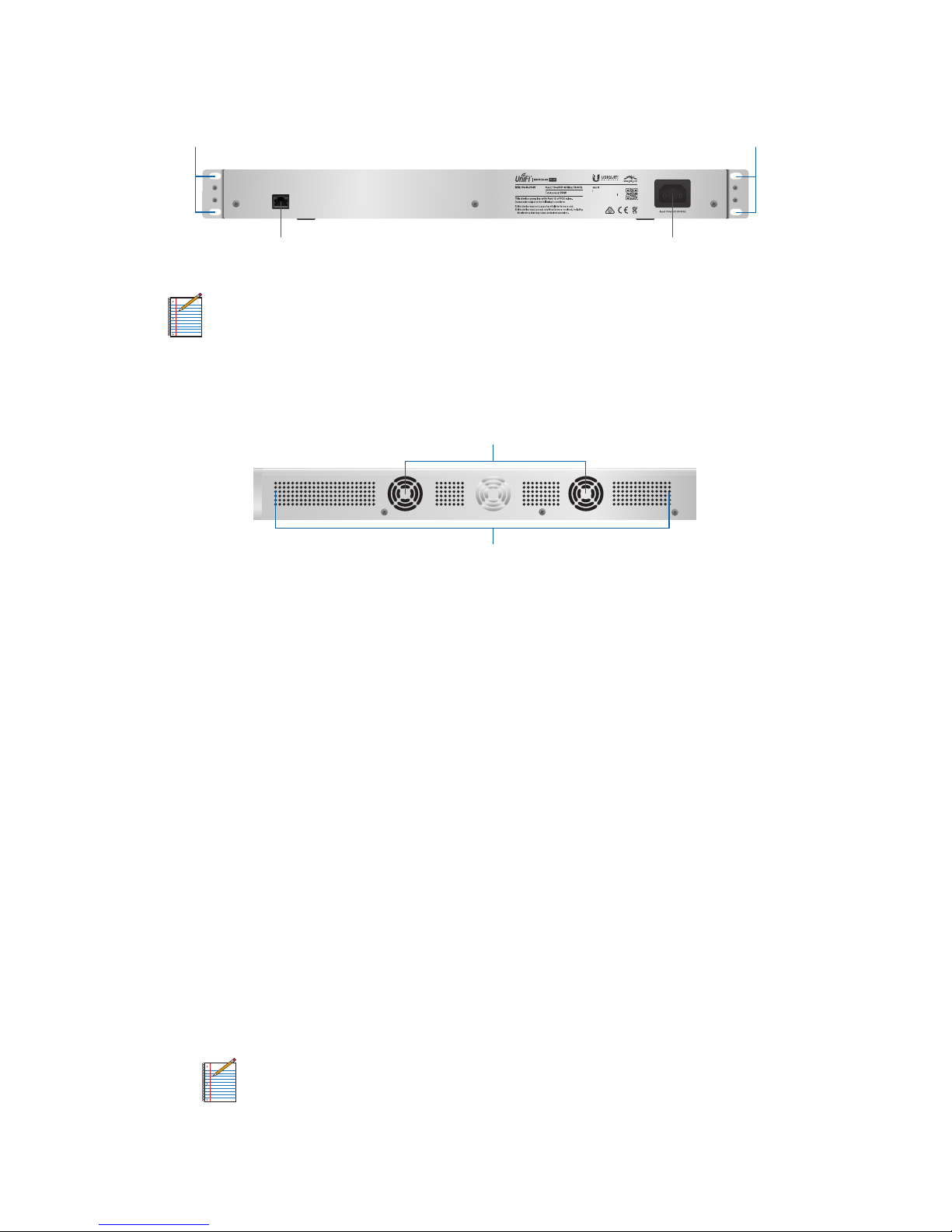

Back Panel

CONSOLE

Mounting Holes

Power

Mounting Holes

Console

Note: The Console port is reserved for future use.

Side Panels

Ventilation Holes

Fans

Installation Requirements

• Phillips screwdriver

• Standard‑sized, 19" wide rack with a minimum of 1U height

available

• For indoor applications, use Category 5 (or above) UTP

cabling approved for indoor use.

• For outdoor applications, shielded Category 5 (or above)

cabling should be used for all wired Ethernet connections

and should be grounded through the AC ground of the

power supply.

We recommend that you protect your outdoor networks

from the most brutal environments and devastating ESD

attacks with industrial‑grade shielded Ethernet cable,

TOUGHCable™, from Ubiquiti Networks. For more details,

visit: www.ubnt.com/toughcable

Note: Although the cabling can be located outdoors,

the UniFi Switch itself should be housed inside a

protective enclosure.

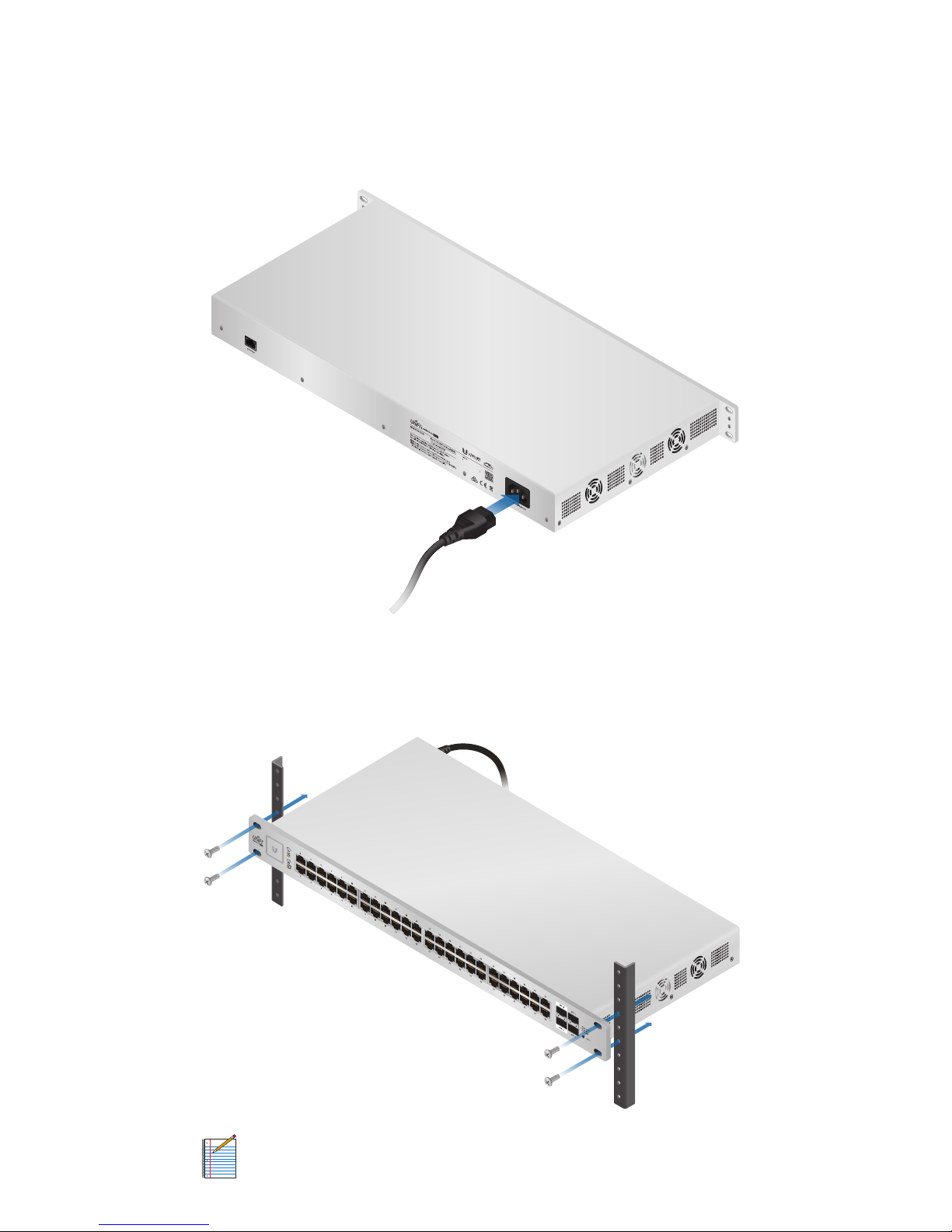

Hardware Installation

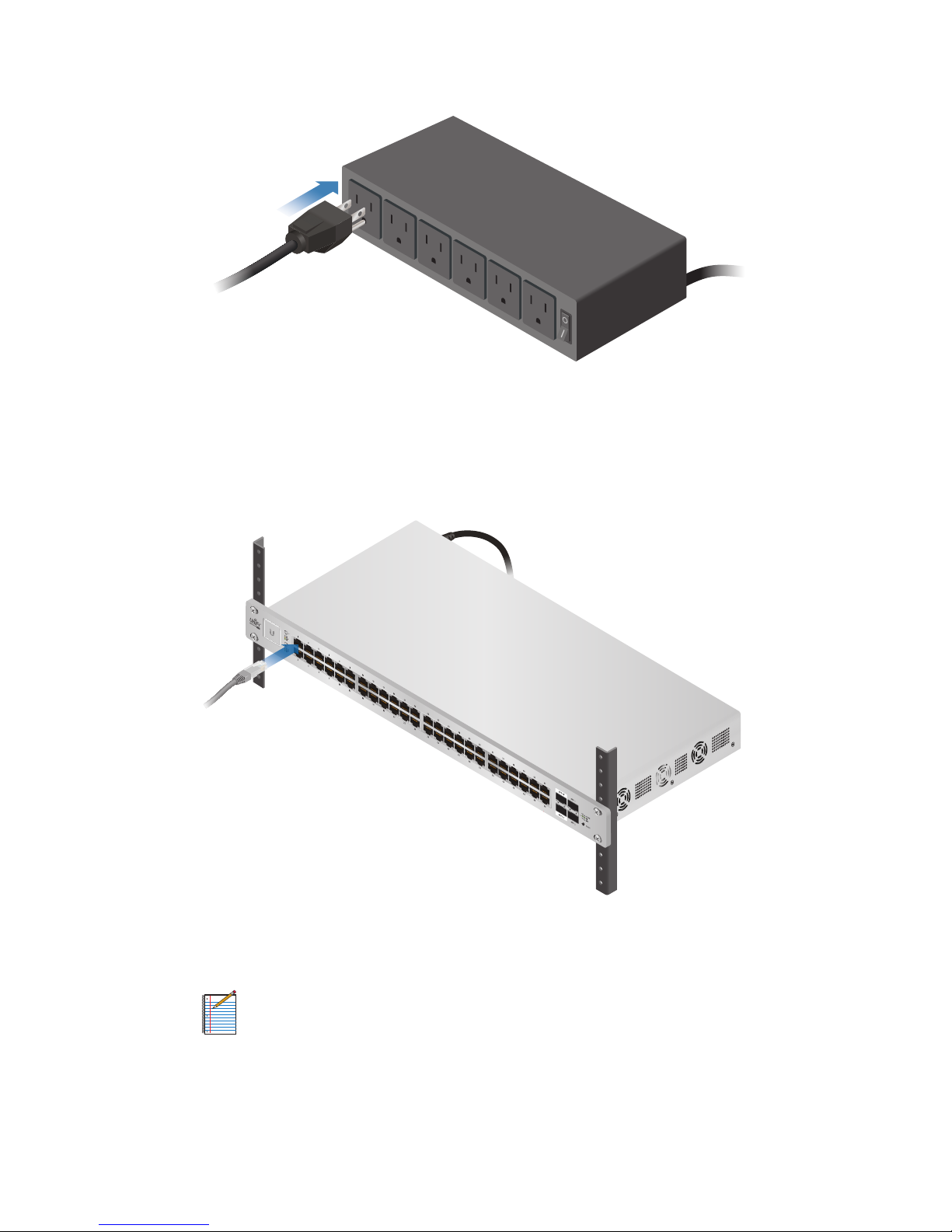

1. Connect the Power Cord to the Power port of the

UniFiSwitch.

2. Attach the UniFi Switch to the rack using the four Mounting

Screws. (If the rack has square slots, then use the Cage Nuts

with the Mounting Screws.)

Note: Keep 20 mm of clearance next to the

ventilation holes for adequate airflow.

3. Connect the other end of the Power Cord to a power outlet.

Connecting Ethernet

1. Connect an Ethernet cable from your computer or host

system to any port of UniFi Switch.

2. Connect Ethernet cables from the Ethernet ports of your

devices to the other numbered ports of the UniFi Switch.

Note: The PoE settings for ports 1-48 are set to

auto‑sensing PoE+ by default, so 802.3af/at devices

can be plugged in and automatically receive PoE. For

instructions on how to enable 24V passive PoE, refer

to the Configuring PoE Settings section.

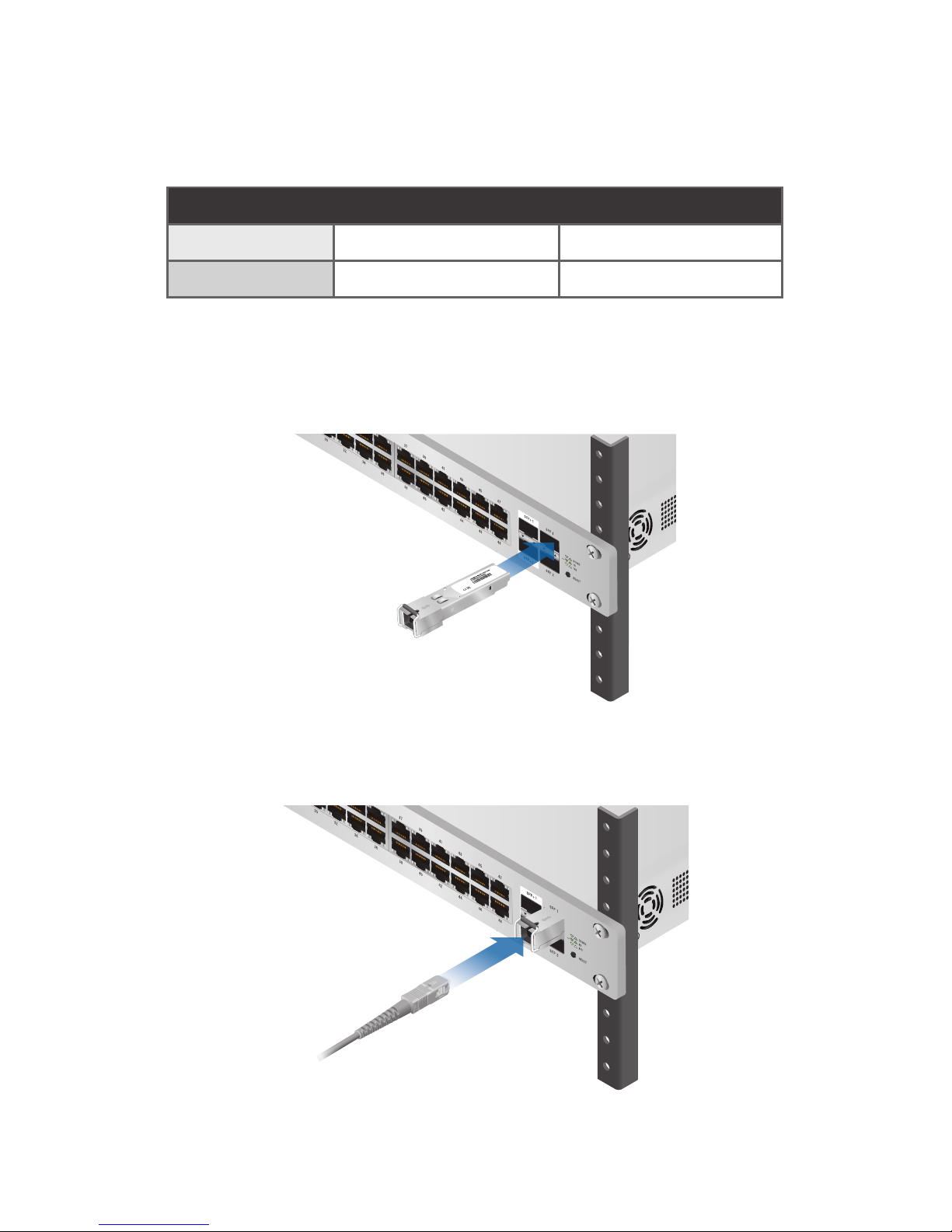

Using SFP+ and SFP Ports

These ports support the specified module types at the

following speeds:

Ports SFP+ Module Type SFP Module Type

SFP+ 1‑2 10 Gbps 1 Gbps

SFP 1‑2 (Not supported) 1 Gbps

To use an SFP+ or SFP port:

1. Remove the protective plug covering the SFP port.

2. Plug a compatible fiber module into the SFP port.

3. Connect a fiber optic cable to the fiber module. Then

connect the other end of the cable to another fiber device.

For information about compatible fiber SFP modules, visit:

community.ubnt.com/unifi
