Ubiquiti UniFi Cloud Key Manuel utilisateur

UniFiCloudKey EthernetCable microSDCard(8GB)

PackageContents

SystemRequirement

WebBrowser:GoogleChrome(Otherbrowsersmayhavelimitedfunctionality.)

HardwareOverview

UCCKQuickStartGuide

LED

ShutdownButton

EthernetPort

ResetButton

USBTypeCPowerPort

microSDSlot

White Factorydefaults.

FlashingWhite Initializing.

AlternatingWhite/Blue

Deviceisbusy;donottouchorunplugit.This

usuallyindicatesthataprocesssuchasa

firmwareupgradeistakingplace.

Blue Deviceisworkingproperly.

PresstheShutdownbuttontoinitiateagracefulshutdown(allserviceswillbe

shutdownandtheCPUwillremainactive).Afterpressingthebutton,waituntil

theLEDgoesoff,andthenunplugtheCloudKey.

ThisGigabitEthernetportisusedtoconnectthepowerandshouldbe

connectedtotheLANandDHCPserver.Powercanbeprovidedbyan802.3af

PoEswitch,suchastheUniFiPoESwitch.

TheResetButtonservestwofunctions:

RestartPressandreleasetheResetbuttonquickly.

RestoretoFactoryDefaultSettingsPressandholdtheResetbuttonfor

morethanfiveseconds.

Optionalpowersource(5V,minimum1A)ifPoEisnotavailable.

ThisslotisusedtobackuptheCloudKeyconfigurationtothemicroSDcard

(included).

HardwareInstallation

1.

2.

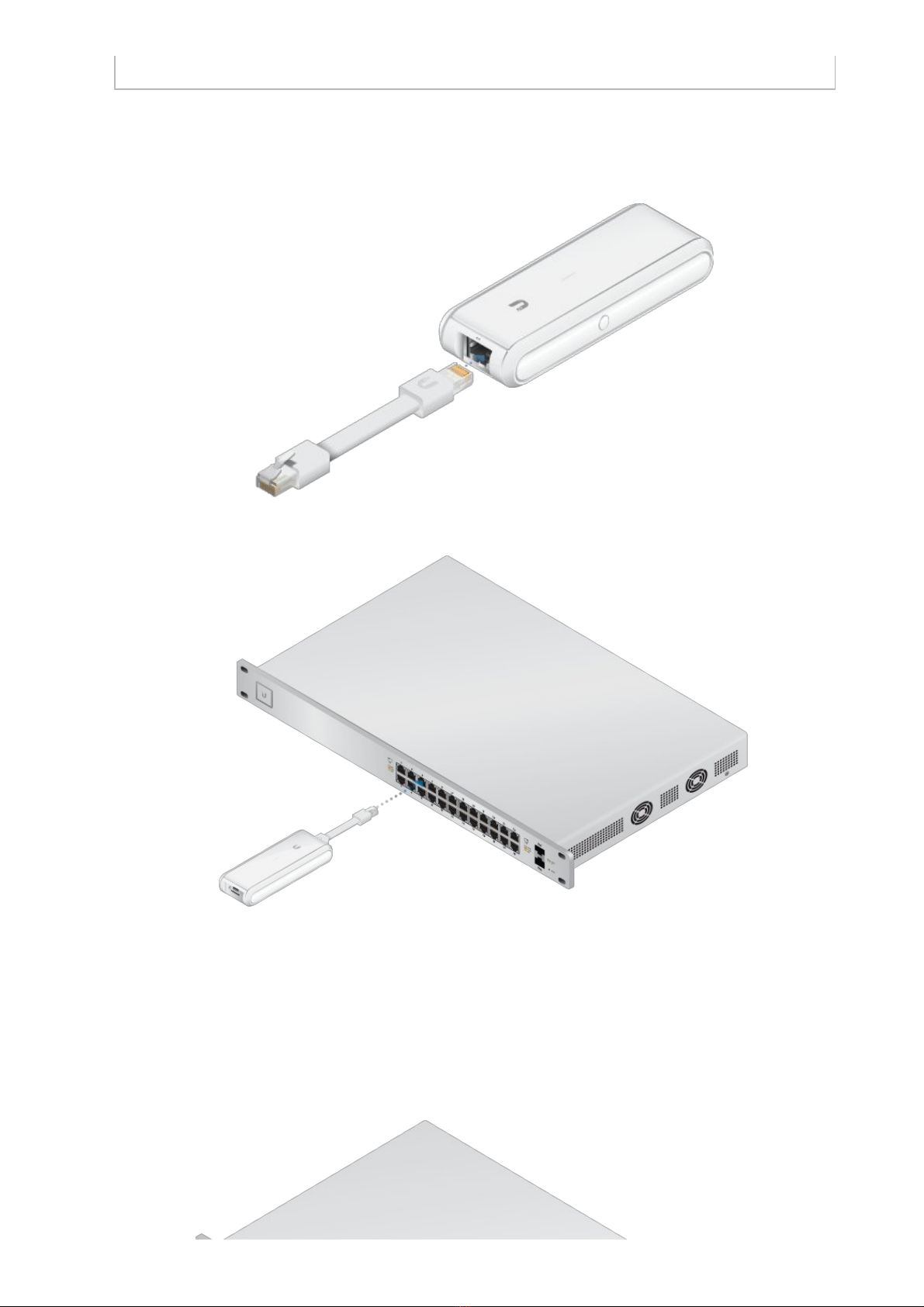

PoweringtheUniFiCloudKey

Usean802.3afcompliantswitch,suchasaUniFiSwitch,oraUSBpowersource

(notincluded).

UniFiSwitch

USBPowerSource

SoftwareInstallation

TheUniFiControllersoftwareispreinstalledontheUniFiCloudKey.Useoneof

thefollowingmethodstolaunchthesoftware:

IfyouareusingChrome,gototheChromeInstructionssection

(recommended).

Ifyouareusingadifferentwebbrowser,gototheInstructionsforOtherWeb

Browserssection.

ChromeInstructions

1.EnsurethatyourhostsystemisonthesameLayer2networkastheUniFi

CloudKey.

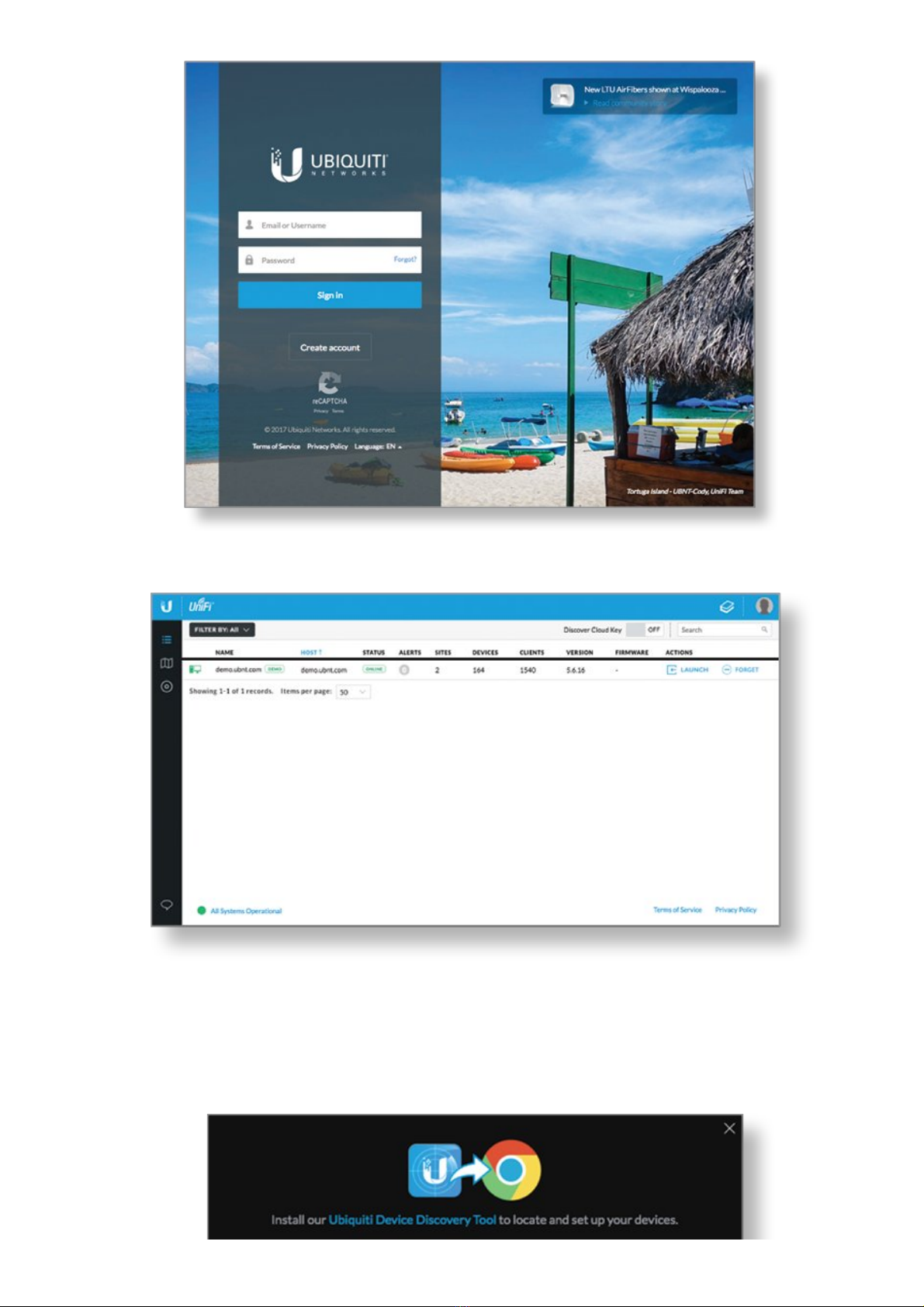

2.LaunchtheChromewebbrowserandtypehttps://unifi.ui.comintheaddress

field.Pressenter(PC)orreturn(Mac).

3.EntertheusernameandpasswordforyourUbiquitiaccount.ClickSignIn.

4.EnabletheDiscoverCloudKeyoptionatthetopright.

5.IftheUbiquitiDeviceDiscoveryToolisalreadyinstalled,proceedtostep7.

Ifthetoolisnotinstalled,youwillbepromptedtoaddit.Proceedtostep6.

6.Toinstallthetool:

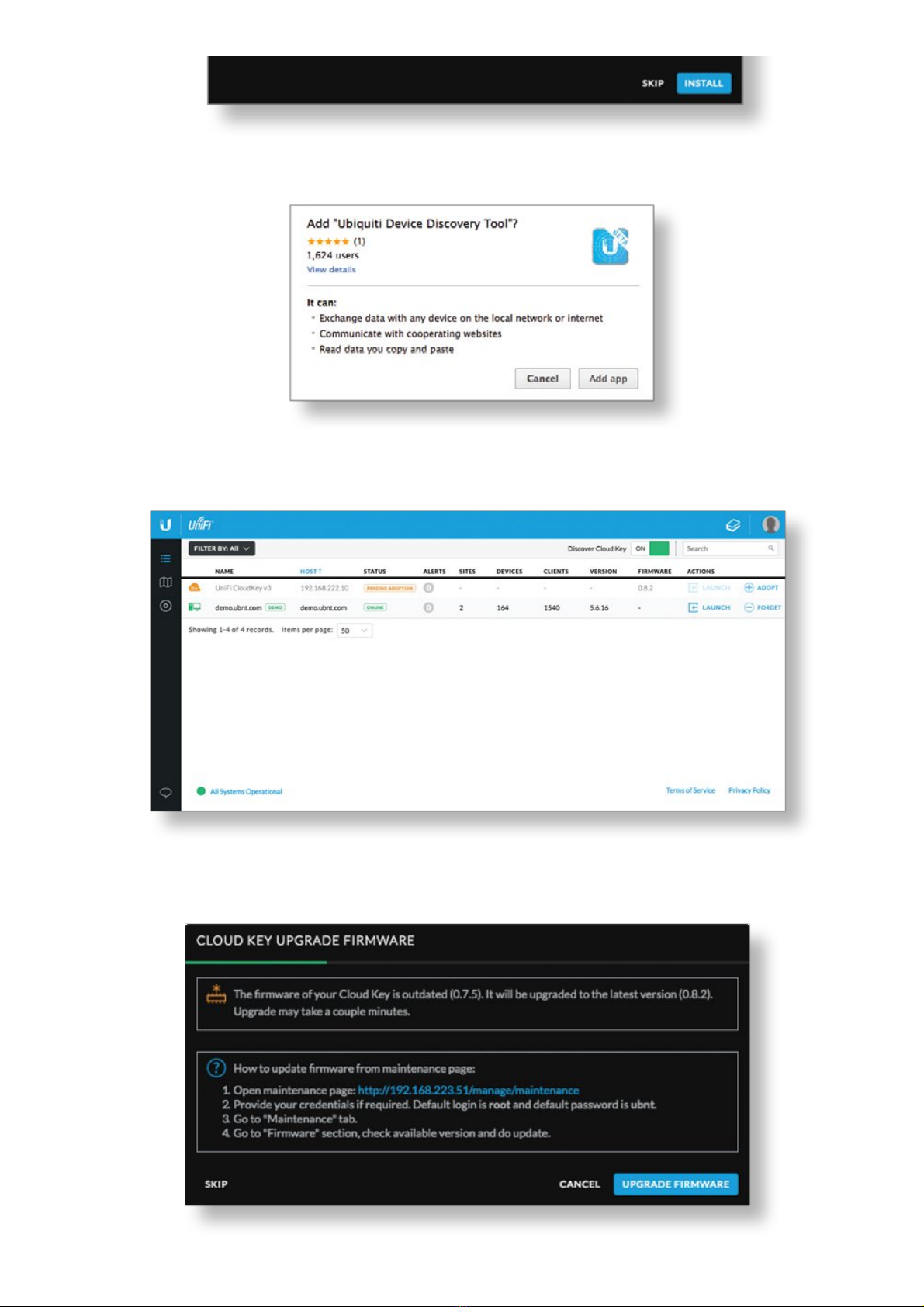

a.ClickInstall.

b.ClickAddapptoconfirm.

7.TheUbiquitiDeviceDiscoveryToolwillsearchfortheUniFiCloudKey.Click

AdoptintheCloudKey’sActionscolumntocontinue.

8.IftheCloudKeyfirmwareisnotthelatestversion,clickUpgradeFirmwareto

upgradethefirmware.

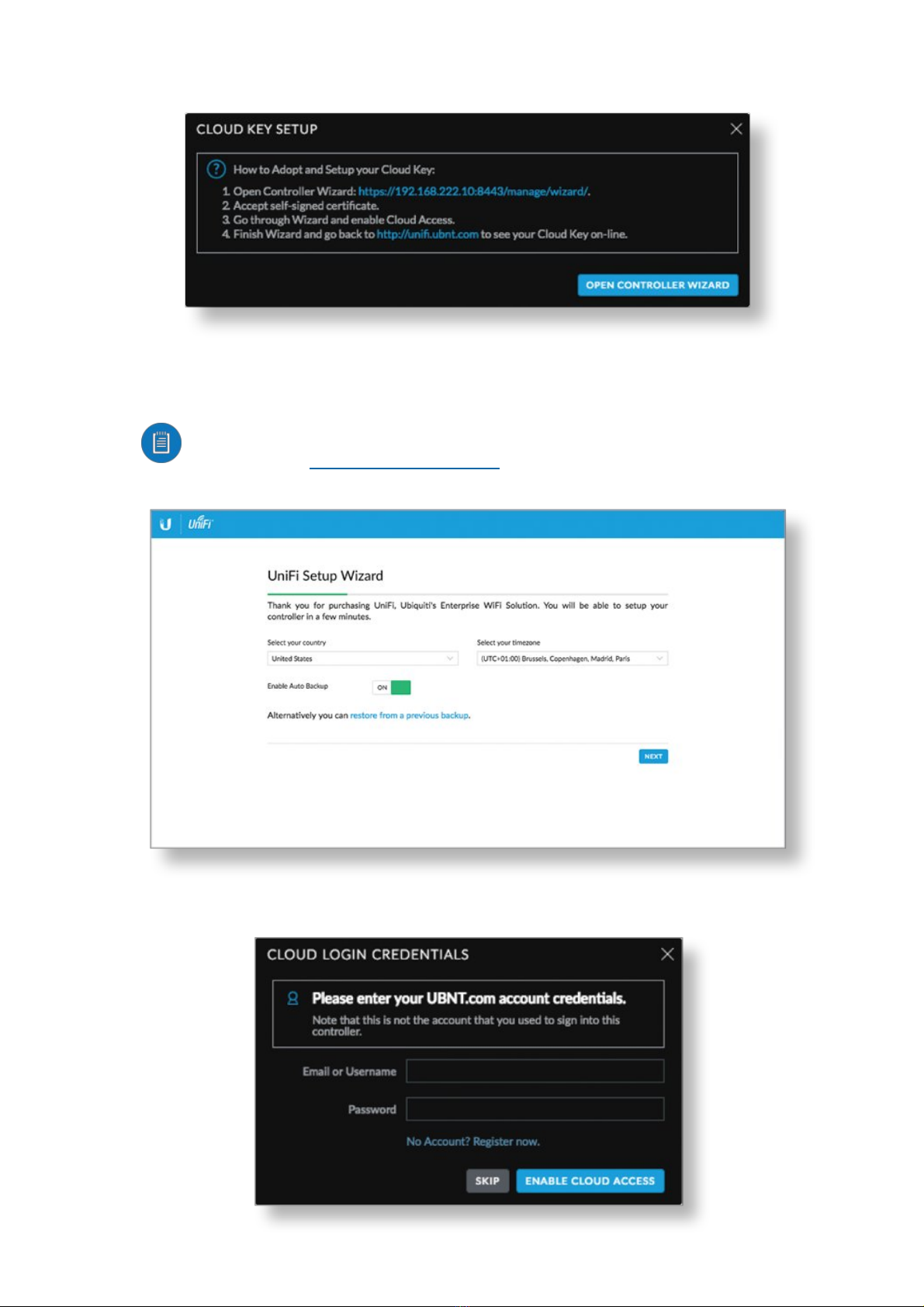

9.ClickOpenControllerWizardtosetuptheControllerontheCloudKey.

10.TheUniFiSetupWizardscreenappears.Followtheonscreeninstructions.

Then,clickFinishtosaveyourchanges.

11.Enteryourui.comaccountcredentialsandclickEnableCloudAccess.

Note:Forstepbystepinstructions,refertotheUserGuide,whichis

availableatui.com/download/unifi

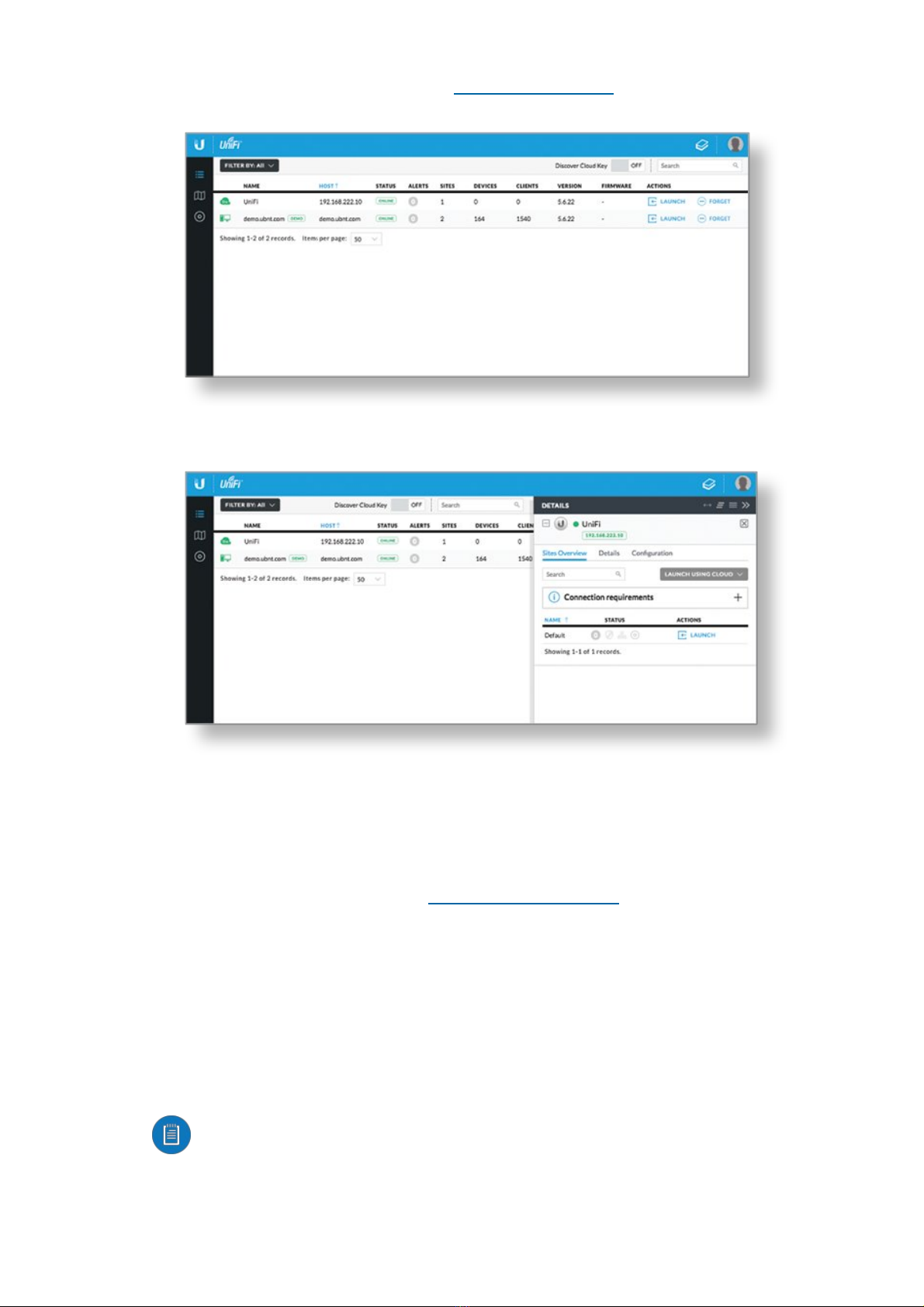

12.GobacktotheUniFiControllertab(https://unifi.ui.com)inyourbrowserand

waitfortheUniFiControllertobeadopted.

13.ClickLaunchtoopentheUniFiControllerremotely.

TheUniFiControllermanagementinterfacewillappear.Youcanmanageyour

UniFidevicesandviewnetworkstatisticsusingtheUniFiControllermanagement

interface.

ForinformationonconfiguringandusingtheUniFiControllersoftware,refertothe

UserGuidelocatedonourwebsite:ui.com/download/unifi

InstructionsforOtherWebBrowsers

1.EnsurethatyourhostsystemisonthesameLayer2networkastheUniFi

CloudKey.

2.TheUniFiCloudKeyissettoDHCPbydefault,soitwilltrytoautomatically

obtainanIPaddress.AssignaspecificIPaddresstotheUniFiCloudKey,or

checktheDHCPserverforitsIPaddress.

Note:ThedefaultfallbackIPaddressoftheUniFiCloudKeyis

192.168.1.30.

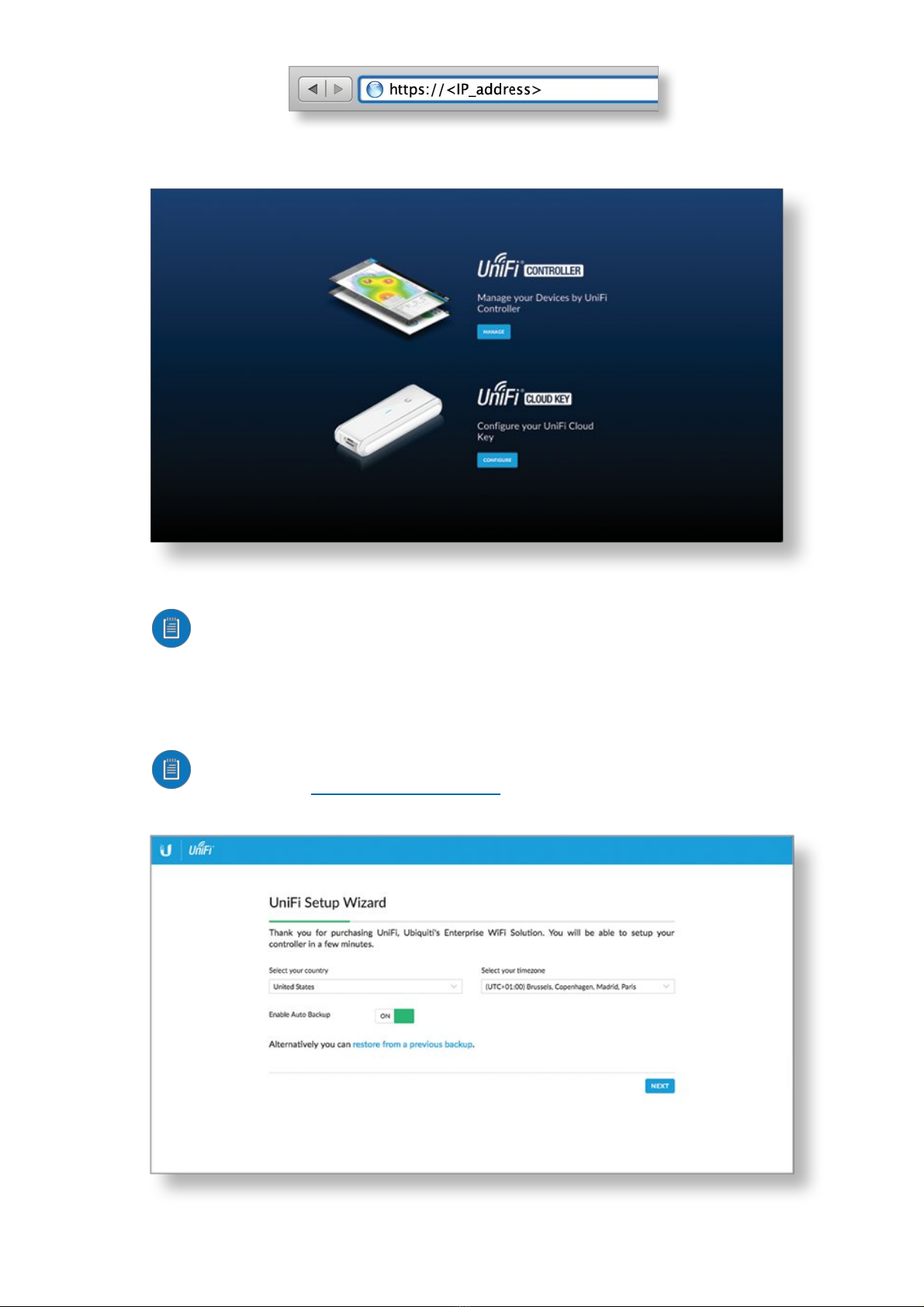

3.Launchthewebbrowser.Intheaddressfield,typehttps://followedbythe

appropriateIPaddress.Pressenter(PC)orreturn(Mac).

4.ClickManagetoruntheUniFiSetupWizard.

Note:YoucanclickConfiguretochangethesettingsoftheUniFiCloud

Key.Thedefaultloginisubnt/ubnt.

5.TheUniFiSetupWizardscreenappears.Followtheonscreeninstructions.

Then,clickFinishtosaveyourchanges.

Note:Forstepbystepinstructions,refertotheUserGuide,whichis

availableatui.com/download/unifi

AftertheUniFiSetupWizardisfinished,theUniFiControllermanagement

interfacewillappear.LoginwiththeAdminNameandPasswordthatyoucreated,

andthenyoucanmanageyourUniFidevicesandviewnetworkstatisticsusing

theUniFiControllermanagementinterface.

ForinformationonconfiguringandusingtheUniFiControllersoftware,refertothe

UserGuide.

Specifications

UCCK

Dimensions 21.7x43.4x121.9mm

(0.85x1.71x4.80")

Weight 110g(3.88oz)

NetworkingInterface (1)10/100/1000EthernetPort

Buttons (1)ResettoDefaults

Shutdown

PowerMethod

PoE 48V802.3afor

PassivePoE(Pairs4,5+;7,8)

USBC 5V

PowerSupply 802.3afPoEor

USBC5V,Minimum1A

Max.PowerConsumption 5W

OperatingTemperature 0to40°C

(32to104°F)

OperatingHumidity 20to90%Noncondensing

Certifications CE,FCC,IC

SafetyNotices

1.Read,follow,andkeeptheseinstructions.

2.Heedallwarnings.

3.Onlyuseattachments/accessoriesspecifiedbythemanufacturer.

WARNING:Donotusethisproductinlocationthatcanbesubmergedbywater.

WARNING:Avoidusingthisproductduringanelectricalstorm.Theremaybea

remoteriskofelectricshockfromlightning.

ElectricalSafetyInformation

1.Complianceisrequiredwithrespecttovoltage,frequency,andcurrentrequirements

indicatedonthemanufacturer’slabel.Connectiontoadifferentpowersourcethanthose
