Ubiquiti MFi mPort Manuel utilisateur

mFi Networked Machine

Interface and Monitor

Model: mPort

Introduction

Thank you for purchasing the Ubiquiti Networks™mFi™

mPort™. The mFi mPort is designed for use with the mFi

platform. Once connected, you can use the mFi Controller

software to monitor your devices and define automation

rules using your web browser.

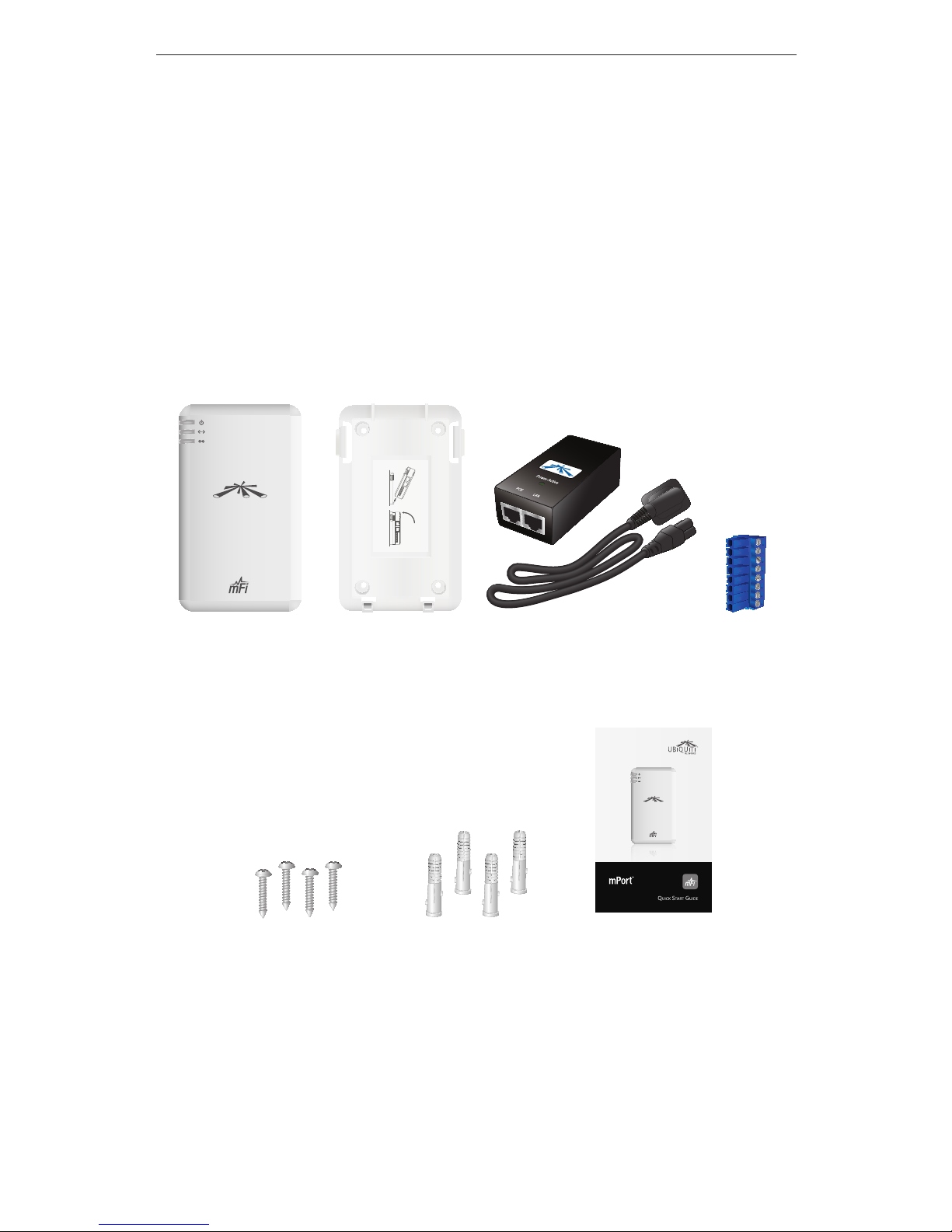

Package Contents

mPort Wall-Mount

Bracket

PoE Adapter and

Power Cord

Terminal

Block

(Male)

Networked Machine

Controller and Monitor

Model: mPort

Screws (Qty. 4) Anchors (Qty. 4) Quick Start Guide

Cloud Support

The mFi Controller software can be installed on a local

system or run from the cloud at mfi.ubnt.com. Using the

cloud allows you access from anywhere with an Internet

connection.

mFi™mPort™

System Requirements

• Microsoft Windows XP, Windows Vista, Windows 7,

Windows 8, or Mac OS X

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Google Chrome, or

Microsoft Internet Explorer 8 (or above)

Hardware Overview

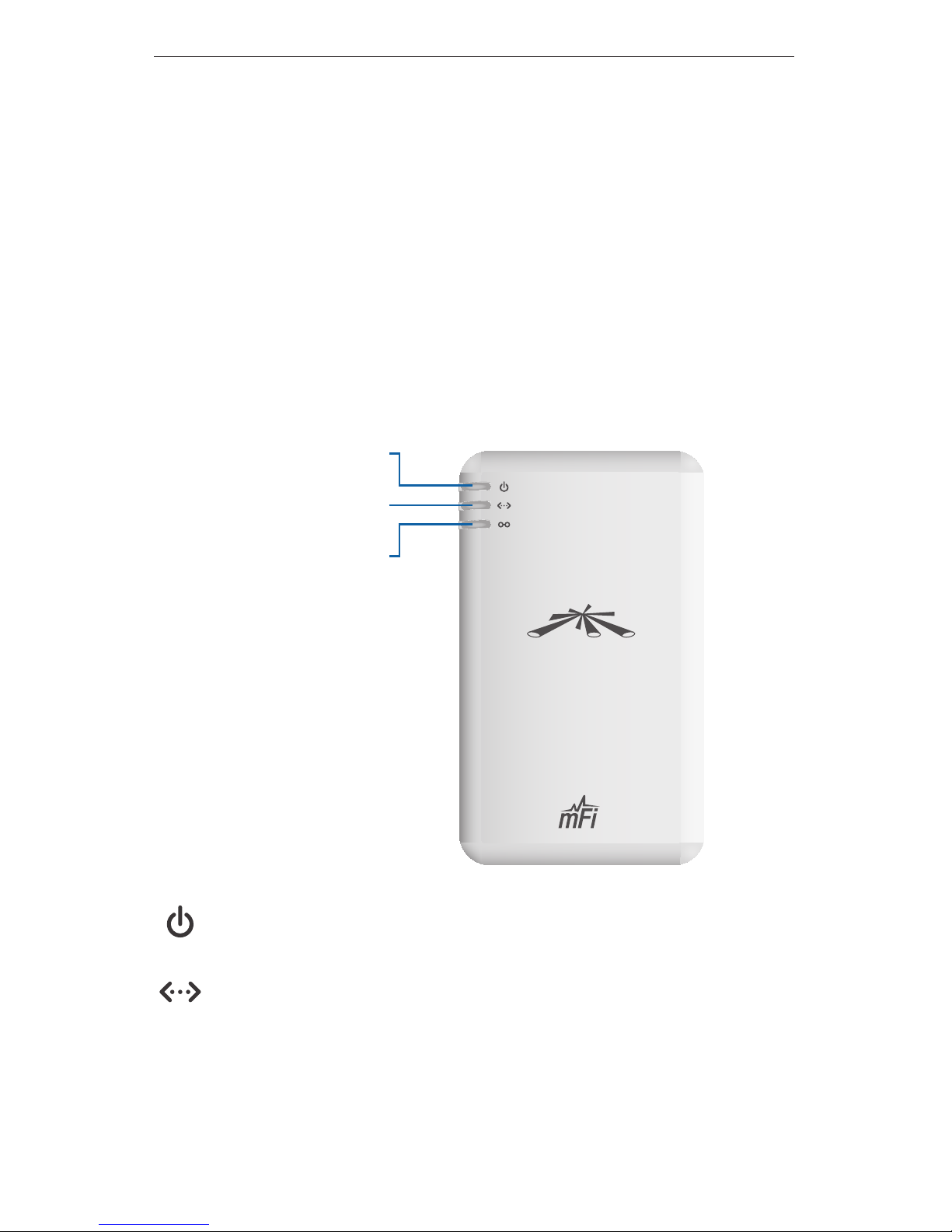

Front View

Power LED

Ethernet LED

Status LED

Power The Power LED will light steady green when

the mPort is properly connected to a power source.

Ethernet The Ethernet LED will light steady green

when an active Ethernet connection is made and

flash when there is activity.

Hardware Overview

Status The Status LED will light yellow when the

mPort is first powered on in factory default mode

out of the box. The Status LED will light steady green

when the mPort has been successfully integrated

into a network and is working properly. The Status

LED will flash when the Locate button is used in the

mFi Controller software.

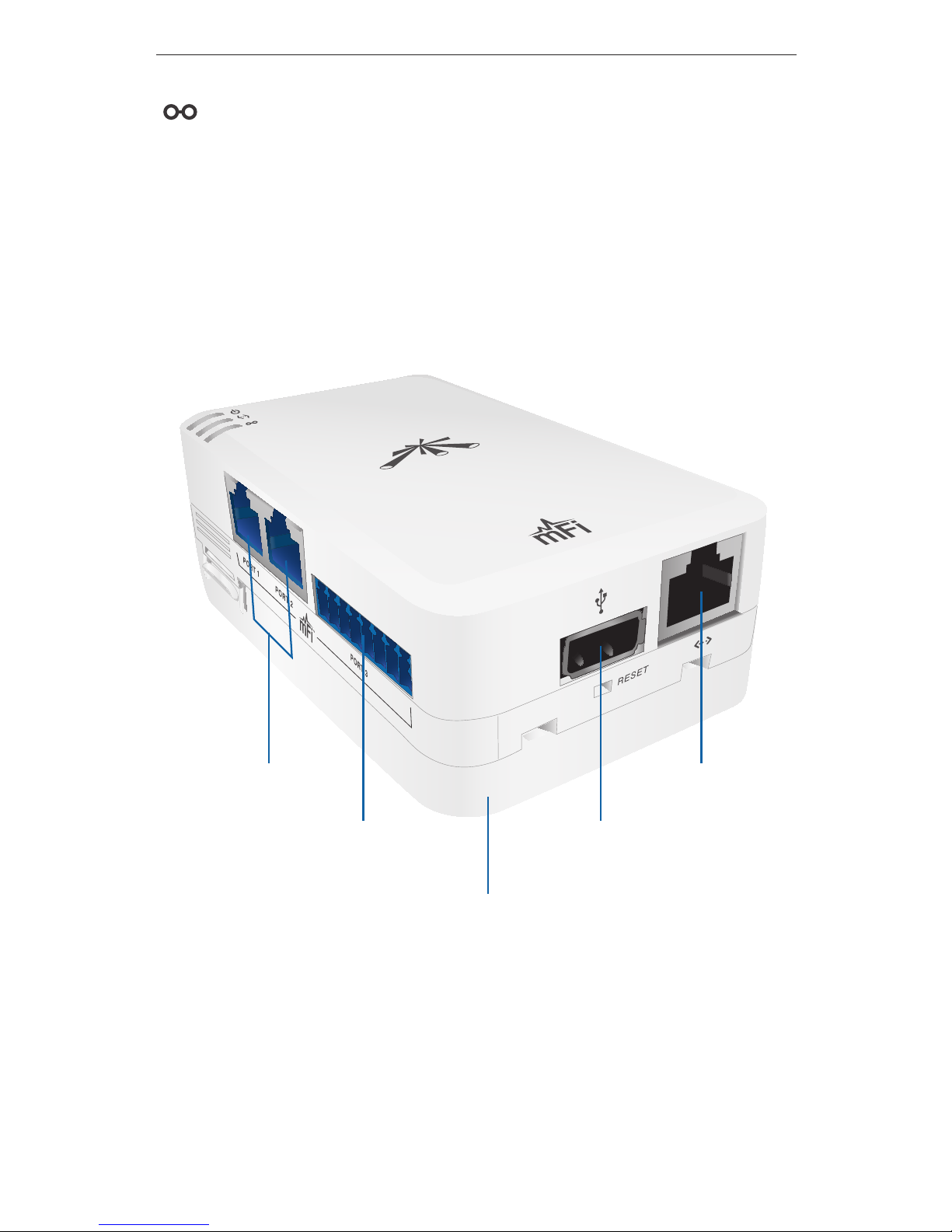

Side View

mFi RJ45 Ports

mFi Terminal

Block Port

USB

Port*

Ethernet Port

Wall-Mount

Bracket

* The USB Port is reserved for future use.

mFi™mPort™

Hardware Installation

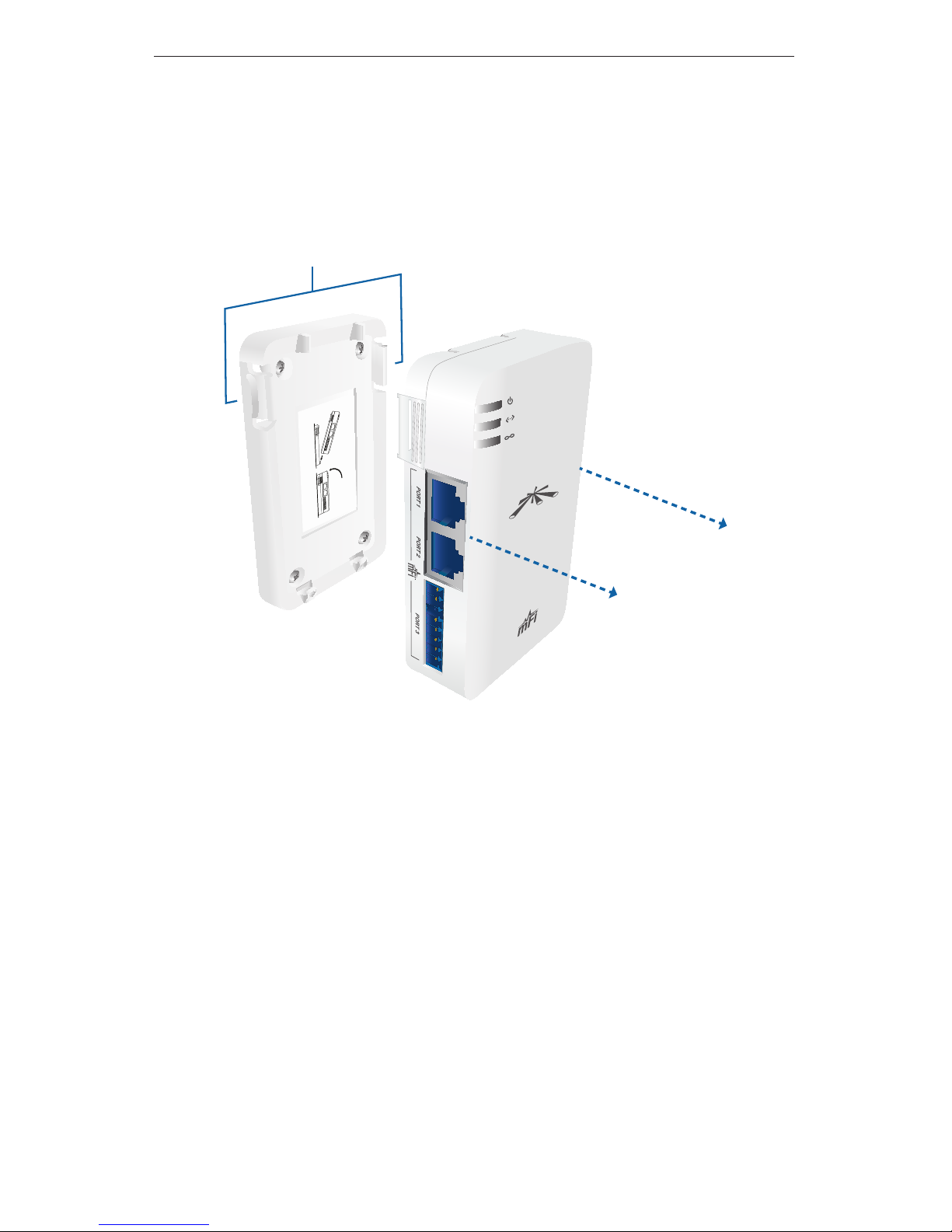

Remove the Wall-Mount Bracket from the mPort by

pressing the Release Tabs.

Release Tabs

Hardware Installation

Wall-Mount (Optional)

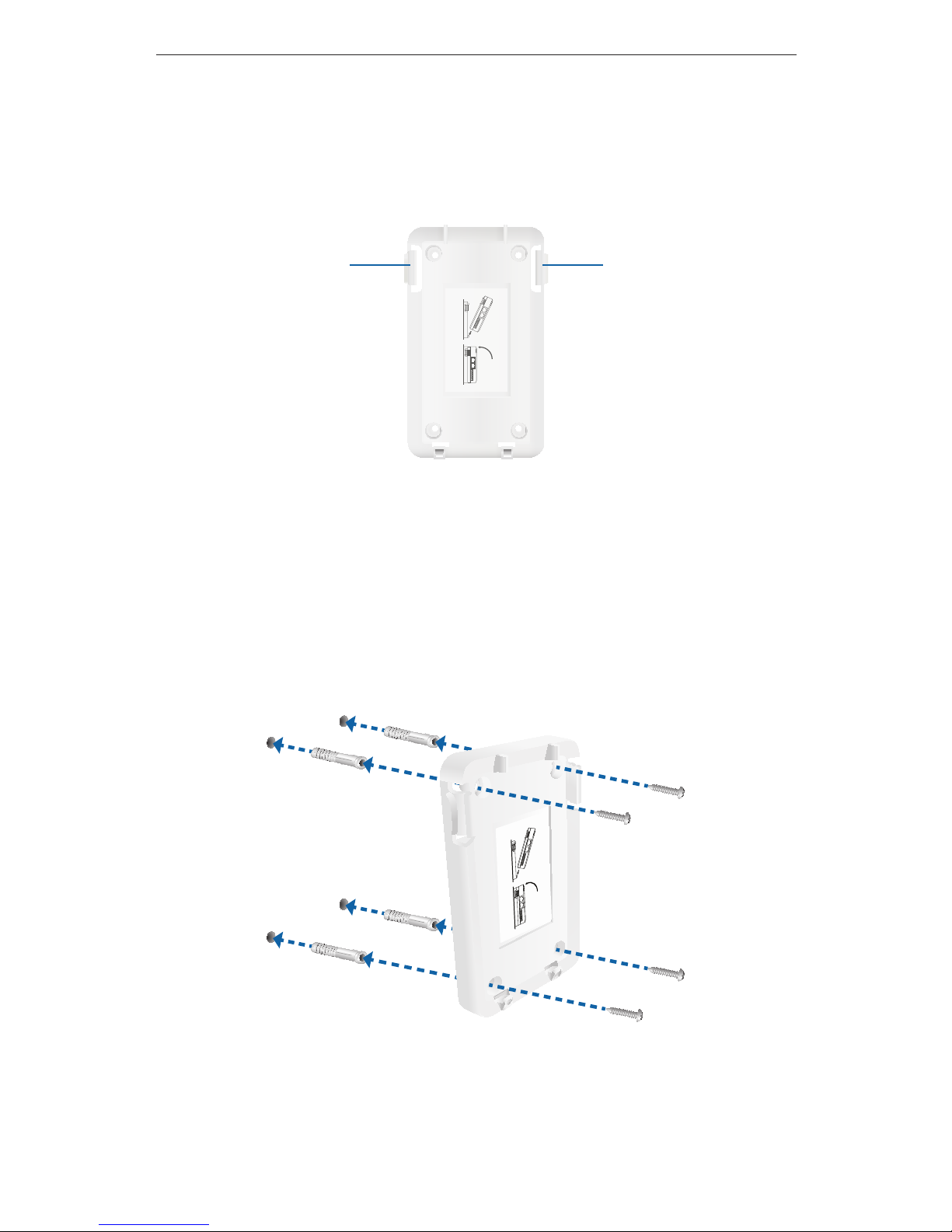

1. Position the Wall-Mount Bracket with the Release Tabs

on top.

Release Tab Release Tab

2. To secure the Wall-Mount Bracket to the wall:

a. Use a pencil to mark the holes on the wall.

b. Use a 6 mm drill bit to drill the holes in the wall.

c. Insert the four Anchors into the wall.

d. Insert the Screws into the anchors.

mFi™mPort™

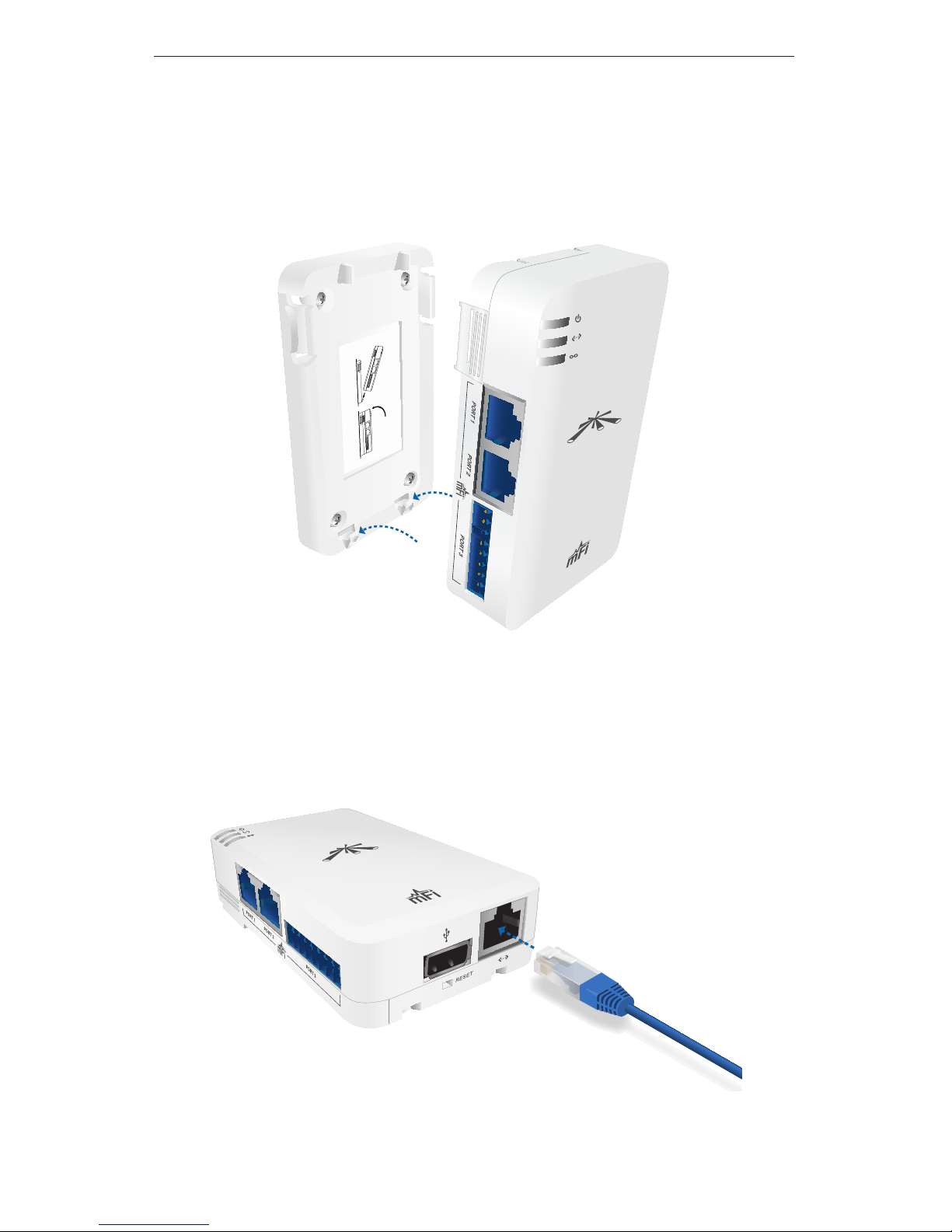

3. Angle the mPort so that the notches on the bottom

of the Wall-Mount Bracket are inserted into the mPort.

Then press the mPort into the Release Tabs and snap

it into place.

Connecting Ethernet

1. Connect an Ethernet cable to the Ethernet port on the

mPort.

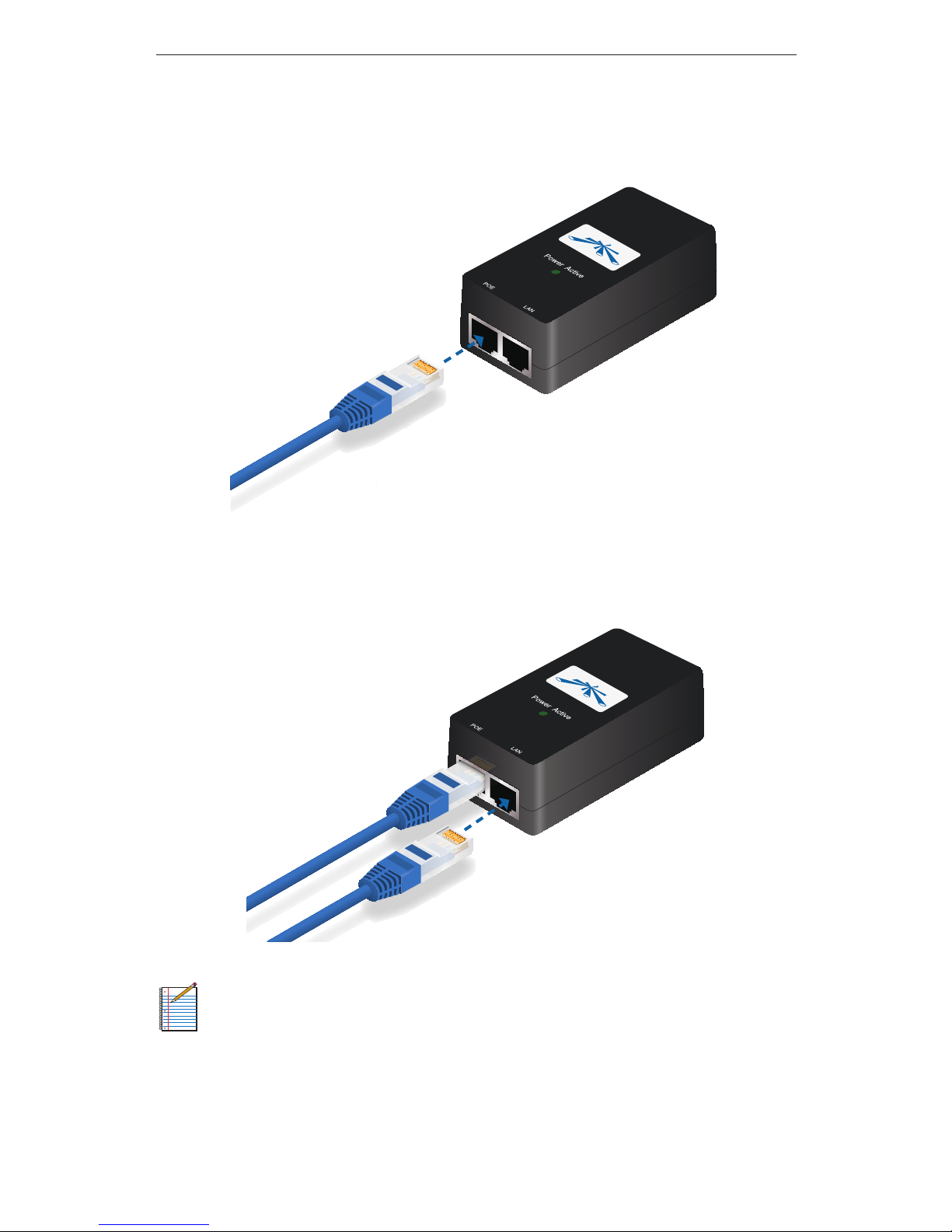

Connecting Ethernet

2. Connect the other end of the Ethernet cable to the

Ethernet port labeled POE on the PoE Adapter.

3. Connect an Ethernet cable from your LAN to the

Ethernet port labeled LAN on the PoE Adapter.

Note: Wi-Fi settings for the mPort can be configured

via LAN or by connecting an Ethernet cable

directly from your computer to the LAN port on

the PoE Adapter. For details, refer to Accessing the

Configuration Portal on page 15.

mFi™mPort™

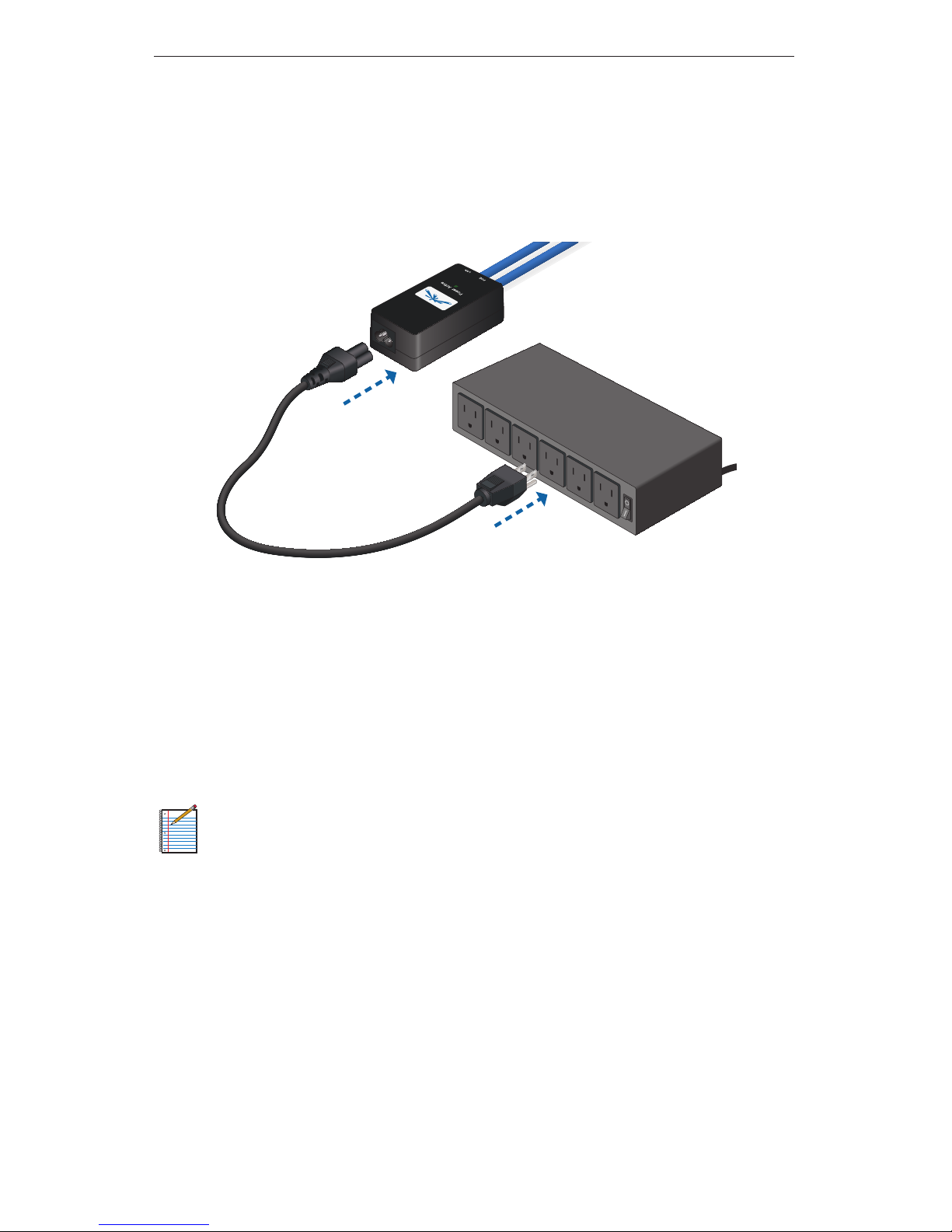

4. Connect the power cord to the power port on the PoE

Adapter. Connect the other end of the power cord to

a power outlet. The Power LED should light up on the

mPort.

Software Download and Installation

For local mFi Controller installations, the mFi Controller

software is installed just once when you initially create a

mFi network. It is not necessary to go through the software

installation process every time you add another mFi device.

Note: If you are using the cloud, there is no need to

install the mFi Controller software locally. Skip to

Accessing the Configuration Portal on page 15.

The mFi Controller software can be downloaded from the

Ubiquiti Networks website.

1. Go to downloads.ubnt.com/mfi

2. Mac users should download mFi.dmg and Windows

users should download mFi-installer.exe.

3. Follow the instructions for your computer type.
