Ubiquiti UFiber OLT 4 Manuel utilisateur

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

1/15

UFiber OLT-4 SC/UPC GPON SFP

Transceiver (UF‑GP‑B+)

Mounting Brackets (Qty. 2)

Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4)

Power Cord Rubber Feet (Qty. 4)

Package Contents

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Web Browser: Google Chrome (Other browsers may have limited functionality)

Installation Requirements

UF-OLT-4 Quick Start Guide

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

2/15

System LED

PON LED (Ports 1 - 4)

Phillips screwdriver (for rack- or wall-mounting)

Standard-sized, 19" wide rack with a minimum of 1U height available (for rack-

mounting)

Compatible PON SFP and SFP+ transceivers with appropriate fiber optic cabling

and accessories. For information about compatible fiber transceivers, visit:

ubnt.link/UFiber-OLT-Modules

Before You Begin

Designing your first GPON deployment requires specific knowledge and planning.

For information on GPON network design and installation, including important

considerations and best practices, refer to:

ubnt.link/UFiber-GPON-Getting-Started

ubnt.link/Designing-a-GPON-Network

For details on configuring UFiber devices for the first time to allow ONU LAN ports to

provide connectivity, refer to: ubnt.link/UFiber-Initial-Configuration

Hardware Overview

Blue/Flashing Initializing/Booting Up

White Ready for Use

UF-OLT-4 Quick Start Guide

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

3/15

SFP+ LED (Port 1)

MGMT LED

GPON (Ports (PON 1- 4)

SFP+ (Port 1)

MGMT Port

Console Port

Off No Link

White/Flashing GPON Link/Activity

Off No Link

Green/Flashing 1G Link/Activity

White/Flashing 10G Link/Activity

Off No Link

Amber/Flashing 10/100 Link/Activity

Green/Flashing 1000 Link/Activity

Gigabit Passive Optical Network ports support up to 128 clients on each port.

Hot-swappable SFP+ port supports 1G or 10G connections.

10/100/1000 Ethernet port used for out‑of‑band management. For firmware

version 4.1 and newer, it is set to DHCP Client with the fallback IP address,

192.168.1.20/24.

Note: Previous firmware versions default to a static IP: 192.168.1.1.

RJ45 serial console port for Command Line Interface (CLI) management. Use an

RJ45-to-DB9, serial console cable, also known as a rollover cable, to connect the

Console port to your computer. (If your computer does not have a DB9 port, then

you will also need a DB9 adapter.) Then configure the following settings as

needed:

Baud rate 57600

UF-OLT-4 Quick Start Guide

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

4/15

USB Port

Reset Button

DC Power Jack

Power

Data bits 8

Parity NONE

Stop bits 1

Flow control NONE

Reserved for future use.

There are two methods to reset the device to factory defaults:

Runtime reset (recommended) The device should be running after bootup is

complete. Press and hold the Reset button for about 10 seconds until the

MGMT LED starts flashing and then becomes solidly lit. After a few seconds,

the LED will turn off, and the device will automatically reboot.

Note: To press the Reset button, insert a straightened paper clip (or

similar object) into the hole shown above. Do not use an object that

can break and become lodged in the hole.

Power-on reset Disconnect power from the device. Press and hold the Reset

button while connecting power to the device. Keep holding the button until the

MGMT LED starts flashing and then stops flashing after a few seconds.

The 24VDC input can connect a redundant or stand-alone DC power source (not

included) with minimum power: 56W, 25 to 16V, and 2.5 mm DC power inline

connector.

Note: You can use the redundant DC power source as a hot spare; if the

internal AC/DC power supply no longer provides power, then the device

will switch to the DC power source without interrupting its operation.

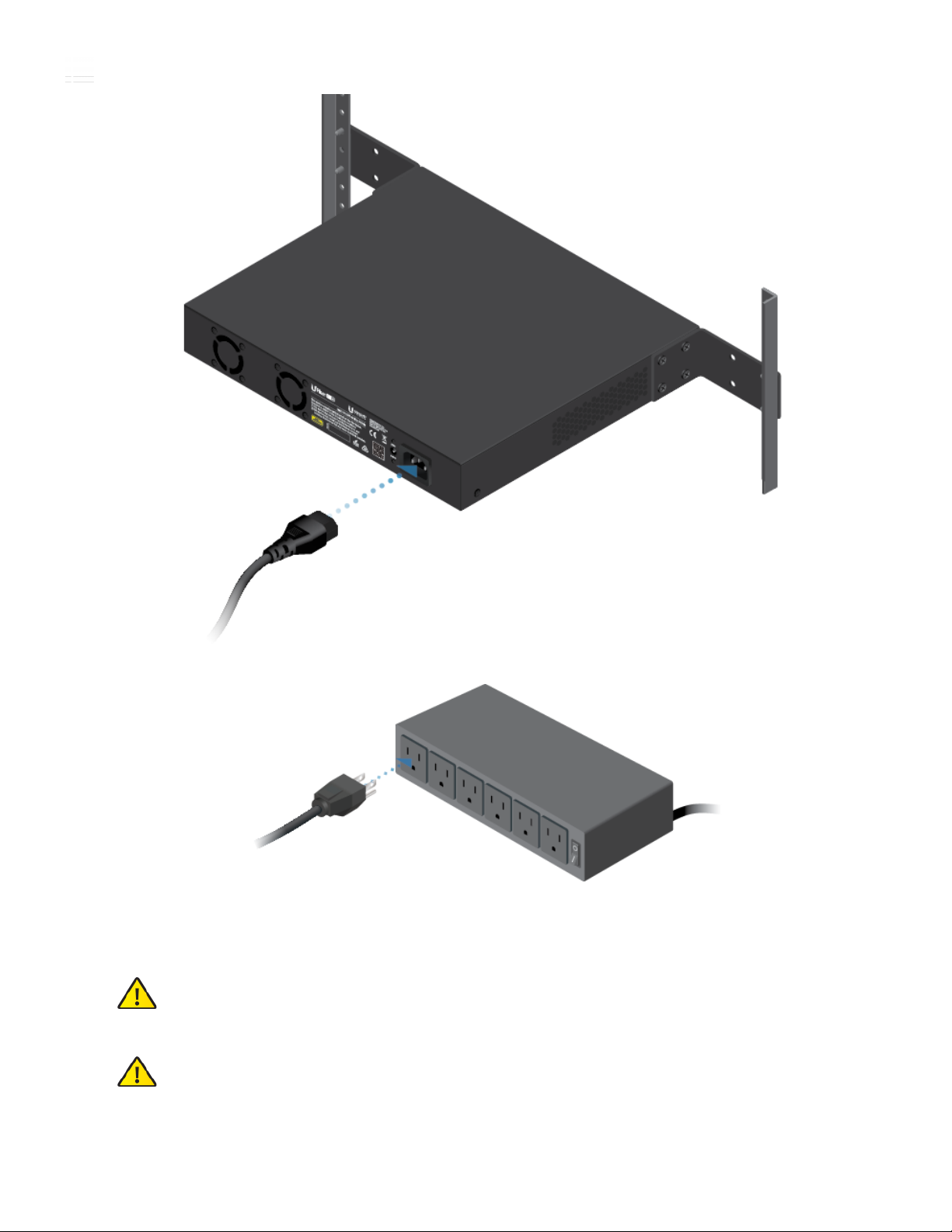

Connect the included Power Cord to the Power port.

Hardware Installation

Mounting

UF-OLT-4 Quick Start Guide

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

5/15

UF-OLT-4 Quick Start Guide

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

6/15

UF-OLT-4 Quick Start Guide

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

7/15

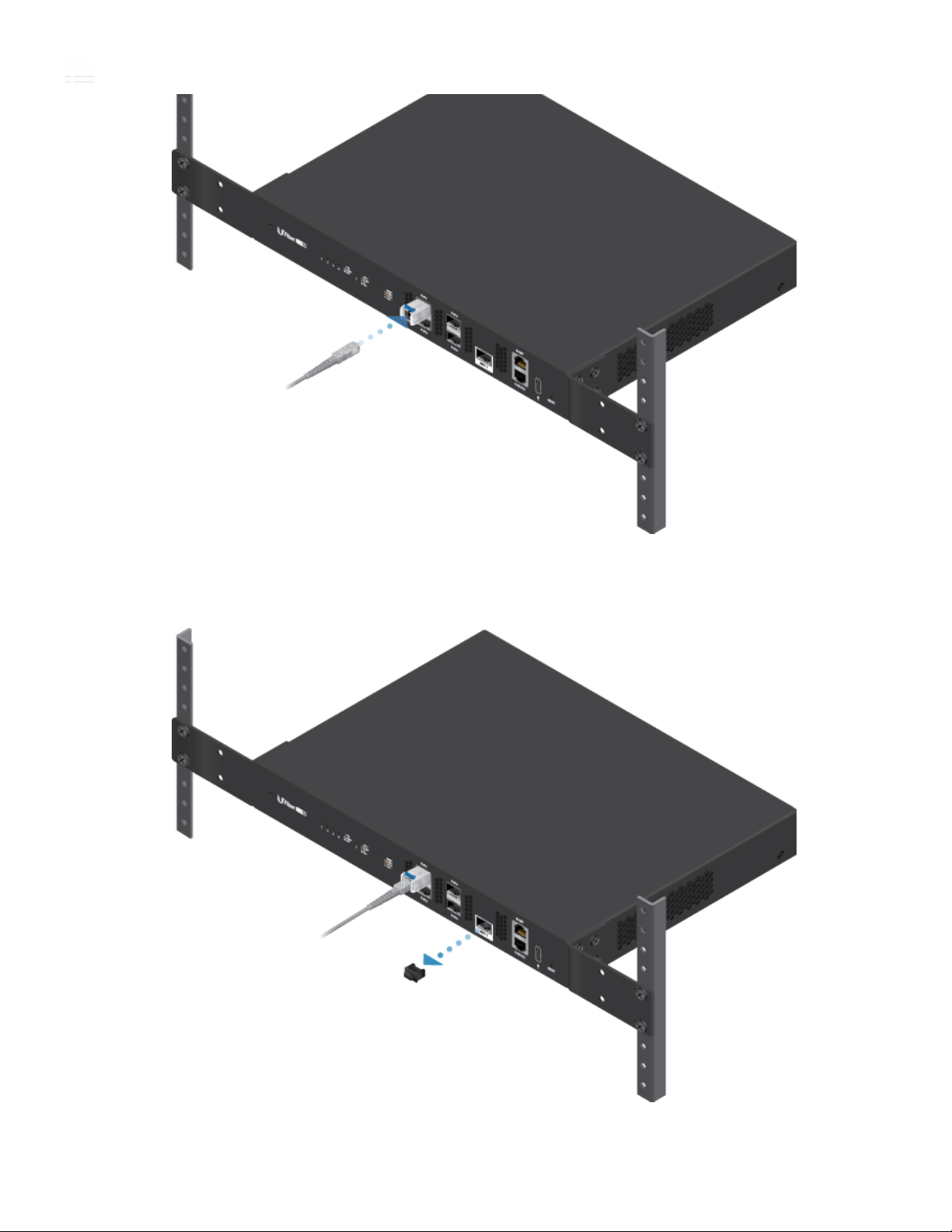

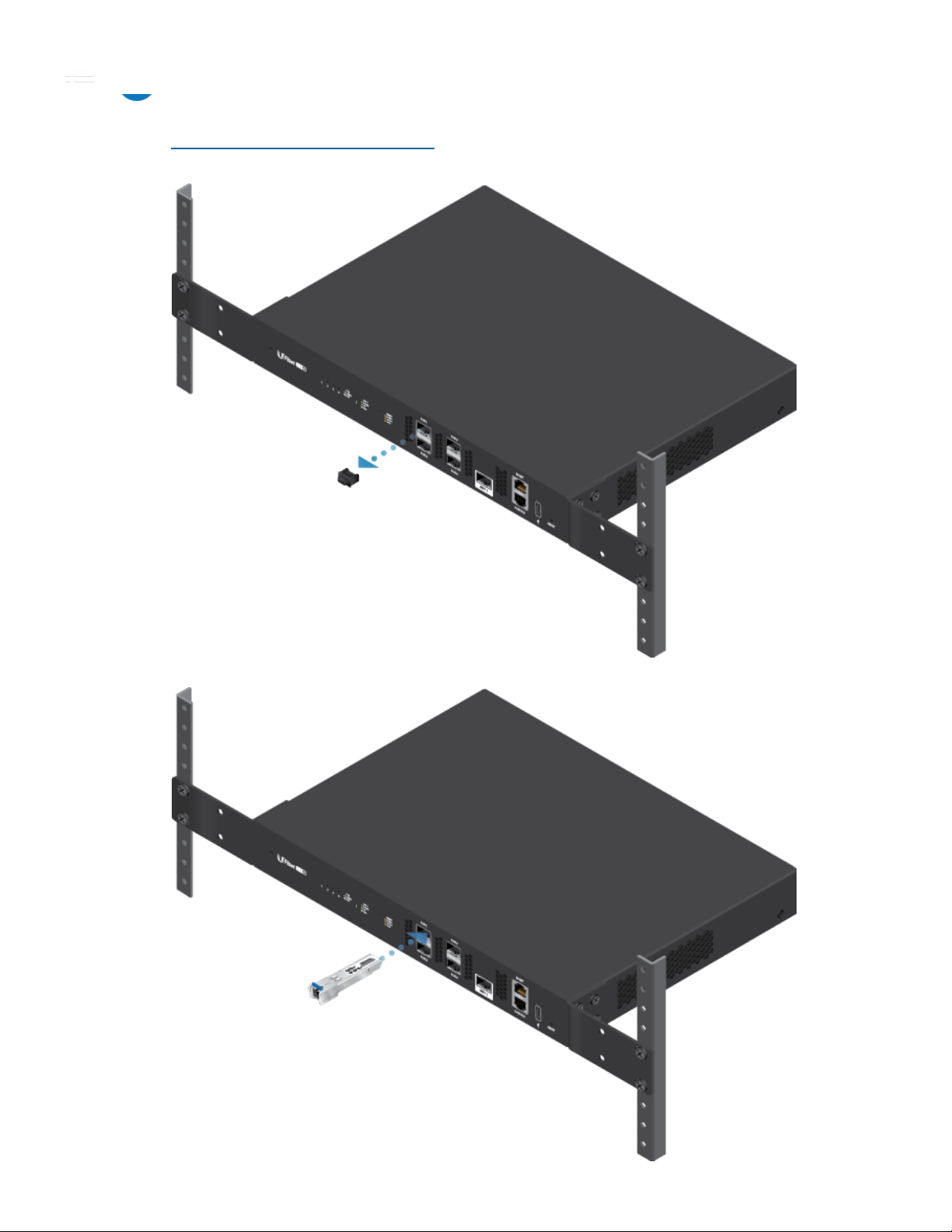

Connecting a PON Module

WARNING: Never look directly into the ends of fiber or modules. The emitted

light could cause damage to the eye.

WARNING: Until ready for use, keep modules and fiber patch cables covered

using the included protective caps to ensure the connections stay clean.

UF-OLT-4 Quick Start Guide

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

8/15

Note: One GPON SFP transceiver (model UF-GP-B+) is included. Use a

compatible PON SFP transceiver with the appropriate fiber optic cabling for

each PON port. For information on compatible fiber transceivers, visit:

ubnt.link/UFiber-OLT-Modules

UF-OLT-4 Quick Start Guide

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

9/15

Connecting SFP+

UF-OLT-4 Quick Start Guide

20/1/23, 14:39

UF-OLT-4 Quick Start Guide

https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html

10/15

Accessing the Configuration Interface

The following instructions apply to firmware version 4.1 and newer.

UF-OLT-4 Quick Start Guide
