Ubiquiti UniFi Dream Machine Pro Manuel utilisateur

UniFi Dream Machine Pro Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Security Screw

Package Contents

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.5" HDD Screws (Qty. 4) Power Cord Rubber Feet (Qty. 4)

System Requirement

Either of the following is required:

iOS or Android™ Mobile Device with UniFi Network App Installed

Web Browser: Google Chrome (Other browsers may have limited functionality)

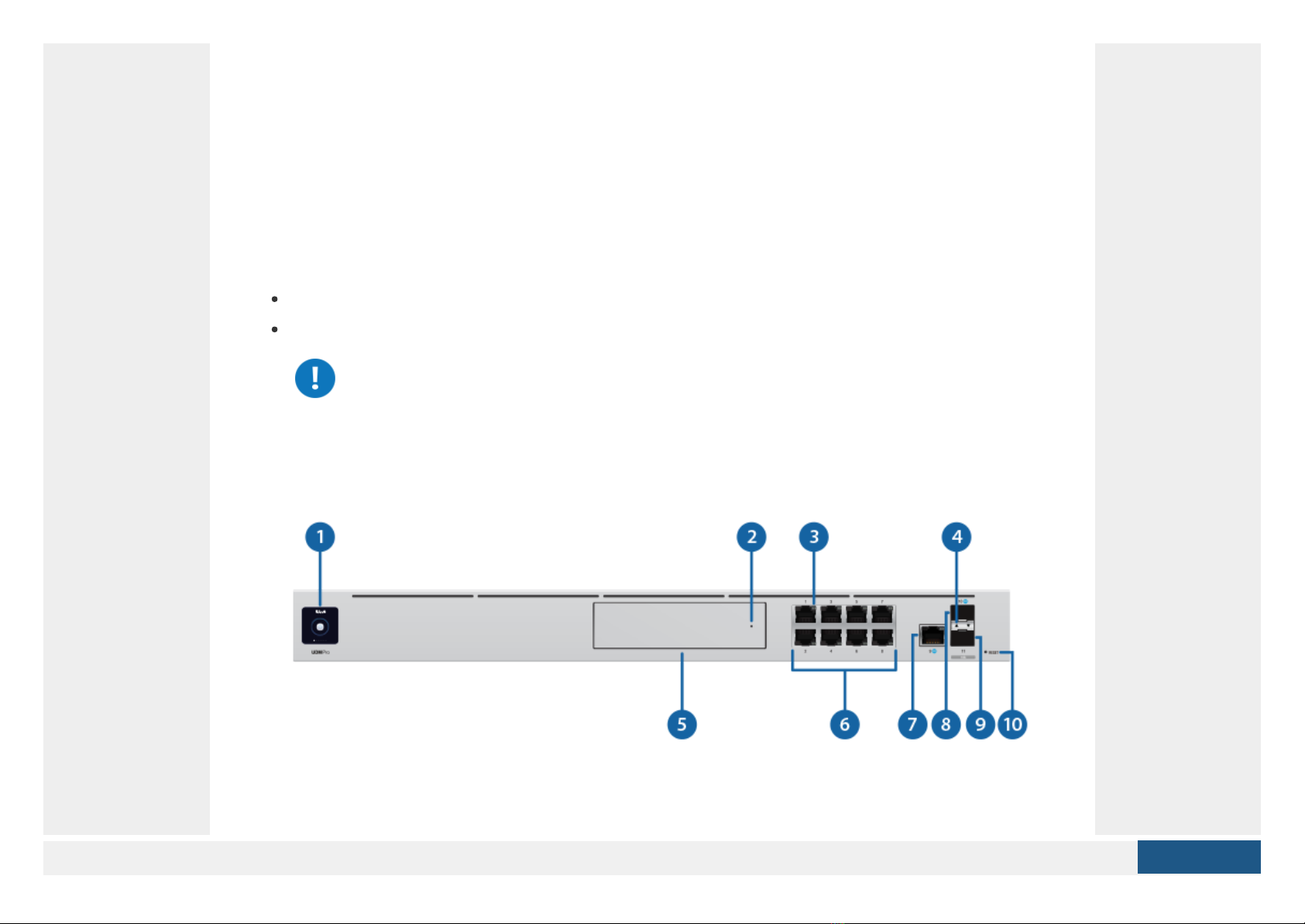

Hardware Overview

IMPORTANT: We strongly recommend using UPS backup and power

regulation to prevent equipment damage due to stability issues with local AC

power.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

Touchscreen Display

HDD LED

RJ-45 Speed/Link/Activity LED (Ports 1 - 9)

Bootup Animation Initializing.

Location Animation

This indicates that you clicked Locate in the UniFi

Controller software. The software will also display the

location of the device on the map.

Flashing White Indicates Read/Write Activity

Steady Amber Indicates HDD Error

Off No Link

Amber

Link Established at 10/100 Mbps

Flashing Indicates Activity

Green Link Established at 1 Gbps

Flashing Indicates Activity

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

SFP+ Speed/Link/Activity LED (Ports 10 - 11)

HDD Bay

RJ45 LAN (Ports 1 - 8)

RJ45 Internet (Port 9)

SFP+ Internet (Port 10)

Off No Link

Green

Link Established at 1 Gbps

Flashing Indicates Activity

White

Link Established at 10 Gbps

Flashing Indicates Activity

Install a 3.5" or 2.5" HDD (not included) to use the device as an NVR for UniFi

Protect.

The RJ45 ports support 10/100/1000 Ethernet connections. By default, they are set

to DHCP Server with the fallback IP address, 192.168.1.1/24.

The RJ45 port supports a 10/100/1000 Ethernet connection. Set to DHCP Client by

default.

The SFP+ port supports a 1/10G Ethernet connection. Set to DHCP Client by

default.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

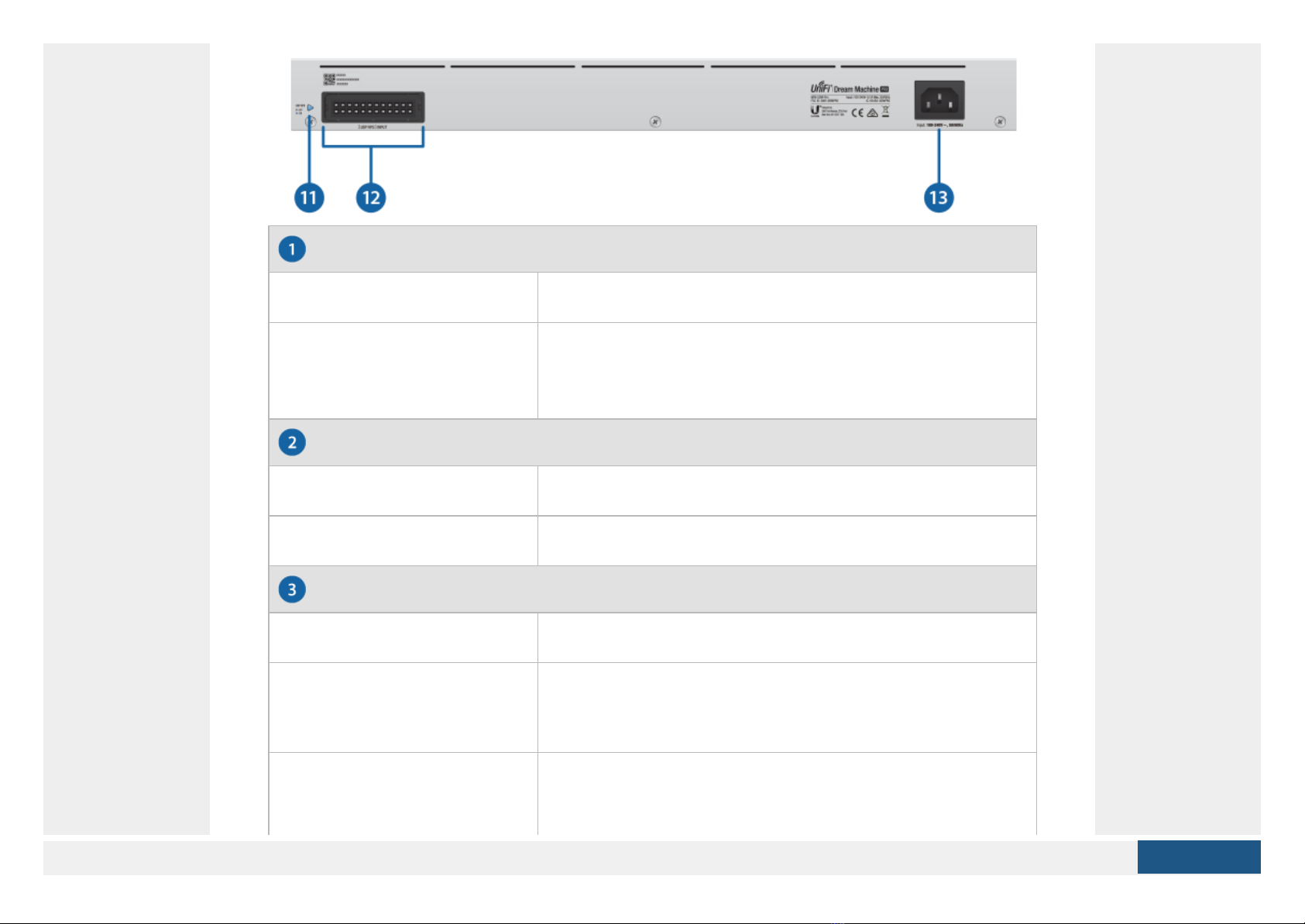

SFP+ LAN (Port 11)

Reset Button

USP RPS LED

USP Connect DC Input

Power Port

The SFP+ port supports a 1/10G Ethernet connection. By default, it is set to DHCP

Server with the fallback IP address, 192.168.1.1/24.

Resets to factory defaults. The device should be running after bootup is complete.

Press and hold the Reset button for about 10 seconds until the display indicates that

the device has reset itself. After a few seconds, the LED will turn off, and the device

will automatically reboot.

Reserved for future use.

Reserved for future use.

Connect the included Power Cord to the Power port.

Installation Requirements

Phillips screwdriver

Standard-sized, 19" wide rack with a minimum of 1U height available

For indoor applications, use Category 5 (or above) UTP cabling approved for indoor

use.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

For outdoor applications, shielded Category 5 (or above) cabling should be used for

all wired Ethernet connections and should be grounded through the AC ground of the

power supply.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from

Ubiquiti. For more details, visit: ui.com/toughcable

Note: Although the cabling can be located outdoors, the UDM-Pro itself

should be housed inside a protective enclosure.

Installing an HDD

Ensure the device is powered off before you install the 3.5" or 2.5" HDD (not included).

1.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

2.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

3.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD

4.

Create PDF in your applications with the Pdfcrowd HTML to PDF API PDFCROWD
