Ubiquiti U-Installer Manuel utilisateur

‑

Installer Carabiner

Package Contents

Hardware Overview

U-Installer Quick Start Guide

Carabiner

Clip Loop

Wi-Fi LED

Battery LED

Accessory for attaching the U-Installer to a belt (use is optional). To use, insert into the

Clip Loop and attach to a belt loop or utility belt.

Used to attach the Carabiner.

Lights blue if the U-Installer has a Wi-Fi connection to your mobile device.

Four blue LEDs indicate the internal battery’s charge level:

U-Installer Quick Start Guide

Reset Ext Button

Power Button

Reset Button

USB-C Port

PoE OUT Port

To reset the device connected to the U-Installer to factory defaults, press this button

while the device is powered on. Hold the button for more than eight seconds until the

LEDs on the device ﬂash.

Press to power the U-Installer on or oﬀ. The Battery LEDs light when power is on.

To reset the U-Installer to factory defaults, press and hold the Reset button while the U-

Installer is powered on until the LEDs on the device ﬂash.

When there is a low charge, recharge the internal battery by connecting a power

source, such as a mobile battery pack, to the USB Type C port.

Supplies 24V passive PoE to the device being installed.

Conﬁguring a CPE Device

Use a mobile device (default method) or a laptop to conﬁgure the CPE device at the point

of installation via the U-Installer’s Wi-Fi:

U-Installer Quick Start Guide

You have two options for conﬁguration: the UNMS™ App and Web Portal.

UNMS App - Default Method

1. iOS devices only: Connect your mobile device’s Wi-Fi to the U-Installer SSID named: ubi:

2. Download and launch the UNMS app on your mobile device.

3. Connect to the CPE device:

iOS

a. On the Connections screen, tap the CPE device.

b. Tap Log in to automatically log into the device.

Android

a. Tap , and then tap Installer.

b. The app will automatically detect and connect to the U-Installer SSID named: ubi:

<MAC_Address>

c. On the Discover screen, tap the CPE device to automatically log into the device.

4. Follow the on-screen instructions.

Web Portal

U-Installer Quick Start Guide

1. Connect your device’s Wi-Fi to the U-Installer SSID named: ubi:<MAC_Address>

2. Open a web browser and go to: https://192.168.1.20

3. Select your Country and Language. You must agree to the Terms of Use to use the

product. Click Continue.

4. Create a username and password. Conﬁrm your new password and then click Save.

5. Conﬁgure the CPE device as needed.

Removing the U-Installer

After you have conﬁgured the CPE device, remove the U-Installer:



U-Installer Quick Start Guide

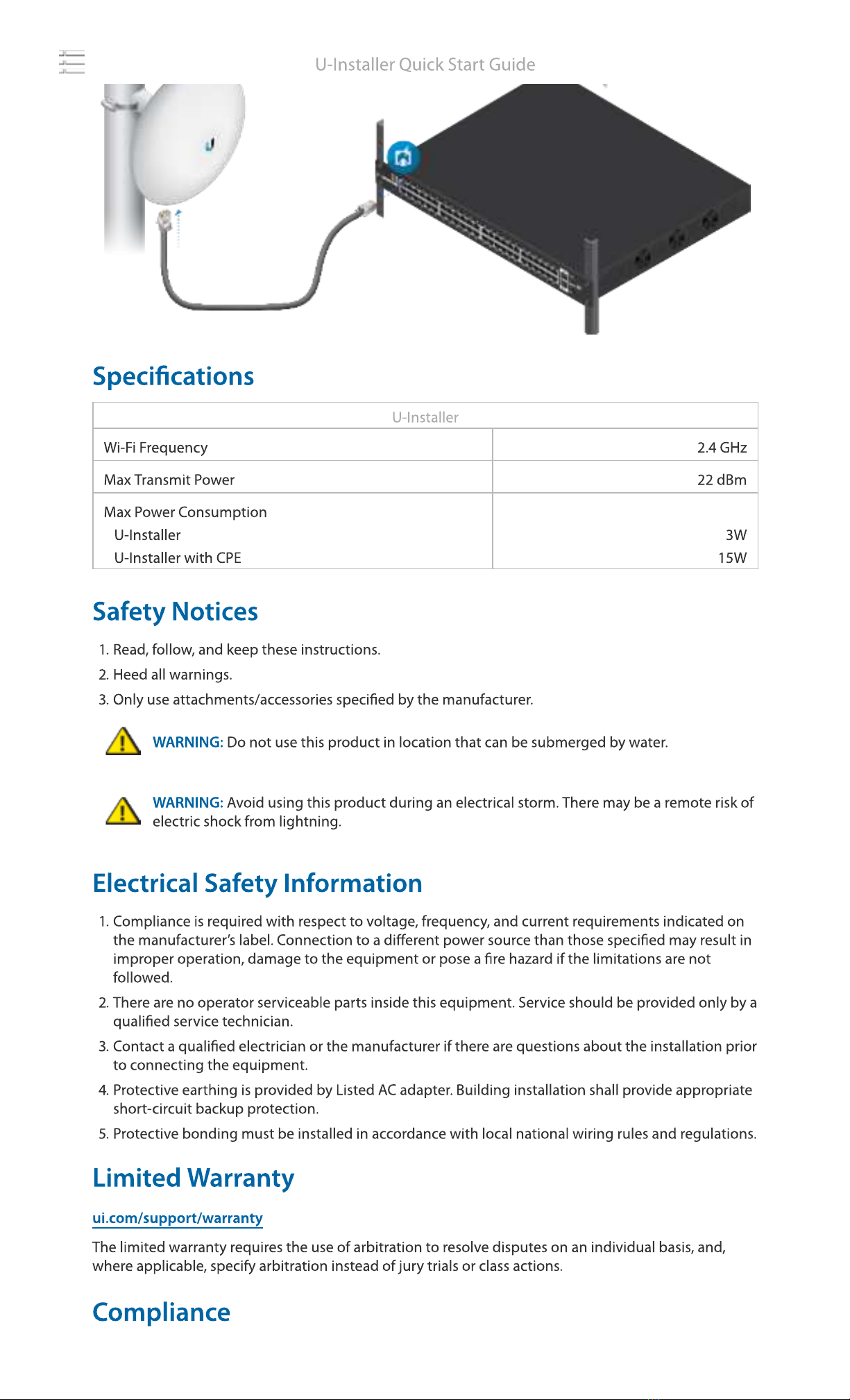

Speciﬁcations

U-Installer

Wi-Fi Frequency 2.4 GHz

Max Transmit Power 22 dBm

Max Power Consumption

U-Installer 3W

U-Installer with CPE 15W

Safety Notices

1. Read, follow, and keep these instructions.

2. Heed all warnings.

3. Only use attachments/accessories speciﬁed by the manufacturer.

WARNING:

Do not use this product in location that can be submerged by water.

WARNING:

Avoid using this product during an electrical storm. There may be a remote risk of

electric shock from lightning.

Electrical Safety Information

1. Compliance is required with respect to voltage, frequency, and current requirements indicated on

the manufacturer’s label. Connection to a diﬀerent power source than those speciﬁed may result in

improper operation, damage to the equipment or pose a ﬁre hazard if the limitations are not

followed.

2. There are no operator serviceable parts inside this equipment. Service should be provided only by a

qualiﬁed service technician.

3. Contact a qualiﬁed electrician or the manufacturer if there are questions about the installation prior

to connecting the equipment.

4. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate

short-circuit backup protection.

5. Protective bonding must be installed in accordance with local national wiring rules and regulations.

Limited Warranty

ui.com/support/warranty

The limited warranty requires the use of arbitration to resolve disputes on an individual basis, and,

where applicable, specify arbitration instead of jury trials or class actions.

Compliance

U-Installer Quick Start Guide

FCC

Changes or modiﬁcations not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions.

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment oﬀ and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is

connected.

Consult the dealer or an experienced radio/TV technician for help.

This radio transmitter FCC ID: SWX-UINS has been approved by FCC.

ISED Canada

CAN ICES-3(B)/NMB-3(B)

This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the

following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference that may cause undesired

operation of the device.

This radio transmitter (IC: 6545A-UINS) has been approved by ISED Canada.

CAN ICES-3(B)/NMB-3(B)

Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de

licence. L’exploitation est autorisée aux deux conditions suivantes :

1. l’appareil ne doit pas produire de brouillage;

2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible

d’en compromettre le fonctionnement.

Le présent émetteur radio (IC: 6545A-UINS) a été approuvé par ISDE Canada.

RF Exposure Warning

This device has been tested and meets applicable limits for radio frequency (RF) exposure.

This device was tested with separation distance of 0 mm under body-worn accessory (holster)

operation condition. Always carry this device within a holster, to ensure exposure levels remain at or

below the as-tested levels.

Cet appareil a été testé et respecte les limites applicables à l’exposition aux fréquences radio (RF).

Cet appareil a été testé avec une distance de séparation de 0 mm sous l’état de fonctionnement des

accessoires (étui) usé par le corps. Portez toujours cet appareil a l’intérieur d’un étui pour vous assurer

que les niveaux d’exposition restent au niveau ou sous les niveaux testés.

U-Installer Quick Start Guide

Battery Warning

1. Do not expose cells or batteries to heat or ﬁre. Avoid storage in direct sunlight.

2. Do not use any cell or battery which is not designed for use with the equipment.

3. Always purchase the battery recommended by the device manufacturer for the equipment.

4. Secondary cells and batteries need to be charged before use. Always use the correct charger and

refer to the manufacturer’s instructions or equipment manual for proper charging instructions.

Australia and New Zealand

Brazil

Nota:

Este equipamento não tem direito à proteção contra interferência prejudicial e não

pode causar interferência em sistemas devidamente autorizados.

CE Marking

CE marking on this product represents the product is in compliance with all directives that are

applicable to it.

Country List

AT BE BG CY CZ DE DK EE EL ES FI FR HR HU

IE IT LV LT LU MT NL PL PT RO SE SI SK UK

BFWA (Broadband Fixed Wireless Access) members noted in blue

Note:

This device meets Max. TX power limit per ETSI regulations.

The following apply to products that operate in the 5 GHz frequency range:

Note:

This device is restricted to indoor use only when operating in the 5150 - 5350 MHz

frequency range within all member states.

Note:

All countries listed may operate at 30 dBm. BFWA member states may operate at 36

dBm.

Note:

Operation in the 5.8 GHz frequency band is prohibited in BFWA member states. Other

countries listed may use the 5.8 GHz frequency band.

WEEE Compliance Statement

Declaration of Conformity

Online Resources

U-Installer Quick Start Guide
