Important Safety Instructions 2

Quick Installation 3

Basic Operation 5

Storage & Service 10

Specifications 11

SmartPro®VS

Intelligent, Line-Interactive UPS Systems

(Tower Configuration)

• 120V Input • 2200VA - 3000VA Capacities

• Extended-Run Options

Not suitable for mobile applications.

Español 12

Français 23

Optional Installation 4

Warranty

Registration:

chance to win a FREE Tripp Lite

product—www.tripplite.com/warranty

201112099 931874.indb 1 12/28/2011 4:44:05 PM

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants, dust or direct

sunlight.

• For best performance, keep the indoor temperature between 32º F and 104º F (0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Do not install the UPS near magnetic storage media, as this may result in data corruption.

• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner

will seriously inhibit the unit’s internal cooling, eventually causing product damage not covered under

warranty.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the UPS into itself;

this will damage the UPS.

• Do not modify the UPS’s plug, and do not use an adapter that would eliminate the UPS’s ground

connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must provide clean,

filtered, computer-grade output.

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can reasonably be

expected to cause the failure of the life support equipment or to significantly affect its safety or

effectiveness is not recommended. Do not use this equipment in the presence of a flammable

anesthetic mixture with air, oxygen or nitrous oxide.

• Do not connect surge suppressors or extension cords to the output of your UPS. This might overload

the UPS and may affect the surge suppressor and UPS warranties.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your UPS for any reason except battery

replacement. There are no user-serviceable parts inside.

• Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe

proper precautions. Do not dispose of the batteries in a fire. Do not open the UPS or batteries. Do not

short or bridge the battery terminals with any object. Unplug and turn off the UPS before performing

battery replacement. Use tools with insulated handles. There are no user-serviceable parts inside the

UPS. Battery replacement should be performed only by authorized service personnel using the same

number and type of batteries (Sealed Lead-Acid). The batteries are recyclable. Refer to your local

codes for disposal requirements or visit www.tripplite.com/UPSbatteryrecycling for recycling

information. Tripp Lite offers a complete line of UPS System Replacement Battery Cartridges

(R.B.C.).Visit Tripp Lite on the Web at www.tripplite.com/support/battery/index.cfm to locate the

specific replacement battery for your UPS.

• If your UPS model is equipped with an external battery connector, only connect Tripp Lite battery

packs of the appropriate type and correct voltage. Do not connect or disconnect external batteries

while the UPS is operating from battery.

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the installation,

operation and storage of all Tripp Lite UPS Systems.

201112099 931874.indb 2 12/28/2011 4:44:05 PM

Quick Installation

1Plug the UPS into an outlet

on a dedicated circuit.*

NOTE! after you plug the UPS into a live AC

outlet, the UPS will automatically charge its

batteries,** but will not supply power to its outlets

until it is turned ON (see Step 3 below).

* See Specifications for circuit amperage requirements. **

The BATTERY CHARGE LED will be the only LED

illuminated.

Plug your equipment into

the UPS.*

* Your UPS is designed to only support computer

equipment. You will overload the UPS if the total VA

ratings for all the equipment you connect exceeds the

UPS’s Output Capacity (see Specifications). To find your

equipment’s VA ratings, look on their nameplates. If the

equipment is listed in amps, multiply the number of amps

by 120 to determine VA. (Example: 1 amp × 120 = 120

VA). If you are unsure if you have overloaded the UPS’s

outlets, see “OUTPUT LOAD LEVEL” LED description.

Turn the UPS ON.

Press and hold the “POWER” button for one

second. The alarm will beep once briefly after one

second has passed. Release the button.

Note: UPS system will function properly upon initial

startup; however, maximum runtime for the unit’s battery

will only be accessible after it has been charged for 24

hours.

SMART2200VSXL shown

201112099 931874.indb 3 12/28/2011 4:44:06 PM

These connections are optional. Your UPS will function properly without these connections.

Optional Installation

1USB Communications

Use the included USB cable to connect the USB port of

your computer to the USB port of your UPS. Install on

your computer the Tripp Lite PowerAlert Software

appropriate to your computer’s operating system. Your

UPS may feature additional communications ports;

these ports may also be connected to additional

computers which have PowerAlert Software installed.

Consult your PowerAlert manual for more information.

2 RS-232 Serial Communications

If your computer is equipped with a DB9 serial port,

use the included serial cable to connect the DB9 port of

your computer to the DB9 port of your UPS. Install on

your computer the Tripp Lite PowerAlert Software

appropriate to your computer’s operating system. Your

UPS may feature additional communications ports;

these ports may also be connected to additional

computers which have PowerAlert Software installed.

Consult your PowerAlert manual for more information.

3 External Battery Connection

(select models)

Your UPS comes with a robust internal battery system;

external batteries are only needed to extend runtime.

Adding external batteries will increase recharge time as

well as runtime.

The illustration (see 3a ) shows the location of your

UPS’s External Battery Connector, where you will insert

the battery pack cable. Complete installation instructions for

your battery pack appear in the battery pack’s owner’s

manual. Make sure that cables are fully inserted into

their connectors. Small sparks may result during battery

connection; this is normal.

Do not connect or disconnect battery packs when the

UPS is running on battery power.

If you connect any external batteries, set the Battery

Charge Level Switch (see 3b ) to the up position. This

will increase your UPS’s charger output so the

additional batteries charge faster. Note: the switch to

the right of the Battery Charge Level Switch is inactive

and will not affect UPS operation regardless of its

position.

CAUTION! DO NOT set the Battery Charge Level

Switch to the up position without an external

battery connected. There is a risk of damaging the

UPS’s internal battery system.

201112099 931874.indb 4 12/28/2011 4:44:07 PM

4 EPO Port Connection

This optional feature is only for those applications

which require connection to a facility’s Emergency

Power Off (EPO) circuit. When the UPS is connected

to this circuit, it enables emergency shutdown of

the UPS's inverter.

Using the cable provided, connect the EPO port of

your UPS (see 4a ) to a user-supplied normally

closed or normally open switch according to the

circuit diagram (see 4b ). The EPO port is not a

phone line surge suppressor; do not connect a

phone line to this port.

Optional Installation continued

Basic Operation

Buttons

“POWER” Button

• To turn the UPS ON: with the UPS plugged into a live AC wall outlet,* press

and hold the POWER button for one second.** Release the button. If utility

power is absent, you can “cold-start” the UPS (i.e.: turn it ON and supply

power for a limited time from its batteries***) by pressing and holding the

POWER button for one second.**

• To turn the UPS OFF: with the UPS ON and receiving utility power,

press and hold the POWER button for one second.** Then unplug the

UPS from the wall outlet. The UPS will be completely OFF.

* After you plug the UPS into a live AC outlet, the UPS will automatically charge its

batteries, but will not supply power to its outlets until it is turned ON. ** The alarm

will beep once briefly after the indicated interval has passed. *** If fully charged.

OPTION 1: USER SUPPLIED NORMALLY CLOSED SWITCH

OPTION 2: USER SUPPLIED NORMALLY OPEN SWITCH

RJ11

PLUG

NO CONNECTION

4-5 JUMPER

N.C. EPO SWITCH

RJ11

PLUG

2NO CONNECTION

N.O. EPO SWITCH

201112099 931874.indb 5 12/28/2011 4:44:08 PM

Basic Operation continued

Indicator Lights (Front Panel)

“MUTE/TEST” Button

• To Silence (or “Mute”) UPS Alarms: briefly press and release the

MUTE/TEST button.*

• To Run a Self-Test: with your UPS plugged in and turned ON, press and

hold the MUTE/TEST button for two seconds.* Continue holding the

button until the alarm beeps several times and the UPS performs a self test.

See “Results of a Self-Test” below. Note: you can leave connected

equipment on during a self-test. Your UPS, however, will not perform a

self-test if you have placed it in “Standby/Charge-Only” mode (see

“POWER” Button description).

CAUTION! Do not unplug your UPS to test its batteries. This will

remove safe electrical grounding and may introduce a damaging

surge into your network connections.

Results of a Self-Test: The test will last approximately 10 seconds as the

UPS switches to battery to test its load capacity and battery charge. All

LEDs will be lit and the UPS alarm will sound.

• If the “OUTPUT LOAD LEVEL” LED remains lit red and the alarm

continues to sound after the test, the UPS’s outlets are overloaded. To clear

the overload, unplug some of your equipment and run the self-test

repeatedly until the “OUTPUT LOAD LEVEL” LED is no longer lit red

and the alarm is no longer sounding.

CAUTION! Any overload that is not corrected by the user

immediately following a self-test may cause the UPS to shut

down and cease supplying output power in the event of a

blackout or brownout.

• If the “BATTERY WARNING” LED remains lit and the alarm continues

to sound after the test, the UPS batteries need to be recharged or replaced.

Allow the UPS to recharge continuously for 12 hours, and repeat the self-

test. If the LED remains lit, contact Tripp Lite for service. If your UPS

requires battery replacement, visit www.tripplite.com/support/battery/

index.cfm to locate the specific Tripp Lite replacement battery for your

UPS.

* The alarm will beep once briefly after the indicated interval has passed.

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet and turned ON.

“POWER” LED: this green LED lights continuously when the UPS is ON

and supplying connected equipment with AC power from a utility source.

The LED flashes and an alarm sounds (4 short beeps followed by a pause)

to indicate the UPS is operating from its internal batteries during a blackout

or severe brownout. If the blackout or severe brownout is prolonged, you

should save files and shut down your equipment since internal battery power

will eventually be depleted. See “BATTERY CHARGE" LED description

below.

“VOLTAGE CORRECTION” LED: this green LED lights continuously

whenever the UPS is automatically correcting high or low AC voltage on the

utility line without the assistance of battery power. The UPS will also emit

a slight clicking noise. These are normal, automatic operations of the UPS,

no action is required on your part.

201112099 931874.indb 6 12/28/2011 4:44:08 PM

Basic Operation continued

“OUTPUT LOAD LEVEL” LED: this multicolored LED indicates the

approximate electrical load of equipment connected to the UPS’s AC

outlets. It will turn from green (light load) to yellow (medium load) to red

(overload). If the LED is red (either illuminated continuously or flashing),

clear the overload immediately by unplugging some of your equipment

from the outlets until the LED changes from red to yellow (or green) and

the alarm is no longer sounding. CAUTION! Any overload that is not

corrected by the user immediately may cause the UPS to shut down and

cease supplying output power in the event of a blackout or brownout.

“BATTERY CHARGE” LED: when the UPS is operating from utility

power, this LED indicates the approximate charge state of the UPS’s

internal batteries: red indicates the batteries are beginning to charge; yellow

indicates the batteries are roughly midway through charging; and green

indicates the batteries are fully charged. When the UPS is operating from

battery power during a blackout or severe brownout, this LED indicates the

approximate amount of energy (ultimately affecting runtime) which the

UPS's batteries will provide: red indicates a low level of energy; yellow

indicates a medium level of energy; and green indicates a high level of

energy. Since the runtime performance of all UPS batteries will gradually

deplete over time, it is recommended that you periodically perform a self-

test (see MUTE/TEST Button description) to determine the energy level of

your UPS batteries BEFORE a blackout or severe brownout occurs. During

a prolonged blackout or severe brownout, you should save files and shut

down your equipment since battery power will eventually be depleted.

When the LED turns red and an alarm sounds continuously, it indicates the

UPS’s batteries are nearly out of power and UPS shut down is imminent.

“BATTERY WARNING” LED: this LED lights red and an alarm sounds

intermittently after you initiate a self test (See “MUTE/TEST” Button

description) to indicate the UPS batteries need to be recharged or replaced.

Allow the UPS to recharge continuously for 12 hours, and repeat the self-

test. If the LED continues to light, contact Tripp Lite for service. If your

UPS requires battery replacement, visit www.tripplite.com/support/battery/

index.cfm to locate the specific Tripp Lite replacement battery for your

UPS.

201112099 931874.indb 7 12/28/2011 4:44:08 PM

Basic Operation continued

Other UPS Features (Back Panel)

AC Receptacles: Your UPS features 15-amp AC outlets, and select models

also feature 20-amp and 30-amp AC outlets. These output receptacles

provide your connected equipment with AC line power during normal

operation and battery power during blackouts and brownouts. The UPS

protects equipment connected to these receptacles against damaging surges

and line noise. If you have a serial or USB connection to your UPS, you can

remotely reboot connected equipment by turning the receptacles OFF and

ON using Tripp Lite’s PowerAlert Software. Select models have their

receptacles divided into one or more load banks (labeled “LOAD 1,” etc.)

which may be remotely switched OFF and ON using Tripp Lite UPS

software without interrupting power to equipment connected to the other

outlets. See software instructions for details.

Communication Ports (USB or RS-232): These ports connect your UPS to

any workstation or server. Use with Tripp Lite’s PowerAlert Software and

included cables to enable your computer to automatically save open files and

shut down equipment during a blackout. Also use PowerAlert Software to

monitor a wide variety of AC line power and UPS operating conditions.

Consult your PowerAlert Software manual or contact Tripp Lite Customer

Support for more information. See “USB Communications” and “RS-232

Serial Communications” in the “Optional Installation” section for installation

instructions.

EPO Port (select models): Your UPS features a EPO port that may be used

to connect the UPS to a contact closure switch to enable emergency inverter

shutdown. See “EPO Port Connection” in the “Optional Installation”

section.

Battery Replacement Door: Under normal conditions, the original battery

in your UPS will last several years. Battery replacement should be

performed only by qualified service personnel. Refer to “Battery Warnings”

in the Safety section. Should your UPS require battery replacement, visit

Tripp Lite on the Web at www.tripplite.com/support/battery/index.cfm to

locate the specific replacement battery for your UPS.

EPO

USB port

RS-232 (DB9 port)

15 amp/120V

NEMA 5-15R

20 amp/120V

NEMA 5-20R

30 amp/120V

NEMA L5-30R

20 amp/120V

NEMA L5-20R

201112099 931874.indb 8 12/28/2011 4:44:09 PM

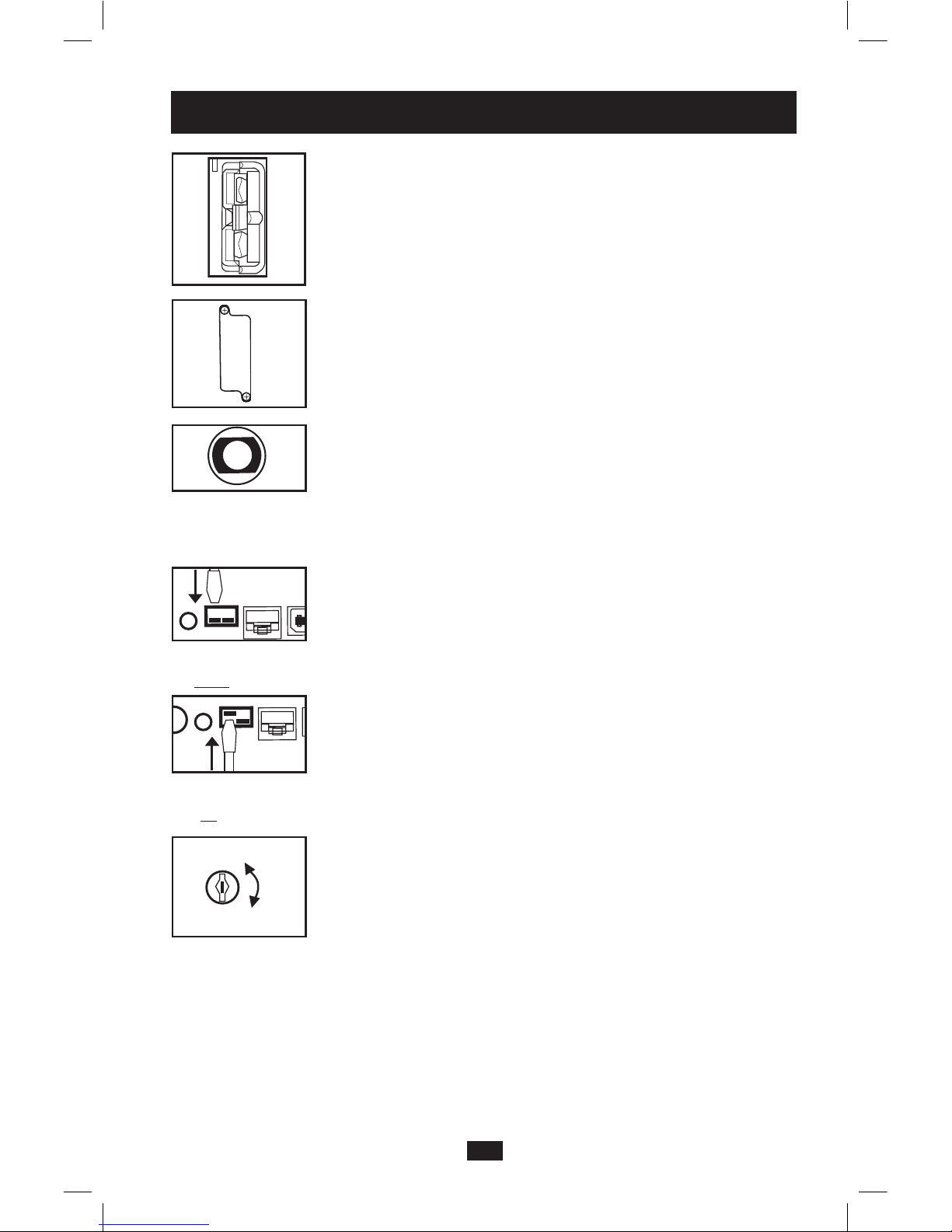

External Battery Connector (select models): Use to connect one or more

Tripp Lite battery packs for additional runtime. Refer to Specifications and/

or the label next to the connector to determine the appropriate variety of

battery pack to use. Refer to the battery pack instruction manual for

complete installation information and important safety warnings. See

“External Battery Connection” in the “Optional Installation” section.

Accessory Slot: Remove the small cover panel from this slot to install

optional accessories to remotely monitor and control your UPS. Refer to

your accessory’s manual for installation instructions. Visit www.tripplite.

com for more information, including a list of available SNMP, networking

management and connectivity products.

Input Breaker(s) (all models): Protect your electrical circuit from

overcurrent draw from the UPS load. If these breakers trip, remove some of

the load, then reset them by pressing the breaker(s) in.

Output Breaker(s) (select models): Your UPS features one or more

breakers that protect your UPS from output overload. If one or more

breakers trip, remove some of the load on the circuit(s), then reset them by

pressing the breaker switch(es) in.

Battery Charge Level Switch (select models): Select models feature a

switch that controls the UPS system’s battery charge rate. If you connect

any external batteries, set the Battery Charge Level Switch to the up

position. This will increase your UPS’s charger output so the additional

batteries charge faster. Note: the switch to the right of the Battery Charge

Level Switch is inactive and will not affect UPS operation regardless of its

position.

CAUTION! DO NOT set the Battery Charge Level Switch to the up

position without an external battery connected. There is a risk of

damaging the UPS’s internal battery system.

Power Sensitivity Adjustment: This dial is normally set fully

counterclockwise, which enables the UPS to provide maximum protection

against waveform distortions in its AC input. When such distortion occurs,

the UPS will normally switch to providing PWM sine wave power from its

battery reserves for as long as the distortion is present. In areas with poor

utility power or where the UPS’s input power comes from a backup

generator, chronic waveform distortion could cause the UPS to switch to

battery too frequently, draining its battery reserves. You may be able to

reduce how often your UPS switches to battery due to moderate waveform

distortion by experimenting with different settings for this dial. As the dial

is turned clockwise, the UPS becomes more tolerant of variations in its

input power’s AC waveform. NOTE: The further the dial is adjusted

clockwise, the greater the degree of waveform distortion the UPS will allow

to pass to connected equipment. When experimenting with different settings

for this dial, operate connected equipment in a safe test mode so that the

effect on the equipment of any waveform distortions in the UPS’s output

can be evaluated without disrupting critical operations.

Basic Operation continued

Charge Rate Setting

(when External Batteries

are not connected)

Charge Rate Setting

(when External Batteries

are connected)

DELAY

NORM

201112099 931874.indb 9 12/28/2011 4:44:10 PM

Storage

Before storing your UPS, turn it completely OFF: with the UPS ON and receiving utility power, press

and hold the POWER button for one second (an alarm will beep once briefly after the interval has

passed); then, unplug the UPS from the wall outlet. If you store your UPS for an extended period of time,

recharge the UPS batteries once every three months: plug the UPS into a wall outlet; allow it to charge

for 4 to 6 hours; and then unplug it and place it back in storage. Note: after you plug the UPS in, it will

automatically begin charging its batteries; however, it will not supply power to its outlets (see Quick

Installation section). If you leave your UPS batteries discharged for an extended period of time, they will

suffer a permanent loss of capacity.

Service

A variety of Extended Warranty and On-Site Service Programs are also available from Tripp Lite. For

more information on service, visit www.tripplite.com/support. Before returning your product for service,

follow these steps:

1. Review the installation and operation procedures in this manual to insure that the service problem does

not originate from a misreading of the instructions.

2. If the problem continues, do not contact or return the product to the dealer. Instead, visit

www.tripplite.com/support.

3. If the problem requires service, visit www.tripplite.com/support and click the Product Returns link.

From here you can request a Returned Material Authorization (RMA) number, which is required for

service. This simple on-line form will ask for your unit’s model and serial numbers, along with other

general purchaser information. The RMA number, along with shipping instructions will be emailed to

you. Any damages (direct, indirect, special or consequential) to the product incurred during shipment

to Tripp Lite or an authorized Tripp Lite service center is not covered under warranty. Products

shipped to Tripp Lite or an authorized Tripp Lite service center must have transportation charges

prepaid. Mark the RMA number on the outside of the package. If the product is within its warranty

period, enclose a copy of your sales receipt. Return the product for service using an insured carrier to

the address given to you when you request the RMA.

Storage & Service

201112099 931874.indb 10 12/28/2011 4:44:10 PM

Autres manuels pour SmartPro VS

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SmartOnline AGPS5548 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU8000RT3U Manuel utilisateur

Tripp Lite

Tripp Lite SMART1500LCD Manuel utilisateur

Tripp Lite

Tripp Lite BCPRO850 Guide de configuration

Tripp Lite

Tripp Lite SmartOnline SU2200XLA Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart OMNI1500LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU750XL Manuel utilisateur

Tripp Lite

Tripp Lite SUTX20K Manuel utilisateur

Tripp Lite

Tripp Lite SU140KMBPK Manuel utilisateur

Tripp Lite

Tripp Lite 1000 VA Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000RTXLCD2U Guide de configuration

Tripp Lite

Tripp Lite Smart Pro 450 RT Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount SMX500RT1U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1000RT2U Manuel utilisateur

Tripp Lite

Tripp Lite BCPERS450 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro 2U 1400-3000 VA Manuel utilisateur

Tripp Lite

Tripp Lite RBC2A Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL3UHV Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART5000RT3U Manuel utilisateur

Tripp Lite

Tripp Lite AG-04F5 Series Manuel utilisateur

Tripp Lite

Tripp Lite SMART5000TEL3U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART700RT1U Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
