Quick Start Guide

AVRX550UA, AVRX750UA

UPS Systems

(Series Numbers: AG-0504, AG-0506)

Not suitable for mobile applications.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

This document explains the most important features of your UPS system.

For additional information, download the Owner’s Manual PDF from

tripplite.com/support/manuals

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, operation and storage of this product. Failure to heed these warnings

may affect the warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants, dust

or direct sunlight.

• For best performance, keep the indoor temperature between 32º F and 104º F

(0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

• Only set the UPS upright on a sturdy ﬂat surface. Do not block fans or ventilation holes, as

this will seriously inhibit the unit's internal cooling and cause product damage not covered

under warranty.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the UPS into

itself; this will damage the UPS.

• Do not modify the UPS plug, and do not use an adaptor that would eliminate the UPS

ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must provide

clean, ﬁltered, computer-grade output.

• The mains socket-outlet that supplies the UPS should be easily accessible and located near

the UPS.

• For use on a TN power distribution system.

Equipment Connection Warnings

Short-circuit backup protection and overcurrent protection are provided by

the building installation.

To reduce the risk of ﬁre, connect only to a circuit-provided branch circuit

overcurrent protection. The plug on the power supply cord is intended to

serve as the disconnect device. Be sure the socket-outlet is installed near

the equipment and is made easily accessible.

• Use of this equipment in life support applications where failure of this equipment can

reasonably be expected to cause the failure of the life support equipment or to signiﬁcantly

affect its safety or effectiveness is not recommended.

• Do not connect surge protectors or extension cords to the output of your UPS. This might

damage the UPS and may affect the surge protector and UPS warranties.

Important Safety Instructions

• Connect the UPS to an outlet that is adequately protected against excess currents, short

circuits and earth faults as part of the building installation.

Battery Warnings

•

Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. Do not dispose of the batteries in a ﬁre. Do not open the UPS

or batteries. Do not short or bridge the battery terminals with any object. Unplug and turn off

the UPS before performing battery replacement. Use tools with insulated handles. There are

no user-serviceable parts inside the UPS. Battery replacement should be performed only by

authorised service personnel using the same number and type of batteries (sealed lead-acid).

The batteries are recyclable. Refer to your local codes for disposal requirements or visit

tripplite.com/support/recycling-program for recycling information. Tripp Lite offers a complete

line of UPS System Replacement Battery Cartridges (R.B.C.). Visit Tripp Lite on the Web at

tripplite.com/products/battery-ﬁnder/ to locate the speciﬁc replacement battery for your UPS.

CAUTION: A battery can present a risk of electrical shock and high short-

circuit current. Contact with any part of a grounded battery can result in

electrical shock. The following precautions should be observed when working

on batteries:

• Remove watches, rings or other metal objects.

• Use tools with insulated handles.

• Wear rubber gloves and boots.

• Do not lay tools or metal parts on top of batteries.

• Disconnect the charging source and load prior to installing or maintaining the

battery.

• Remove battery grounds during installation and maintenance to reduce likelihood

of shock.

• Remove the connection from ground if any part of the battery is determined to be

grounded.

• Unplug the UPS from the AC mains receptacle. Disconnect all cables, including the

equipment plugged into the UPS.

• Servicing of batteries should be performed or supervised by personnel

knowledgeable about batteries and required precautions.

• When replacing batteries, replace with the same type and number of batteries or

battery packs.

• CAUTION: Do not dispose of batteries in a ﬁre. The batteries may explode.

• CAUTION: Do not open or mutilate batteries. Released electrolyte is harmful to the

skin and eyes. It may be toxic.

UPS and Battery Recycling

Tripp Lite products use sealed lead-acid batteries, which are highly recyclable.

Call Tripp Lite at 1.773.869.1234 or visit tripplite.com/support/recycling-program

for more information on recycling the batteries or any other Tripp Lite product.

Please refer to local codes for disposal requirements.

Installation

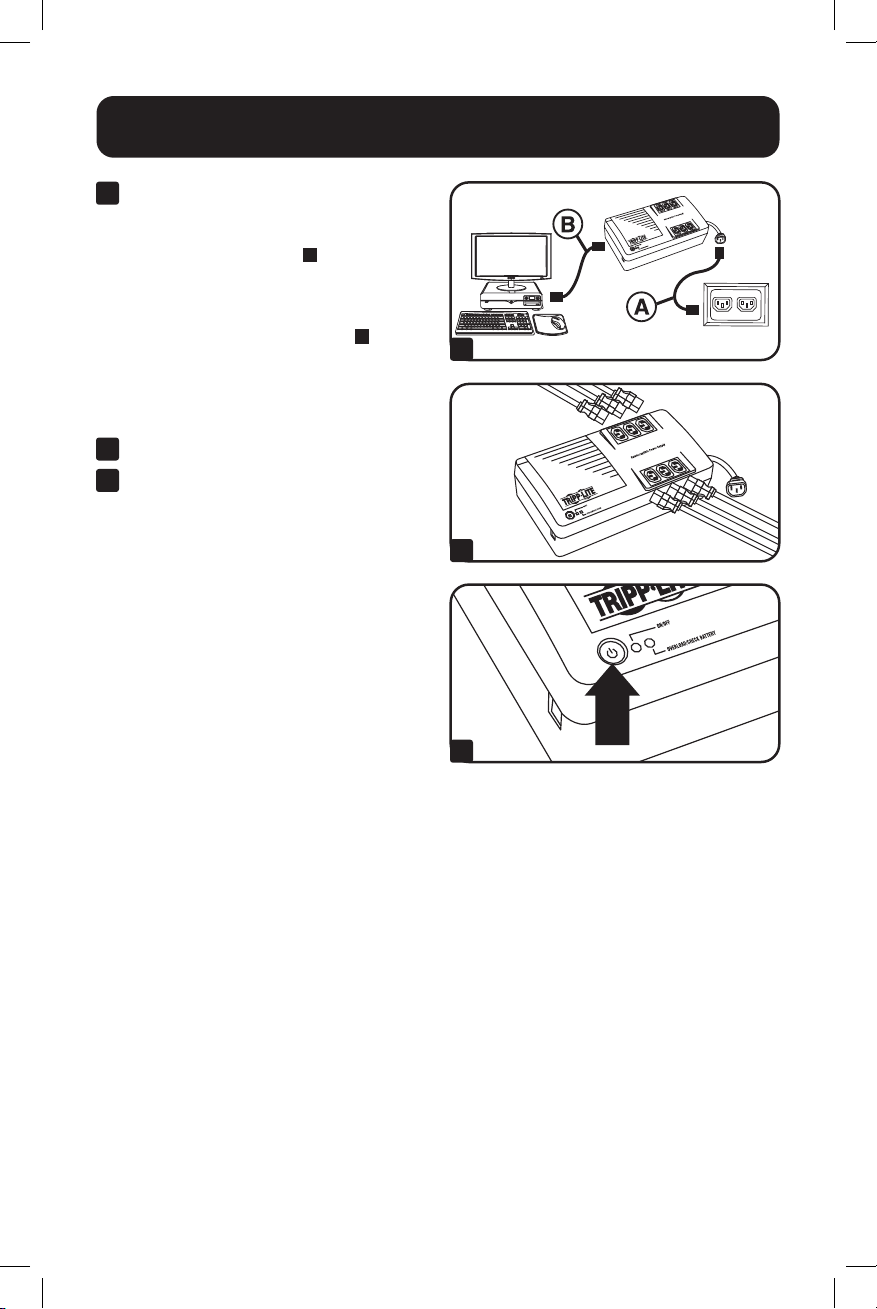

1Unplug the computer’s power cord from

both your AC outlet and the computer’s

AC input. Insert the C13 connector

of the computer’s cord Ainto your

UPS’s AC input. Insert the plug of your

computer’s cord into your AC outlet.

Insert the C13 connector of the power

cord that came with your UPS Binto

the computer’s AC input. Insert the

UPS cord’s C14 connector into any of

your UPS’s battery backup C13 output

receptacles.

2Plug remaining equipment into the UPS.

3Push the ON/OFF/TEST button for one

second to turn the UPS on.

Basic Operation

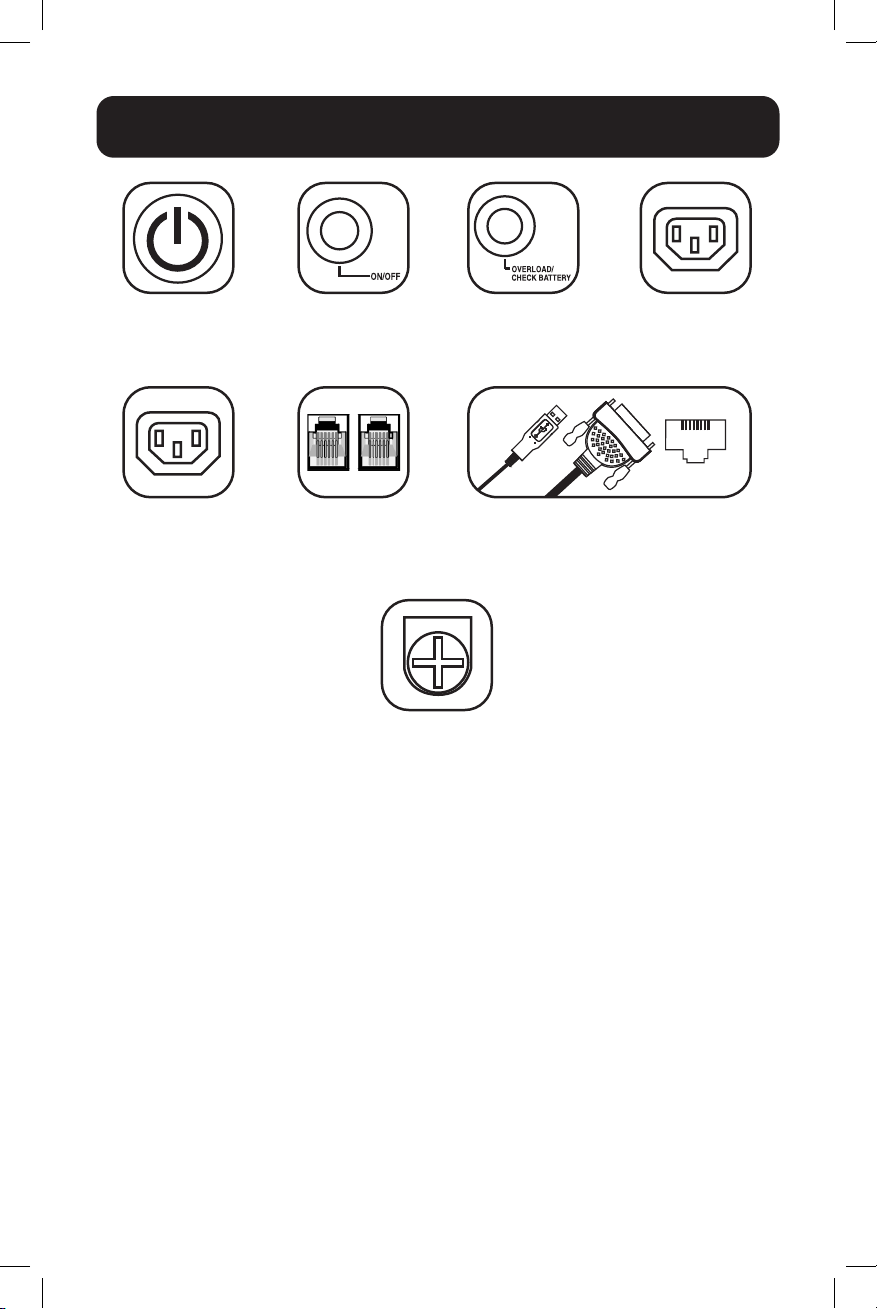

ON/OFF/TEST

Button

ON/OFF

LED

OVERLOAD/CHECK

BATTERY LED

Battery Backup/

Surge Protected

Outlets

Communications Port

(Select Models Only—for Use with

Included USB or DB9 Cable)

Surge-Only

Protected Outlets

Tel/DSL Jacks

(Select Models Only)

Ground

Connection

Note on Labeling

Two symbols are used on the label.

V~ : AC Voltage

V: DC Voltage

Regulatory Compliance

Regulatory Compliance Identiﬁcation Numbers

For the purpose of regulatory compliance certiﬁcations and identiﬁcation, your Tripp Lite product has been

assigned a unique series number. The series number can be found on the product nameplate label, along with

all required approval markings and information. When requesting compliance information for this product, always

refer to the series number. The series number should not be confused with the marketing name or model number

of the product.

EMC Speciﬁcations for Models with EMC Category C2 Approval (Select Models):

WARNING: This is a category C2 UPS product. In a residential environment, this product may cause radio

interference, in which case the user may be required to take additional measures.

WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union)

Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when

customers buy new electrical and electronic equipment from Tripp Lite they are entitled to:

• Send old equipment for recycling on a one-for-one, like-for-like basis

(this varies depending on the country)

• Send the new equipment back for recycling when this ultimately becomes waste

Tripp Lite has a policy of continuous improvement. Product speciﬁcations are subject to change without notice.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

20-12-310 93-3C78_RevB
