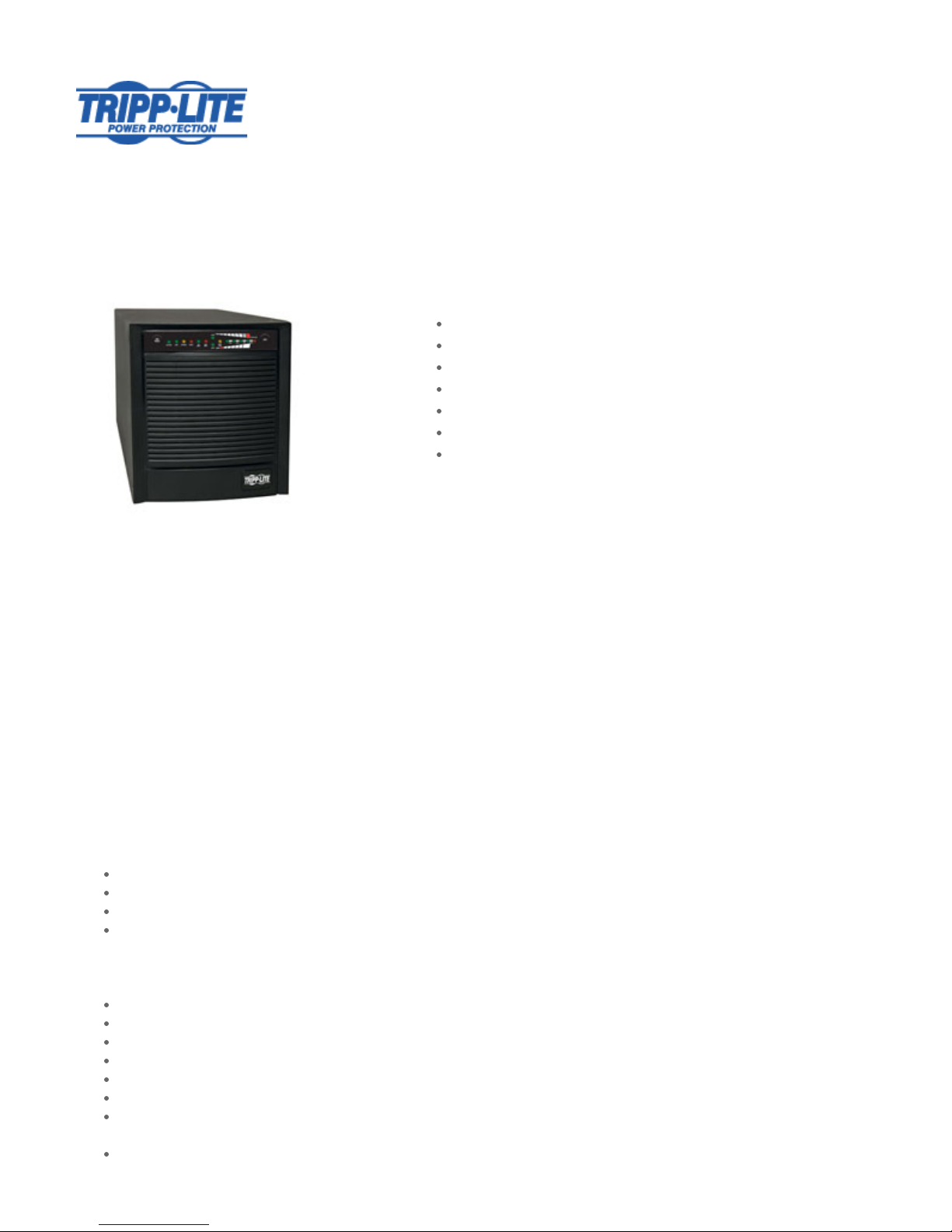

Tripp Lite SmartOnline SU2200XLA Manuel utilisateur

Tripp Lite

1111 West 35th Street

Chicago, IL 60609 USA

Telephone: +(773) 869 1234

E-mail: [email protected]

Model #: SU2200XLA

SmartOnline 2.2kVA On-Line Double-Conversion UPS, Tower, 110/120V NEMA outlets

Highlights

2200VA / 2.2kVA / 1600 watt on-line double-conversion tower UPS

110/120V +/-2% output at 50/60Hz, high efficiency economy mode option

Expandable runtime, Hot-swappable battery modules

USB, RS232 & EPO ports; support for SNMP/WEB card options

Front panel status LEDs with detailed load and battery metering

2 independently switchable output load banks

NEMA 5-20P input; L5-20R & 5-15/20R outlets

Description

Tripp Lite's Smart Online SU2200XLa on-line, double conversion UPS protects critical server, networking or telecommunications equipment from

blackouts, brownouts, voltage fluctuations and surges in an attractive all-black upright tower form factor. Large capacity 2200VA/1600W UPS

continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast

electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and

zero transfer time offers guaranteed compatibility with all equipment types. Includes 7 UPS supported outlets. 2 three-outlet load banks can be

independently controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery

runtime for the most critical equipment. Battery support can be extended with the addition of external battery packs. Includes slot for internal

SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power

data. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot.

HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes

Tripp Lite's PowerAlert UPS Power Management Software. Compatible with Tripp Lite's Watchdog Service Monitoring and Control Software.

Package Includes

SU2200XLa On-line Double-Conversion UPS System

PowerAlert Software and cabling

Instruction manual with warranty information

EPO (Emergency Power Off) cabling

Features

True on-line, double conversion UPS provides a constant, pure sine wave AC output

Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time

Zero transfer time, on-line, double-conversion and economy-mode operation supported

Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems

Accepts input voltages between 80V and 150V (65V to 150V at loads under 70%), regulating output to 120V AC +/-2%

2200VA/1600W output capacity with 7 total outlets (6 NEMA5-15/20R and 1 L5-20R)

Two built-in individually switchable load banks, each with three outets, can be controlled via software interface to selectively reboot remote

equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment

Standard internal battery set provides 14 min. runtime at half load and 4.5 min. at full load

Runtime is expandable with BP48V24-2U (limit 1) or BP48V60RT3U (multi-pack compatible) external battery packs

Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)

Attractive all-black upright tower format

Simultaneous communications via HID-compliant USB port, serial port, and SNMP/web card slot

HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X

DB9 serial network interface supports RS-232 and contact closure messaging

Slot for optional SNMP/web card (part #: SNMPWEBCARD)

Included PowerAlert UPS Power Management Software and cabling provides monitoring of in-depth site power conditions, full UPS status

and fault warnings, output load level and load bank power control

Compatible with Tripp Lite's WatchDog Service Monitoring and Control Software (part# WATCHDOGSW)

Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions

Diagnostic LEDs

$250,000 Ultimate Lifetime Insurance coverage for conbnected equipment(USA and Canada Only)

Specifications

OUTPUT

Output Volt Amp

Capacity (VA)

2200

Output kVA capacity

(kVA)

2.2

Output Watt Capacity

(watts)

1600

Output kW capacity 1.6

Output power factor 0.7

Crest Factor 3:1

Nominal Output

Voltage(s) Supported

110V; 120V

Nominal Voltage details 120V default

Frequency

compatibility

50 / 60 Hz

Frequency

compatibility details

Output frequency matches input nominal on startup, defaults to 60 Hz on cold-start

Output voltage

regulation (line mode)

+/- 2%

Output voltage

regulation (Economy

line mode)

+/- 10%

Output voltage

regulation (Battery

mode)

+/- 2%

Built-in UPS output

receptacles

6 5-15/20R outlet(s); 1 L5-20R outlet(s)

Built-in controllable

switched load banks

Two switchable three-outlet 5-15/20R load banks

Output AC waveform

(AC mode)

Sine wave

Output AC waveform

(battery mode)

Pure Sine wave

INPUT

Rated input current (at

maximum load)

16A (120V), 17.6A (110V)

Nominal Input

Voltage(s) Supported

110V AC; 120V AC

UPS input connection

type

5-20P

Input circuit breaker 30A

UPS Input cord length

(ft.)

UPS Input cord length

(m)

Recommended

Electrical Service

20A 120V

BATTERY

Full load runtime

(minutes)

4.5 min. (1600w)

Half load runtime

(minutes)

14 min. (800w)

Expandable battery

runtime

Extended runtime supported via optional external battery packs

External battery pack

compatibility

BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible)

DC system voltage

(VDC)

Battery recharge rate

(included batteries)

Less than 5 hours from 10% to 90%

Replacement battery

cartridge (internal UPS

battery replacement)

RBC48-SUTWR

Battery Access Battery access door

Battery replacement

description

Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

Voltage regulation

description

Online, double-conversion power conditioning

Overvoltage correction 2% output voltage regulation during overvoltages to 150

Undervoltage

correction

2% output voltage regulation during undervoltages to 80

Severe undervoltage

correction

2% output voltage regulation during undervoltages to 65 (under 70% load only)

LEDS ALARMS & SWITCHES

LED Indicators 14 LEDs indicate line power, online mode, economy/bypass mode, on-battery, overload, battery low, replace

battery and fault status information - includes 4-LED meter display for load and battery charge level

Alarms Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown

conditions

Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch

Switches 2 switches control off/on power status and alarm-cancel/self-test operation

SURGE / NOISE SUPPRESSION

UPS AC suppression

joule rating

570

UPS AC suppression

response time

Instantaneous

UPS Dataline

suppression

1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet

EMI / RFI AC noise

suppression

Yes

PHYSICAL

Installation form

factors supported with

included accessories

Tower

Primary form factor Tower

UPS / Power Module

dimensions in primary

form factor (height x

width x depth / inches)

10.2 x 9 x 19.5

UPS / Power Module

dimensions in primary

form factor (height x

width x depth / cm)

26 x 22.9 x 49.5

UPS / Power Module

weight (lbs)

52.7

UPS / Power Module

weight (kg)

23.9

UPS Shipping

dimensions (height x

width x depth / inches)

15.2 x 13 x 24

UPS Shipping

dimensions (height x

width x depth / cm)

38.7 x 33 x 61

Shipping weight (lbs) 59.5

Shipping weight (kg) 27

UPS housing material Steel

Cooling method Fan

ENVIRONMENTAL

Operating Temperature

Range

+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature

Range

+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC mode BTU / hr. (full

load)

812.9

AC economy mode

BTU / hr. (full load)

347.2

Battery mode BTU / hr.

(full load)

885.6

AC economy mode

efficiency rating (100%

load)

94%

Audible Noise < 45 dB at front side 1m

COMMUNICATIONS

Communications

interface

USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface

Network monitoring

port description

Supports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure

communications

PowerAlert software Included

Communications cable USB and DB9 cabling included

WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

LINE / BATTERY TRANSFER

Transfer time No transfer time (0 ms.) in online, double-conversion mode

Low voltage transfer to

battery power (setpoint)

80V (100% load), 65V (

High voltage transfer

to battery power

(setpoint)

150

SPECIAL FEATURES

Cold Start (startup in

battery mode during a

power failure)

Cold-start operation supported

High availability UPS

features

Automatic inverter bypass; Hot swappable batteries

Green & high efficiency

features

High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of

economy mode operation

CERTIFICATIONS

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)

WARRANTY

Product Warranty

Period (Worldwide)

2-year limited warranty

Connected Equipment

Insurance (U.S.,

Canada & Puerto Rico)

$250,000 Ultimate Lifetime Insurance

Related Items

Optional Products

Product Type Related Model Description Qty.

Extended Warranties WEXT3-2200-3000 3-Year Extended Warranty - For Smart Line-Interactive and Online

Tower or Rack models, 2200-3000VA

Extended Warranties WEXT5-2200-3000 5-Year Extended Warranty - For Smart Line-Interactive and Online

Tower or Rack models, 2200-3000VA or less

External Battery Packs BP48V24-2U BP48V242U - External Battery Pack for UPS System 1

External Battery Packs BP48V60RT-3U External Battery Pack and Cable. 3U, Expandable, Blue 2-Point

Connector

Power Cables P007-006 6-ft. Heavy-Duty 14AWG Power cord

(IEC-320-C13 to NEMA 5-15P)

Power Cables P007-010 10-ft. Heavy-Duty 14AWG Power cord

(IEC-320-C13 to NEMA 5-15P)

Power Cables P044-06I 6-inch 12AWG Heavy Duty Power Adapter cord

(NEMA-L5-20R to NEMA-5-20P)

Power Cables P045-010 10-ft. 12AWG Heavy-Duty Power cord

(IEC-320-C19 to NEMA L5-20P)

Power Cables P049-010 10-ft. 12AWG Heavy Duty Power cord

(IEC-320-C19 to NEMA 5-20P)

Power Cables PDUNV Basic PDU / Power Distribution Unit - Safe, reliable power distribution

for critical networking equipment

Power Distribution PDU1220T Basic PDU / Power Distribution Unit - Safe, reliable power distribution

for critical networking equipment

Power Distribution PDUB20 Dual source Power Distribution Unit / PDU with Manual Transfer Switch

enables Hot-swappable UPS Replacement in Critical Network

Applications

Power Distribution PDUMH20 Metered PDU / Power Distribution Unit- Safe, reliable power

distribution with digital current meter

Power Distribution PDUMH20AT Metered PDU with ATS - Power Distribution Unit with dual-input Auto

Transfer Switching

Power Distribution PDUMH20ATNET Switched, Metered PDU with ATS - Power Distribution Unit with

dual-input Auto Transfer Switching, individual outlet control and SNMP

network interface

Power Distribution PDUMNH20 Monitored PDU / Power Distribution Unit supports real-time remote

monitoring of load level, voltage and frequency with options for remote

environmental and security monitoring

Power Distribution PDUMNV20 Monitored PDU / Power Distribution Unit supports real-time remote

monitoring of load level, voltage and frequency with options for remote

environmental and security monitoring

Power Distribution PDUMV20 Metered PDU / Power Distribution Unit - Safe, reliable power

distribution with digital current meter

Power Distribution PDUMV20NET Switched, Metered PDU with Remote Monitoring - 0U Vertical

Rackmount Power Distribution Unit for Networks with Individually

Switchable Outlets, Current Metering, Remote Monitoring and Control

Power Distribution PDUV20 Safe, reliable power distribution for critical networking equipment 1

Shutdown Cable Kits AS400CABLE KIT Power Management Tools - UPS Communication Cable Kit for System

i / AS400 / iSeries Servers

SNMP Accessories ENVIROSENSE Monitors temperature, humidity and contact-closure inputs. (Requires

SNMPWEBCARD or switched PDU.)

SNMP Accessories SNMPWEBCARD For remote monitoring and control via SNMP, Web, or Telnet. 1

UPS Accessories MODBUSCARD For remote monitoring and control via MODBUS protocol 1

UPS Accessories RELAYIOCARD Programmable Relay I/O Card 1

More information, including related products, owner's manuals, and additional technical specifications, can be found online at

www.tripplite.com/en/products/model.cfm?txtModelID=3594.

improvement. Specifications are subject to change without notice. Photos may differ slightly from final products.

Table des matières

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SmartPro Net Manuel utilisateur

Tripp Lite

Tripp Lite OmniPro500 Manuel utilisateur

Tripp Lite

Tripp Lite SUPDM12 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU10000RT3U2TF Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000XL Manuel utilisateur

Tripp Lite

Tripp Lite INTERNET550SER Mode d’emploi

Tripp Lite

Tripp Lite OmniSmart OMNIVSINT500 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART2200RMXL2U Manuel utilisateur

Tripp Lite

Tripp Lite Audio/Video On-Line UPS System Manuel utilisateur

Tripp Lite

Tripp Lite TE Series Manuel utilisateur

Tripp Lite

Tripp Lite Internet Office Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro INT Rackmount Intelligent Network UPS... Manuel utilisateur

Tripp Lite

Tripp Lite ECO-UPS ECO850LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline Intelligent True On-Line UPS... Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite Smart INT 1000 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1000RT2U Guide de configuration

Tripp Lite

Tripp Lite AVR Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro INT 450-1500VA Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000RTXL2UA Manuel utilisateur

Tripp Lite

Tripp Lite SMART2500XLHG Manuel utilisateur

Tripp Lite

Tripp Lite SMART2200RM2UL Manuel utilisateur

Tripp Lite

Tripp Lite Keyspan TuneView BC Pro Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SVTX Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU16KRTHW Guide d'installation

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
