Tripp Lite SmartPro 450 RTI Manuel utilisateur

Installation: p. 3

Basic Operation: p. 5

Storage & Service: p. 8

Specifications: p. 8

Safety: p. 2

Warranty & Insurance: p. 9 - 10

1111W.35thStreet

Chicago, IL 60609 USA

Customer Support: +1 (773) 869-1234

www.tripplite.com

Owner'sManual

SmartPro®450 RTI

Rackmount/TowerIntelligent

NetworkUPSSystem (230V)

ESPAÑOL: p. 9

FRANÇAIS:p.17

DEUTSCH:p. 25

200004074 Smart 450 RTI 230V OM.p65 4/14/00, 3:11 PM1

This manual contains important instructions and warnings that should be

followed during the installation, operation and storage of all Tripp Lite UPS

Systems.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, dust or

direct sunlight.

• For best performance, keep the indoor temperature between 0° C and

40° C (between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS to a properly grounded AC power outlet. Do not modify

the UPS's plug in a way that will eliminate the connection to ground. Do

not use adapters that eliminate the UPS's ground line.

• Do not plug your UPS into itself; this will damage the UPS and void your

warranty.

• If you are connecting your UPS to a motor-powered AC generator, the

generator must provide clean, filtered computer-grade output.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which

a malfunction or failure of a Tripp Lite UPS System could cause failure or

significantly alter the performance of a life-support device.

• Do not connect surge suppressors to the output of your UPS. This may

damage your UPS and will void both the surge suppressor and UPS

warranties.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your UPS

for any reason. There are no user-serviceable parts inside.

• Battery replacement must be performed by qualified service personnel.

Because the batteries present a risk of electrical shock and burn from

high short-circuit current, qualified service personnel should observe

proper precautions: Unplug and turn off the UPS before performing battery

replacement. Use tools with insulated handles and replace the existing

batteries with the same number and type of new batteries (Sealed Lead-

Acid). Do not open the batteries. Do not short or bridge the battery

terminals with any object.

• The UPS batteries are recyclable. Refer to local codes for disposal

requirements. Do not dispose of the batteries in a fire.

• Do not attempt to add external batteries.

Safety

200004074 Smart 450 RTI 230V OM.p65 4/14/00, 3:11 PM2

Mounting

Note: When removing the mounting bracket screws to change the mounting profile of your UPS, do not remove the screws

which secure the UPS cabinet. Two of these screws are located at each end of the UPS, between the four holes used for the

mounting brackets.

Rackmount

Your UPS’s mounting brackets are pre-set at a standard depth for 48 cm. (19-in.)

rack installation.* Additional bracket holes allow you to mount the UPS at

additional depths. To adjust the depth: Remove mounting bracket screws;

adjust brackets to the desired depth; replace screws.

Desktop/Under-Monitor

Remove mounting brackets (if desired). Place on your desktop or under your com-

puter monitor. CAUTION: Do not place more than 22.7 kg. (50 lbs.) on your UPS.

Vertical Tower

Remove mounting bracket screws. Position brackets as shown in Figure 1 to serve

as stabilizers for the UPS in a vertical position. Install 2 mounting screws in each

bracket. Make sure the control and LED panel is UP when you are finished.

Wallmount

Remove mounting bracket screws. Position brackets as shown in Figure 2 to

mount the UPS perpendicular to a wall along a straight, vertical line. Adjust

bracket to desired distance from wall. Install 4 mounting screws in each bracket.

Mount UPS to the wall.* Make sure the control and LED panel is UP when you

are finished. Additional bracket holes allow you to mount up to two UPSs side-

by-side on the same set of brackets (Figure 3).**

* Using screws and appropriate hardware (user-supplied) to mount to rack, wall or other surface.

** CAUTION: Each UPS weighs 7 kg. (15-1/2 lbs.). Ensure that adequate wall fasteners are used.

Installation

Figure 1 – Vertical Tower Figure2 –Wall-Mounting

OneUPS Figure3 –Wall-Mounting

TwoUPSs

200004074 Smart 450 RTI 230V OM.p65 4/14/00, 3:11 PM3

Connect your computer to

the UPS, and the UPS to an

electricaloutlet.

1. Unplugyourcomputer’s powercordfrom both

yourAC outletand yourcomputer’s ACinput.

2. Insert the female plug of the power cord that

came with your UPS (A) into your computer’s AC

input. Insert the UPS cord’s male plug into any of

yourUPS’s femaleoutput receptacles.

3. Insert the female plug of your computer’s cord

(B) into your UPS’s AC input. Insert the male

plug of your computer’s cord into your AC outlet.

Plug your computer, monitor

and other critical devices

into the UPS's Battery-

Supported Receptacles.*

Plug a printer or other

peripheral equipment into

your UPS's Surge-Only

Receptacle.

–Optional**–

Usingprovided TrippLite cable,

connect the serial port of your computer

to the serial port of your UPS. Load

softwareand runinstallation program

appropriateto youroperating system.

Turn your UPS ON

by pressing the Main Power

Switch, holding it for

3 seconds and then

releasingit.***

* Your UPS is designed to support only computer

equipment. You will overload your UPS if you connect

household appliances, laser printers or surge suppressors

to the UPS's Battery-Supported Receptacles.

** DB9 port connection is optional. Your UPS will function

properly without this connection.

*** The UPS will execute a 10-second self-test. The

"Normal" LED will illuminate and the UPS will emit one

beep to indicate normal operation.

Connection

Cords and receptacles are available from

Tripp Lite to accomodate most outlet

configurations. If rewiring is necessary,

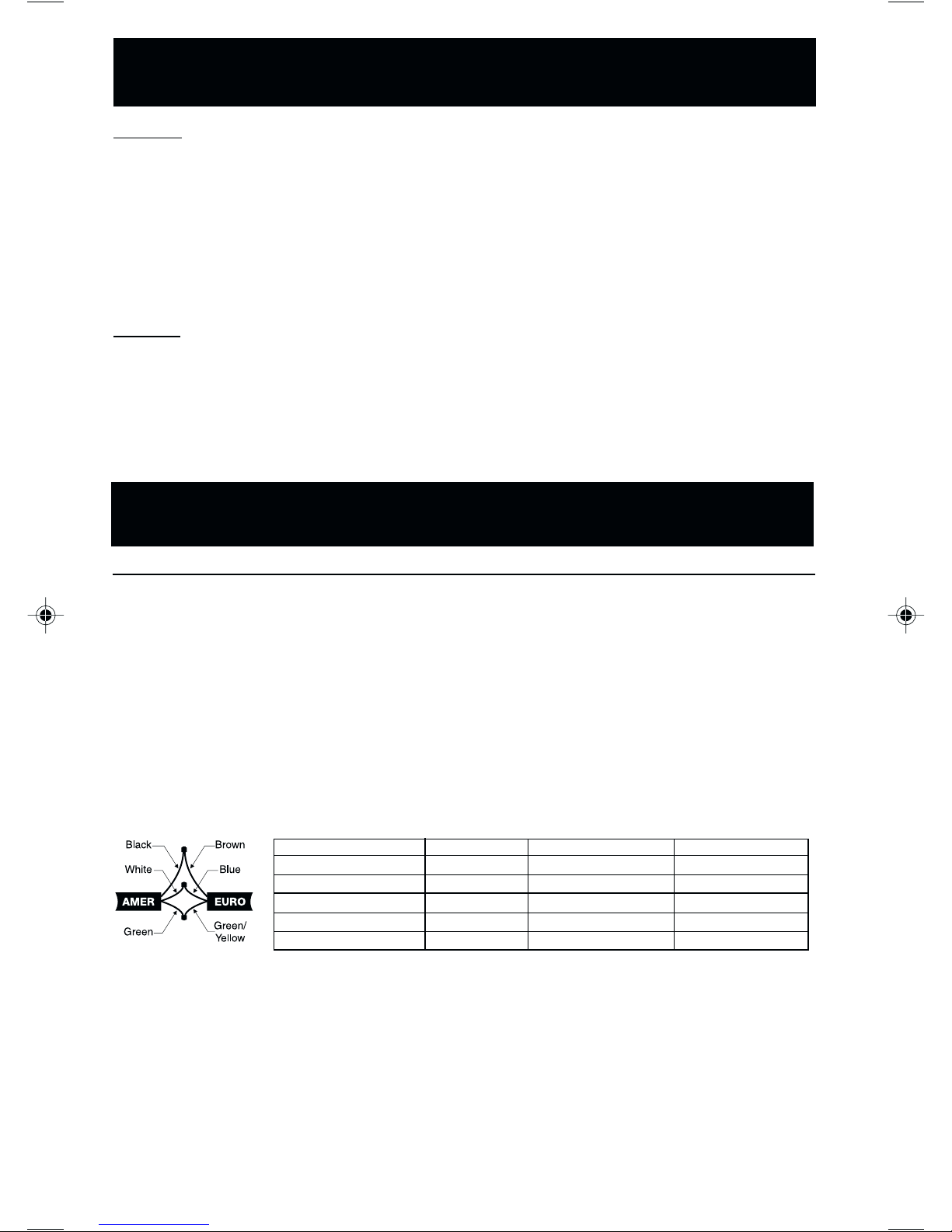

refer to the Wire Color-Code Chart on page 8.

UPS OUTLER MAX LOAD 450VA 270w

SURGE ONLY

200004074 Smart 450 RTI 230V OM.p65 4/14/00, 3:11 PM4

Basic Operation

234 5

811 13

Front

Back

12 1

Switch

1. Main Power Switch

This switch activates three separate UPS functions:

UPS Power

Press the switch, hold it for 3 seconds until you hear a beep then

release it during the beep to turn the UPS ON or OFF.*

Alarm Silence

When the on battery alarm is sounding, press this switch and

immediately release it to silence the UPS Alarm.

UPS Cold Start

In the absence of AC input, press this switch, hold it for 3 seconds

and then release it to turn your UPS ON and to use it as a stand-alone

power source (operating from the battery without AC input).**

* The UPS will execute a 10-second self-test when you turn it on. The “Normal" LED will illuminate and the UPS will beep

once to indicate the UPS is turned ON. If the UPS alarm sounds and the "Replace Battery" LED illuminates, turn your UPS

OFF, let your UPS charge its batteries for 12 hours and turn UPS back ON to repeat the automatic self-test. If alarm still

sounds, contact Tripp Lite for service at 1 (773) 869-1234. CAUTION: Do not unplug your UPS to test its batteries. This will

remove safe electrical grounding and may introduce a damaging surge into your network connections.

** The "Backup" LED will illuminate since your UPS will operate from battery power.

200004074 Smart 450 RTI 230V OM.p65 4/14/00, 3:11 PM5

Indicator Lights

The SmartPro 450 RTI uses dual function Indicator Lights. These lights can

indicate more than one UPS or power condition, depending on whether they

illuminate constantly or flash. All Indicator Light descriptions refer to when the

UPS is connected to the wall outlet and turned ON.

2. "AC Normal/AVR" LED

This green light will illuminate constantly when the utility-supplied AC

line voltage at your wall outlet is normal. It will flash when your UPS is

automatically correcting high or low AC line voltage using AVR (Automatic

Voltage Regulation). This is a normal, automatic operation of your UPS, and no

action is required on your part.

3. "Backup/Low Batt" LED

This yellow light will illuminate constantly to indicate your UPS is providing

your equipment with battery power. Also when your UPS is providing power from

battery, the UPS's Alarm will sound once every 15 seconds until silenced. This

light will flash when the UPS's battery is nearly drained and the UPS is

initiating an automatic system shutdown. During automatic system shutdown,

the UPS's Alarm will sound once every second and cannot be silenced, though

it will turn off when shutdown is complete.

4. "Fault/Overload" LED

This red light will illuminate constantly to indicate a short circuit or other fault

in the UPS. Also, the UPS's Alarm will sound constantly for 30 seconds, then

the UPS will automatically shut down. The light will flash and the UPS's Alarm

will sound once each second when the UPS's capacity has been exceeded while

it is operating from battery power. In this case, immediately remove equipment

from the battery-supported outlets until the UPS can support the remaining

load.

5. "Replace Batt" LED

This red light will illuminate constantly if a battery self-test indicates that the

UPS battery is less than fully charged or is defective. If this occurs, turn the

UPS OFF, let it charge for 12 hours, then turn it back ON and perform a second

battery self-test. If this light comes on again, contact Tripp Lite for service.

200004074 Smart 450 RTI 230V OM.p65 4/14/00, 3:11 PM6

Other UPS Features

6. AC Receptacles (Battery Backup-Supported)

These receptacles provide your connected equipment with AC line power during

normal operation and battery power during blackouts and brownouts. They also

protect your equipment against damaging surges and line noise. Connect com-

puter, monitor and other essential equipment to these receptacles.

7. AC Receptacle (Surge-Only)

This receptacle provides heavy-draw equipment that does not require battery

backup (such as a printer) with complete surge and line noise protection

without committing valuable battery power to support it during blackouts. Do

not connect computers or other essential equipment to this receptacle.

8. “SMART” RS-232 Port

The RS-232 port connects your UPS to any PC or workstation. Use with included

PowerAlert Software and cabling to monitor and manage network power and

automatically save open files and shut down equipment during a power failure.

This port uses RS-232 communications to transmit UPS and power conditions.

9. Accessory Slot

Contact Tripp Lite Customer Support for more information and a list of available

SNMP, network management and connectivity products.

10. Mounting Brackets

The mounting brackets are shipped already set for mounting the UPS in

standard 48 cm. (19 in.) racks. See Installation section for instructions on

using the mounting brackets to suit under-monitor, tower and wall-mount

applications.

11. AC Input Receptacle

Connect one end of the detachable line cord into this receptacle and the other

end into your wall outlet.

12. Battery Replacement Door

Under normal conditions, the original battery in your UPS will last several

years. Battery replacement should be performed only by qualified service

personnel. Refer to “Battery Warnings” in the Safety section. When replacing

batteries, qualified service personnel should follow this procedure: 1) Turn UPS

OFF; 2) Remove the snap-on battery replacement door, on left front of unit; 3)

Pull batteries partially out of case; 4) Make a detailed sketch of the batteries

and the polarity, color and connection of all cables; 5) Disconnect battery

terminals; 6) Dispose of used batteries; 7) Reconnect replacement batteries

exactly as original batteries were connected; 8) Push batteries back into case

and replace cover.*

* You may not receive full runtime until your replacement batteries have fully charged.

13. Circuit Breaker

A resettable circuit breaker protects equipment plugged into battery backup-

supported AC receptacles against short circuits and system overloads. If the

circuit breaker trips, unplug at least one piece of equipment from the AC

receptacles and reset the breaker by pressing the button back into place.

200004074 Smart 450 RTI 230V OM.p65 4/14/00, 3:11 PM7

Specifications

Storage & Service

Storage

First turn your UPS OFF and disconnect its power cord from the wall outlet.

Then disconnect all equipment to avoid battery drain. If you plan to store

your UPS for an extended period of time, fully recharge the UPS batteries once

every three months by plugging the UPS into a live AC outlet, turning the Power

Switch ON and letting the UPS charge for 4-6 hours. If UPS batteries remain

uncharged for an extended period of time, they will suffer permanent loss of

capacity.

Service

If returning your UPS for service, contact your local Tripp Lite dealer or

distributor. They will refer you to a service center. Please carefully pack the UPS

using the ORIGINAL PACKING MATERIAL that came with the unit. Enclose a

letter des-cribing the symptoms of the problem. If the UPS is within the 2 year

warranty period, enclose a copy of your sales receipt.

Model SmartPro 450 RTI

Output Capacity (VA/Watts): 450/270

Battery Runtime (Half Load/Full Load) Minutes: 12/3

Typical Runtime (Desktop PC/15 in. monitor) Minutes: 20

Battery Recharge Time: 2-4 hrs.

Approvals: CE

Input Voltage (230V); Input Frequency (50/60 Hz, Auto-Selecting); On-Line Input Voltage Range (187-280 volts); Voltage-Regulated

Output Voltage Range (230V +6%/-12%); On-Battery Output Voltage Range (230V ±5%); Output Waveform Line Mode (filtered

sinewave); Output Waveform Battery Mode (PWM sine wave); AC Surge Suppression (exceeds IEEE 587 Cat. A standards);

AC Noise Attenuation (>40 dB); AC TVSS Protection Modes (H to N, H to G, N to G).

The policy of Tripp Lite is one of continuous improvement. Specifications are subject to change.

Wire Color Wire 1 Wire 2 Wire 3

American Black White Green

European Brown Blue Green/Yellow

Wire Reference Wire 1 Wire 2 Wire 3

American Line 1 Neutral Ground

European Line 1 Line 2 or Neutral Ground

200004074 Smart 450 RTI 230V OM.p65 4/14/00, 3:12 PM8

Instalación p. 11

Operación Básica: p. 13

Servicio de Reparaciones: p. 16

Especificaciones: p. 16

Seguridad: p. 10

Warranty & Insurance: p. 9 - 10

1111 W. 35th Street

Chicago, IL 60609 USA

Servicios a Clientes:+1 (773) 869-1234

www.tripplite.com

Manual de Operación

SmartPro®450 RTI

Instalación en Bastidores

para Redes (230Voltios)

SmartPro es una marca registrada de Tripp Lite.

200004074 Smart 450 RTI Spanish.p65 4/14/00, 3:19 PM9

Seguridad

Este manual contiene advertencias e instrucciones importantes que deben seguirse

durante la instalación, operación y almacenaje de todos los Sistemas UPS Tripp Lite.

Advertencias sobre la Ubicación del Sistemas UPS

• Instale este sistema UPS bajo techo, lejos de calor y humedad excesiva, polvo o

luz solar directa.

• Para obtener mejores resultados conserve la temperatura ambiental entre 0º y

40º C (entre 32º y 104º F).

• Conserve suficiente espacio alrededor del sistema UPS para permitir

ventilación adecuada.

Advertencias sobre la Conexión del Sistema UPS

• Conecte este sistema UPS a una toma de energía de CA con conexión a tierra.

No remueva o modifique el enchufe del sistema UPS u de otro modo elimine la

conexión a tierra del mismo.

• No conecte el sistema UPS a sí mismo; esto causará daños al sistema UPS y

anulará su garantía.

• Si usted desea conectar el sistema UPS a un generador motorizado de energía

de CA, cerciórese de que dicho generador suministre energía limpia y filtrada

apta para computadoras.

Advertencias sobre la Conexión de Equipos

• No utilice los sistemas UPS Tripp Lite en aplicaciones para el mantenimiento

de la vida humana donde una falla del sistema UPS pueda causar anomalías o

alterar significativamente el funcionamiento del dispositivo de mantenimiento

de la vida humana.

• No conecte supresores de sobretensiones transitorias a los receptáculos de

salida del sistema UPS. Esto puede producir daños al sistema UPS y anular las

garantías del supresor de sobretensiones y del sistema UPS.

Advertencias sobre las Baterías

• Este sistema UPS no requiere mantenimiento rutinario alguno. No abra el

sistema UPS por ninguna razón. Esta unidad no contiene partes interiores que

puedan ser reparadas por el usuario.

• El reemplazo de las baterías debe ser realizado por personal técnico capacitado.

Debido a los riesgos de choques eléctricos y quemaduras causadas por alta

corriente de corto circuito interior, el personal técnico capacitado debe observar

todas las precauciones pertinentes: Desconecte y apague el sistema UPS antes

de reemplazar las baterías. Utilice herramientas con asas aisladas y reemplace

las baterías con el mismo número y tipo de baterías nuevas (Selladas de Plomo y

Acido). No abra las baterías. No permita que ningún objeto foráneo entre en

contacto con las terminales o bornes de las baterías.

• Las baterías utilizadas en conexión con este sistema UPS son reciclables.

Refiérase a su código local para obtener más información de reciclamiento. No

utilice fuego para disponer de las baterías.

• No intente conectar baterías externas.

200004074 Smart 450 RTI Spanish.p65 4/14/00, 3:19 PM10

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SmartOnline SU3000XLCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART2600RM2U Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite SmartPro SMART1050SLT Manuel utilisateur

Tripp Lite

Tripp Lite SMART3000NET Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU8000RT4U Manuel utilisateur

Tripp Lite

Tripp Lite SMART3000CRMXL Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000RTXL3UHV Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU20K3/3XR5 Manuel utilisateur

Tripp Lite

Tripp Lite AGSM7499 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000XLA Manuel utilisateur

Tripp Lite

Tripp Lite SM2200NAFTA Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART2200RMXL2UP Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMARTINT2200VS Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU5000RT4UTF Guide de configuration

Tripp Lite

Tripp Lite OmniSmart OMNISMART1400 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART1050 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro AG-03AD Series Manuel utilisateur

Tripp Lite

Tripp Lite Internet Office 300 Manuel utilisateur

Tripp Lite

Tripp Lite 500 VA Manuel utilisateur

Tripp Lite

Tripp Lite RBC24-SUTWR Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1500XLCD Manuel utilisateur

Tripp Lite

Tripp Lite SU10000RT3UPM Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART5000RT3U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000RTXL2U Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
