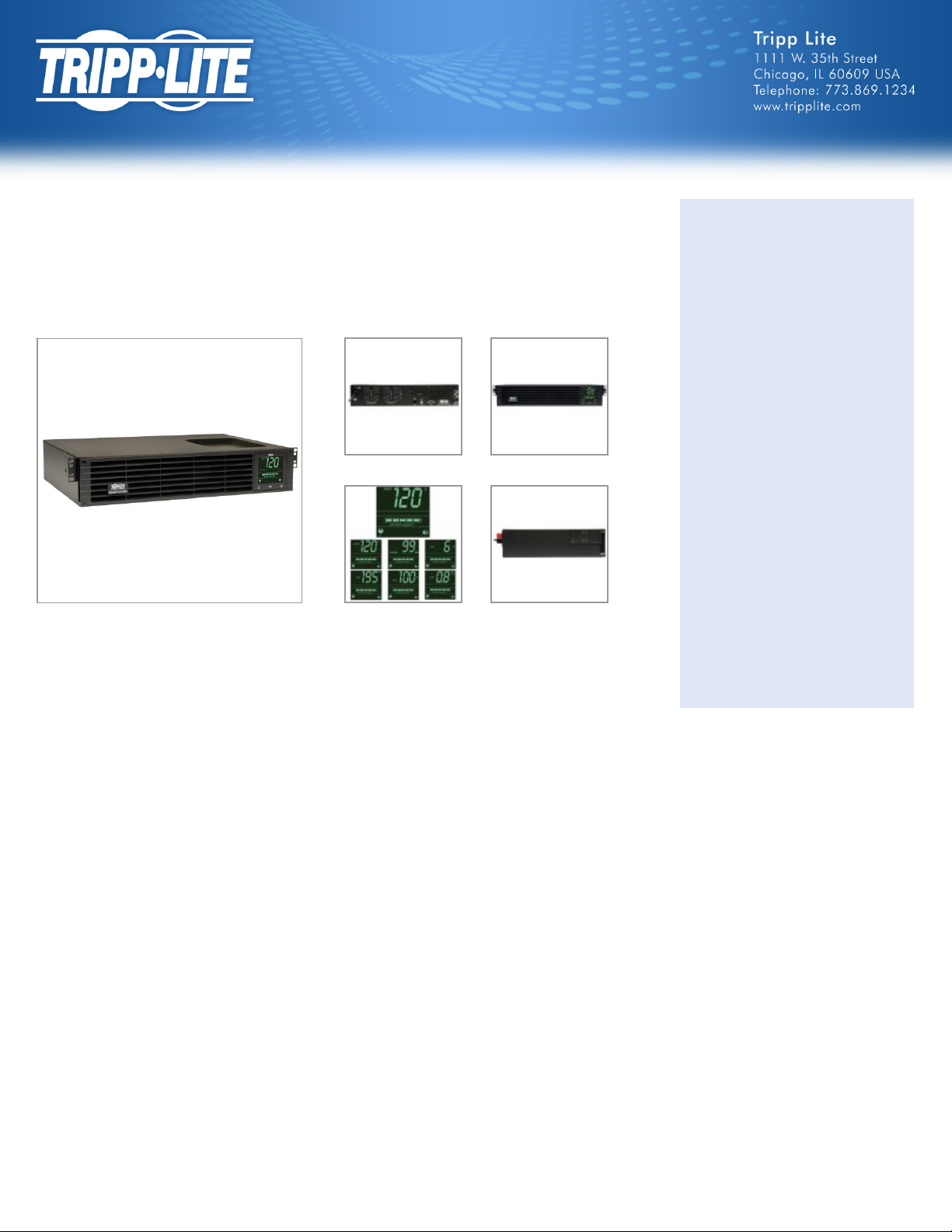

Tripp Lite SM1500RMXL2UTAA Manuel utilisateur

TAA SmartPro 120V 1.5kVA 1.35kW Line-

Interactive Sine Wave UPS, 2U, Extended Run,

Network Card Options, LCD, USB, DB9

MODEL NUMBER: SM1500RMXL2UTAA

Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts,

brownouts, power surges and line noise. Ideal solution for servers, storage devices and telecom

hardware.

Features

Protects Mission-Critical Rack-Mounted Equipment

Provides fully regulated sine wave AC output for servers, network storage devices and telecom

hardware

●

Audible alarm signals loss of utility power, overload, low battery and more

●

8 NEMA 5-15R outlets

●

10-ft. (3.05 m) power cord with 120V NEMA 5-15P input

●

570-joule surge suppression rating

●

Reliable Battery Backup with Expandable Runtime

Supports half load up to 14 min. and full load up to 4.9 min.

●

Internal batteries designed for hot-swap field replacement

●

Expandable runtime with optional external battery packs, such as Tripp Lite's BP36V15-2U

●

95% line-power efficiency rating saves money in energy costs

●

Switchable Outlets

2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads

●

Automatic Voltage Regulation (AVR)

Maintains 120V nominal output over input range of 83V-145V without using battery power

●

EMI/RFI Line Noise Filtering

Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's

●

Highlights

Corrects under- and

overvoltages from 83V to 145V

●

8 NEMA 5-15R outlets—4

switchable via network interface

●

Network power management

and control capability

●

Expandable runtime with

optional external battery packs

●

14 min. runtime at half load; 4.9

min. at full load

●

To use the Auto Probe feature,

this product requires a

WEBCARDLX network interface

(sold separately) running LX

firmware update 15.5.2 or later

●

Package Includes

SM1500RMXL2UTAA SmartPro

120V 1.5kVA 1.35kW Line-

Interactive Sine Wave UPS

●

USB cable

●

DB9 cable

●

EPO cable

●

Mounting hardware

●

Owner’s manual

●

1 / 6

Specifications

performance

Interactive LCD Screen

Front-panel LCD monitors power status, operating data, voltage, alarm and other options

●

Rotates for easy viewing in rack-mount or tower configurations

●

Optional Network Management Cards

Compatible with Tripp Lite UPS management cards, including TLNETCARD, WEBCARDLX and

SNMPWEBCARD

●

Communications Ports

USB and DB9 ports enables data-saving unattended shutdown when used with Tripp Lite's PowerAlert

software, available via FREE download from www.tripplite.com/poweralert

●

EPO port supports emergency shutdown in large facilities

●

Versatile Installation Options

Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack

●

Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory

●

Mounts in upright tower position with optional 2-9USTAND accessory

●

Mounts to front rails of 2- or 4-post rack with optional UPSHDEARKIT accessory

●

TAA Compliant

Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

●

OVERVIEW

UPC Code 037332152831

UPS Type Line-Interactive

INPUT

Rated input current (Maximum Load) 12A

Nominal Input Voltage(s) Supported 120V AC

UPS Input Connection Type 5-15P

Input Circuit Breakers 15A

UPS Input Cord Length (ft.) 10

UPS Input Cord Length (m) 3.1

Recommended Electrical Service 15A 120V

Input Phase Single-Phase

OUTPUT

2 / 6

Output Volt Amp Capacity (VA) 1500

Output Capacity (kVA) 1.5

Output Watt Capacity (Watts) 1350

Output kW Capacity (kW) 1.35

Output Capacity Details Output is reduced to 1200 watts maximum when used with external battery packs

Power Factor 0.9

Nominal Voltage Details 120v nominal output in battery mode

Frequency Compatibility 60 Hz

Output Voltage Regulation (Line

Mode) -14%, +6%

Output Voltage Regulation (Battery

Mode) +/- 5%

Load Management Receptacles Two switchable two-outlet 5-15R load banks

Output AC Waveform (AC Mode) Sine wave

Output AC Waveform (Battery

Mode) Pure Sine wave

Nominal Output Voltage(s)

Supported 110V; 115V; 120V

Output Receptacles (8) 5-15R

Individually Controllable Load Banks Yes

BATTERY

Battery Type Valve Regulated Lead Acid (VRLA)

Full Load Runtime (min.) 4.9 min. (1350w)

Half Load Runtime (min.) 14 min. (675w)

Expandable Battery Runtime Extended runtime supported via optional external battery packs

Expandable Runtime Yes

External Battery Pack Compatibility  <a class="productLink" href="//www.tripplite.com/External-36V-2U-Rack-Tower-Battery-Pack-for-select-Tripp-

Lite-UPS-Systems~BP36V15-2U">BP36V15-2U</a>  (limit 1);  <a class="productLink"

href="//www.tripplite.com/External-36V-3U-Rack-Tower-Battery-Pack-select-Tripp-Lite-UPS-Systems~BP36V42-

3U">BP36V42-3U</a>  (multi-pack compatible);  <a class="productLink"

href="//www.tripplite.com/external-36v-2u-rack-tower-battery-pack-select-tripp-lite-ups-systems~BP36V27-

2US">BP36V27-2US</a>  (multi-pack compatible)

DC System Voltage (VDC) 36

Battery Recharge Rate (Included

Batteries) Less than 4.5 hours from 10% to 90%

Battery Access Front panel battery access door

Internal UPS Replacement Battery

Cartridge  <a class="productLink" href="//www.tripplite.com/2U-UPS-Replacement-36VDC-Battery-Cartridge-1-set-3-

select-Tripp-Lite-SmartPro-UPS~RBC93-2U">RBC93-2U</a>

Battery Replacement Description Hot-swappable, user replaceable batteries

VOLTAGE REGULATION

3 / 6

Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Overvoltage Correction Input voltages between 127 and 145 are reduced by 12%

Undervoltage Correction Input voltages between 95 and 108 are boosted by 12%

Severe Undervoltage Correction Input voltages between 83 and 94 are boosted by 24%

USER INTERFACE, ALERTS & CONTROLS

Front Panel LCD Display Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data,

plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for

detailed LCD configuration and monitoring options)

Switches 3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

Alarm Cancel Operation Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option

available

Audible Alarm Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown

conditions

SURGE / NOISE SUPPRESSION

UPS AC Suppression Joule Rating 570

UPS AC Suppression Response

Time Instantaneous

EMI / RFI AC Noise Suppression Yes

PHYSICAL

Primary Form Factor Rackmount

Cooling Method Fan

Included Mounting Accessory

Description Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to

914mm)

Installation Form Factors Supported

with Included Accessories 4 post 19 inch rackmount

Installation Form Factors Supported

with Optional Accessories 2 post rackmount ( <a class="productLink" href="//www.tripplite.com/2-Post-Rack-Mount-Wall-Mount-Adapter-

Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> ); 2-4 post front rail

rackmount ( <a class="productLink" href="//www.tripplite.com/Heavy-Duty-2-post-Front-Mounting-Ear-

Kit~UPSHDEARKIT">UPSHDEARKIT</a> ); 4 post rackmount short-depth ( <a class="productLink"

href="//www.tripplite.com/4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-Wall-Mount-

Racks~4POSTRAILKITWM">4POSTRAILKITWM</a> ); Tower ( <a class="productLink"

href="//www.tripplite.com/2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-Systems~2-9USTAND">2-

9USTAND</a> ); Wallmount ( <a class="productLink" href="//www.tripplite.com/2-Post-Rack-Mount-

Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-Systems~2POSTRMKITWM">2POSTRMKITWM</a> )

Minimum Required Rack Depth with

External Battery Pack (cm) 51

Minimum Required Rack Depth with

External Battery Pack (in.) 20

Minimum Required Rack Depth

without External Battery Pack (cm) 42

Minimum Required Rack Depth

without External Battery Pack (in.) 16.5

4 / 6

Optional Mounting Accessory Notes Optional  <a class="productLink" href="//www.tripplite.com/2U-9U-Tower-Stand-Kit-select-Rack-Mount-UPS-

Systems~2-9USTAND">2-9USTAND</a>  enables upright tower UPS placement;  <a

class="productLink" href="//www.tripplite.com/2-Post-Rack-Mount-Wall-Mount-Adapter-Kit-select-Rack-Mount-UPS-

Systems~2POSTRMKITWM">2POSTRMKITWM</a>  enables wall-mount and 2-post rackmount installation;

 <a class="productLink" href="//www.tripplite.com/4-Post-1U-Universal-Adjustable-Rack-Mount-Shelf-Kit-for-

Wall-Mount-Racks~4POSTRAILKITWM">4POSTRAILKITWM</a>  enables installation in 4-post short-depth

racks from 14.5 to 23.5 inches (368 to 597mm);  <a class="productLink" href="//www.tripplite.com/Heavy-

Duty-2-post-Front-Mounting-Ear-Kit~UPSHDEARKIT">UPSHDEARKIT</a>  enables installation in 2 or 4-post

racks using front vertical rails only, without rear support

Primary UPS Depth (mm) 342

Primary UPS Height (mm) 88

Primary UPS Width (mm) 439

Rack Height 2U

Shipping Dimensions (hwd / cm) 22.35 x 58.42 x 49.02

Shipping Dimensions (hwd / in.) 8.80 x 23.00 x 19.30

Shipping Weight (kg) 26.04

Shipping Weight (lbs.) 57.40

UPS Housing Material Steel

UPS Power Module Dimensions

(hwd, cm) 8.76 x 43.94 x 34.16

UPS Power Module Dimensions

(hwd, in.) 3.45 x 17.3 x 13.45

UPS Power Module Weight (kg) 21.09

UPS Power Module Weight (lbs.) 46.5

ENVIRONMENTAL

Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

Relative Humidity 0 to 95%, non-condensing

AC Mode BTU / Hr. (Full Load) 237

Battery Mode BTU / Hr. (Full Load) 751

AC Mode Efficiency Rating (100%

Load) 95%

Audible Noise 45 dBA maximum, front side 1m

COMMUNICATIONS

Network Management Cards SNMPWEBCARD;  <a class="productLink" href="//www.tripplite.com/Web-Management-Accessory-Card-

SmartPro-SmartOnline-UPS-Systems~TLNETCARD">TLNETCARD</a> ;  <a class="productLink"

href="//www.tripplite.com/Web-Management-Accessory-Card~WEBCARDLX">WEBCARDLX</a>

Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions

PowerAlert Software For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at

https://www.tripplite.com/poweralert

Communications Cable USB and DB9 cabling included

5 / 6

not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.

Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:

https://www.tripplite.com/products/product-certification-agencies

WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications

Network UPS Tools Compatibility NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at

http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Network Management Card

Description Network management card optional

Communications Interface DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface; USB (HID enabled)

LINE / BATTERY TRANSFER

Transfer Time 4 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)

Low Voltage Transfer to Battery

Power (Setpoint) 83

High Voltage Transfer to Battery

Power (Setpoint) 145

FEATURES & SPECIFICATIONS

Grounding Lug Back panel grounding lug

Cold Start (Startup in Battery Mode

During a Power Failure) Cold-start operation supported

High Availability UPS Features Auto Probe Monitoring and Reboot (requires WEBCARDLX); Automatic Voltage Regulation (AVR); Expandable

battery backup; Hot swappable batteries; Remote management; Sine wave output; Surge/noise protection

Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

STANDARDS & COMPLIANCE

UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI);

ROHS (Restriction of Hazardous Substances); TAA Compliant

WARRANTY

Product Warranty Period

(Worldwide) 2-year limited warranty

Connected Equipment Insurance

(U.S., Canada & Puerto Rico) $250,000 <a class="insuranceLink" href="//www.tripplite.com/support/insurance-policy">Ultimate Lifetime

Insurance</a>

6 / 6

Table des matières

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite SmartPro 3U Rackmount Manuel utilisateur

Tripp Lite

Tripp Lite TE600 Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1500RTXL2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU8000RT4U Manuel utilisateur

Tripp Lite

Tripp Lite BC350 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro AGSM152DRTi2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU8000RT3U Manuel utilisateur

Tripp Lite

Tripp Lite TM500 Manuel utilisateur

Tripp Lite

Tripp Lite 2POSTRMKITWM Manuel utilisateur

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline AGPS8294 Series Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000XLA Manuel utilisateur

Tripp Lite

Tripp Lite OMNI1000LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000RTXR3UHW Guide d'installation

Tripp Lite

Tripp Lite SmartPro SMART2200RMXL2U Manuel utilisateur

Tripp Lite

Tripp Lite SMART750XLA Manuel utilisateur

Tripp Lite

Tripp Lite INTERNET525 Manuel utilisateur

Tripp Lite

Tripp Lite SUPDM12 Manuel utilisateur

Tripp Lite

Tripp Lite SUINT1000LCD2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro Rackmount Manuel utilisateur

Tripp Lite

Tripp Lite RBC5A Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1000RTXL2U Guide de configuration

Tripp Lite

Tripp Lite SmartPro VS SMART2200VSXL Manuel utilisateur

Tripp Lite

Tripp Lite SMART2200SLT Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
