Tripp Lite SmartRack SRCOLOKIT42U Manuel utilisateur

SmartRack®Assembly Instructions

Models:

SRCOLOKIT42U, SRCOLOKIT48U

1111 West 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

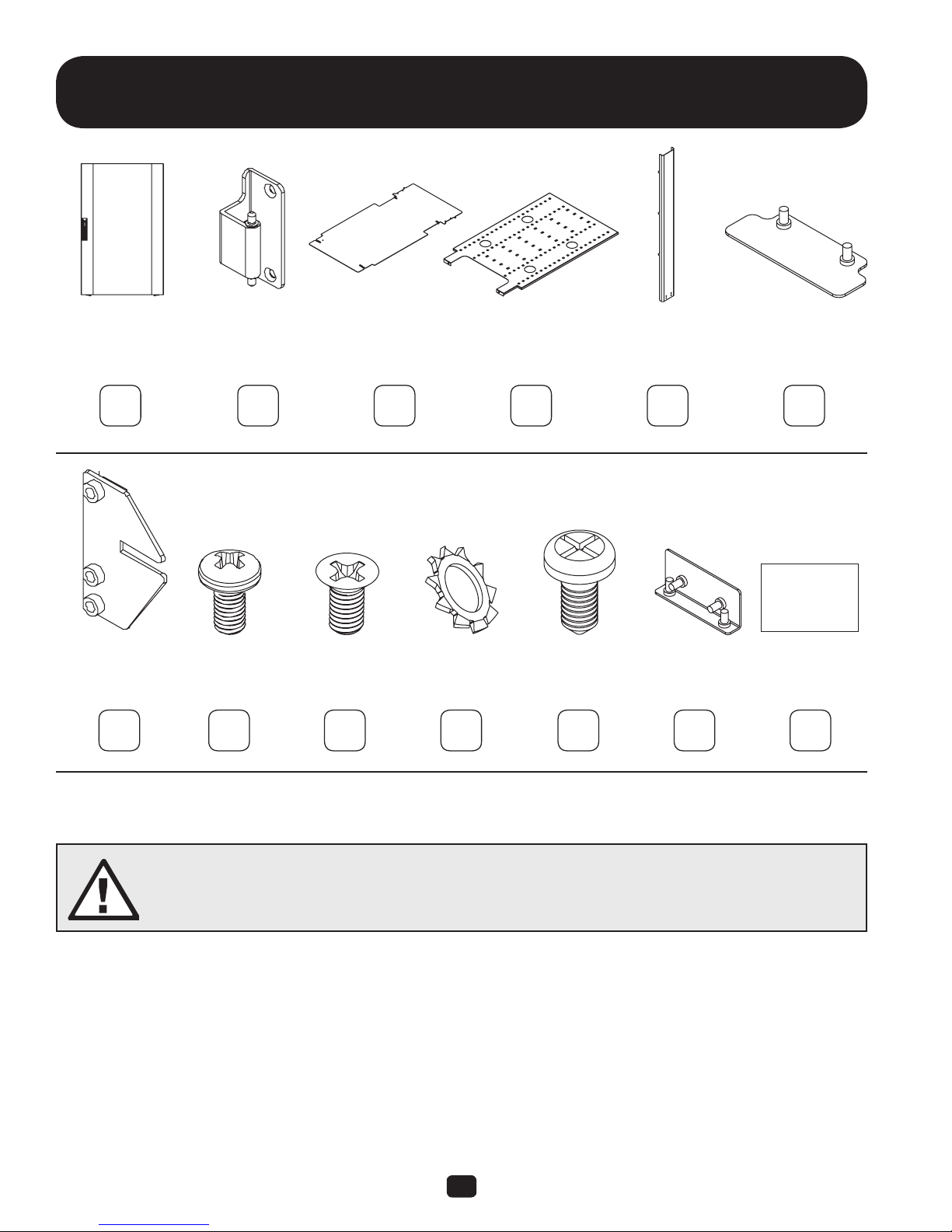

Parts List

Colo Door Hinge

Brackets

Divider

Plate

Roof Cable

Channel

Blocking

Plate

Divider Plate

Bracket

M6 Screw M6 Flat Head

Screw

Lock Washer 8-32 Screw Cable Channel

Plate

Label

A B C D E F

G H I J K L M

x2x4 x2

x4 x17 x17x4 x8 x1x2

x1x1 x1

Required tools (User Supplied):

Phillips Head Screwdriver

WARNING: The rack enclosure is extremely heavy. Do not attempt to unpack, move, assemble or install the

enclosure without assistance. Until it has been properly assembled and stabilized, the enclosure is prone to

tipping and could cause property damage and/or personal injury. Use extreme caution when assembling

the enclosure. Do not attempt to install equipment without ﬁrst stabilizing the enclosure.

MODEL:

SRCOLOKIT42U

WWW.TRIPPLITE.COM

SERIAL NUMBER

XXXXXXXXXXXXXXXX

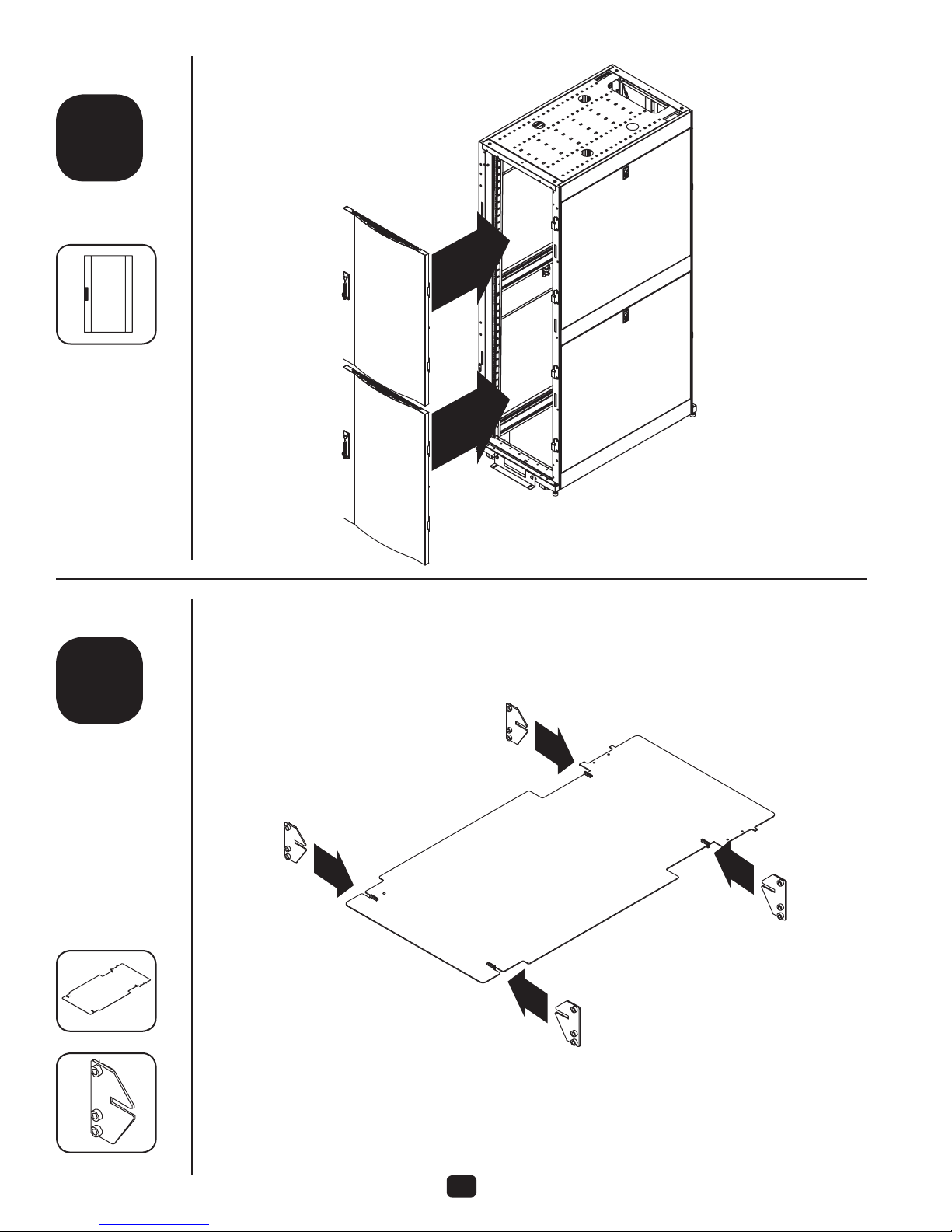

step

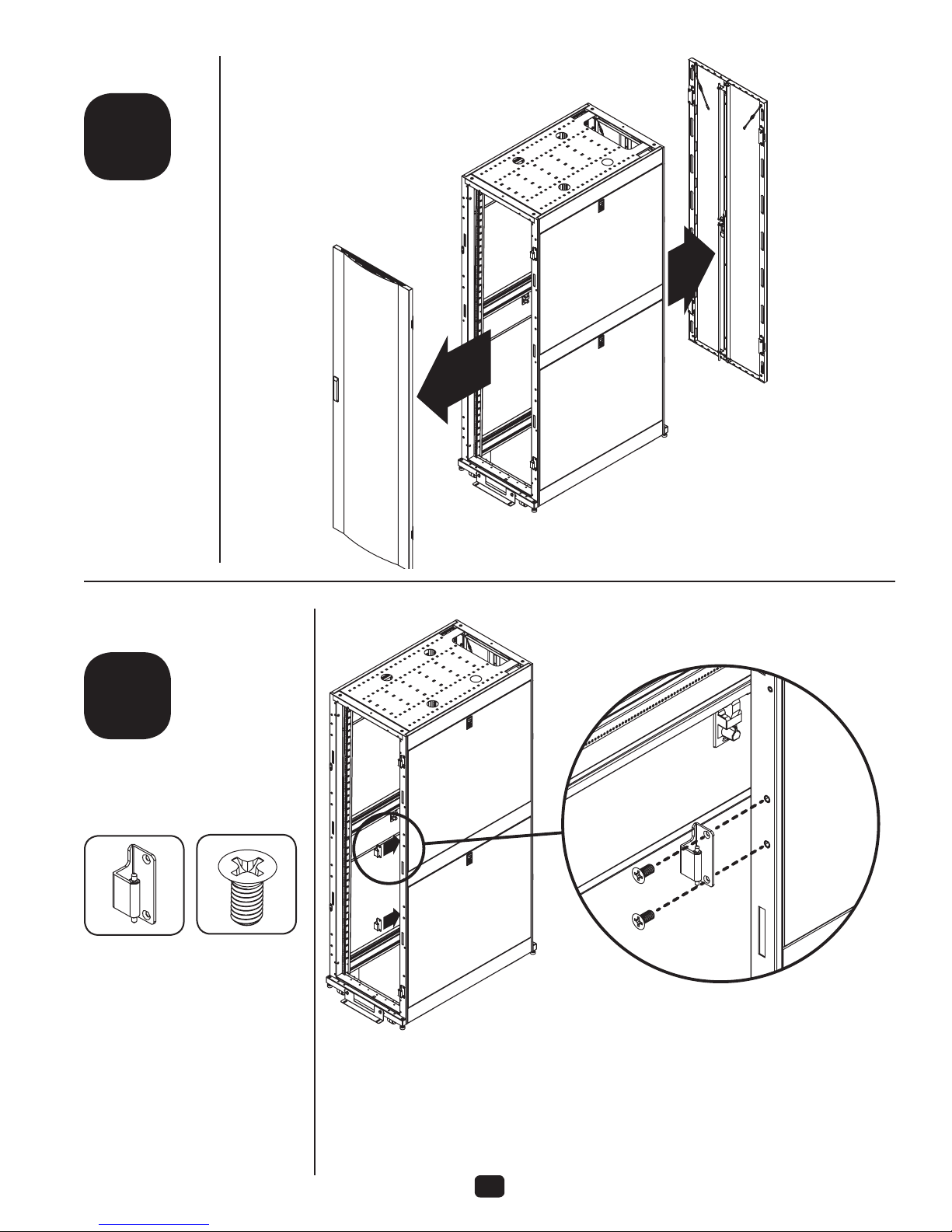

Remove front and

rear doors.

For front doors, attach additional

hinge brackets to door frame

on the same side as the existing

hinge brackets.

For rear doors, move two hinge

brackets so that all brackets

are on the same side of the

door frame.

2 4

step

Attach colo doors

to hinges on frame.

Assemble divider

plate brackets

onto divider plate.

There are left and

right brackets.

Make sure the

ﬂat surface of the

brackets face away

from each other

when assembled to

divider plate.

Repeat step 3 for

rear doors.

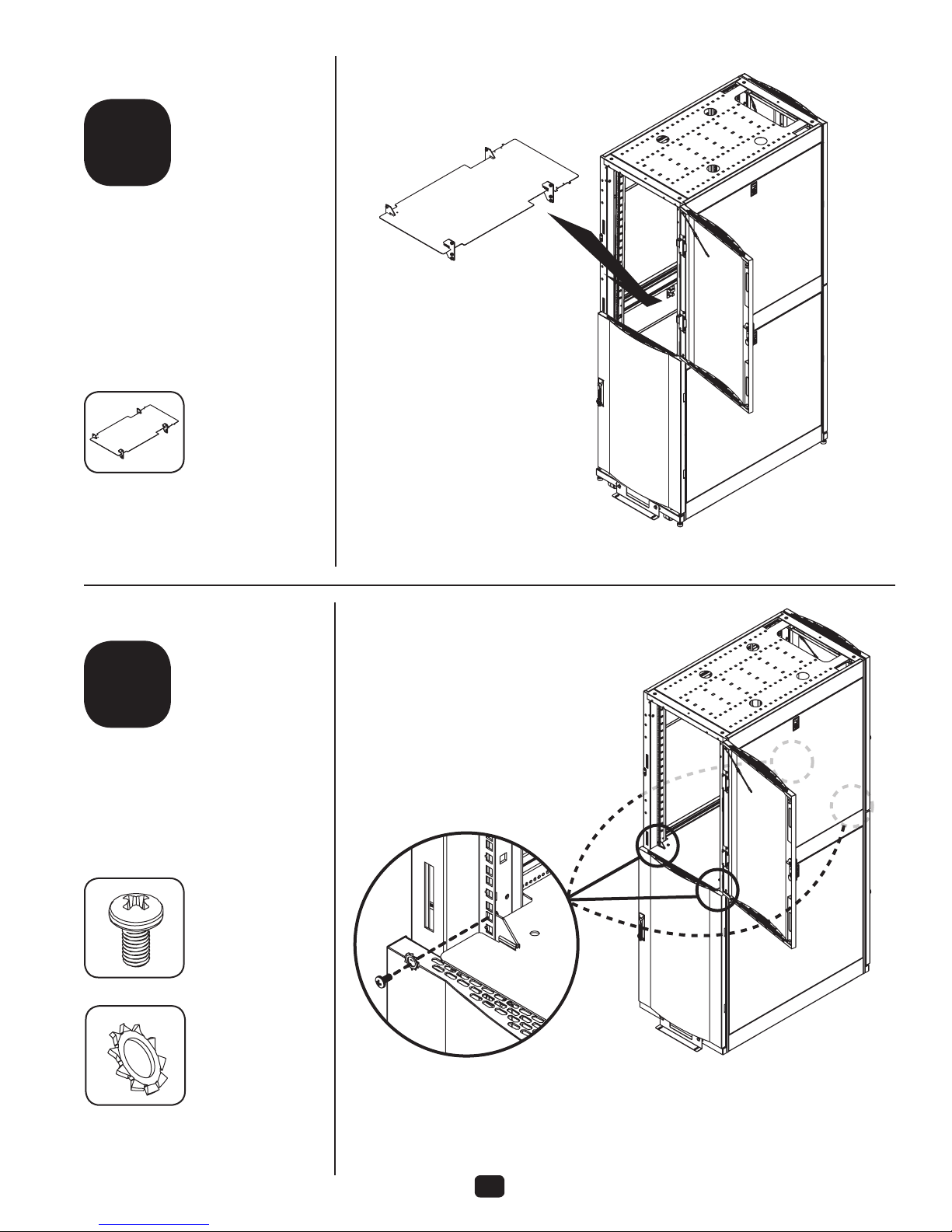

step

Using an assistant, install divider.

Divider should be installed

with lower doors installed and

completely closed so divider can rest

on the lower doors while installing

M6 washers and screws. Lock the

doors to prevent them from opening

and damaging the divider. Brackets

on divider should be on the inside of

the rack vertical rails.

step

Install upper M6 washers and screws

in the topmost hole of“U”number

22 for a 42U rack and“U”number 25

for a 48U rack. DO NOT open lower

doors until four of these washers and

screws are installed onto the four

vertical rails

step

Once upper

M6 hardware

is installed, the

bottom doors can

safely be opened to

install the lower M6

hardware.

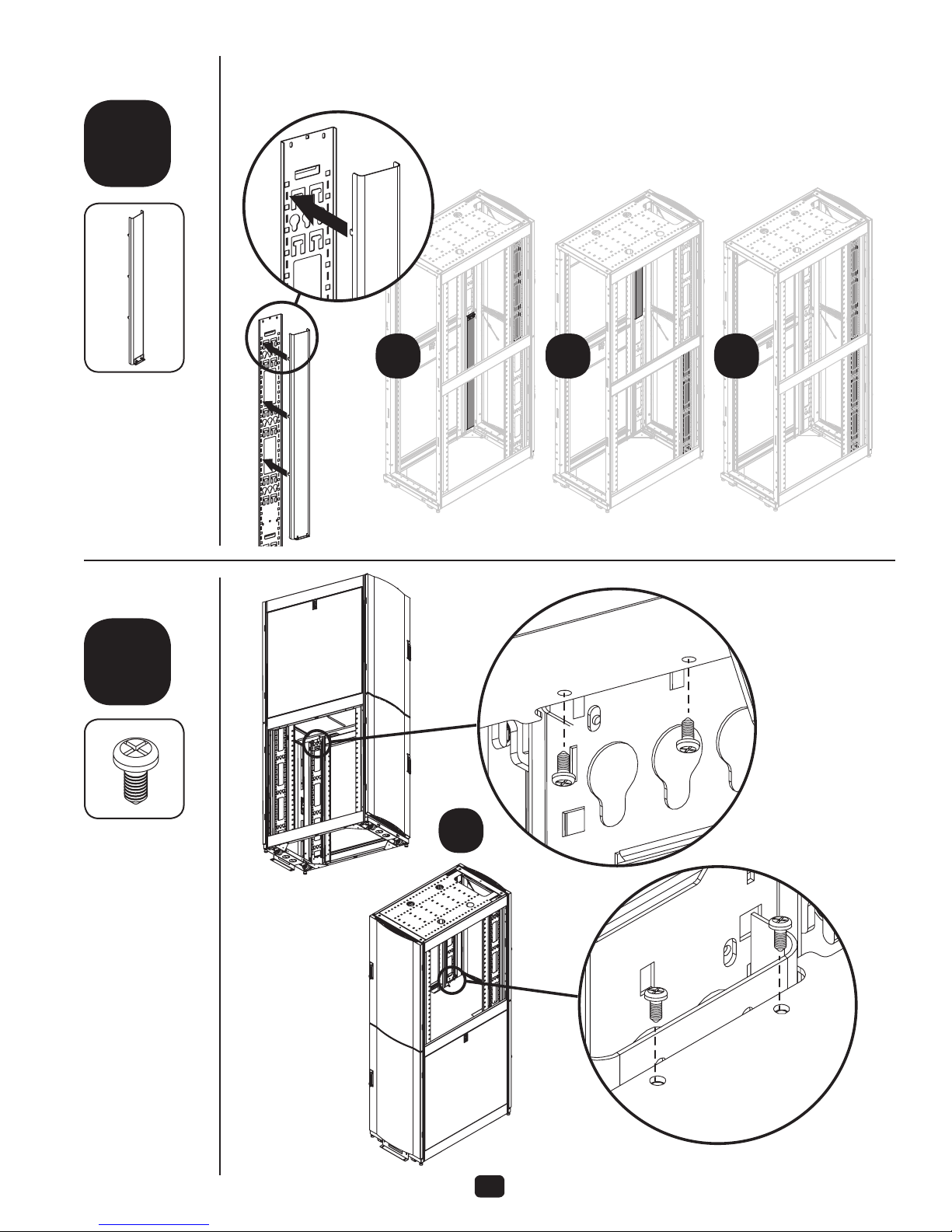

step

Install cable channels onto the

cable managers using the tabs.

4 4

Tripp Lite follows a policy of continuous improvement. Product specications are subject to change without notice.

13-09-210 • 9332D8-EN Rev C

1111 West 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

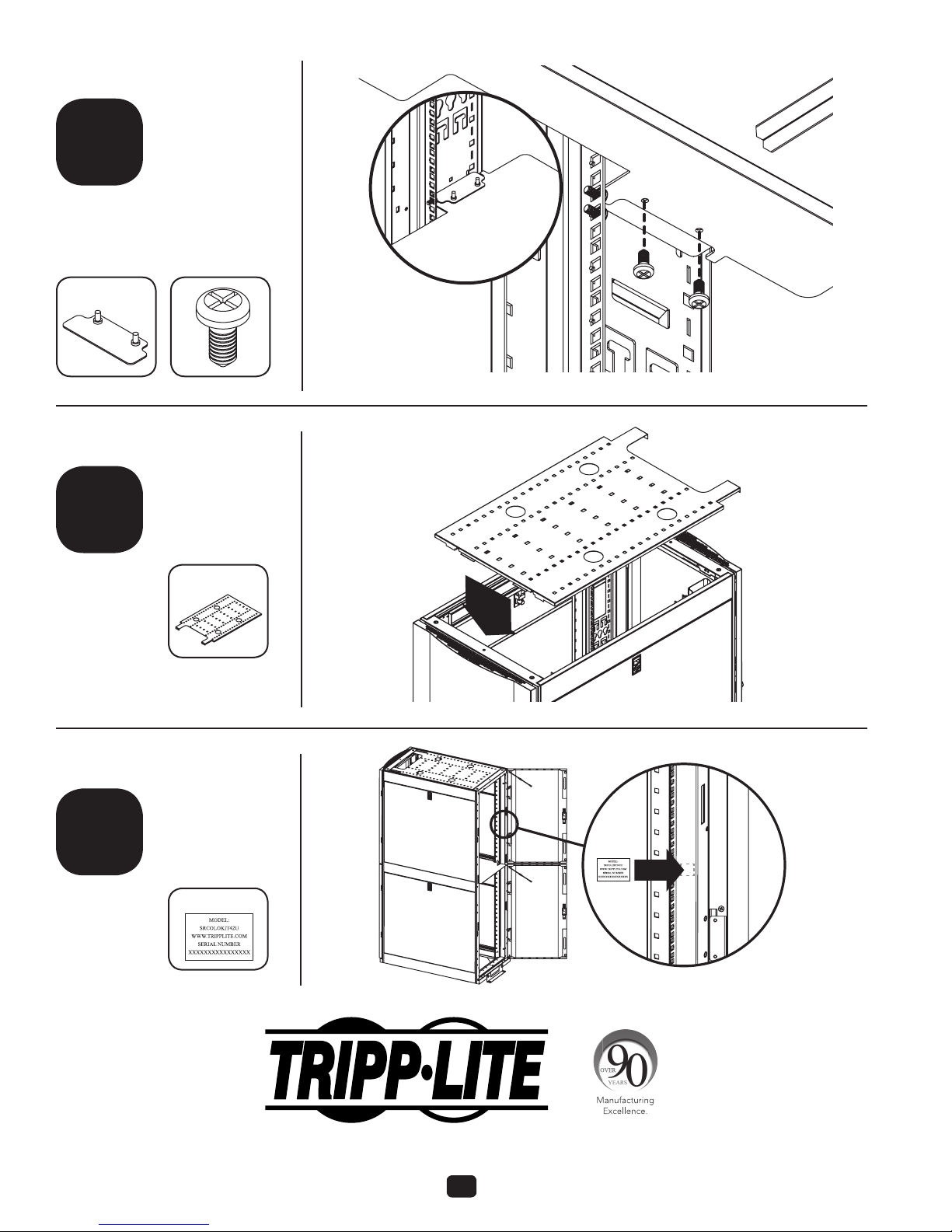

step

If you only put in one cable channel,

install the blocking plate on the side

opposite the cable channel. Secure

the plate to the divider.

Install roof. No

fasteners are

needed.

Place provided

label over

existing model

number label.
