Tripp Lite SmartRack SRW12US Manuel utilisateur

Specications

Models SRW12US / SRW12USG

Rack Spaces 12U

Equipment Mounting Depth Up to 20.5 in (520.7 mm)

Load Rating* 200 lb (90.7 kg)

Unit Dimensions (H x W x D) 25.08 x 24.53 x 21.57 in (637 x 623.07 x 548 mm)

Shipping Dimensions (H x W x D) 27.95 x 26.38 x 24.41 in (710 x 670 x 620 mm)

Unit Weight 60 lb (27.21 kg)

Shipping Weight 64 lb (28.8 kg) / 70 lb (31.5 kg)

Regulatory Compliance Meets EIA-310-D, IEC 60297-3-100, NOM,

DIN 41494, RoHS and PCI-DSS standards;

IP20 Protection Rating

* The load rating includes the combined weight of the unit and installed equipment. The unit must be

mounted to a stable surface with user-supplied anchors capable of bearing the full load. TrippLite

has a policy of continuous improvement. Specications are subject to change without notice.

MODELS:

SRW12US / SRW12USG

SmartRack®Wall-Mount Rack Enclosure Cabinets

12 Rack Units 200 lb

Load Rating

Sturdy Steel

Construction

Locking Doors

& Side Panels

Plexiglas®

Front Door

(SRW12USG

only)

Standard

19” Rack Width

Convenient

Cable Access

Adjustable

Mounting Rails

Hinged Wall

Bracket

Ventilated for

Ample Airow

Reversible

Cabinet

Square Hole

Mounting

• Wall-mountenclosuresprovideconvenient,locking

storage for rackmount IT devices and other equipment

that should be o the oor, out of the way and secure

• Thecabinetisfullyreversible,allowinginstallers

to change door hinges from left to right by simply

rotating the unit 180 degrees before mounting

• Hingedwallbracketallowscabinettoswingaway

from the wall for convenient access to equipment and

cabling

SEE NEXT PAGE FOR DETAILED UNIT MEASUREMENTS

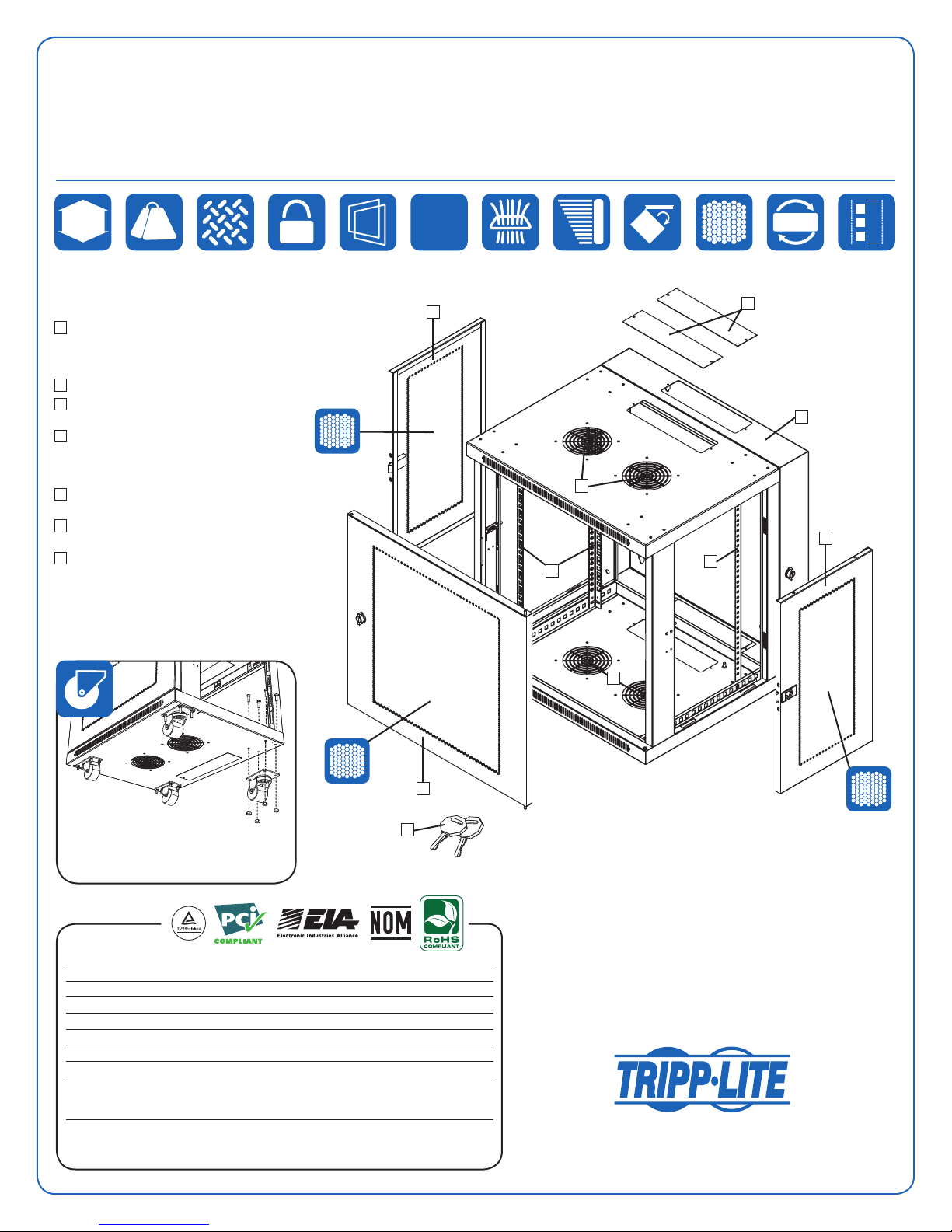

AFront Door

(Lockable/Removable/Reversible.

SRW12US door is perforated;

SRW12USG door has a Plexiglas® insert.)

B Adjustable Mounting Rails (4)

CSide Panels (2)

(Lockable/Removable)

DHinged Wall Bracket

(Lockable/Reversible. Allows the cabinet

to swing away from the wall for convenient

rear access to equipment and cabling.)

ECable Access Port Covers (2)

(Removable)

FVentilation Fan Ports (4)

(Support optional SRFANWM fan kit.)

GKeys (2)

Also Includes: Owner’s manual, mounting

plate screws (3), cabinet ground screw, pre-

installed front door ground wire and rackmount

equipment mounting hardware (12 cage nuts,

12 mounting screws, 12 nylon cup washers).

1111 W. 35th Street

Chicago, IL 60609 USA

773.869.1234

www.tripplite.com

12U

EIA

310-E

200

Floor-Standing Installation: Optional SRCASTER

kit adapts cabinet to roll under desks, tables or

counters. (Kit includes 4 casters.)

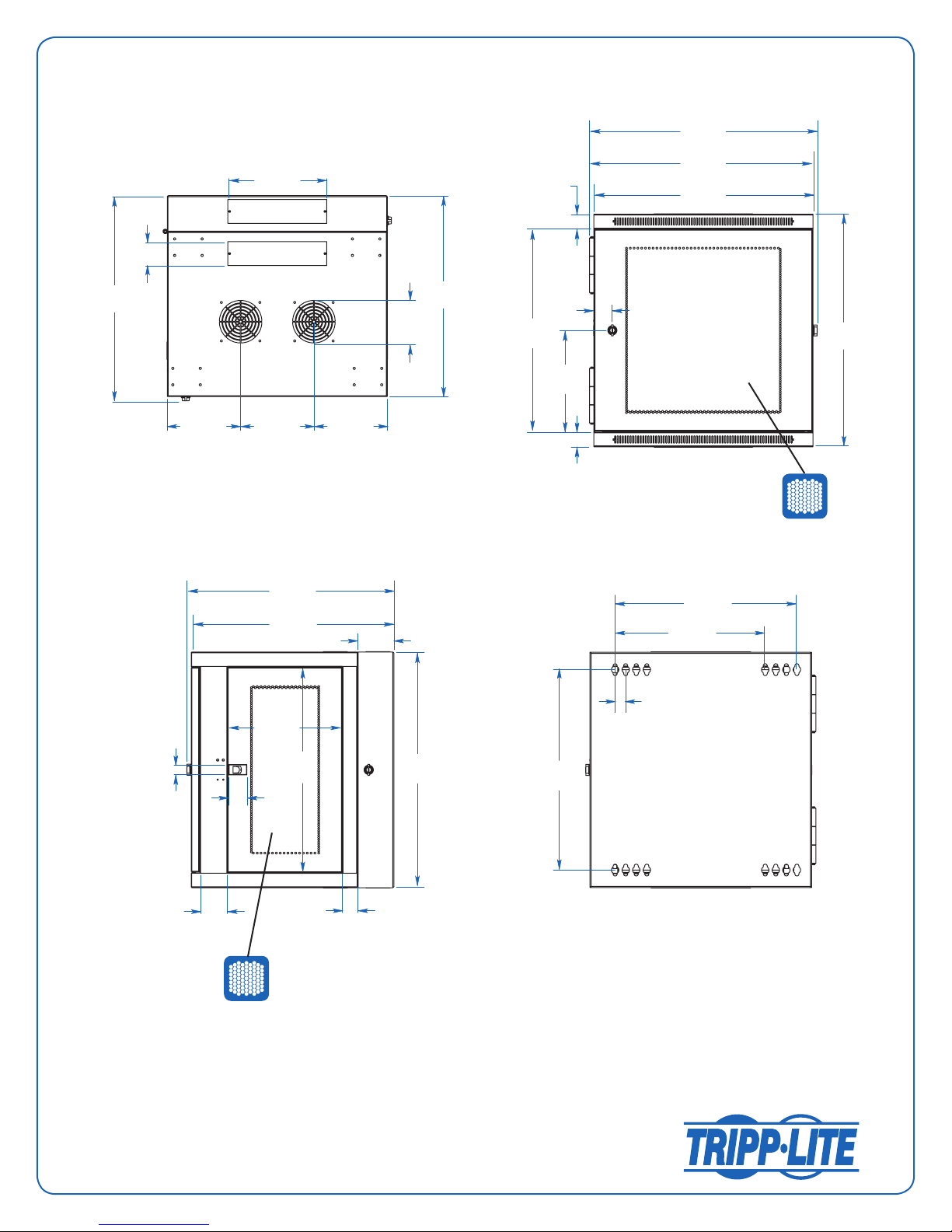

SRW12US

TOP/BOTTOM VIEW

SIDE VIEW REAR VIEW

FRONT VIEW

[270]

10.63

[65]

2.56

[115.93]

4.56

[548]

21.57

[559.30]

22.02

[448]

21.57 [96.50]

3.80

[559.30]

22.02

[306.30]

12.06

[551]

21.69

[406.40]

16.00

[28.58]

1.13

[492.13]

19.38

[600]

23.62

[47]

1.85

[623.07]

24.53

[611.77]

24.09

[200]

7.87

[200]

7.87 [200]

7.87

[637]

25.08

[26]

1.02

[71]

2.80

[542.60]

21.36

[37]

1.46

[49]

1.93

[637]

25.08

[548.10]

21.58

[318.95]

12.56

[38.50]

1.52

[38.50]

1.52

Dimensions: [mm] INCHES

Tripp Lite has a policy of continuous improvement. Specications are subject to change without notice.

MODELS:

SRW12US / SRW12USG

SRW12US

Dimensions: [mm] INCHES

Tripp Lite has a policy of continuous improvement. Specications are subject to change without notice.

MODELS:

SRW12US / SRW12USG

1111 W. 35th Street

Chicago, IL 60609 USA

773.869.1234

www.tripplite.com

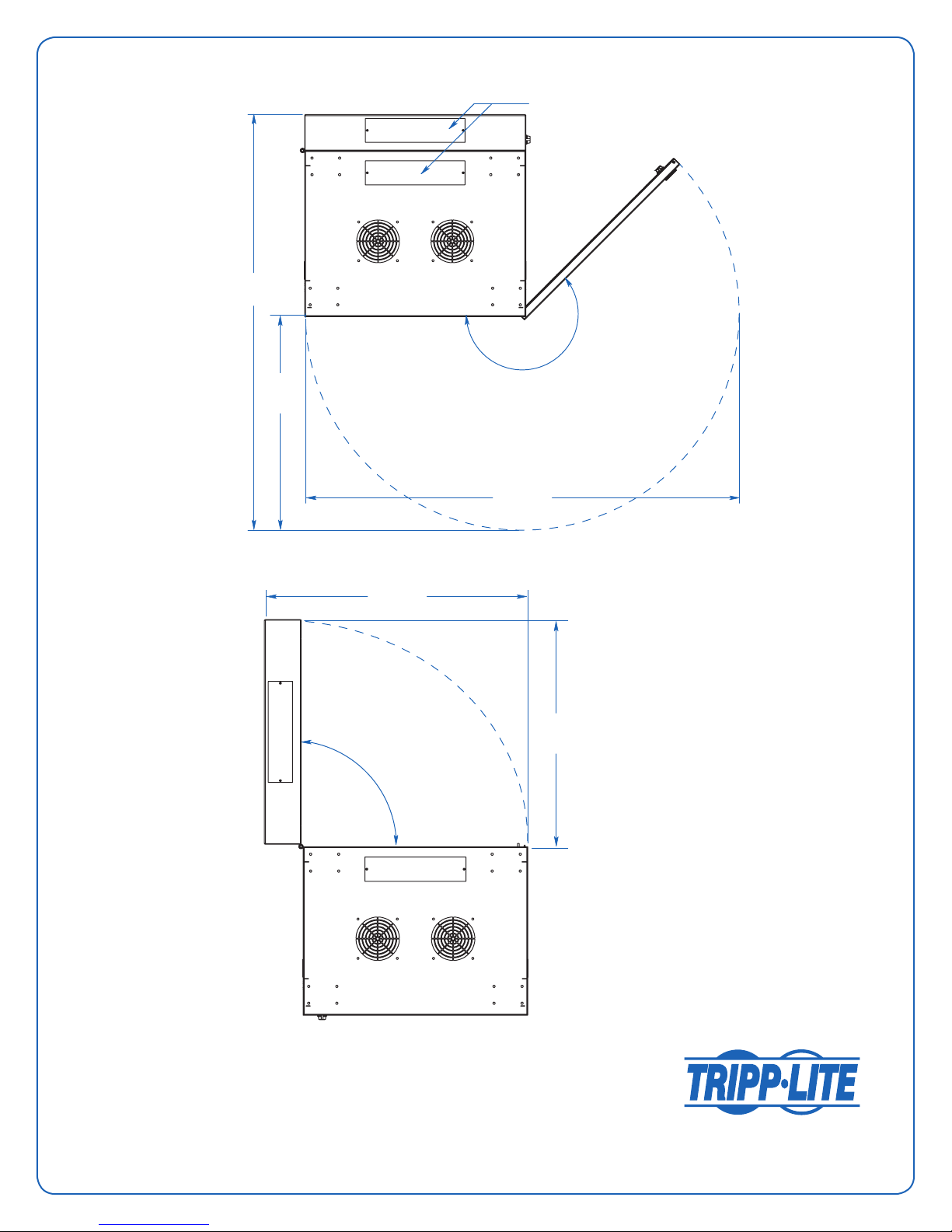

TOP VIEW

225º

90º

[1132.08]

44.57

[583.94]

22.99

[606.55]

23.88

[1181]

46.53

[703.83]

27.71

CABLE ACCESS

FRONT OPENING

REAR OPENING
