Owner’s Manual

Dual Flat-Screen Desk Stand

MODEL: DDR1026SD

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

75x75

100x100 26”

MAX 14 kg x 2

(30 lb.) x 2

MAX

Este manual esta disponible en español en la página de Tripp Lite: www.tripplite.com

Ce manuel est disponible en français sur le site Web de Tripp Lite : www.tripplite.com

Русскоязычная версия настоящего руководства представлена на веб-сайте компании

Tripp Lite по адресу: www.tripplite.com

Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar: www.tripplite.com

CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY.

SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

WARNING

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an ISOBAR6ULTRA

surge protector—a $50 value!

www.tripplite.com/warranty

15-05-255-93345B.indd 1 6/3/2015 5:23:11 PM

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

• Please read the entire instruction manual before you start installation and

assembly. If you have questions about any of the instructions or warnings, please

contact Tripp Lite.

• This desk stand is designed to be installed and used only as speciﬁed in this

manual. Improper installation of this product may cause damage or serious

injury.

• Be sure the supporting surface will safely support the combined weight of the

equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift and position

the equipment.

• Tighten screws ﬁrmly, but do not over-tighten. Over-tightening can cause damage

to the items and reduce their holding power.

• This product is intended for indoor use only. Using this product outdoors could

lead to product failure and personal injury.

Warranty & Product Registration

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original defects

in material and workmanship for a period of 5 years from the date of initial purchase. If the product should

prove defective in material or workmanship within that period, Seller will repair or replace the product, in its sole

discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT, MISUSE,

ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY EXPRESSLY

SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES,

INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION TO THE WARRANTY

PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL INCIDENTAL AND CONSEQUENTIAL

DAMAGES. (Some states do not allow limitations on how long an implied warranty lasts, and some states do not

allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions

may not apply to you. This warranty gives you speciﬁc legal rights, and you may have other rights which vary from

jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable, adequate

or safe for the use intended. Since individual applications are subject to great variation, the manufacturer makes

no representation or warranty as to the suitability or ﬁtness of these devices for any speciﬁc application.

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered into a

drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Speciﬁcations are subject to change without notice.

15-05-255-93345B.indd 2 6/3/2015 5:23:11 PM

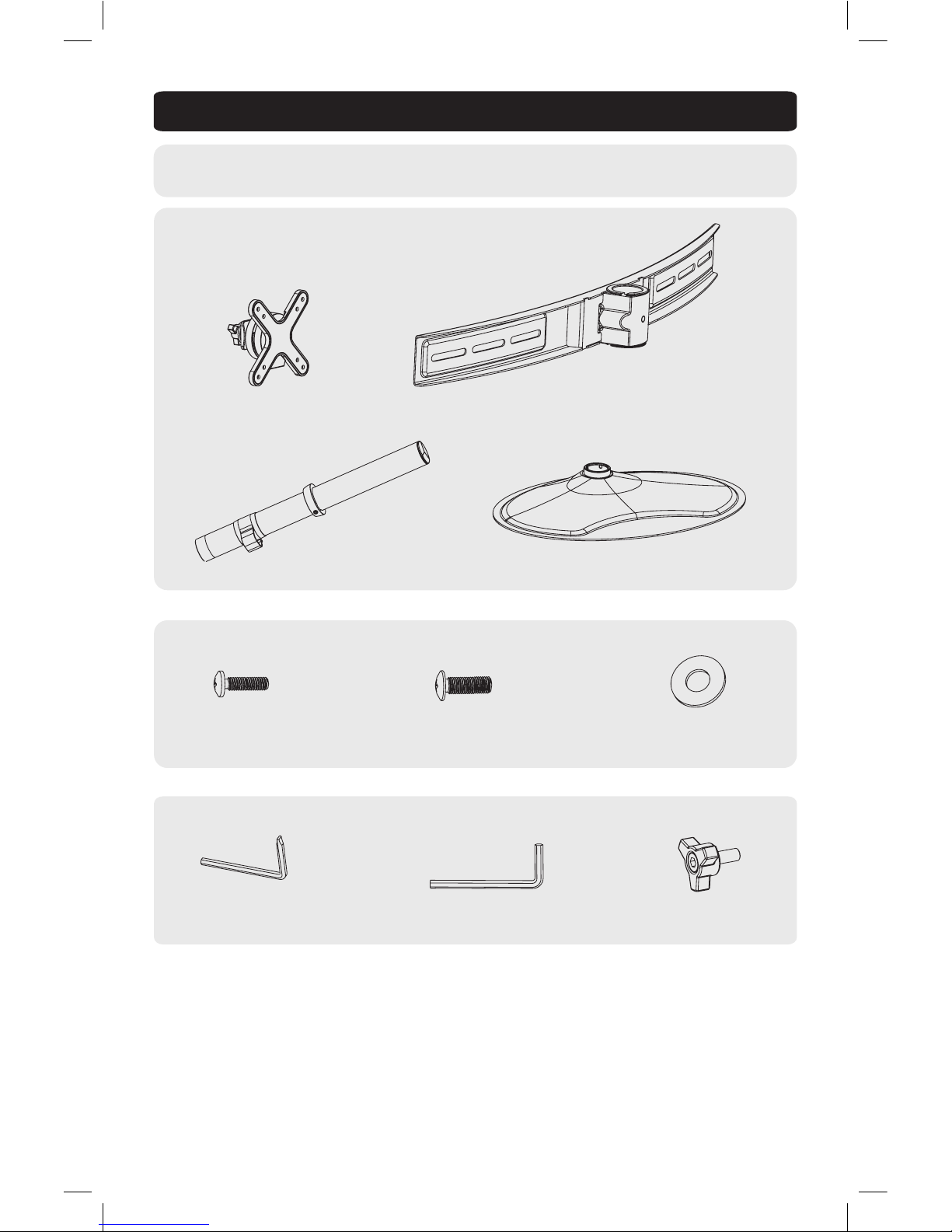

Parts List

Adapter Bracket Assembly (x2) Horizontal Support Assembly (x1)

Package M

Package P

Pole (x1)

Base (x1)

M4X14 (x8)

Knob (x1)3 mm Hex Key (x1) 4 mm Hex Key (x1)

M5X14 (x8) D5 Washer (x8)

IMPORTANT: Before installation, be sure you have received all the parts listed below. If any parts are

missing or faulty, contact Tripp Lite for replacements.

15-05-255-93345B.indd 3 6/3/2015 5:23:11 PM

1. Assemble the Pole to the Base

Screw the pole into the threaded hole

of the base.

Use the hex key to securely tighten all

screws.

3 mm Hex Key

Tighten

15-05-255-93345B.indd 4 6/3/2015 5:23:12 PM

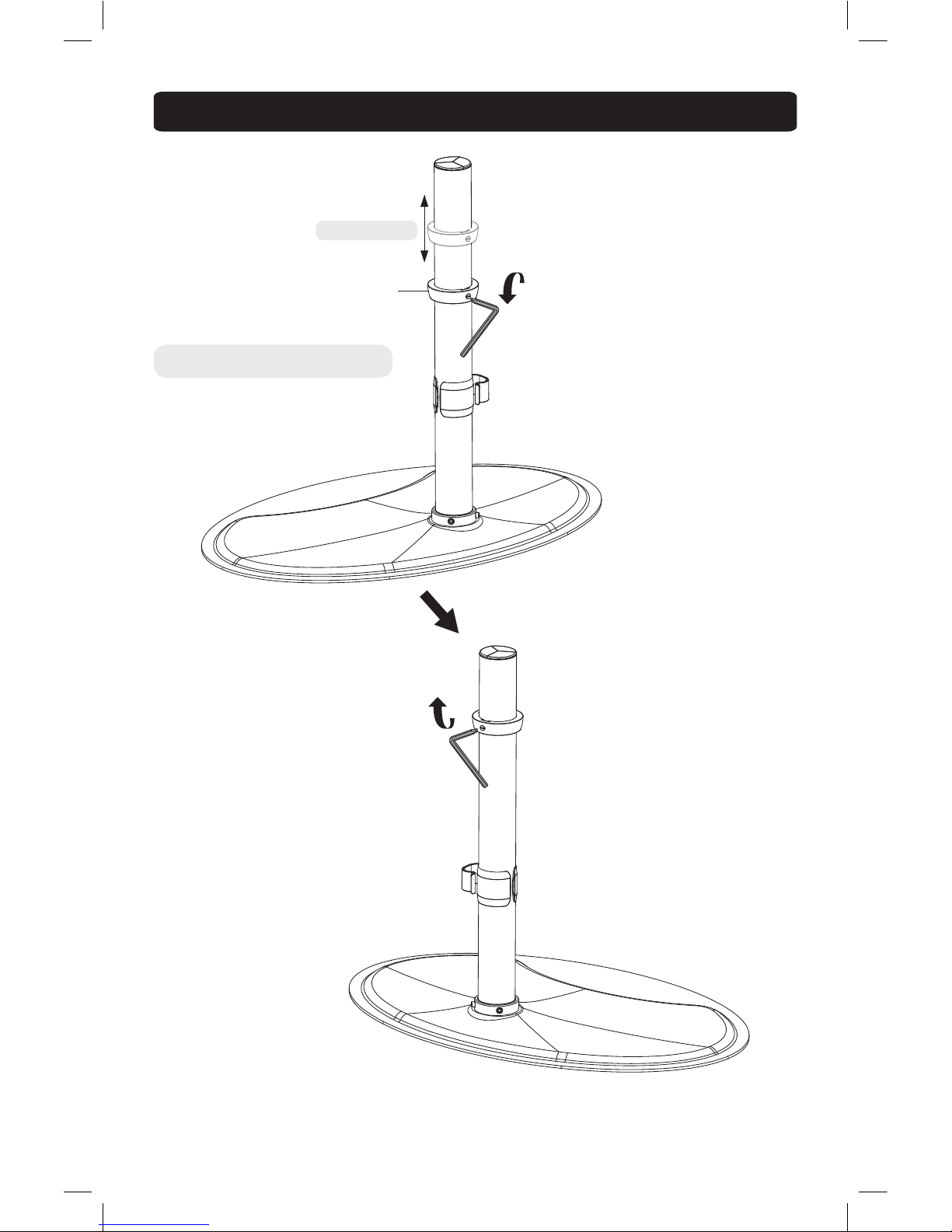

1. Assemble the Pole to the Base

Adjust the collar to the desired height.

Adjust Height

3 mm Hex Key

Tighten

Loosen

Collar

15-05-255-93345B.indd 5 6/3/2015 5:23:12 PM

2. Install the Horizontal Support Assembly

Tighten

Loosen

4 mm Hex Key

Knob

Collar

Insert the horizontal support assembly

into the pole until it touches the collar.

Tighten the Knob to

secure the horizontal

support assembly.

15-05-255-93345B.indd 6 6/3/2015 5:23:13 PM

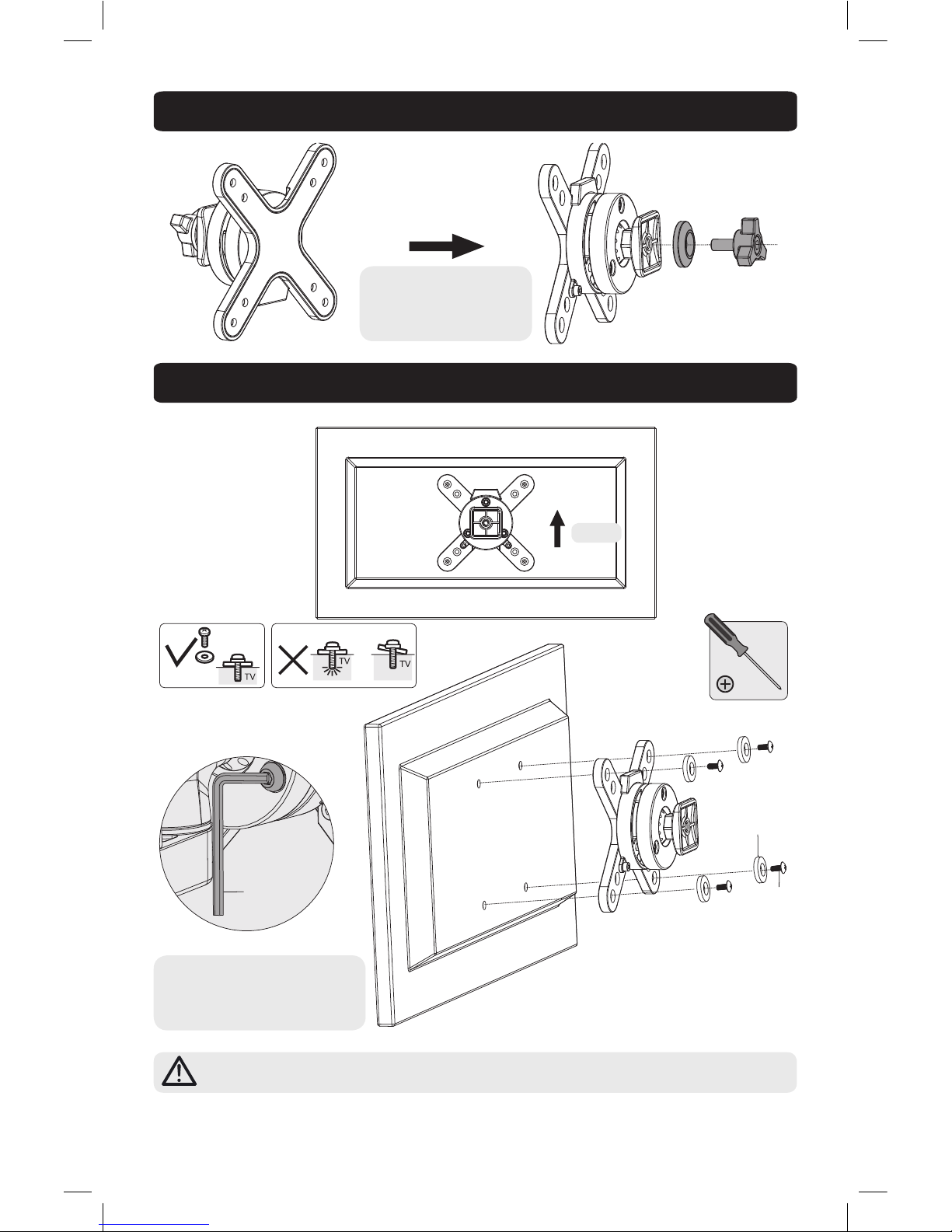

3. Separate the Adapter Bracket Assembly

4. Install the VESA Plates

Top

It may be necessary to slightly

loosen or tighten the adjustment

screw depending on the weight of

display installed.

Attach the display to the VESA plate with the appropriate included screws.

Do not over-tighten screws.

4 mm Hex

Key M4X14 or

M5X14

D5 Washer

Loosen and remove the

Knob to separate the VESA

plate from the adapter

bracket assembly.

15-05-255-93345B.indd 7 6/3/2015 5:23:14 PM

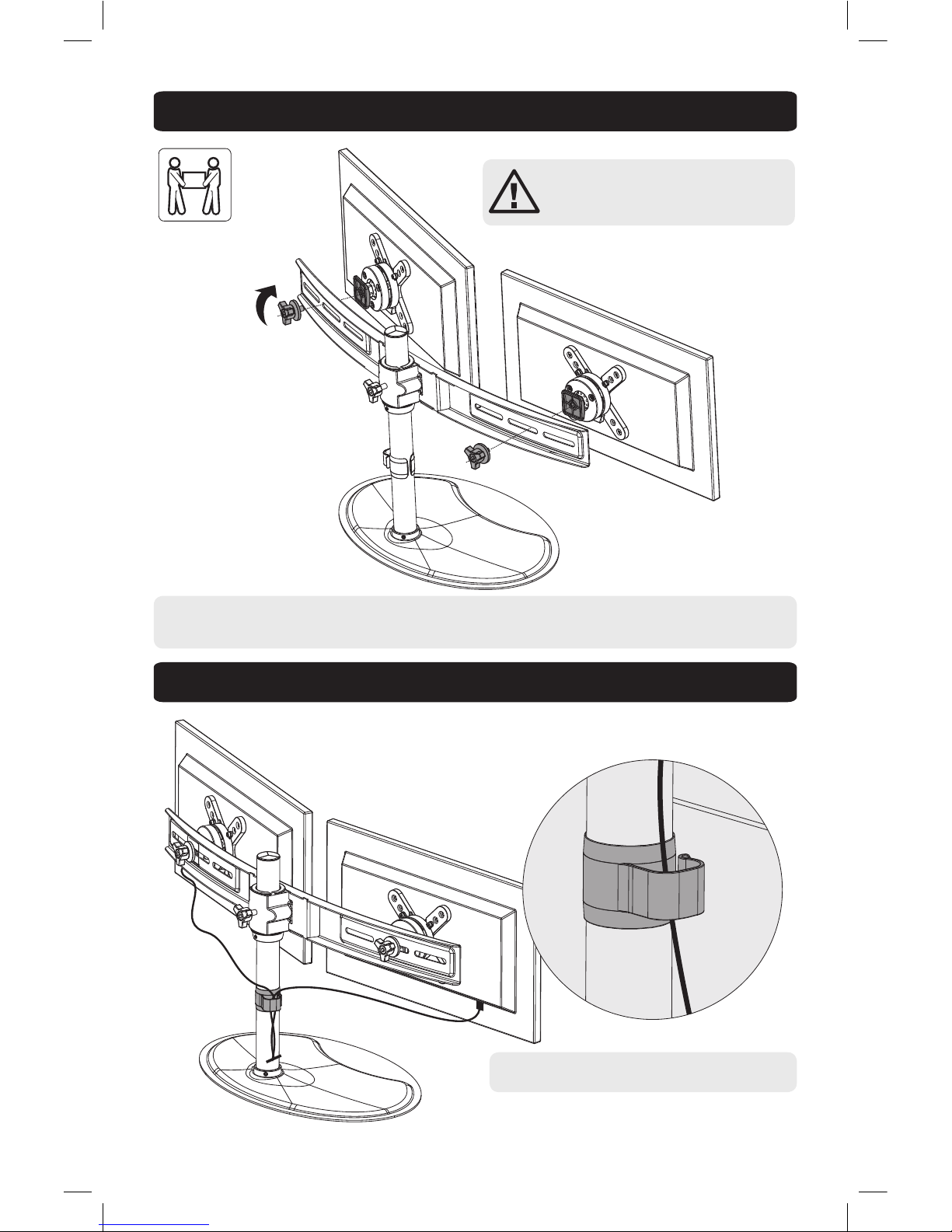

5. Install the Displays

6. Cable Management

Tighten

Using an assistant or mechanical lifting equipment, attach both displays to the horizontal support assembly

simultaneously using the knobs and washers. Tighten both knobs to secure the displays. Make sure the displays

are safely secured before releasing the knobs.

WARNING: Always ensure both monitors

face forward. Turning the monitors to face

backward may cause the unit to tip over.

Use the clip for routing the cables.

Note: Leave slack in the cables for arm movement.

15-05-255-93345B.indd 8 6/3/2015 5:23:15 PM

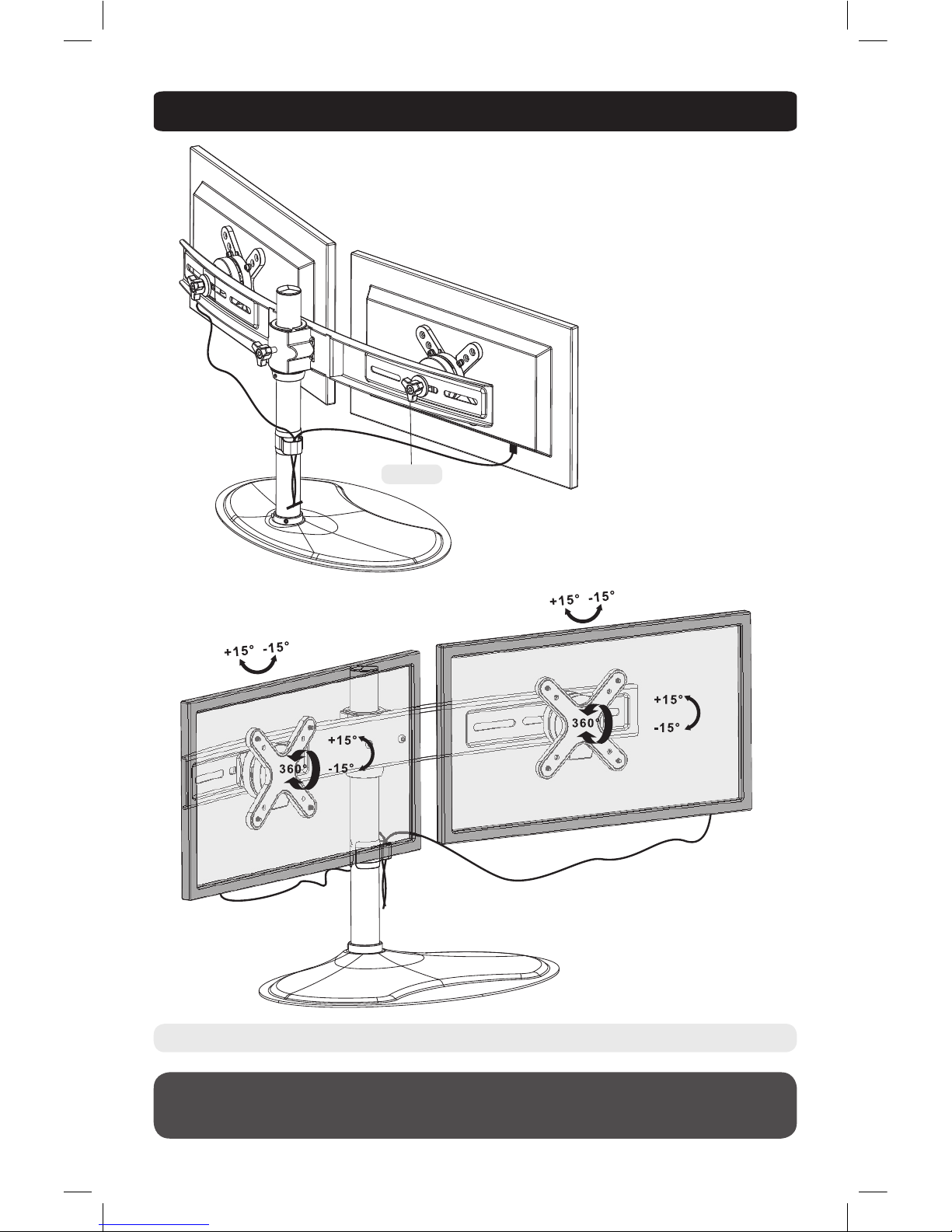

7. Adjustment

Adjust to the desired position or tilt.

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).

• Please visit www.tripplite.com/support if you have any questions.

Knob

15-05-255-93345B.indd 9 6/3/2015 5:23:16 PM
