Owner’s Manual

Corner Wall Mount

for Flat or

Curved Screens

Model: DMWC3770M

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

200x200 / 300x200

300x300 / 400x200

400x300 / 400x400

600x400

70"

MAX 99 lb.

(45 kg)

Español 12 • Français 23 • Русский 34 • Deutsch 45

19-02-090-933920.indb 1 3/8/2019 4:27:22 PM

NOTE: Read the entire instruction manual before you start assembly and

installation.

Warranty and Product Registration

WARNING

• Do not begin the installation until you have read and understood the

instructions and warnings contained in this manual. If you have any

questions regarding any of the instructions or warnings, please visit

www.tripplite.com/support.

• This product was designed to be installed and utilized ONLY as speciﬁed

in this manual. Improper installation of this product may cause damage

or serious injury.

• This product should only be installed by someone of good mechanical

ability, with basic building experience and a full understanding of this

instruction manual.

• Make sure the unit can safely support the combined load of the

equipment and all attached hardware and components.

• Always use an assistant or mechanical lifting equipment to safely lift

and position equipment.

• This product is intended for indoor use only. Using this product outdoors

could lead to product failure and/or personal injury.

5-Year Limited Warranty

Seller warrants this product, if used in accordance with all applicable instructions, to be free from original

defects in material and workmanship for a period of 5 years from the date of initial purchase. If the product

should prove defective in material or workmanship within that period, Seller will repair or replace the

product, in its sole discretion.

THIS WARRANTY DOES NOT APPLY TO NORMAL WEAR OR TO DAMAGE RESULTING FROM ACCIDENT,

MISUSE, ABUSE OR NEGLECT. SELLER MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY

EXPRESSLY SET FORTH HEREIN. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED

WARRANTIES, INCLUDING ALL WARRANTIES OF MERCHANTABILITY OR FITNESS, ARE LIMITED IN DURATION

TO THE WARRANTY PERIOD SET FORTH ABOVE; AND THIS WARRANTY EXPRESSLY EXCLUDES ALL

INCIDENTAL AND CONSEQUENTIAL DAMAGES. (Some states do not allow limitations on how long an implied

warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitations or exclusions may not apply to you. This warranty gives you speciﬁc legal

rights, and you may have other rights which vary from jurisdiction to jurisdiction).

WARNING: The individual user should take care to determine prior to use whether this device is suitable,

adequate or safe for the use intended. Since individual applications are subject to great variation, the

manufacturer makes no representation or warranty as to the suitability or ﬁtness of these devices for any

speciﬁc application.

PRODUCT REGISTRATION

Visit www.tripplite.com/warranty today to register your new Tripp Lite product. You’ll be automatically entered

into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

Tripp Lite has a policy of continuous improvement. Speciﬁcations are subject to change without notice.

Photos and illustrations may differ slightly from actual products.

19-02-090-933920.indb 2 3/8/2019 4:27:22 PM

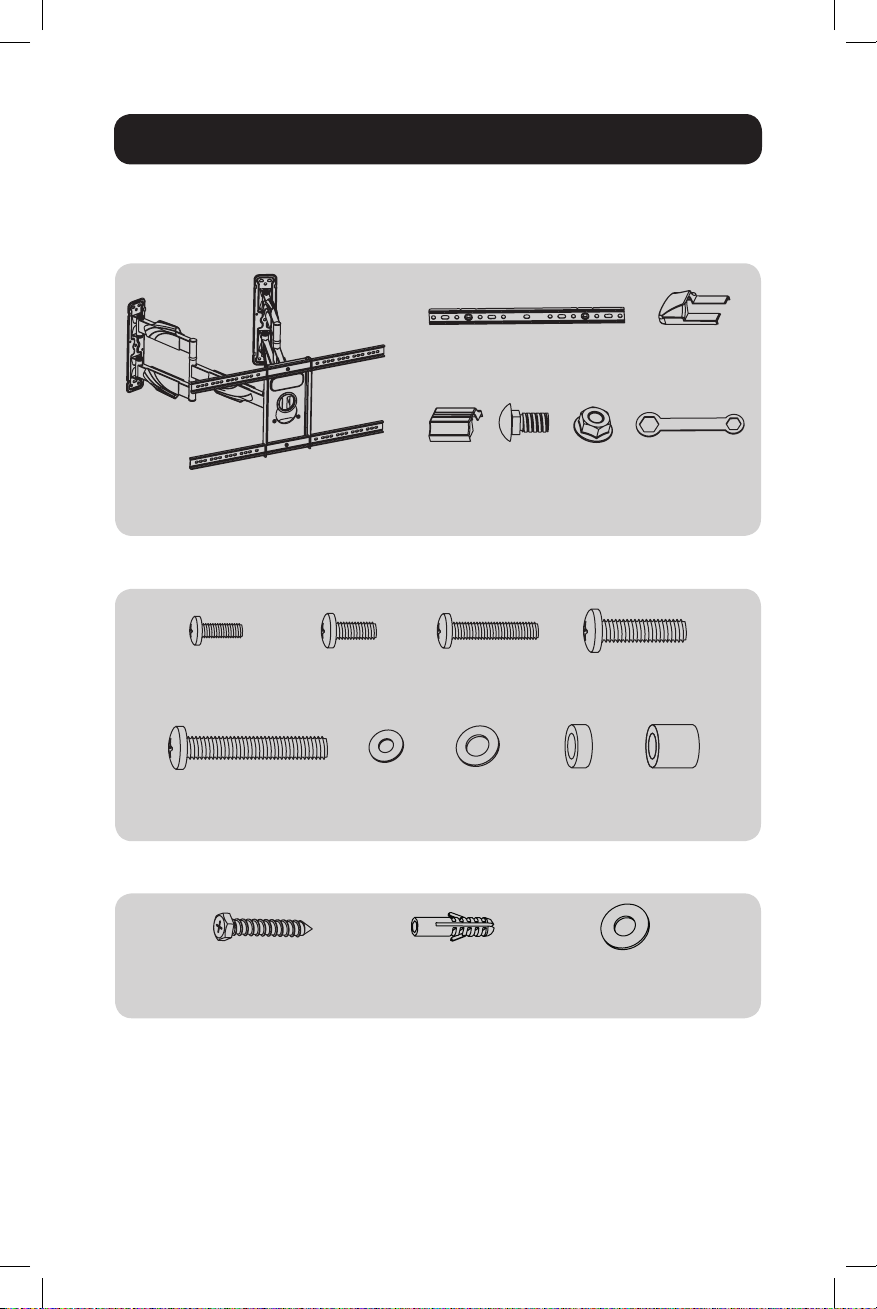

Component Checklist

IMPORTANT: Ensure you have received all parts according to the component

checklist prior to installing. If any parts are missing or faulty,

visit www.tripplite.com/support for service.

(x1)

(x2)

(x4)

(x1)

Package M

Package W

M-A

M5x14 (x4)

M-B

M6x14 (x4)

M-C

M6x30 (x4)

M-D

M8x30 (x4)

M-E

M8x50 (x4)

W-A

(x8)

W-B

(x8)

W-C

(x8)

M-F

D5 (x4)

M-G

D8 (x4)

M-H

(x8)

M-I

(x8)

19-02-090-933920.indb 3 3/8/2019 4:27:22 PM

Assembly

WARNING

• Make sure the mounting screws are anchored into the center of the studs. Use of

a stud ﬁnder is highly recommended.

• Installers are responsible to provide hardware for other types of mounting

situations.

• Installers must verify the supporting surface will safely support the combined load

of the equipment and all attached hardware and components.

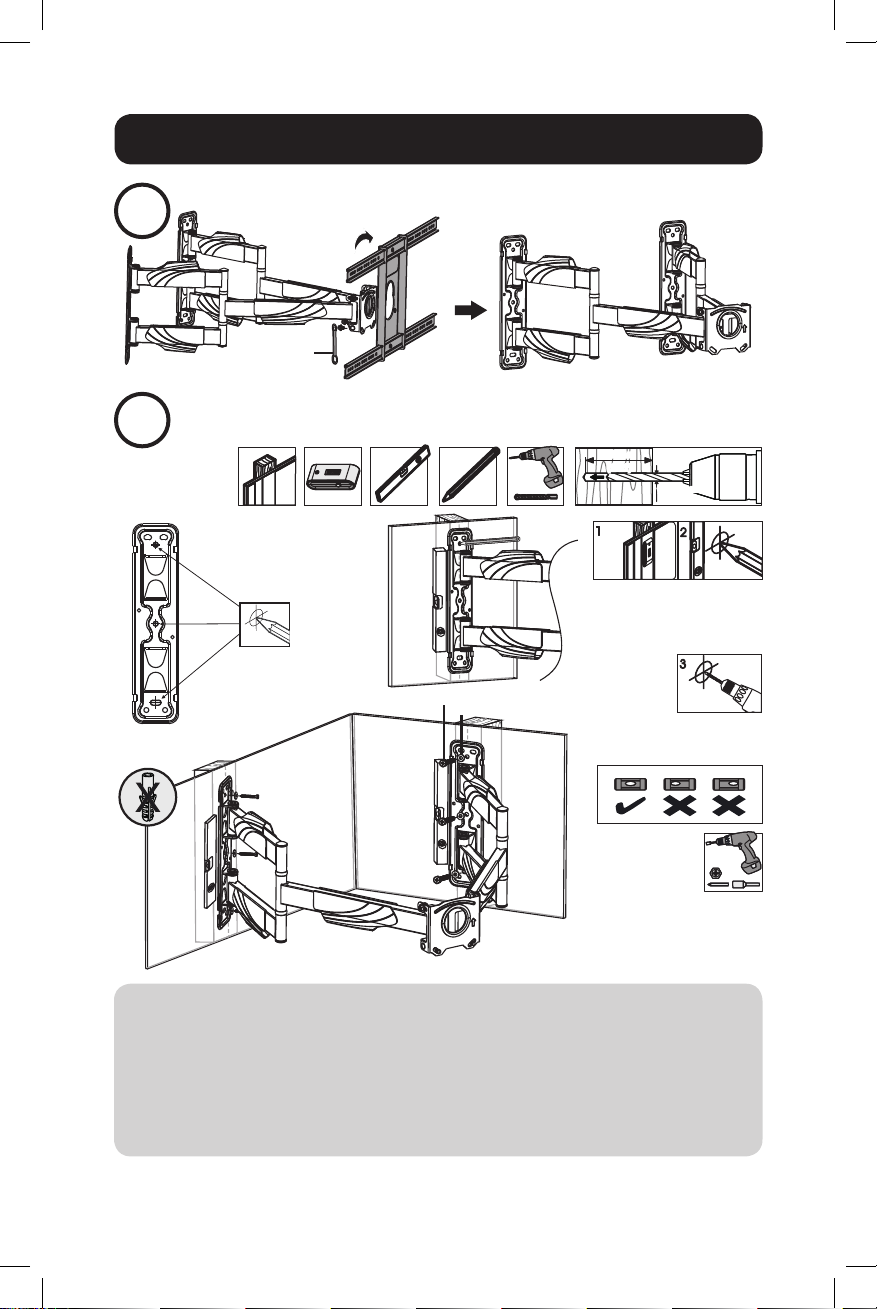

Mount on Wood Stud Wall

55 mm

(2.2")

O/ 4.5 mm

(O/ 3/16")

Find and mark the

exact location of

mounting holes

Screw the

assembled wall

plate to the

wall

Drill pilot

holes

W-A W-C

19-02-090-933920.indb 4 3/8/2019 4:27:24 PM

WARNING

• When installing wall mounts onto a concrete masonry unit (also known as a CMU

or “cinder block”), verify the actual concrete thickness is at least 35 mm

(1-3/8") in order to hold the concrete anchors. DO NOT DRILL INTO MORTAR

JOINTS! Be sure to mount the assembled wall-mount plate with the included

concrete anchors, washers and anchor bolts onto solid sections of the blocks.

The solid sections can generally be found 25 mm (1") toward the middle of the

block from either end. An electric drill on a slow setting is suggested to drill the

hole (rather than a hammer drill), so as to avoid breaking out the back of the hole

when entering a hollow section.

• Installers must verify the supporting surface will safely support the combined load

of the equipment and all attached hardware and components.

Assembly

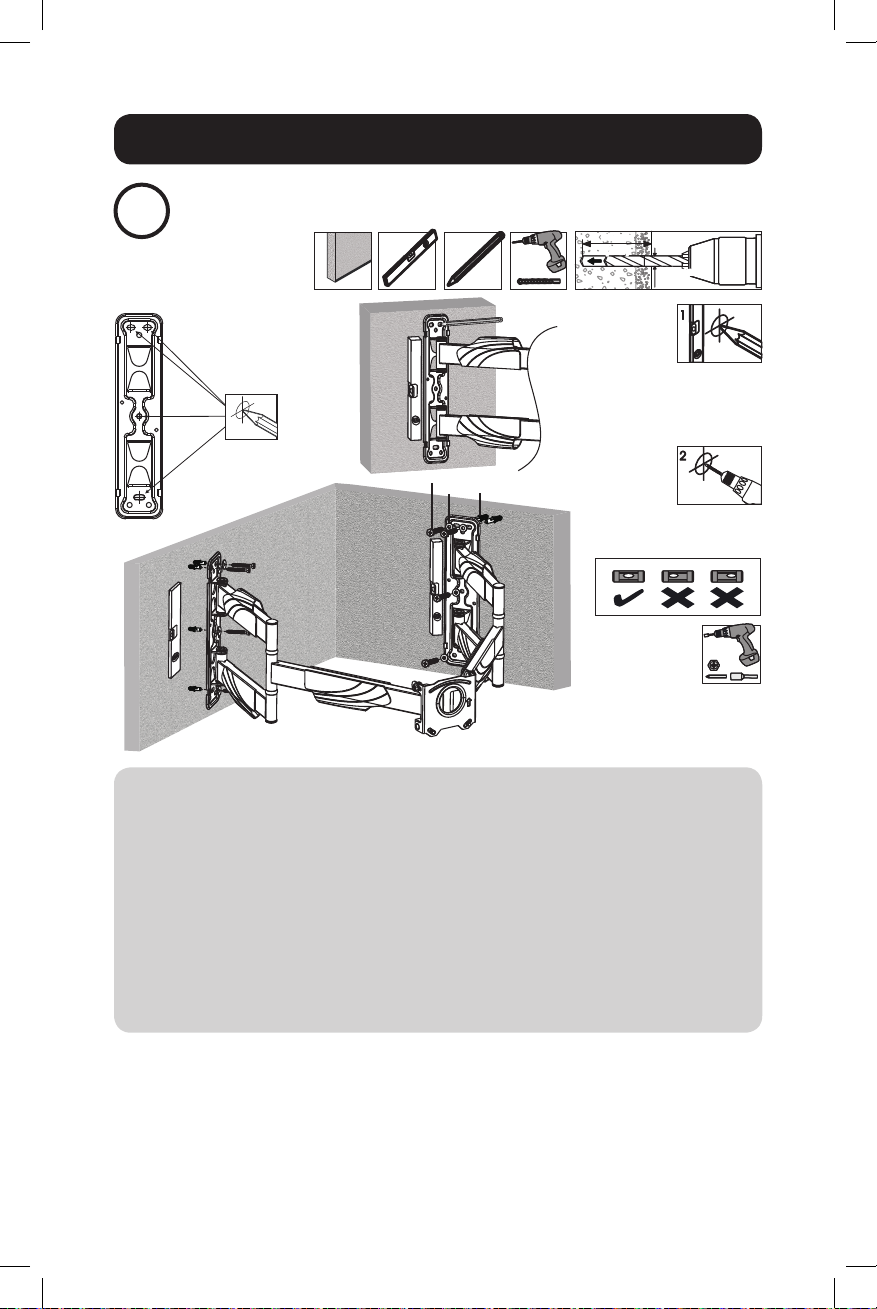

2b Mount on Solid Brick and Concrete Block

Find and mark the

exact location of

mounting holes

60 mm

(2.4")

O/ 10 mm

(O/ 3/8")

Drill pilot

holes

Screw the

assembled wall

plate to the

wall

W-A W-C W-B

19-02-090-933920.indb 5 3/8/2019 4:27:25 PM

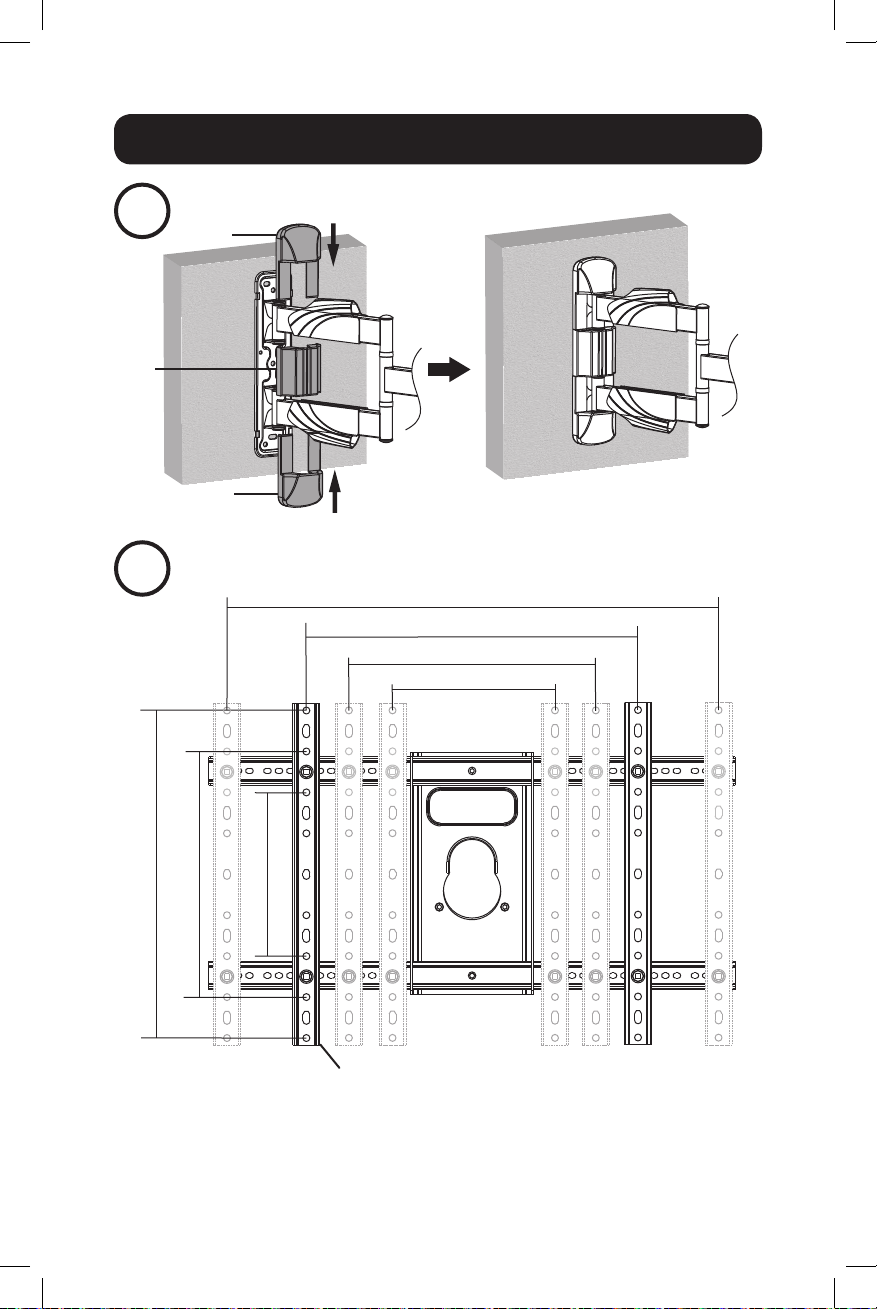

Assembly

23.6 in. (600 mm)

15.75 in. (400 mm)

11.8 in. (300 mm)

7.9 in. (200 mm)

15.75 in. (400 mm)

11.8 in. (300 mm)

7.9 in. (200 mm)

19-02-090-933920.indb 6 3/8/2019 4:27:26 PM

Assembly

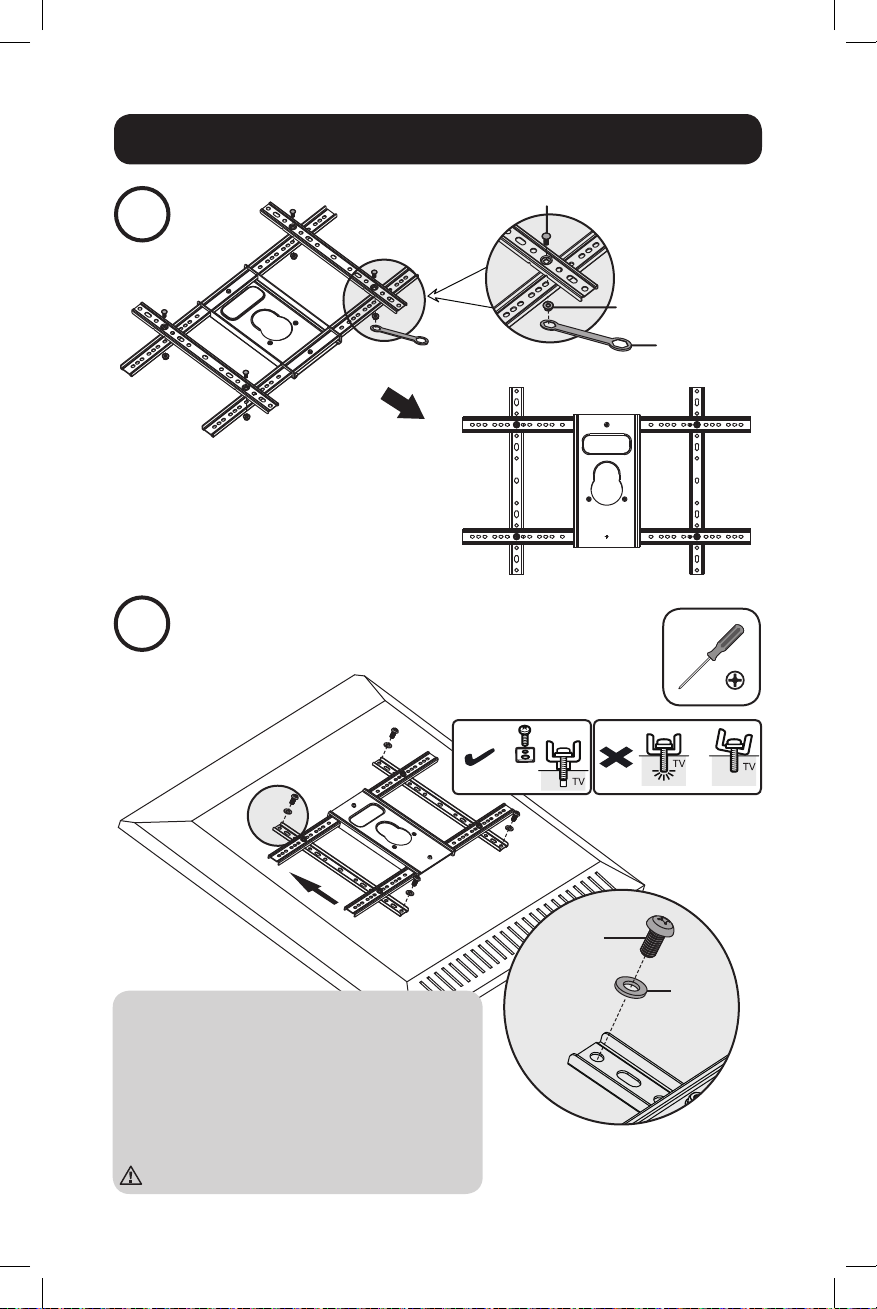

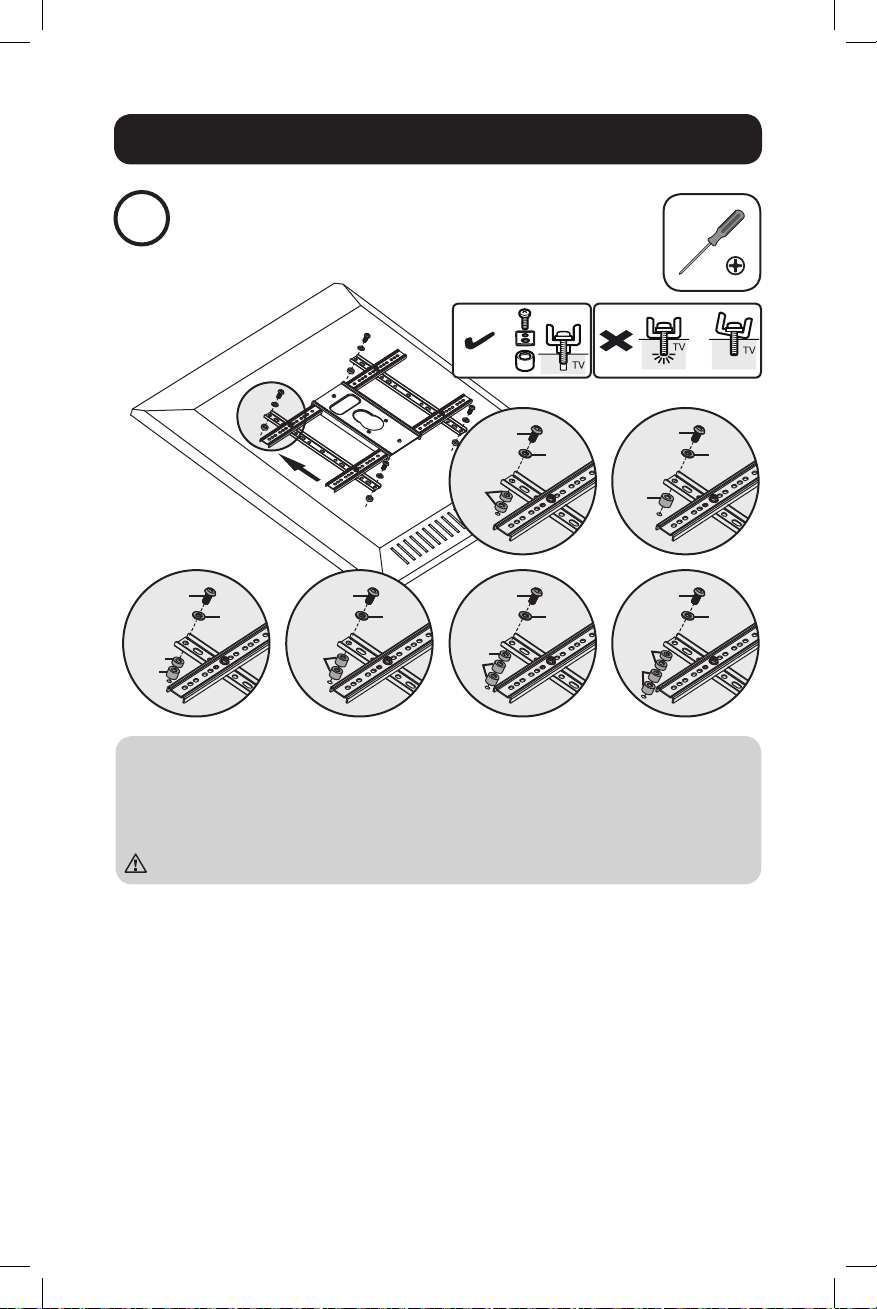

4b E

5a For Flat Back Screens

M-A

M-B

M-F

M-G

Note: Choose appropriate screws and washers

according to the type of screen.

• Position the adapter brackets as close as

possible to the center of the display.

• Firmly secure the adapter brackets onto

the display using the screws and any other

necessary hardware components included with

the unit.

Do not over-tighten screws.

19-02-090-933920.indb 7 3/8/2019 4:27:28 PM

Assembly

5b For Recessed Back Screen or

to Access A/V Inputs

Note: Choose appropriate screws, washers and spacers (if necessary) according to the type

of screen.

• Position the adapter brackets as close as possible to the center of the display.

• Firmly secure the adapter brackets onto the display using the screws and any other

necessary hardware components included with the unit.

Do not over-tighten screws.

M-C

M-D

M-C

M-D M-C

M-D

M-E

M-G M-G

M-H M-H

M-H

M-I

M-E M-E

19-02-090-933920.indb 8 3/8/2019 4:27:29 PM

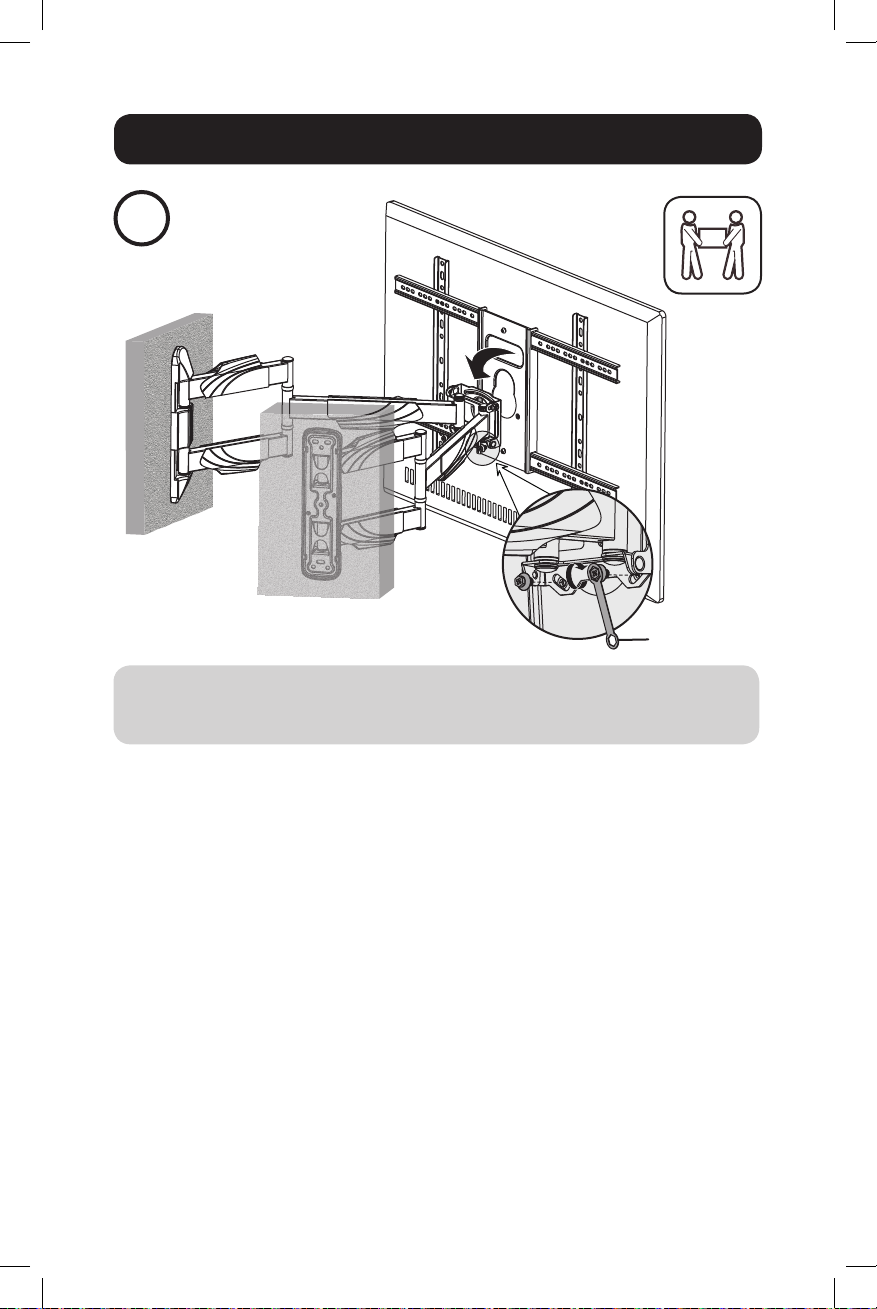

Using an assistant or mechanical lifting equipment, hook the display with attached adapter

brackets over the top of the wall-mount bracket. Tighten the bolt on the bottom of the wall-

mount bracket to secure the unit.

Assembly

19-02-090-933920.indb 9 3/8/2019 4:27:30 PM

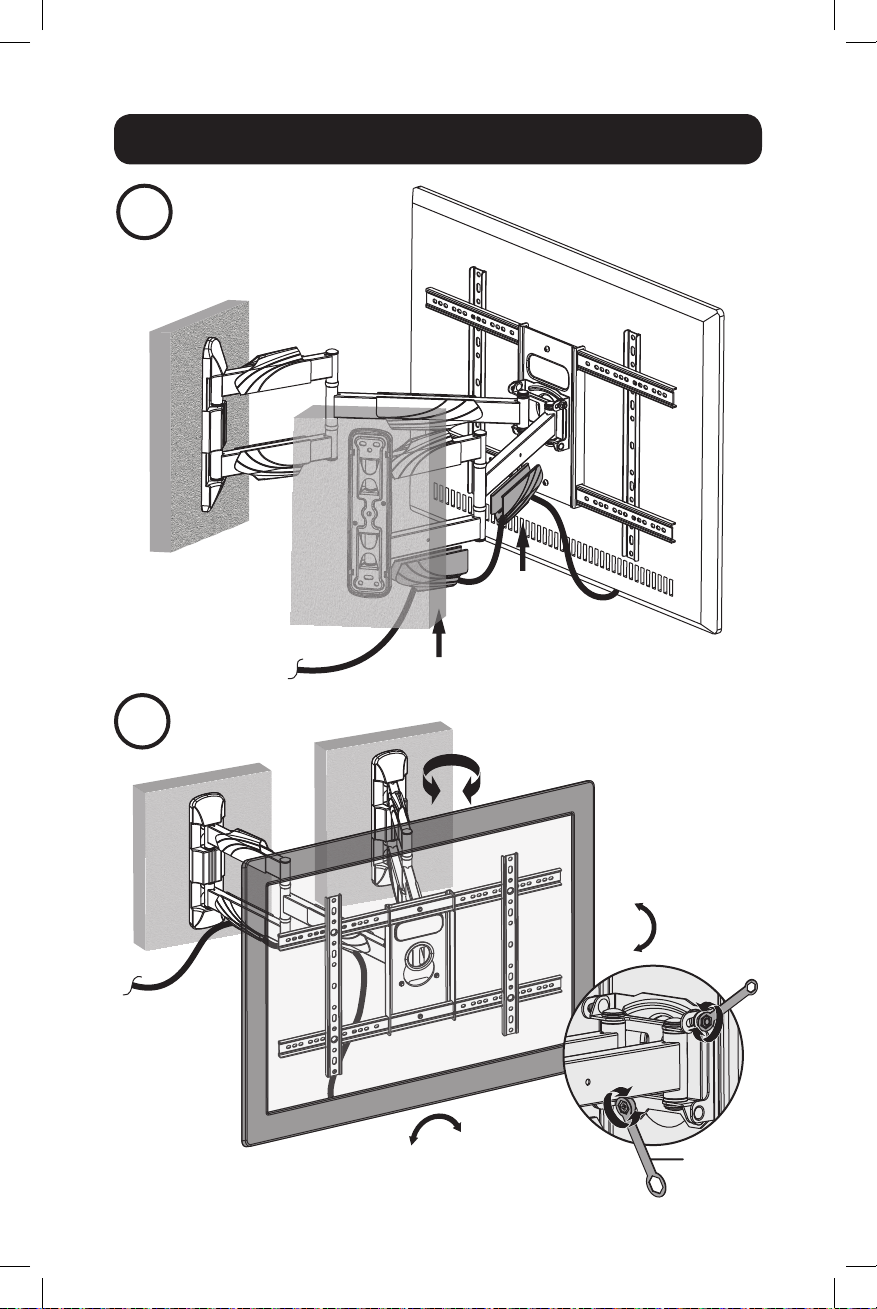

Assembly

–5°

+5° G

+5°

180°

19-02-090-933920.indb 10 3/8/2019 4:27:31 PM
