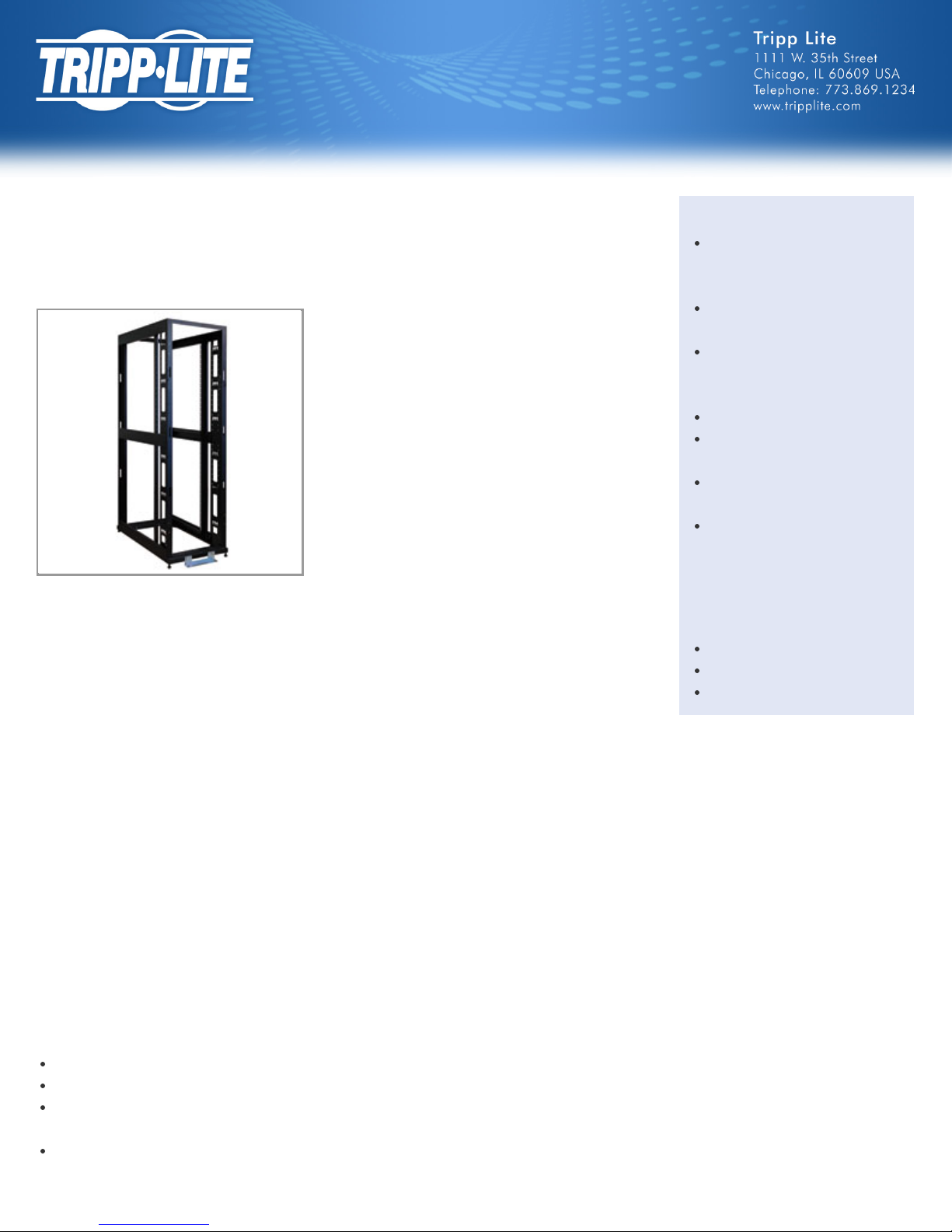

48U 4-Post SmartRack Premium Open Frame Rack

(no sides, doors or roof)

MODEL NUMBER: SR48UBEXPNDNR3

Description

The SR48UBEXPNDNR3 is an expansion model with no sides, doors or roof. An expansion model is useful

when baying together multiple enclosures. Its integrated baying tabs make it easy to combine multiple

enclosures in rows for data center applications.

The SR48UBEXPNDNR3 houses 3000 lb of standard 19-inch rack equipment in 48U. The front and rear pairs of

vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index

ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference and

supports tool-less button-mount 0U installation of up to four compatible PDUs and cable managers.

All components of the SR48UBEXPNDNR3 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the

facility earth ground.

To simplify deployment, the SR48UBEXPNDNR3 comes with heavy duty 3" preinstalled casters that enable it to be easily maneuvered into the desired

location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for

moving the enclosure over long distances.

The SR48UBEXPNDNR3 comes with a 5-year product warranty. As part of the SmartRack family, the SR48UBEXPNDNR3 is compatible with Tripp Lite’s

extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

Features

Open frame rack with no sides, doors or roof

Ships fully assembled for rapid deployment and roll into place on 3" pre-installed casters (casters are removable)

Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures

consistent rail placement without requiring time-consuming measurements.

Tool-less accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting

slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable

Highlights

48U SmartRack Premium open

frame rack (no sides, doors or

roof)

4 interior vertical posts with

unthreaded square hole openings

Standard 24" (600mm) width and

42" (1050mm) depth for

optimizing floor space

Ships fully assembled

3000 lb stationary / 3000 lb rolling

load capacity

Preinstalled heavy duty 3"

casters and leveling feet

Includes 50 pieces of M6 cage

nuts and 50 pieces of M6 screws

(equipment mounting hardware)

Package Includes

SR48UBEXPNDNR3

Mounting Hardware

Owner's Manual

1 / 4

slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable

managers side-by-side (four items per enclosure).

Mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws included

Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.

Maximum usable internal depth of 37 inches (front to rear rail).

Weight ratings of 3000 lb stationary and 3000 lb rolling.

Built in baying tabs allow premium open frame racks to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match

standard data center floor tiles.

Leveling feet extend to allow premium open frame racks to be positioned on uneven floors. Levelers are removable.

Convenient grounding system. All components are grounded to the premium open frame rack structure which includes multiple connections for facility

ground.

Included stabilizing brackets are used for shipment and can be reattached at the bottom of the premium open frame rack on the inside or outside of the

rack.

Compatibility with all cable management accessories.

Specifications

PHYSICAL

Installed whole system maximum

rack depth (inches) 37

Installed whole system minimum

rack depth (inches) 4

Rack Height 48U

Shipping Dimensions (HWD/in) 95 x 26 x 45

Shipping weight (lbs) 213

Unit Dimensions (in.) EXTERNAL DIMENSIONS: 89 x 23.63 x 43 (HWD)

Unit weight (lbs) 163

Color Black

Style 4-Post

Weight Capacity - Stationary (lbs) 3000

Weight Capacity - Rolling (lbs) 3000

Units per Pallet 1

SPECIAL FEATURES

Grounding lug Front and Back door frames

CERTIFICATIONS

Certifications UL60950; RoHS; CE

NOM (Mexico) Tested to NOM (Mexico)

2 / 4

Approvals EIA/ECA-310-A, IEC 60297-3-100, DIN 41494

WARRANTY

Product Warranty Period (Worldwide) 5-year limited warranty

Related Items

Optional Products

Model Number Description Qty.

SRFAN3U 3U Fan Panel, 120V (3 high-performance fans; 210 CFM; 5-15P plug.) 1

SRXFAN3U 3U Fan Panel, 230V (3 high-performance fans; 315 CFM; C14 inlet.) 1

UPSHDEARKIT Heavy-Duty 2-post Front Mounting Ear Kit 1

4POSTRAILKIT1U 1U Universal Adjustable Rackmount Shelf Kit 1

SR1UPANEL10 1U Blanking Panel Kit (10 pieces; toolless mounting.) 1

SR1UPANEL50 1U Blanking Panel Kit (50 pieces; toolless mounting.) 1

SRBOLTDOWN Bolt-Down Kit (Secures included stabilizing brackets or optional stabilizing plates to facility floor.) 1

SRCABLEDUCT1U 1U Horizontal Cable Manager (Finger duct with cover.) 1

SRCABLEDUCT1UHD 1U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1

SRCABLEDUCT2UHD 2U High Capacity Horizontal Cable Manager (Finger duct with dual-hinge cover) 1

SRCABLERING1U 1U Horizontal Cable Manager (Flexible ring type.) 1

SRCABLERING2U 2U Horizontal Cable Manager (Flexible ring type.) 1

SR48SIDE 48U SmartRack side panel with key locking latch 1

SRCABLELADDER 10-ft. x 1-ft. (3 m x 0.3 m) Cable Ladder (Includes 2 sections; requires SRCABLETRAY or

SRLADDERATTACH) 1

SRCABLETRAY Roof-Mounted Cable Trough (Provides cable routing and power/data cable segregation.) 1

SRCABLETRAYEXP Roof-Mounted Cable Trough Vertical Expansion (Requires SRCABLETRAY.) 1

SRCAGENUTS Square Hole Hardware Kit (Includes 50 M6 screws and washers.) 1

SRSHELF2P 2U Cantilever Fixed Shelf (60 lb / 27 kg capacity; 18-in. / 457 mm depth.) 1

SRSHELF2P1U 1U Cantilever Fixed Shelf (40 lb / 18 kg capacity; 12-in. / 305 mm depth.) 1

SRSHELF4PHD Heavy-Duty Fixed Shelf (250 lb / 113 kg capacity; 26 in / 660 mm depth.) 1

SRSHELF4PKYBD Keyboard Shelf (25 lb / 11 kg capacity; 16-in. / 406 mm depth.) 1

SRSHELF4PSLHD Heavy-Duty Sliding Shelf (200 lb / 91 kg capacity; 26 in / 660 mm depth.) 1

SRSTABILIZE Anti-Tip Stabilizing Plate Kit (Provides extra stability for standalone enclosures.) 1

3 / 4

More information, including related products, owner's manuals, and additional technical specifications, can be found online at:

http://www.tripplite.com/sku/SR48UBEXPNDNR3.

Specifications are subject to change without notice. Photos may differ slightly from final products.

4 / 4
