TRENDnet TEG-S18TXE Manuel utilisateur

TEG-S18TXE

Version 10.19.2005

User’s Guide

Table of Contents

English ............................................................................................

Românǎ ..........................................................................................

1. Introduction .............................................................................

2. Unpacking and Setup ..............................................................

3. Identifying External Components ............................................

1. Introducere ..............................................................................

2. Despachetare si instalare .......................................................

3. Identificarea componentelor externe .......................................

Technical Specifications ..................................................................

This section describes the features of the 8-Port 1000BASE-T Gigabit Ethernet

Switch.

Features

The 8-Port 1000BASE-T Gigabit Ethernet Switch was designed for easy

installation and high performance in an environment where traffic on the

network and the number of users increase continuously.

1. Introduction

English UG

English

8 1000BASE-T Gigabit Ethernet ports

Supports Auto-Negotiation for speed and duplex mode

Supports Auto-MDIX for each port

Support Full/Half duplex transfer mode for 10 and 100Mbps

Support Full duplex transfer mode for 1000Mbps

Full wire speed reception and transmission

Store-and-Forward switching method

Supports 4K absolute MAC addresses

Supports 128K Bytes RAM for data buffering

Extensive front-panel diagnostic LEDs

IEEE 802.3x flow control for full-duplex

Back pressure flow control for half-duplex

2English

2. Unpacking and Setup

This chapter provides unpacking and setup information for the Switch.

Unpacking

Open the shipping carton of the Switch and carefully unpack its contents. The

carton should contain the following items:

If any item is found missing or damaged, please contact your local reseller for

replacement.

TEG-S18TXE

User's Guide

Four rubber feet with

adhesive backing

One external power adapter

TEG-S18TXE

Version 10.19.2005

User’s Guide

3English

Setup

The setup of the Switch can be performed using the following steps:

Install the Switch in a fairly cool and dry place. See Technical

Specification for the acceptable operation temerature and humidity

ranges.

Install the Switch in a site free from strong electromagnetic

source,vibration, dust,and direct sunlight.

Leave at least 10cm of space at the left and right hand side of the Switch

for ventilation.

Visually inspect the DC power jack and make sure that it is fully secured

to the power adapter.

4English

3. Identifying External Components

The front panel of the Switch consists of eight 1000BASE-T ports and LED

indicators.

This chapter describes the front panel, rear panel and LED indicators of the

Switch

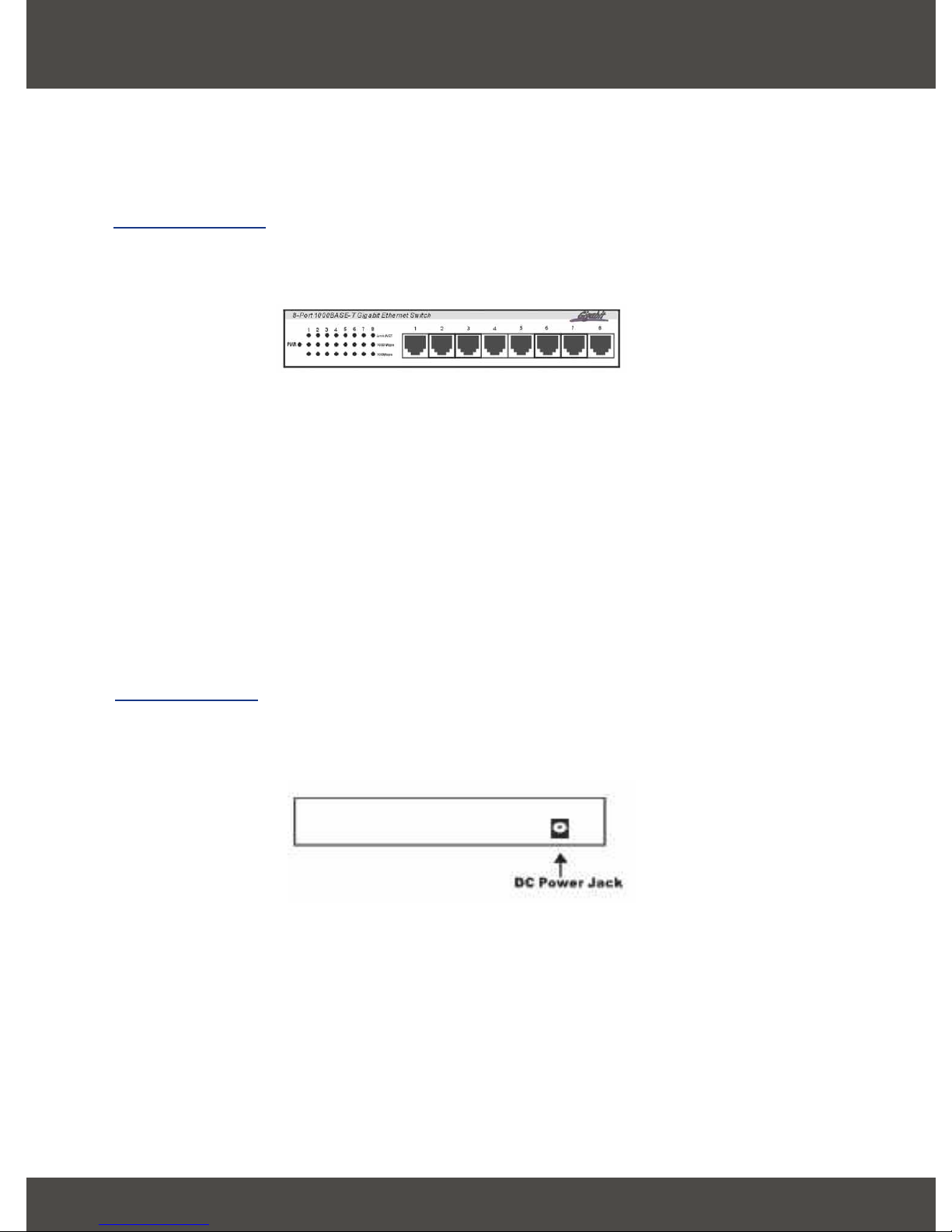

Front Panel

Front panel view of the Switch

Rear panel view of the Switch

1000BASE-T Ports:

Eight Gigabit Ethernet ports of 10/100/1000Mbps Auto-Negotiation interface.

LED Indicators

Comprehensive LED indicators display the conditions of the Switch and status

of the network. A description of these LED indicators follows (see LED

Indicators).

DC Power Jack:

Power is supplied through an external AC power adapter. Check the technical

specification section for information about the AC power input voltage.

Rear Panel

The rear panel of the Switch consists of an DC power connector. The following

figure shows the rear panel of the Switch.

5English

The LED indicators of the Switch include Power, Link/Act, 1000Mbps and

100Mbps. The following shows the LED indicators for the Switch along with an

explanation of each indicator.

LED Indicators

This indicator lights green when the Switch is receiving power, otherwise,

it is off.

These LED indicators are lighted up when there is a secure connection (or

link) to the desired port. The LED indicators blinking whenever there is

reception or transmission (i.e. ActivityACT) of data occurring at a port.

These LED indicators are lighted up when there is a secure connection (or

link) to 1000Mbps Gigabit Ethernet device at the desired port.

These LED indicators are lighted up when there is a secure connection (or

link) to 100Mbps Fast Ethernet device at the desired port.

Power:

Link/ACT:

1000Mbps:

100Mbps:

When the connection (or link) is 10Mbps, both of 1000Mbps and 100Mbps LED

indicators are off.

1. Introducere

Românǎ

Aceasta sectiune descrie caracteristicile switch-ului cu 8 porturi 1000BASE-T

Gigabit Ethernet.

Caracteristici

Switch-ul cu 8 porturi 1000BASE-T Gigabit Ethernet a fost creat pentru o

instalare rapida si performanta inalta intr-un mediu unde traficul din retea si

numarul de utilizatori creste continuu.

8 porturi 1000BASE-T Gigabit Ethernet

Suporta Auto-Negociere pentru pentru viteza si mod duplex

Suporta Auto-MDIX pentru fiecare port

Suporta mod de transfer Full/Half duplex pentru 10 si 100Mbps

Suporta mod de transfer Full duplex pentru 1000Mbps

Receptie si transmisie Full wire speed

Metoda de comutare Store-and-Forward

Suporta adrese 4K absolut MAC

Suporta 128KBytes RAM pentru buffer date

Panou frontal cu LED-uri de diagnosticare extensiva

Control trafic IEEE 802.3x pentru full-duplex

Control trafic pentru half-duplex

2. Despachetare si instalare

Românǎ

Acest capitol ofera informatii despre despachetare si instalare a switch-ului.

Despachetare

Deschideti cartonul switch-ului si despachetati cu grija continutul. Cutia ar

trebui sa contina urmatoarele obiecte:

Daca vreunul dintre obiecte lipseste sau e deteriorat, va rugam sa contactati

vanzatorul local pentru inlocuire.

TEG-S18TXE

Acest ghid de utilizare

Patru picioruse de

cauciuc cu adeziv

Un adaptor extern de alimentare

TEG-S18TXE

Version 10.19.2005

User’s Guide

8Românǎ

Instalare

Instalarea switch-ului poate fi facuta urmand acesti pasi:

Instalati switch-ul intr-un loc racoros si uscat. Vedeti Specificatii tehnice

pentru temperatura de operare si gradul de umiditate acceptabile.

Instalati switch-ul intr-un loc fara surse electromagnetice puternice,vibratii,

praf si lumina solara directa.

Lasati cel putin 10cm de spatiu pe lateralele switch-ului pentru ventilare.

Inspectati vizual mufa alimentatorului DC si asigurati-va ca este bine fixat

in adaptorul de alimentare.
