TI-PG541i
Quick Installation Guide
Table of Content
1 English
1. Before You Start
2. Quick Reference
3. Hardware Installation
4. Hardware Configuration
5. Additional Information
1. Before You Start
2. Quick Reference
Package Contents
ŸTI-PG541i
ŸQuick Installation Guide
ŸCD-ROM (User's Guide)
Minimum Requirements
ŸPower supply (ex. model TI-S24048 or 48VDC3000)
ŸNetworked computer
ŸRJ-45 Network Cable
1
Optional Equipment
Ÿ35 mm DIN-Rail
ŸSFP modules (e.g. TEG-MGBSR, TEG-MGBS80, TEG-MGBS10)
GND
3. Hardware Installation
Note:
The maximum amount of power available is 30 Watts per port and 120
Watts total. If a power overload has occurred, the Switch will prioritize
the distribution of power by port (from lowest to highest). That is, port
1 will receive the highest priority and port 4 will receive the lowest
priority. The ports with lower priority will have its PoE function disabled
until more than 7.5 watts of power becomes available.
2. Position the unit in front of the DIN-Rail and hook the mount bracket
over the top of the rail.
2
The TI-PG541i can be placed on a desktop, wall, or mounted to a DIN-
Rail.
DIN-rail Mounting Instructions
1. Attach the DIN-Rail mount to TI-PG541i.

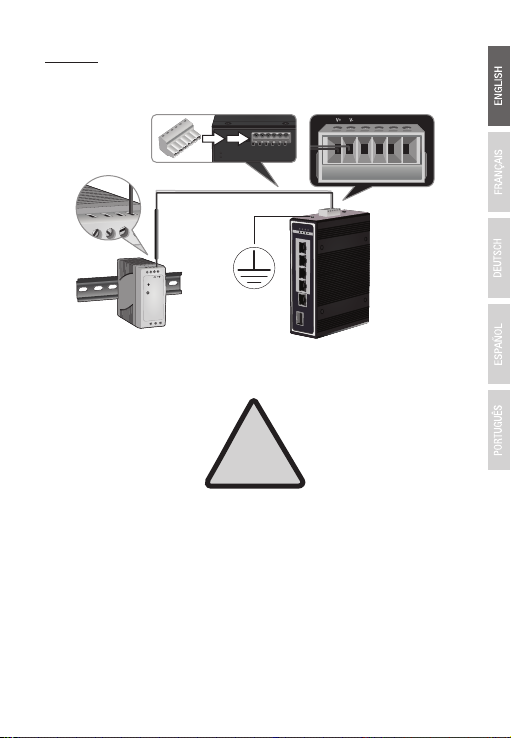

Applying Power
1. Connect the power supply (sold separately) to the included terminal
block (as shown below) and secure with the screws.
Note: Polarities must match.
2. Attach the terminal block to the unit.
3
3. Rotate the TI-PG541i downward towards the rail to lock it into
place. You will know it is secure when you hear the click.
4. To remove the unit, pull down to clear the bottom of the DIN-Rail
and rotate away from the rail.
Mounting the unit Releasing the unit
4
Safety Note
ŸTurn off the power before connecting any module or wire. The correct
power supply voltage (48 – 57 V DC) is listed on the product label.
Check the voltage of your power source to make sure that you are
using the correct part. Do NOT use voltage greater than 48 – 57 V
DC, as specified on the product label.
ŸCalculate the maximum possible current in each power wire and
common wire. Observe all electrical codes dictating the maximum
current allowable for each wire size. If the current surpasses the
maximum ratings, the wiring could overheat, causing serious
damage to your equipment.
!
Optional: The switch chassis can also be connected to a known
grounding point for additional safety and protection (grounding wire is
not included)
GND
4. Hardware Configuration
Note: User Name and Password are case sensitive.
5
1

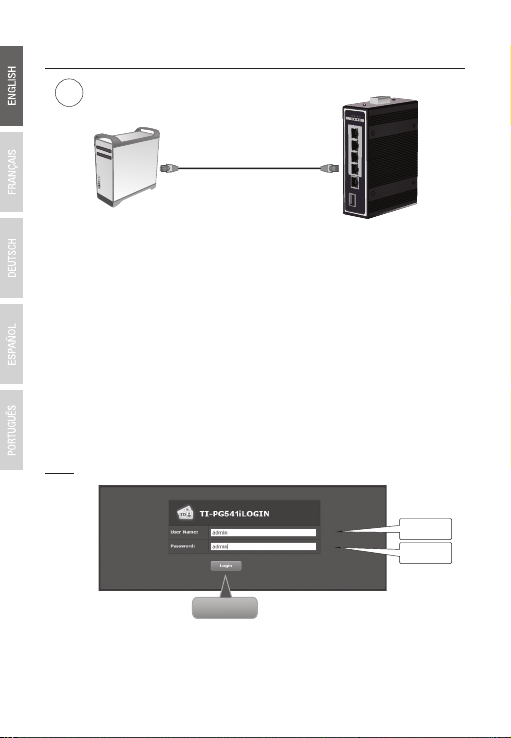

2. Assign a Static IP address to your computer's network adapter in
the subnet of 192.168.10.x
(e.g. 192.168.10.25) and a subnet mask of 255.255.255.0.
3. Open your web browser, type the IP address of the switch in the
address bar, and then press Enter.
The default IP address is 192.168.10.200
4. Enter the User name and Password, and then click Login. By
default:
User Name: admin
Password: admin
Login
admin
admin
6
5. Click Basic Settings and then click General Settings.
6. Configure the switch to match the requirements of your network.
Then click Apply.
7. Click Save.
8. Connect a network source and devices to the switch. Check the
LEDs to confirm the connections are established. Your installation is
completed.
Apply
Save
Basic Settings
General Settings
7
5. Additional Information
1. Redundant power inputs
48-57VDC
V- V-
V+ V+
DC-Jack Terminal Block
ALM
RPS
PWR
+
-
+
-
Redundant Power Input: Choose either “DC-jack” or “Terminal Block
(PWR)” as primary power and “Terminal Block (RPS)” for secondary
power source, to be a redundant power Input.
2. DIP Switch
1 2
NO
PWR
RPS
ON: Primary power alarm enabled
OFF: Primary power alarm disabled
PWR
ON: Redundant power alarm enabled
OFF: Redundant power alarm disabled
RPS
8
3. LED Indicators
Note: To download the latest version of the user's guide, please go to
http://www.trendnet.com/support and select the TI-PG541i within the
Products Download dropdown list.
For detailed information regarding the TI-PG541i's configuration and
advanced settings, please refer to the User's Guide on the provided
CD-ROM.
ON: Terminal block PWR is connected
OFF: No power or power source connected incorrectly
PWR
ON: Terminal block RPS is connected
OFF: Terminal block RPS fail
RPS
ON: PWR/RPS failure
OFF: No alarm setup
ALM (Red)
ON: Network speed at 1000 Mbps
Blinking: Data is transmitting/receiving
10/100/1000
Mbps
ON: Port connection is established
Blinking: Data is transmitting/receiving
LINK/ACT
OFF: Network speed at 10/100 Mbps
OFF: Port disconnected
ON: SFP port link-up at 1000 Mbps
OFF: Port disconnected
SFP Slot 6
ON: PoE/PoE+ device is connected
OFF: No PoE power output or no PoE device connected
PoE Ports 1 - 4
