Transition Networks METTF1011-120 Manuel utilisateur

Multichannel Media Converter

33214.A

METTF10xx, MFETF10xx

COMPLIANCE INFORMATION

UL Listed

C-UL Listed (Canada)

CISPR/EN55022 Class A

FCC Regulations

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in

which case the user will be required to correct the interference at the user’s own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the radio

interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils

numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des

Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user

may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes

Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für entsprechende Gegenmaßnahmen werantwortlich ist.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des interférences

radioélectriques, il appartiendra alors à l’utilsateur de prende les measures spécifiques appropriées

VCCI Class 1 Compliance

This equipment is in the 1st Class category

(information equipment to be used in commercial

and/or industrial areas) and conforms to the standards

set by the Voluntary Control Council For Interference

by Data Processing Equipment and Electronic Office

Machines aimed at preventing radio interference in

commercial and/or industrial areas. When used in a

residential area or in an adjacent area thereto,

interference may be caused to radio and TV

receivers, etc. Read the instructions for correct

handling.

Trademark Notice

All registered trademarks and trademarks are the property of their respective owners.

or mechanical – without written permission from TRANSITION Networks.

Printed in the U.S.A.

CAUTION: RJ CONNECTORS ARE NOT INTENDED FOR CONNECTION TO THE PUBLIC

TELEPHONE NETWORK. Failure to observe this caution could result in damage to the public telephone

network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten

verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur

Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen einschliesslich

der gegenseitigen Anerkennung ihrer Konformität.

Table of Contents

1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.1

1.1 Multichannel Media Converter Models . . . . . . . . . . . . 1.2

1.2 Media Converter Channels . . . . . . . . . . . . . . . . . . . . . 1.2

1.3 Channel Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3

1.4 Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3

1.5 AC Power Supply Module/Optional Redundant AC Power

Supply Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3

1.6 Multichannel Media Converter Management Module . 1.4

1.7 Multiport Management Software at Remote NMS . . . . 1.5

2. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.1

2.1 Preparing the Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2

2.2 Unpacking METTF10xx, MFETF10xx Equipment . . . . . 2.3

2.3 Installing Optional Redundant Power Supply Module . 2.4

2.3.1 Setting Management Module Jumper .2.4

2.3.2 Installing Power Supply Module . . . . .2.5

2.4 Installing Multichannel Media Converter at Site . . . . . . 2.6

2.4.1 Standard Rack Installation . . . . . . . . .2.6

2.4.2 Table-Top Installation . . . . . . . . . . . . .2.7

2.5 Powering the Multichannel Media Converter . . . . . . . 2.8

2.6 Connecting Channel Ports to Network . . . . . . . . . . . . . 2.9

2.6.1 Setting FDX/HDX Channel Configuration

Switches . . . . . . . . . . . . . . . . . . . . . . . . . . .2.9

2.6.2 Installing Fiber-optic Cable . . . . . . . .2.10

2.6.3 Installing Twisted-Pair Copper Cable 2.11

2.7 Setting Network Management Parameters . . . . . . . . . 2.12

2.8 Connecting to TCP/IP Network Management at Remote

Network Management Station (NMS) . . . . . . . . . . . . . 2.14

2.9 Installing Multiport Management Software at Remote NMS .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.15

MULTICHANNEL MEDIA CONVERTER i

3. OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1

3.1 Using Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2

3.2 Using a Terminal Emulator . . . . . . . . . . . . . . . . . . . . . 3.3

3.3 Using Multiport Management Software at Remote NMS 3.6

4 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1

4.1 Fault Isolation and Recovery . . . . . . . . . . . . . . . . . . . . 4.2

4.2 Hardware Replacement Procedures . . . . . . . . . . . . . . . 4.5

4.2.1 Replacing Management Module . . . . .4.5

4.2.2 Replacing AC Power Supply Module .4.6

APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.1

Appendix A. Technical Specifications . . . . . . . . . . . . . . . . . . A.1

Appendix B. Cable Specifications . . . . . . . . . . . . . . . . . . . . . B.1

METTF10xx, MFETF10xx

1. INTRODUCTION

The TRANSITION Networks METTF10xx (Ethernet™) and MFETF10xx (Fast

Ethernet™) series Multichannel Media Converters connect twisted-pair

copper cable to fiber-optic cable in separate copper-to-fiber media

converter pairs, called channels. The network administrator can select a

Multichannel Media Converter that provides up to six (6) or up to twelve

(12) channels, with either 10BASE-T/10BASE-FL or 100BASE-TX

/100BASE-FX connections and with either ST or SC fiber connectors.

The Multichannel Media Converter can be installed as a standalone unit

or in a standard rack and can be managed at an attached terminal or using

an SNMP application at a remote Network Management Station. Full-

duplex or half-duplex network operation, for each channel, is switch-

selectable or software-selectable.

1.1 Multichannel Media Converter Models .................................1.2

1.2 Media Converter Channels ....................................................1.2

1.3 Channel Switches ..................................................................1.3

1.4 AC Power Supply Module/Optional Redundant AC Power

Supply Module .......................................................................1.3

1.5 Multichannel Media Converter Management Module ...........1.4

1.6 Multiport Management Software at Remote NMS .................1.5

1.1

MULTICHANNEL MEDIA CONVERTER

1.1 Multichannel Media Converter Models

The TRANSITION Networks METTF10xx and MFETF10xx series

Multichannel Media Converters can be selected according to network

requirements:

MFETF1011-120 12-channel 100 Mb/s, multimode fiber, ST

connectors

MFETF1013-120 12-channel 100 Mb/s, multimode fiber, SC

connectors

MFETF1011-060 6-channel 100 Mb/s, multimode fiber, ST

connectors

MFETF1013-060 6-channel 100 Mb/s, multimode fiber, SC

connectors

METTF1011-120 12-channel 10 Mb/s, multimode fiber, ST

connectors

METTF1013-120 12-channel 10 Mb/s, multimode fiber, SC

connectors

METTF1011-060 6-channel 10 Mb/s, multimode fiber, ST

connectors

METTF1013-060 6-channel 10 Mb/s, multimode fiber, SC

connectors

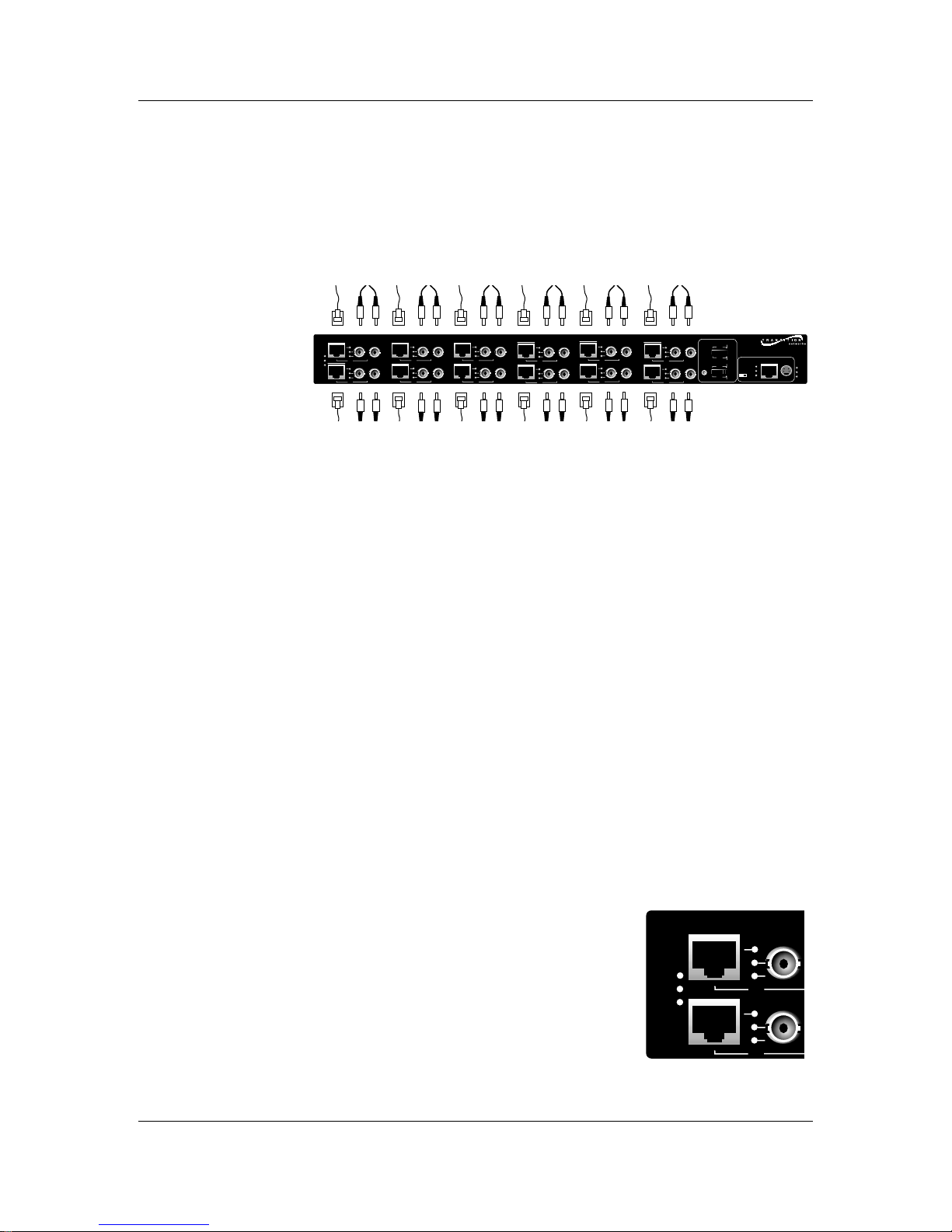

1.2 Media Converter Channels

Channels connect twisted-pair copper cable to fiber-optic cable.

Twisted-Pair Ports IEEE802.3-compliant 10BASE-T/100BASE-TX twisted-

pair ports operate at 10Mb/s or 100Mb/s, full-duplex or half-duplex.

Fiber-Optic Ports IEEE802.3-compliant 10BASE-FL/100BASE-FX fiber-

optic ports operate at 10Mb/s or 100Mb/s, full-duplex or half-duplex.

Channel LEDs A set of LEDs monitor the status

of EACH Media Converter channel.

T-LNK Steady LED indicates that twisted-

pair link has been established

between the channel and the

twisted-pair node

F-LNK Steady LED indicates that fiber link

has been established between the

channel and the fiber node

ACTIVE Steady LED indicates that fiber port is receiving traffic.

1.2 METTF10xx, MFETF10xx

T-LNK

F-LNK

ACTIVE

POWER

MAIN

BCKP

TEST

REC

LNK

Ready

RESET

MANAGEMENT

Managed Fast Ethernet 100BASE-TX to 100BASE-FX

T-LNK

F-LNK

ACTIVE

1 2 3 4

5 6 7

1 2 3 4

5 6

TEST

HDX

NORM

FDX

1 2 3 4

5 6 7

1 2 3 4

5 6

TEST

HDX

NORM

FDX

XII

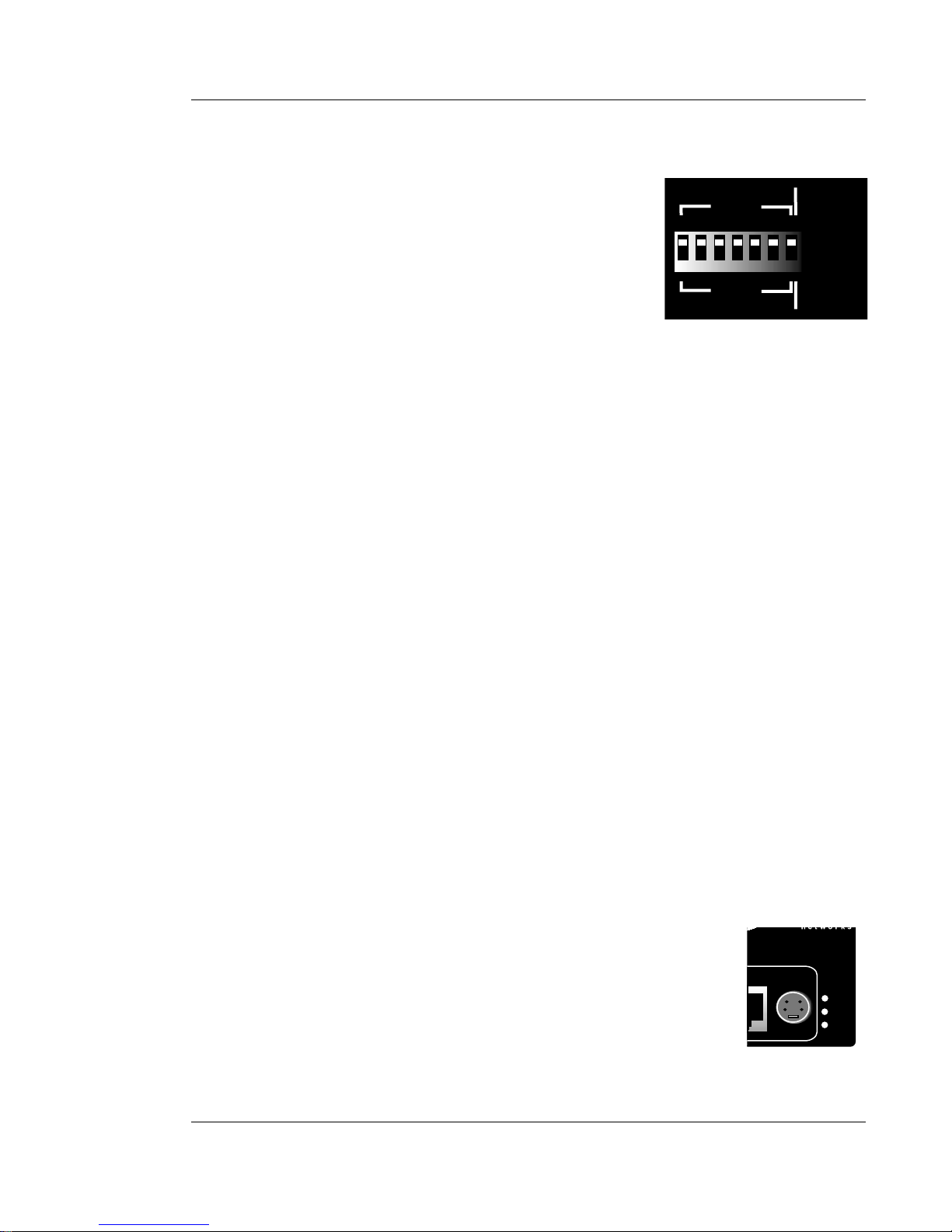

1.3 Channel Switches

Full-duplex/half-duplex mode selection

switches (DIP switches #1-6) allow the

network administrator to set EACH media

converter channel, separately, either to full-

duplex or to half-duplex.

The Link Test switch (DIP switch #7)

enables or disables the Missing Link Test

feature for a block of six (6) Multichannel

Media Converter channels.

1.4 Reset Button

Located only on 100BASE-TX MFETF10xx series Multichannel Media

Converter models, the Rest button, if present, allows the network

administrator to reset ALL Multichannel Media Converter channel ports.

1.5 AC Power Supply Module/Optional Redundant

AC Power Supply Module

An AC Power Supply Module, installed at the back of the Multichannel

Media Converter before shipment, supplies power to the Multichannel

Media Converter through an external power cord connected to an external

AC outlet.

NOTE: The Multichannel Media Converter does not have an ON/OFF

power switch. Power is applied to, and removed from, the Multichannel

Media Converter by connecting and disconnecting the power cord.

The Multichannel Media Converter rear panel also contains an expansion

slot for an optional redundant Power Supply Module. When installed, the

optional redundant Power Supply Module shares the power load with the

main AC Power Supply Module. If one power supply fails, the remaining

power supply assumes the role of providing all power to the Multichannel

Media Converter, thereby protecting the Multichannel Media Converter

from a system failure.

NOTE: Both the redundant Power Supply Module and the main AC Power

Supply Module can be "hot swapped".

The MAIN power LED on the front panel of the

Multichannel Media ConverterLED is a steady amber

when thef the AC Power Supply Module is operating

properly. When the optional redundant Power Supply

Module is installed and operating properly, the BCKP

power LED is a steady green.

1 INTRODUCTION

1.3

MULTICHANNEL MEDIA CONVERTER

1 2 3 4

5 6 7

1 2 3 4

5 6

TEST

HDX

NORM

FDX

POWER

MAIN

BCKP

TEST

ENT

100BASE-TX to 100BASE-FX

1.6 Multichannel Media Converter Management

Module

TRANSITION Networks Multichannel Media Converters are shipped with

a Management Module installed and functional. Embedded SNMP

software in the Management Module allows network management of the

Multichannel Media Converter.

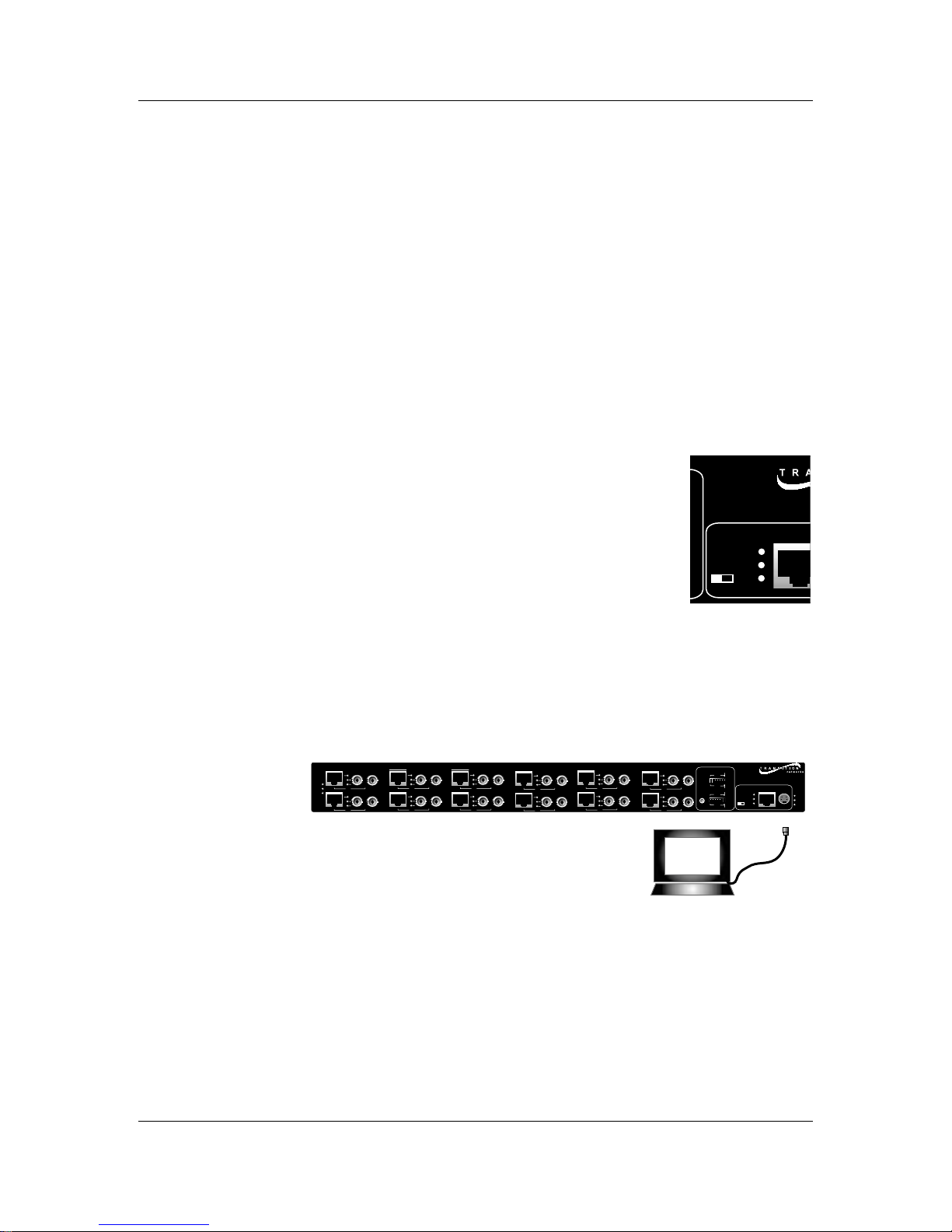

Connections to Management Module

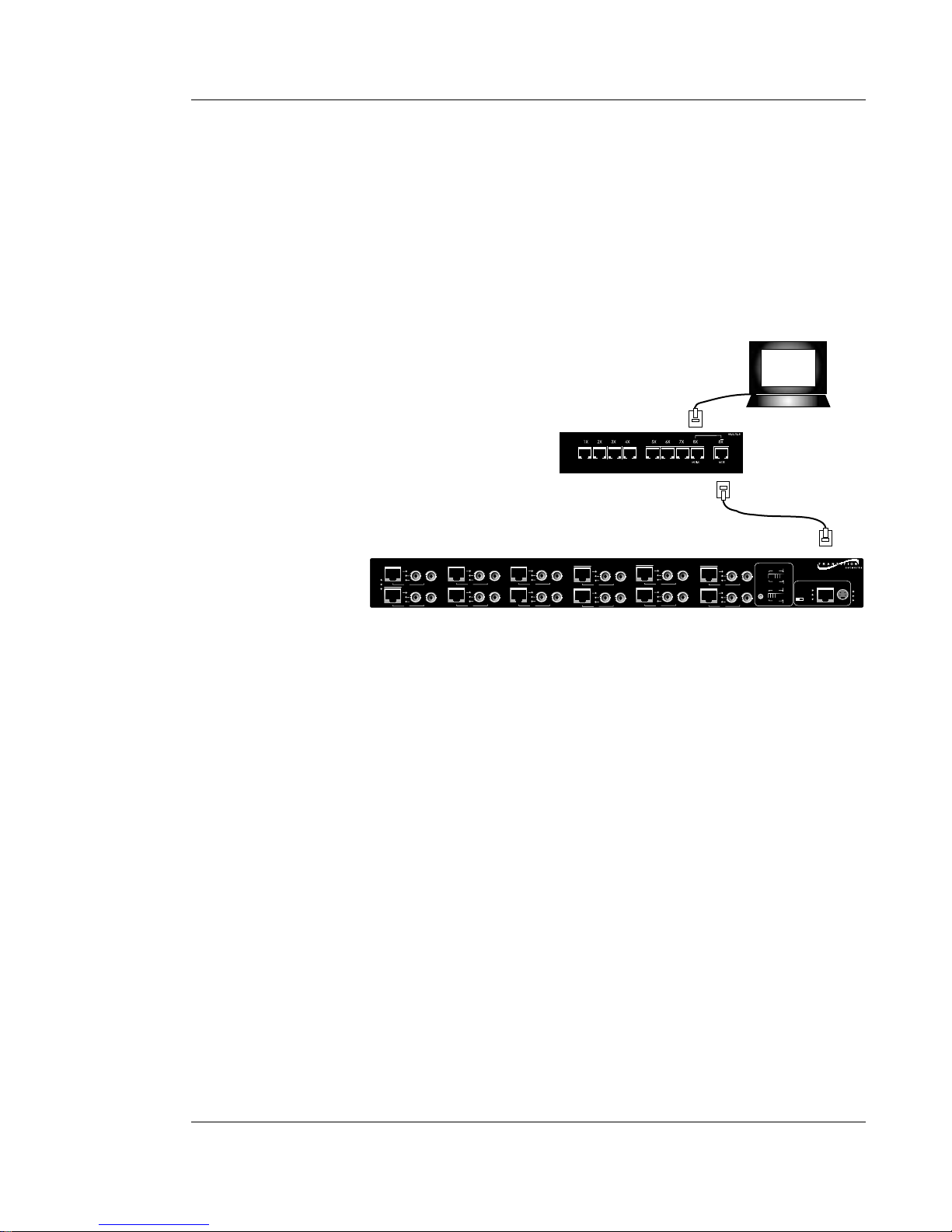

The network administrator can manage the Multichannel Media Converter

using Management Module SNMP software accessed either through the

PS/2 serial port or through the RJ-45 network port.

Management Module LEDs

A set of LEDs monitor the status of the Management Module.

LNK Steady LED indicates that a link has been

established to the Management Module

through the PS/2 serial port or through the

RJ-45 network port.

REC Steady LED indicates that the Management

Module is receiving traffic through the PS/2

serial port or through the RJ-45 network

port.

Ready Steady LED indicates that the Management

Module is properly installed and receiving power.

Serial Port

The network administrator can manage the Multichannel Media Converter

through a command-line interface at a terminal or terminal emulator

conected to the PS/2 port, through the supplied cable (PS/2 to DB9).

1.4 METTF10xx, MFETF10xx

Attached terminal or terminal emulator

connected to PS/2 serial port via management cable.

POWER

MAIN

BCKP

TEST

REC

LNK

Ready

RESET

MANAGEMENT

Managed Fast Ethernet 100BASE-TX to 100BASE-FX

T-LNK

F-LNK

ACTIVE

1 2 3 4

5 6 7

1 2 3 4

5 6

TEST

HDX

NORM

FDX

1 2 3 4

5 6 7

1 2 3 4

5 6

TEST

HDX

NORM

FDX

XII

REC

LNK

Ready

MANAGEM

Managed Fast Ethernet 1

XII

Network RJ-45 Connection

The RJ-45 Ethernet connection permits the network administrator to

manage the Multichannel Media Converter using the TRANSITION

Networks Multiport Management Software graphical interface (or other

SNMP application) at a remote network management station (NMS). The

RJ-45 Ethernet connection also permits the network administrator to use a

remote Telnet connection to the Multichannel Media Converters.

The Multichannel Media Converters must be attached, through the RJ-45

Ethernet port, to a network that is accessible (via IP) from the computer at

the remote location.

1.7 Multiport Management Software at Remote

NMS

TRANSITION Networks Multiport Management Software allows remote

management of the Multichannel Media Converter.

Clicking the Help button or the ?button at the Multiport Management

Software screen brings up links to an integrated set of HELP screens that

provides direction for using the Multiport Management Software and that

CAN BE VIEWED AND PRINTED FROM ANY STANDARD HTML

BROWSER.

1 INTRODUCTION

1.5

MULTICHANNEL MEDIA CONVERTER

Network hub connected

to RJ-45 Ethernet port.

Remote SNMP NMS

POWER

MAIN

BCKP

TEST

REC

LNK

Ready

RESET

MANAGEMENT

Managed Fast Ethernet 100BASE-TX to 100BASE-FX

T-LNK

F-LNK

ACTIVE

1 2 3 4

5 6 7

1 2 3 4

5 6

TEST

HDX

NORM

FDX

1 2 3 4

5 6 7

1 2 3 4

5 6

TEST

HDX

NORM

FDX

XII

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks NANOMETER E-100BTX-SX-01 Manuel utilisateur

Transition Networks

Transition Networks HSTR-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks E-PSW-SX-01(SC) Manuel utilisateur

Transition Networks

Transition Networks MEDIA CONVERTER A-CF-01 Manuel utilisateur

Transition Networks

Transition Networks CFETF1011-200 Manuel utilisateur

Transition Networks

Transition Networks MEDIA CONVERTERS E-100BTX-FRL-01 Manuel utilisateur

Transition Networks

Transition Networks M/E-PSW-FX-02 Manuel utilisateur

Transition Networks

Transition Networks C/E-R-TX-FX-01 Manuel utilisateur

Transition Networks

Transition Networks CRS2F3111-100 Manuel utilisateur

Transition Networks

Transition Networks PS-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FRL-03(SC) E-100BTX-FRL-03(SM) Manuel utilisateur

Transition Networks

Transition Networks J/POE-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks FBRM1XXX-1XX Manuel utilisateur

Transition Networks

Transition Networks CFMFF1314-210 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-N-02 Manuel utilisateur

Transition Networks

Transition Networks CGETF1013-110 Manuel utilisateur

Transition Networks

Transition Networks J-CF-02 Manuel utilisateur

Transition Networks

Transition Networks CPSVT2611-100 Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-05 Manuel utilisateur

Transition Networks

Transition Networks SRS4F3111-100 Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FX-05(LH) Manuel utilisateur

Transition Networks

Transition Networks E-PSW-FX-03(LH) Manuel utilisateur

Transition Networks

Transition Networks J/E-PSW-FX-02(SC) Manuel utilisateur

Transition Networks

Transition Networks SSDTF3011-110 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
