Transition Networks E-TBT-FRL-N-02 Manuel utilisateur

Installation . . . . . . . . . . . . . . . . . .2

Operation . . . . . . . . . . . . . . . . . . .4

Cable Specifications . . . . . . . . . . .4

Technical Specifications . . . . . . . .5

Troubleshooting . . . . . . . . . . . . . .6

Compliance Information . . . . . . . .8

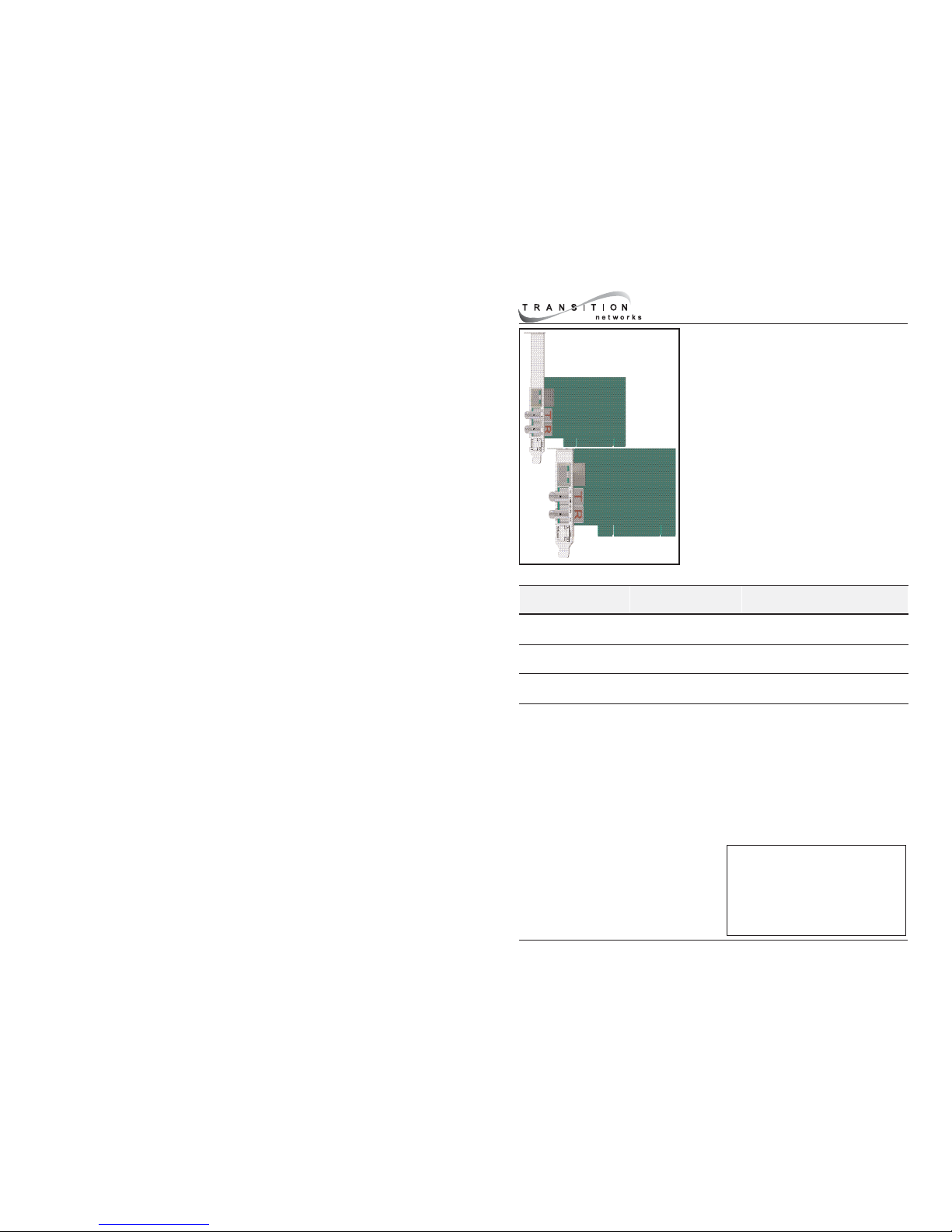

User’s Guide

E-TBT-FRL-N-02

PCI Media Converter

• Ethernet

• Copper to Fiber

• 10Base-T to 10Base-FL

Transition Networks E-TBT-FRL-N-02 series

media converters are 10Base-T/10Base-FL

devices that connect 10Base-T copper to 10Base-

FL fiber. The E-TBT-FRL-N-02 is PCI

(Peripheral Component Interconnect) powered;

designed to install directly in a PC workstation or

file server, and insert into any slot on a standard

PCI. No additional power supply is needed since

each PCI slot has power.

Part Number Port One - Copper

10Base-T

Port Two - Fiber-Optic

10Base-FL

E-TBT-FRL-N-02 RJ-45

100 m (328 ft)*

ST, 850 nm multimode

2 km (1.2 miles)*

E-TBT-FRL-N-02 (SC) RJ-45

100 m (328 ft)*

SC, 850 nm multimode

2 km (1.2 miles)*

E-TBT-FRL-N-02 (MT) RJ-45

100 m (328 ft)*

MT-RJ, 850 nm multimode

2 km (1.2 miles)*

* Typical maximum cable distance. Actual distance is dependent upon the physical

characteristics of the network installation.

Installation

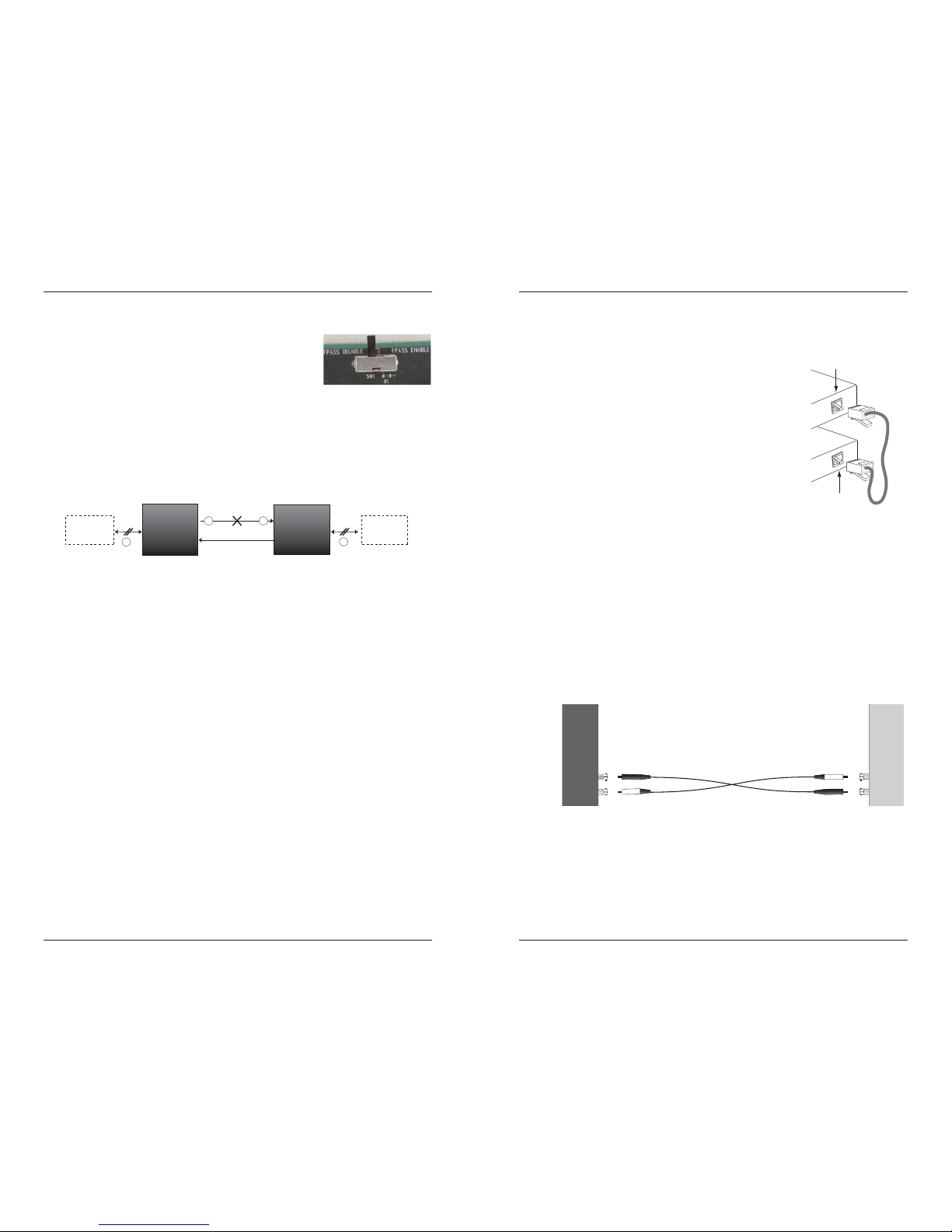

Set the LinkAlert™ switch

The LinkAlert switch is located on the edge of the printed

circuit board and can be easily switched to ENABLE or

DISABLE without the use of tools.

The LinkAlert feature allows the media converter to monitor the fiber and copper

RX (receive) ports for signal losses. In the event of a loss of an RX signal, the

media converter will automatically disable the TX (transmit) signal, thus “passing

through” the link loss. The far-end device is automatically notified of the link loss,

which prevents the loss of valuable data unknowingly transmitted over an invalid

link.

Note: If all network devices attached to the media converter(s) are capable of auto-

negotiation, enable the LinkAlert feature on the media converter(s).

Otherwise, disable the LinkAlert feature.

Install the slide-in-module

To install the E-TBT-FRL-N-02 media converter slide-in-module:

1. Locate an empty slot on the PC workstation or file server.

2. Remove the screws holding the cover to the slot. Retain the screws.

3. Carefully slide the slide-in-module into the slot, aligning the module with the

installation guides.

4. Ensure that the module is firmly seated in the slot.

5. Using the screws from step 2, secure the module to the workstation or file

server housing .

E-TBT-FRL-N-02

224-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Media

Converter A

Media

Converter B

Near-End

Device

Far-End

Device

original fault

on the copper link media converter B

disables the copper link

media converter A

disables the fiber TX link

media converter B

loses the fiber RX link

Installation -- Continued

Install the copper cable

1. Use the enclosed 10Base-T compliant copper cable

with male, RJ-45 connectors installed at both ends.

2. Connect the RJ-45 connector at one end of the cable to

the RJ-45 port on the E-TBT-FRL-N-02 media

converter.

3. Connect the RJ-45 connector at the other end of the

cable to the RJ-45 port on the other device (network

interface card (NIC), terminal device, transceiver,

switch, workstation, etc.).

Install the copper cable

1. Locate or build 10Base-FL compliant fiber cable with male, two-stranded TX

to RX connectors installed at both ends.

2. Connect the fiber cables to the E-TBT-FRL-N-02 media converter as

described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter, hub,

etc.) as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Power the media converter

The E-TBT-FRL-N-02 media converter is powered by the PCI (Peripheral

Component Interconnect) edge connector on the circuit board.

[email protected] -- Click the “Transition Now” link for a live Web chat.

Connect the fiber cable

to the media converter

as shown.

Connect the fiber cable

to the other device

(media converter,

hub, etc.) as shown

RJ-45 port

on the media

converter

RJ-45 port

on the network

erface card (NIC)

E-TBT-FRL-N-02

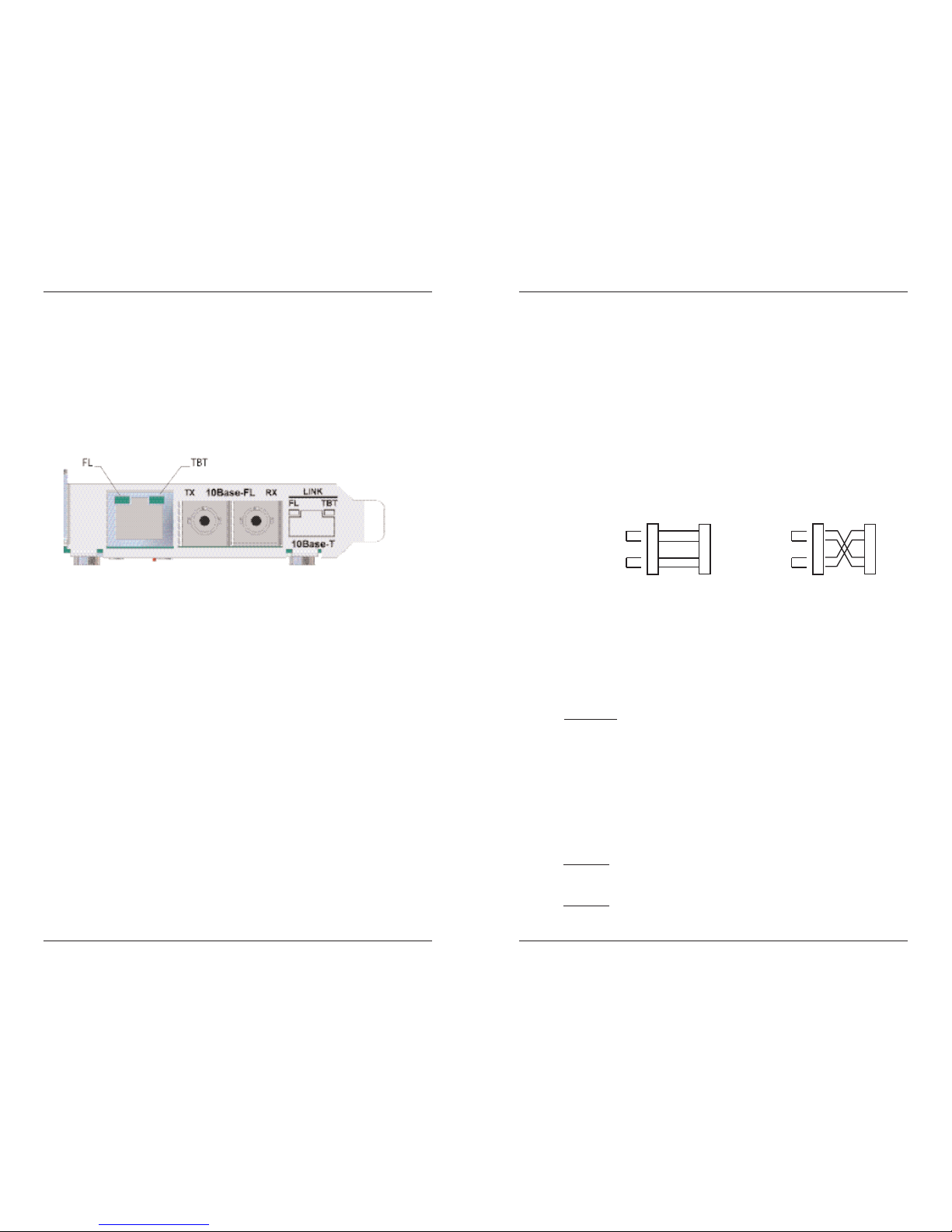

Operation

LED indicators

After installation, the media converter should function without operator

intervention. Use the status LEDs to monitor the media converter operation in the

network.

PLink (Fiber) ON = A 10Base-FL link and normal operation.

OFF = A lack of power or a downed 10Base-FL link.

Link (TBT) ON = A 10Base-T link and normal operation.

OFF = A lack of power or a downed 10Base-T link

AutoCross™

The AutoCross feature detects and configures the twisted-pair copper port on the

media converter to the correct straight-through (MDI) or crossover (MDI-X)

configuration. This feature allows either MDI or MDI-X cable to connect the media

converter to devices such as hubs, transceivers, or network interface cards (NICs).

Cable Specifications

Fiber cable

Bit Error Rate: <10-9

Multimode fiber (recommended): 62.5/125 µm

E-TBT-FRL-N-02

E-TBT-FRL-N-02(SC)

E-TBT-FRL-N-02(MT) 850 nm multimode

Fiber-optic Transmitter Power: min: -20.0 dBm max: -10.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.5 dBm max: -7.2 dBm

Link Budget 12.5 dB

The fiber optic transmitters on this device meet Class I Laser safety requirements per

IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11.

E-TBT-FRL-N-02

424-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 5

[email protected] -- Click the “Transition Now” link for a live Web chat.

Cable Specifications -- Continued

Copper cable

Category 3: (minimum requirement)

Gauge 24 to 22 AWG

Attenuation 11.5 dB/100m @ 5-10 MHz

Category 5: (recommended)

Gauge 24 to 22 AWG

Attenuation 22.0 dB/100m @ 100 MHz

• Straight-through twisted-pair cable must be used.

• Shielded twisted-pair (STP) or unshielded twisted-pair (UTP) may be used.

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .

• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

• Do not use flat or silver satin wire.

Straight-Through Cable

wisted Pair #1

wisted Pair #2

Crossover Cab

Twisted Pair #1

Twisted Pair #2

Technical Specifications

For use with Transition Networks Model E-TBT-FRL-N-02 or equivalent

Standards: IEEE 802.3™

Data Rate: 10 Mb/s

Dimensions: 4.762” x 5.208” x 0.932” (121mm x 134mm x 24mm)

Weight: 3 oz. (91g approximately)

Power Consumption: <450 mA

Environment:

Operating temp Tmra*: 0°C to 50°C (32°F to 122°F )

Storage temp: -25°C to 85°C (-13 to 185°F )

Humidity: 10% to 90%, non-condensing

Altitude: 0 to 10,000 feet

Warranty: Lifetime

*Manufacturer’s rated ambient temperature: Tmra range for this slide-in-module

depends on the physical characteristics and the installation configuration of the file

server or PC workstation in which this slide-in-module will be installed.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and Invisible Laser Radiation When Open. DO NOT STARE into

laser Beam or view it directly with optical Instruments. Failure to observe this caution

could result in loss of vision.

CAUTION: Use of controls, adjustments or the performance of procedures other than

those specified herein may result in hazardous radiation exposure.

E-TBT-FRL-N-02

624-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Troubleshooting

If the media converter fails, isolate and correct the fault by determining the answers to

the following questions and then taking the indicated action:

1. Is the PWR (power) LED illuminated?

• Confirm that the media converter is properly inserted into the PC

workstation or the file server.

• Confirm that the PC workstation or the file server is properly connected to

the power source and is turned on.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the RJ-45 LINK LED illuminated?

• Check the twisted-pair cables for proper connection.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the fiber LINK LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are connected to

RX and TX ports, respectively, on the other device.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 4.

4. Is the RJ-45 RX LED illuminated?

• Disconnect and reconnect the 10Base-T cable to restart the initialization

process.

• Restart the attached device to restart the initialization process.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 5.

5. Is the fiber RX LED illuminated?

• Disconnect and reconnect the 10Base-FL cable to restart the initialization

process.

• Restart the attached device to restart the initialization process.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

E-TBT-FRL-N-02

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

Declaration of Conformity

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 U.S.A.

Model: E-TBT-FRL-N-02 Series Media Converter

Part Number: E-TBT-FRL-N-02, E-TBT-FRL-N-02(SC), E-TBT-FRL-N-02(MT)

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the E-TBT-FRL-N-02 to which this declaration refers is in

conformity with the following standards.

EN 55022:1998+A1:2000 Class A; EN 55024:1998; FCC Part 15 Subpart B; UL 1950,

21CFR subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

Novembler 28, 2005_____

Stephen Anderson, Vice-President of Engineering Date

Technical support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

6475 City West Parkway

Minneapolis, MN 55344, U.S.A.

Telephone: 952-941-7600

Toll free: 800-526-9267

Fax: 952-941-2322

Trademark notice

All registered trademarks and trademarks are the property of their respective owners.

- graphic, electronic, or mechanical - without written permission from Transition Networks.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

Compliance Information

UL Listed

C-UL Listed (Canada)

CISPR22/EN55022 Class A + EN55024

CE Mark

FCC regulations

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which

case the user will be required to correct the interference at the user's own expense.

Canadian regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out

on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage

radioélectrique édicté par le ministère des Communications du Canada.

European regulations

Warning This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei

Betrieb dieses Gerätes Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für

entsprechende Gegenmaßnahmen werantwortlich ist.

Attention! Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de

créer des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures

spécifiques appropriées.

In accordance with European Union Directive 2002/96/EC of the European Parliament

and of the Council of 27 January 2003, Transition Networks will accept post usage

returns of this product for proper disposal. The contact information for this activity can be

found in the 'Contact Us' portion of this document.

Printed in the U.S.A. 33352.A

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks C/E-100BTX-FX-04(LH) Manuel utilisateur

Transition Networks

Transition Networks CRMFE1011-200 Manuel utilisateur

Transition Networks

Transition Networks SGETF1013-110 Manuel utilisateur

Transition Networks

Transition Networks C/PS-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks E-TEL-1200 Manuel utilisateur

Transition Networks

Transition Networks CDFTF1111-100 Manuel utilisateur

Transition Networks

Transition Networks SGFEB1013-100 Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FX-05(LH) Manuel utilisateur

Transition Networks

Transition Networks FBRM1XXX-1XX Manuel utilisateur

Transition Networks

Transition Networks C4TEF10XX-10X Manuel utilisateur

Transition Networks

Transition Networks SGFEB10xx-12x Manuel utilisateur

Transition Networks

Transition Networks SRS4F3111-100 Manuel utilisateur

Transition Networks

Transition Networks J/E-PSW-FX-02(SC) Manuel utilisateur

Transition Networks

Transition Networks DataBand EV Manuel utilisateur

Transition Networks

Transition Networks CAPTF3311-100 Manuel utilisateur

Transition Networks

Transition Networks J/FE-CF-04 SMLC Manuel utilisateur

Transition Networks

Transition Networks F-SM-MM-06(XL) Manuel utilisateur

Transition Networks

Transition Networks CGETF10XX-10X Manuel utilisateur

Transition Networks

Transition Networks CBFTF1011-100 Manuel utilisateur

Transition Networks

Transition Networks S3290 Manuel utilisateur

Transition Networks

Transition Networks FXC1115T Manuel utilisateur

Transition Networks

Transition Networks ARCNET AR-CF-02 Manuel utilisateur

Transition Networks

Transition Networks J/FE-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks CETCT1020-100 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
