Transition Networks SEPOE1011-150 Manuel utilisateur

SEPOE10xx-150

User’s Guide

• Stand-Alone Media Converter

• Power Over Ethernet

• 10Base-T to 10Base-FL

The SEPOE10xx-150 Power Over Ethernet (POE) is a 10Base-T to 10Base-FL media

converter capable of providing power to Data Terminal Equipment (DTE) Power

Devices (PD) via the Media Dependent Interface (MDI) twisted pair cable. The

SEPOE10xx-150 emulates Power Sourcing Equipment (PSE) and is compatible with

Powered Devices (PD) that comply with the IEEE802.3af™ standard. The

SEPOE10xx-150 also includes Transition Networks’ propriatory PD signature

sensing and power monitoring features.

* Typical maximum cable distance. Actual distance is dependent upon the physical

characteristics of the network installation.

Optional Accessories (sold separately)

Installation . . . . . . . . . . . . . . . . . .2

Maintenance . . . . . . . . . . . . . . . .5

Operation . . . . . . . . . . . . . . . . . . .6

Cable Specifications . . . . . . . . . . .8

Technical Specifications . . . . . . . .9

Troubleshooting . . . . . . . . . . . . . .9

Compliance Information . . . . . . .12

Part Number Port One - Copper

10Base-T

Port Two - Duplex Fiber-Optic

10Base-FL

SEPOE1011-150 RJ-45

100 m (328 ft.)*

ST, 850 nm multimode

2 km (1.2 miles)*

SEPOE1012-150 RJ-45

100 m (328 ft.)*

ST, 1310 nm singlemode

20 km (12.4 miles)*

SEPOE1013-150 RJ-45

100 m (328 ft.)*

SC, 850 nm multimode

2 km (1.2 miles)*

SEPOE1014-150 RJ-45

100 m (328 ft.)*

SC, 1310 nm singlemode

20 km (12.4 miles)*

Part Number Description

WMBL Optional Wall Mount Brackets

Length: 4.0 in. (102 mm), Fits converter length: 4.7 in. (119 mm)

WMBD Optional DIN Rail Mount Bracket; Length: 5.0 in. (127 mm)

WMBD-F Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84 mm)

SEPOE10xx-150

Tech Support: 1-800-260-1312 - International: 00-1-952-941-7600 - 24 hours

Installation and Service

ALL INSTALLATION AND SERVICE MUST BE PERFORMED BY QUALIFIED

SERVICE PERSONNEL.

Read and follow all warning notices and instructions marked on the product or

included in the manual

CAUTION: Ensure that the power source is NOT powered when connecting it

to the SEPOE10xx-150 series media converter. Failure to observe this caution

could result in damage to, and subsequent failure of, the SEPOE10xx-150.

Required Grounding

Proper earthing (grounding) of the SEPOE10xx-150 is required. A grounding

terminal is provided on the SEPOE10xx-150 for proper grounding of the device

as per customer installation requirements and local electrical codes.

The DC-powered, SEPOE10xx-150 series media converter is intended to be used

in a restricted access location. It is recommended that the 18-72 VDC source is

to be reliably connected to earth (ground). Equipment grounding is vital to

ensure safe operation.

Prior to installation, use a voltmeter/ohmmeter to check the wiring for the

presence of earth ground.

Required Disconnect

A readily accessible disconnect device as part of the building installation shall be

incorporated into the fixed wiring for the SEPOE10xx-150 series media

converter. The disconnect device (a -48 VDC, 15 or 20A circuit breaker or

switch) must be included in the ungrounded supply conductor. Overcurrent

protection must be a -48 VDC, 15 or 20A fuse or circuit breaker.

[email protected] -- Click the “Transition Now” link for a live Web chat 3

Installation -- Continued

CAUTION: Both the fiber and copper connections to the SEPOE10xx-150

media converter must be of the same network speed and network protocol.

Failure to observe this caution will cause data transfer to fail.

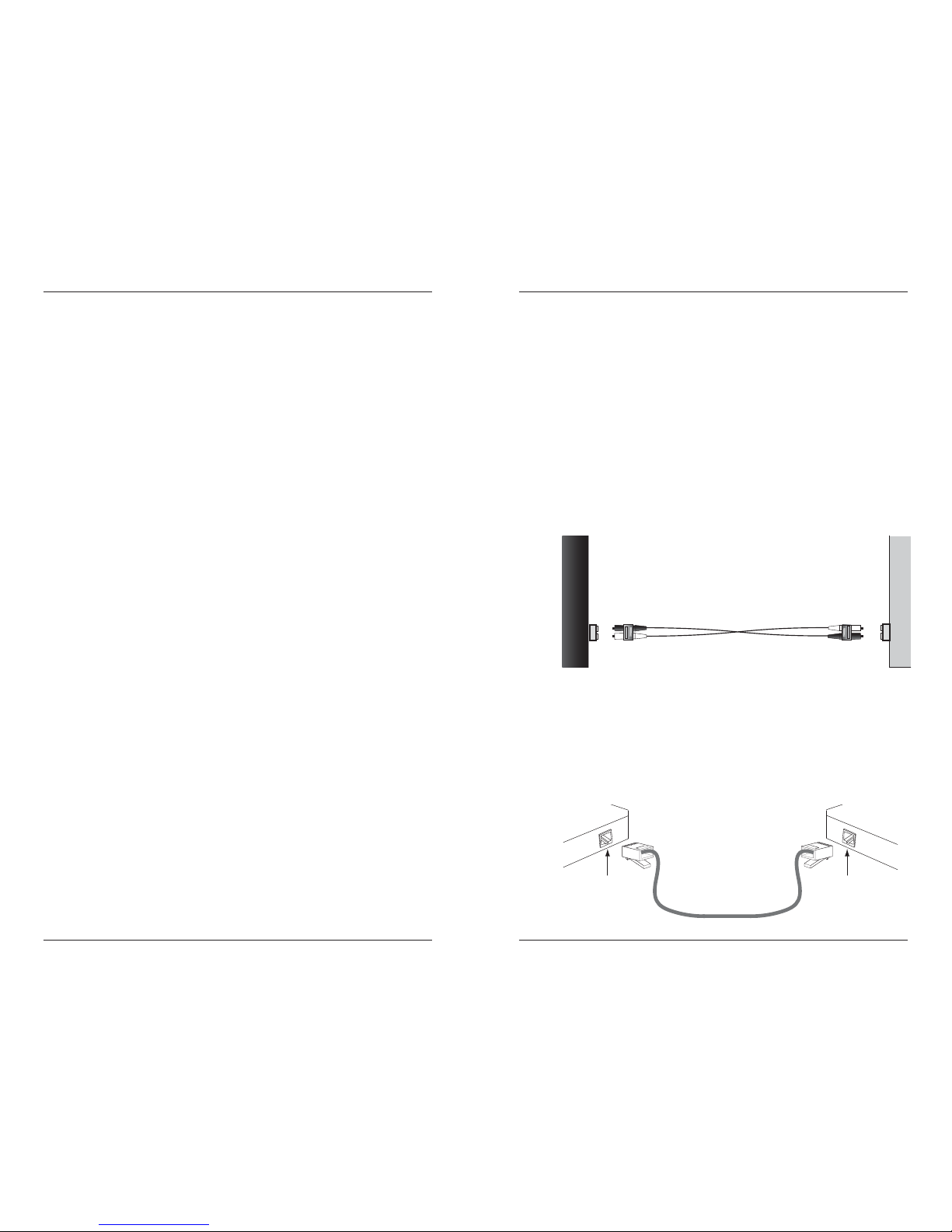

Install the Fiber Cable

1. Locate or build 10Base-FL compliant fiber cable with male, two-stranded

TX to RX connectors installed at both ends.

2. Connect the fiber cables to the SEPOE10xx-150 media converter as

described:

• Connect the male TX cable connector the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter,

hub, etc.) as described:

• Connect the male TX cable connector the female RX port.

• Connect the male RX cable connector to the female TX port.

Connect the fiber cable

to the media monverter

as shown.

Connect the fiber cable

to the other device

(media converter,

hub, etc.) as shown

Install the Copper Cable

1. Locate or build 10Base-T compliant copper cables with male, RJ-45

connectors installed at both ends.

2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on

the SEPOE10xx-150 media converter.

3. Connect the RJ-45 connector at the other end of the cable to the RJ-45

port on the powered device.

RJ-45 port on the

powered device

RJ-45 port on the

media converter

SEPOE10xx-150

Tech Support: 1-800-260-1312 - International: 00-1-952-941-7600 - 24 hours

Installation -- Continued

Supplying Power to the SEPOE10xx-150

The SEPOE10xx-150 features under voltage lockout, which disables operation

and eliminates excessive power draw from the 48 volt external power source if

the source falls below approximately 44 VDC.

CAUTION: The power source MUST BE

POWERED OFF when connecting it to the

SEPOE10xx-150. Failure to observe this

caution could result in damage to, and

subsequent failure of, the power supply and

any attached device.

1. Ensure that external power source is

powered OFF.

2. Connect the positive (+) terminal of the power supply to the positive

terminal on the SEPOE10xx-150 (marked with a “1”).

3. Connect the negative (-) terminal of the power supply to the negative

terminal on the SEPOE10xx-150 (marked with a “3”).

4. Connect the ground terminal of the power supply (or an appropriate

‘earthing’ ground locaton) to the ground terminal on the SEPOE10xx-150

(marked with a “4”).

5. Turn on the power to the external power source.

6. Verify that the SEPOE10xx-150 is powered by observing the illuminated

power LED.

Disconnecting Power to the SEPOE10xx-150

CAUTION: The power source MUST BE POWERED OFF when disconnecting

it from the SEPOE10xx-150. Failure to observe this caution could result in

damage to, and subsequent failure of, the power supply and any attached

device.

1. Ensure that external power source is powered OFF.

2. Disconnect the positive (+) terminal of the power supply from the positive

terminal on the SEPOE10xx-150 (marked with a “1”).

3. Disconnect the negative (-) terminal of the power supply from the

negative terminal on the SEPOE10xx-150 (marked with a “3”).

4. Disconnect the ground terminal of the power supply (or the ‘earth’

ground) from the ground terminal on the SEPOE10xx-150 (marked with a

“4”).

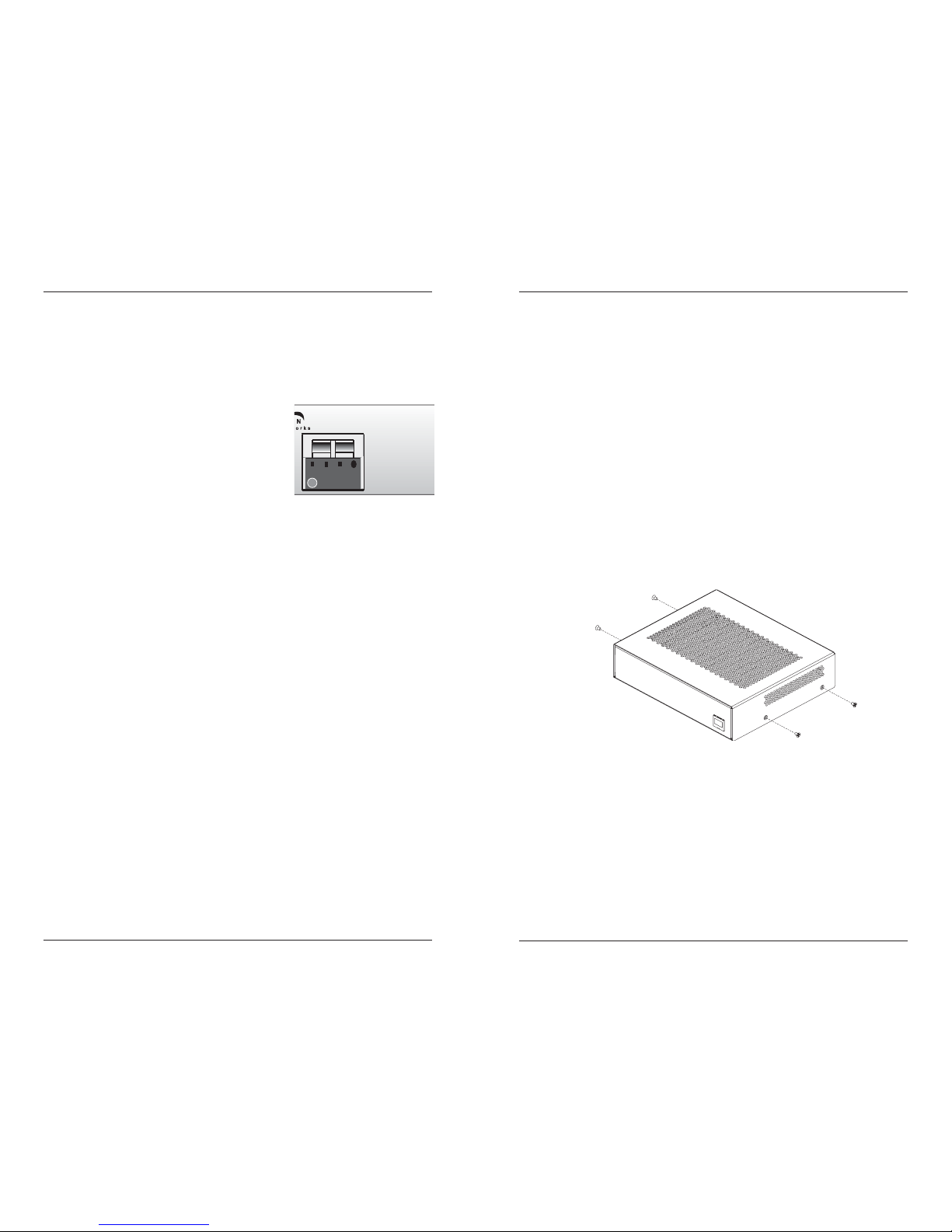

48 VDC Nom.

@ 2A Max.

POWER

INPUT

2 - no connect

1 - Vin (+)

3 - Vin (-)

4 - Chassis Gnd

4 3 2 1

___

[email protected] -- Click the “Transition Now” link for a live Web chat 5

Maintenance

Replacing Power Supply Module Fuse

Catastrophic fault protection is provided by an internal 2 Amp fuse.

CAUTION: Failure to observe the following cautions could result in damage

to, and subsequent failure of, the SEPOE10xx-150 media converter, the

external power supply, and any attached device.

• Wear a grounding device and observe electrostatic discharge precautions

when replacing the fuse in this device.

• Replace the fuse only with the same size and rating.

• Ensure that the power source is NOT powered when disconnecting power

from, or connecting power to, this device.

To replace the fuse in the SEPOE10xx-150:

1. Ensure that the external power source is not powered.

2. Disconnect the SEPOE10xx-150 from the external power source (see

page 5).

3. Remove and retain the screws that secure the cover to the SEPOE10xx-

150. Remove and retain the cover to the device.

4. Carefully remove the fuse from the fuse holder.

5. Install the same size and rating replacement fuse in the fuse holder.

6. Replace the cover to the SEPOE10xx-150 and install the screws.

7. Reconnect the SEPOE10xx-150 to the external power source (see page 4).

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and Invisible Laser Radiation When Open. Do Not Stare

Into Beam Or View Directly With Optical Instruments.

CAUTION: Use of controls, adjustments or the performance of procedures

other than those specified herein may result in hazardous radiation exposure.

Configuration Switches

Set the configurations switches as required for the network

MDI PWR Switch

Enable: Enables MDI power funtions.

Disable: Disables MDI power functions.

Link Pass Thru Switch

Enable: Enables Link Pass-Through.

Disable: Disables Link Pass-Through.

SEPOE10xx-150

Operation

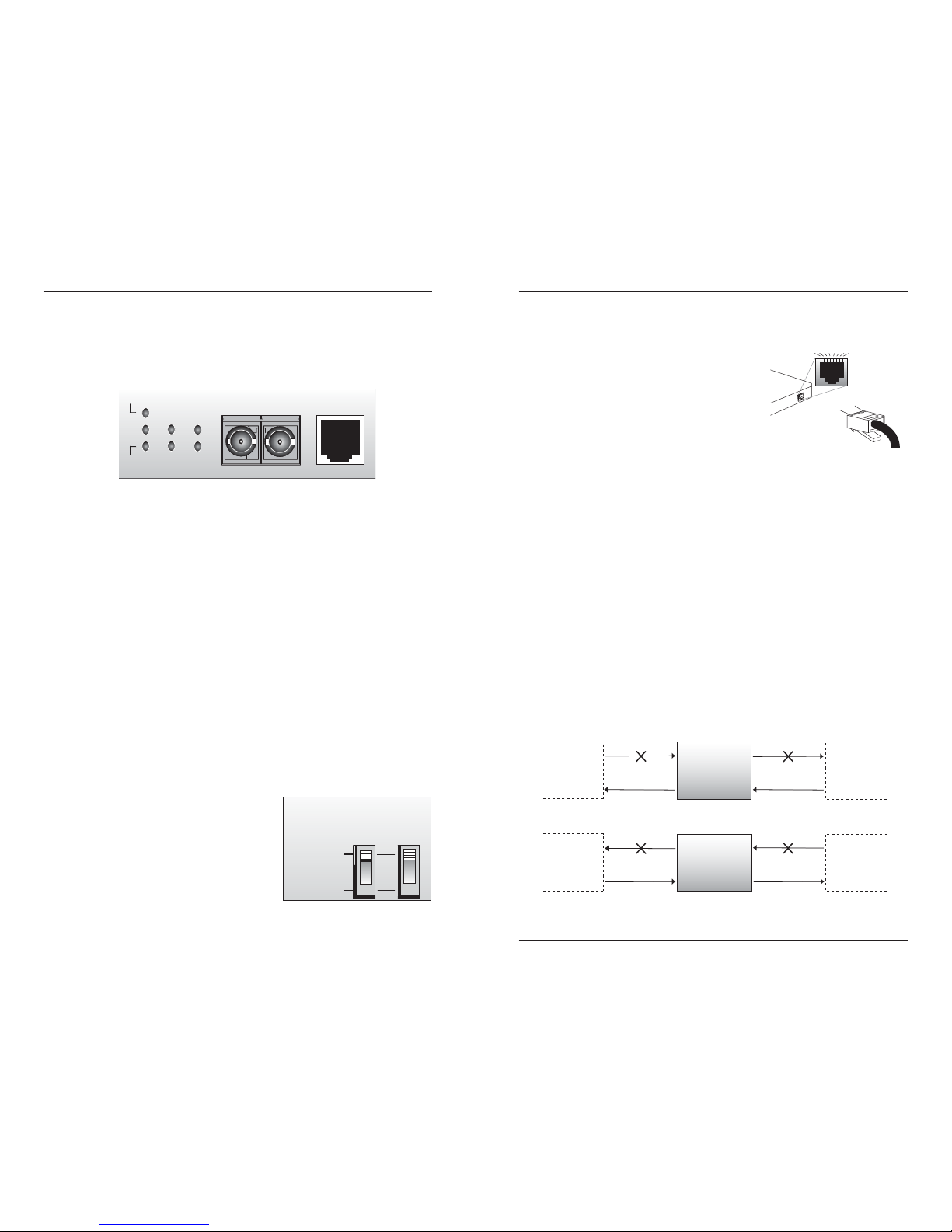

LED Indicators

After installation, the media converter should function without operator

intervention. Use the status LEDs to monitor media converter operation in the

network.

MDI Fault On (for 5-10 seconds) = the POE sources exceed approximately

0.4 A* of current on the MDI interface.

MDI ON On = the current to the MDI that is greater than approximately 10

mA or less than approximately 0.4 A*. Power to the MDI is

removed if the current is outside this range.

(*Including the in-rush current required to charge the PD (Powered

Device) load capacitance.)

POWER On = the input voltage is above approximately 44 VDC.

TP Link On = a link from the twisted-pair copper connection to the

Powered Device (PD).

Fiber Link On = a link from the fiber connection to the other media converter

or remote hub.

TP Act Flashing = activity on the Powered Device (PD).

Fiber Act Flashing = activity on the other media converter or remote hub.

10Base-FL

+ +

TX RX

10Base-T

MDI

MDI Fault

Link

Fiber

Link

Act Act

POWER

___

Tech Support: 1-800-260-1312 - International: 00-1-952-941-7600 - 24 hours

MDI

PWR

Disable

Enable

Link

Pass

Thru

___

[email protected] -- Click the “Transition Now” link for a live Web chat 7

Operation -- Continued

MDI Power

MDI power can be activated using the MDI PWR

switch on the front panel (see page 6).

MDI (Media Dependent Interface) power is

provided on the spare pins of the RJ-45 connector

as described by the IEEE802.3af™ standard (pin

numbers 4, 5, 7, and 8). The SEPOE10xx-150

power delivery capacity is approximately 0.25 A

at 48 VDC.

The SEPOE10xx-150 has a current sensing feature. If the load presented to the

MDI is less than approximately 10 mA or greater than approximately 0.4 A*,

MDI power is removed from the interface.

MDI power insertion is initiated when the impedance of the MDI power interface

falls below approximately 300 K ohms. MDI power is applied for approximately

1.1 seconds. If the current load does not remain above approximately 10 mA

within this time (or if the current load is above approximately 0.4 A* within this

time) the power is removed from the MDI. An over current condition of 0.4 A*

will illuminate the MDI Fault LED for a period of 5-10 seconds before the

SEPOE10xx-150 reapplies MDI power. The reapplication of MDI power requires

the impedance of the MDI power interface to be below approx. 300 K ohms.

(*Including the in-rush current required to charge the PD (Powered Device) load

capacitance.)

RJ-45

Plug

234 567

RJ-45

Jack

10Base-T

Device Media Converter 10Base-FL

Device

Original Fault

10Base-T

Device Media Converter 10Base-FL

Device

Original Fault

Signal and data

transmission

is stopped

Signal and data

transmission

is stopped

Copper

Fiber

Link Pass-Through

The Link Pass-Through feature (see page 6) allows the media converter to

monitor both the fiber and copper RX (receive) ports for loss of signal. In the

event of a loss of an RX signal on one media port, the media converter will

automatically disable the TX (transmit) signal of the other media port, thus,

“passing through” the link loss.

SEPOE10xx-150

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber Cable

Bit Error Rate: <10-9

Singlemode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

SEPOE1011-150 850 mn multimode

Fiber-optic Transmitter Power: min: -20.0 dBm max: -10.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.5 dBm max: -7.2 dBm

Link Budget: 12.5 dB

SEPOE1012-150 1310 nm singlemode

Fiber-optic Transmitter Power: min: -29.0 dBm max: -10.0 dBm

Fiber-optic Receiver Sensitivity: min: -35.0 dBm max: -14.0 dBm

Link Budget: 6.0 dB

SEPOE1013-150 850 mn multimode

Fiber-optic Transmitter Power: min: -20.0 dBm max: -10.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.5 dBm max: -7.2 dBm

Link Budget: 12.5 dB

SEPOE1014-150 1310 nm singlemode

Fiber-optic Transmitter Power: min: -29.0 dBm max: -10.0 dBm

Fiber-optic Receiver Sensitivity: min: -35.0 dBm max: -14.0 dBm

Link Budget: 6.0 dB

Copper Cable

Category 3: (Minimum Requirement)

Gauge 24 to 22 AWG

Attenuation 11.5 dB/100m @ 5-10 MHz

Category 5: (Recommended)

Gauge 24 to 22 AWG

Attenuation 22.0 dB /100m @ 100 MHz

• Straight-Through OR Crossover Twisted-Pair cable must be used.

• Shielded Twisted-Pair (STP) OR Unshielded Twisted-Pair (UTP) may be used.

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .

• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

• Do not use flat or silver satin wire.

Crossover Cable

Straight-Through Cable

Twisted Pair #1

Twisted Pair #2

Tech Support: 1-800-260-1312 - International: 00-1-952-941-7600 - 24 hours [email protected] -- Click the “Transition Now” link for a live Web chat 9

Troubleshooting

If the media converter fails, isolate and correct the fault by determining the

answers to the following questions and then take the indicated action:

1. Is the POWER LED on the media converter illuminated?

• Ensure the external power source is properly connected to the media

converter (page 4). Also ensure the power source is turned on.

• Ensure the external power source provides power.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the MDI ON LED Illuminated?

• Ensure the Powered Device (PD) to be powered via the twisted-pair

copper cable is IEEE 802.3™ Mode B compliant.

• Ensure the proper cable (straight-through or cross over) is used.

• Ensure the twisted-pair copper cable is a 4-pair cable.

• Proceed to step 3.

YES

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

Technical Specifications

For use with Transition Networks Model SEPOE10xx-150 or equivalent

Standards IEEE 802.3™

Data Rate 10 Mb/s

Dimensions 7.3" x 4.4” x 1.2" (185 mm x 112 mm x 30 mm)

Weight 1.6 lbs. (730 g) (approximate)

Fuse 2 Amp

Power Consumption 45 Watts (maximum)

Power Supply 48 VDC, 1 A (typical)

Output 16.8 W

Environment Tmra*: 0 to 50°C (32 to 122°F )

Storage Temp: -25 to 85°C (-13 to 185°F )

Humidity: 5 to 95%, non condensing

Altitude: 0 to 10,000 feet

Warranty Lifetime

*Manufacturer’s rated ambient temperature.

SEPOE10xx-150

Tech Support: 1-800-260-1312 - International: 00-1-952-941-7600 - 24 hours

Troubleshooting -- Continued

3. Is the MDI Fault LED illuminated?

YES

• Ensure the Powered Device (PD) to be powered via the twisted-pair

copper cable is IEEE 802.3™ Mode B compliant.

• Ensure the load to the PD is less than 0.4 amp.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

• Proceed to step 4.

4. Is the TP Link LED illuminated?

• Check the twisted pair cables for proper installation.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 5.

5. Is the TP Act LED illuminated?

• Disconnect and reconnect the twisted pair cable to restart the

initialization process.

• Restart the attached Powered Device to restart the initialization

process.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 6.

6. Is the Fiber Link LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are

connected to the RX and TX ports, respectively, on the other device.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 7.

7. Is the Fiber Act LED illuminated?

• Disconnect and reconnect the fiber cable to restart the initialization

process.

• Restart the attached Powered Device to restart the initialization

process.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

[email protected] -- Click the “Transition Now” link for a live Web chat 11

Technical Support

Technical support is avialable 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

6475 City West Parkway

Minneapolis, MN 55344, USA

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

Declaration of Conformity

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 USA

Model: SEPOE10xx-150 Series Media Converters

Part Number(s): SEPOE1011-150, SEPOE1012-150, SEPOE1013-150, SEPOE1014-150

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the

SEPOE10xx-150

to which this declaration refers is

in conformity with the following standards.

EN 55024:1998; EN 61000-3-2:2000; EN 61000-3-3:1995+A1:2001, 21CFR subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

March 7, 2003

Stephen Anderson, Vice-President of Engineering Date

Trademark Notice

All registered trademarks and trademarks are the property of their respective owners.

means - graphic, electronic, or mechanical - without written permission from Transition

Networks.

Printed in the U.S.A. 33296.A

Compliance Information

EN55024

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks CRS4Fxxxx-10x Manuel utilisateur

Transition Networks

Transition Networks Stand-Alone Media Converter S4TEF10xx-11x Manuel utilisateur

Transition Networks

Transition Networks C/PS-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks J/E-PSW-FX-03 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-1007 Manuel utilisateur

Transition Networks

Transition Networks SISTG10 211-LR Series Manuel utilisateur

Transition Networks

Transition Networks FBRM1XXX-1XX Manuel utilisateur

Transition Networks

Transition Networks SBFTF1011-260 Manuel utilisateur

Transition Networks

Transition Networks J/E-CX-TBT-01 Manuel utilisateur

Transition Networks

Transition Networks CSDTF3011-115 Manuel utilisateur

Transition Networks

Transition Networks TN-GB-xM5 Manuel utilisateur

Transition Networks

Transition Networks C/RS232-CF-01 Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-05(10x) Manuel utilisateur

Transition Networks

Transition Networks F-SM-MM-02(LH) Manuel utilisateur

Transition Networks

Transition Networks J/FE-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks CFMFF1314-210 Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FX-05(LH) Manuel utilisateur

Transition Networks

Transition Networks E-CX-TBT-03 Manuel utilisateur

Transition Networks

Transition Networks SWITCHABLE ETHERNET AND FAST ETHERNET... Manuel utilisateur

Transition Networks

Transition Networks J/FE-CF-03(LH) Manuel utilisateur

Transition Networks

Transition Networks SSETF1011-205 Manuel utilisateur

Transition Networks

Transition Networks CRS4F3111-100 Manuel utilisateur

Transition Networks

Transition Networks SBFTF1011-120 Manuel utilisateur

Transition Networks

Transition Networks CMEFG1013-100 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
