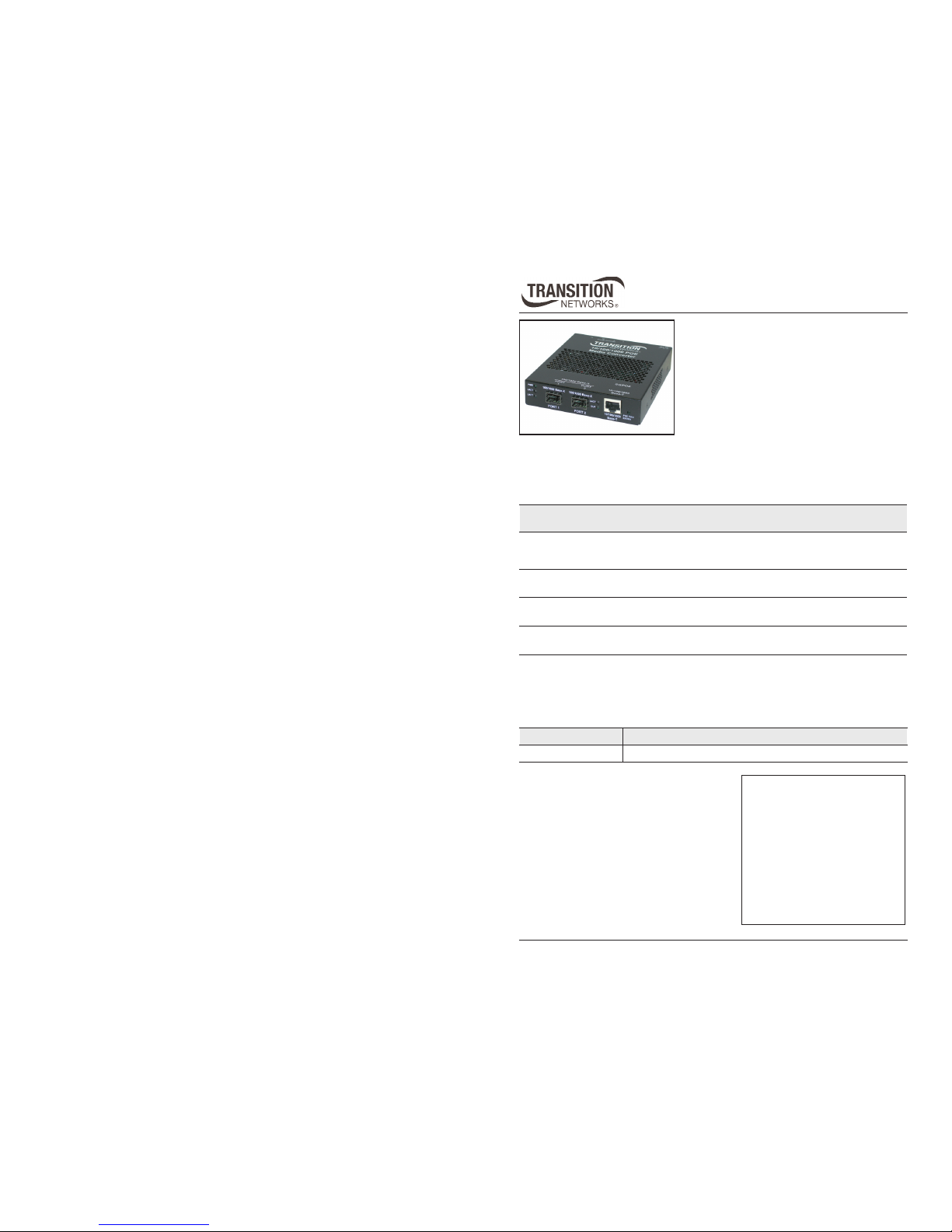

Transition Networks SGPOE1013-100 Manuel utilisateur

SGPOE10xx-1xx User’s

Guide

The SGPOE10xx-1xx media converter enables

businesses to provide power to network devices over

the existing CAT5 data connection. Transition

Networks’ SGPOE10xx-1xx AC powered PoE

media converters combine data received over a fiber

optic link with -48VDC power, provides power to Data Terminal Equipment (DTE) and

Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power

Sourcing Equipment (PSE), and are fully compatible with Powered Devices (PD) that

comply with the IEEE 802.3af standard. In addition, they have PD signature sensing and

power monitoring features per the IEEE 802.3af standard.

Product Description/Features . .2

Enclosure Mounting . . . . . . . . . .5

DIP Switches . . . . . . . . . . . . . . .6

Cable & Power Connections . .8

Internal Jumpers . . . . . . . . . . .10

Operations . . . . . . . . . . . . . . .11

Cable Specifications . . . . . . . . .12

Technical Specification . . . . . .13

Troubleshooting . . . . . . . . . . .14

Compliance Information . . . . .18

*Cable distances are the typical maximum cable distance. Actual distance is dependent

upon the physical characteristics of the network installation.

Mounting options (sold separately)

Part Number Description

WMBL Wall Mount Bracket

Part Number Port One - Copper

10/100/1000Base-T

Port Two - Fiber

SGPOE1013-100 RJ-45

100 m (328ft.)*

SC, 1000Base-SX, 850 multimode

62.5μm: 220m

(

722ft

)

50μm: 550m

(

1804ft)

SGPOE1014-100 RJ-45

100 m (328 ft.)*

SC, 1000Base-LX, 1310 single mode

10km (6.2 miles)

SGPOE1040-100 RJ-45

100 m (328 ft.)*

100/1000Base-X

SFP slot (empty)

SGPOE1040-110 RJ-45

100 m (328 ft.)*

(2) 100/1000Base-X

SFP slots (empty)

SGPOE10xx-1xx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

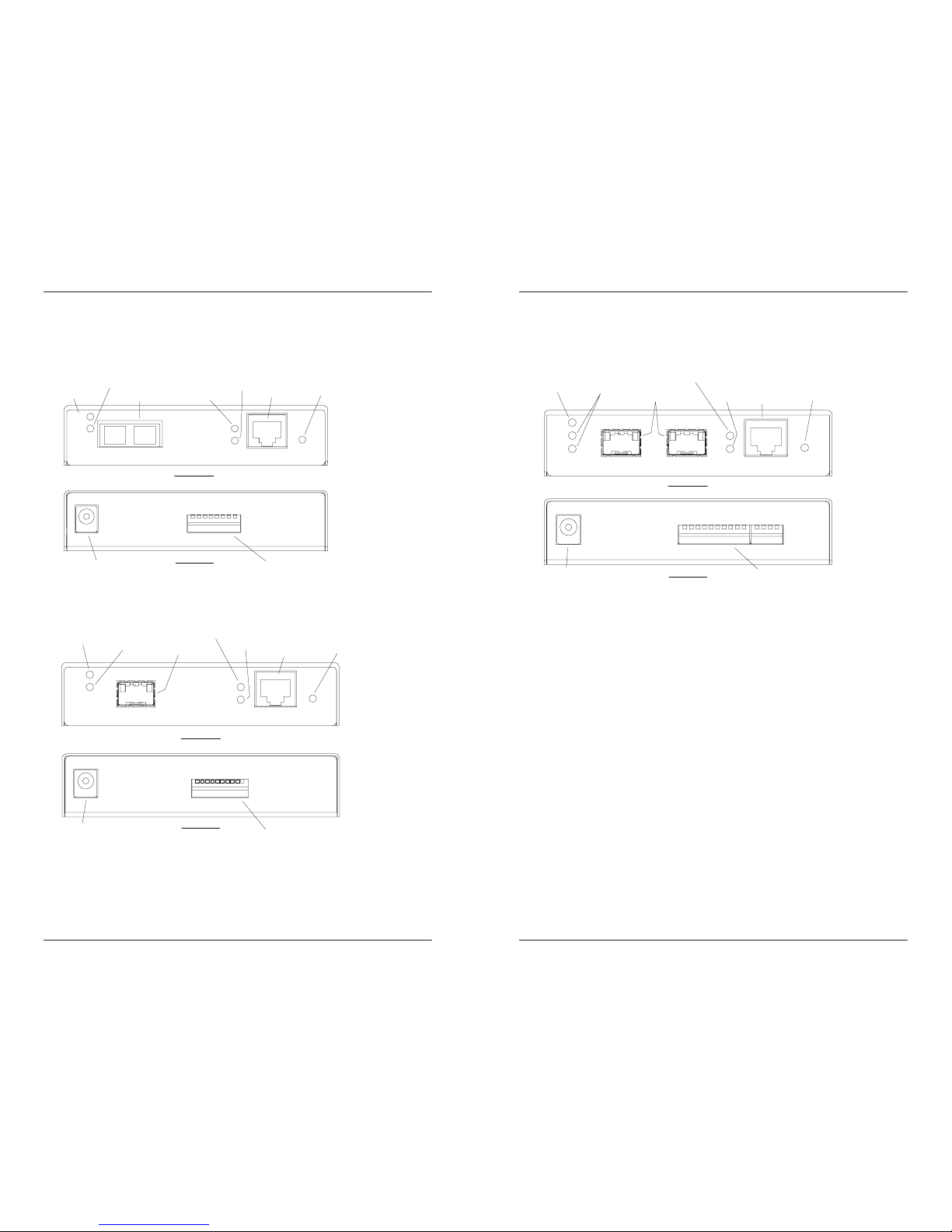

Product Description & Features

Description

Power LED

Fiber Link

Activity LED

RJ-45 Port

Fiber Port

Power Over

Ethernet LED

Duplex

TP Link

Activity LED

8-Position Switch

Power Inlet Rear Panel

Front Panel

PWR

LACT

POE PWR

ERROR

10/100/1000

Base-T

DUP

LACT

1000Base-X

SGPOE1013-100/1014-100

Power LED Fiber Link

Activity LED

RJ-45 Port

SFP Port

Power Over

Ethernet LED

Duplex

TP Link

Activity LED

10 Position Switch

Power Inlet Rear Panel

Front Panel

SGPOE1040-100

POE PWR

ERROR

10/100/1000

Base-T

LACT

DUP

PWR

LACT

100/1000 Base-X

[email protected] -- Click the “Transition Now” link for a live Web chat. 3

Product Description & Features -- Continued

Description -- continued

Power LED Fiber Link

Activity LEDs

RJ-45 Port

SFP Ports

Power Over

Ethernet LED

Duplex

LED

TP Link

Activity LED

14-Position Switch

Power Inlet Rear Panel

Front Panel

SGPOE1040-110

POE PWR

ERROR

10/100/1000

Base-T

PWR

LACT

100/1000 Base-X 100/1000 Base-X

LACT

PORT 1 PORT 2

LACT

DUP

Product features

AutoCross

The AutoCross™ feature allows either straight-through (MDI) or crossover (MDI-X)

cables to be used when connecting to 10/100Base-TX devices, such as wireless access

points, VoIP phones, network cameras, etc. AutoCross determines the characteristics of

the cable connection and automatically configures the unit to link up, regardless of the

cable configuration devices.

Automatic Link Restoration

Transition Networks' converters will automatically re-establish link in all network

conditions:

• Without a device reset, the converters will automatically re-establish the link when

connected to switches after a link loss.

• With Auto-Negotiation enabled, automatic link restoration allows using Auto-

Negotiation with Link Loss Notification.

• With Link Pass-Through enabled in both directions, automatic link restoration

allows using Link Loss Notification in both directions.

Auto-Negotiation

The Auto-Negotiation feature allows the media converter to bring up the copper links to

the highest speed and mode possible for all the attached network devices.

Single Pair Power Insertion (IEEE802.3af)

PD Detection Signature (IEEE802.3af)

SGPOE10xx-1xx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Product Description & Features -- Continued

Product features -- continued

Over Current Protection/Under Current Detection (IEEE802.3af)

Media

Converter A Media

Converter B

Near-End

Device Far-End

Device

original fault

on the co

er link

media converter B

disables the co

er lin

media converter A

disables the fiberTX link

media converter B

loses the fiber RX link

Link Pass-Through

The Link Pass-Through allows the media converter to monitor both the fiber and

copper RX (receive) ports for loss of signal. In the event of a loss of an RX signal

on one media port, the media converter will automatically disable the TX

(transmit) signal of the other media port, thus, passing through the link loss.

The far-end device is automatically notified of the link loss, which prevents the

loss of valuable data unknowingly transmitted over an invalid link. See diagram

below.

Power detect reset

With the PSE/LTP switch enabled, a loss of the Fiber RX link will disable PSE power

output on the UTP power for 2 seconds to allow the remote device to reinitialize.

Fiber redundancy

The SGPOE1040-110 media converters have two fiber SFP ports: one can be

configured as the primary port and one as the secondary port. When redundancy is

enabled (SW14 Down, model SGPOE1014-110), any fault on the primary port results

in the secondary port becoming operational. When redundancy is disabled, the device

operates as a three-port switch.

Full-Duplex network

In a full-duplex network, maximum cable lengths are determined by the type of cables

that are used. (The 512-Bit Rule does not apply in a full-duplex network.)

Half-Duplex network (512-Bit Rule)

In a half-duplex network, the maximum cable lengths are determined by the round trip

delay limitations of each Fast Ethernet collision domain. (A collision domain is the

longest path between any two terminal devices, e.g., a terminal, switch, router, etc.)

The 512-Bit Rule determines the maximum length of cable permitted by calculating

the round-trip delay in bit-times (BT) of a particular collision domain. If the result is

less than or equal to 512 BT, the path is good.

For more information on the 512-Bit Rule, see the white paper titled “Collision

Domains” on the Transition Networks website at

http://www.transition.com/learning/white papers

[email protected] -- Click the “Transition Now” link for a live Web chat. 5

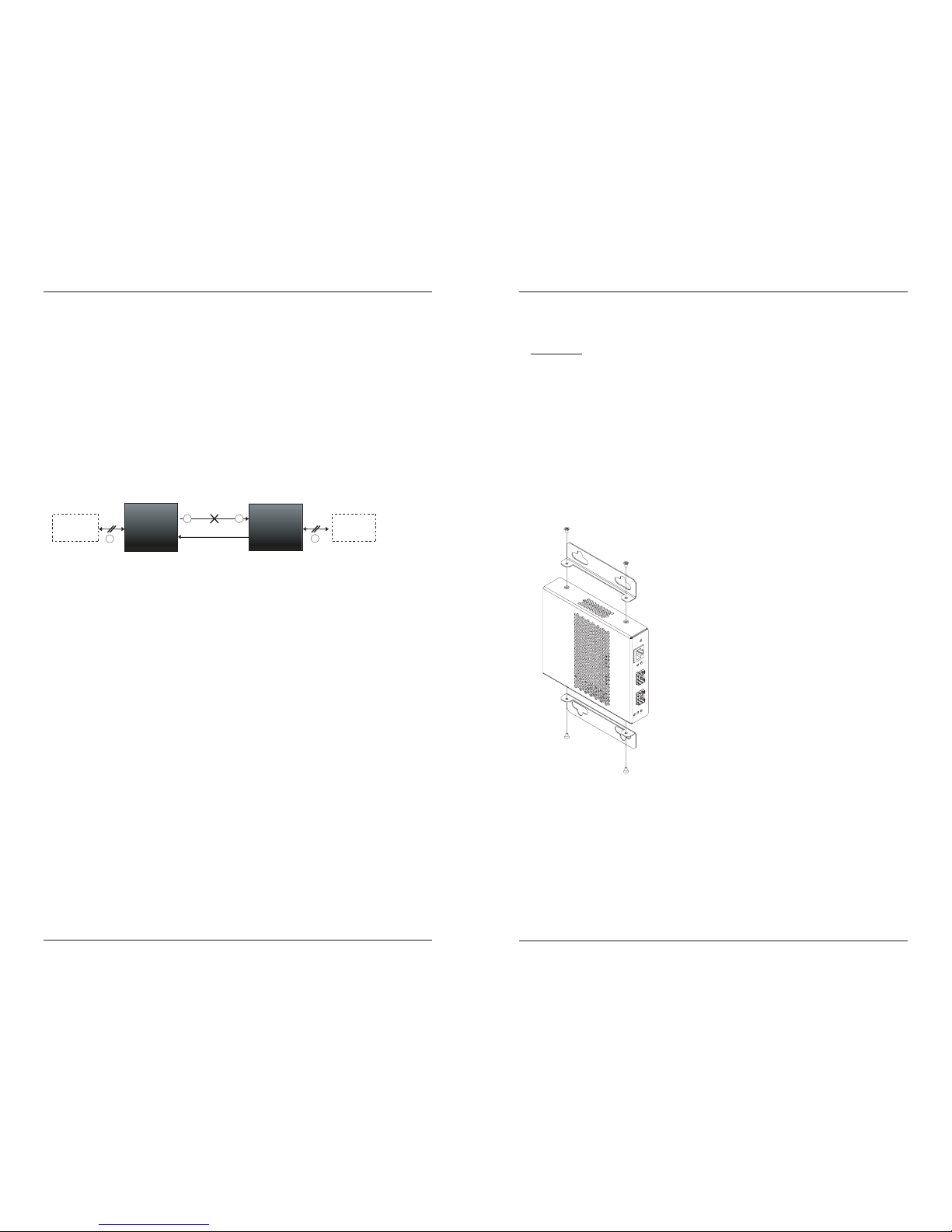

Enclosure Mounting

Optional vertical wall mounting

CAUTION: Make sure that the hardware used for wall mounting can support the

weight of the SGPOE10xx-1xx once mounted. Failure to observe this caution could

result in damage to the equipment.

1. Orient the device as shown in the illustration below.

2. Remove the two #4 Philips head screws securing the cover to the device.

3. Position one side of the bracket assembly as shown in the illustration and

mount it to the device, using the two #4 Philips head screws.

4. Do Steps 1 thru 3 to mount the bracket to the other side of the device.

5. Position the device on the mounting surface.

6. Mount the device to the wall.

WMBL

Wall-Mount Bracket

Chassis Cover

Screws (Qty 4)

SGPOE10xx-1xx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

DIP Switches

CAUTION: All installation and service must be performed by qualified service

personnel. Read and follow all warning notices and instructions marked on the product

and included in this manual.

Setting the configuration switches

The configuration switches are located on the back panel of the

SGPOE10xx-1xx media converters. Use a small, flat-blade

screwdriver to set the switches.

SW1. TP Auto-Negotiation: UP = Enable, DOWN = Disabled

SW2. TP Speed: UP = 100Mbs, DOWN =10Mbs (SW1 DOWN Only)

SW3. TP Duplex: UP = Full, DOWN = Half (SW1 DOWN Only)

SW4. PSE Enable: UP = ON, DOWN = Disabled

SW5. POE power o LPT: UP = Disabled, DOWN = Enabled

SW6. LPT: UP = Enable, DOWN = Disable

SW7. Unused

SW8. Unused

Down

SW1. TP Auto-Negotiation: UP = Enable, DOWN Disabled

SW2. TP Speed: UP = 100Mbs, DOWN = 10Mbs (SW1 DOWN only)

SW3. TP Duplex: UP = Full, DOWN = Half (SW1 DOWN only)

SW4. Fiber 1 Mode: 1000X/SGMII, UP = 1000X, DOWN = SGMII

SW5. Fiber 1: Speed, UP = 1000Mbs, DOWN = 100Mbs (SW4 UP only)

SW6. Fiber 1: Duplex, UP = Full, DOWN = Half (SW4 UP, SW5 DOWN only)

SW7. PSE Power: UP = Enabled, DOWN = Disabled

SW8. PSE/LTP Power: UP = Disabled, DOWN = Enabled

SW9. LTP: UP = Disabled, DOWN = Enabled (NA when Fiber Redundancy Enabled)

SW10. Unused

Down

SFP Single: SGPOE1040-100

Switch

Key

Up Down

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

SFP Dual: SGPOE1040-110

SW1. TP Auto-Negotiation: UP = Enable, DOWN Disabled

SW2. TP Speed: UP = 100Mbs, DOWN = 10Mbs (SW1 DOWN only)

SW3. TP Duplex: UP = Full, DOWN = Half (SW1 DOWN only)

SW4. Fiber 1 Mode: 1000X/SGMII, UP = 1000X, DOWN = SGMII

SW5. Fiber 1: Speed, UP = 1000Mbs, DOWN = 100Mbs (SW4 UP only)

SW6. Fiber 1: Duplex, UP = Full, DOWN = Half (SW4 UP, SW5 DOWN only)

SW7. PSE Power: UP = Enabled, DOWN = Disabled

SW8. Unused

SW9. Unused

SW10. Unused

SW1. Fiber 2 1000X/SGMII: UP = 1000X, DOWN = SGMII

SW2. Fiber 2 Speed: UP = 1000Mbs, DOWN = 100Mbs (only in 1000x mode, SW1 UP)

SW3. Fiber 2 Duplex: UP = Full, DOWN = Half (SW11 UP, SW12 DOWN)

SW4. Redundancy: UP = Disabled, DOWN = Enabled

Down

Installation -- Continued

Setting the configuration switches -- continued

824-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

SGPOE10xx-1xx

Cable & Power Connections

CAUTION: Associated Ethernet wiring shall be limited to inside the building. Failure to

observe this caution could result in damage to the connected equipment.

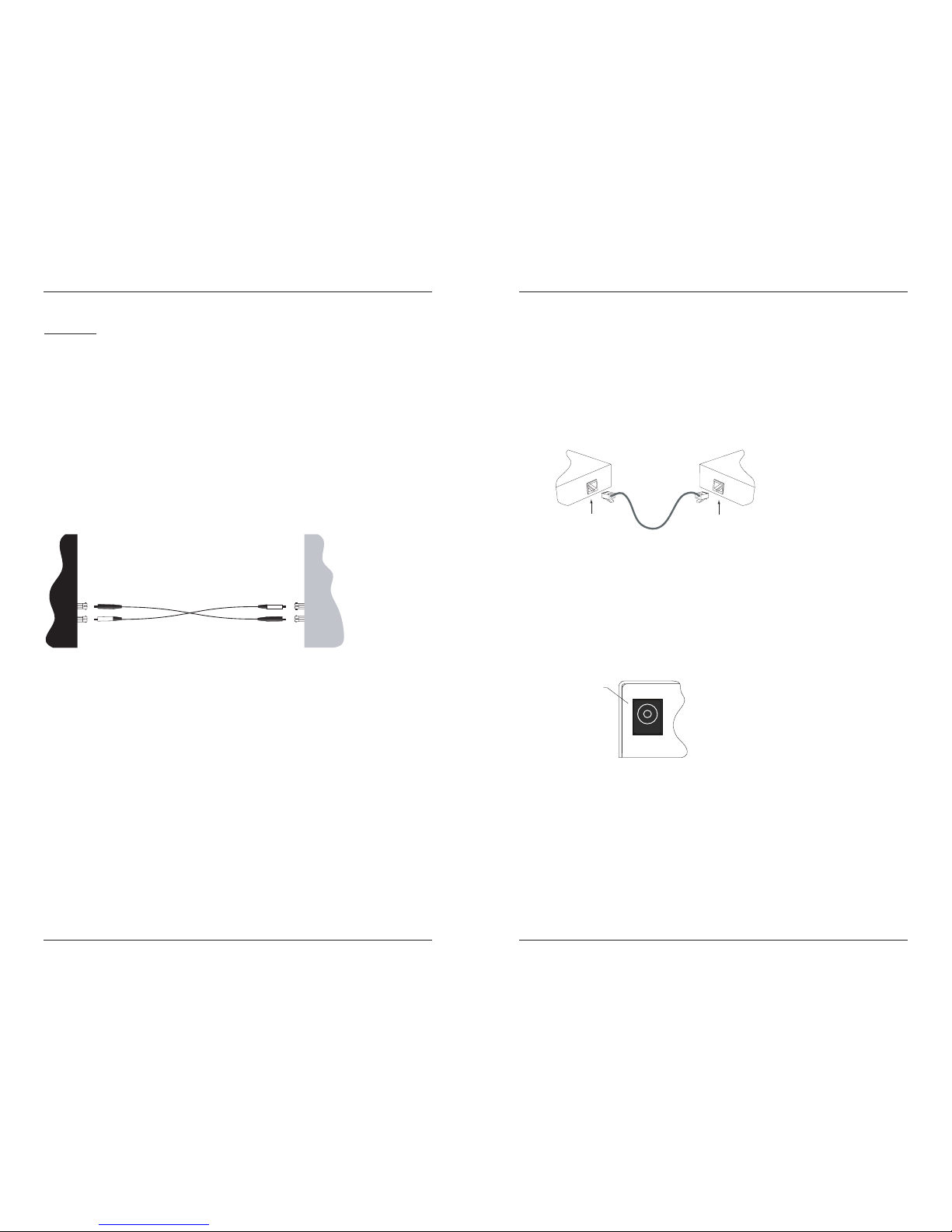

Installing the fiber cable

1. Locate a 100Base-FX fiber cable with male, two-stranded TX to RX

connectors installed at both ends. See Figure below.

2. Connect the fiber cables to the SGPOE10xx-1xx media converter as described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Connect fiber cable

to PCM card as shown. Connect fiber cable

to other Network

device as shown

RX TX

[email protected] -- Click the “Transition Now” link for a live Web chat. 9

Cable & Power Connections -- Continued

Installing the copper cable

1. Locate or build 10/100/100Base-TX copper cables with male, RJ-45

connectors installed at both ends. See Figure below.

2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the

media converter.

3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on

the other device (wireless access point, VoIP phone, network camera, etc.).

Connecting power

1. Insert the barrel connector of the power adapter into the power port of the

barrel connector.

2. Plug the power adapter plug into AC power and the power LED on the front

panel should turn ON.

RJ-45 port

on the other device

(switch, work station, etc

RJ-45 port

on the media

converter

Rear View

Power Inlet

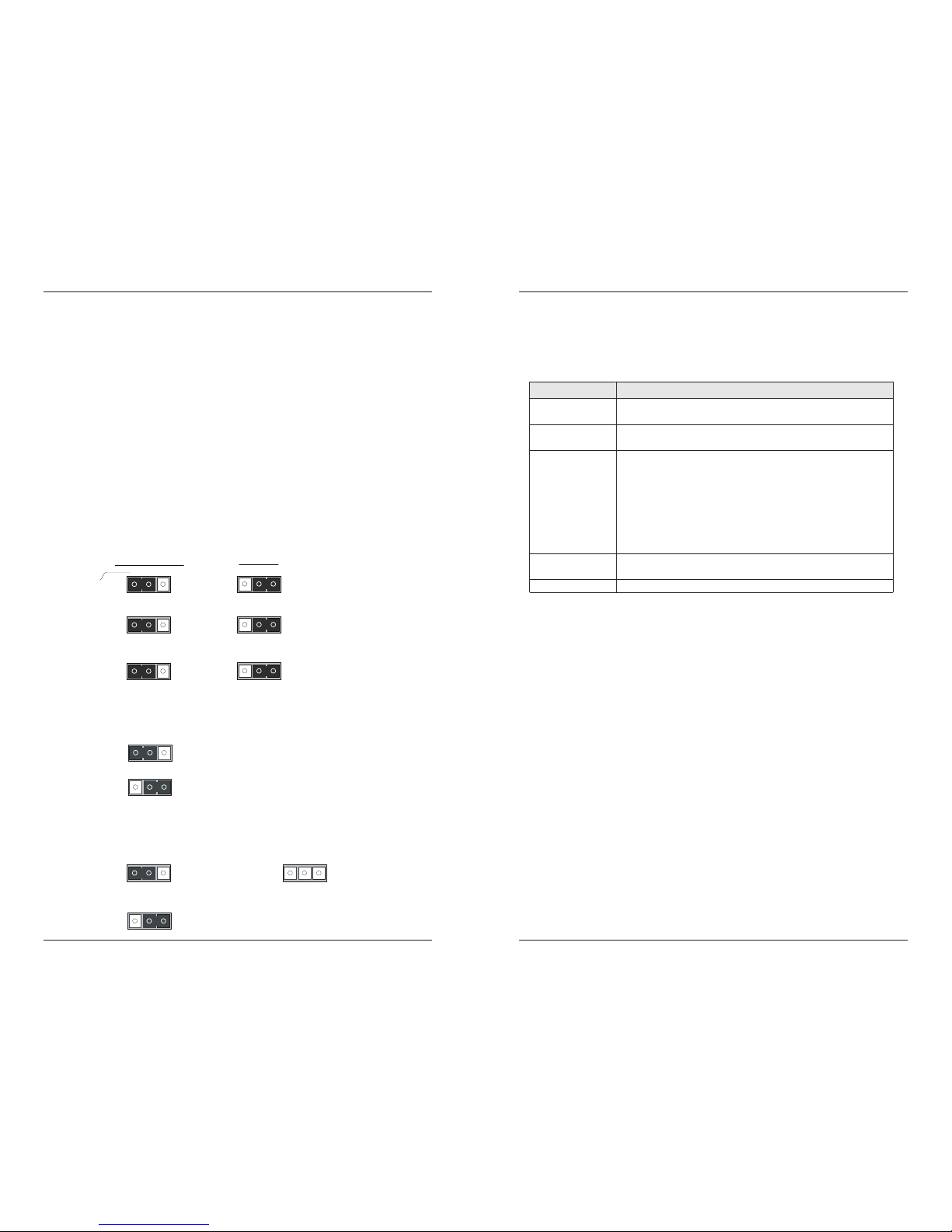

Internal Jumpers

Power over Ethernet (PoE)

The SGPOE10xx-1xx media converter transmits electrical power, along with data, to

remote devices over standard twisted-pair cable in an Ethernet network.

Note: Legacy powered devices that are not IEEE802.3af compliant can be power

provided that the polarity matches that list below.

There are two modes of transmitting 48VDC PoE as defined in IEEE 802.3af:

Alternative A (default) uses pins 1&2(+), 3&6(-) to transmit data and power;

Alternative B uses pins 4&5(+), 7&8(-) to transmit power without data. These are the

spare pairs in 10BASE-T and 100BASE-TX device configurations; therefore, Mode B

requires a 4-pair cable.

To set A or B PoE alternatives, do the following:

1. Remove the 4 screws and lift the cover from the media converter.

2. Locate the 3 header connects J2, J3, and J4 on the circuit board.

3 Set jumpers 2, 3, and 4 to the same side, either (A or B). See diagram below.

SGPOE10xx-1xx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

(Default) Alternative A Alternative B

12 3

Pin Numbers AB

12 3

AutoCross

POE PSE legacy detection

12 3

AutoCross

Disabled

(Default) Enabled

12 3

POE PSE Legacy detection (Default)

12 3

Legacy Large Capacitor Detect Mode

No Jumper: Legacy Bias Current Detect Mode

123

[email protected] -- Click the “Transition Now” link for a live Web chat. 11

Operation

LEDs

See individual SGPOE10xx-1xx faceplate for LED placements. The table below explains

what the LED functions indicate.

LEDs Description

TP Link/Activity Green: 1000Mbs: ON link, BLINK activity

Yellow: 10 or 100Mbs: ON link, BLINK activity

TP Duplex Green: Full duplex

Yellow: Half duplex

TP PSE Green: Flashing indications every 1.2 seconds

OFF: Not powering an end device

ON Steady: Powering an end device

1 flash: End device signature resistance is to low (300

ohm to 15K ohm detected)

2 flashes: End device signature resistance is to high (33K

ohm to 500K ohm detected)

5 flashes: Power overload fault

Fiber

Link/Activity

Green 1000Mbs: ON link, BLINK activity

Yellow 10 or 100Mbs: ON link, BLINK activity

Power Green Power ON

[email protected] -- Click the “Transition Now” link for a live Web chat. 13

Technical Specifications

For use with Transition Networks Model SGPOE10xx-1xx or equivalent:

Standards: IEEE 802.3, IEEE 802.3af

Data rate: 10/100/1000 Mb/s

Packet size (Max): 1632 bytes untagged, 1628 bytes tagged

Mac address: 8K

Dimensions: 5.1" x 4.3” x 1" (129.54mm x 109.2mm x 25.4mm)

Weight: 2 lbs. (0.90 kg) approximately

Power consumption: 20W max

Power supply: Power Adaptor (supplied): Input 100-250 VAC

PSE power output: 15.4W

Environment

Ambient temp: 0 to 40°C (32 to 104°F )

Storage temp: -25 to 85°C (-13 to 185°F )

Humidity: 5 to 95%, non-condensing

Altitude: 0 to 10,000 feet

MTBF*: Greater than 41,660 MIL217F2 Hours

Greater than 114,580 Bellcore Hours

Warranty: Lifetime

Note: The information in this user’s guide is subject to change. For the most up

todate information on the SGPOE10xx-1xx media converter, view the user’s

guide on-line at: www.transition.com.

WARNING: Visible and invisible laser radiation when open. Do not stare into the

beam or view the beam directly with optical instruments. Failure to observe this

warning could result in an eye injury or blindness.

WARNING: Use of controls, adjustments or the performance of procedures other than

those specified herein may result in hazardous radiation exposure.

*MTBF is for all standalone converters with a typical 50,000 hour power supply.

SGPOE10xx-1xx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Copper cable

Category 5: (Minimum Requirement)

Gauge: 24 to 22 AWG

Attenuation : 22.0 dB /100m @ 100 MHz

• Straight-through OR crossover twisted-pair cable may be used.

• Shielded twisted-pair (STP) OR unshielded Twisted-pair (UTP) may be used.

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .

• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

• Do not use flat or silver satin wire.

Fiber cables

Bit Error Rate: <10-9

Single mode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

SGPOE1013-100 850 nm multimode

Fiber-optic Transmitter Power: min: -9.5 dBm max: -4.0 dBm

Fiber-optic Receiver Sensitivity: min: -17.0 dBm max: 0.0 dBm

Link Budget: 7.5.0 dB

SGPOE1014-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -9.5 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -20.0 dBm max: -3.0 dBm

Link Budget: 10.5 dB

Twisted Pair #1

Twisted Pair #2

Straight-Through Cable Crossover Cable

Twisted Pair #1

Twisted Pair #2

14 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

SGPOE10xx-1xx

Technical Specifications -- continued

CAUTION: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232,

RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra-

building (inside plant) link segments that are not subject to lightening transients or

power faults. Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB,

RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to inter-

building (outside plant) link segments that are subject to lightening transients or power

faults. Failure to observe this caution could result in damage to equipment.

Troubleshooting

If the media converter fails, isolate and correct the fault by determining the answers to

the following questions and then take the indicated action:

1. Is the media converter power LED ON?

NO:

• Is the barrel connector fully inserted into the media converter?

• Is the adapter plugged into an AC outlet; if not, plug it into the outlet.

• Is the AC outlet active; if not, check the outlet’s circuit beaker?

• Contact Technical Support: 1 800-260-1312

YES

• Proceed to step 2.

2. Is the POE LED ON?

• Is there an active (connected to anther device) RJ-45 cable inserted into

the media converter's TX port; if not, insert the cable accordingly.

Is the power turned ON to the other device?

• Contact Technical Support: 1 800-260-1312.

YES

• Go to step 3.

3. Is the TX LACT LED ON

• Check the twisted pair cables for proper installation in the device at both

ends.

• Disconnect and reconnect the twisted pair cable to restart the initialization

process.

• Restart the attached device to restart the initialization process.

• Check that the AutoCross switch is in the UP position (enabled).

• Contact Tech Support: 1-800-260-1312.

YES

• Go to step 4.

[email protected] -- Click the “Transition Now” link for a live Web chat. 15

Troubleshooting -- continued

4. Is the FL LINK LED ON?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are connected to

the RX and TX ports, respectively, on the other device.

• Disconnect and reconnect the fiber cable to restart the initialization

process.

• Restart the attached device to restart the initialization process.

• Contact Tech Support: 1-800-260-1312.

YES

• Proceed to step 5.

5. Is data being passed through the device?

• Ensure the Powered Device (PD) IEEE 802.3af compliant.

• Ensure the load to the Powered Device (PD) is less than 0.4 Amp.

• Is a data source connected; if not, connect a data source to the media

converter.

• Is the data source active; if not, start sending data.

• Are the FX and TX LACT LEDs flashing?

• Contact Technical Support: 1 800-260-1312.

SGPOE10xx-1xx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Declaration of Conformity

Name of Mfg: Transition Networks

10900 Red Circle Drive, Minnetonka MN 55343 U.S.A.

Model: SGPOE10xx-1xx Series Media Converters

Part Number(s): SGPOE1013-100, SGPOE1014-100, SGPOE1040-100,

SGPOE1040-110

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the SGPOE10xx-1xx to which this declaration refers is in

conformity with the following directive(s) standard(s).

EMC Directive 2004/108/EC; EN 55022:2006+A1:2007 Class A;

EN55024:1998+A1:2001+A2:2003; EN61000-3-2; EN61000-3-3; CFR Title 47 Part 15

Subpart B Class A; Low Voltage Directive: 2006/95/EC; CFR Title 21 Section 1040.10

Class

I, the undersigned, hereby declare that the equipment specified above conforms to the

above Directive(s) and Standard(s).

July, 2010

Stephen Anderson, Vice-President of Engineering Date

Declaration of Conformity

[email protected] -- Click the “Transition Now” link for a live Web chat. 17

Technical support

Technical support is available 24 hours a day.

U.S.A. and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition now

Chat live via the Web with Transition Networks Technical Support. Log onto

www.transition.com and click the Tech Support/Transition Now link.

Web-Based seminars

Transition Networks provides seminars via live web-based training. Log onto

www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff:

[email protected]

Address

Transition Networks

10900 Red Circle Drive

Minnetonka, MN 55343, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

SGPOE10xx-1xx

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Compliance Information

FCC regulations

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which

case the user will be required to correct the interference at the user's own expense.

Canadian regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out

on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage

radioélectrique édicté par le ministère des Communications du Canada.

[email protected] -- Click the “Transition Now” link for a live Web chat. 19

In accordance with European Union Directive 2002/96/EC of the European Parliament

and of the Council of 27 January 2003, Transition Networks will accept post usage

returns of this product for proper disposal. The contact information for this activity can

be found in the 'Contact Us' portion of this document.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

European regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in

which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwert klasse B. In Wohnbereichen können bei Betrieb dieses

Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen

verantwortlich.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des

interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques

appropriées.

Compliance Information -- Continued

Autres manuels pour SGPOE1013-100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks C/F-SM-MM-04(LH) Manuel utilisateur

Transition Networks

Transition Networks C/E-TX-SX-02 Manuel utilisateur

Transition Networks

Transition Networks SISTG10-211-LRT-B Series Manuel utilisateur

Transition Networks

Transition Networks SAPTF33xx-100 Manuel utilisateur

Transition Networks

Transition Networks SSETF1011-205 Manuel utilisateur

Transition Networks

Transition Networks CMEFG1013-100 Manuel utilisateur

Transition Networks

Transition Networks C/E-TBT-FRL-04(L) Manuel utilisateur

Transition Networks

Transition Networks C/F-SM-MM-06 Manuel utilisateur

Transition Networks

Transition Networks SSDTF1011-105 Manuel utilisateur

Transition Networks

Transition Networks CSEFE1012-100 Manuel utilisateur

Transition Networks

Transition Networks E-TX-SX-02 Manuel utilisateur

Transition Networks

Transition Networks AS4TEF10xx-10x Manuel utilisateur

Transition Networks

Transition Networks SSDTF1011-100 Manuel utilisateur

Transition Networks

Transition Networks C4TEF1011-100 Manuel utilisateur

Transition Networks

Transition Networks C/T1E1-CF-01 Manuel utilisateur

Transition Networks

Transition Networks CAPTF3311-100 Manuel utilisateur

Transition Networks

Transition Networks Stand-Alone Media Converter S4TEF10xx-11x Manuel utilisateur

Transition Networks

Transition Networks CFETF1029-205 Manuel utilisateur

Transition Networks

Transition Networks SBFTF10XX-10X Manuel utilisateur

Transition Networks

Transition Networks SISTF1011-110-LR Manuel utilisateur

Transition Networks

Transition Networks CBFTF1011-120 Manuel utilisateur

Transition Networks

Transition Networks C/HSTR-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks Milan Raven Series Manuel utilisateur

Transition Networks

Transition Networks M/E-PSW-FX-02 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
