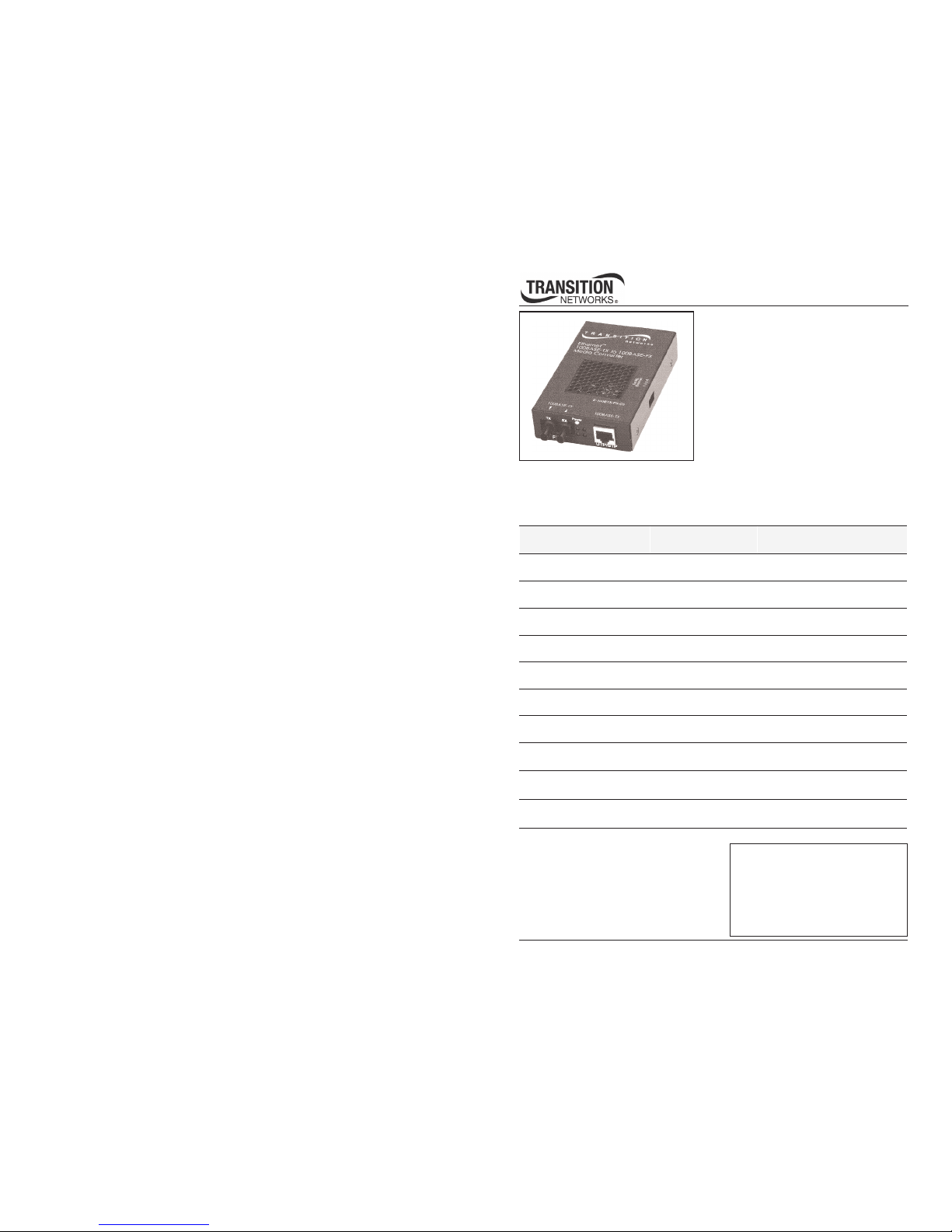

User’s Guide

E-100BTX-FX-05

Stand-Alone Media Converter

•Fast Ethernet

• Copper to Fiber

• 100Base-TX to 100Base-FX

• Extended Temperature

Transition Networks E-100BTX-FX-05 Fast

Ethernet media converter connects 100Base-

TX shielded or unshielded twisted-pair copper

cable to 100Base-FX fiber-optic cable. The E-

100BTX-FX-05 series of media converters include both standard temperature models

(listed below) and extended temperature model.

Standard Temperature Models: 0°C to 50°C (32°F to 122°F)

* Typical maximum cable distance. Actual

distance is dependent upon the physical

characteristics of the network installation.

Installation . . . . . . . . . . . . . . . . . . . . .3

Operation . . . . . . . . . . . . . . . . . . . . .6

Cable Specifications . . . . . . . . . . . . . .8

Technical Specifications . . . . . . . . . .11

Troubleshooting . . . . . . . . . . . . . . .12

Compliance Information . . . . . . . . .15

Part Number Port One - Copper

100Base-TX

Port Two - Duplex Fiber-

100Base-FX

E-100BTX-FX-05 RJ-45

100 m (328 ft)*

ST, 1300 nm multimode

2 km (1.2 miles)*

E-100BTX-FX-05(SC) RJ-45

100 m (328 ft)*

SC, 1300 nm multimode

2 km (1.2 miles)*

E-100BTX-FX-05(LC) RJ-45

100 m (328 ft)*

LC, 1300 nm multimode

2 km (1.2 miles)*

E-100BTX-FX-05(MT) RJ-45

100 m (328 ft)*

MT-RJ, 1300 nm multimode

2 km (1.2 miles)*

E-100BTX-FX-05(SM) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode

20 km (12.4 miles)*

E-100BTX-FX-05(SMLC) RJ-45

100 m (328 ft)*

LC, 1310 nm single mode

20 km (12.4 miles)*

E-100BTX-FX-05(LH) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode

40 km (24.9 miles)*

E-100BTX-FX-05(XL) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode

60 km (37.3 miles)*

E-100BTX-FX-05(LW) RJ-45

100 m (328 ft)*

SC, 1550 nm single mode

80 km (49.7 miles)*

E-100BTX-FX-05(XLW) RJ-45

100 m (328 ft)*

SC, 1550 nm single mode

120 km (74.56 miles)*

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

The media converters with the “HT” extension in the part number can be used in an

extended temperature environment from -25°C to 65°C (-13°F to 149°F).

Part Number Description

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Wide-Input;

Output: 12.6VDC, 1.0 A

SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-Back Wide-Input;

Output: 12.6VDC, 1.0 A

E-MCR-04 12-Slot Media Converter Rack (includes universal internal power supply)

17 x 15 x 5 in. (432 x 381 x 127 mm)

WMBL Optional Wall Mount Brackets; 4.0 in. (102 mm)

WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm)

WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)

WMBD-FS Optional DIN Rail Mount Bracket (flat, small); 3.1in. (79 mm)

Part Number Port One - Copper

100Base-TX

Port Two - Duplex Fiber-

100Base-FX

E-100BTX-FX-05(HT) RJ-45

100 m (328 ft)*

ST, 1300 nm multimode

2 km (1.2 miles)*

E-100BTX-FX-05(SCHT) RJ-45

100 m (328 ft)*

SC, 1300 nm multimode

2 km (1.2 miles)*

E-100BTX-FX-05(SMHT) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode

20 km (12.4 miles)*

E-100BTX-FX-05(LHHT) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode

40 km (24.9 miles)*

E-100BTX-FX-05(XLHT) RJ-45

100 m (328 ft)*

SC, 1310 nm single mode

60 km (37.3 miles)*

E-100BTX-FX-05(LWHT) RJ-45

100 m (328 ft)*

SC, 1550 nm single mode

80 km (49.7 miles)*

E-100BTX-FX-05(100HT)** RJ-45

100 m (328 ft)*

SC, 1310Tx/1550Rx nm single

mode

20 km (12.4 miles)*

E-100BTX-FX-05(101HT)** RJ-45

100 m (328 ft)*

SC, 1550Tx/1310Rx nm single

mode

20 km (12.4 miles)*

Accessories sold separately

**E-100BTX-FX-05(100/101HT) are installed in pairs.

[email protected] -- Click the “Transition Now” link for a live Web chat. 3

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge

precautions when setting the 4-position switch and jumper. Failure to observe this

caution could result in damage or failure of the media converter.

4-position switch

• The 4-position switch is

located on the side of the

media converter. Use a small

flat-blade screwdriver or a

similar device to set the

recessed switches.

1. Auto-Negotiation

up Enables Auto-

Negotiation for the copper connection.

down Disables Auto-Negotiation for the copper connection.

2. Pause Control

up Enabled

down Disabled

3. Link Pass-Through

up Enabled

down Disabled

4. Far-End Fault

up Enabled

down Disabled

Link Pass-Through (up=Enabl

Pause (up=Enable)

Auto-Negotiation (up=Enable)

Far End Fault

(up=Enable)

1234

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation -- Continued

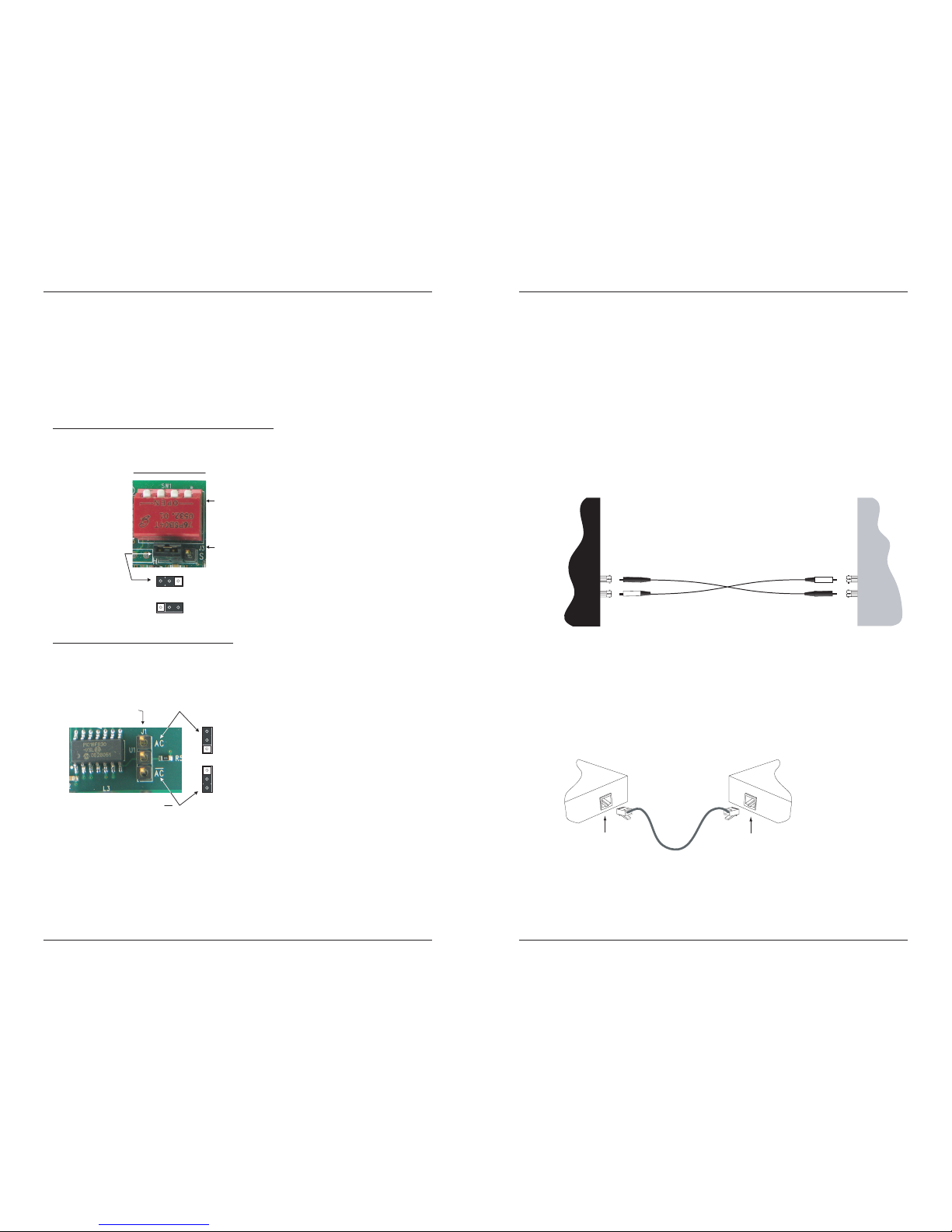

AutoCross Jumpers

The AutoCross feature allows either straight-through (MDI) or crossover

(MDI-X) cables to be used when connecting to devices such as hubs,

transceivers, or network interface cards (NICs). AutoCross determines the

characteristics of the cable connection and automatically configures the unit

to link up, regardless of the cable configuration.

High-temperature board, J3, 3-Pin header settings:

1. Orient the board as shown in the photo.

2. Position the jumper as illustrated below.

SW1 (4-Position)

AutoCross 3-Pin Header

set to Enabled

J3 AutoCross 3-Pin

Header

Enable AutoCross

Disable AutoCross

High Temperature Device

Standard board, J1, 3-Pin header settings:

1. Orient the board as shown in the photo.

2. Position the jumper as illustrated below.

J1 AutoCross 3-Pin Header

AC = AutoCross

Enabled

AC = AutoCross

Disabled

[email protected] -- Click the “Transition Now” link for a live Web chat. 5

Installation -- Continued

Installing the fiber cable

1. Locate a 100Base-FX compliant fiber cable with male, two-stranded TX to

RX connectors installed at both ends.

2. Connect the fiber cables to the media converter as described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter, hub,

etc.) as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Installing the copper cable

1. Locate or build 100Base-TX compliant copper cables with male, RJ-45

connectors installed at both ends.

2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on

the media converter.

3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port

on the other device (switch, workstation, etc.).

Connect fiber cable

to media converter

as shown.

Connect fiber cable

to other device

(media converter,

hub, etc.) as shown

RX TX

RJ-45 port

on the other device

(switch, work station, etc

RJ-45 port

on the media

converter

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation -- Continued

Power the media converter

1. Install the power cord barrel connector into the back of the media converter.

2. Connect the power adapter plug into AC power.

3. Verify that the media converter is powered by observing the illuminated LED

power indicator light.

Consult user guide 33266 for information on the SPS-1872-xx DC external power

supply.

Operation

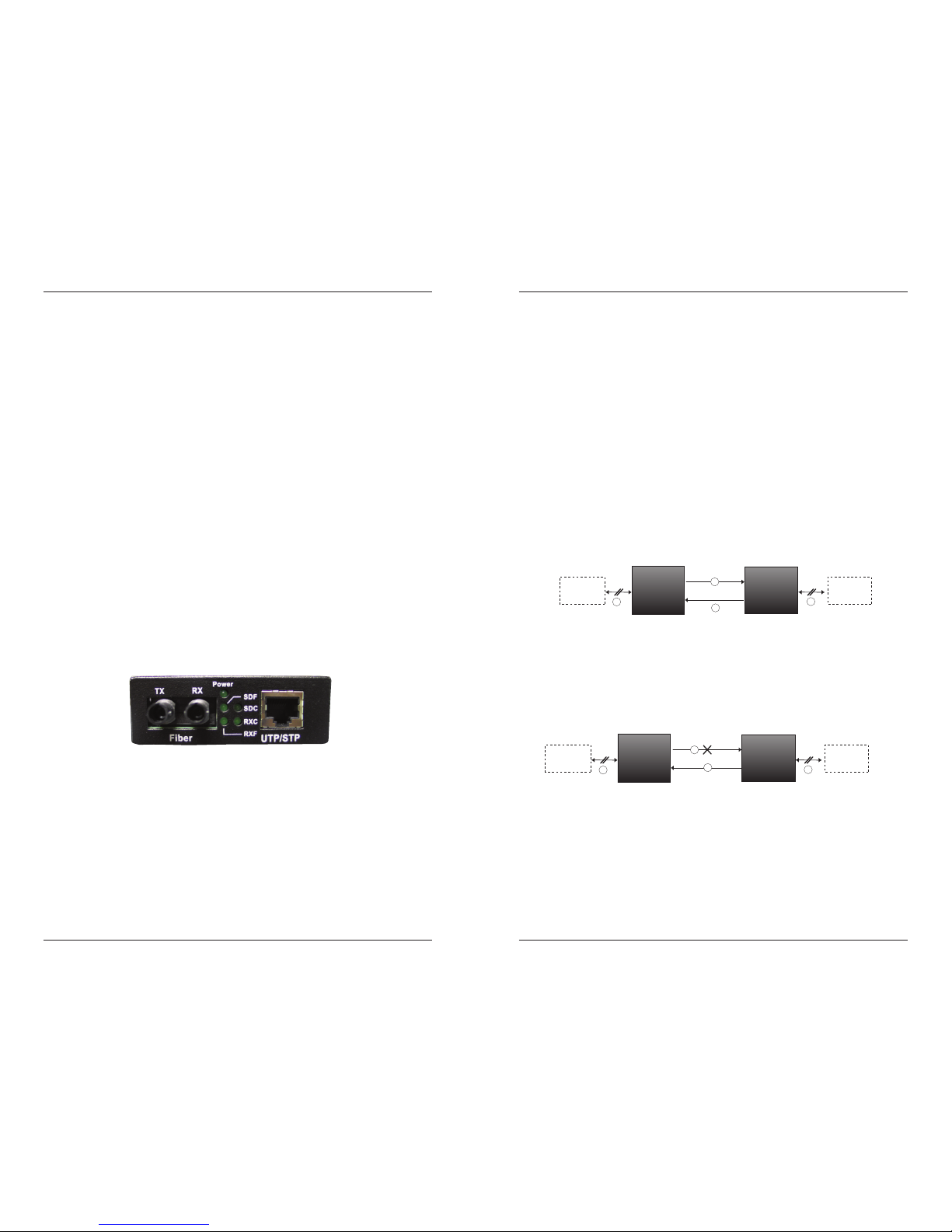

Status LEDs

Use the status LEDs to monitor the E-100BTX-FX-05 media converter operation

in the network.

Power (Power) On = Connection to external AC power.

SDF (Signal Detect/Fiber) On = Fiber link is detected.

SDC (Signal Detect/Copper) On = Copper link is detected.

RXC (Receive/Copper) Flashing = A signal is being received on the

copper link.

RXF (Receive/Fiber) Flashing = A signal is being received on the

fiber link.

Auto-Negotiation

When the Auto-Negotiation feature is activated, the media converter configures

itself to achieve the best possible mode of operation over a link automatically. The

media converter broadcasts its speed (100 Mb/s) and duplex capabilities (either full-

or half-duplex) and negotiates the best mode of operation between the two devices.

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

Operation -- Continued

Pause Control

The Pause feature can improve network performance by allowing one end of the

link to signal the other to discontinue frame transmission for a set period of time

to relieve buffer congestion.

Note: If the Pause feature is present on ALL network devices attached to the

media converter(s), enable the Pause feature on the media converter(s).

Otherwise, disable the Pause feature.

Link Pass-Through

The Link Pass-Through feature allows the media converter to monitor both the

fiber and copper RX (receive) ports for loss of signal. In the event of a loss of an RX

signal (1), the media converter will automatically disable the TX (transmit) signal

(2), thus, “passing through” the link loss (3). The far-end device is automatically

notified of the link loss (4), which prevents the loss of valuable data unknowingly

transmitted over an invalid link.

Far-End Fault

When a fault occurs on an incoming fiber link (1), the media converter transmits a

Far-End Fault signal on the outgoing fiber link (2). In addition the Far-End Fault

signal also activates the Link Pass-Through, which, in turn, disables the link on the

copper portion of the network (3) and (4).

Local

Media

Converter

Remote

Media

Converter

Near-End

Device Far-End

Device

original fault on the

thernet copper link remote converter disabl

the Ethernet copper lin

local converter sends a

loss signal over the fiber link

fiber link is still valid

Far-End Fault

signal is sent

Media

Converter A Media

Converter B

Near-End

Device Far-End

Device

original fault

on the fiber link

media converter B

disables the copper link

media converter A

disables the copper link

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber cable

Bit Error Rate: <10-9

Single mode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

Extended temperature models

E-100BTX-FX-05(HT) 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

E-100BTX-FX-05(SCHT) 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

E-100BTX-FX-05(SMHT) 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

E-100BTX-FX-05(LHHT) 1310 nm single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 26.0 dB

E-100BTX-FX-05(XLHT) 1310 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -38.0 dBm max: -8.0 dBm

Link Budget: 33.0 dB

E-100BTX-FX-05(LWHT) 1550 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

E-100BTX-FX-05(100HT) 1310Tx/1550Rx nm single mode E-

100BTX-FX-05(101HT) 1550Tx/1310Rx nm single mode

Fiber-optic Transmitter Power: min: -14.0 dBm max:-8.0 dBm

Fiber-optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

[email protected] -- Click the “Transition Now” link for a live Web chat. 9

Cable Specifications -- continued

Standard models

E-100BTX-FX-05 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

E-100BTX-FX-05(SC) &(LC) 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

E-100BTX-FX-05(MT) 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -33.5 dBm max: -14.0 dBm

Link Budget: 14.5 dB

E-100BTX-FX-05(SM) 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

E-100BTX-FX-05(SMLC) 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.2 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.5 dBm max: -3.0 dBm

Link Budget: 17.3 dB

E-100BTX-FX-05(LH) 1310 nm single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 26.0 dB

E-100BTX-FX-05(XL) 1310 nm single mode

E-100BTX-FX-05(LW) 1550 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

E-100BTX-FX-05(XLW) 1550 nm single mode

Fiber-optic Transmitter Power: min: 0.0 dBm max: 5.0 dBm

Fiber-optic Receiver Sensitivity: min: -36.0 dBm max: -3.0 dBm

Link Budget: 36.0 dB

The fiber optic transmitters on this device meet Class I Laser safety requirements per

IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11.

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Cable Specifications -- Continued

Copper cable

Category 5: (minimum requirement)

Gauge: 24 to 22 AWG

Attenuation: 22.0 dB /100m @ 100 MHz

Maximum Cable Distance: 100 meters

• Straight-through OR crossover cable may be used.

• Shielded twisted-pair (STP) OR unshielded twisted-pair (UTP) may be used

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .

• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

• Do not use flat or silver satin wire.

Straight-Through Cable Crossover Cable

Twisted Pair #1

Twisted Pair #2

Twisted Pair #1

[email protected] -- Click the “Transition Now” link for a live Web chat. 11

Technical Specifications

For use with Transition Networks Model E-100BTX-FX-05(xxxx) or equivalent

Standards: IEEE 802.3

Data rate: 100 Mb/s

Dimensions: 4.75" x 3.0" x 1.0" (119mm x 76mm x 25mm)

Weight: 6 oz. (181 g) approximate

MTBF 46,768 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

123,821 hours (Bellcore7 V5.0)

Power supply: (standard temperature) 12 VDC, 0.5 A (minimum)

DC output: (extended temperature) 9 VDC, 1.0 A (minimum)

minimum output regulation: 5%

Environment: Tmra* (standard temp): 0°C to 50°C (32 to 122°F)

Storage Temperature: -15°C to 65°C (5 to 149°F)

Tmra* (extended temp): -25°C to 65°C (-13 to 149°F)

Storage Temperature: -25°C to 65°C (5 to 149°F)

Humidity: 10% – 90%, non-condensing

Altitude: 0 to 10,000 feet

Warranty: Lifetime

*Manufacturer’s rated ambient temperature.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR, Subchapter J

applicable at the date of manufacture.

CAUTION: Visible and invisible laser radiation when open. Do not stare into beam or view

directly with optical instruments.

CAUTION: Use of controls, adjustments or the performance of procedures other than those

specified herein may result in hazardous radiation exposure.

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Troubleshooting

If the media converter fails, isolate and correct the fault by determining the answers

to the following questions and then taking the indicated action:

Note: Dip switch positions 3 and 4 must be DOWN before strarting the

troubleshooting process.

1. Is the Power LED illuminated?

• Is the power adapter the correct model (check I/O voltage and Hz)?

• Verify the voltage and frequency of the AC outlet?

• Is the power adapter properly installed in the media converter and in the

outlet?

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the SDC (signal detect/copper) LED illuminated?

• Check the twisted-pair cables for proper connection.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the SDF LED (signal detect/fiber) illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are connected to

the RX and TX ports, respectively, on the other device.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 4.

4. Is the RXC (receive/copper) LED flashing?

• If there is no activity on the UTP/STP port, proceed to step 5.

• If there is activity on the UTP/STP port, disconnect and reconnect the

twisted-pair cable to restart the initialization process.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 5.

5. Is the RXF (receive/fiber) LED flashing?

• If there is no activity on the fiber port, contact Tech Support.

• If there is activity on the fiber port, disconnect and reconnect the fiber cable

to restart the initialization process.

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Contact Tech Support: 800-260-1312, Int’l: 00-1-952-941-7600.

[email protected] -- Click the “Transition Now” link for a live Web chat.

Declaration of Conformity

Name of Mfg: Transition Networks

10900 Red Circle Drive, Minnetonka MN 55343, U.S.A.

Model: E-100BTX-FX-05(xxxx) Series Media Converters

Part Number(s): E-100BTX-FX-05, E-100BTX-FX-05(SC),

E-100BTX-FX-05(LC), E-100BTX-FX-05(MT),

E-100BTX-FX-05(SM), E-100BTX-FX-05(SMLC),

E-100BTX-FX-05(LH), E-100BTX-FX-05(XL),

E-100BTX-FX-05(LW), E-100BTX-FX-05(XLW)

E-100BTX-FX-05(SMHT), E-100BTX-FX-05(HT),

E-100BTX-FX-05(LHHT), E-100BTX-FX-05(XLHT),

E-100BTX-FX-05(LWHT), E-100BTX-FX-05(SCHT)

E-100BTX-FX-05(100HT), E-100BTX-FX-05(101HT)

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the E-100BTX-FX-05 to which this declaration refers is in

conformity with the following standards.

EN 55022:1994 + A1:1995 + A2:1997 Class A; FCC Part 15 Subpart B; EN 55024:1998;

21CFR subpart J; EN61000-3-2:1995; EN61000-3-3:1995

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

August, 2008_____

Stephen Anderson, Vice-President of Engineering Date

E-100BTX-FX-05

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Technical support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-based seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

10900 Red Circle Drive, Minnetonka, MN 55343, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

[email protected] -- Click the “Transition Now” link for a live Web chat. 15

Compliance Information

UL Listed

C-UL Listed

CISPR22/EN55022 Class A + EN55024

CE Mark

FCC regulations

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which

case the user will be required to correct the interference at the user's own expense.

Canadian regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set

out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage

radioélectrique édicté par le ministère des Communications du Canada.

European regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in

which case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses

Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für Gegenmaßnahmen

verantwortlich.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des

interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures

spécifiques appropriées.

In accordance with European Union Directive 2002/96/EC of the European Parliament

and of the Council of 27 January 2003, Transition Networks will accept post usage

returns of this product for proper disposal. The contact information for this activity can

be found in the 'Contact Us' portion of this document.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

Trademark notice

All trademarks and registered trademarks are the property of their respective owners.

- graphic, electronic, or mechanical - without written permission from Transition Networks.

Printed in the U.S.A.

33210.N

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks CGFEB1xxx-15x Manuel utilisateur

Transition Networks

Transition Networks FBRM1XXX-1XX Manuel utilisateur

Transition Networks

Transition Networks CSDTF1011-105 Manuel utilisateur

Transition Networks

Transition Networks SI-IES-111D-LRT Manuel utilisateur

Transition Networks

Transition Networks C/E-TBT-FRL-04(L) Manuel utilisateur

Transition Networks

Transition Networks HSTR-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks F-SM-MM-05 Manuel utilisateur

Transition Networks

Transition Networks SSETF10XX-200 Manuel utilisateur

Transition Networks

Transition Networks CGETF1013-110 Manuel utilisateur

Transition Networks

Transition Networks CSETF1011 Manuel utilisateur

Transition Networks

Transition Networks CCSF30XX-100 Manuel utilisateur

Transition Networks

Transition Networks CSDTF30xx-11x Manuel utilisateur

Transition Networks

Transition Networks CFETF1011-110 Manuel utilisateur

Transition Networks

Transition Networks E-PSW-FX-03(LH) Manuel utilisateur

Transition Networks

Transition Networks DataBand EV Manuel utilisateur

Transition Networks

Transition Networks C/E-TBT-FRL-03(L) Manuel utilisateur

Transition Networks

Transition Networks SPOEB1011-100 Manuel utilisateur

Transition Networks

Transition Networks SISTG10 211-LR Series Manuel utilisateur

Transition Networks

Transition Networks C/B-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks M/GE-PSW-SX-01 Manuel utilisateur

Transition Networks

Transition Networks SPOEB10 105 Series Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-1007 Manuel utilisateur

Transition Networks

Transition Networks SMACF10XX Manuel utilisateur

Transition Networks

Transition Networks E-TEL-1200 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
