The TRANSITION Networks C/F-SM-MM-06 series OC-12 Ethernet media
converters, designed to be installed in the TRANSITION Networks Media
Conversion Center, E-MCC-1600, connect 1300 nM OC-12 multimode fiber-
optic cable to 1300nM OC-12 singlemode fiber-optic cable.
OC-12 1300 Nanometer
Slide-In-Module Media Converter
C/F-SM-MM-06
USER’S GUIDE
o
wer Modules
M
edia
C
onversion
C
enter
Power
In Use
Power
In Use
1
2
anagement
odule
Power
Link
TX
RX
C/F- M-MM-06
OC12
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.

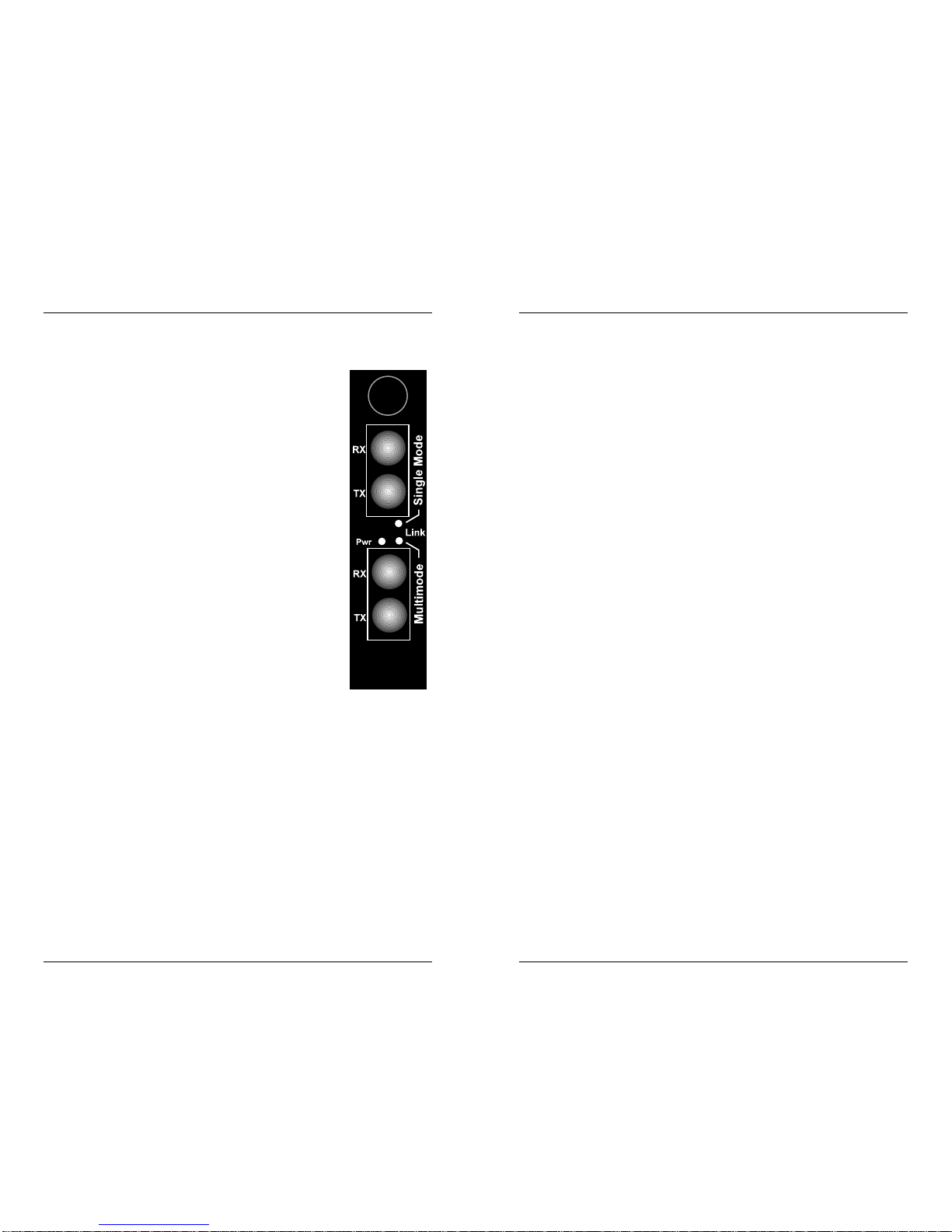

C/F-SM-MM-06
Provides an RX (receive) and TX
(transmit) SC OC-12 connector to
1300nm multimode fiber-optic cable
and an RX (receive) and TX (transmit)
SC OC-12 connector to 1300nm
singlemode fiber-optic cable.
C/F-SM-MM-06(XL)
Provides an RX (receive) and TX
(transmit) SC OC-12 connector to
1300nm multimode fiber-optic cable
and an RX (receive) and TX (transmit)
SC OC-12 connector to 1300nm
singlemode extra-long-haul fiber-optic
cable.
C/F-SM-MM-06 in the Network . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .4
Fault Isolation and Correction . . . . .5
Cable Specifications . . . . . . . . . . . . .6
Technical Specifications . . . . . . . . . .7
Compliance Information . . . . . . . . . .8

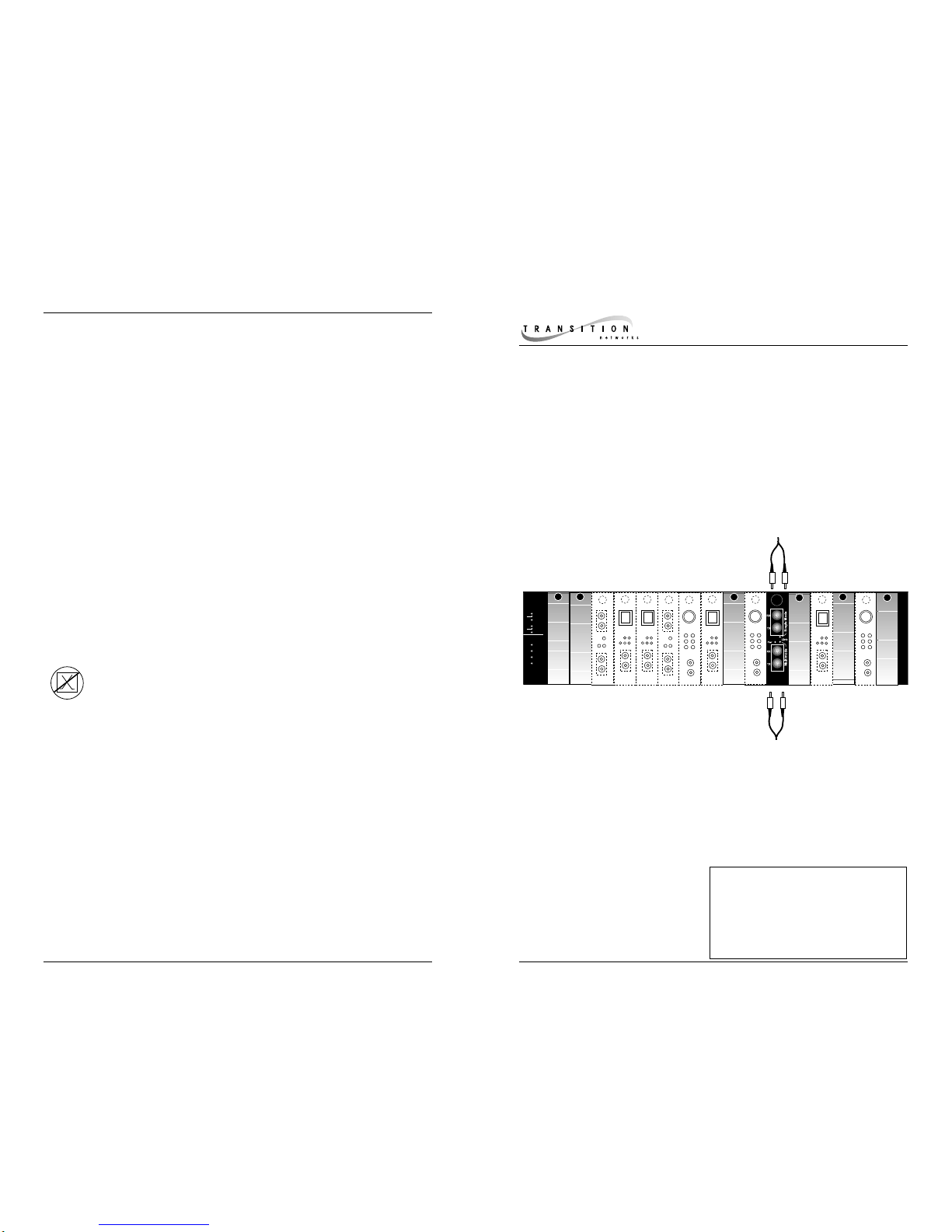

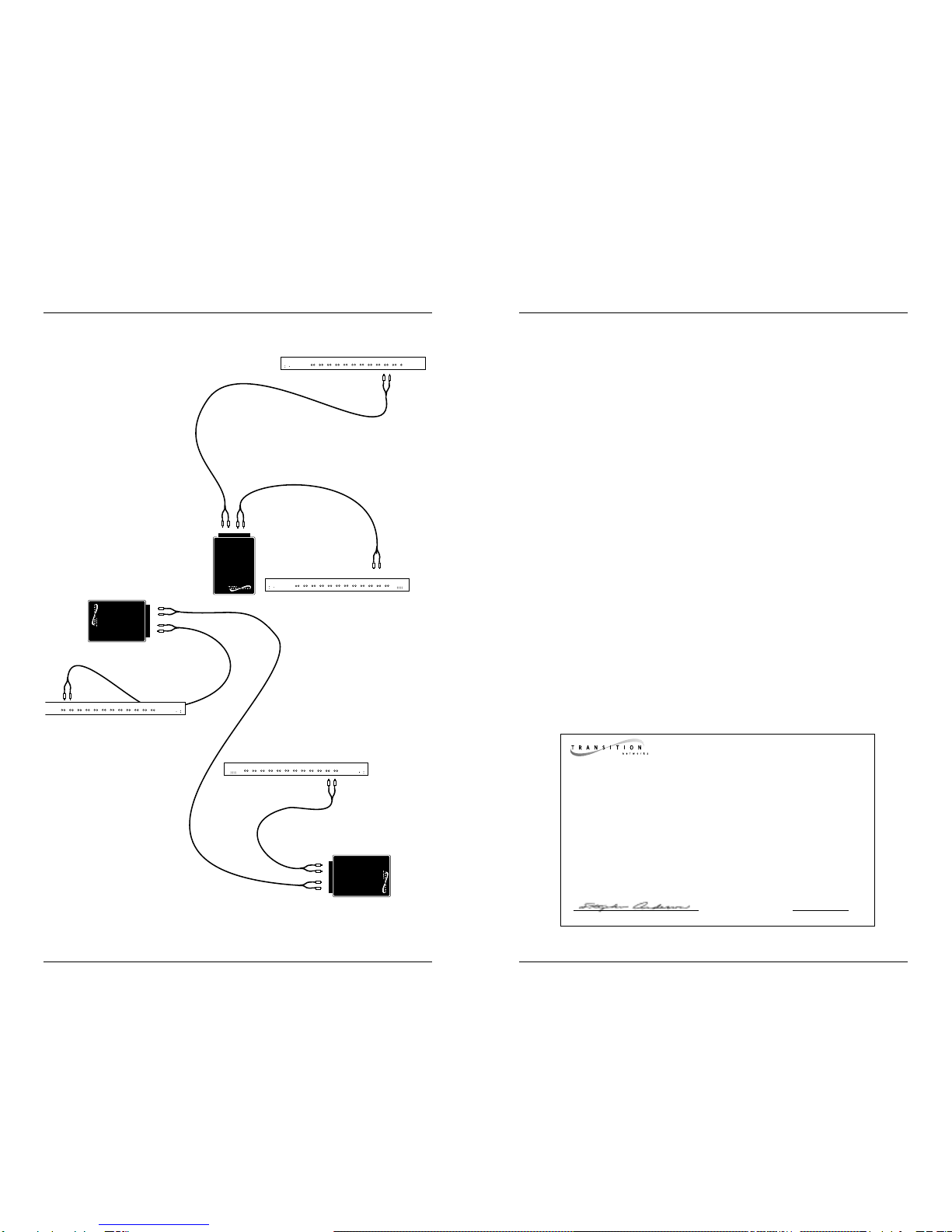

C/F-SM-MM-06 IN THE NETWORK
NOTE: This product is NOT a repeater. Therefore, maximum distances depend on
specific characteristics of the installation. The full distances of BOTH singlemode
and multimode fiber MAY NOT be supported in the same installation.
TECHNICAL SPECIFICATIONS
Standards ANSI TI.646-1995, ITU G.957
Dimensions 3.8" x 2.4" x 1.0" (97mm x 61mm x 25mm)
Weight 8 oz (approximate)
Power Consumption 5 watts
Environment Typical Operating Temperature: 0-50°C (32°to122°F)
Storage Temperature: -20 to 85°C
Humidity 10-90%, non condensing
Altitude 0-10,000 feet
Warranty Lifetime
DECLARATION OF CONFORMITY
Name of Mfg: Transition Networks
6475 City West Parkway, Minneapolis MN 55344 USA
Model: C/F-SM-MM-06 Series Media Converters
Part Number(s): C/F-SM-MM-06, C/F-SM-MM-06(XL)
Regulation: EMC Directive 89/336/EEC
Purpose: To declare that the C/F-SM-MM-06 to which this declaration refers is
in conformity with the following standards.
EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;
EN 60950 A4:1997; IEC 801.2, IEC 801.3, and IEC 801.4; IEC 950
I, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s) and Standard(s).
_January 1, 1997_____
Stephen Anderson, Vice-President of Engineering Date
CABLE SPECIFICATIONS
The physical characteristics of the cable must meet or exceed ANSI TI.646-1995
and ITU G.957 specifications.
Fiber Specifications
Bit error rate: ≤10-10
MULTIMODE
Fiber Optic Cable Recommended: 62.5 / 125 µm multimode fiber
Optional: 100 / 140 µm multimode fiber
85 / 125 µm multimode fiber
50 / 125 µm multimode fiber
Wavelength : 1300 nM
Fiber Optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm
Fiber Optic Receiver Sensitivity: min: -23.0 dBm max: -8.0 dBm
Minimum Cable Distance: 2 meters
Maximum Cable Distance: 2 kilometers
SINGLEMODE
C/F-SM-MM-06
Fiber Optic Cable Recommended: 9 µm singlemode fiber
Wavelength : 1300 nM
Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm
Fiber-optic Receiver Sensitivity: min: -28.0 dBm max: -8.0 dBm
Minimum Cable Distance: 2 meters
Maximum Cable Distance: 15 kilometers
C/F-SM-MM-06(XL)
Fiber Optic Cable Recommended: 9 µm singlemode fiber
Wavelength : 1300 nM
Fiber-optic Transmitter Power: min: -3.0 dBm max: -2.0 dBm
Fiber-optic Receiver Sensitivity: min: -28.0 dBm max: -8.0 dBm
Minimum Cable Distance: 2 meters
Maximum Cable Distance: 40 kilometers
INSTALLATION
Install Slide-In-Module in E-MCC-1600 Chassis
NOTE: Media Converter Slide-in-Modules can be installed in any installation
slot, in any order.
1. Remove Media Converter Slide-in-Module protective plate from
selected installation slot by removing screw that secures plate to
front of E-MCC-1600.
2. Carefully slide Media Converter Slide-in-Module into installation
slot, aligning Media Converter Slide-in-Module with installation
guides.
NOTE: Ensure that the Media Converter Slide-in-Module is firmly
seated against the backplane.
3. Secure Media Converter Slide-in-Module to E-MCC-1600 chassis by
turnng Media Converter Slide-in-Module panel fastener screw
clockwise to tighten.
Install Cable
1. Locate or build fiber cable with male two-stranded TX to RX
connectors appropriate to the media converter installed at both
ends.
2. Connect cable to connector to TX location on media converter and
connect same cable strand to RX location on attached device.
3. Connect cable to connector to RX location on media converter and
connect same cable strand to TX location on attached device.
4. Repeat steps 1-3 for second fiber cable.
Power the Slide-In-Module
NOTE: The Media Converter Slide-In-Module is powered through the
E-MCC-1600 Media Conversion Center.
TX
RX
TX
RX
OPERATION
After installation, the media converter should function without operator
intervention.
Status LEDs
Use the status LEDs to monitor media converter
operation in the network.
P(o)w(e)r Steady green LED indicates connection to
external AC power.
Link Steady green LED indicates that
singlemode and/or multimode fiber link is
connected properly.
FAULT ISOLATION and CORRECTION
If the media converter fails, isolate and correct the failure by determining the
answers to the following questions and then taking the indicated action:
1. Is the P(o)w(e)r LED on the media converter illuminated?
NO
• Is the media converter inserted properly into the chassis?
• Is the power cord properly installed in the chassis and at the
external power source?
• Does the external power source provide power?
• Contact Technical Support: (800) 260-1312.
YES
• Proceed to step 2.
2. Is the Multimode Link LED illuminated?
NO
• Check fiber cables for proper connection.
• Verify that TX and RX cables on media converter are connected to
RX and TX ports, respectively, on the other device.
• Power-cycle the media converter.
• Refer to Tech Tips available at: http://www.transition.com
• Contact Technical Support: (800) 260-1312.
YES
• Proceed to step 3.
3. Is the Singlemode Link LED illuminated?
NO
• Check fiber cables for proper connection.
• Verify that TX and RX cables on media converter are connected to
RX and TX ports, respectively, on the other device.
• Power-cycle the media converter.
• Refer to Tech Tips available at: http://www.transition.com
YES
• Contact Technical Support: (800) 260-1312.
C/F- M-MM-06
OC12
