Transition Networks E-TBT-FRL-1200 Manuel utilisateur

The rack-mountable E-TBT-FRL-1200, E-TEL-FRL-1200, and

E-TBT-FRL-0600 series multi-port media converters with LinkAlert™* allow

the network administrator of a large and complex network to extend the

distances between multiple sets of 10BASE-T and 10BASE-FL devices.

E-TBT-FRL-1200 (shown) Provides twelve (12) independent media converter

connections between Ethernet™over twisted-pair copper (twelve RJ-45

connectors) and Ethernet™over singlemode OR multimode fiber (twelve fiber

connectors of one type – selected, according to network requirements).

E-TEL-FRL-1200 (not shown) Provides twelve (12) independent media

converter connections between Ethernet™over twisted-pair copper (one 50-pin

Telco connector) and Ethernet™over singlemode OR multimode fiber (twelve

fiber connectors of one type – selected, according to network requirements).

E-TBT-FRL-0600 (not shown) Provides six (6) independent media converter

connections between Ethernet™over twisted-pair copper (six RJ-45 connectors)

and Ethernet™over singlemode OR multimode fiber (six fiber connectors of

one type – selected, according to network requirements).

*The LinkAlert™feature, enabled and

disabled using switches on the front of

the multi-port media converter, allows

each media converter port to pass link

faults between connected 10BASE-T

and 10BASE-FL devices.

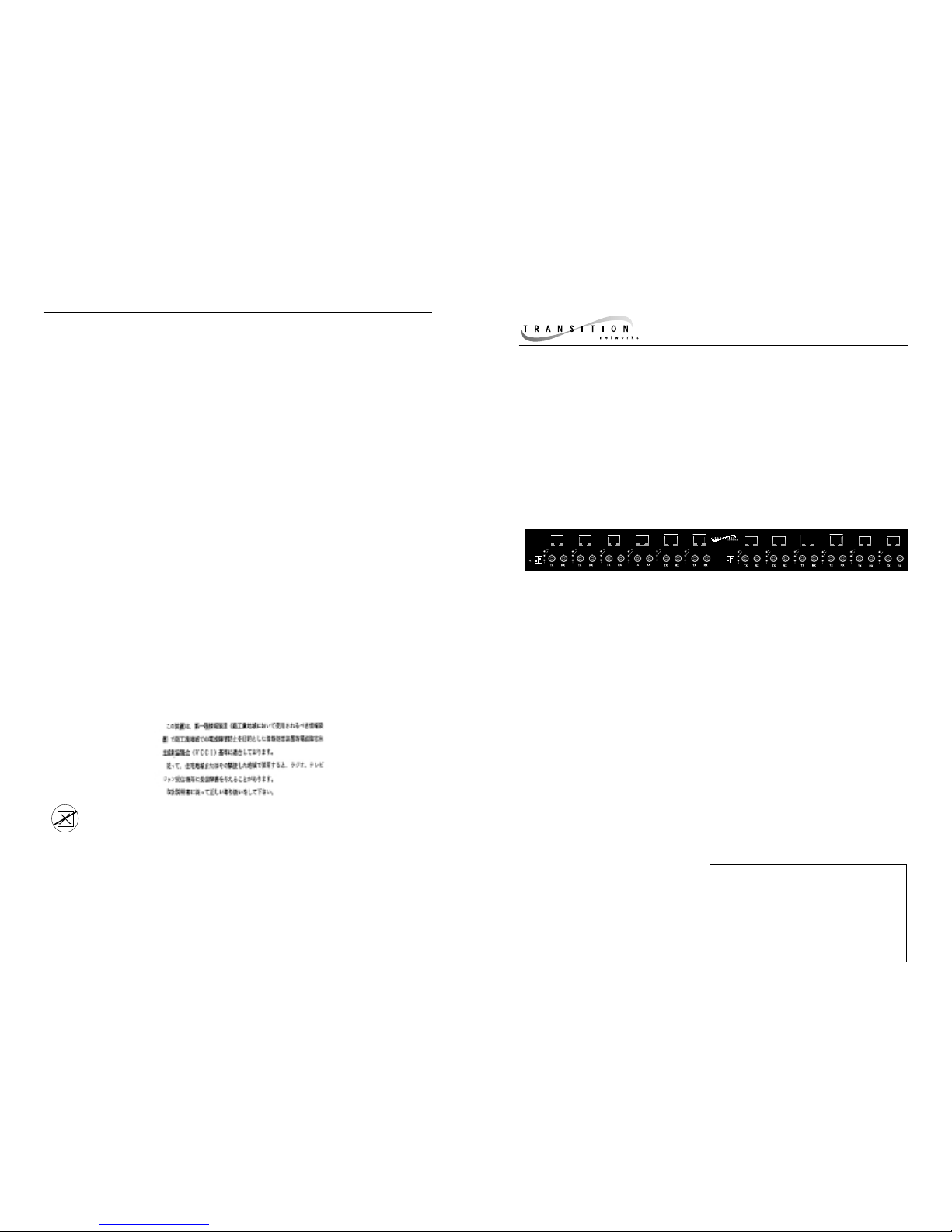

Minneapolis, MN 55344 USA

10BASE-T/10BASE-FL

Multi-Port Media Converter

E-TBT-FRL-1200, E-TEL-FRL-1200, E-TBT-FRL-0600

USER’S GUIDE

Fiber Cable/Connector Options* by Model:

E-TBT-FRL-xx00/E-TEL-FRL-1200: multimode fiber, ST connectors

E-TBT-FRL-xx00(SC)/E-TEL-FRL-1200(SC): multimode fiber, SC connectors

E-TBT-FRL-xx00(MT)/E-TEL-FRL-1200(MT): multimode fiber, MT-RJ connectors

E-TBT-FRL-xx00(SM)/E-TEL-FRL-1200(SM): singlemode fiber, SC connectors

E-TBT-FRL-xx00(L)/E-TEL-FRL-1200(L): singlemode fiber, SC connectors

*See page 9 for detailed specifications. E-TBT-FRL-xx00 in the Network . . . .2

Installation . . . . . . . . . . . . . . . . . . . .4

Operation . . . . . . . . . . . . . . . . . . . . .6

Fault Isolation and Correction . . . . .8

Cable Specifications . . . . . . . . . . . . .9

Technical Specifications . . . . . . . . .11

Compliance Information . . . . . . . . .12

256

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK 710

811 12

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

POWER

1 2

SWITCH

3 4

SWITCH

COMPLIANCE INFORMATION

UL Listed

C-UL Listed (Canada)

CISPR/EN55022 Class A

FCC Regulations

This equipment has been tested and found to comply with the limits for a class A digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in which case the user will be

required to correct the interference at the user’s own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on

the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique

édicté par le ministère des Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio interference in which

case the user may be required to take adequate measures.

Achtung !

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes

Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für entsprechende Gegenmaßnahmen

werantwortlich ist.

Attention !

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des

interférences radioélectriques, il appartiendra alors à l’utilsateur de prende les measures spécifiques

appropriées

VCCI Class 1 Compliance

This equipment is in the 1st Class category (information equipment to be used in commercial and/or

industrial areas) and conforms to the standards set by the Voluntary Control Council For Interference by

Data Processing Equipment and Electronic Office Machines aimed at preventing radio interference in

commercial and/or industrial areas. When used in a residential area or in an adjacent area thereto,

interference may be caused to radio and TV receivers, etc. Read the instructions for correct handling.

Trademark Notice

All registered trademarks and trademarks are the property of their respective owners.

graphic, electronic, or mechanical – without written permission from TRANSITION Networks.

Printed in the U.S.A. 33140.B

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten

verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur

Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen

einschliesslich der gegenseitigen Anerkennung ihrer Konformität.

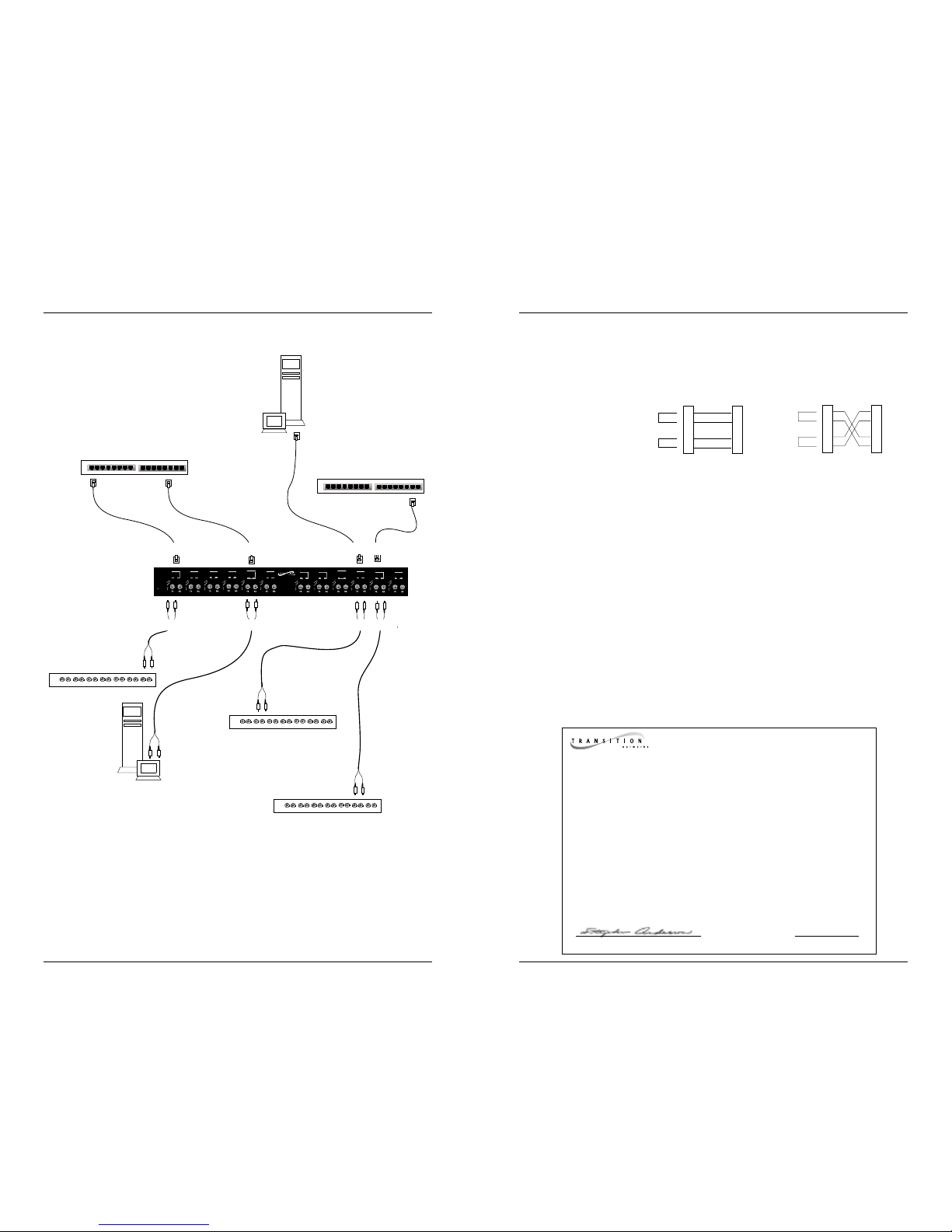

E-TBT-FRL-xx00 IN THE NETWORK

Each media converter port in the multi-port media converter operates

independently over one isolated twisted-pair copper/fiber-optic cable

link. The media converter port receives and transmits network signals in

either full-duplex or half-duplex, depending upon the network devices

to which the media converter port is attached.

NOTE: In Telco option (not shown), the 50-pin Telco connector

concentrates up to 12 UTP connections onto one connector. This

concentration of UTP ports is then broken out for connection to fiber.

RJ-45 CONNECTOR

Twisted pair connection requires two active pairs configured as straight

through and/or crossover. The two active pairs in an Ethernet™ network are

pins 1 & 2 and pins 3 & 6. Use only dedicated wire pairs (such as blue/white

& white/blue, orange/white & white/orange) for the active pins.

NOTE: The multi-port media converter AutoCross™ feature allows either straight-

through or crossover twisted-pair copper cable to be used when connecting to

10BASE-T devices. AutoCross™ determines the characteristics of cable

connections to the media converter port and then automatically configures the

port to link up.

TECHNICAL SPECIFICATIONS

Standards IEEE 802.3 1998 Edition

Case Dimensions 19.0" x 8.5" x 1.5" (483 mm x 216 mm x 38 mm)

Environment Temperature: 0-50°C (32° to 122° F )

Storage Temperature: -15° to 65°C (5° to 149° F )

Humidity 10-95%, non condensing

Altitude 0-10,000 feet

Power 100-240 VAC, 50/60 Hz., 1 Amp (maximum)

Warranty Lifetime

DECLARATION OF CONFORMITY

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 USA

Model: E-TBT-FRL-xx00, E-TEL-FRL-1200 Series Multi-PortMedia Converter

Part Number(s): E-TBT-FRL-0600, E-TBT-FRL-0600(SC), E-TBT-FRL-0600(SM),

E-TBT-FRL-0600(L), E-TBT-FRL-0600(MT), E-TBT-FRL-1200,

E-TBT-FRL-1200(SC), E-TBT-FRL-1200(SM), E-TBT-FRL-1200(L), E-

TBT-FRL-1200(MT), E-TEL-FRL-1200, E-TEL-FRL-1200(SC),

E-TEL-FRL-1200(SM), E-TEL-FRL-1200(L), E-TEL-FRL-1200(MT)

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the E-TBT-FRL-0600, E-TBT-FRL-1200 or E-TEL-FRL-

1200 to which this declaration refers is in conformity with the following

standards.

EMC-CISPR 22: 1985 Class A; EN 55022: 1988 Class A; EN 50082-1:1992;

EN 60950 A4:1997; IEC 801.2, IE C 801.3, and IEC 801.4; IEC 950

I, the undersigned, hereby declare that the equipment specified above conforms to the

above Directive(s) and Standard(s).

_November 3, 1999_____

Stephen Anderson, Vice-President of Engineering Date

Switch

Hub

Switch

Hub

Server

Full-Duplex

Half-Duplex

256

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK 710

811 12

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

POWER

Hub

Half-Duplex

Full-Duplex

Crossover

Straight Through

Twisted Pair #1 Twisted Pair #1

Twisted Pair #2

CABLE SPECIFICATIONS (continued)

COPPER CABLE

Each RJ-45 connector requires 2 pairs of Category 5 rated cable.

The 50-pin Telco connector requires 24 pairs of Category 5 rated

cable.

Either shielded twisted-pair (STP) or unshielded twisted-pair (UTP) can

be used. DO NOT USE FLAT OR SILVER SATIN WIRE.

CATEGORY 5:

Gauge 24 to 22 AWG

Attenuation 22.0 dB /100m @ 100 MHz

Maximum Cable Distance: Telco 75 meters

RJ-45 100 meters

TELCO CONNECTOR

TELCO SIGNALS

Media Converter Port in Full-Duplex Network

In a full-duplex network, maximum cable lengths are determined by the

cables used. See page 10 for cable specifications.

NOTE: The 5-Segment Rule described below does NOT apply in a full-

duplex network.

Media Converter Port in Half-Duplex Network

The 5-Segment Rule applies separately to each collision domain.

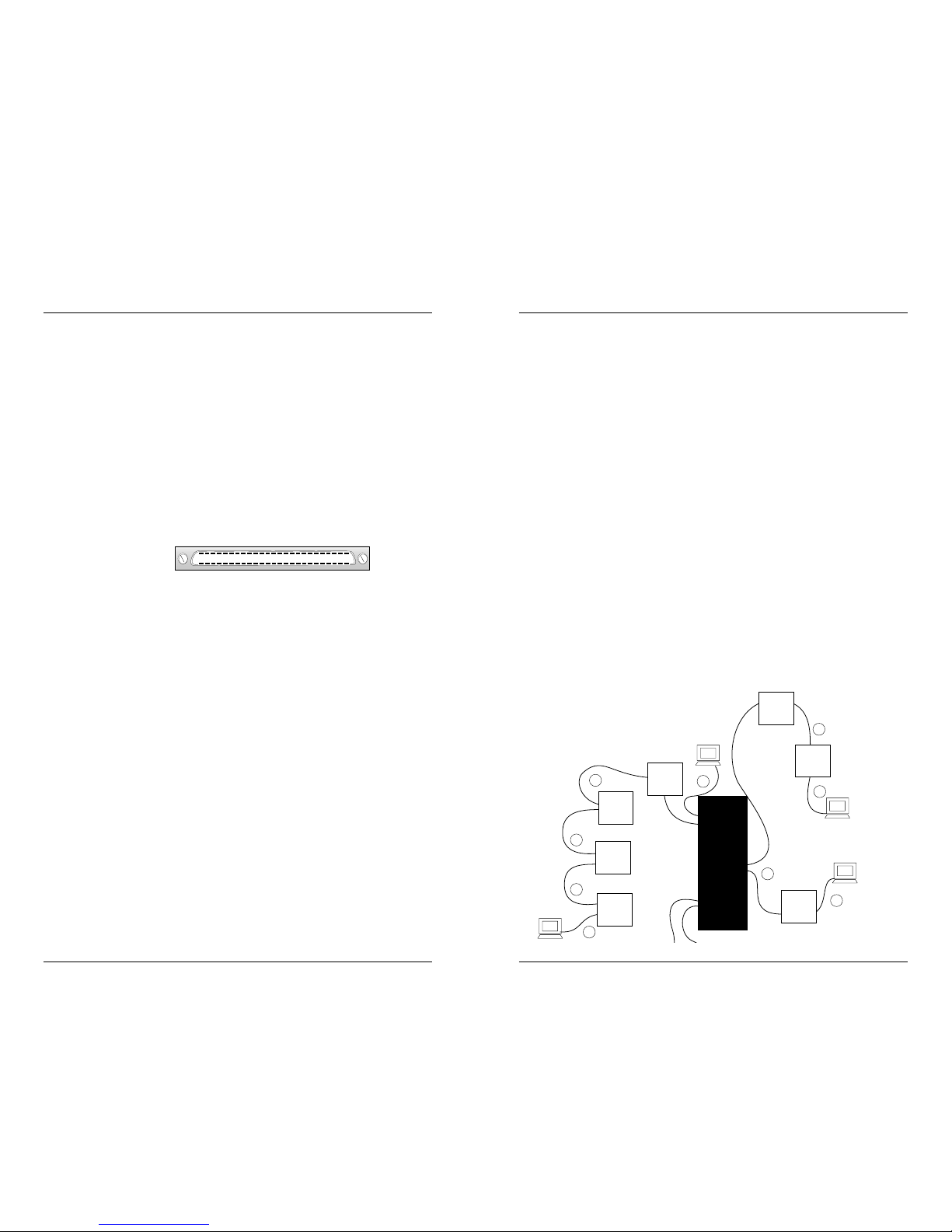

USING THE 5-SEGMENT (5-4-3) RULE:

NOTE: A segment is the cable connection between network interfaces.

In any 10-Mbit/sec Ethernet collision domain, the 5-Segment Rule allows no

more than five segments. The 5-4-3 Rule version of the 5-Segment Rule

allows no more than five segments and also allows no more than four

repeaters (hubs) and three populated segments (10Base-2 coaxial-cable

installations).

To determine the size of the collision domain by assigning segment numbers

to cable connections, determine the two network devices in a transmission

path that are separated by the greatest number of segments. Define a segment

path between the network devices by labeling the cable connection to the

first device “segment 1”and numbering each segment in the path to the last

network device, up to “segment n”(n = total number of segments ≤5).

Verify that no segment path in the entire collision domain contains more than

n ≤5 segments.

E-TBT-FRL-xx

Port

Half-Duplex Collision Domain

Half-Duplex Collision Domai

Full-Duplex - NO Collision Domain

E-TBT-FRL-xx

Port

E-TBT-FRL-xx

Port

hub

hub hub

hub

10BASE-T/10BASE-FL Half-Duplex Collision Domain

5-Segment Rule

Pin # Signal Pin # Signal

1 Port 1 Transmit - 26 Port 1 Transmit +

2 Port 1 Receive - 27 Port 1 Receive +

3 Port 2 Transmit - 28 Port 2 Transmit +

4 Port 2 Receive - 29 Port 2 Receive +

5 Port 3 Transmit - 30 Port 3 Transmit +

6 Port 3 Receive - 31 Port 3 Receive +

7 Port 4 Transmit - 32 Port 4 Transmit +

8 Port 4 Receive - 33 Port 4 Receive +

9 Port 5 Transmit - 34 Port 5 Transmit +

10 Port 5 Receive - 35 Port 5 Receive +

11 Port 6 Transmit - 36 Port 6 Transmit +

12 Port 6 Receive - 37 Port 6 Receive +

13 Port 7 Transmit - 38 Port 7 Transmit +

14 Port 7 Receive - 39 Port 7 Receive +

15 Port 8 Transmit - 40 Port 8 Transmit +

16 Port 8 Receive - 41 Port 8 Receive +

17 Port 9 Transmit - 42 Port 9 Transmit +

18 Port 9 Receive - 43 Port 9 Receive +

19 Port 10 Transmit - 44 Port 10 Transmit +

20 Port 10 Receive - 45 Port 10 Receive +

21 Port 11 Transmit - 46 Port 11 Transmit +

22 Port 11 Receive - 47 Port 11 Receive +

23 Port 12 Transmit - 48 Port 12 Transmit +

24 Port 12 Receive - 49 Port 12 Receive +

25 N.C. 50 N.C.

125

26 50

INSTALLATION

Install E-TBT-FRL-xx00 at Site

WARNING: During the site installation, handle the E-TBT-FRL-xx00 in such a

way that the E-TBT-FRL-xx00 does not fall. Failure to observe this warning

could result in injury to personnel and/or equipment damage.

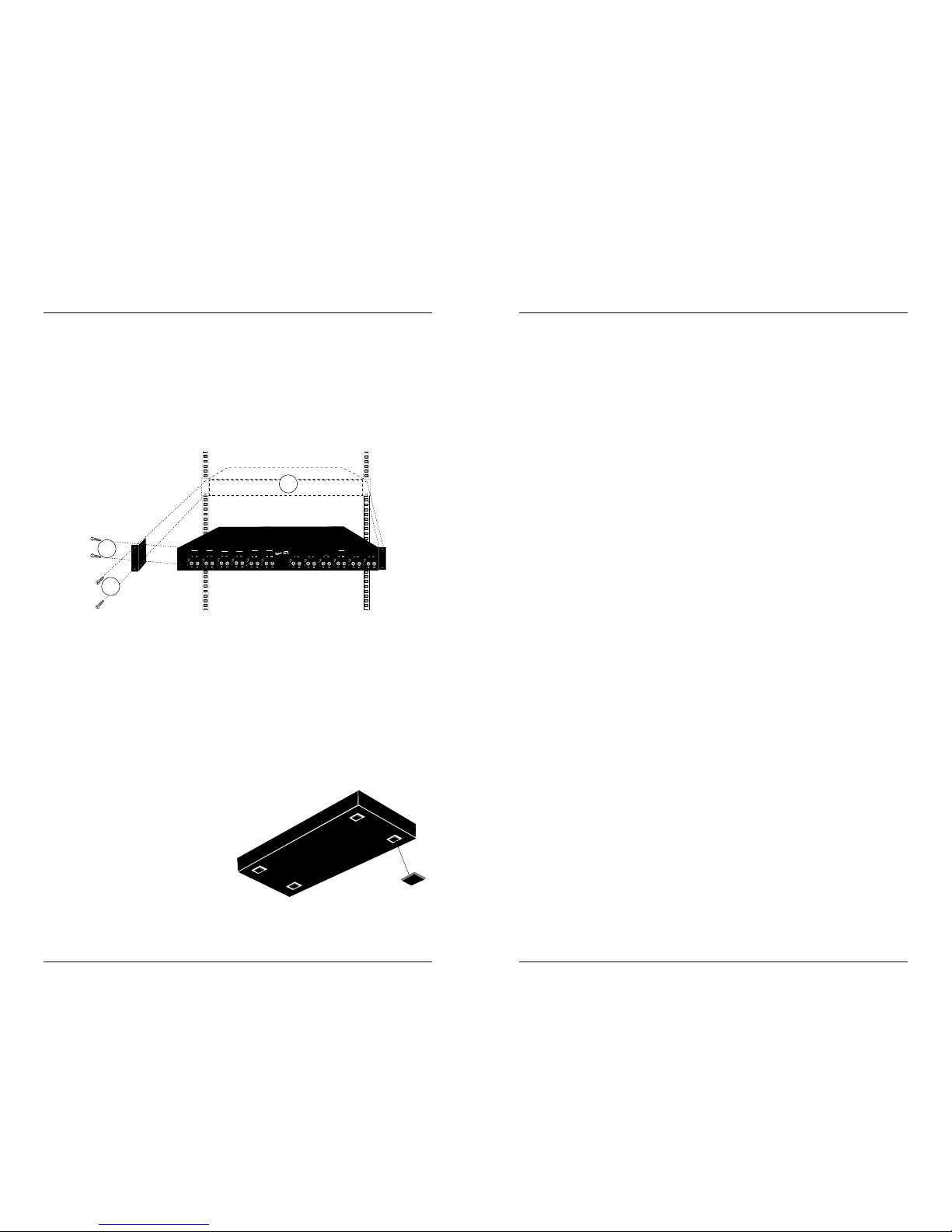

To install the E-TBT-FRL-xx00 in 19-inch rack cabinet:

NOTE: Brackets and screws are provided.

1. Install right and left mounting brackets to E-TBT-FRL-xx00 chassis

by removing two (2) screws from each side of E-TBT-FRL-xx00

chassis and then installing those screws through mounting bracket

into E-TBT-FRL-xx00 chassis.

2. Carefully align the E-TBT-FRL-xx00 between rack mounting rails.

3. Install E-TBT-FRL-xx00 in rack by installing two (2) screws through

right front bracket into rack and two (2) screws through left front

bracket into rack, using clip nuts (NOT provided) if necessary.

To install the E-TBT-FRL-xx00 on table or other flat surface:

NOTE: Rubber feet are provided.

1. Carefully turn E-TBT-FRL-xx00 to side.

2. Install four (4) rubber feet:

•Separate rubber feet.

•Remove protective

paper from adhesive

surface on rubber foot.

•Position and secure

each rubber foot as

shown.

3. Return E-TBT-FRL-xx00 to upright position.

CABLE SPECIFICATIONS

The physical characteristics of the media cable must meet or exceed IEEE 802.3 specifications,

1998 Edition.

Fiber Cable

MULTIMODE

Fiber Optic Cable Recommended: 62.5 / 125 µm multimode fiber

Optional: 100 / 140 µm multimode fiber

85 / 125 µm multimode fiber

50 / 125 µm multimode fiber

Bit error rate: ≤10-11

E-TBT-FRL-xx00, E-TEL-FRL-1200 1300 nM

Fiber-optic Transmitter Power: min: -16.0 dBm max: -7.0 dBm

Fiber-optic Receiver Sensitivity: min: -29.5 dBm max: -9.0 dBm

Link Budget 13.5 dB

Typical Maximum Cable Distance:* 2 kilometers

E-TBT-FRL-xx00(SC), E-TEL-FRL-1200(SC) 1300 nM

Fiber-optic Transmitter Power: min: -16.0 dBm max: -7.0 dBm

Fiber-optic Receiver Sensitivity: min: -29.5 dBm max: -9.0 dBm

Link Budget 13.5 dB

Typical Maximum Cable Distance:* 2 kilometers

E-TBT-FRL-xx00(MT), E-TEL-FRL-1200(MT) 1300 nM

Fiber-optic Transmitter Power: min: -16.0 dBm max: -10.0 dBm

Fiber-optic Receiver Sensitivity: min: -29.5 dBm max: -7.2 dBm

Link Budget 13.5 dB

Typical Maximum Cable Distance:* 2 kilometers

SINGLEMODE

Fiber Optic Cable Recommended: 9 µm singlemode fiber

Bit error rate: ≤10-11

E-TBT-FRL-xx00(SM), E-TEL-FRL-1200(SM) 1300 nM

Fiber-optic Transmitter Power: min: -27.0 dBm max: -14.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -14.0 dBm

Link Budget 7.0 dB

Typical Maximum Cable Distance:* 20 kilometers

E-TBT-FRL-xx00(L)**, E-TEL-FRL-1200(L)** 1300 nM

Fiber-optic Transmitter Power: min: -19.0 dBm max: -15.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -14.0 dBm

Link Budget 15.0 dB

Typical Maximum Cable Distance:* 40 kilometers

*Actual distance dependent upon physical characteristics of network installation.

**Requires a minimum loss of 5 dB over cable or damage to receiver may occur.

256

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK 710

811 12

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

ACT

FBRLINK

TPLINK

POWER

FAULT ISOLATION and CORRECTION

If the multi-port media converter fails, isolate and correct the fault by

determining the answers to the following questions and then taking the

indicated action:

1. Is the POWER LED on the multi-port media converter

illuminated?

•Is the power cord properly installed in the media converter and in

the grounded AC outlet?

•Does the grounded AC outlet provide power?

•Contact Technical Support: (800) 260-1312.

YES

•Proceed to step 2.

2. Are any of the 10BASE-T T(wisted)P(air) LEDs illuminated?

•Check twisted pair cables for proper connection.

•Contact Technical Support: (800) 260-1312.

YES

•Proceed to step 3.

3. Are any of the 10BASE-FL F(i)B(e)R LEDs illuminated?

•Check fiber cables for proper connection.

•Verify that TX and RX cables on media converter are connected to

RX and TX ports, respectively, on other device.

•Contact Technical Support: (800) 260-1312.

YES

•Proceed to step 4.

4. Are any of the ACT(ivity) LEDs illuminated?

•Disconnect and reconnect the cable to restart the initialization

process.

•Restart the workstation to restart the initialization process.

•Contact Technical Support: (800) 260-1312.

YES

•Contact Technical Support: (800) 260-1312.

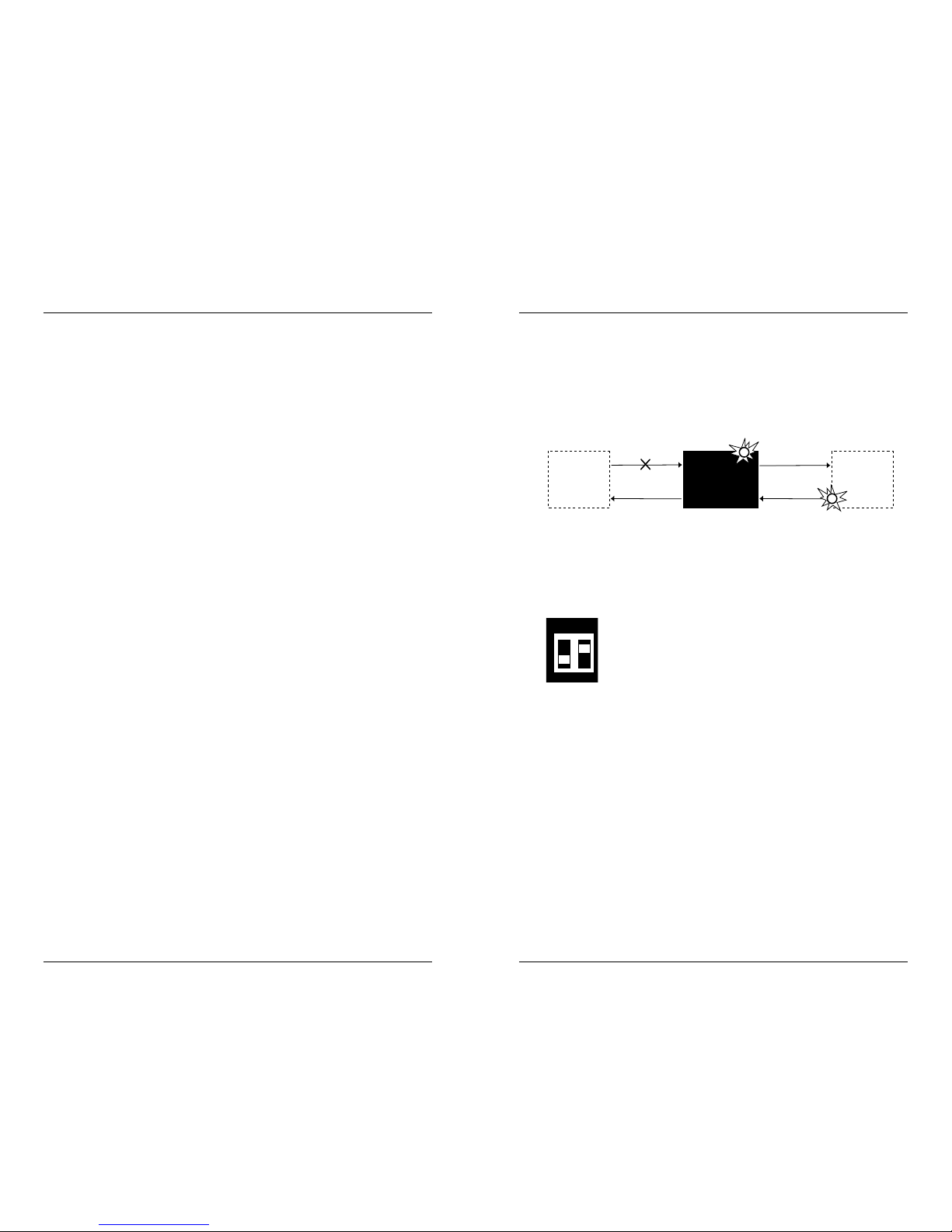

Set LinkAlert™Switches

USING LINKALERT™

NOTE: The E-TBT-FRL-xx00 series multi-port media converter LinkAlert™

feature allows each media converter port to pass 10BASE-T side link faults

over the port link to the 10BASE-FL side and to pass 10BASE-FL side link

faults over the port link to the 10BASE-T side.

If the port does not detect a good link on the 10BASE-T side, the port disables

all transmission (including active-idle) on the 10BASE-FL side.

SWITCH SETTINGS

Use the 2-position switches at the front of the E-TBT-FRL-xx00 to

enable/disable LinkALERT™for three contiguous media converter ports.

SWITCH 1 enables or disables LinkAlert™for ports 1 - 3,

SWITCH 2 for ports 4 - 6. SWITCH 3 enables or disables

LinkAlert™for ports 7 -9 in a 12-port unit and SWITCH 4 for

ports 10 -12.

(UP) Enables the LinkAlert™function. (DOWN) Enables

standard Link Integrity Test. Default is LinkAlert™enabled (UP).

Install Cable

NOTE: Refer to page 10 for cable and connector specifications.

COPPER

1. Locate or build 10BASE-T compliant cables with male RJ-45 plug

connectors at both ends.

2. Connect male RJ-45 plug connector at one end of cable to media

converter port RJ-45 jack connector.

3. Connect male RJ-45 plug connector at other end of cable to

10BASE-T device RJ-45 jack connector.

1 2

10BASE-T

Device Media Converter

Port

LINK FAULT INDICATION

10BASE-FL

Device

LINK FAULT INDICATION

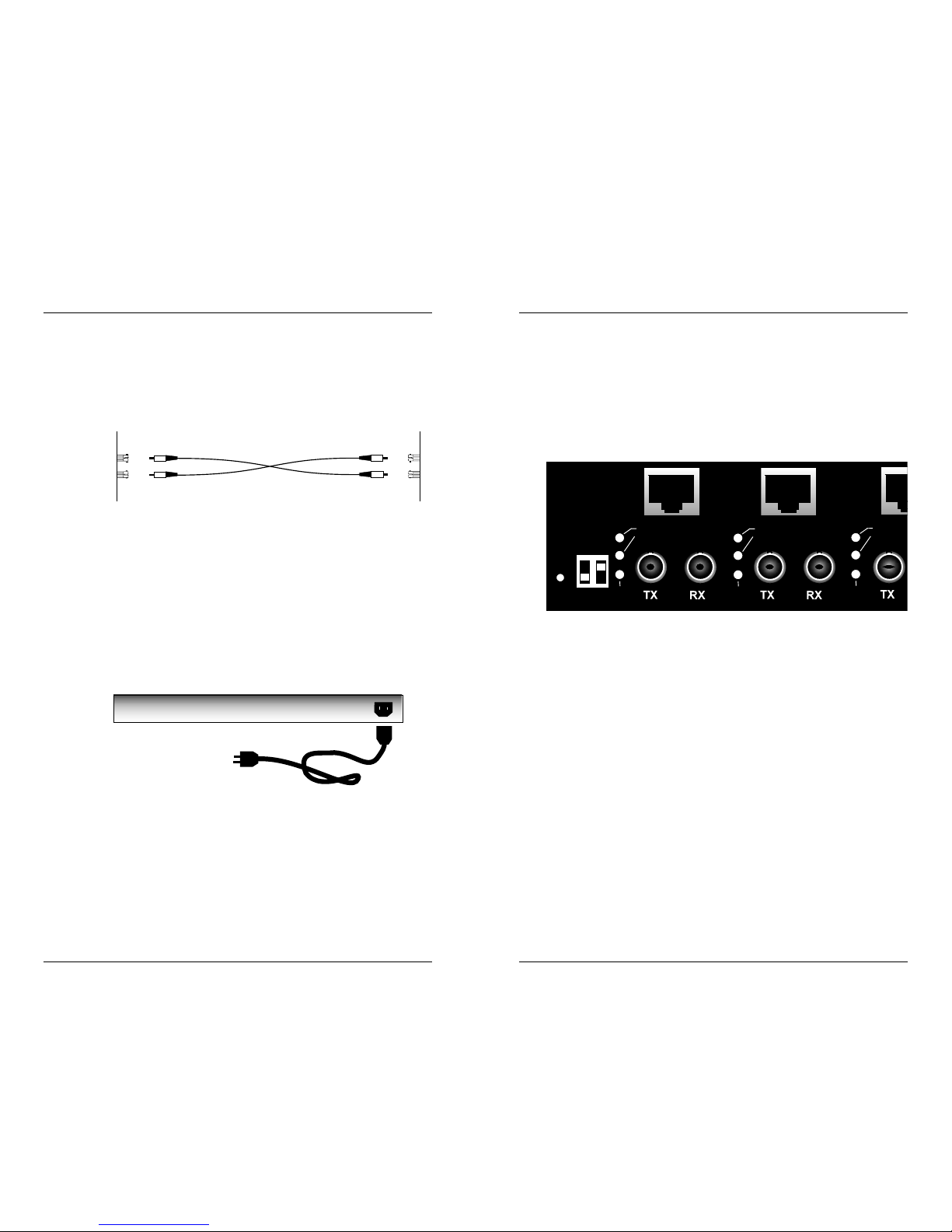

INSTALLATION (continued)

Install Cable (continued)

FIBER

1. Locate or build 10BASE-FL compliant fiber cable with male two-

stranded TX to RX connectors at both ends.

2. Connect male TX and RX cable connectors at one end of cable to

TX and RX female connectors, respectively, on media converter

port.

3. Connect male TX and RX cable connectors at other end of cable to

RX and TX connectors, respectively, on 802.3 compliant fiber

device.

Connect to Power

NOTE: When the multi-port media converter is connected to an AC outlet

supplying 100-240VAC at 50-60 Hz, the hub automatically powers ON

To power ON the multi-port media converter:

1. At multi-port media converter back, locate male power receptacle.

2. Plug female media converter end of power cord into multi-port

media converter power receptacle.

3. Plug male outlet end of power cord into correct voltage, properly

grounded, AC rack or wall power source.

4. Verify that multi-port media converter is powered by observing

illuminated power and status LED(s).

OPERATION

Use the status LEDs to monitor multi-port media converter operation in the

network.

NOTE: Each 10BASE-T/10BASE-FL media converter port is identified by a

number located just above the fiber connector(s) for that 10BASE-T /10BASE-

FL port connection. The LEDs that apply to each 10BASE-T or 10BASE-FL

port connector(s) are located, when facing the multi-port media converter, at

the left of the connector(s) for that 10BASE-T or 10BASE-FL port connection.

T(wisted) P(air) LINK Steady LED indicates good link on

10BASE-T copper.

F(i)B(e)R LINK Steady LED indicates good link on

10BASE-FL fiber.

ACT(ivity) Steady LED indicates 10BASE-T OR

10BASE-FL activity.

Dark LED indicates NO 10BASE-T or

10BASE-FL activity.

POWER Steady LED indicates connection to external

AC power.

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

ACT

FBR LINK

TP LINK

OWER

1 2

SWITCH

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks CFETF1011-205 Manuel utilisateur

Transition Networks

Transition Networks C/PS-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks SCSCF3011-100 Manuel utilisateur

Transition Networks

Transition Networks SPSVT26xx-10x Manuel utilisateur

Transition Networks

Transition Networks J/E-PSW-FX-02(SC) Manuel utilisateur

Transition Networks

Transition Networks METTF1011-120 Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-05(LC) Manuel utilisateur

Transition Networks

Transition Networks CFETF1011-200 Manuel utilisateur

Transition Networks

Transition Networks CRS4F3111-100 Manuel utilisateur

Transition Networks

Transition Networks M/E-PSW-FX-02 Manuel utilisateur

Transition Networks

Transition Networks HSTR-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks E-R-TX-FX-01(SC) Manuel utilisateur

Transition Networks

Transition Networks SRS4F3111-100 Manuel utilisateur

Transition Networks

Transition Networks CPSVT2611-100 Manuel utilisateur

Transition Networks

Transition Networks F-SM-MM-06(XL) Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-N-01 Manuel utilisateur

Transition Networks

Transition Networks CSEFE1012-100 Manuel utilisateur

Transition Networks

Transition Networks CBFTF1011-155 Manuel utilisateur

Transition Networks

Transition Networks M/E-PSW-FX-02(SC) Manuel utilisateur

Transition Networks

Transition Networks SFMFF4040-100 Manuel utilisateur

Transition Networks

Transition Networks M/E-TX-FX Series Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-05(L) Manuel utilisateur

Transition Networks

Transition Networks C4TEF1011-110 Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FX-04(LH) Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
