Transition Networks CFMFF1314-280 Manuel utilisateur

Installation . . . . . . . . . . . . . . . . . . .2

Operation . . . . . . . . . . . . . . . . . . .6

Cable Specifications . . . . . . . . . . . .7

Technical Specifications . . . . . . . .8

Troubleshooting . . . . . . . . . . . . . . .9

Compliance Information . . . . . . .12

Unless otherwise indicated, the distances listed are the typical maximum cable

distance. The actual maximum cable distances are dependent upon the physical

characteristics of the network installation.

** Minimum Cable Distance: 2 meters

Typical Maximum Cable Distance: 220 meters for 160/500MHz•Km

270 meters for 200/500MHz•Km

CFMFF13xx-28x

User’s Guide

Single Mode to Multimode Retiming Media

Converter

• Slide-in-Module Media Converter

• Gigabit Ethernet

Transition Networks CFMFF13xx-28x series media

converters extend multimode interfaces over gigabit

Ethernet fiber optic cable. The CFMFF13xx-28x is also

designed to be installed into the Transition Networks

PointSystem™ chassis.

Unlike most gigabit Ethernet media converters, which allow only two media

converters in series, the CFMFF13xx-28x has a retiming/reshaping feature that

makes it possible to connect any number of media converters in series.

Part Number Port One - Duplex Fiber Optic

1000Base-SX

Port Two - Duplex Fiber-Optic

1000Base-LX

CFMFF1314-280 SC, 850 nm multimode

220 m (721 ft)**

SC, 1310 nm single mode

10 km (6.2 miles)

CFMFF1315-280 SC, 850 nm multimode

220 m (721 ft)**

SC, 1310 nm single mode

25 km (15.5 miles)

CFMFF1317-280 SC, 850 nm multimode

220 m (721 ft)**

SC, 1550 nm single mode

65 km (40.3 miles)

CFMFF1324-280 SC, 850 nm multimode

220 m (721 ft)**

SC, 1300 nm multimode

(1000Base-SX) 2 km (1.2 miles)

(62.5 / 125 mm fiber only)

CFMFF1335-280 SC, 850 nm multimode

220 m (721 ft)**

SC, 1550 nm single mode

125 km (77.5 mi)

CFMFF3535-280 SC, 1550 nm single mode

125 km (77.5 mi)

SC, 1550 nm single mode

125 km (77.5 mi)

NOTE: The SFMFF13xx-28x model is the

stand alone version of the media converter.

For more information, see the user’s guide

on-line at: www.transition.com.

Port One - Duplex Fiber Optic

1000Base-SX

Port Two - Single Mode Fiber-Optic

Single Fiber, 1000Base-LX

CFMFF13xx-28x

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Part Number

CFMFF1329-280 SC, 850 nm multimode

220 m (721 ft)**

SC, 1310 nm (TX)/1550 nm (RX)

20 km (12.4 miles)

CFMFF1329-281 SC, 850 nm multimode

220 m (721 ft)**

SC, 1550 nm (TX)/1310 nm (RX)

20 km (12.4 miles)

CFMFF1329-280 and CFMFF1329-281 are intended to be

installed in the same network where one is the local converter

and the other is the remote converter.

CFMFF1329-282 SC, 850 nm multimode

220 m (721 ft)**

SC, 1310 nm (TX)/1550 nm (RX)

40 km (24.8 miles)

CFMFF1329-283 SC, 850 nm multimode

220 m (721 ft)**

SC, 1550 nm (TX)/1310 nm (RX)

40 km (24.8 miles)

Unless otherwise indicated, the distances listed are the typical maximum cable

distance. The actual maximum cable distances are dependent upon the physical

characteristics of the network installation. TX = transmit, RX = receive.

** Minimum Cable Distance: 2 meters

Typical Maximum Cable Distance: 220 meters for 160/500MHz•Km

270 meters for 200/500MHz•Km

CFMFF1329-282 and CFMFF1329-283 are intended to be

installed in the same network where one is the local converter

and the other is the remote converter.

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge

precautions when setting the jumper, the 4-position switch, and when installing

the slide-in-module. Failure to observe this caution could result in damage to,

and subsequent failure of, the media converter.

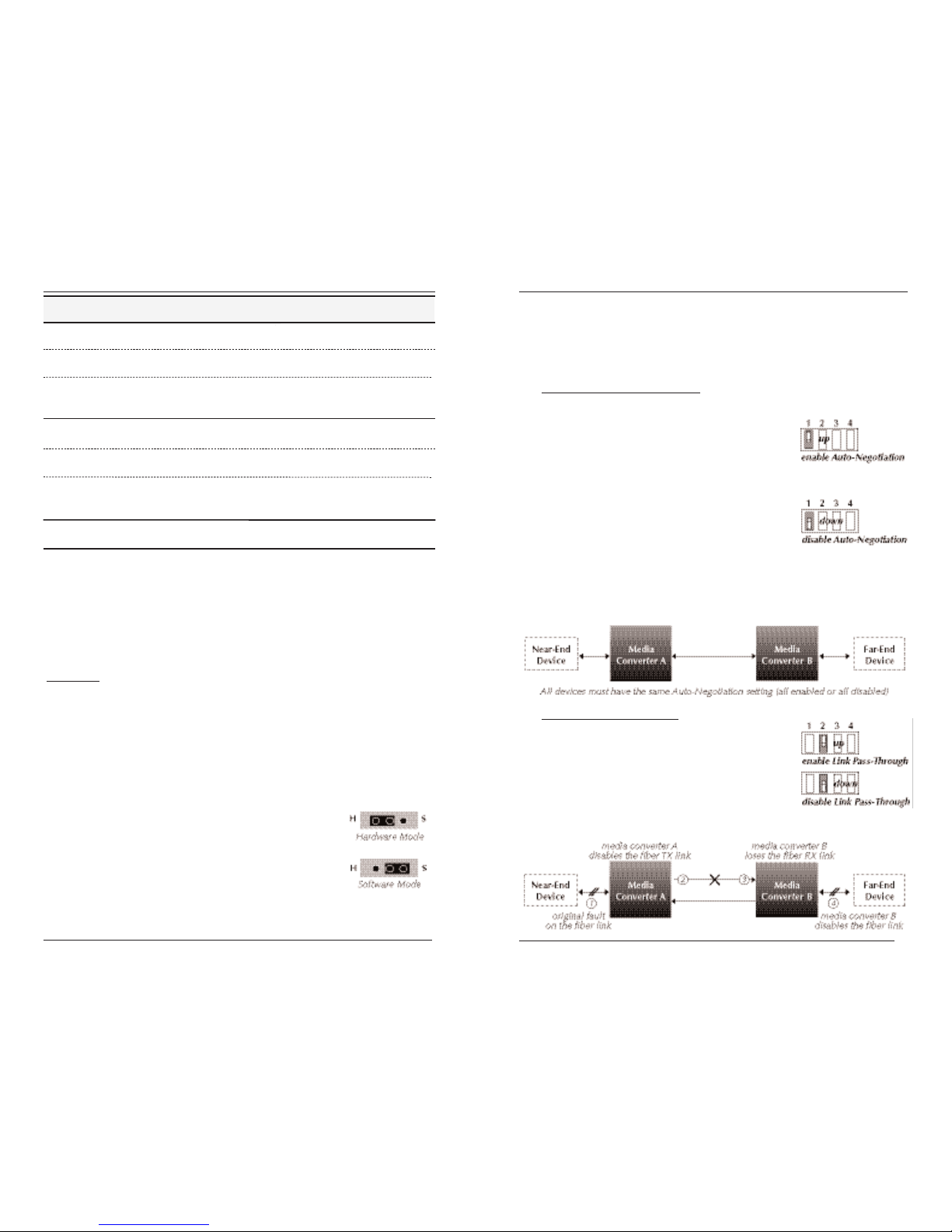

Set the Hardware/Software Jumper

• The jumper is located on the circuit board.

• Use small needle-nose pliers to set the recessed switches.

Hardware The media converter mode is determined by the

4-position switch settings (see page 4).

Software The media converter mode is determined by the

most-recently saved, on-board microprocessor

settings. (See SNMP on page 6.)

CFMFF1414-280 SC, 1310 nm single mode

10 km (6.2 miles)

SC, 1310 nm single mode

10 km (6.2 miles)

[email protected] -- Click the “Transition Now” link for a live Web chat.

Installation -- Continued

Set the 4-position switch

• The 4-position switch is located on the circuit board.

• Use a small flat-blade screwdriver to set the recessed switches.

Fiber Auto-Negotiation (Switch 1)

up = Enable fiber Auto-Negotiation for both the single mode and the

multimode ports.

When fiber Auto-Negotiation is enabled:

The pause feature can be set using switches

3 and 4. (See page 4).

down = Disable fiber Auto-Negotiation for both the single mode and the

multimode ports.

When fiber Auto-Negotiation is disabled:

Switches 3 and 4 will not function. The

media converter adopts the pause setting

from the end device at the other end of the

fiber cable.

NOTE: All devices in the network, including the end devices, must have

Auto-Negotiation enabled, or all devices must have Auto-Negotiation

disabled. Otherwise, the devices in the network will not link up.

Link Pass-Through (Switch 2)

up = Enable Link Pass-Through.

down = Disable Link Pass-Through.

The Link Pass-Through feature allows the media

converter to monitor both fiber RX (receive) ports for

loss of signal. In the event of a loss of an RX signal

on one media port, the media converter will

automatically disable the TX (transmit) signal of the

other media port, thus, “passing through” the link loss.

No Pause:

• Pause feature is disabled.

Transmit Only:

• CFMFF13xx-28x can transmit and the

link partner can receive the pause

signal.

Transmit and Receive:

• Both the CFMFF13xx-28x and the

link partner can send and receive the

pause signal.

Receive Only:

• The CFMFF13xx-28x can receive and

the link partner can transmit the

pause signal.

Installation -- Continued

Pause (Switches 3 & 4)

The pause feature can improve network performance by allowing one end of

the link to signal the other to discontinue frame transmission for a set period

of time to relieve buffer congestion.

To properly set the pause feature in the network, the link partner (i.e., the

device to which the CFMFF13xx-28x is linked) must also have comparable

pause switches. If the link partner does not have the pause feature, disable

the pause feature on the CFMFF13xx-28x media converter.

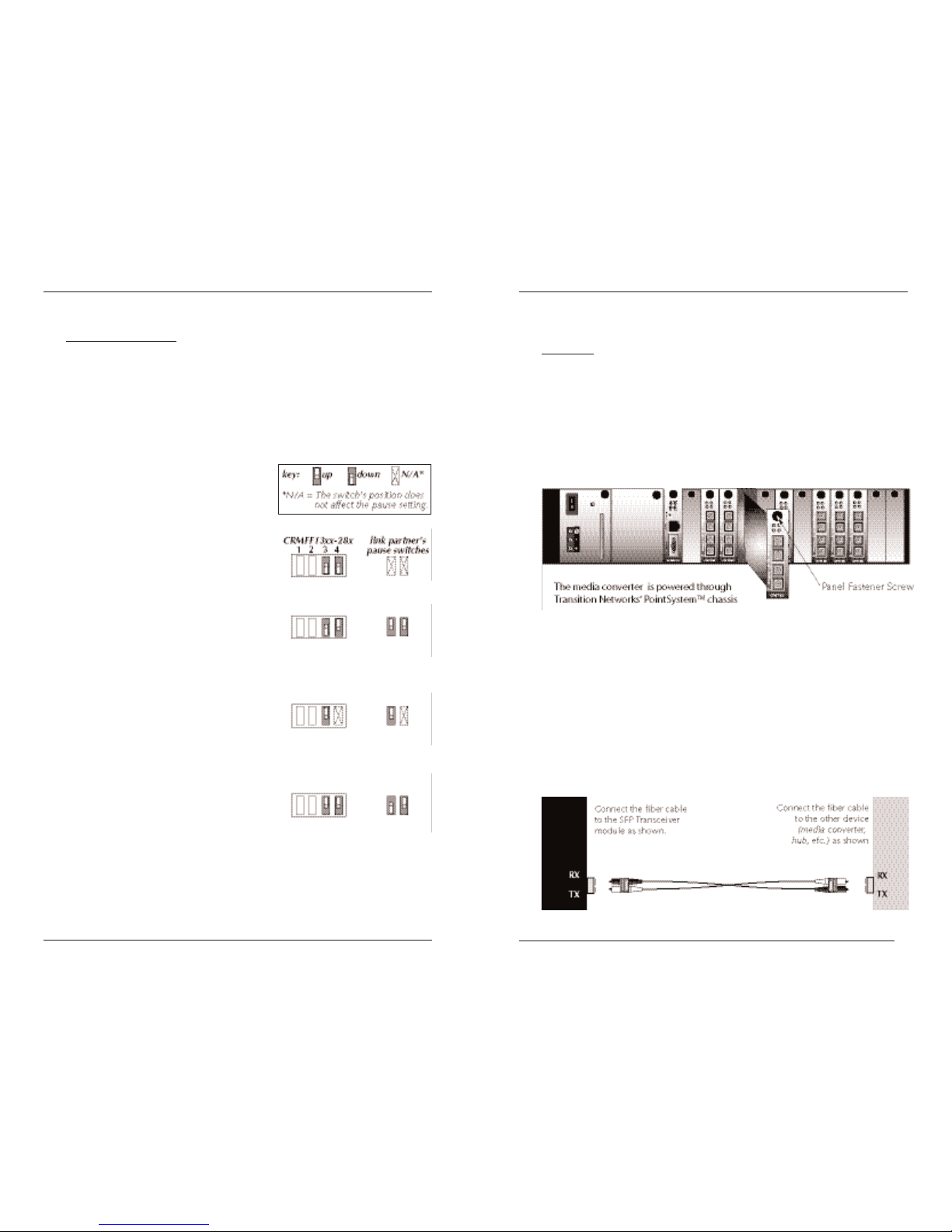

The CFMFF13xx-28x has four pause

options (listed below). To the right of

each option, a drawing shows the switch

settings for the CFMFF13xx-28x and the

link partner.

CFMFF13xx-28x

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 5

[email protected] -- Click the “Transition Now” link for a live Web chat.

Install the Fiber Cable

1. Locate or build IEEE 802.3™ compliant fiber cable with male, two-

stranded TX to RX connectors installed at both ends.

2. Connect the fiber cables to the CFMFF13xx-28x media converter as

described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter,

hub, etc.) as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Installation -- Continued

Install the CFMFF13xx-28x Slide-in-Module

CAUTION: Slots in the PointSystem™ chassis without a slide-in-module

installed MUST have a protective plate covering the empty slot for Class A

and/or Class B compliance.

The media converter slide-in-modules may be installed in any slot, in any

order. To install the CFMFF13xx-28x slide-in-module:

1. Carefully slide the slide-in-module into the installation slot, aligning the

module’s circuit board with the installation guides.

2. Ensure that the module is firmly seated inside the chassis.

3. Push in and rotate the attached panel fastener screw clockwise to secure

the module to the chassis front.

CFMFF13xx-28x

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

SNMP

Use SNMP at an attached terminal or at a remote location to monitor the

media converter by monitoring:

• Media converter power

• Single mode fiber link status

• Multimode fiber link status

• Hardware/software mode status

Also, use SNMP to enter network commands that:

• Power up/down the media converter

• Enable/disable the single mode fiber link

• Enable/disable the multimode fiber link

• Enable/disable Auto-Negotiation

• Enable/disable Link Pass-Through

• Select pause advertisements

See the on-line documentation that comes with Transition Networks

FocalPoint™ software for applicable commands and usage at

www.transition.com.

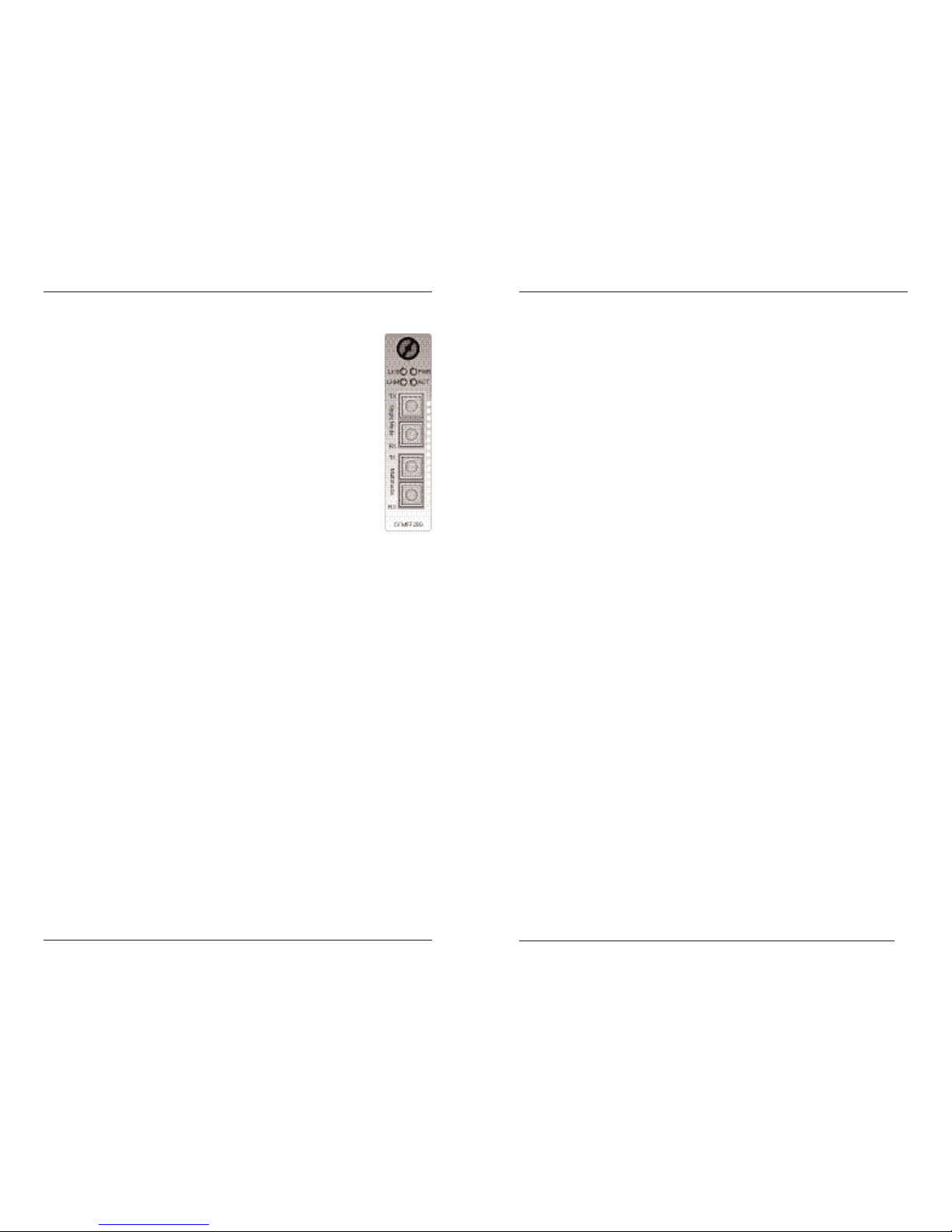

Operation

Status LEDs

Use the status LEDs to monitor the media converter operation in

the network.

PWR On = Connection to external power.

LKS On = 1000Base-LX (single mode) fiber link is up.

LKM On = 1000Base-SX (multimode) fiber link is up.

ACT Flashing = Reception of data on either fiber link.

[email protected] -- Click the “Transition Now” link for a live Web chat.

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Single Mode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

Bit error rate: <10-12

Port 1: 1300 nm multimode

Fiber-optic Transmitter Power: min: -10.0 dBm max: -4.0 dBm

Fiber-optic Receiver Sensitivity: min: -17.0 dBm max: 0.0 dBm

Link Budget: 7.0 dB

Port 2:

CFMFF1314-280 1310 nm single mode

Fiber-optic Transmitter Power: min: -13.0 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -20.0 dBm max: -3.0 dBm

Link Budget: 7.0 dB

CFMFF1315-280 1310 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -20.0 dBm max: -3.0 dBm

Link Budget: 15.0 dB

CFMFF1317-280 1550 nm single mode

Fiber-optic Transmitter Power: min: -3.0 dBm max: +2.0 dBm

Fiber-optic Receiver Sensitivity: min: - 23.0 dBm max: -3.0 dBm

Link Budget: 20.0 dB

CFMFF1324-280 1300 nm extended multimode

Fiber-optic Transmitter Power: min: -10.0 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -17.0 dBm max: -3.0 dBm

Link Budget: 7.0 db

CFMFF1329-280 1310 nm (TX) / 1550 nm (RX) single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -21.0 dBm max: -3.0 dBm

Link Budget: 13.0 dB

CFMFF1329-281 1550 nm (TX) / 1310 nm (RX) single mode

Fiber-optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -21.0 dBm max: -3.0 dBm

Link Budget: 13.0 dB

CFMFF1329-282 1310 nm (TX) / 1550 nm (RX) single mode

Fiber-optic Transmitter Power: min: -3.0 dBm max: +2.0 dBm

Fiber-optic Receiver Sensitivity: min: -23.0 dBm max: -8.0 dBm

Link Budget: 20.0 dB

CFMFF1329-283 1550 nm (TX) / 1310 nm (RX) single mode

Fiber-optic Transmitter Power: min: -3.0 dBm max: +2.0 dBm

Fiber-optic Receiver Sensitivity: min: -23.0 dBm max: -8.0 dBm

Link Budget: 20.0 dB

CFMFF1335-280 1550 nm single mode

Fiber-optic Transmitter Power: min: 0.0 dBm max: +5.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -3.0 dBm

Link Budget: 32.0 db

CFMFF13xx-28x

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Technical Specifications

For use with Transition Networks Model CFMFF13xx-28x or equivalent

Standards: IEEE 802.3™ 2000 (802.3z)

Dimensions: 3.4" x 0.86" x 5.0" (86 mm x 22mm x 127mm)

Weight 5 oz (141 g) (approximate)

Data Rate 1000 Mb/s

Delay Time 184 ns

Power Consumption 3.6 watts (typical)

Environment Tmra*: 0°C to 50°C (32°F to 122°F)

Storage Temp: -15°C to 65°C (5°F to 149°F)

Humidity: 5 to 95%, non condensing

Altitude: 0 to 10,000 feet

Warranty Lifetime

*Manufacturer’s rated ambient temperature: Tmra range for this slide-in-module

depends on the physical characteristics and the installation configuration of the

Transition Networks PointSystem™ chassis in which this slide-in-module will be

installed.

NOTE: Information in this user’s guide is subject to change. For the most up-to-

date information on the CFMFF13xx-28x media converter, view the user’s guide

on-line at: www.transition.com

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and invisible laser radiation when open. Do not stare into

beam or view directly with optical instruments.

CAUTION: Use of controls, adjustments or the performance of procedures other

than those specified herein may result in hazardous radiation exposure.

The fiber optic transmitters on this device meet Class I Laser safety requirements

per IEC-825/CDRH standards and complies with 21 CFR1040.10 and

21CFR1040.11.

Cable Specifications -- continued

CFMFF3535-280, Ports 1 & 2 1550 nm single mode

Fiber-optic Transmitter Power: min: 0.0 dBm max: +5.0 dBm

Fiber-optic Receiver Sensitivity: min: -27.0 dBm max: -3.0 dBm

Link Budget: 27.0 db

CFMFF1414-280, Port 2 1310 nm single mode

Fiber-optic Transmitter Power: min: -13.0 dBm max: -3.0 dBm

Fiber-optic Receiver Sensitivity: min: -20.0 dBm max: -3.0 dBm

Link Budget: 7.0 dB

[email protected] -- Click the “Transition Now” link for a live Web chat.

Troubleshooting

If the media converter fails, isolate and correct the fault by determining the

answers to the following questions and then taking the indicated action:

1. Is the PWR (power) LED illuminated?

• Is the media converter inserted properly into the chassis?

• Is the power cord properly installed in the chassis and at the external

power source?

• Does the external power source provide power?

• Contact Technical Support. US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Are the Auto-Negotiation switches on the network devices set

such that all are set to “enable” or all are set to “disable”?

• Set the Auto-Negotiation switches on all of the devices (including the

end devices) so that all are set to “enable” or all are set to “disable.”

(See page 3 to set the Auto-Negotiation switch on the media

converter.)

• Contact Technical Support. US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the LKS (link, single mode) LED illuminated?

• Check the single mode fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are

connected to the RX and TX ports, respectively, on the other device.

• Contact Technical Support. US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 4.

4. Is the LKM (link, multimode) LED illuminated?

• Check the multimode fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are

connected to the RX and TX ports, respectively, on the other device.

• Contact Technical Support. US/Canada: 1-800-260-1312,

International: 00-1-952-941-7600.

YES

• Proceed to step 5.

CFMFF13xx-28x

24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Troubleshooting -- Continued

5. Is the ACT (fiber activity) LED flashing?

• If there is activity on the single mode fiber link, disconnect and

reconnect the fiber cable on the single mode port to restart the

initialization process.

• If there is activity on the multimode fiber link, disconnect and

reconnect the fiber cable on the multimode port to restart the

initialization process.

• If there is no activity on either fiber link, contact Tech Support:

1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

[email protected] -- Click the “Transition Now” link for a live Web chat.

Technical Support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

6475 City West Parkway

Minneapolis, MN 55344, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

Declaration of Conformity

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 U.S.A.

Model: CFMFF13xx-28x Series Media Converters

Part Number(s): CFMFF1314-280, CFMFF1315-280, CFMFF1317-280, CFMFF1324-280,

CFMFF1335-280, CFMFF3535-280, CFMFF1329-280, CFMFF1329-281,

CFMFF1329-282, CFMFF1329-283, CFMFF1414-280

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the CFMFF13xx-28x series and CFMFF1414-280 to

which this declaration refers is in conformity with the following standards.

EN 55022:1994, A-1:1995, A-2:1997 Class A; FCC Part 15 Subpart B;

21CFR subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

November 2007_____

Stephen Anderson, Vice-President of Engineering Date

Trademark Notice

All registered trademarks and trademarks are the property of their respective owners.

No part of this work may be reproduced or used in any form or by any means - graphic,

electronic, or mechanical - without written permission from Transition Networks.

Compliance Information

CISPR22/EN55022 Class A

CE Mark

UL Listed

C-UL Listed

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference, in which case the user will be required to correct the

interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus

set out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei

Betrieb dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für

Gegenmaßnahmen verantwortlich.

Attention! Ceci est un produit de Classe A. Dans un environment domestique, ce produit

risque de créer des interférences radioélectriques, il appartiendra alors à l'utilsateur de

prende les measures spécifiques appropriées.

In accordance with European Union Directive 2002/96/EC of the European

Parliament and of the Council of 27 January 2003, Transition Networks will

accept post usage returns of this product for proper disposal. The contact

information for this activity can be found in the 'Contact Us' portion of this

document.

Printed in the U.S. A. 33298.C

CFMFF13xx-28x

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks E-CX-TBT-04 Manuel utilisateur

Transition Networks

Transition Networks SISTG10-211-LRT-B Series Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-05 Manuel utilisateur

Transition Networks

Transition Networks FBRM1XXX-1XX Manuel utilisateur

Transition Networks

Transition Networks C/E-TX-SX-02 Manuel utilisateur

Transition Networks

Transition Networks SPOEB1039-105 Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FX-05(LH) Manuel utilisateur

Transition Networks

Transition Networks SSDTF3011-110 Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-05(10x) Manuel utilisateur

Transition Networks

Transition Networks NANOMETER E-100BTX-SX-01 Manuel utilisateur

Transition Networks

Transition Networks SPOEB10 105 Series Manuel utilisateur

Transition Networks

Transition Networks C/HSTR-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks MEDIA CONVERTERS E-100BTX-FRL-01 Manuel utilisateur

Transition Networks

Transition Networks SBFTF1011-260 Manuel utilisateur

Transition Networks

Transition Networks C/T1E1-CF-01 Manuel utilisateur

Transition Networks

Transition Networks SBFTF10 1 Series Manuel utilisateur

Transition Networks

Transition Networks SGFEB10xx-12x Manuel utilisateur

Transition Networks

Transition Networks C/A-CF-02(SM) Manuel utilisateur

Transition Networks

Transition Networks M/GE-PSW-SFP-01 Manuel utilisateur

Transition Networks

Transition Networks SRS4F3111-100 Manuel utilisateur

Transition Networks

Transition Networks C/F-SM-MM-02(LH) Manuel utilisateur

Transition Networks

Transition Networks C/B-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FX-N-02 Manuel utilisateur

Transition Networks

Transition Networks E-PSW-FX-03(LH) Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
