Transition Networks CFETF1011-110 Manuel utilisateur

Installation . . . . . . . . . . . . . . . . . . . . .2

Operation . . . . . . . . . . . . . . . . . . . . .5

Cable Specifications . . . . . . . . . . . . . .7

Technical Specifications . . . . . . . . . . .9

Troubleshooting . . . . . . . . . . . . . . .10

Compliance Information . . . . . . . . .12

User’s Guide

CFETF10xx-110

Slide-in-Module Media Converter

• Fast Ethernet™

• Copper to Fiber

• 100Base-TX to 100Base-FX

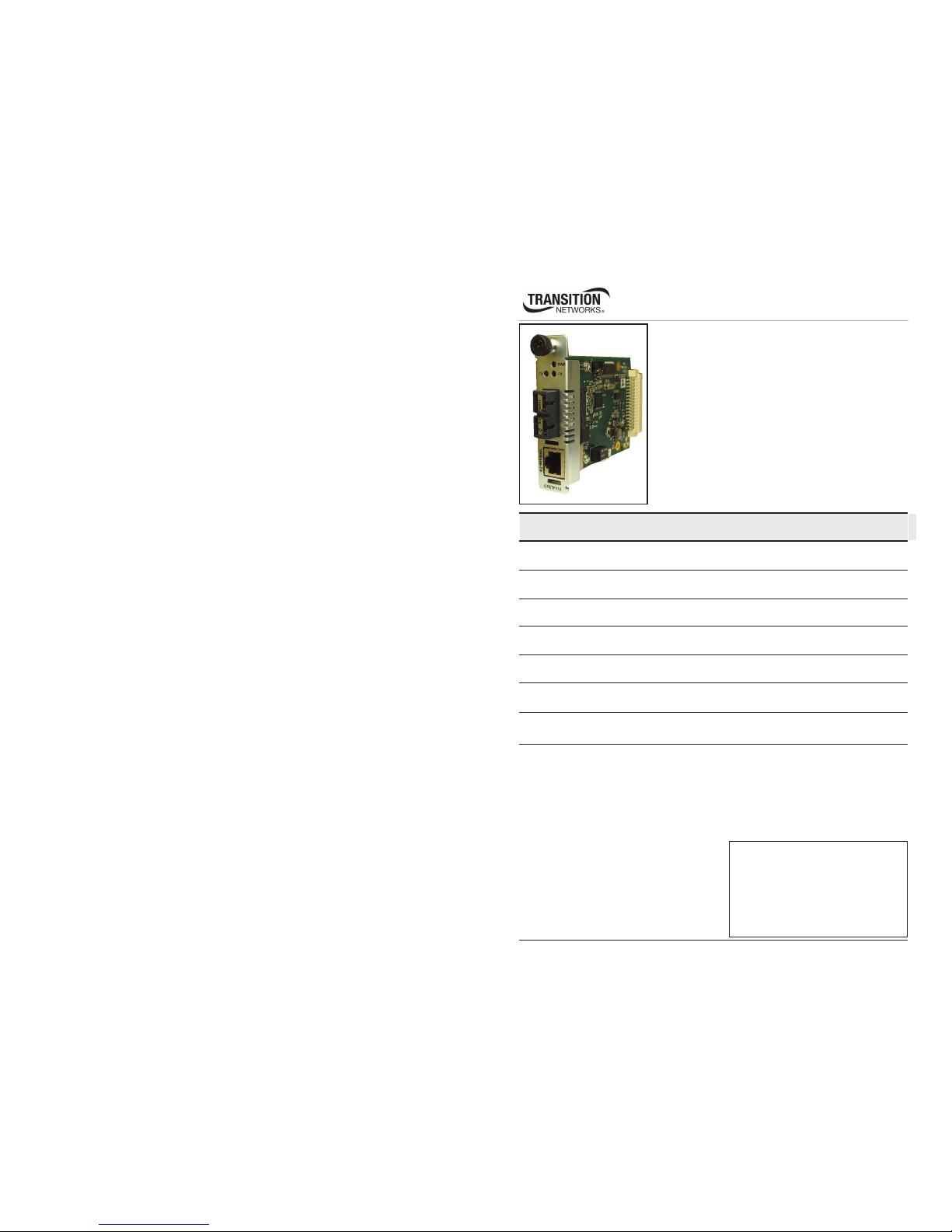

Transition Networks CFETF10xx-110 series Fast

Ethernet™ 100Base-TX to 100Base-FX media

converters (designed to be installed in a PointSystem™

chassis) connect 100Base-TX twisted-pair copper cable

to multimode or single mode 100Base-FX fiber-optic

cable.

*Typical maximum cable distance. Actual distance is dependent upon the physical

characteristics of the network installation.

**CFETF1040-110 supports 100Base-FX Modules only.

Part Number Port One - Copper

100Base-TX

Port Two - Fiber-Optic

100Base-FX

CFETF1011-110 RJ-45

100 m (328 ft)*

ST, 1310 nm multimode

2 km (1.2 miles)*

CFETF1013-110 RJ-45

100 m (328 ft)*

SC, 1310 nm multimode

2 km (1.2 miles)*

CFETF1014-110 RJ-45

100 m (328 ft)*

SC, 1310 nm single mode

20 km (12.4 miles)*

CFETF1015-110 RJ-45

100 m (328 ft)*

SC, 1310 nm single mode

50 km (24.9 miles)*

CFETF1016-110 RJ-45

100 m (328 ft)*

SC, 1310 nm single mode

60 km (32.3 miles)*

CFETF1017-110 RJ-45

100 m (328 ft)*

SC, 1550 nm single mode

80 km (49.7 miles)*

CFETF1040-110** RJ-45

100 m (328 ft)*

Empty SFP Slot

CFETF10xx-110

224-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge precautions

when setting the 4-position switch and the jumper and when installing the slide-in-

module media converter. Failure to observe this caution could result in damage to, and

subsequent failure of, the media converter.

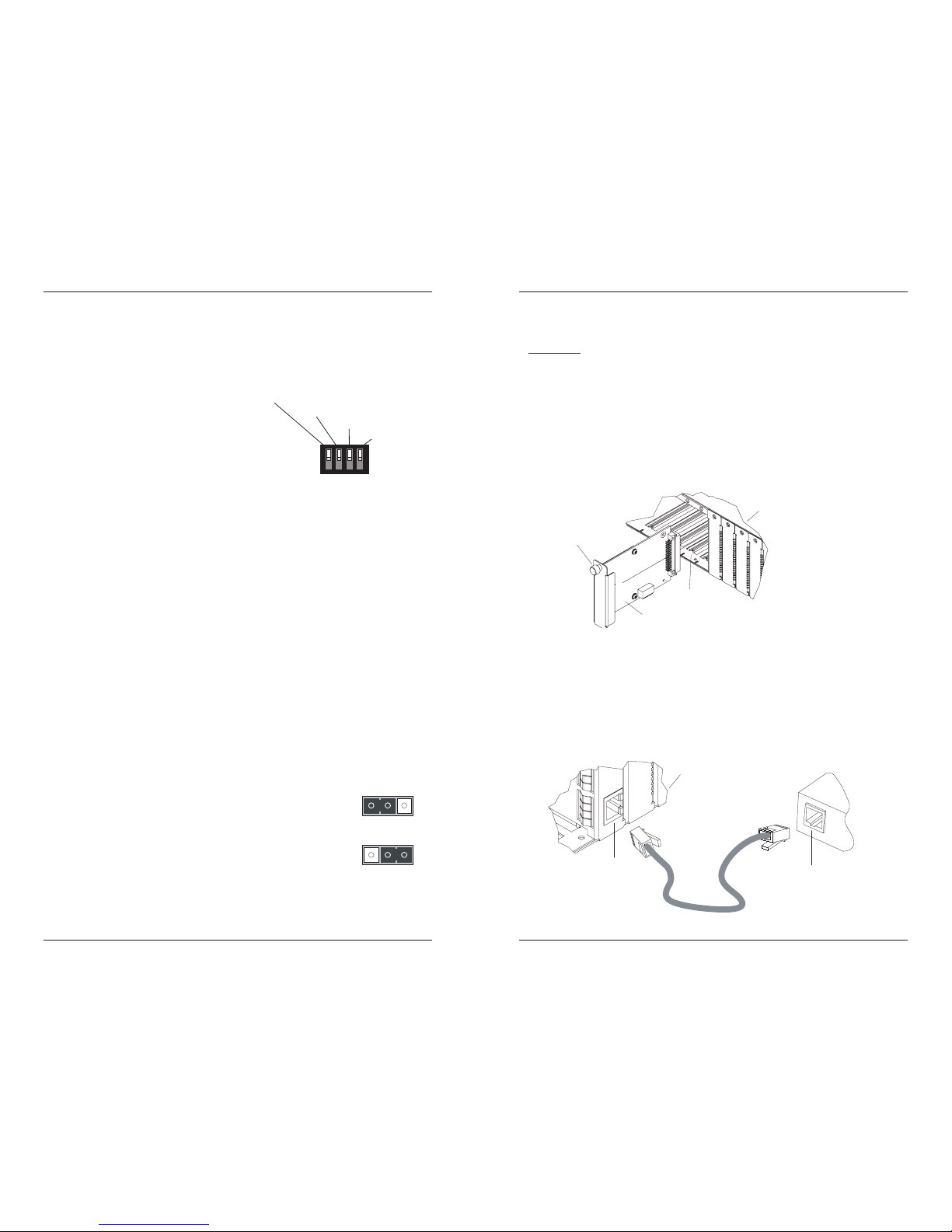

Set the 4-Position Switch

• The 4-position switch is located on

the circuit board.

• Use a small flat-blade screwdriver or

a similar device to set the recessed

switches (see the drawing to the

right).

1. Auto-Negotiation™

up Advertises 100 Mb/s full-duplex and half-duplex (only during Auto-

Negotiation). (See page 5.)

down Disable Auto-Negotiation.

2. Link Pass-Through

up Enable Link Pass-Through. (See page 6.)

down Disable Link Pass-Through.

3. AutoCross™

up Enable AutoCross™ - The media converter connects automatically to

either straight-through or crossover twisted-pair copper cable. (See

page 5.)

down Disable AutoCross™ - Either straight-through or crossover twisted-pair

copper cable must be installed, according to the site requirements.

4. (not used)

Set the Hardware/Software Jumper

The hardware/software jumper is located on the media converter circuit board. Use

small needle-nosed pliers or a similar device to set the jumper. Refer to the

drawings below when setting the media converter for hardware or software mode.

Hardware The media converter mode is determined by the

4-position switch settings listed above.

Software The media converter mode is determined by the

most-recently saved, on-board microprocessor

settings.

Hardware Mode

Software Mode

Not Used

Link Pass-Through (up=Enable)

AutoCross (up=Enabl

Auto-Negotiation (up=Enable)

1234

[email protected] -- Click the “Transition Now” link for a live Web chat. 3

Installation -- Continued

Install the Slide-In-Module

CAUTION: Wear a grounding device and observe electrostatic discharge precautions

when installing the CFETF10xx-110 slide-in-module media converter. Failure to

observe this caution could result in damage to, and subsequent failure of, the media

converter.

1. Carefully slide the slide-in-module into the installation slot, aligning the

module with the installation guides.

2. Ensure that the module is firmly seated inside the chassis.

3. Push in and rotate the attached panel fastener screw clockwise to secure the

module to the chassis front.

Connect the Twisted-Pair Copper Cable

1. Locate or build 100Base-TX compliant cables, with male RJ-45 connectors

installed at both ends.

2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the

CFETF10xx-110 media converter.

3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on

the other device (switch, workstation, etc.).

Media Converter

Point System Chassis

Panel Fastener

Slot

RJ-45 Port

Media Converter RJ-45 Port

On other device

(workstation, switch, etc.)

Point System Chassis

CFETF10xx-110

424-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation -- Continued

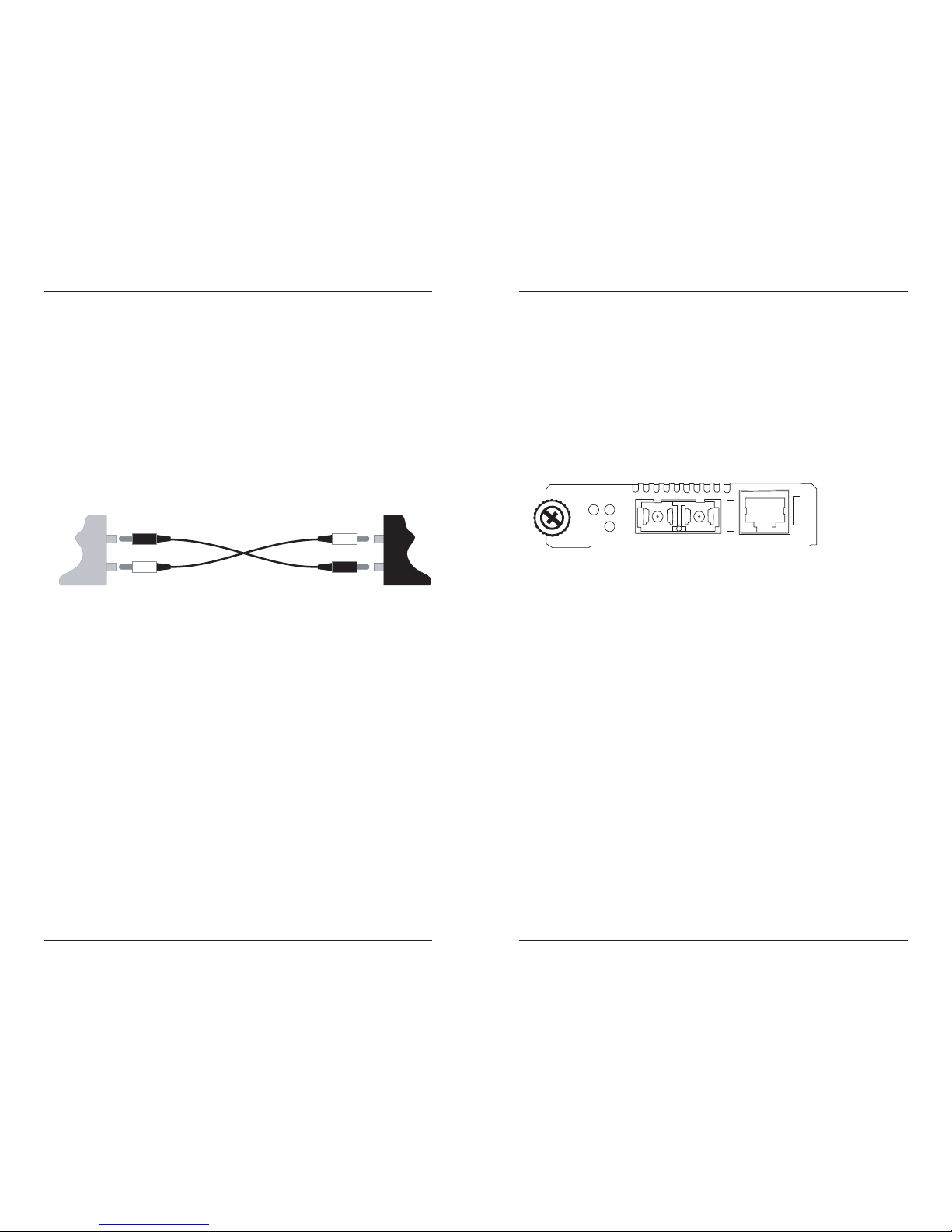

Connect the Fiber Cable

1. Locate or build 100Base-FX compliant fiber cable with male, two-stranded TX

to RX connectors installed at both ends.

2. Connect the fiber cables to the CFETF10xx-110 media converter as described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter, hub,

etc.) as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Power the Media Converter

The slide-in-module media converter is powered through the Transition Networks

PointSystem™ chassis.

TX TX

Device Device

[email protected] -- Click the “Transition Now” link for a live Web chat. 5

Operation

Status LEDs

The CFETF10xx-110 media converter is designed to operate without user

intervention. Use the status LEDs to monitor the media converter operation in the

network.

PWR On = Connection to external AC power.

FX On = A link has been established for the fiber connection.

Flashing = The fiber connection is receiving data.

TX On = A link has been established for the copper connection.

Flashing = The copper connection is receiving data.

Product Features

Auto-Negotiation™

The Auto-Negotiation feature allows the CFETF10xx-110 media converter to

automatically configure itself to achieve the best possible mode of operation over a

link. The media converter broadcasts its speed (100 Mb/s) and duplex capabilities

(full or half) to the other devices and negotiates the best mode of operation. Auto-

Negotiation allows quick and easy installation because the optimal link is

established automatically. No user intervention is required to determine the best

mode of operation.

A scenario where the media converter is linked to a non-negotiating device is a case

where the user may want to disable Auto-Negotiation. In this instance, the mode of

operation will drop to the least common denominator between the two devices (e.g.

100 Mb/s, half-duplex). Disabling this feature gives the user the ability to force the

connection to the desired speed and duplex mode of operation.

AutoCross™

When the AutoCross feature is activated, it allows either straight-through (MDI) or

crossover (MDI-X) copper cables to be used when connecting to 100Base-TX

devices. AutoCross determines the characteristics of the connection and

automatically configures the unit to link up, regardless if the copper cable is MDI or

MDI-X configuration.

Note: Factory default is “enable AutoCross.” Transition networks recommends

leaving the device in the “enable” mode.

100Base-T

100Base-FX

FXTX

PWR

CFETF

CFETF10xx-110

624-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Operation -- Continued

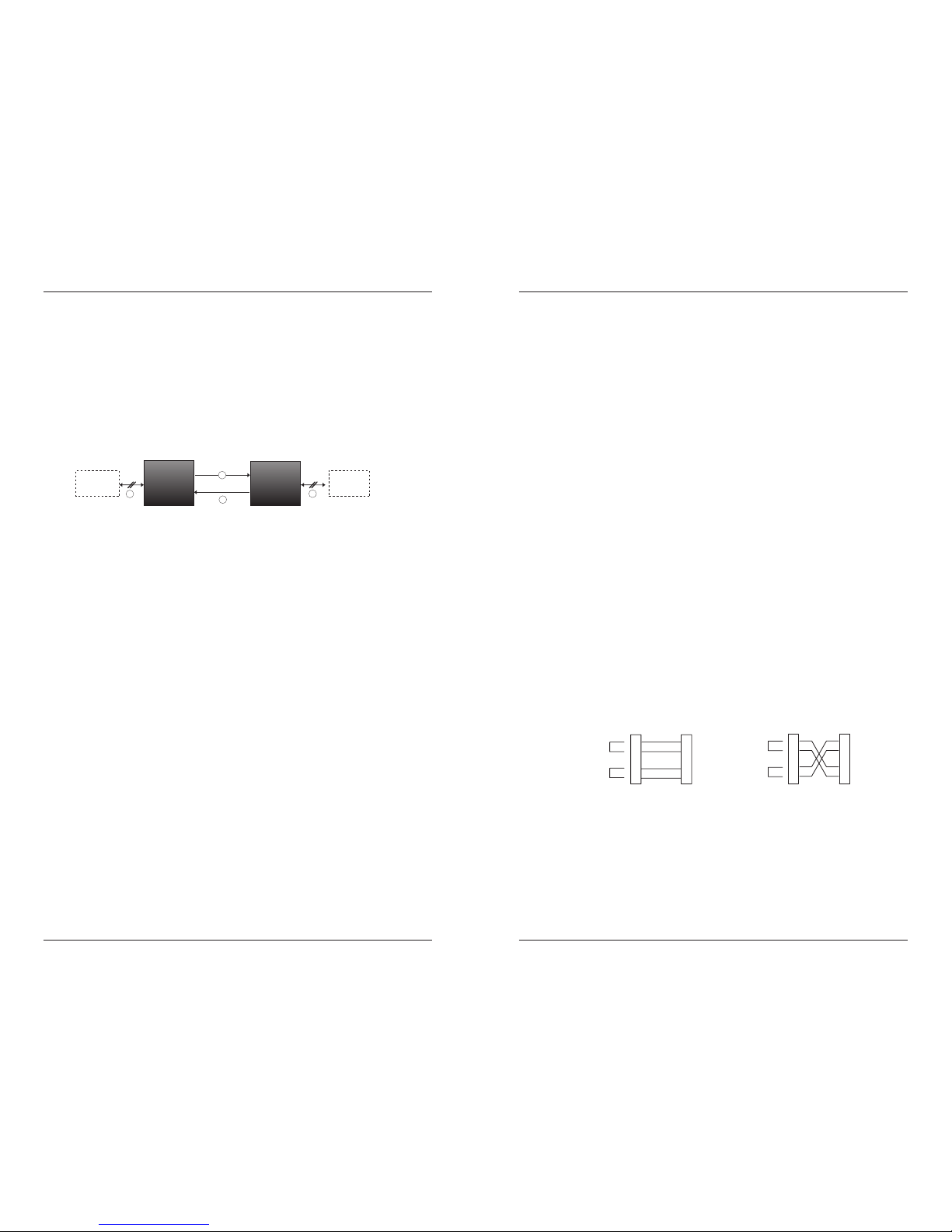

Link Pass-Through

When the Link Pass-Through feature is activated (see page 2), the media converter

monitors both the fiber and copper RX (receive) ports for loss of signal. In the event

of a loss of an RX signal (1), the media converter will automatically disable the TX

(transmit) signal (2), thus, “passing through” the link loss (3). The far-end device is

automatically notified of the link loss (4), which prevents the loss of valuable data

unknowingly transmitted over an invalid link.

Full-Duplex Network

In a full-duplex network, maximum cable lengths are determined by the type of cables

that are used. See page 1 (front cover) for the cable specifications for the different

CFETF10xx-110 models.

The 512-Bit Rule does not apply in a full-duplex network.

Half-Duplex Network (512-Bit Rule)

In a half-duplex network, the maximum cable lengths are determined by the round trip

delay limitations of each Fast Ethernet™ collision domain. (A collision domain is the

longest path between any two terminal devices, e.g. a terminal, switch, or router.)

The 512-Bit Rule determines the maximum length of cable permitted by calculating

the round-trip delay in bit-times (BT) of a particular collision domain. If the result is

less than or equal to 512 BT, the path is good.

For more information on the 512-Bit Rule, see the white paper titled “Collision

Domains” on the Transition Networks website at: www.transition.com.

Local

Media

Converter

Remote

Media

Converter

Near-End

Device Far-End

Device

original fault on the

thernet copper link remote converter disabl

the Ethernet copper lin

local converter sends a

loss signal over the fiber link

fiber link is still valid

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

Cable Specifications

Copper Cable

Category 5:

Gauge 24 to 22 AWG

Attenuation 22.0 dB /100m @ 100 MHz

Maximum Cable Distance 100 meters

• Straight-through (MDI) or crossover (MDI-X) twisted-pair cable may be used.

• Shielded (STP) or unshielded (UTP) twisted-pair cable may be used.

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet™ network .

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

• Do not use flat or silver satin wire.

Fiber Cable

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Bit Error Rate: <10-9

Single mode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

Twisted Pair #1

Twisted Pair #2

Straight-Through Cable Crossover Cable

Twisted Pair #1

Twisted Pair #2

Operation -- Continued

SNMP

See the on-line documentation that comes with Transition Networks FocalPoint™

software for applicable commands and usage.

Use SNMP at an attached terminal or at a remote location to monitor the media

converter by monitoring:

•Media converter power

• Copper link and fiber link status

• Hardware switch settings

• Fault condition

Also, use SNMP to enter network commands that:

• Enable/disable full-/ half-duplex

• Enable/disable Link Pass-Through (LPT)

• Power down the media converter

CFETF10xx-110

824-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Cable Specifications -- Continued

CFETF1011-110 1310 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

CFETF1013-110 1310 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm

Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm

Link Budget: 11.0 dB

CFETF1014-110 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -31.0 dBm max: -8.0 dBm

Link Budget: 16.0 dB

CFETF1015-110 1310 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: -2.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

CFETF1016-110 1310 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

CFETF1017-110 1550 nm single mode

Fiber-optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm

Link Budget: 29.0 dB

The fiber optic transmitters on this device meet Class I Laser safety requirements per

IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11.

[email protected] -- Click the “Transition Now” link for a live Web chat. 9

Technical Specifications

For use with Transition Networks Model CFETF10xx-110 or equivalent.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

Standards IEEE 802.3™

Data Rate 100 Mb/s

Dimensions 3.4" x 5.0" x 0.87" (86 x 182 x 22 mm)

Weight 3 oz (91 g) (approximate)

Power Consumption 3.5 watts, 200 mA @ 13.9 VDC

MTBF** 406,000 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

1,593,000 hours (Bellcore7 V5.0)

Environment Tmra*: 0 to 60°C (32 to 140°F )

Storage Temp: -20 to 85°C (-4 to 185°F )

Humidity 5 to 95%, non condensing

Altitude 0 to 10,000 feet

Warranty Lifetime

*Manufacturer’s rated ambient temperature: Tmra range for this slide-in-module

depends on the physical characteristics and the installation configuration of the

Transition Networks PointSystem™ chassis in which this slide-in-module will be

installed.

**MTBF is estimated using the predictability method. This method is based on MIL-

217F and Bellcore standards at 40°C ambient temperature, typical enclosure heat rise

of 10°C, and nominal operating conditions and parameters. Installation and

configuration specific MTBF estimates are available upon request. Contact Technical

Support.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and invisible laser radiation when open. Do not stare into the

beam or view directly with optical instruments.

CAUTION: Use of controls, adjustments or the performance of procedures other than

those specified herein may result in hazardous radiation exposure.

CAUTION: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232,

RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra-

building (inside plant) link segments that are not subject to lightening transients or

power faults. Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB,

RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to inter-

building (outside plant) link segments that are subject to lightening transients or power

faults.

The information in this user’s guide is subject to change. For the most up-to-date

information on the CFETF10xx-110 media converter, view the user’s guide on-line at:

www.transition.com.

CFETF10xx-110

10 24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Troubleshooting

If the media converter fails, isolate and correct the failure by determining the answers

to the following questions and then taking the indicated action:

1. Is the PWR LED illuminated?

• Is the media converter slide-in-module installed properly in the chassis?

• Is the power cord properly installed in the chassis and at the external

power source?

• Does the external power source provide power?

• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).

YES

• Proceed to step 2.

2. Is the TX LED illuminated?

• Check the twisted-pair cables for proper connection.

• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).

YES

• Proceed to step 3.

3. Is the FX LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are connected to

the RX and TX ports, respectively, on the other device.

• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).

YES

• Proceed to step 4.

4. Is the TX LED flashing?

• If there is no activity on the 100Base-TX port, proceed to step 5.

• If there is activity on the 100Base-TX port, disconnect and reconnect the

100Base-TX cable to restart the initialization process.

• Restart the workstation to restart the initialization process.

• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).

YES

• Proceed to step 5.

5. Is the FX LED flashing?

• If there is no activity on the 100Base-FX port, continue below

• If there is activity on the 100Base-FX port, disconnect and reconnect the

100Base-FX cable to restart the initialization process.

• Verify that the TX and RX cables on the media converter are connected to

the RX and TX ports, respectively, on the other device.

• Restart the workstation to restart the initialization process.

• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).

YES

• Contact Technical Support: 1-800-260-1312 (Int’l: 00-1-952-7600).

[email protected] -- Click the “Transition Now” link for a live Web chat. 11

Technical Support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

10900 Red Circle Drive

Minnetonka MN 55343, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

Declaration of Conformity

Name of Mfg: Transition Networks

10900 Red Circle Drive, Minnetonka MN 55343, U.S.A.

Model: CFETF10xx-110 Series media converters

Part Number(s): CFETF1011-110, CFETF1013-110, CFETF1014-110, CFETF1015-110,

CFETF1016-110, CFETF1017-110, CFETF1040-110

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the CFETF10xx-110 to which this declaration refers is in

conformity with the following standards.

CISPR 22:1993; EN 55022:1994+A1: 1995+A2:1997, Class A; EN 55024:1998; FCC Part 15

Subpart B; EN 61000-3-2:1995+A14:2000; EN 61000-3-3: 199521 CFR subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s)

and Standard(s).

January, 2009____

Stephen Anderson, Vice-President of Engineering Date

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

graphic, electronic, or mechanical - without written permission from Transition Networks.

Printed in the U.S.A.

Compliance Information

CISPR22/EN55022 Class A + EN55024

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference, in which

case the user will be required to correct the interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out

on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables

aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage

radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei

Betrieb dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für

Gegenmaßnahmen verantwortlich.

Attention! Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque

de créer des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures

spécifiques appropriées.

33405.A

In accordance with European Union Directive 2002/96/EC of the European Parliament

and of the Council of 27 January 2003, Transition Networks will accept post usage

returns of this product for proper disposal. The contact information for this activity can

be found in the 'Contact Us' portion of this document.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks SGFEB10 Series Manuel utilisateur

Transition Networks

Transition Networks Milan Raven Series Manuel utilisateur

Transition Networks

Transition Networks M/GE-ISW-SFP-01-PD Manuel utilisateur

Transition Networks

Transition Networks CPSVT26XX Manuel utilisateur

Transition Networks

Transition Networks CFETF1011-205 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-N-02 Manuel utilisateur

Transition Networks

Transition Networks J/FE-CF-04 SMLC Manuel utilisateur

Transition Networks

Transition Networks SCSCF3011-100 Manuel utilisateur

Transition Networks

Transition Networks SFMFF4040-100 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-1007 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-03(L) Manuel utilisateur

Transition Networks

Transition Networks F-xM-MM-05 Manuel utilisateur

Transition Networks

Transition Networks SPOEB1011-100 Manuel utilisateur

Transition Networks

Transition Networks CBFTF1011-155 Manuel utilisateur

Transition Networks

Transition Networks CFMFF4040-100 Manuel utilisateur

Transition Networks

Transition Networks CBFTF1011-110 Manuel utilisateur

Transition Networks

Transition Networks CGETF1013-110 Manuel utilisateur

Transition Networks

Transition Networks CCSF30XX-100 Manuel utilisateur

Transition Networks

Transition Networks SFEPE1011-100 Manuel utilisateur

Transition Networks

Transition Networks C4TEF10XX-10X Manuel utilisateur

Transition Networks

Transition Networks J/FE-CF-03(LH) Manuel utilisateur

Transition Networks

Transition Networks M/GE-xSW-SFP-01-xx-U Series Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FRL-03 Manuel utilisateur

Transition Networks

Transition Networks NANOMETER E-100BTX-SX-01 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
