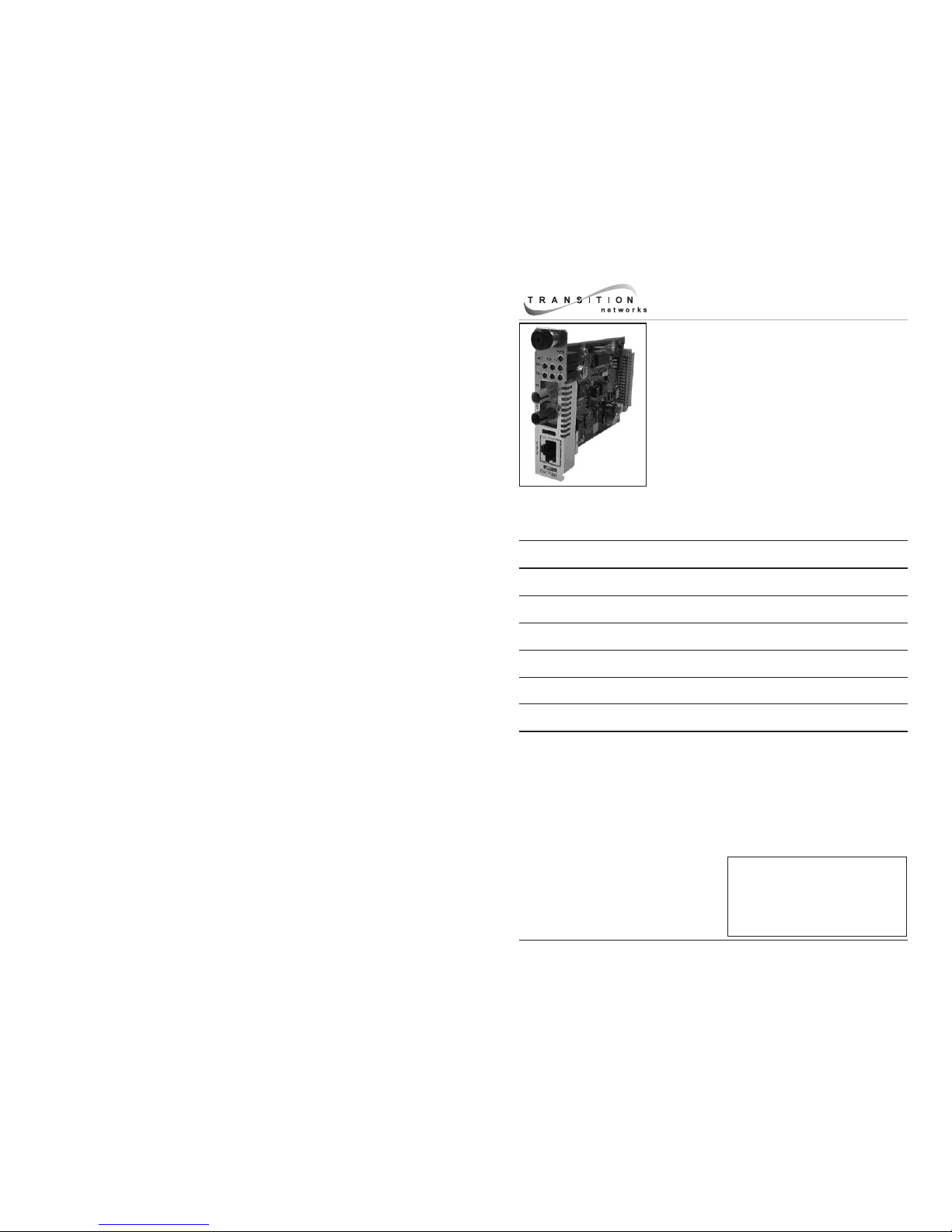

Transition Networks CSEFE1012-100 Manuel utilisateur

User’s Guide

CSEFE10xx-10x

Slide-in-Module Media Converter

• Switchable Ethernet and Fast Ethernet

• 10 Mb/s Copper to Fiber

• 100 Mb/s Copper to Fiber

Transition Networks CSEFE10xx-10x series Ethernet /

Fast Ethernet media converter is designed to be

installed in a Transition Networks PointSystem™

chassis and is a 10Mbps or 100Mbps switch-selectable

media converter.

Both the copper and fiber links operate at the same speed setting via a hard set with

a dip switch, so the media converter operates at either 10 Mb/s copper to fiber or

100 Mb/s copper to fiber.

* Typical maximum cable distance.

Actual distance is dependent upon the

physical characteristics of the network.

(TX) = transmit, (RX) = receive

The CSEFE10xx-10x media converter is designed to be installed in pairs, where

one is the local media converter and the other is the remote. For example, a local

CSEFE1011-100 converter is connected, via fiber, to a remote CSEFE1011-100

converter.

For a single fiber network, a local CSEFE1029-100 is connected, via fiber, to a

remote CSEFE1029-101 converter.

Installation . . . . . . . . . . . . . . . . . .2

Operation . . . . . . . . . . . . . . . . . . .5

Cable Specifications . . . . . . . . . . .6

Technical Specifications . . . . . . . .8

Troubleshooting . . . . . . . . . . . . . .9

Compliance Information . . . . . . .12

Part Number Port One - Twisted-Pair

Copper

Port Two - Fiber Optic

CSEFE1012-100 RJ-45, 100 m (328 ft)* ST, 1310 nm single mode

duplex fiber, 20 km (12.4 miles)*

CSEFE1014-100 RJ-45, 100 m (328 ft)* SC, 1310 nm single mode

duplex fiber, 20 km (12.4 miles)*

CSEFE1015-100 RJ-45, 100 m (328 ft)* SC, 1310 nm single mode

duplex fiber, 40 km (24.8 miles)*

CSEFE1022-100 RJ-45, 100 m (328 ft)* ST, 1310 nm single mode

duplex fiber, 40 km (24.8 miles)*

CSEFE1029-100 RJ-45, 100 m (328 ft)* SC, 1310 mn (TX)/1550 nm (RX)

single fiber, 20 km (12.4 miles)*

CSEFE1029-101 RJ-45, 100 m (328 ft)* SC, 1550 mn (TX)/1310 nm (RX)

single fiber, 20 km (12.4 miles)*

CSEFE10xx-10x

24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation

CAUTION: Wear a grounding device and observe electrostatic discharge

precautions when setting the jumper or when installing the media converter.

Failure to observe this caution could result in damage to, and subsequent

failure of, the media converter.

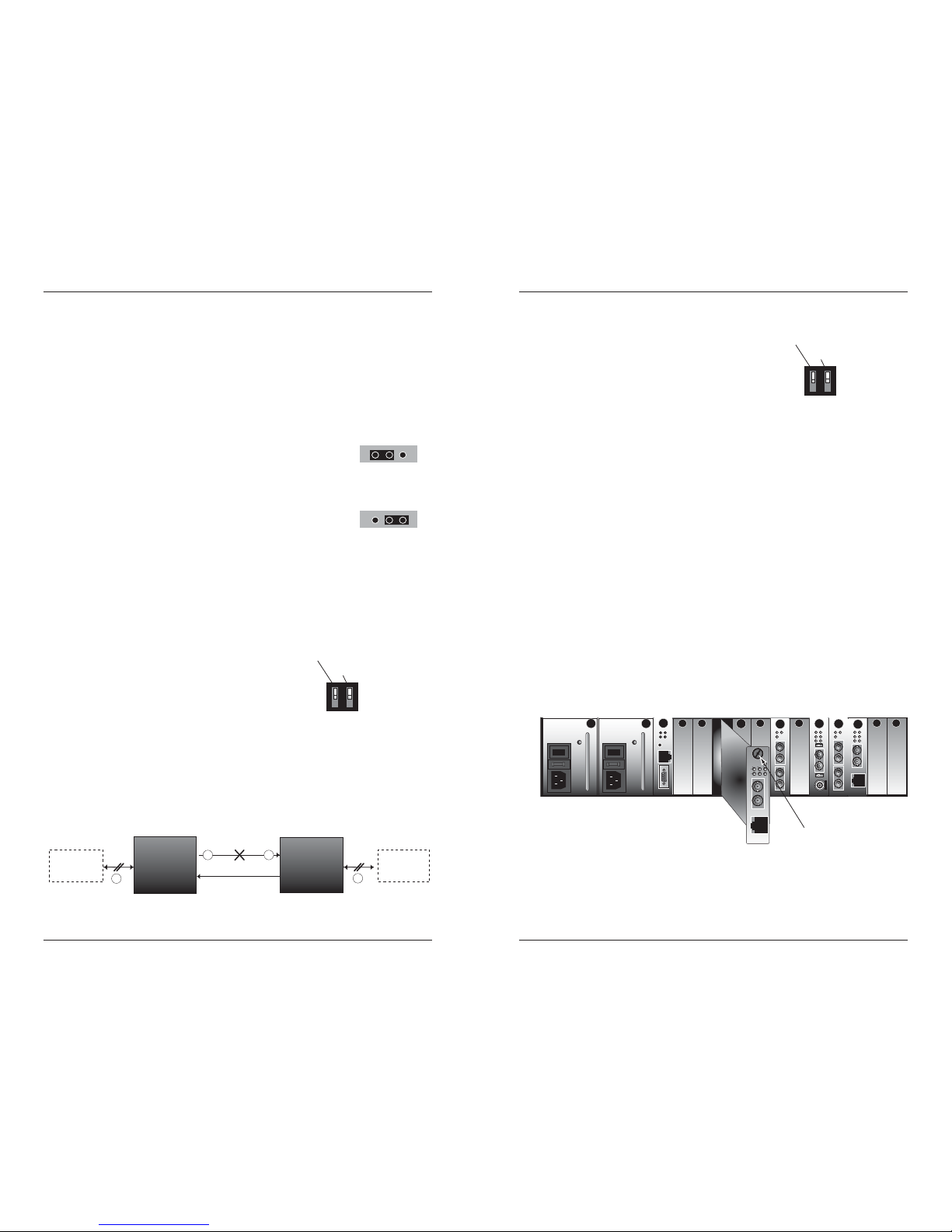

Set the Hardware / Software Jumper

• The hardware/software jumper (J2) is located on

the circuit board.

• Use small needle-nose pliers to move the jumper

to the desired position.

Hardware The media converter mode is determined by

the switch settings (see below).

Software The media converter mode is determined by

the most-recently saved, on-board

microprocessor settings.

software mode

hardware mode

The Link Pass-Through and speed switches are located on the side of the

media converter. Use a small screwdriver to set the recessed switches.

Set Link Pass-Through (switch 1)

Switch 1 sets the Link Pass-Through feature:

up = Enable Link Pass-Through.

down = Disable Link Pass-Through.

Link Pass-Through is a troubleshooting feature that allows the media converter

to monitor both the fiber and copper RX (receive) ports for loss of signal. In

the event of a loss of an RX signal on one media port, the media converter will

automatically disable the TX (transmit) signal of the other media port, thus,

“passing through” the link loss. This feature prevents the loss of valuable data

unknowingly transmitted over an invalid link.

Speed: up = 100 Mb/s

Link Pass-Through: up = Enable

1 2

Media

Converter A

Media

Converter B

Near-End

Device

Far-End

Device

original fault

on the copper link media converter B

disables the copper lin

media converter A

disables the fiber TX link

media converter B

loses the fiber RX link

[email protected] -- Click the “Transition Now” link for a live Web chat 3

Install the Slide-In-Module

CAUTION: Slots in the PointSystem™ chassis without a slide-in-module

installed MUST have a protective plate covering the empty slot for Class A

and/or Class B compliance.

To install the CSEFE10xx-10x media converter slide-in-module:

1. Locate an empty installation slot on the PointSystem™ chassis.

2. Carefully slide the slide-in-module into the installation slot, aligning the

module with the installation guides.

3. Ensure that the module is firmly seated against the back of the chassis.

4. Push in and rotate the panel fastener screw (attached to the slide-in-

module) to secure the module to the chassis front.

CFMFF100 CFMFF100

CETCF100 CFETF100

CFMFF100

SPD PWR

FRX

CRX

FLNK

CLNK

100BASE-TX

100BASE-FX

LinkAlert

050½

LA PWR

RXF

RXC

LNK

COL

LKS

PWR

LKM

10BASE-2

10BASE-FL

LKS

PWR

LKM

LKS

PWR

LKM

Multimode

Singlemode

Multimode

Singlemode

Multimode

Singlemode

TERM

INIT

LNK

PWR

CPSMM120

SERIAL

10BASE-T

PWR

100ACT

panel fastener screw

Power the Media Converter

The CSEFE10xx-10x slide-in-module is powered through the Transition

Networks PointSystem™ chassis.

Installation -- Continued

Set the Speed (switch 2)

Switch 2 sets the speed for both the twisted-pair

copper and fiber links:

up = copper and fiber links are at 100Mb/s.

down = copper and fiber links are at 10 Mb/s.

NOTE: The CSEFE10xx-10x media converters are fully compliant with

10Base-T, 100Base-TX, and 100Base-FX standards and, therefore, can be

connected to any compliant 10Base-T, 100Base-TX, and 100Base-FX devices.

The CSEFE10xx-10x media converters are NOT 10Base-FL compliant and,

therefore, must be connected to another CSEFE10xx-10x media converter in a

10Mb/s network.

Speed: up = 100 Mb/s

Link Pass-Through: up = Enable

1 2

CSEFE10xx-10x

24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Installation -- Continued

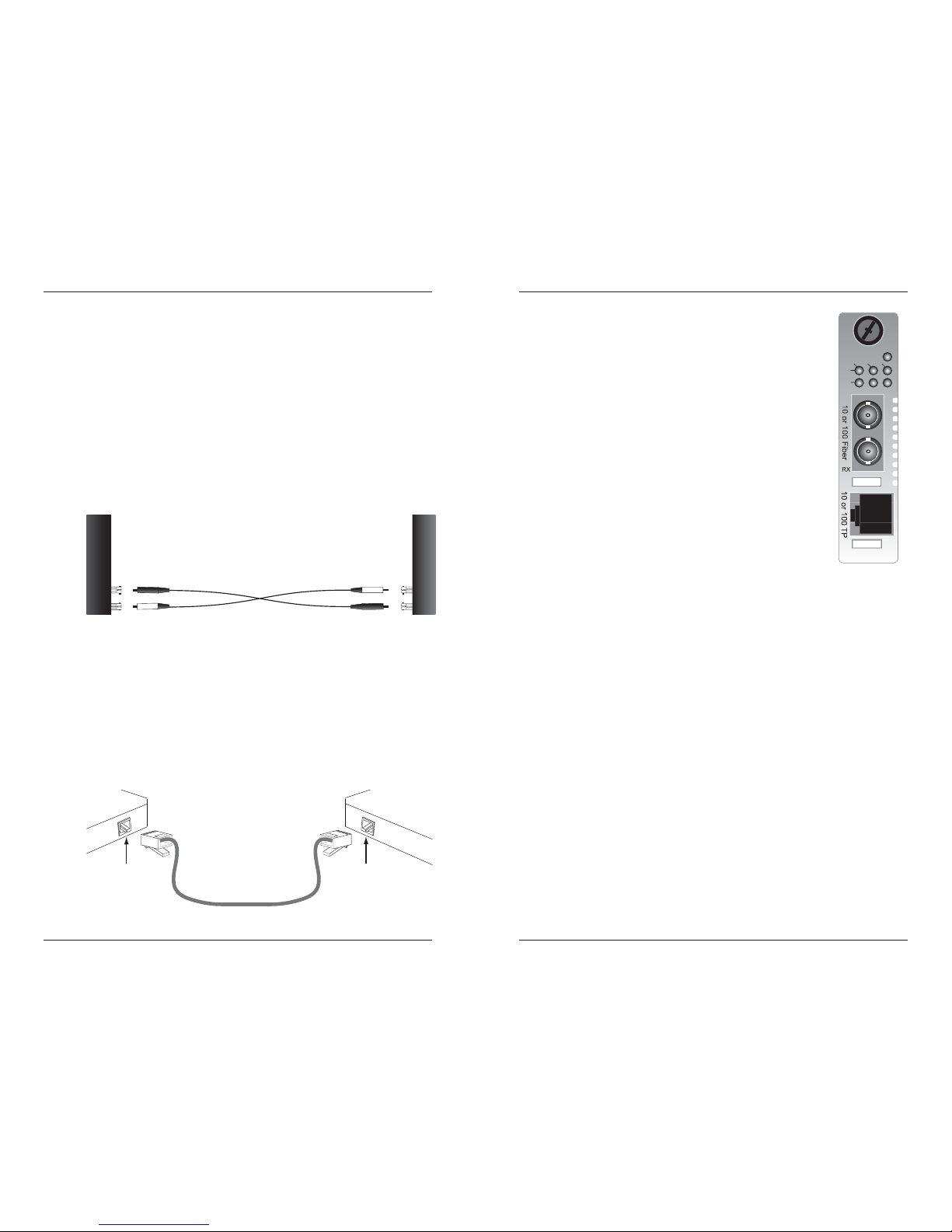

Install the Fiber Cable

The CSEFE10xx-10x is designed to be installed in pairs over the fiber link,

where one is the local media converter and the other is the remote.

1. Locate or build fiber-optic cable with male, two-stranded TX to RX

connectors installed at both ends.

2. Connect the fiber cables to the local CSEFE10xx-10x media converter as

described:

• Connect the male TX cable connector the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the remote CSEFE10xx-10x media converter

as described:

• Connect the male TX cable connector the female RX port.

• Connect the male RX cable connector to the female TX port.

Connect the fiber cable

to the local media

converter as shown.

Connect the fiber cable

to the remote media

converter as shown

Install the Copper Cable

NOTE: The MDI (straight-through) or MDI-X (crossover) cable connection is

configured automatically, according to the network conditions.

1. Locate or build 10/100Base-TX copper cables with male, RJ-45

connectors installed at both ends.

2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on

the CSEFE10xx-10x media converter.

3. Connect the RJ-45 connector at the other end of the cable to the RJ-45

port on the other device (switch, workstation, etc.).

RJ-45 port

on the other device

(switch, work station, etc.)

RJ-45 port

on the media

converter

[email protected] -- Click the “Transition Now” link for a live Web chat 5

AutoCross™

The AutoCross feature allows either straight-through (MDI) or crossover (MDI-X)

cables to be used when connecting to devices, such as hubs, transceivers, or

network interface cards (NICs). AutoCross determines the characteristics of the

cable connection and automatically configures the unit to link up, regardless of

the cable configuration.

NOTE: The CSEFE10xx-10x series media converter does NOT support rate

conversion between 10Mb/s and 100Mb/s network devices.

Operation

Status LEDs

Use the status LEDs to monitor the CSEFE10xx-10x media

converter operation in the network.

PWR Power On = Connection to the external AC

or DC power.

F-ACT Fiber Activity Blinking = Data reception on the fiber

link.

F-100 Fiber Speed On = Fiber link at 100 Mb/s.

F-10 Fiber Speed On = Fiber link at 10 Mb/s.

TP-ACT Copper Activity Blinking = Data reception on the

twisted-pair copper link.

TP-100 Copper Speed On = Copper link at 100 Mb/s.

TP-10 Copper Speed On = Copper link at 10 Mb/s.

PWR

CSEFE100

100ACT

CSEFE10xx-10x

24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Operation -- Continued

SNMP

Use SNMP at an attached terminal or at a remote location to monitor the

media converter by monitoring:

• Media converter power

• Copper link status

• Fiber link status

• Copper receive status

• Fiber receive status

• Link Pass-Through status

• Media converter speed

Also, use SNMP to enter network commands that:

• Enable/disable Link Pass-Through

• Set the speed to 100 Mb/s or 10 Mb/s

• Power down the media converter

See the on-line documentation that comes with Transition Networks

FocalPoint™ software for applicable commands and usage.

Cable Specifications

Copper Cable

Category 3: (Minimum requirement for 10 Mb/s operation)

Gauge 24 to 22 AWG

Attenuation 11.5 dB/100m @ 5-10 MHz

Category 5: (Minimum requirement for 100 Mb/s operation)

Gauge 24 to 22 AWG

Attenuation 22.0 dB /100m @ 100 MHz

• Straight-through or crossover copper cable may be used.

• Shielded (STP) or unshielded (UTP) twisted-pair cable may be used.

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .

• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

• Do not use flat or silver satin wire.

Crossover Cable

Straight-Through Cable

Twisted Pair #1

Twisted Pair #2

[email protected] -- Click the “Transition Now” link for a live Web chat 7

Cable Specifications

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber Cable

Bit Error Rate: <10-9

Single mode: 9 µm

CSEFE1012-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -5.0 dBm

Link Budget: 17.0 dB

CSEFE1014-100 1310 nm single mode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -32.0 dBm max: -5.0 dBm

Link Budget: 17.0 dB

CSEFE1015-100 1310 nm single mode

Fiber Optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -5.0 dBm

Link Budget: 26.0 dB

CSEFE1022-100 1310 nm single mode

Fiber Optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm

Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -5.0 dBm

Link Budget: 26.0 dB

CSEFE1029-100 1310 nm (TX)/1550 nm (RX) simplex

Fiber-optic Transmitter Power: min: -14.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

CSEFE1029-101 1550 nm (TX)/1310 nm (RX) simplex

Fiber-optic Transmitter Power: min: -14.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm

Link Budget: 19.0 dB

The fiber optic transmitters on this device meet Class I Laser safety

requirements per IEC-825/CDRH standards and comply with 21

CFR1040.10 and 21CFR1040.11.

CSEFE10xx-10x

24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Technical Specifications

For use with Transition Networks Model CSEFE10xx-10x or equivalent.

Standards: IEEE 802.3™, 10Base-T, 100Base-TX, 100Base-FX

Data Rate: 10 Mb/s, 100 Mb/s

Dimensions: 3.4" x 0.87" x 5" (86 mm x 22 mm x 182 mm)

Weight: 3 oz (91 g) (approximate)

Power Consumption: 3.6 watts

Environment: Tmra*: 0° to 50°C (32° to 122°F)

Storage Temperature: -20° to 85°C (-4° to 185°F)

Humidity: 5 to 95%, non condensing

Altitude: 0 to 10,000 feet

Warranty: Lifetime

*Manufacturer’s rated ambient temperature: Tmra range for this slide-in-module

depends on the physical characteristics and the installation configuration of the

Transition Networks PointSystem™ chassis in which this slide-in-module will be

installed.

NOTE: The information in this user’s guide is subject to change. For the most

up-to-date information on the CSEFE10xx-10x media converter, view the user’s

guide on-line at: www.transition.com.

The stand alone version of the media converter is the SSEFE10xx-10x model. For

more information, see the SSEFE10xx-10x user’s guide on-line at:

www.transition.com.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

CAUTION: Visible and invisible laser radiation when open. Do not stare into

beam or view directly with optical instruments.

CAUTION: Use of controls, adjustments or the performance of procedures other

than those specified herein may result in hazardous radiation exposure.

[email protected] -- Click the “Transition Now” link for a live Web chat

Troubleshooting

1. Is the PWR LED on the media converter illuminated?

• Is the media converter inserted properly into the chassis?

• Is the power cord properly installed in the chassis and in the

grounded AC outlet?

• Does the grounded AC outlet provide power?

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Go to step 2.

2. Is the F-ACT LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are

connected to the RX and TX ports, respectively, on the other media

converter.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Go to step 3.

3. Is the F-ACT LED blinking?

• If there is no activity on the fiber port, go to step 4.

• If there is activity on the fiber port, disconnect and reconnect the

fiber cable to restart the initialization process.

• Restart the workstation to restart the initialization process.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Go to step 4.

4. Are the F-100 and/or the TP-100 LEDs illuminated?

YES

• The media converter is set to 100Mb/s for both the copper fiber links.

If this is not the correct speed, carefully remove the media converter

from the chassis and set switch 1 to “down” (speed = 10 Mb/s).

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

• Go to step 5.

5. Are the F-10 and/or the TP-10 LEDs illuminated?

YES

• The media converter is set to 10 Mb/s for the copper and fiber links.

If this is not the correct speed, carefully remove the media converter

from the chassis and set switch 2 to “up” (speed = 100 Mb/s).

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

• Go to step 6.

CSEFE10xx-10x

24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600

Troubleshooting -- Continued

6. Is the TP-ACT LED illuminated?

• Check the twisted-pair copper cables for proper connection.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Go to step 7.

7. Is the TP-ACT LED blinking?

• If there is activity on the copper port, disconnect and reconnect the

copper cable to restart the initialization process.

• Restart the workstation to restart the initialization process.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

[email protected] -- Click the “Transition Now” link for a live Web chat 11

Declaration of Conformity

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 USA

Model: CSEFE10xx-10x Series Media Converters

Part Number(s): CSEFE1012-100, CSEFE1014-100, CSEFE1015-100,

CSEFE1022-100, CSEFE1029-100, CSEFE1029-101

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the

CSEFE10xx-10x

to which this declaration refers is in

conformity with the following standards.

CISPR 22: 1993; EN55022:1998 Class A ; FCCPart 15 Subpart B; EN 55024:1998;

EN 61000-3-2: 1995; EN 61000-3-3:1995; 21 CFR Subpart J

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

_December 6, 2004_____

Stephen Anderson, Vice-President of Engineering Date

Technical Support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

6475 City West Parkway

Minneapolis, MN 55344, USA

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

means - graphic, electronic, or mechanical - without written permission from Transition

Networks.

Printed in the U.S.A. 33317.A

Compliance Information

CISPR22/EN55022 Class A + EN55024

CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference, in which case the user will be required to correct the

interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus

set out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung! Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können

bei Betrieb dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für

Gegenmaßnahmen verantwortlich.

Attention! Ceci est un produit de Classe A. Dans un environment domestique, ce produit

risque de créer des interférences radioélectriques, il appartiendra alors à l'utilsateur de

prende les measures spécifiques appropriées.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Transition Networks Convertisseur de média

Transition Networks

Transition Networks E-TEL-1200 Manuel utilisateur

Transition Networks

Transition Networks CCSF30XX-100 Manuel utilisateur

Transition Networks

Transition Networks F-SM-MM-02(LH) Manuel utilisateur

Transition Networks

Transition Networks FBRM1XXX-1XX Manuel utilisateur

Transition Networks

Transition Networks Stand-Alone Media Converter S4TEF10xx-11x Manuel utilisateur

Transition Networks

Transition Networks C4110 Manuel utilisateur

Transition Networks

Transition Networks CSDTF3011-110 Manuel utilisateur

Transition Networks

Transition Networks SSDTF3011-110 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-N-01(SC) Manuel utilisateur

Transition Networks

Transition Networks CEMTF1011-100 Manuel utilisateur

Transition Networks

Transition Networks SFEPE1011-100 Manuel utilisateur

Transition Networks

Transition Networks NANOMETER E-100BTX-SX-01 Manuel utilisateur

Transition Networks

Transition Networks C/E-100BTX-FRL-03 Manuel utilisateur

Transition Networks

Transition Networks CFETF1011-110 Manuel utilisateur

Transition Networks

Transition Networks TR-CF-01 Manuel utilisateur

Transition Networks

Transition Networks E-100BTX-FRL-03(SC) E-100BTX-FRL-03(SM) Manuel utilisateur

Transition Networks

Transition Networks E-CX-FRL-03 Manuel utilisateur

Transition Networks

Transition Networks CFETF1011-105 Manuel utilisateur

Transition Networks

Transition Networks J/RS232-CF-01(SC) Manuel utilisateur

Transition Networks

Transition Networks C4TEF1011-110 Manuel utilisateur

Transition Networks

Transition Networks E-TBT-FRL-04(L) Manuel utilisateur

Transition Networks

Transition Networks M/GE-xSW-SFP-01-xx-U Series Manuel utilisateur

Transition Networks

Transition Networks SAPTF33 series Manuel utilisateur

Transition Networks

Transition Networks SPOEB1011-100 Manuel utilisateur

Manuels Convertisseur de média populaires d'autres marques

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuel utilisateur

SPROLINK

SPROLINK VA1 Manuel utilisateur

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuel utilisateur

Nikon

Nikon AF-S TC-20E III Manuel utilisateur

Axis

Axis AXIS Q7406 Manuel utilisateur

Omega

Omega TAC80B-J Manuel utilisateur

Zoom

Zoom Thunderbolt TAC-2R Manuel utilisateur

OST

OST iConverter 10/100M Manuel utilisateur

Vertiv

Vertiv Netsure Manuel utilisateur

birddog

birddog MINI Manuel utilisateur

Roland

Roland GI-10 Manuel utilisateur

Wallenstein

Wallenstein WX310 Manuel utilisateur

Pace

Pace MSS 200-1 Manuel utilisateur

Solar Converters

Solar Converters EQ 12/24-50 Manuel utilisateur

CYP

CYP EL-7400V Manuel utilisateur

TIE

TIE MIDI 1i1o Manuel utilisateur

DCS

DCS Vivaldi Upsampler Manuel utilisateur

Westermo

Westermo MCW-211 SERIES Manuel utilisateur
