Transition Networks NANOMETER E-100BTX-SX-01 Manuel utilisateur
The TRANSITION Networks Ethernet™ E-100BTX-SX-01 series 100BASE-TX to
100BASE-SX media converters connect 100BASE-TX unshielded twisted pair
cable to 850 nm 100BASE-SX multimode fiber-optic cable, using either an
ST connector (E-100BTX-SX-01) or an SC connector (E-100BTX-SX-01(SC)).
A four-positiion switch on the media converter allows selection of Auto-
negotiation, half-duplex or full-duplex, and/or Link Pass Through (LPT)
/Remote Fault Detection (RFD). An MDI/MDI-X switch allows straight-
through twisted-pair cable to be used for crossover 100BASE-TX connections.
Minneapolis, MN 55344 USA
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user’s own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Copyright Restrictions
© 1998, 2001 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners. 33064.C
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards 100BASE-SX, IEEE 802.3u
Delay 400ns round trip
Case dimensions 4.7" x 3.0" x 1.0" (119mm x 76mm x 25mm)
Shipping Weight 3 lbs (0.9 kg)
Environment Temperature: 0-40°C (32° to 100° F )
Humidity 10-90%, non condensing
Altitude 0-10,000 feet
Maximum number
media converters in series: 2
Warranty Lifetime
E-100BTX-SX-04
UTP
Multimode Fiber
MDI MDI-X
E-100BTX-SX-O4
9V DC Input
Config
Switches
1 2 4
850nm
S
E-100BTX-SX-04(SC)
UTP
Multimode Fiber
MDI MDI-X
E-100BTX-SX-O4
9V DC Input
Config
Switches
1 2 4
850nm
S
Status LEDs on the connector side of the media converters indicate:
Power Supply Requirements Replace power supply with only the equivalent
input rating (see below) and output rating (regulated 9VDC at 0.5 A).
TN PN Requirement Location
3525 240 volts, 50 hertz United Kingdom
3525 230 volts, 50 hertz Europe
3518 120 volts, 60 hertz USA/Canada/Mexico
3514 100 volts, 50-60 hertz Japan
3525 240 volts, 50 hertz Australia
NOTE: This product also can be powered by the Transition Networks E-MCR series media
converter rack.

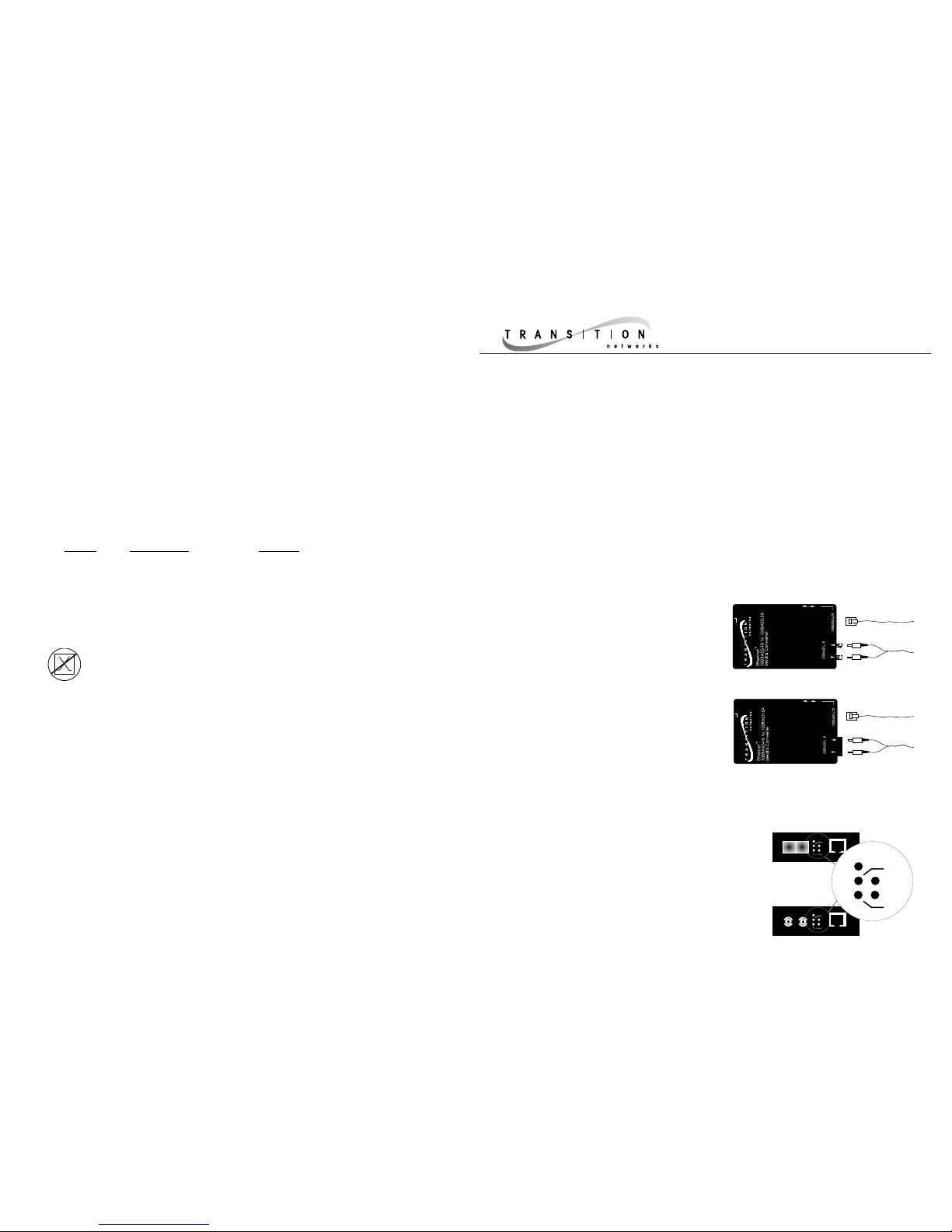

E-100BTX-SX-01
Provides an RJ-45 twisted pair 100BASE-TX
connector and a set of RX (receive) and TX
(transmit) ST 100BASE-SX connectors to
850 nm multimode fiber-optic cable.
E-100BTX-SX-01(SC)
Provides an RJ-45 twisted pair 100BASE-TX
connector and an RX (receive) and TX
(transmit) SC 100BASE-SX connector to
850 nm multimode fiber-optic cable.
Power Illuminated green LED indicates
connection to external AC power.
SDF Signal Detect/Fiber: Steady green LED
indicates fiber port is connected to device.
SDC Signal Detect/Copper: Steady green LED
indicates RJ-45 port is connected to device.
RXC Receive/Copper: Flashing green LED
indicates packets are seen on RJ-45 port.
RXF Receive/Fiber: Flashing green LED indicates
packets are seen on fiber port.
10BASE-T
SC Connectors
RX
TX
RJ-45 Connector
Fiber UTP/STP
Power
RXC
RXF
SDF
SDC
10BASE-T
ST Connectors
RX
TX
RJ-45 Connector
Fiber UTP/STP
Power
RXC
RXF
SDF
SDC
Power
RXC
RXF
SDF
SDC
100BASE-TX/100BASE-SX Media Converters
850 Nanometer
E-100BTX-SX-01, E-100BTX-SX-01(SC)
USER’S GUIDE
MDI switch setting MDI-X switch setting
100 meters
100 meters
2 kilometers - multimode

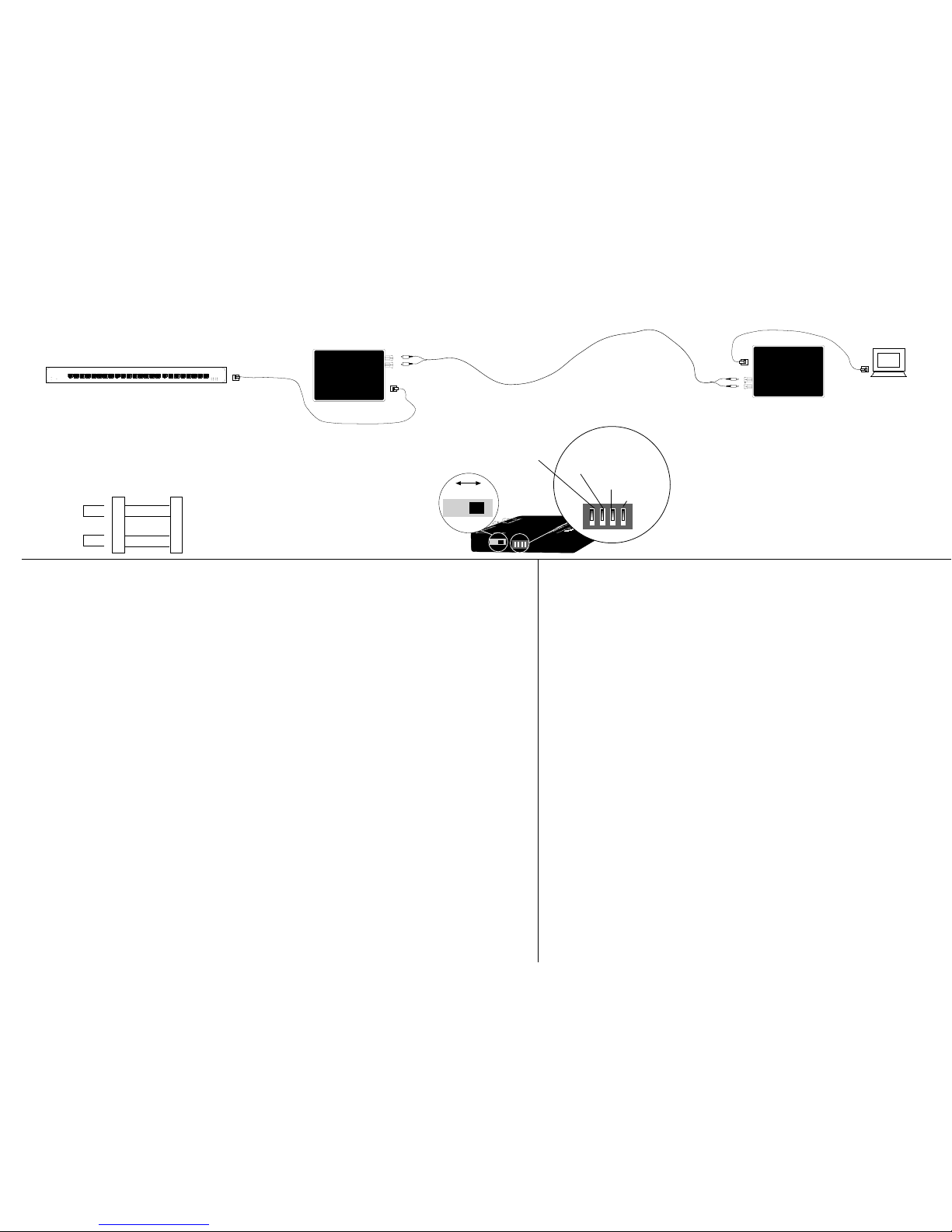

Switch Settings and Cable Requirements
The two active pairs in a
100BASE-TX network are pins
1 & 2 and pins 3 & 6. Use only
dedicated wire pairs (such as
blue/white & white/blue,
orange/white & white/orange)
for the active pins.
1
2
3
6
Twisted
Pair #1
Twisted
Pair #2
Straight Through Cable
1
2
3
6
Straight-through/crossover 100BASE-TX requirements are satisfied
using the MDI/MDI-Xswitch with straight-through cable.
Set the MDI/MDI-X switch to MDI for cable connections
between hub and media converter.
Set the MDI/MDI-X switch to MDI-X for cable connections
between media converter and terminal, transceiver or NIC.
Setting Switches
Use small flatblade
screwdriver or similar
device to set recessed
switches. Refer to label on
top of media converter for
MDI/ MDI-X switch
settings. Refer to drawing
at left for four-position
switch settings.
4-Position Switch (4th switch not used)
Auto-negotiation (UP) Detects and adapts to line
speed/operation mode of attached device.
Full/Half-duplex (UP) Allows an attached full-
duplex station to transmit and receive
simultaneously. (DOWN) Allows an attached
station to transmit and receive sequentially.
LPT/RFD (UP) Blinks the SDF or SDC LED if a
malfunction is detected at the unit to which the
media converter is attached.
MDI/MDI-X Straight-Through/Crossover
1. Is the power LED on the media converter illuminated?
NO • Is the power adapter the proper type of voltage and cycle frequency for AC outlet?
• Is the power adapter properly installed in the media converter and in the outlet?
• Contact Technical Support at (800) 260-1312/ (800) LAN-WANS.
YES • Proceed to step 2.
2. Is the 100BASE-SX SDC LED illuminated?
NO • Check UTP cables for proper connection and MDI/MDI-X switch position. (See above.)
• Contact Technical Support at (800) 260-1312/ (800) LAN-WANS.
YES • Proceed to step 3.
3. Is the fiber SDF LED illuminated?
NO • Check fiber cables for proper connection.
• Verify that TX and RX cables on media converter are connected to RX and TX ports,
respectively, on the other 100BASE-SX device.
• Refer to Tech Tips available at: http://www.transition.com
• Contact Technical Support at (800) 260-1312/ (800) LAN-WANS.
YES
Troubleshooting the Media Converter
Installation Notes
The physical characteristics of the media cable must meet or exceed IEEE 802.3u
100BASE-TX and IEEE 802.3z 100BASE-SX specifications.
Ethernet Cable Specifications
100BASE-TX Cable Specifications
Category 5 wire or better is required. Either shielded twisted pair (STP) or unshielded
twisted pair (UTP) can be used. DO NOT USE FLAT OR SILVER SATIN WIRE.
Category 5: Gauge 24 to 22 AWG
Attenuation 20 dB/1000’ @ 10 MHz
Impedance 100 Ω±10% @ 10 MHz
Maximum Cable Distance: 100 meters (330 feet)
• DO NOT CONNECT MEDIA CONVERTERS BETWEEN HUBS.
• KEEP TWISTED PAIR RUNS AS SHORT AS POSSIBLE.
• Be certain that the 100BASE-TX MDI/MDI-X switch is set correctly for site installation.
• Install unit with power supply unit provided. (Output 9 VDC regulated, 500 mA).
• Connect the power supply cable to the media converter BEFORE connecting to outlet.
• Install no more than two (2) media converters in series.
E-100BTX-SX-01
MDI MDI-X
E-100BTX-FX-O4
9V DC Input
Config
Switches
1 2 4
LPT/RFD UP=ON
Auto-negotiation UP=ON
Full/Half-duplex UP=FULL
(not used)
MDI-X
position MDI
position
100BASE-SX Cable Specifications
MULTIMODE
Fiber-optic Cable Recommended: 62.5 / 125 µm multimode fiber
Optional: 50 / 125 µm multimode fiber
Modal bandwidth: ≤160MHz-Km
Fiber-optic Transmitter Power: min: -20 dBm max: -12 dBm
Fiber-optic Receiver Sensitivity: min: -24 dBm max: -12 dBm
Wavelength: 850nM
Bit error rate: ≤2.5-10
Maximum Cable Distance: 2-300 meters
