Texas Instruments LaunchPad MSP430FR4133 Manuel utilisateur

SLAU595B–October 2014–Revised January 2017

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

User's Guide

SLAU595B–October 2014–Revised January 2017

MSP430FR4133 LaunchPad™ Development Kit

(MSP

‑‑

EXP430FR4133)

The MSP-EXP430FR4133 LaunchPad™ Development Kit is an easy-to-use evaluation module (EVM) for

the MSP430FR4133 microcontroller (see Figure 1). It contains everything needed to start developing on

the MSP430™ ultra-low-power (ULP) FRAM-based microcontroller (MCU) platform, including on-board

emulation for programming, debugging, and energy measurements. The board features on-board buttons

and LEDs for quick integration of a simple user interface and a liquid crystal display (LCD) that showcases

the integrated driver with flexible software-configurable pins.

Figure 1. MSP-EXP430FR4133

www.ti.com

2SLAU595B–October 2014–Revised January 2017

Submit Documentation Feedback

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

Contents

1 Getting Started............................................................................................................... 3

2 Hardware...................................................................................................................... 5

3 Software Examples ........................................................................................................ 17

4 Additional Resources ...................................................................................................... 22

5 FAQ .......................................................................................................................... 24

6 Schematics.................................................................................................................. 25

List of Figures

1 MSP-EXP430FR4133....................................................................................................... 1

2 MSP-EXP430FR4133 Overview........................................................................................... 5

3 Block Diagram................................................................................................................ 6

4 MSP430FR4133 Pinout..................................................................................................... 7

5 eZ-FET Emulator ............................................................................................................ 8

6 eZ-FET Isolation Jumper Block Diagram ............................................................................... 10

7 Application Backchannel UART in Device Manager................................................................... 10

8 LCD Segment Layout...................................................................................................... 11

9 MSP-EXP430FR4133 Power Block Diagram........................................................................... 14

10 LaunchPad to BoosterPack Connector Pinout ......................................................................... 16

11 Programming the LaunchPad With Program Batch Files............................................................. 18

12 Directing the Project>Import Function to the Demo Project.......................................................... 19

13 When CCS Has Found the Project ...................................................................................... 20

14 MSP-EXP430FR4133 Software Examples in TI Resource Explorer................................................ 23

15 Schematics (1 of 6) ........................................................................................................ 25

16 Schematics (2 of 6) ........................................................................................................ 26

17 Schematics (3 of 6) ........................................................................................................ 27

18 Schematics (4 of 6) ........................................................................................................ 28

19 Schematics (5 of 6) ........................................................................................................ 29

20 Schematics (6 of 6) ........................................................................................................ 30

List of Tables

1 EnergyTrace Technology................................................................................................... 8

2 Isolation Block Connections................................................................................................ 9

3 LCD FH-1138P Segment Mapping ...................................................................................... 12

4 LCD to MSP430 Connections ............................................................................................ 13

5 Hardware Change Log .................................................................................................... 17

6 Software Examples ........................................................................................................ 17

7 IDE Minimum Requirements for MSP-EXP430FR4133............................................................... 18

8 List of Source Files and Folders ......................................................................................... 21

9 How MSP430 Device Documentation is Organized ................................................................... 22

www.ti.com

Getting Started

SLAU595B–October 2014–Revised January 2017

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

Trademarks

LaunchPad, MSP430, BoosterPack, Code Composer Studio, EnergyTrace, E2E are trademarks of Texas

Instruments.

IAR Embedded Workbench is a registered trademark of IAR Systems.

1 Getting Started

1.1 Introduction

The MSP-EXP430FR4133 LaunchPad™ Development Kit is an easy-to-use Evaluation Module (EVM) for

the MSP430FR4133 microcontroller (see Figure 1). It contains everything needed to start developing on

the MSP430™ ultra-low-power (ULP) FRAM-based microcontroller (MCU) platform, including on-board

emulation for programming, debugging, and energy measurements. The board features on-board buttons

and LEDs for quick integration of a simple user interface and a liquid crystal display (LCD) that showcases

the integrated driver with flexible software-configurable pins. The MSP430FR4133 device features

embedded FRAM (ferroelectric random access memory), a nonvolatile memory known for its ultra-low

power, high endurance, and high-speed write access.

Rapid prototyping is simplified by the 20-pin BoosterPack™ Plug-in Module headers, which support a wide

range of available BoosterPacks. You can quickly add features like wireless connectivity, graphical

displays, environmental sensing, and much more. Design your own BoosterPack or choose among many

already available from TI and third-party developers.

Free software development tools are also available, including TI's Eclipse-based Code Composer

Studio™ (CCSTUDIO) and IAR Embedded Workbench®IAR-KICKSTART. Both of these integrated

development environments (IDEs) support EnergyTrace™ technology when paired with the

MSP430FR4133 LaunchPad. More information about the LaunchPad, the supported BoosterPacks, and

available resources can be found at TI's LaunchPad portal.

1.2 Key Features

• MSP430 ultra-low-power FRAM technology based MSP430FR4133 16-bit MCU

• 20-pin LaunchPad standard that leverages the BoosterPack ecosystem

• eZ-FET, an open-source onboard debugger that features EnergyTrace technology

• On-board segmented LCD

• Two buttons and two LEDs for user interaction

• Backchannel UART through USB to PC

1.3 What's Included

1.3.1 Kit Contents

• 1 x MSP-EXP430FR4133 LaunchPad Development Kit

• 1 x micro-USB cable

• 1 x Quick Start Guide

1.3.2 Software Examples

• Out-of-Box Software

1.4 First Steps: Out-of-Box Experience

An easy way to get familiar with the EVM is by using its preprogrammed out-of-box code. It demonstrates

some key features from a user level.

Getting Started

www.ti.com

4SLAU595B–October 2014–Revised January 2017

Submit Documentation Feedback

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

1.4.1 Connecting to the Computer

Connect the LaunchPad using the included USB cable to a computer. A green power LED should

illuminate. For proper operation, drivers are needed. It is recommended to get drivers by installing an IDE

such as TI's CCS or IAR EW430. Drivers are also available at www.ti.com/MSPdrivers.

1.4.2 Running the Out-of-Box Demo

When connected to the computer, the LaunchPad powers up and displays a greeting message on the

LCD. Press and hold the S1 and S2 buttons simultaneously to select a new mode. A more detailed

explanation of each mode can be found in Section 3.4.

1.4.2.1 Stopwatch Mode

This mode provides a simple stopwatch application. It supports split time, where the display freezes while

the stopwatch continues running in the background.

Timer Stopped:

S1: Start time

S2: Reset time

Timer Running:

S1: Stop time

S2: Split time (lap time)

1.4.2.2 Temperature Mode

This mode provides a simple thermometer application. Using the on-chip temperature sensor, the

temperature is displayed on the LCD.

S1: Pause current temperature

S2: Toggle temperature between °F and °C

1.5 Next Steps: Looking Into the Provided Code

After the EVM features have been explored, the fun can begin. It's time to open an integrated

development environment and start editing the code examples. Refer to Section 3.3 for more information

on IDEs and where to download them.

The out-of-box source code and more code examples are provided for download at

http://www.ti.com/tool/msp-exp430fr4133. Code is licensed under BSD, and TI encourages reuse and

modifications to fit specific needs.

Section 3 describes all of the functions in detail and describes the project structure to help familiarize you

with the code.

With the onboard eZ-FET emulator debugging and downloading new code is simple. A USB connection

between the EVM and a PC through the provided USB cable is all that is needed.

{

eZ-FET on-board emulator

Enables debugging/programming as

well as communication back to the

PC. The eZ-FET can also provide

power to the target MCU.

Introducing EnergyTrace Technology

Real-time power consumption readings and

state updates from the MSP430FR4133

MCU, including CPU and peripheral state

are viewable through the EnergyTrace GUI

Jumpers to isolate emulator

from target MCU (J101)

- Back-channel UART to PC

(RTS, CTS, RXD, TXD)

- Spy-Bi -Wire debug (SBWTDIO/SBWTCK)

- Power (5V, 3V3, and GND)

20-pin BoosterPack

plug-in module connector

(J1 and J2) {

Button/Switch

User LEDs

LED1, LED2

Button/Switch

Segmented LCD Display

- 6 alphanumeric characters

- 6 symbols for various applications

- Ultra-low power display

MSP430FR4133 Microcontroller

MSP1

Reset

{

www.ti.com

Hardware

SLAU595B–October 2014–Revised January 2017

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

2 Hardware

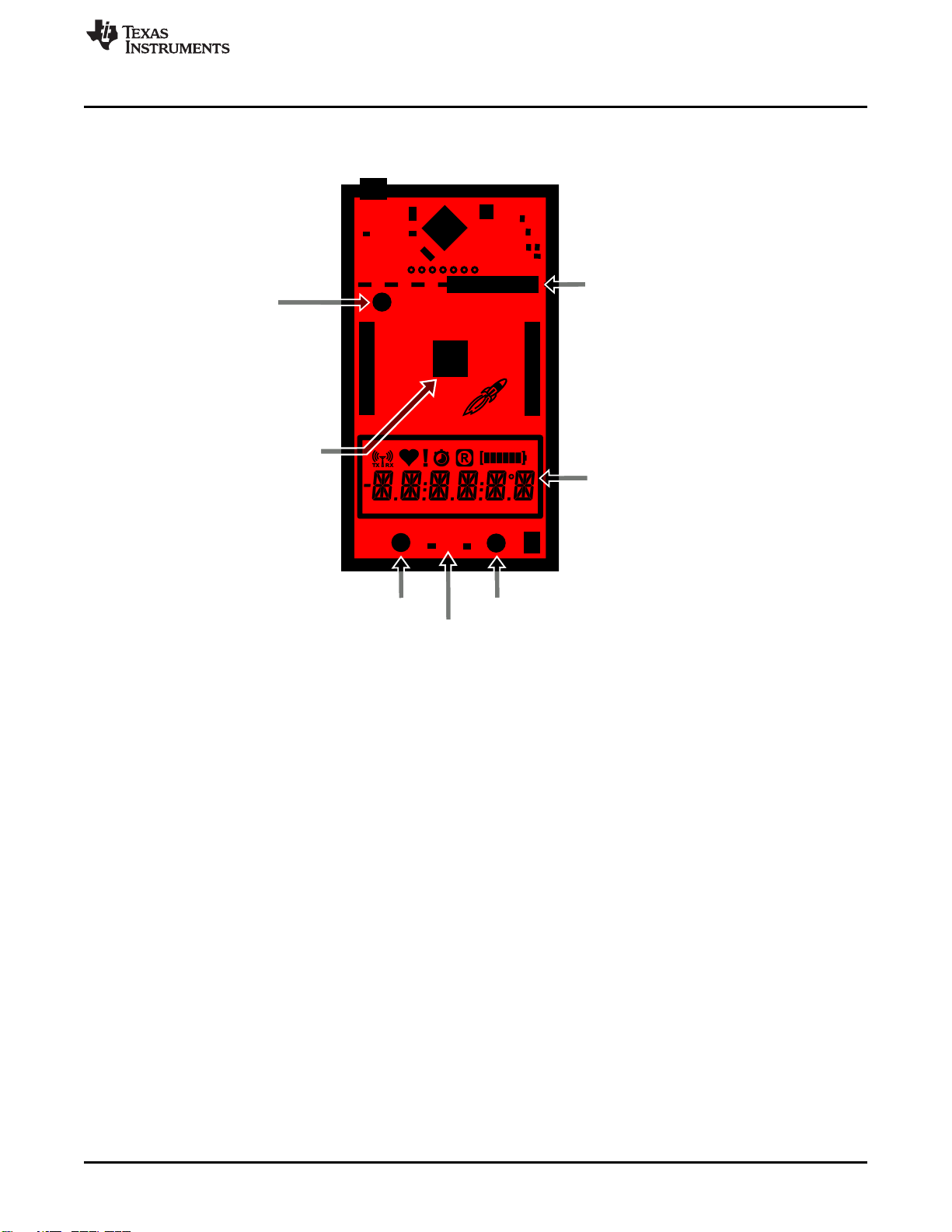

Figure 2 shows an overview of the MSP-EXP430FR4133 hardware.

Figure 2. MSP-EXP430FR4133 Overview

Target Device

MSP430FR4133

Crystal

32.768 kHz

Micro-B

USB

3.3-VLDO

ESD

Protection

Debug

MCU

LEDs

Red, Green

Crystal

4 MHz

UART/SBW to Target

User Interface

2 Buttons and 2 LEDs

20-pin LaunchPad

standard headers

Power to Target

Reset

button Segmented LCD

EnergyTrace

Hardware

www.ti.com

6SLAU595B–October 2014–Revised January 2017

Submit Documentation Feedback

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

2.1 Block Diagram

Figure 3 shows the block diagram.

Figure 3. Block Diagram

2.2 Hardware Features

2.2.1 MSP430FR4133

The MSP430FR4133 is the next device in TI's new ULP FRAM technology platform. FRAM is a cutting

edge memory technology, combining the best features of flash and RAM into one nonvolatile memory.

Device features include:

• 1.8-V to 3.6-V operation

• Up to 16-MHz system clock and 8-MHz FRAM access

• 16KB of nonvolatile FRAM

• Industry's lowest-power LCD controller

• IR modulation logic

• Two timer blocks and up to three serial interfaces (SPI, UART, or I2C)

• Analog: 10-channel 10-bit differential ADC

• Digital: RTC, CRC

P4.7/R13

P4.6/R23

P4.5/R33

P4.4/LCDCAP1

P4.3/LCDCAP0

P4.2/XOUT

P4.1/XIN

DVSS

DVCC

RST/NMI/SBWTDIO

TEST/SBWTCK

P4.0/TA1.1

P8.3/TA1.2

P8.2/TA1CLK

P8.1/ACLK/A9

P8.0/SMCLK/A8

P1.7/TA0.1/TDO/A7

P1.6/TA0.2/TDI/TCLK/A6

P1.5/TA0CLK/TMS/A5

P1.4/MCLK/TCK/A4/VREF+

P1.3/UCA0STE/A3

P1.2/UCA0CLK/A2

P1.1/ /A1/UCA0RXD/UCA0SOMI Veref+

P1.0/ /A0/Veref–UCA0TXD/UCA0SIMO

P5.7/L39

P5.6/L38

P5.5/L37

P5.4/L36

P5.3/UCB0SOMI/UCB0SCL/L35

P5.2/UCB0SIMO/UCB0SDA/L34

P5.1/UCB0CLK/L33

P5.0/UCB0STE/L32

P2.7/L31

P2.6/L30

P2.5/L29

P2.4/L28

P2.3/L27

P2.2/L26

P2.1/L25

P2.0/L24

P6.7/L23

P6.6/L22

P6.5/L21

P6.4/L20

P6.3/L19

P6.2/L18

P6.1/L17

P6.0/L16

P3.7/L15

P3.6/L14

P3.5/L13

P3.4/L12

P3.3/L11

P3.2/L10

P3.1/L9

P3.0/L8

P7.7/L7

P7.6/L6

P7.5/L5

P7.4/L4

P7.3/L3

P7.2/L2

P7.1/L1

P7.0/L0

www.ti.com

Hardware

SLAU595B–October 2014–Revised January 2017

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

Figure 4. MSP430FR4133 Pinout

Hardware

www.ti.com

8SLAU595B–October 2014–Revised January 2017

Submit Documentation Feedback

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

2.2.2 eZ-FET Onboard Emulator With EnergyTrace™ Technology

To keep development easy and cost effective, TI's LaunchPad Development Kits integrate an onboard

emulator, which eliminates the need for expensive programmers. The MSP-EXP430FR4133 has the eZ-

FET emulator (see Figure 5), which is a simple and low-cost debugger that supports all MSP430 device

derivatives.

Figure 5. eZ-FET Emulator

The MSP-EXP430FR4133 LaunchPad features EnergyTrace technology but does not have support for

EnergyTrace++™ technology. The EnergyTrace functionality varies across the MSP portfolio (see

Table 1).

Table 1. EnergyTrace Technology

Feature EnergyTrace™ Technology EnergyTrace++™ Technology

Current Monitoring ✓ ✓

CPU State ✓

Peripheral and System State ✓

Devices Supported All MSP430 MCUs MSP430FR59xx and

MSP430FR69xx MCUs

Development Tool Required MSP-FET or eZ-FET MSP-FET or eZ-FET

The eZ-FET also provides a "backchannel" UART-over-USB connection with the host, which can be very

useful during debugging and for easy communication with a PC. The provided UART supports hardware

flow control (RTS and CTS), although by default these signals are not connected to the target.

The dotted line through J101 shown in Figure 5 divides the eZ-FET emulator from the target area. The

signals that cross this line can be disconnected by jumpers on J101, the isolation jumper block. More

details on the isolation jumper block are in Section 2.2.3.

The eZ-FET hardware can be found in the schematics in Section 6 and in the accompanying MSP-

EXP430FR4133 Hardware Design Files. The software and more information about the debugger can be

found on the eZ-FET lite wiki.

www.ti.com

Hardware

SLAU595B–October 2014–Revised January 2017

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

2.2.3 Emulator Connection: Isolation Jumper Block

The isolation jumper block at jumper J101 allows the user to connect or disconnect signals that cross from

the eZ-FET domain into the MSP430FR4133 target domain. This includes eZ-FET Spy-Bi-Wire signals,

application UART signals, and 3.3-V and 5-V power (see Table 2 and Figure 6).

Reasons to open these connections:

• To remove any and all influence from the eZ-FET emulator for high accuracy target power

measurements

• To control 3-V and 5-V power flow between the eZ-FET and target domains

• To expose the target MCU pins for other use than onboard debugging and application UART

communication

• To expose the programming and UART interface of the eZ-FET so that it can be used for devices other

than the onboard MCU.

Table 2. Isolation Block Connections

Jumper Description

GND Ground

5V 5-V VBUS from USB

3V3 3.3-V rail, derived from VBUS by an LDO in the eZ-FET domain

RTS >> Backchannel UART: Ready-To-Send, for hardware flow control. The target can use this to indicate whether it

is ready to receive data from the host PC. The arrows indicate the direction of the signal.

CTS << Backchannel UART: Clear-To-Send, for hardware flow control. The host PC (through the emulator) uses this

to indicate whether it is ready to receive data. The arrows indicate the direction of the signal.

RXD << Backchannel UART: The target FR4133 receives data through this signal. The arrows indicate the direction

of the signal.

TXD >> Backchannel UART: The target FR4133 sends data through this signal. The arrows indicate the direction of

the signal.

SBW RST Spy-Bi-Wire emulation: SBWTDIO data signal. This pin also functions as the RST signal (active low).

SBW TST Spy-Bi-Wire emulation: SBWTCK clock signal. This pin also functions as the TST signal.

eZ-FET

Emulator

MCU

Isolation

Jumper Block

Spy-Bi-Wire (SBW)

Emulation

Application UART

3.3V Power

5V Power

Target MSP430

MCU

eZ-FETMSP430 Target

USB Connector

in out

LDO

BoosterPack Header

USB

EnergyTrace

Hardware

www.ti.com

10 SLAU595B–October 2014–Revised January 2017

Submit Documentation Feedback

MSP430FR4133 LaunchPad™ Development Kit (MSP

‑

EXP430FR4133)

Figure 6. eZ-FET Isolation Jumper Block Diagram

2.2.4 Application (or "Backchannel") UART

The backchannel UART allows communication with the USB host that is not part of the target application's

main functionality. This is useful during development and also provides a communication channel to the

PC host side. This can be used to create graphical user interfaces (GUIs) and other programs on the PC

that communicate with the LaunchPad.

The pathway of the backchannel UART is shown in Figure 6. The backchannel UART is the UART on

eUSCI_A0. Because of USCI limitations, this UART channel is shared with the UART on the 20-pin

BoosterPack connector (eUSCI_A0). This UART channel is also shared with the red LED on P1.0. This is

a lot of sharing, but all 64 pins of the device are used and this was done out of necessity. The P1.0 pin

serves more functions than any other.

On the host side, a virtual COM port for the application backchannel UART is generated when the

LaunchPad enumerates on the host. You can use any PC application that interfaces with COM ports,

including terminal applications like Hyperterminal or Docklight, to open this port and communicate with the

target application. You need to identify the COM port for the backchannel. On Windows PCs, Device

Manager can assist (see Figure 7).

Figure 7. Application Backchannel UART in Device Manager

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Texas Instruments Microcontrôleur

Texas Instruments

Texas Instruments AM243x Manuel utilisateur

Texas Instruments

Texas Instruments LaunchPad CC1312PSIP Manuel utilisateur

Texas Instruments

Texas Instruments DEV-RF002 Manuel utilisateur

Texas Instruments

Texas Instruments DA8xx EVM PSP Manuel utilisateur

Texas Instruments

Texas Instruments LaunchPad LP-CC1352P7-1 Manuel utilisateur

Texas Instruments

Texas Instruments MSP430F6768 Manuel utilisateur

Texas Instruments

Texas Instruments MSP430F22x4 Series Manuel utilisateur

Texas Instruments

Texas Instruments TIDA-00204 Manuel utilisateur

Texas Instruments

Texas Instruments DV2031S2 Manuel utilisateur

Texas Instruments

Texas Instruments Tiva TM4C123GH6PM Manuel utilisateur

Texas Instruments

Texas Instruments TMS370 Series Manuel d'utilisation et d'entretien

Texas Instruments

Texas Instruments CC2531 Manuel utilisateur

Texas Instruments

Texas Instruments TLC6C5712-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments 430BOOST-SENSE1 Manuel utilisateur

Texas Instruments

Texas Instruments MSPM0G350 Series Manuel utilisateur

Texas Instruments

Texas Instruments CC1200 Manuel utilisateur

Texas Instruments

Texas Instruments TPS65941120-Q1 Manuel utilisateur

Texas Instruments

Texas Instruments LaunchPad MSP430FR5994 Manuel utilisateur

Texas Instruments

Texas Instruments LaunchPad MSP-EXP430FR5994 Manuel utilisateur

Texas Instruments

Texas Instruments EK-TM4C123GXL-BOOSTXL-SENSHUB Manuel utilisateur

Texas Instruments

Texas Instruments CC110L Manuel utilisateur

Texas Instruments

Texas Instruments TMS570LS0714 Manuel utilisateur

Texas Instruments

Texas Instruments TMS570LC43x Manuel utilisateur

Texas Instruments

Texas Instruments Serial Programming Adapter MSP430 Manuel utilisateur

Manuels Microcontrôleur populaires d'autres marques

AMS

AMS AS7261 Demo Kit Manuel utilisateur

Novatek

Novatek NT6861 Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266 SDK Guide de configuration

Nuvoton

Nuvoton ISD61S00 ChipCorder Mode d’emploi

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manuel utilisateur

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manuel utilisateur

NEC

NEC 78GK0S/K 1+ Series Instructions d'installation et d'utilisation

Mikroe

Mikroe SEMITECH N-PLC Click Instructions d'installation et d'utilisation

Intel

Intel Agilex Manuel utilisateur

Cypress

Cypress CY4607 HX2VL Manuel utilisateur

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manuel utilisateur

CYPRES

CYPRES CY14NVSRAMKIT-001 Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266EX Mode d'emploi

Abov

Abov AC33M8128L Manuel utilisateur

Laird

Laird BL654PA Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F800 Manuel utilisateur

Energy micro

Energy micro EFM32 Giant Gecko Starter Kit Manuel utilisateur

Mikroe

Mikroe click Proximity 2 Manuel utilisateur
