Z-Stack

User’s Guide For

CC2430ZDK

ZigBee 2006 Release

Version 1.4.3

Document Number: F8W-2005-0036

Texas Instruments, Inc.

San Diego, California USA

(619) 497-3845

Z-Stack User's Guide - CC2430ZDK F8W-2005-0036 Version 1.4.3

Revision

Description Date

1.0 Initial release. 12/22/2005

1.1 Changed logo on title page, changed copyright on page footer. 02/27/2006

1.2 Added Figure 3 showing SOC_BB Battery Board. 06/25/2006

1.3 Changed sample applications to SampleSwitch and SampleLight. 12/13/2006

1.4 Changed sample applications to SampleApp. 04/10/2007

1.5 Removed reference to Chipcon web site from Section 4.2. 05/31/2007

1.6 Changed IAR compiler version to 7.30B in Section 4.2. 12/21/2007

Z-Stack User's Guide - CC2430ZDK F8W-2005-0036 Version 1.4.3

Table of Contents

1. INTRODUCTION................................................................................................................. 1

1.1. SCOPE .............................................................................................................................. 1

2. PRODUCT PACKAGE DESCRIPTION........................................................................... 1

2.1. INSTALLATION PACKAGE CONTENTS ............................................................................... 1

2.2. DEVELOPMENT BOARDS .................................................................................................. 1

2.3. CABLES ............................................................................................................................ 3

3. INSTALLATION REQUIREMENTS................................................................................ 3

3.1. HOST COMPUTER REQUIREMENTS ................................................................................... 3

3.2. TARGET DEVELOPMENT SYSTEM REQUIREMENTS ........................................................... 3

4. PRODUCT INSTALLATION PROCEDURES ................................................................ 3

4.1. INSTALL Z-STACK PACKAGE ........................................................................................... 3

4.2. INSTALL IAR EW8051 PACKAGE .................................................................................... 3

4.3. DEVICE IEEE ADDRESSES ............................................................................................... 3

5. CONFIGURING AND USING Z-STACK ......................................................................... 4

5.1. CONFIGURING Z-STACK................................................................................................... 4

5.2. LOGICAL DEVICE TYPES .................................................................................................. 4

5.3. BUILDING SAMPLEAPP DEVICES...................................................................................... 4

5.4. BUILDING A SAMPLELIGHT COORDINATOR DEVICE ........................................................ 4

6. Z-STACK DEMONSTRATION.......................................................................................... 7

6.1. SWITCHES AND LEDS...................................................................................................... 7

6.2. INITIAL LOADING OF 64-BIT IEEE ADDRESS ................................................................... 9

6.3. RUNNING THE SAMPLE APPLICATION............................................................................... 9

7. PANID AND CHANNEL SELECTION........................................................................... 10

7.1. ENERGY LEVEL.............................................................................................................. 11

APPLICABLE DOCUMENTS.................................................................................................. 12

Table of Figures

FIGURE 1: CHIPCON SMARTRF04EB EVALUATION BOARD WITH CC2430EM ............................... 1

FIGURE 2: CHIPCON CC2430DB DEVELOPMENT BOARD................................................................ 2

FIGURE 3: CHIPCON SOC_BB BATTERY BOARD ............................................................................ 2

FIGURE 4: CC2430DB JOYSTICK .................................................................................................... 8

FIGURE 5: CC2430DB LEDS.......................................................................................................... 8

FIGURE 6: SMARTRF04EB LEDS................................................................................................... 8

FIGURE 7: SMARTRF04EB COORDINATOR JUMPER ........................................................................ 9

Table of Tables

TABLE 1: DEFAULT CHANNEL SELECT BIT MAP ........................................................................... 10

Z-Stack User's Guide - CC2430ZDK F8W-2005-0036 Version 1.4.3

1. Introduction

1.1. Scope

This document accompanies the Texas Instruments Z-Stack™ solution for use with the CC2430

ZigBee Development Kit. Z-Stack is a complete protocol stack and solution conforming to

ZigBee Alliance standards (www.zigbee.org).

2. Product Package Description

2.1. Installation Package Contents

The downloaded Z-Stack installation package contains all of the documentation and software

required to install, configure, and develop applications using Z-Stack. The package employs a

Microsoft Windows-based installation application which guides the installation process.

2.2. Development Boards

Two Chipcon SmartRF04EB evaluation boards, each to be fitted with a CC2430EM evaluation

module, may be used to demonstrate or develop ZigBee applications based on the Z-Stack

software package:

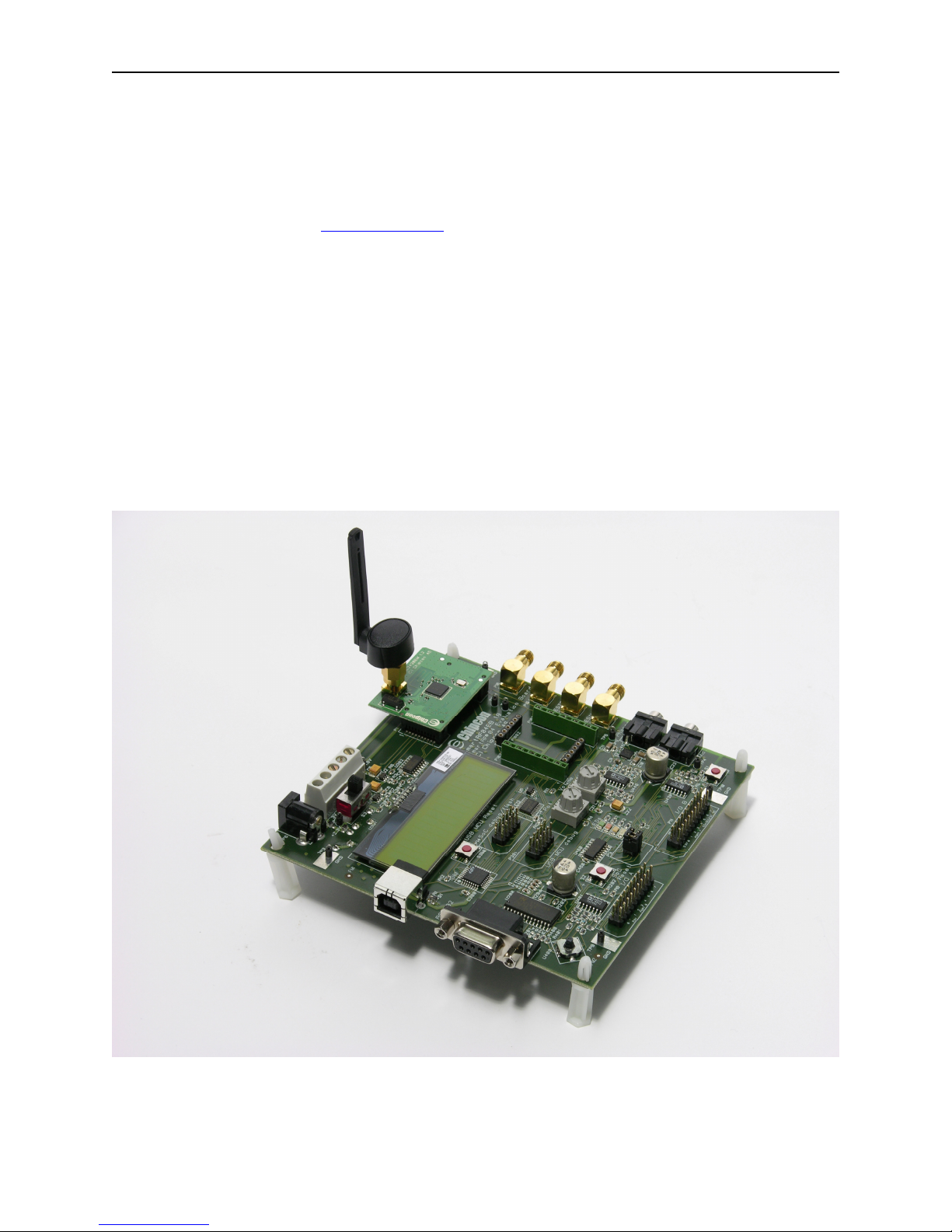

Figure 1: Chipcon SmartRF04EB Evaluation Board with CC2430EM

Z-Stack User's Guide - CC2430ZDK F8W-2005-0036 Version 1.4.3

Five smaller Chipcon CC2430DB evaluation boards are also contained in CC2430ZDK and

CC2431ZDK ZigBee development kits:

Figure 2: Chipcon CC2430DB Development Board

Ten compact Chipcon SOC_BB evaluation boards, each to be fitted with a CC2430EM or a

CC2431EM evaluation module, are contained in CC2431ZDK ZigBee development kits:

Figure 3: Chipcon SOC_BB Battery Board

Z-Stack User's Guide - CC2430ZDK F8W-2005-0036 Version 1.4.3

2.3. Cables

All necessary cabling has been included with the development kit. To support program download

and debugging of SmartRF04EB and CC2430DB boards, a USB cable should be connected from

each target board to the host PC. RS232 cables may be connected between the serial port on

SmartRF04EB boards (9-pin connector) and the host PC to utilize Z-Tool™ and other programs

included with the Z-Stack package.

3. Installation Requirements

3.1. Host Computer Requirements

Z-Stack and Z-Tool are designed for installation on a personal computer running Microsoft

Windows XP Professional or Windows 2000. The following are the minimum requirements for

the platform hosting Z-Stack and Z-Tool:

•.NET 1.1 Framework

•Windows XP Service Pack 1 (if using Windows XP)

•1 serial port for Z-Tool communication with the SmartRF04EB board

•1 USB port for download/debug of SmartRF04EB and CC2430DB boards

3.2. Target Development System Requirements

Z-Stack provides a complementary offering to the IAR Embedded Workbench (EW8051) suite

of software development tools. These tools support project management, compiling, assembling,

linking, downloading, and debugging for various 8051-based processors, including the Chipcon

CC243x family. The following is required support for the Z-Stack target development system:

•IAR EW8051 ( http://www.iar.com/ )

4. Product Installation Procedures

4.1. Install Z-Stack Package

Install the Texas Instruments Z-Stack files and programs from the downloaded package. Run the

windows-based installation program, ZStack-CC2430-1.4.3.exe, which will create the required

directory structure and load all software and documentation files. Review the README.txt file

for a synopsis of new features and changes with this Z-Stack release.

4.2. Install IAR EW8051 Package

Install the Embedded Workbench for 8051 from IAR Systems: http://www.iar.com/. The project

and library files included in this release of Z-Stack were built and tested with EW8051 version

7.30B. When considering an upgrade to a newer version of EW8051, it is necessary to verify that

installed project and library files are compatible with the newer development tools.

4.3. Device IEEE Addresses

Each CC2430DB, CC2430EM, and CC2431EM board in the development kit has been pre-

programmed with a unique 64-bit IEEE address. These addresses, assigned by Chipcon, are

stored in Little-Endian format, located in the upper 8 bytes of FLASH memory on the CC2430 or

CC2431 processor. The IEEE address is displayed on a sticker affixed to the bottom of each

CC2430DB, CC2430EM, or CC2431EM board

Z-Stack User's Guide - CC2430ZDK F8W-2005-0036 Version 1.4.3

This FLASH memory location would also be used for factory commissioning of IEEE addresses

on devices that use Z-Stack. For CC2430-F128 devices, used on all boards in the development

kit, the least significant byte of the IEEE address is located at “linear” FLASH memory address

0x1FFF8, corresponding to “banked” address 0x3FFF8.

Z-Stack treats the IEEE address area of FLASH as “write once” memory. When an attempt is

made to write an IEEE address to that location (via Z-Tool, etc.), it will succeed only if the

current contents are empty (0xFFFFFFFFFFFFFFFF). In other words, any 8-byte pattern other

than all 0xFF values, is considered to be a valid IEEE address and won’t be modified.

5. Configuring and Using Z-Stack

5.1. Configuring Z-Stack

For the purposes of this release, the ZigBee Logical Device Type and Profile are pre-configured.

Details on configuring and programming sample applications for Z-Stack are provided in the

sections beginning with “Building the SampleApp Devices”.

5.2. Logical Device Types

Z-Stack can be configured in one of three ways:

•ZigBee Coordinator – This device is configured to start the IEEE 802.15.4 network and

will serve as the PAN Coordinator in that network.

•ZigBee Router – This device is configured to join an existing network, associate to a

Coordinator or Router, and then allow other devices to associate to it. It will route data

packets in the network.

•ZigBee End Device – This device is configured to join an existing network and will

associate with a Coordinator or Router.

5.3. Building SampleApp Devices

The remainder of this section describes programming SmartRF04EB+CC2430EM boards to set

up a simple ZigBee network with 2 or more nodes, a SampleApp Coordinator and one or more

SampleApp Routers. The SampleApp project file provides configurations to uniquely build

either of these devices, a well as, to build a generalized “Demo” device which permits selection

of Coordinator and Router operation by setting one jumper on the SmartRF04EB board. The

following examples provide details on building and running the “Demo” sample application on

two or more devices.

5.4. Building a SampleLight Coordinator Device

•Make sure all tools have been installed (Sections 4.1 – 4.2)

•Connect a SmartRF04EB board to the development PC with a USB cable. Apply power

by moving switch S3 toward the CC2430EM board. If Windows needs to install a driver,

browse to C:\Program Files\IAR Systems\Embedded Workbench 4.0\8051\drivers\Chipcon to

locate the necessary files.

•Navigate to the SampleApp project directory and launch the IAR Embedded Workshop

by double clicking on the SampleApp.eww file:

Z-Stack User's Guide - CC2430ZDK F8W-2005-0036 Version 1.4.3

•Select the DemoEB project from the Workspace pull-down menu:

•Build the application by pulling down the Project menu and clicking on Rebuild All:

Z-Stack User's Guide - CC2430ZDK F8W-2005-0036 Version 1.4.3

•Download the application by pulling down the Project menu and clicking on Debug:

•After downloading to the CC2430EM is complete, exit the debugger by pulling down the

Debug menu and clicking on Stop Debugging:

Z-Stack User's Guide - CC2430ZDK F8W-2005-0036 Version 1.4.3

•Remove power from the SmartRF04EB by moving switch S3 away from the CC2430EM

board. Disconnect the SmartRF04EB from the USB cable and set it aside.

•Repeat the previous steps to program more CC2430EM boards. At least two boards must

be programmed to run the “Demo” sample application.

•When all devices have been programmed, exit the Embedded Workbench IDE.

6. Z-Stack Demonstration

6.1. Switches and LEDs

In this, and other Z-Stack sample application documents, references are made to switches and

LEDs located on evaluation boards. These devices are used to control certain Z-Stack features

and display status.

Certain procedures require user input via switches, commonly referred to as SW1 through SW5.

The SmartRF04EB and CC2430DB boards have a 5-position joystick, designated U400, which

provides these switch inputs as shown in the table below. Pressing the joystick toward the U400

label (up position) activates the SW1 input. Switch inputs SW2 – SW4 result from pressing the

joystick to the right, down (away from U400), and left positions, respectively. SW5 occurs when

the joystick is pressed straight down when in the center position.

Table des matières

Autres manuels Texas Instruments Microcontrôleur

Texas Instruments

Texas Instruments TAS5132DDV6EVM Manuel utilisateur

Texas Instruments

Texas Instruments Delfino TMS320F28377D controlCARD Manuel technique

Texas Instruments

Texas Instruments MSP-WDS Metawatch Series Manuel utilisateur

Texas Instruments

Texas Instruments SimpleLink CC2650 Manuel utilisateur

Texas Instruments

Texas Instruments MSP430F6735 Manuel utilisateur

Texas Instruments

Texas Instruments TMS570LS0714 Manuel utilisateur

Texas Instruments

Texas Instruments MSP430F67661 Manuel utilisateur

Texas Instruments

Texas Instruments CC2520EM Manuel utilisateur

Texas Instruments

Texas Instruments MSP430F6769 Manuel utilisateur

Texas Instruments

Texas Instruments TMS370 Series Guide de l'utilisateur

Texas Instruments

Texas Instruments Errata MSP430F6736A Manuel utilisateur

Texas Instruments

Texas Instruments Hercules TMS570LS04 Series Manuel utilisateur

Texas Instruments

Texas Instruments LP-MSPM0L1306 Manuel utilisateur

Texas Instruments

Texas Instruments CC110 Series Mode d’emploi

Texas Instruments

Texas Instruments TIRIS RI-STU-MRD1 Manuel utilisateur

Texas Instruments

Texas Instruments LaunchPad CC1354P10-6 Manuel utilisateur

Texas Instruments

Texas Instruments CC3100 SimpleLink Manuel utilisateur

Texas Instruments

Texas Instruments TMS570LC43x Manuel utilisateur

Texas Instruments

Texas Instruments Serial Programming Adapter MSP430 Manuel utilisateur

Texas Instruments

Texas Instruments OMAP35 Series Manuel utilisateur

Texas Instruments

Texas Instruments ADS1298RECG-FE Manuel utilisateur

Texas Instruments

Texas Instruments LM26EVM Manuel utilisateur

Texas Instruments

Texas Instruments MSP430G2744DA Manuel utilisateur

Texas Instruments

Texas Instruments Hercules RM48 Manuel utilisateur

Manuels Microcontrôleur populaires d'autres marques

AMS

AMS AS7261 Demo Kit Manuel utilisateur

Novatek

Novatek NT6861 Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266 SDK Guide de configuration

Nuvoton

Nuvoton ISD61S00 ChipCorder Mode d’emploi

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manuel utilisateur

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manuel utilisateur

NEC

NEC 78GK0S/K 1+ Series Instructions d'installation et d'utilisation

Mikroe

Mikroe SEMITECH N-PLC Click Instructions d'installation et d'utilisation

Intel

Intel Agilex Manuel utilisateur

Cypress

Cypress CY4607 HX2VL Manuel utilisateur

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manuel utilisateur

CYPRES

CYPRES CY14NVSRAMKIT-001 Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266EX Mode d'emploi

Abov

Abov AC33M8128L Manuel utilisateur

Laird

Laird BL654PA Manuel utilisateur

Silicon Laboratories

Silicon Laboratories C8051F800 Manuel utilisateur

Energy micro

Energy micro EFM32 Giant Gecko Starter Kit Manuel utilisateur

Mikroe

Mikroe click Proximity 2 Manuel utilisateur
