Description

www.ti.com

2SNVU570A–December 2017–Revised June 2018

Submit Documentation Feedback

TPSM846C24 70-A Parallel Operation Evaluation Module

1 Description

The TPSM846C24 device is a synchronous buck power module designed to provide up to 35-A of output

current. The TPSM846C24 can be paralled with two devices to achieve output current up to 70 A. The

TPSM846C24 is a highly integrated, DC-DC power module that combines a 35-A DC/DC converter with

power MOSFETs, a shielded inductor, some input and output capacitors, and passives into a low profile

package. The input voltage range is from 4.5 V to 15 V. The output voltage range is from 0.5 V to 2 V.

This evaluation module is designed to demonstrate the ease-of-use and small printed-circuit-board area

that may be achieved when paralleling two TPSM846C24 power modules. Monitoring test points are

provided to allow measurement of efficiency, power dissipation, input ripple, output ripple, line and load

regulation, and transient response. Additionally, control test points are provided for use of the power good,

enable control, and undervoltage lock out (UVLO) features of the device. The EVM uses a recommended

PCB layout that maximizes thermal performance and minimizes output ripple and noise.

2 Getting Started

Figure 1 highlights the user interface items associated with the EVM. The polarized input power terminal

block (TB1) is used for connection to the host input supply. TB2 and TB3 allow 4 terminals for VOUT and

TB4 and TB5 allow 4 terminals for PGND for connection to the load. These terminal blocks can except up

to 12-AWG wire.

Figure 1. EVM User Interface

The VIN monitor (VIN and PGND) and VOUT monitor (VS+ and VS–) test points located near the input

terminal block and the output terminal blocks are intended to be used as voltage monitoring points where

voltmeters can be connected to measure the input and output voltages. Do not use these VIN and VOUT

monitoring test points as the input supply or output load connection points. The PCB traces connecting to

these test points are not designed to support high currents.

The VIN scope (J1) and VOUT scope (J2) test points can be used to monitor VIN and VOUT waveforms

with an oscilloscope. These test points are intended for use with un-hooded scope probes outfitted with a

low-inductance ground lead (ground spring) mounted to the scope barrel. The two sockets of each test

point are on 0.1 inch centers. Insert the scope probe tip into the socket labeled VIN or VOUT, and insert

the scope ground lead into the hole of the socket labeled PGND.

The test points located directly below the device are made available to test the features of the device. Any

external connections made to these test points should be referenced to one of the AGND test points

located along the bottom of the EVM. Refer to Test Point Descriptions for more information on the

individual control test points.

www.ti.com

Test Point Descriptions

SNVU570A–December 2017–Revised June 2018

TPSM846C24 70-A Parallel Operation Evaluation Module

The Vout Select jumper (P4) is used to set the output voltage. The default loading is the 1.0 V position.

The Comp Select jumper (P2) sets the proper frequency compensation for the total amount of output

capacitance present on the VOUT bus. The EVM is shipped with approximately 2000 µF of output

capacitance loaded on the board. Locations are provided on the board to add another 2000 µF of output

capacitance (C28–C31). The default jumper load is the 2000 µF position.

When two TPSM846C24 devices are paralleled, the SYNC pins of the Master and the Slave must be

supplied with a 50% duty cycle external clock signal at the desired switching frequency. A 500-kHz clock

is present on the EVM which supplies the required 50% duty cycle signal. The Master device (U1) locks to

the rising edge of the clock and the Slave device (U2) locks to the falling edge of the clock.

3 Test Point Descriptions

Wire-loop test points and scope probe test points are provided as convenient connection points for digital

voltmeters (DVM) or oscilloscope probes to aid in the evaluation of the device. Table 1 provides a

description of each test point:

Table 1. Test Points

Test Point Description

VIN Input voltage monitor. Connect DVM to this point for measuring efficiency.

VS+ Supply path output voltage monitor. Connect DVM positive lead to this point for line regulation and load

regulation.

VS– Return path output voltage monitor. Connect DVM negative lead to this point for measuring line regulation

and load regulation.

VOUT Output voltage monitor. Connect DVM to this point and PGND for measuring efficiency.

PGND Input and output voltage monitor grounds. Reference the VIN and VOUT DVMs to these ground points.

VIN MON (J1) Input voltage scope monitor. Connect an oscilloscope to this set of points to measure input ripple voltage.

VOUT MON (J2) Output voltage scope monitor. Connect an oscilloscope to this set of points to measure output ripple

voltage and transient response.

AGND Analog ground point. Use any of the AGND test points as the ground reference for the control signals.

EN EN pin. Pull to AGND to stop power conversion. Float or pull to 3.3 V to enable power conversion. An

internal 10-kΩpullup resistor to 3.3 V is present on the EVM.

EXT CLK External clock input. This is the input to a D flip-flop. Apply an external clock at a frequency that is twice the

required switching frequency. Remove R13 before applying the clock signal.

SYNC SYNC monitor pin. This pin is the output of a D flip-flop which supplies a clock to both devices.

PGOOD Monitors the power good signal of the device. This is an open-drain signal that has an onboard 10-kΩ

pullup resistor to 3.3 V.

DIFFO Output of remote sense differential amplifier.

Signal Signal injection point for Bode plot analyzer. Inject from Signal to CHB.

CHA Input signal monitoring point for Bode plot analyzer.

CHB Output signal monitoring point for Bode plot analyzer.

PH1 Switch node of the TPSM846C24 Master device (U1). Use an unshielded scope probe to monitor this point.

PH2 Switch node of the TPSM846C24 Slave device (U2). Use an unshielded scope probe to monitor this point.

NOTE: Refer to TPSM846C24 4.5-V to 15-V Input, 0.5-V to 2.0-V Output, 35-A Power Module for

absolute maximum ratings associated with features in Table 1.

Operation Notes

www.ti.com

4SNVU570A–December 2017–Revised June 2018

Submit Documentation Feedback

TPSM846C24 70-A Parallel Operation Evaluation Module

4 Operation Notes

To operate the EVM, apply a valid input voltage from 4.5 V to 15 V. The output voltage can be set over

the range from 0.5 V to 2.0 V.

The Power Good (PGOOD) indicator of the EVM will assert high when the output voltage is within ±5% of

the programmed output voltage value. A 10-kΩpullup resistor (R18) is populated between the PGOOD pin

and the 3V3 pin.

The TPSM846C24DEVM-007 is set-up to operate at 500 kHz. A clock circuit is present on the bottom of

the EVM. The clock circuit produces a 500 kHz, 50% duty cycle clock that feeds both devices. If another

switching frequency is required, R20 must be removed from the clock circuit on the bottom of the EVM

and an external clock must be connected to the EXT CLK test point. The external clock applied to EXT

CLK test point must be 2 × the required frequency. The device can be synchronized to an external clock

over the frequency range of 300 kHz to 1 MHz. Refer to TPSM846C24 4.5-V to 15-V Input, 0.5-V to 2.0-V

Output, 35-A Power Module for further information on synchronization.

The TPSM846C24DEVM-007 includes both input and output capacitors. The EVM includes footprints for

adding additional input and output capacitors to the EVM. Adding additional capacitance will improve

transient response. The actual capacitance required will depend on the input and output voltage conditions

of the particular application, along with the desired transient response. Refer to the product data sheet for

further information on input and output capacitance and transient response.

CAUTION

Do not change jumper settings while the module is powered. Permanent

damage may occur.

Output Current (A)

Output Voltage Ripple (mV)

0 10 20 30 40 50 60 70

D003

1.8 V

1.2 V

0.8 V

Output Current (A)

Efficiency (%)

0 10 20 30 40 50 60 70

100

D001

1.8 V

1.2 V

0.8 V

Output Current (A)

Power Dissipation (W)

0 10 20 30 40 50 60 70

D002

1.8 V

1.2 V

0.8 V

www.ti.com

Performance Data

SNVU570A–December 2017–Revised June 2018

TPSM846C24 70-A Parallel Operation Evaluation Module

5 Performance Data

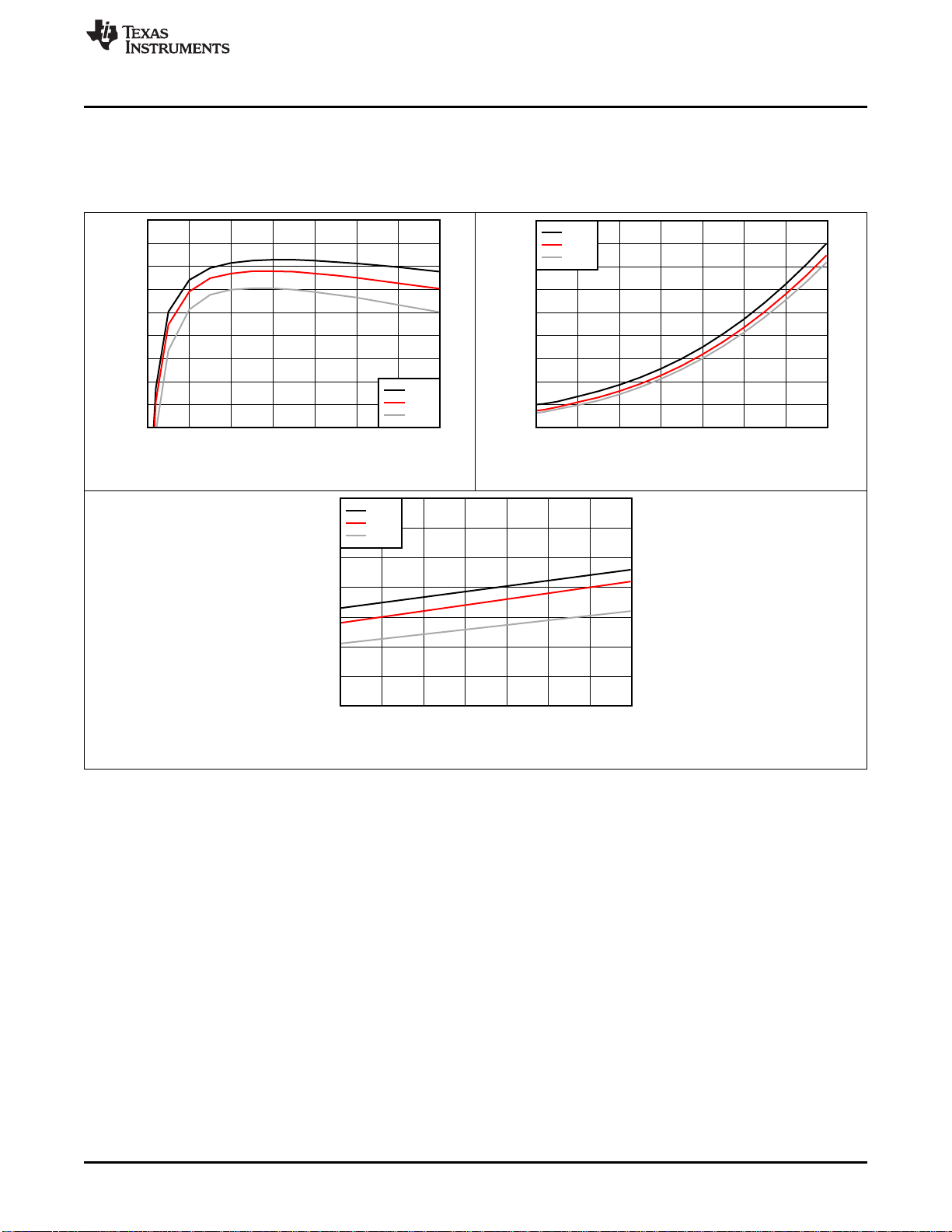

Figure 2 through Figure 4 provide the EVM performance data with the following conditions:

VIN = 12 V, Fsw = 500 kHz, COUT = 4 × 47-µF ceramic plus 4 × 470-µF polymer

Figure 2. Efficiency Figure 3. Power Dissipation

Figure 4. Output Voltage Ripple
