Texas Instruments LM76005QEVM Manuel utilisateur

User’s Guide

LM76005QEVM User’s Guide

1 LM76005QEVM User’s Guide

The Texas Instruments LM76005QEVM evaluation modules (EVM) help designers evaluate the operation and

performance of the LM76005-Q1 wide-input voltage buck regulator. The output voltage for the device offers

configurability from 1-V to 95% of VIN, synchronous rectification, PFM, and forced PWM mode and a 200-kHz to

500-kHz adjustable frequency range with a 400-kHz default frequency. It also offers external frequency

synchronization, power-good (PG) flag, and a precision enable to program undervoltage lockout (UVLO) and

internal compensation. Built-in protection includes current limit, overvoltage and undervoltage protection, and

thermal shutdown. The LM76005QEVM is configured for an output voltage of 3.3 V and a switching frequency of

400 kHz. Refer to the LM76005-Q1 3.5-V to 60-V, 5-A Synchronous Step-Down Voltage Regulator Data Sheet

for additional features, detailed description, and available options.

The EVM contains one DC-DC converter (see Table 1-1).

Table 1-1. Device and Package Configurations

CONVERTER IC PACKAGE

U1 LM76005-Q1 (RNP) WQFN-30

Table of Contents

1 LM76005QEVM User’s Guide.................................................................................................................................................1

2 Setup........................................................................................................................................................................................2

2.1 Input/Output (I/O) Connector Description...........................................................................................................................2

2.2 Voltage Setup.....................................................................................................................................................................3

2.3 Operation........................................................................................................................................................................... 3

3 Schematic................................................................................................................................................................................4

4 Board Layout...........................................................................................................................................................................5

5 Bill of Materials......................................................................................................................................................................11

6 Application Curves............................................................................................................................................................... 12

7 Revision History................................................................................................................................................................... 12

Trademarks

All other trademarks are the property of their respective owners.

www.ti.com LM76005QEVM User’s Guide

SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback

LM76005QEVM User’s Guide 1

2 Setup

This section describes the test points and connectors on the EVM and how to properly connect, set up, and use

the LM76005QEVM. Refer to Figure 2-1 for a top view of the EVM and relative placement of the different test

points and connectors.

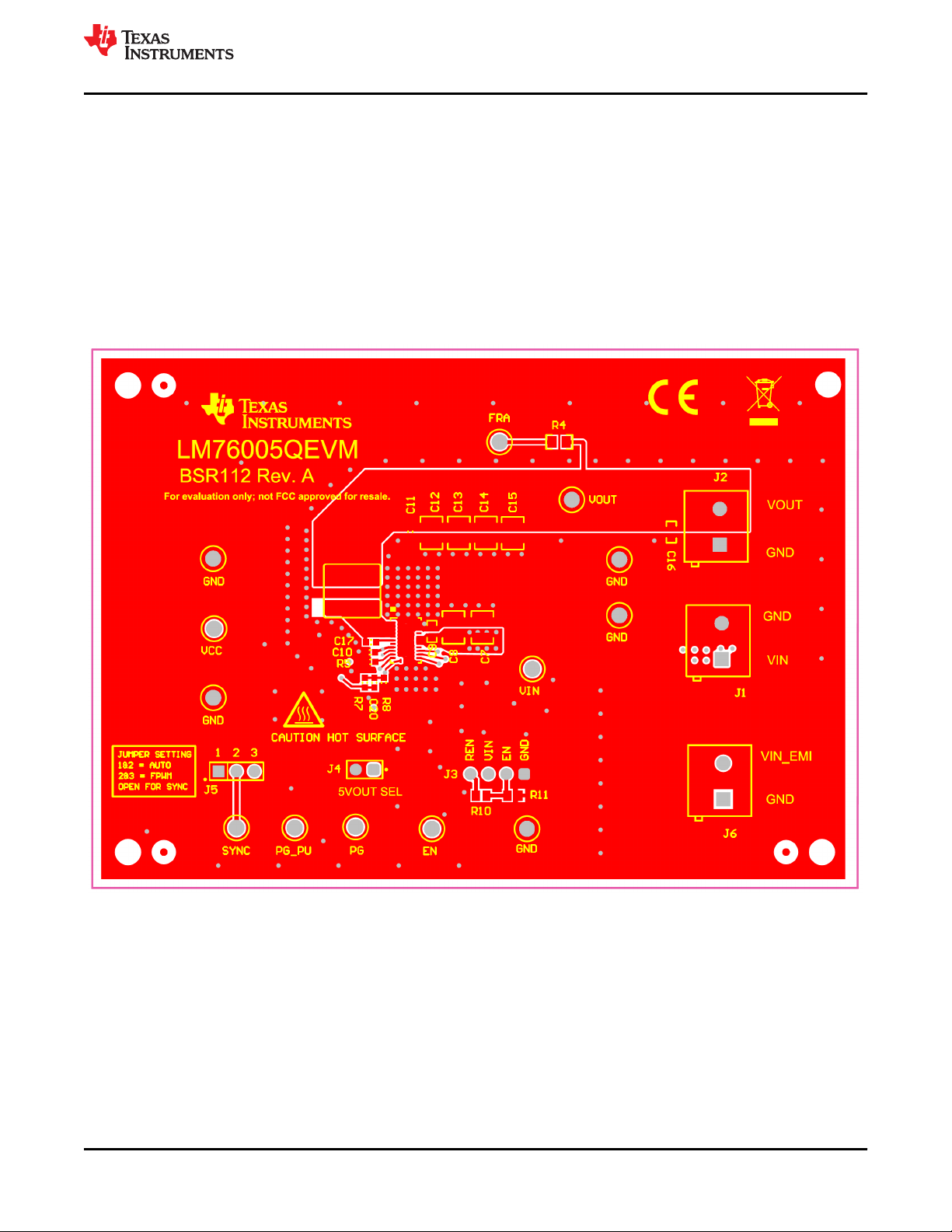

Figure 2-1. Top View of LM76005QEVM

2.1 Input/Output (I/O) Connector Description

VIN – Terminal on

The power input terminal for the converter

VOUT – Terminal

on J2

The regulated output voltage for the converter

VIN_EMI – Terminal

on J6

Used to supply the input voltage through an on board LC filter (if one is needed for

conducted EMI/EMC measurement). The L1 and CBULK component pads are located on

the bottom side of the EVM. Refer to Figure 3-1 for initial suggestion of component

values. J6 and LC filter are not populated on this EVM.

GND – Terminal on

J1, J2 and J6

The ground reference for the converter

EN – Testpoint Used to enable the converter by supplying a voltage greater than 1.2 V (typ) or just to

monitor the voltage on this pin whenever a resistor divider is in place (for precision enable

applications). The regulator is enabled when VIN > 3.5 V. This threshold can be calculated

by:

RENT

Enable _ Voltage VIH_EN 1 RENB

§ ·

˜ 

¨ ¸

(1)

Setup www.ti.com

2LM76005QEVM User’s Guide SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback

PG – Testpoint Used to monitor the power-good flag. This flag indicates whether the output voltage has

reached its regulation point. This pin is an open-drain output that requires a pullup resistor

to the appropriate logic voltage (any voltage less than 20 V).

PG_PU – Testpoint The top connection of an optional 100-kΩ pullup resistor that ties directly to the open-

drain PG pin. Supply an appropriate voltage to this test point, or tie it directly to the VOUT

test point to observe the PG flag operation if the output voltage is set less than 20 V.

SYNC – Testpoint The input terminal for an optional external input clock to the converter as well a mode pin

for converter. If used, the external clock frequency must be between 200 kHz and 500

kHz.

2.2 Voltage Setup

Set the input voltage (VIN) range for the converter between the operating voltage range of 3.5 V to 60 V. If a load

is driven, it must be applied to the VOUT terminal and must not exceed the maximum load current of 5 A for

LM76005-Q1.

Note

Please remove R3 and tie BIAS pin to ground if output voltage is set higher than 24 V.

2.3 Operation

For proper operation of the LM76005-Q1, VIN, GND, and VOUT must be properly configured as stated above. In

this configuration, the device starts up when power is applied, and the output voltage of the regulator (VOUT)

comes up to the proper value. The default setting for output voltage of the LM76005-Q1 is 3.3 V. Other output

voltages can be set by replacing the feedback pin resistor dividers R7 and R8; consult the data sheet for proper

selection of these resistor values.

The default frequency for the LM76005QEVM is 400 kHz. If other frequencies are desired within the frequency

range of 200 kHz and 500 kHz, the RT resistor value can be changed. See the LM76005-Q1 3.5-V to 60-V, 5-A

Synchronous Step-Down Voltage Regulator Data Sheet for proper selection of the RT resistor. Change inductor

L2 and total output capacitance for proper control loop operation.

www.ti.com Setup

SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback

LM76005QEVM User’s Guide 3

3 Schematic

Figure 3-1. LM76005QEVM Schematic

Schematic www.ti.com

4LM76005QEVM User’s Guide SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback

4 Board Layout

Figure 4-1 through Figure 4-5 show the board layout for the LM76005QEVM. The EVM offers resistors,

capacitors, and test points to configure the output voltage and precision enable pin, and set frequency and

external clock synchronization.

The RNP WQFN-30 package offers an exposed thermal pad which must be soldered to the copper landing on

the PCB for optimal thermal performance. The PCB consists of a 4-layer design. There are 2-oz copper planes

on the top and bottom and 1-oz copper mid-layer planes to dissipate heat with an array of thermal vias under the

thermal pad to connect to all four layers.

Test points have been provided for ease of use to connect the power supply and required load, and monitor

critical signals.

Figure 4-1. Top Silkscreen Layer

www.ti.com Board Layout

SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback

LM76005QEVM User’s Guide 5

Figure 4-2. Top Layer Routing

Board Layout www.ti.com

6LM76005QEVM User’s Guide SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback

Figure 4-3. Mid Layer 1 Ground Plane

www.ti.com Board Layout

SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback

LM76005QEVM User’s Guide 7

Figure 4-4. Mid Layer 2 Routing

Board Layout www.ti.com

8LM76005QEVM User’s Guide SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback

Figure 4-5. Bottom Layer Routing

www.ti.com Board Layout

SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback

LM76005QEVM User’s Guide 9

Figure 4-6. Bottom Layer Routing

Board Layout www.ti.com

10 LM76005QEVM User’s Guide SNVU694A – FEBRUARY 2020 – REVISED JULY 2020

Submit Document Feedback
