User’s Guide

LMR38020EVM User Guide

ABSTRACT

The LM38020EVM is an 80-V DC/DC buck regulator that employs synchronous rectification to achieve high

conversion efficiency in a small footprint. The EVM operates over a wide input voltage range of 6 V to 80 V

to provide a regulated 5-V output at 400-kHz switching frequency. The output voltage has better than 1.5%

setpoint accuracy and is adjustable using an external resistor divider. The module design uses the LMR38020F

synchronous buck converter with the following:

• Wide input voltage (wide VIN) range

• Wide duty-cycle range

• Integrated high-side and low-side power MOSFETs

• Cycle-by-cycle overcurrent protection

• Precision enable

The LMR38020 converter is available in an 8-pin SO PowerPAD™ integrated circuit package to enable high-

density, low-component count DC/DC solutions. The LMR38020EVM evaluation module is qualified for the

LMR38020 as well as the LMR38020-Q1 buck converter. See Table 1-1 for package information.

Table 1-1. Device and Package Configurations

CONVERTER IC PACKAGE

U1 LMR38020-Q1 8-pin SO package with PowerPAD (4.89 mm × 3.90 mm)

LMR38020

Table of Contents

1 General TI High Voltage Evaluation User Safety Guidelines.............................................................................................. 2

2 LMR38020 Evaluation Module............................................................................................................................................... 4

2.1 Quick Start Procedure........................................................................................................................................................4

2.2 Detailed Descriptions......................................................................................................................................................... 5

3 Schematic................................................................................................................................................................................7

4 PCB Layout..............................................................................................................................................................................8

5 Bill of Materials......................................................................................................................................................................11

6 Revision History....................................................................................................................................................................11

List of Figures

Figure 2-1. LMR38020EVM Top View..........................................................................................................................................4

Figure 3-1. LMR38020EVM Schematic....................................................................................................................................... 7

Figure 4-1. Top Layer and Silkscreen Layer................................................................................................................................ 8

Figure 4-2. Mid-Layer 1 Ground Plane........................................................................................................................................ 9

Figure 4-3. Mid-Layer 2 Routing.................................................................................................................................................. 9

Figure 4-4. Bottom Layer Routing..............................................................................................................................................10

List of Tables

Table 1-1. Device and Package Configurations...........................................................................................................................1

Table 5-1. LMR38020EVM Bill of Materials................................................................................................................................11

Trademarks

PowerPAD™ is a trademark of Texas Instruments.

All trademarks are the property of their respective owners.

www.ti.com Table of Contents

SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

LMR38020EVM User Guide 1

1 General TI High Voltage Evaluation User Safety Guidelines

WARNING

Always follow TI’s setup and application instructions, including use of all interface components within their

recommended electrical rated voltage and power limits. Always use electrical safety precautions to help ensure

the user's personal safety and the safety of those working around the user. Contact TI’s Product Information

Center TI's Product Information Center for further information.

Save all warnings and instructions for future reference.

Failure to follow warnings and instructions can result in personal injury, property damage, or death due

to electrical shock, burn hazards, or both.

The term TI HV EVM refers to an electronic device typically provided as an open-framed, unenclosed printed-

circuit board assembly. It is intended strictly for use in development laboratory environments, solely for qualified

professional users that have training, expertise, and knowledge of electrical safety risks in development and

application of high-voltage electrical circuits. Any other use, application, or both, are strictly prohibited by Texas

Instruments. If the user is not suitably qualified, the user should immediately stop from further use of the HV

EVM.

•Work Area Safety:

– Maintain a clean and orderly work area.

– Qualified observer or observers must be present any time circuits are energized.

– Effective barriers and signage must be present in the area where the TI HV EVM and its interface

electronics are energized, indicating operation of accessible high voltages can be present, for the purpose

of protecting inadvertent access.

– All interface circuits, power supplies, evaluation modules, instruments, meters, scopes, and other related

apparatus used in a development environment exceeding 50-VRMS/75-VDC must be electrically located

within a protected Emergency Power Off (EPO) protected power strip.

– Use a stable and non-conductive work surface.

– Use adequately insulated clamps and wires to attach measurement probes and instruments. No freehand

testing whenever possible.

•Electrical Safety:

As a precautionary measure, it is always a good engineering practice to assume that the entire EVM may

have fully accessible and active high voltages.

– De-energize the TI HV EVM and all its inputs, outputs, and electrical loads before performing any

electrical or other diagnostic measurements. Confirm that TI HV EVM power has been safely de-

energized.

– With the EVM confirmed de-energized, proceed with required electrical circuit configurations, wiring,

measurement equipment hook-ups, and other application needs, while still assuming the EVM circuit and

measuring instruments are electrically live.

– When EVM readiness is complete, energize the EVM as intended.

WARNING

WARNING: While the EVM is energized, never touch the EVM or its electrical circuits as

they could be at high voltages capable of causing electrical shock hazard.

General TI High Voltage Evaluation User Safety Guidelines www.ti.com

2LMR38020EVM User Guide SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

•Personal Safety:

– Wear personal protective equipment, for example, latex gloves, safety glasses with side shields, or both,

or protect the EVM in an adequate lucent plastic box with interlocks from accidental touch.

•Limitation for Safe Use:

– EVMs are not to be used as all or part of a production unit.

Safety and Precautions

The EVM is designed for professionals who have received the appropriate technical training, and is designed

to operate from an AC power supply or a high-voltage DC supply. Please read this user's guide and the

safety-related documents that come with the EVM package before operating this EVM.

CAUTION

Do not leave the EVM powered when unattended.

WARNING

Hot surface! Contact may cause burns. Do not touch!

WARNING

High Voltage! Electric shock is possible when connecting board to live wire. Board should be handled with care by a

professional.

For safety, use of isolated test equipment with overvoltage and overcurrent protection is highly recommended.

www.ti.com General TI High Voltage Evaluation User Safety Guidelines

SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

LMR38020EVM User Guide 3

2 LMR38020 Evaluation Module

The LMR38020EVM is configured to deliver 5 V and 2 A at a switching frequency of 400 kHz.

• Tightly regulated output voltage of 5 V with 1.5% setpoint accuracy

• Wide input voltage operating range of 4.2 V to 80 V

• 98% maximum duty cycle

• Force PWM operation to achieve low output voltage ripple, tight output voltage regulation at light load

• Frequency synchronization to external clock

• PWRGD signal indicates output regulation

• Supports start-up with pre-biased output

• Programmable system UVLO through precision enable

• Fully assembled, tested, and proven PCB layout

2.1 Quick Start Procedure

1. Connect the voltage supply between VIN and GND connectors using short wires.

2. Connect the load of the converter between VOUT and GND connectors using short wires.

3. Set the supply voltage (VIN) at an appropriate level between 6 V to 80 V. Set the current limit of the supply to

an appropriate level as well.

4. Turn on the power supply. The EVM powers up and provides VOUT = 5 V.

5. Monitor the output voltage while increasing the load current to 2-A maximum.

See Figure 2-1 for the location of the connectors.

Figure 2-1. LMR38020EVM Top View

WARNING

Hot surface! Contact may cause burns. Do not touch!

LMR38020 Evaluation Module www.ti.com

4LMR38020EVM User Guide SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

2.2 Detailed Descriptions

This section describes the connectors and the test points on the EVM and how to properly connect, set up, and

use the LMR38020EVM. See Figure 2-1 for a top view of the EVM.

VOUT (J2) Output voltage of the converter

VOUT connector and test point connected to the power inductor and the output capacitors.

Connect the loading device between VOUT and GND connectors to provide loading to the

regulator. Connect the loading device to the board with short wires to handle the DC output

current.

GND Ground of the converter

GND is connected to the LMR38020 GND as well as the return terminals of the input and output

capacitors. GND is the current return path for both supply voltage and load. Connect to supply

and load grounds with short wires.

VIN (J3) Input voltage to the converter

VIN connector and test point connects to the input capacitors and the VIN pin of the LMR38020.

Connect the supply voltage from a power supply or a battery between the VIN and GND

connectors. The voltage range must be higher than 4.2 V for the device to be active. VVIN higher

than 6 V provides a regulated 5-V output voltage. To avoid damaging the device, VVIN must be

no greater than 80 V. The current limit on the supply must be high enough to provide the needed

supply current when the output is fully loaded. The supply voltage must be connected to the

board with short wires.

VIN_EMI Input voltage to input filter of the converter

If an input filter is desired between the supply voltage and the LMR38020, connect the supply

voltage between VIN_EMI and GND on the bottom layer. The supply voltage must be connected

to the board with short wires.

The EMI filter components were not assembled on this evaluation board.

VIN_S(TP1) Measure VIN voltage

It provides a direct connection to the input capacitor C10 to sense the input voltage. Do not apply

input voltage on this test pin.

SYNC (J5) SYNC clock injection

J5 is used to synchronize the switching frequency to external clock. Refer to the LMR38020

SIMPLE SWITCHER® 4.2-V to 80-V, 2-A Synchronous Buck Converter Data Sheet for detail

application information.

Do not short J5 SYNC pin to ground.

EN (J4) Set EN pin options

Use this jumper to enable, disable the LMR38020. PIN-1 is connected to GND and PIN-2 is

connected to EN.

1. Connect PIN-1 to PIN-2 to disable the device.

2. Leave PIN-1 and PIN-2 open for EN to be connected to VIN through a resistor divider.

The system UVLO voltage can be programmed by resistor divider on EN pin. The lower UVLO

resistor, R7, was not assembled on this board, so the EN/UVLO voltage pulls up to the input

voltage.

Calculate the lower UVLO resistor, R7, based on the desired turn-on voltage and the upper

UVLO resistor, R5, of 115 KΩ. Refer to the External UVLO section of the LMR38020 SIMPLE

SWITCHER® 4.2-V to 80-V, 2-A Synchronous Buck Converter Data Sheet for more detailed

application information.

PWRGD (J1) Power-good indication

www.ti.com LMR38020 Evaluation Module

SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

LMR38020EVM User Guide 5

PWRGD jumper with PIN-1 connected to PGOOD and PIN-2 connected to the pullup voltage.

PIN-1 can be used as a test point to monitor the power-good indicator. This flag indicates whether

the output voltage has reached its regulation level. The LMR38020 PGOOD is an open-drain

output that is tied to voltage below 20 V through pullup resistor R10.

Header (J6) Measure VOUT and loop response

J6 PIN-2 (VO_S) is connected to the output for output voltage sensing and efficiency

measurement. PIN-1 (Vinj) is connected to the noise injection resistor R3. The loop response

can be measured on J6.

LMR38020 Evaluation Module www.ti.com

6LMR38020EVM User Guide SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

3 Schematic

Figure 3-1. LMR38020EVM Schematic

www.ti.com Schematic

SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

LMR38020EVM User Guide 7

4 PCB Layout

Figure 4-1 through Figure 4-4 show the board layout for the LMR38020EVM. The EVM offers resistors,

capacitors, and test points to configure the output voltage, precision enable, and switching frequency.

The 8-pin SO PowerPAD integrated circuit package offers an exposed thermal pad, which must be soldered to

the copper landing on the PCB for optimal thermal performance. The PCB consists of a 4-layer design. There

are 2-oz copper planes on the top and bottom and 1-oz copper mid-layer planes to dissipate heat with an array

of thermal vias under the thermal pad to connect to all four layers.

Test points have been provided for ease of use to connect the power supply, required load, and to monitor critical

signals.

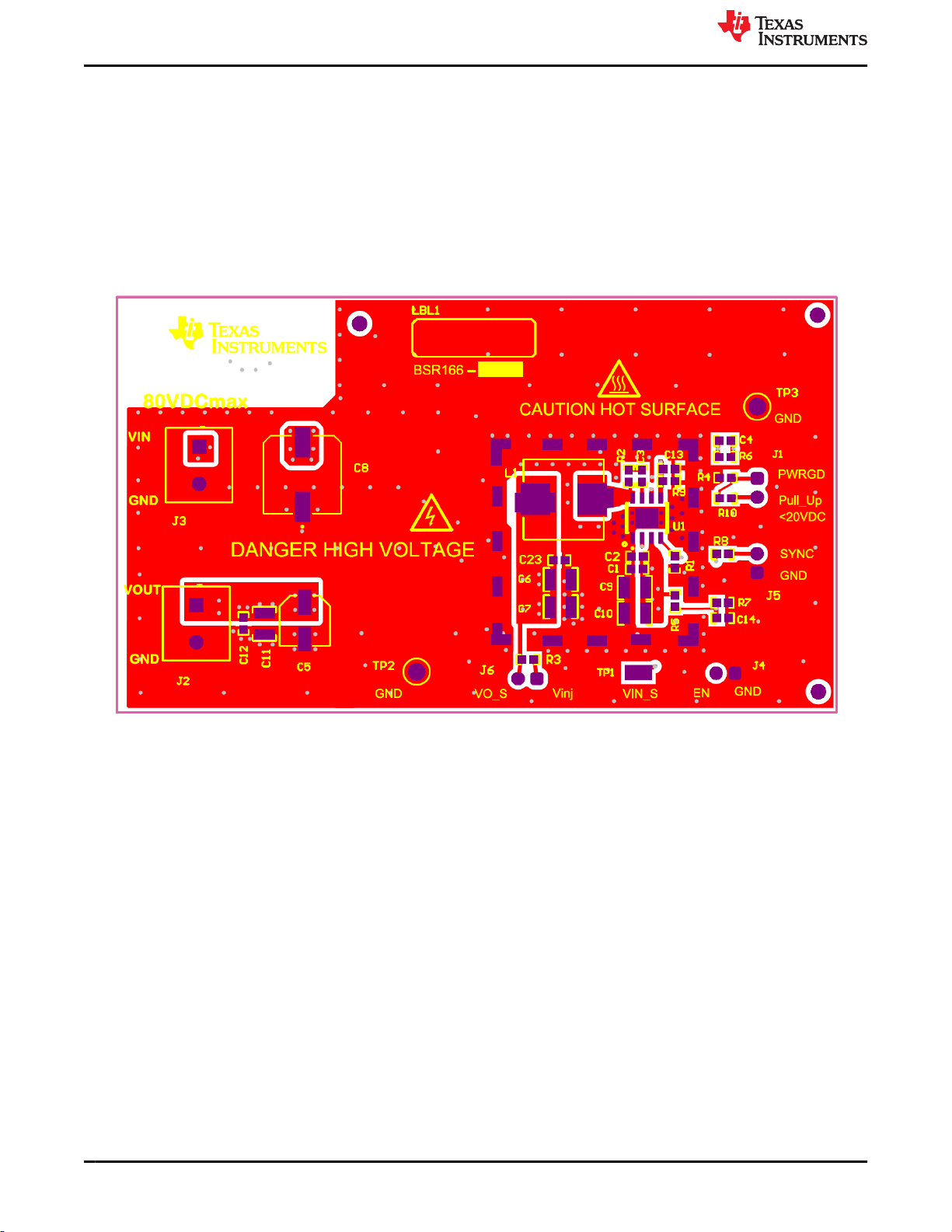

Figure 4-1. Top Layer and Silkscreen Layer

PCB Layout www.ti.com

8LMR38020EVM User Guide SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

Figure 4-2. Mid-Layer 1 Ground Plane

Figure 4-3. Mid-Layer 2 Routing

www.ti.com PCB Layout

SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

LMR38020EVM User Guide 9

Figure 4-4. Bottom Layer Routing

PCB Layout www.ti.com

10 LMR38020EVM User Guide SNVU787A – JULY 2021 – REVISED SEPTEMBER 2022

Submit Document Feedback

Table des matières

Autres manuels Texas Instruments Matériel informatique

Texas Instruments

Texas Instruments DRV603EVM Manuel utilisateur

Texas Instruments

Texas Instruments OMAP5912 Manuel utilisateur

Texas Instruments

Texas Instruments TMP119 Manuel utilisateur

Texas Instruments

Texas Instruments Sub-1 GHz Sensor-to-Cloud Linux E14 Kit Manuel utilisateur

Texas Instruments

Texas Instruments CC2533 Manuel d'installation

Texas Instruments

Texas Instruments TAS5066PAG Manuel utilisateur

Texas Instruments

Texas Instruments LM97937EVM R2 Manuel utilisateur

Texas Instruments

Texas Instruments TPA6141A2 Manuel utilisateur

Texas Instruments

Texas Instruments AM1808 Manuel utilisateur

Texas Instruments

Texas Instruments bq20z60EVM-001 Manuel utilisateur

Texas Instruments

Texas Instruments LM5168FEVM Manuel utilisateur

Texas Instruments

Texas Instruments TMS320DM357 Manuel utilisateur

Texas Instruments

Texas Instruments TPS65381EVM Manuel utilisateur

Texas Instruments

Texas Instruments OMAP36 Series Manuel du produit

Texas Instruments

Texas Instruments PGA2500EVMV2 Manuel utilisateur

Texas Instruments

Texas Instruments TRF3722 EVM Manuel utilisateur

Texas Instruments

Texas Instruments AM1808 Manuel du produit

Texas Instruments

Texas Instruments TS3USB3031 Manuel utilisateur

Texas Instruments

Texas Instruments CC1101DK Manuel utilisateur

Texas Instruments

Texas Instruments CapTIvate Touch Manuel de la liste des pièces

Texas Instruments

Texas Instruments SimpleLink CC1312PSIP Manuel utilisateur

Texas Instruments

Texas Instruments XDS522 Manuel utilisateur

Texas Instruments

Texas Instruments BQ25185EVM Manuel utilisateur

Texas Instruments

Texas Instruments UCD3138PFCEVM-026 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
