Tecnoware ERA PLUS 750 Manuel utilisateur

Uninterruptible Power Supply

ERA PLUS 750

ERA PLUS 900

ERA PLUS 1.100

ERA PLUS 1.500

User’s manual

UPS ERA PLUS 750-900-1.100-1.500 1 User’s manual

In ex

Safety Warnings ................................................................................ 2

1 Intro uction ................................................................................. 3

2 General Characteristics ................................................................... 4

3 Receipt an site selection ................................................................ 4

4 EXTERNAL DESCRIPTION .................................................................. 5

4.1 Front Panel ............................................................................. 5

4.2 Rear Side ................................................................................

5 Electrical Installation an First Start Up ............................................... 7

6 Functioning ................................................................................. 8

.1 Normal Mode ........................................................................... 8

.2 Battery Mode ........................................................................... 8

.3 Low Battery and Automatic Restart ................................................. 8

.4 Load Control ............................................................................ 9

.5 Fault Condition ........................................................................ 9

7 Communication Interface ................................................................. 9

8 Technical Characteristics ................................................................ 10

9 Maintenance ............................................................................... 11

9.1 UPS Cleaning ......................................................................... 11

9.2 Battery ................................................................................ 11

9.3 Battery Replacement ............................................................... 11

9.4 Operator Safety ...................................................................... 12

10 Troubleshooting ........................................................................... 12

Conformity to the European Directives ................................................... 14

Pro uct Disposal ............................................................................... 14

Lea Batteries ................................................................................. 14

All trademarks are property of their respective owners.

TECNOWARE s.r.l.

Via Montetrini, 2E – Loc. Molino del Piano – 500 5- Pontassieve (FI) – Italy

www.tecnoware.com

Edition: November 2018 – version: 1.4

No part of this manual may be reproduced, even partially, without the

authorisation of TECNOWARE s.r.l.

TECNOWARE s.r.l. reserves the right to change specifications at any time

and without notice.

User’s manual 2 UPS ERA PLUS 750-900-1.100-1.500

Safety Warnings

Rea this manual carefully an completely before installing an using the TECNOWARE ERA

PLUS Uninterruptible Power Supply, which, from here after, will also be referre to as UPS.

This manual shoul be kept close to the UPS an rea before the UPS is installe an use .

The UPS must be use only by properly traine personnel. To ensure correct an safe

operations, it is necessary that operators an maintenance personnel observe the general

safety Stan ar s as well as the specific instructions inclu e in this manual.

Risk of electric shock: o not remove the cover. The UPS contains internal parts, which are at a

high Voltage an are potentially angerous, capable of causing injury or eath by electric

shock.

There are no internal parts in the UPS, which are user serviceable. Any repair or maintenance

work must be performe exclusively by qualifie technical personnel authorize by

TECNOWARE. TECNOWARE eclines any responsibility if this warning is isregar e .

Warning to the technical personnel authorize for Service: since internal components are

connecte to the batteries, they will remain powere , an therefore angerous, even after the

UPS has been isconnecte from AC power mains. Before any repair or maintenance work,

isconnect the batteries, by removing the positive cable (re colour) from the positive pole of

the battery.

It is compulsory to groun the UPS accor ing to Safety Stan ar s. The AC mains power supply

socket use to power the UPS must have an earth connection.

In the event of AC main power supply failure (when the UPS works in Battery mo e), o not

unplug the power supply cable to the UPS to ensure earth continuity to the connecte loa s.

Since the AC mains power supply cable acts as a separation evice, the AC mains power socket

use to supply the UPS an /or the rear si e of the UPS must be accessible to easily isconnect

the cable in case of angerous con itions.

Risk of electric shock at the Output lines when the UPS is ON.

Risk of electric shock at the Output lines while the unit is connecte to the AC utility line.

Do not obstruct ventilation slots or holes an o not rest any object on top of the UPS.

Do not insert objects or pour liqui s in the ventilation holes.

Install the UPS in oors, in a protecte , clean an moisture-free environment.

Do not expose to the irect sun light.

Do not keep liqui s, flammable gases or corrosive substances near the UPS.

UPS ERA PLUS 750-900-1.100-1.500 3 User’s manual

1Intro uction

ERA PLUS is a Line Interactive UPS (Uninterruptible Power Supply) specifically designed to protect your computer

from any type of irregularities in the AC line (such as black-outs, under or over voltages, micro-interruptions),

which often cause damage to your Hardware and Software.

Under normal AC line condition, ERA PLUS performs output voltage regulation and filters frequently occurring

electrical disturbances (such as transients, spikes, interferences, etc.), thus protecting all devices connected to

the outlets, and recharging the batteries in an ideal way. In case of anomaly to the AC line, the UPS continues

feeding the protected equipment.

ERA PLUS is equipped with an USB interface which can be used to notify a power failure or a low battery condition

directly to a computer: this makes it possible to automatically save your data during an extended black-out with

the most widespread operating systems (Windows, Mac OS X, Linux, etc.).

Rea this manual carefully before using the ERA PLUS; it inclu es important safety

warnings an useful a vices for correct use an installation.

This manual is a gui e that enables you to correctly install an use your ERA PLUS. This

manual inclu es important SAFETY instructions for the operator, for the UPS correct

installation, an gives useful a vice on the pro uct an battery maintenance. For any

type of problem, please refer to this manual before calling the customer service.

ERA PLUS is constantly being developed and improved: consequently, your unit may differ somewhat from the

description contained in this manual.

This manual includes the following models:

•ERA PLUS 750 (750 VA)

•ERA PLUS 900 (900 VA)

•ERA PLUS 1.100 (1.100 VA)

•ERA PLUS 1.500 (1.500 VA)

In this manual ERA PLUS will simply be referred to as UPS.

User’s manual 4 UPS ERA PLUS 750-900-1.100-1.500

2General Characteristics

ERA PLUS has all the advanced features, which guarantee maximum reliability and safety:

•All functions are controlled by a microprocessor, giving full guarantee of high reliability.

•Output Voltage regulation through AVR (Automatic Voltage Regulation).

•Overload protection both in normal mode and in battery mode.

•High performance battery charger, which extends the battery medium life ensuring an optimal recharge.

•Start up even if the electrical network is not available.

•Automatic restart after an automatic shut down due to a low battery condition once the AC utility power

returns.

•Adapts automatically to 50 or 0 Hz input frequency.

•Acoustic signals of various kinds indicating functioning modes and alarm/fault condition.

•Communication with the computer through USB interface.

•High efficiency

•Maximum reliability

•Smart design and easy to use

3Receipt an site selection

Carefully remove the UPS from its packaging, and carry out a meticulous inspection. We recommend keeping the

original packaging in a secure place, in case you need to send the UPS for maintenance purposes. In case of

transport damage, notify the carrier and dealer immediately.

We recommend paying attention to the below points in order to choose a correct placement for your UPS:

•The UPS is designed to operate in a protected environment (e.g. offices). We therefore recommend

installing it in a place with very little or no humidity, dust or smoke.

•In all circumstances, see the “Technical Characteristics” chapter for environmental specifications and

check that the selected area meets these specifications.

•During normal operation the UPS discharges a minimal amount of heat. So it is necessary to leave at least

20 cm of unobstructed space all around the UPS in order to keep it properly ventilated.

•Do not obstruct ventilation holes.

•Do not insert objects or pour liquids in the ventilation holes.

•Do not rest any object on top of the UPS.

•Do not keep liquids, flammable gases or corrosive substances near the unit.

•Install the UPS on a properly tiled floor. Avoid the installation on a floor that is not tiled flat.

UPS ERA PLUS 750-900-1.100-1.500 5 User’s manual

4EXTERNAL DESCRIPTION

4.1 Front Panel

The front panel informs the user about operating status, alarm conditions and measurements. Front panel shown

below consists of two parts:

1. The ON/OFF button: enables the user to turn ON/OFF the UPS.

2. The LINE/BATTERY led: this led (blue color) is always on during the functioning in Normal Mode, it flashes

one time every 4 seconds in Battery mode and it flashes one time every second in Low Battery condition.

Figure 1 – Front panel

User’s manual 6 UPS ERA PLUS 750-900-1.100-1.500

4.2 Rear Si e

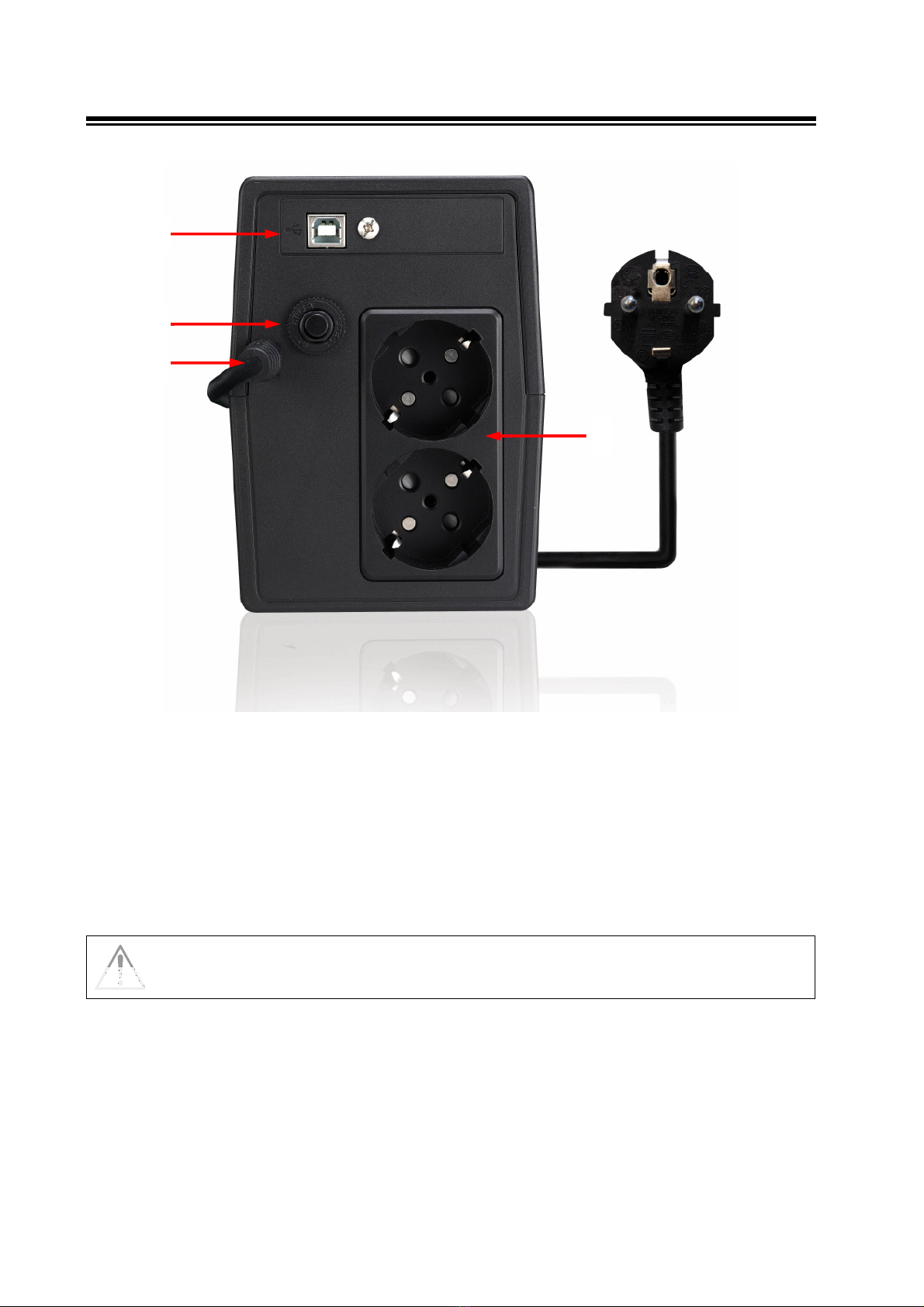

Figure 2 – Rear Si e

1. AC Input cable: to connect the UPS to the AC utility line.

2. Input fuse: electrical specification: max current 5 A, voltage 250 V.

3. Groun e UPS Output receptacles: Schuko/Italian type, black colour, to supply critical loads.

4. Computer Interface (USB connector): it is the communication USB port. (Only for UPS ERA Plus 1.100 and

UPS ERA Plus 1.500)

In case of anomaly to the AC line (black-out), the UPS Output receptacles (black colour,

#3) continue supplying the correct power to all connecte equipment.

UPS ERA PLUS 750-900-1.100-1.500 7 User’s manual

5Electrical Installation an First Start Up

We advise you to follow the steps below explained for greater safety:

1. Switch off all the devices (Personal Computer or other electronic devices) that need to be supplied by the

UPS.

2. Connect the UPS Input socket to the AC line outlet. It is man atory to groun the AC line outlet accor ing

to the Safety Stan ar s. Carefully check the grounding, make sure that the utility power is available, and

that its range falls within the UPS specifications (refer to the “Specifications” chapter).

3. Press the ON/OFF button on the front panel: the UPS emits a brief acoustic signal, turns the led display on,

and performs a functioning SELF-TEST. After some seconds the UPS starts to work in Normal mo e. Leave

the UPS in Normal mode for at least 4 hours in order to completely recharge the batteries.

4. Switch the UPS off (by pressing again the ON/OFF button).

5. Connect the devices to be supplied to the UPS outputs. Be sure all the devices have the main switch in ON

position.

6. Turn on the UPS again. Check that it starts working correctly and it doesn’t signal any sort of anomaly.

Moreover be sure that all the devices connected to the UPS outputs are working correctly.

7. Simulate a black-out by removing the AC Input line. The UPS starts working in Battery mo e: the UPS emits a

brief acoustic signal every 10 seconds.

8. Be sure that all the devices connected to the UPS outputs are working correctly and the UPS doesn’t signal

any sort of anomaly.

9. Restore the AC Input line: after few seconds the UPS turns back in Normal mode.

Before using ERA PLUS normally, leave it in Normal mode in order to charge the batteries completely as specified

at point 3. The batteries reach the 90% of their capacity after about 4 hours of recharge.

It is compulsory to groun /earth the UPS accor ing to the Safety Stan ar s.

Risk of electric shock at the Output lines if the UPS is ON, even when the UPS is not

connecte to AC utility line.

Risk of electric shock at the Output lines while the unit is connecte to the AC utility

line.

Risk of electric shock: o not remove the cover. The UPS contains internal parts, which

are at a high Voltage an are potentially angerous, capable of causing injury or eath

by electric shock.

There are no internal parts in the UPS that are user serviceable. Any repair or

maintenance work must be performe exclusively by qualifie technical personnel

authorize by TECNOWARE. TECNOWARE eclines any responsibility if this warning is

isregar e .

Disregar for these warnings may lea to a risk of electric shock to operators.

User’s manual 8 UPS ERA PLUS 750-900-1.100-1.500

6Functioning

6.1 Normal Mo e

The UPS typically works in Normal mo e: Input mains power is available and its amplitude is within specifications.

In Normal mode the LINE/BATTERY led is always on.

During Normal mode, the UPS recharges the batteries and keeps them in an optimal charging voltage.

6.2 Battery Mo e

The UPS automatically runs in Battery mo e if the AC Input Line voltage amplitude gets out of security limits (in

case of a black-out or over-voltage/low-voltage): in this case, the UPS supplies the required output power by its

internal battery and by the Inverter block.

The UPS automatically returns in Normal mode a few seconds after the AC Input Line is recovered.

In Battery mode the UPS emits an acoustic alarm signal every 10 seconds and simultaneously the LINE/BATTERY

led flashes.

6.3 Low Battery an Automatic Restart

In Battery mode, ERA PLUS indicates the Low Battery condition whenever the battery reaches a charge level

allowing connected devices to operate for approximately one more minute.

During Low Battery condition the UPS emits an acoustic alarm signal every second and simultaneously the

LINE/BATTERY led flashes.

If AC Input does not come back on within few minutes, the UPS shuts- own automatically thus preventing the

batteries from discharging excessively; the UPS stops supplying Output power, deactivates control panel indication

and goes to a waiting state. Once AC Input comes back on, the UPS restarts automatically and after some seconds

it goes back to work in Normal mode.

After a complete discharge, the UPS needs 4 hours to recharge completely the batteries. The UPS recharges

batteries automatically if it works in Normal mode or if it is off and connected to the AC Input Line.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Tecnoware UPS

Tecnoware

Tecnoware EVO DSP TT Manuel utilisateur

Tecnoware

Tecnoware V33/65-80-100 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 8.0 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS 800 PF 0.9 Manuel utilisateur

Tecnoware

Tecnoware EVO TM 15.0 Manuel utilisateur

Tecnoware

Tecnoware Ups Pro Manuel utilisateur

Tecnoware

Tecnoware EXA PLUS 1000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MODULAR Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Tecnoware

Tecnoware ERA PLUS 1600 SCHUKO Manuel utilisateur

Tecnoware

Tecnoware EVO DSP MM 3.6 Manuel utilisateur

Tecnoware

Tecnoware EVO 3.0 RT Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS 1.200 Rack Tower PF 0.9 Manuel utilisateur

Tecnoware

Tecnoware ERA PLUS 800 SCHUKO Manuel utilisateur

Tecnoware

Tecnoware EVO DSP MM 6.0 Manuel utilisateur

Tecnoware

Tecnoware EVO 3.0 RT Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 2.0 - pf 0,9 Manuel utilisateur

Tecnoware

Tecnoware EVO STAR Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS TT 10.0 Manuel utilisateur

Tecnoware

Tecnoware EXA PLUS Manuel utilisateur

Tecnoware

Tecnoware ERA LED 0.85 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS 1.200 PF 0.9 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP TM Manuel utilisateur

Tecnoware

Tecnoware EVO 3.0 Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur

ZincFive

ZincFive BC Series Manuel utilisateur
