Storage Canopy C4040S Manuel utilisateur

SHELTER

ASSEMBLY MANUAL

Model # W12xL12xH 4.5m

C4040S Back wall & frame of Container Shelter

C4040S Back wall & frame

SPECIFICATION

Width:12m Length:12m Height:4.5m

IMPORTANT ----READ MANUAL FIRST

Improper site preparation, Assembly and Maintenance may invalidate warranty and cause unnecessary and

costly mistake. If you have any questions contact your local dealer.

For User Friendly assembly we have identified each individual component with the part code as indicated in

the parts list. Please refer to the part code numbers and drawing to ensure problem freeassembly.

It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-tighten once or

twice again after a few months of use. This is important when assembly in cold weather (autumn and winter)

because the fabric is stiff then and when we got the sun and warm weather afterwards it will make the fabric

“slack” again and need to be re-tighten before next winter.

It’s the owners responsibility to take of snow immediately if not slide off by itself.

READ ALL INSTRUCTIONS BEFORE ASSEMBLY

Keep work area clean. Cluttered areas invite injuries. Do not set up near snow drifts, in slippery places, in

high winds, or wet location.

Keep children away. All children should be kept away from the workarea.

Don’t over reach. Keep proper footing and balance at all times.

Do not assemble in under the influence of alcohol or drugs. Read warning labels on prescriptions to

determine if your judgment or reflexes are impaired while taking drugs. If there is any doubt, do not

assemble.

Be aware of possible windy conditions; fasten the bases in concrete if these conditions are likely to occur.

Remove the cover during hurricane.

Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not expose to

open flame.

Be aware of personal safety during assembly and use. Be carful not to pinch fingers with clips and tubes

when assembling: when using makes sure there is adequate ventilation for exhaust and other dangerous

fumes.

Parts List

Part

Code

Description

QTY

Base Plate for endwall door

Base plate at both site

Base plate for container side of

back wall

Lower standing leg

Middle standing leg

Upper standing leg for the door

Upper standing leg for the middle

back wall

Standing leg for the outside back

wall

Door beam

1Group

Vertical supporting tube

Diagonal bracing tube

Horizontal pipe for back door

Back door shoulder horizontal pipe

Back door bottom tension tube

Vertical supporting tube(male and

female)

1Group

Adding connection in side

Adding connection in middle

Back endwall

Rope

1Bundle

Bolts M10*30

Bolts M10*60

Carriage Bolts M10*90

Carriage Bolts φ12*110

Clips

Stake Peg

Iron Plate with two holes(welded on

already)

Straight iron plate with 3 holes

φ60 Half arc burning iron

Belay pendant

Wheels for pull door

1set

Rope for pull door 60m

SPECIFICATION

Width: 12m Length: 12m Height: 4.5m

IMPORTANT ---- READ MANUAL FIRST

Improper site preparation, Assembly and Maintenance may invalidate warranty and cause

unnecessary and costly mistake. If you have any questions contact your local dealer.

For User Friendly assembly we have identified each individual component with the part code as

indicated in the parts list. Please refer to the part code numbers and drawing to ensure problem

free assembly.

It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also

re-tighten once or twice again after a few months of use. This is important when assembly in cold

weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm

weather afterwards it will make the fabric “slack” again and need to be re-tighten before next

winter.

It’s the owners responsibility to take of snow immediately if not slide off by itself.

READ ALL INSTRUCTIONS BEFORE ASSEMBLY

1.Keep work area clean. Cluttered areas invite injuries. Do not set up near snow drifts, in

slippery places, in high winds, or wet location.

2.Keep children away.All children should be kept away from the work area.

3.Don’t over reach. Keep proper footing and balance at all times.

4.Do not assemble in under the influence of alcohol or drugs. Read warning labels on

prescriptions to determine if your judgment or reflexes are impaired while taking drugs. If

there is any doubt, do not assemble.

5.Be aware of possible windy conditions; fasten the bases in concrete if these conditions are

likely to occur. Remove the cover during hurricane.

6.Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not

expose to open flame.

7.Be aware of personal safety during assembly and use. Be carful not to pinch fingers with clips

and tubes when assembling: when using makes sure there is adequate ventilation for exhaust and

other dangerous fumes.

EQUIPEMNT AND TOOLS FOR INSTALIATION

1. Measuring tape

2. String for alignment

3. Step ladder

4. Welder

5. Sledge hammer

6. Wrench

7. Scissors

INSTALLATION PROCESS

A—FRAME INSTALLATION

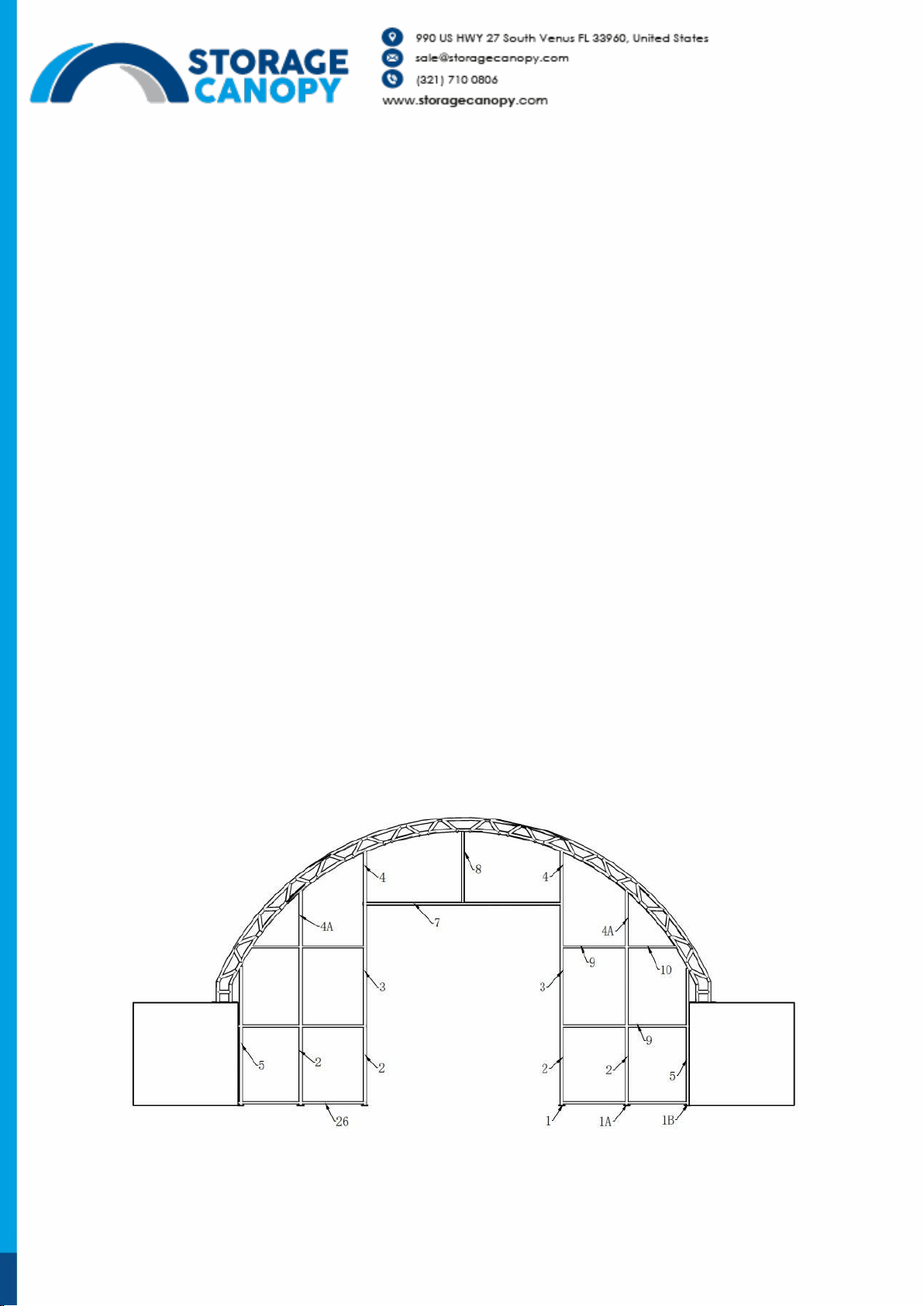

Please refer to the diagram (Figure 1) to install thebase plate. UNIT:

Figure 1

There are four base plate comes with the back endwall. Each of them should be placed in the

right position(especially the two base plate close to the containers.)

Figure 2

1. The measure is from center to center of the tubes. Referring to the abovediagram.

2. As the Figure 2 Shows, please find all the partsaccordingly.

3. Connect all parts together by using clips(Part No. 21) andbolts.

C--INSTRUCTION FOR COVER ATTACHED

Assembly the end cover first.

NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A

slight breeze is the most advantageous for cover installation. To take advantage of the breeze,

pull the cover up over the arches with the breeze blowing in the cover like a sail filled with air.

Figure 3

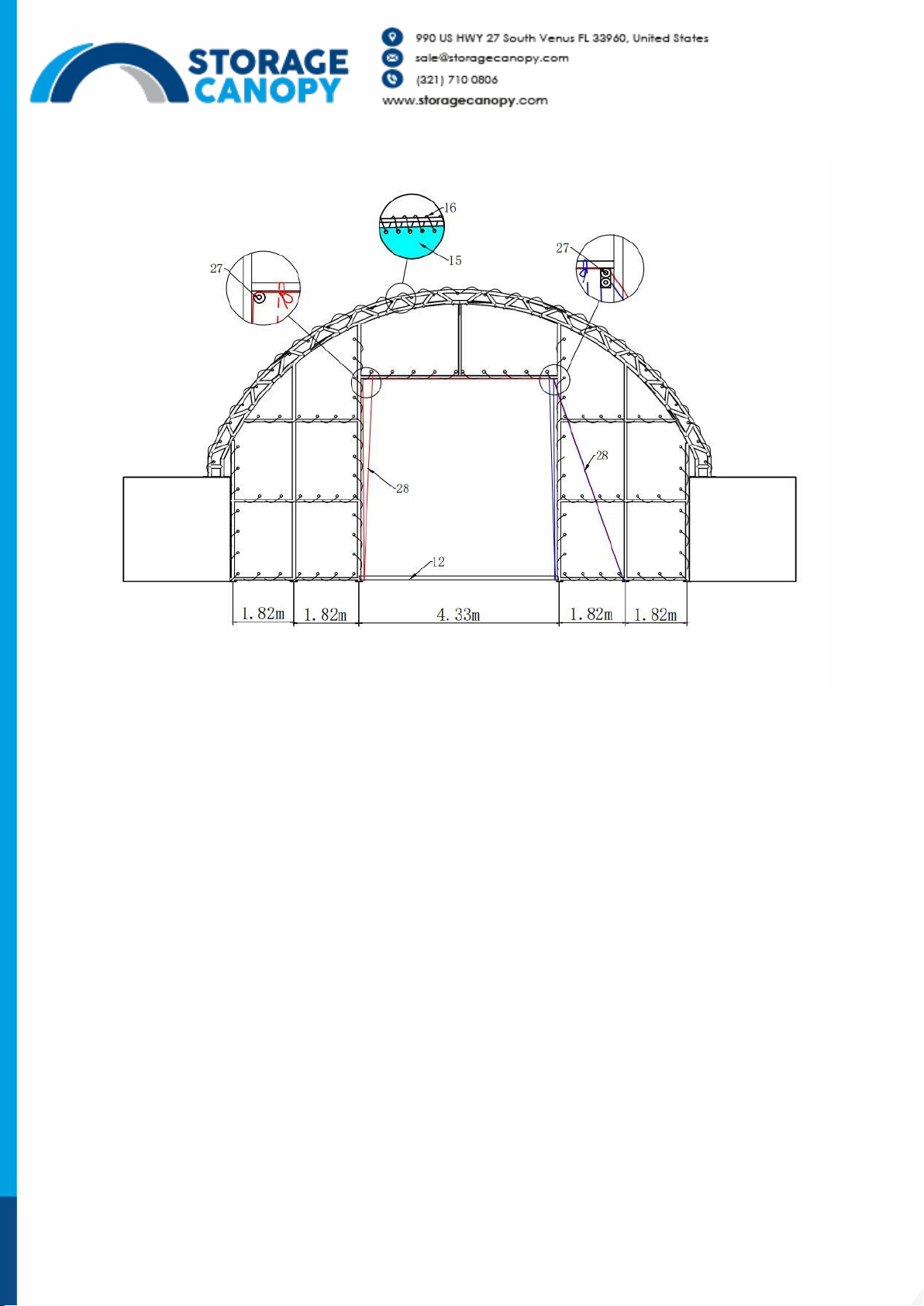

Use rope(NO.16) to tie the end cover (No.15) to the endwall.

Use rope(NO.28) to tie the Wheels (No.27) to pull door.

The process is quite easy. But some tightening adjustments will be necessary to produce a flat. Please adjust

the cover timely.
