Storage Canopy C4040 Manuel utilisateur

SHELTER

ASSEMBLY MANUAL

Model #C4040 Back wall & frame of

Container Shelter

C4040 Back wall & frame

SPECIFICATION

Width:40ft Length:40ft Height:15ft

IMPORTANT----- READ MANUAL FIRST

Improper site preparation, Assembly and Maintenance may invalidate warranty and cause

unnecessary and costly mistake. If you have any questions contact your local dealer.

For User Friendly assembly we have identified each individual component with the part code as

indicated in the parts list. Please refer to the part code numbers and drawing to ensure problem

free assembly.

It’s necessary to tighten the roof fabric enough to avoid “hammocks” on the roof and also re-

tighten once or twice again after a few months of use. This is important when assembly in cold

weather (autumn and winter) because the fabric is stiff then and when we got the sun and warm

weather afterwards it will make the fabric “slack” again and need to be re-tighten before next

winter.

It’s the owners responsibility to take of snow immediately if not slide off by itself.

READ ALL INSTRUCTIONS BEFORE ASSEMBLY

1. Keep work area clean. Cluttered areas invite injuries. Do not set up near snow drifts, in

slippery places, in high winds, or wet location.

2. Keep children away. All children should be kept away from the work area.

3. Don’t over reach. Keep proper footing and balance at all times.

4. Do not assemble in under the influence of alcohol or drugs. Read warning labels on

prescriptions to determine if your judgment or reflexes are impaired while taking drugs. If

there is any doubt, do not assemble.

5. Be aware of possible windy conditions; fasten the bases in concrete if these conditions are

likely to occur. Remove the cover during hurricane.

6. Be careful with power and heat sources. Do not keep heat sources near the tarpaulin. Do not

expose to open flame.

7. Be aware of personal safety during assembly and use. Be careful not to pinch fingers with

clips and tubes when assembling: when using makes sure there is adequate ventilation for

exhaust and other dangerous fumes.

Parts List

Part Code

Description

Qty

Base plates for winch door

Side base plates

Lower standing leg at left

Bottom standing leg for front endwall at left

Bottom middle standing leg for front endwall at right

Top middle standing leg for front endwall

Top side standing leg for front endwall

Bottom door post at left

Bottom door post at right

Middle door post

Top door post

Door beam

Door boom

Horizontal tube for front endwall

10A

Horizontal tube for front endwall shoulder

Square tube for winch door

Mechanical wheel with wire rope

Bottom tension tube for front endwall

Clips

14A

Welded metal plate

14B

Single hole angle iron

The front door vertical tube

9 Groups

Stake peg

Splint iron

Carriage Bolts M10*90

Bolts M10*90

Carriage Bolts M12*100

Bolts M10*30

Plastic Plug

Rope for pull door

Front cover

Added legs

Added door frame

EQUIPEMNT AND TOOLS FOR INSTALIATION

1. Measuring tape

2. String for alignment

3. Step ladder

4. Welder

5. Sledge hammer

6. Wrench

7. Scissors

INSTALLATION PROCESS

A—FRAME INSTALLATION

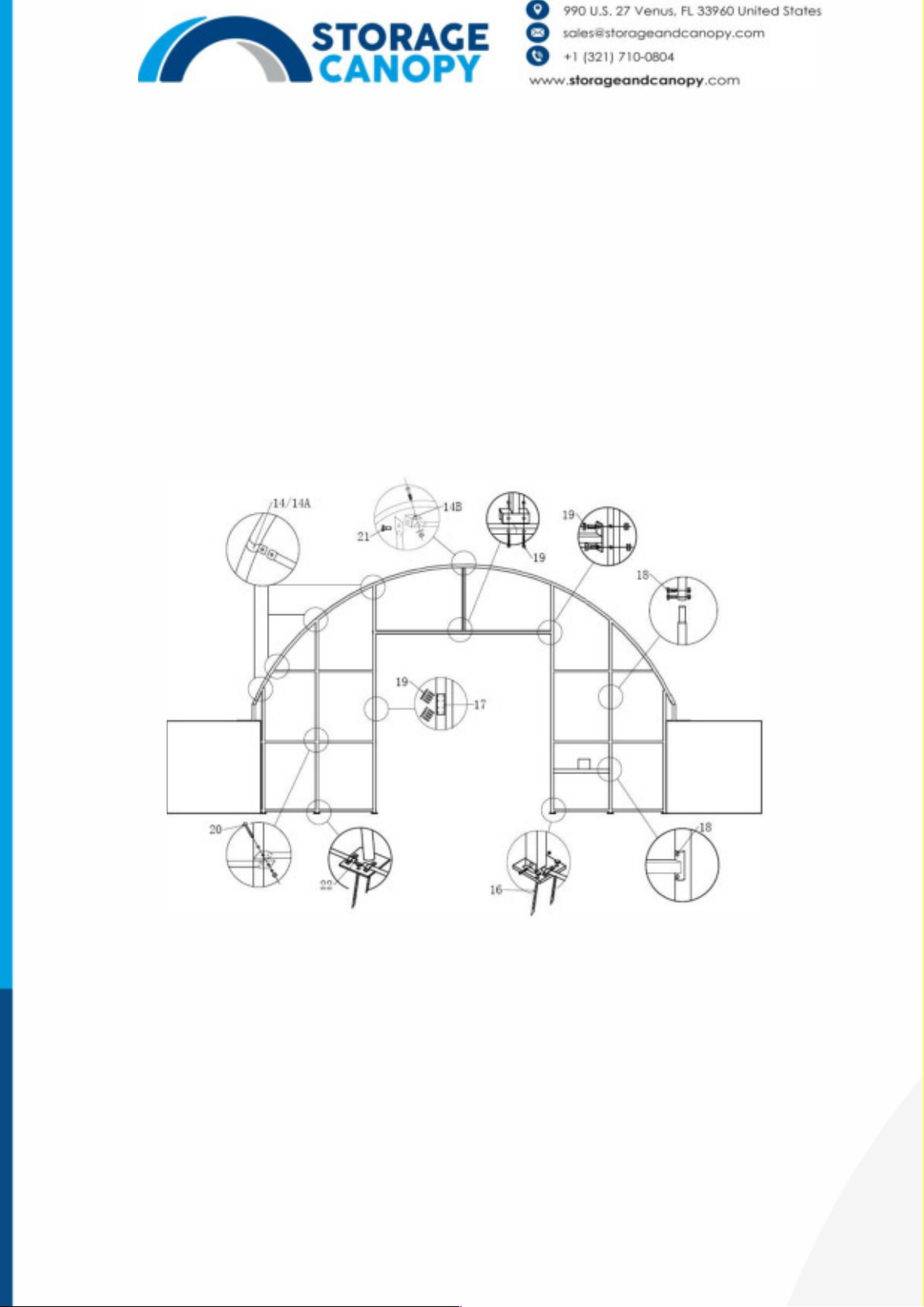

Figure 1

There are four base plate comes with the back endwall. Each of them should be placed in the

right position(especially the two base plate close to the containers.)

C--INSTRUCTION FOR COVER ATTACHED

Assembly the end cover first.

NOTE: DO NOT install the cover onto the frame of your building in high wind conditions. A

slight breeze is the most advantageous for cover installation. To take advantage of the breeze,

pull the cover up over the arches with the breeze blowing in the cover like a sail filled with a

Figure 3

The process is quite easy. But some tightening adjustments will be necessary to produce a flat. Please adjust

the cover timely.
