No Butts Bin SR1605 Manuel utilisateur

Assembly Instructions

Shelter type:

SR1605

SR1605-01-120416-USA

Email : [email protected]

Web : www.nobutts.com

Tel : 1-888-662-8887

417

3 6

Tools required:

Drill/Screwdriver

Mallet

Hack saw

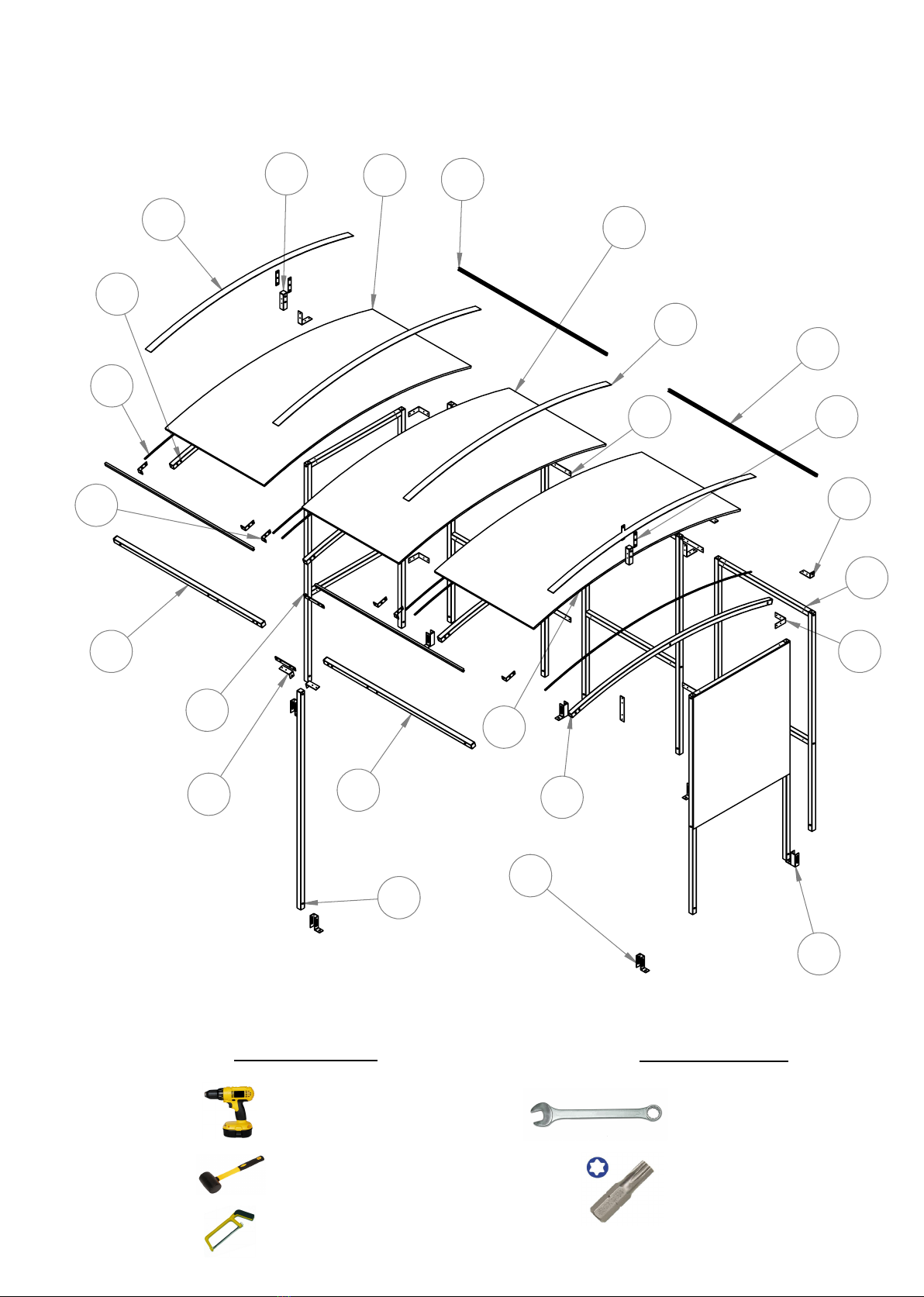

EXPLODED VIEW

Tools included:

Wrench

Torx bit

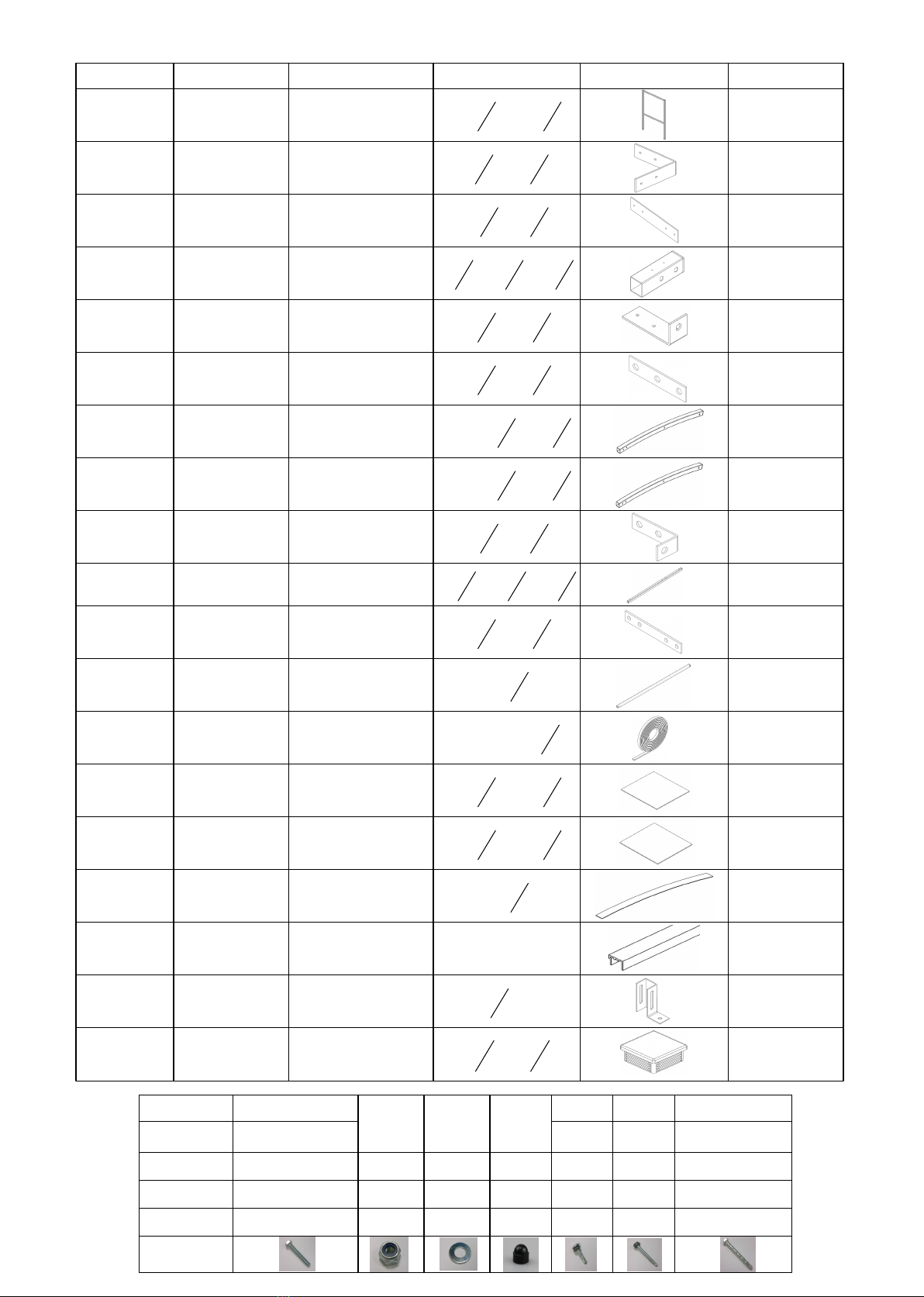

PARTS LIST

ITEM NO.

PART NO.

DESCRIPTION

SIZE


QUANTITY.

S1/HS

FRAME

x 40

CB1

BRACKET

x 4

JF1

PLATE/

BRACKET

x 1

NBBS S1

STUB

x 1

RB2

BRACKET

x 1

JF2

PLATE/

BRACKET

x 1

CURVED

RAFTER

85 x 1

x 1

CURVED

RAFTER

85 x 1

x 1

BRACKET

x 1

ST9

TIE BAR

611

x 1

JF3

PLATE/

BRACKET

x 1

POST

SEALING STRIP

trim to 87

PCC2

ROOF

PANEL

x 40

PCE2

ROOF

PANEL

x 41

RC2

ROOF

STRIP

2MD

ROOF EDGE

TRIM

62 4

FT1

BRACKET

x 4

EC40

END CAPS

x 1

Fittings

Bolt set M10

Nut

Washer

Black

Cap

T25 T50 AB1210

3/8th x 2 3/8"

1" Tech

screw

2" Tech

screw

1/2 x 4"

Concrete Bolt

Pack A+B

40 40 80 80 136 66 13

Required

39 39 78 78 64 40 7

Spare

1 1 2 2 72 26 6


124"

40 1

CB1

JF1

CB1

S1 STUB

Check the

dimension

of the shelter to

ensure correct

alignment

GENERAL NOTE:

THE 2" TECH

SCREWS ARE

FOR FIXING ROOF

STRIPS

(RC) ONLY

CB1 CB1

JF1 JF1

S1 S1 S1

CB1

S1 STUB

ENSURE CORRECT

ALIGNMENT ON

BOTH SIDES

DETAIL A (S1 STUB)

SCALE 1 : 5

S1 STUB

CB1

JF1

S1 FRAME

Step 1

Assemble

frames to make up the main structure using

CB1

brackets

in the corners and

JF1

brackets on the straight joints. Attach the

S1 stub

as shown using

JF1

brackets.

JF2JF2

RB2

CB1

JF1

JF2

S1 STUB DETAIL

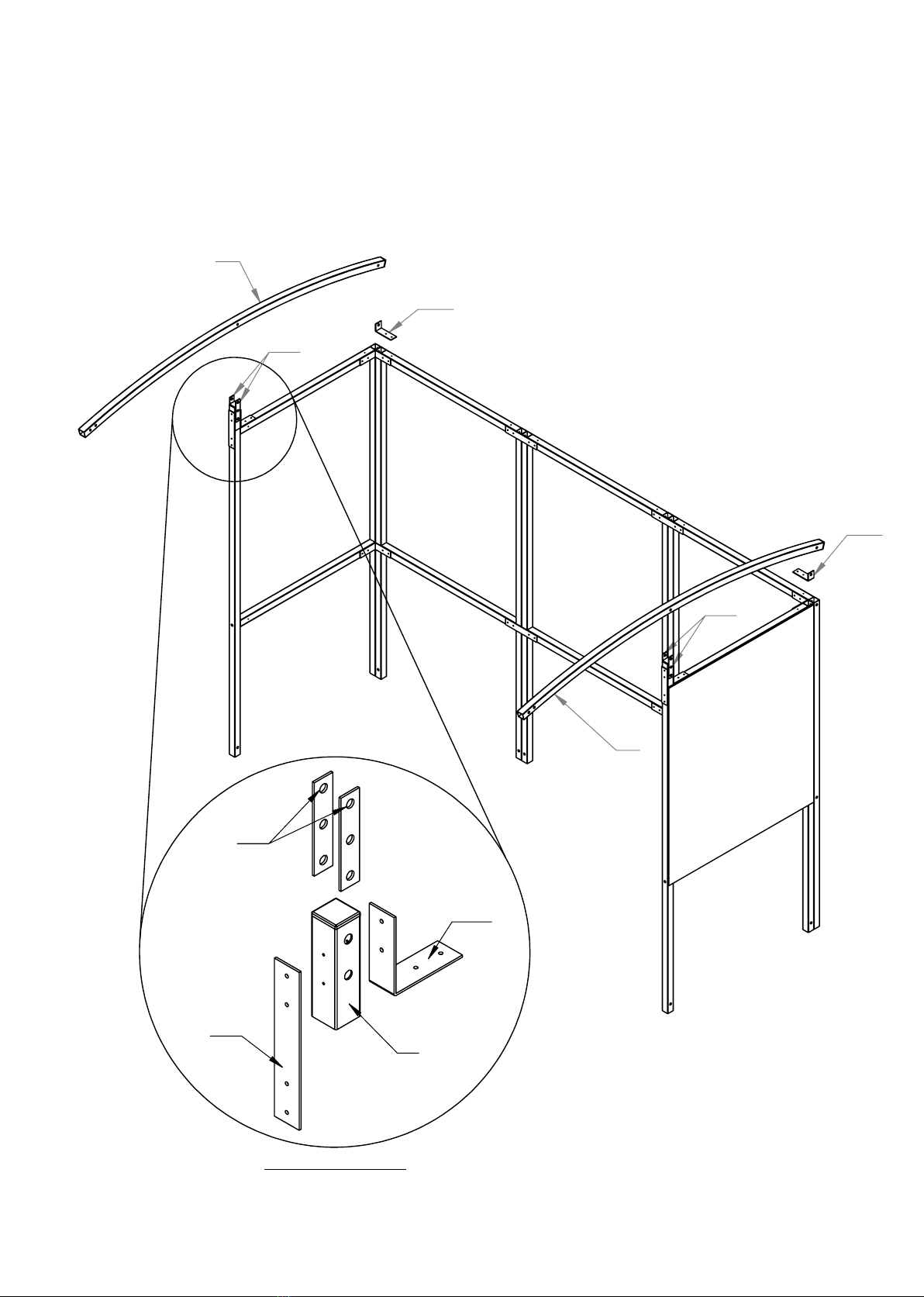

Step 2

Attach

rafters using

RB2

brackets on the back of the shelter and

JF2

brackets in the middle.

ST9

JF3

RB2

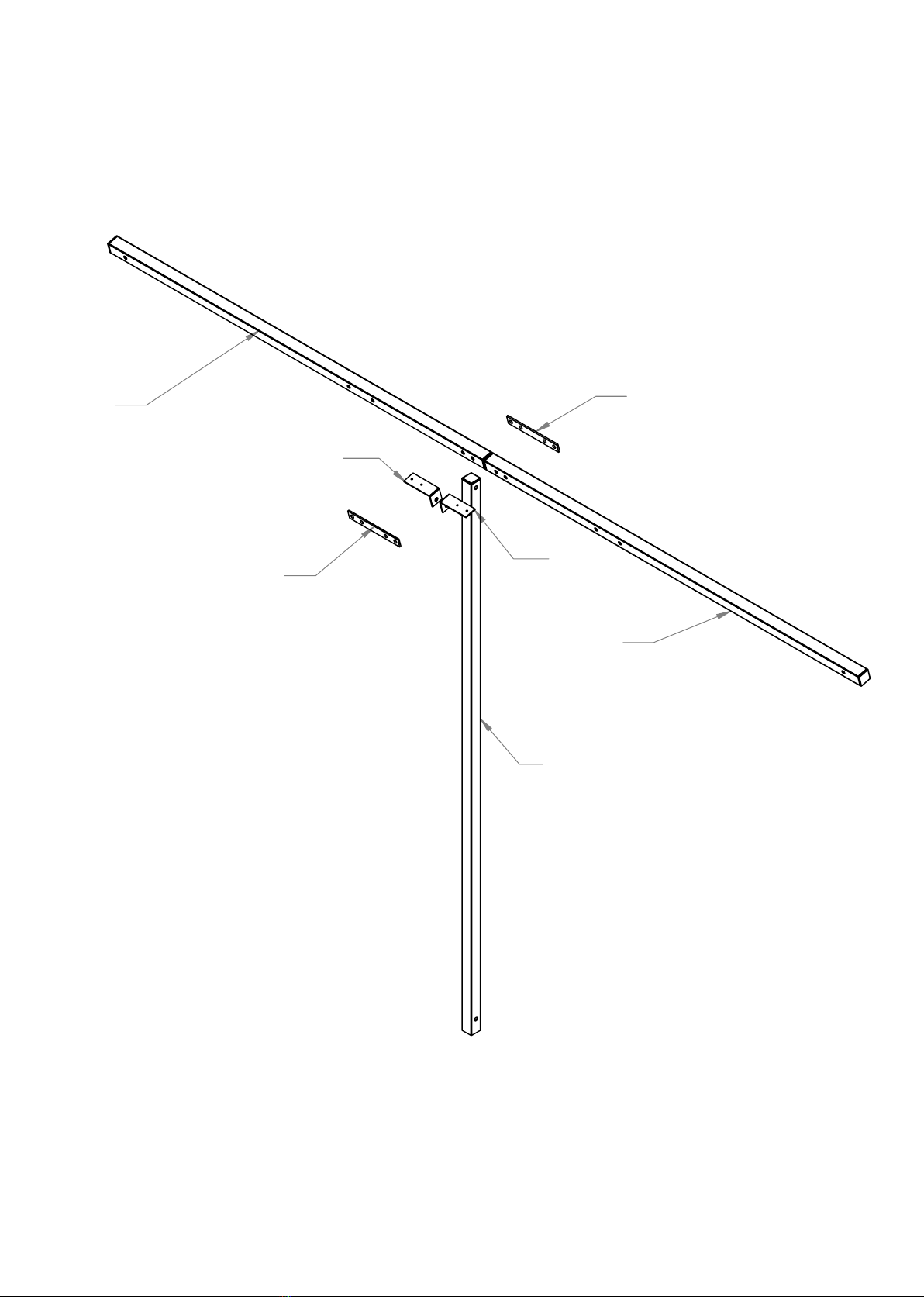

Step 3

Assemble the

T-frame

using two

ST9

tie bars and a

post. Join the two

ST9

bars together first using

JF3

brackets, then attach the

post using

two

RB2

brackets.

L1L1

RB2

FT1

Step 4

Use

brackets to attach the T-bar to the front of the shelter and install

the

rafters using

RB2

brackets on the rear and

brackets at the front.

Attach the

FT1

brackets and move the shelter in to its final position

before using anchor bolts to secure it to the ground.

SSSS

PCE2

PCC2

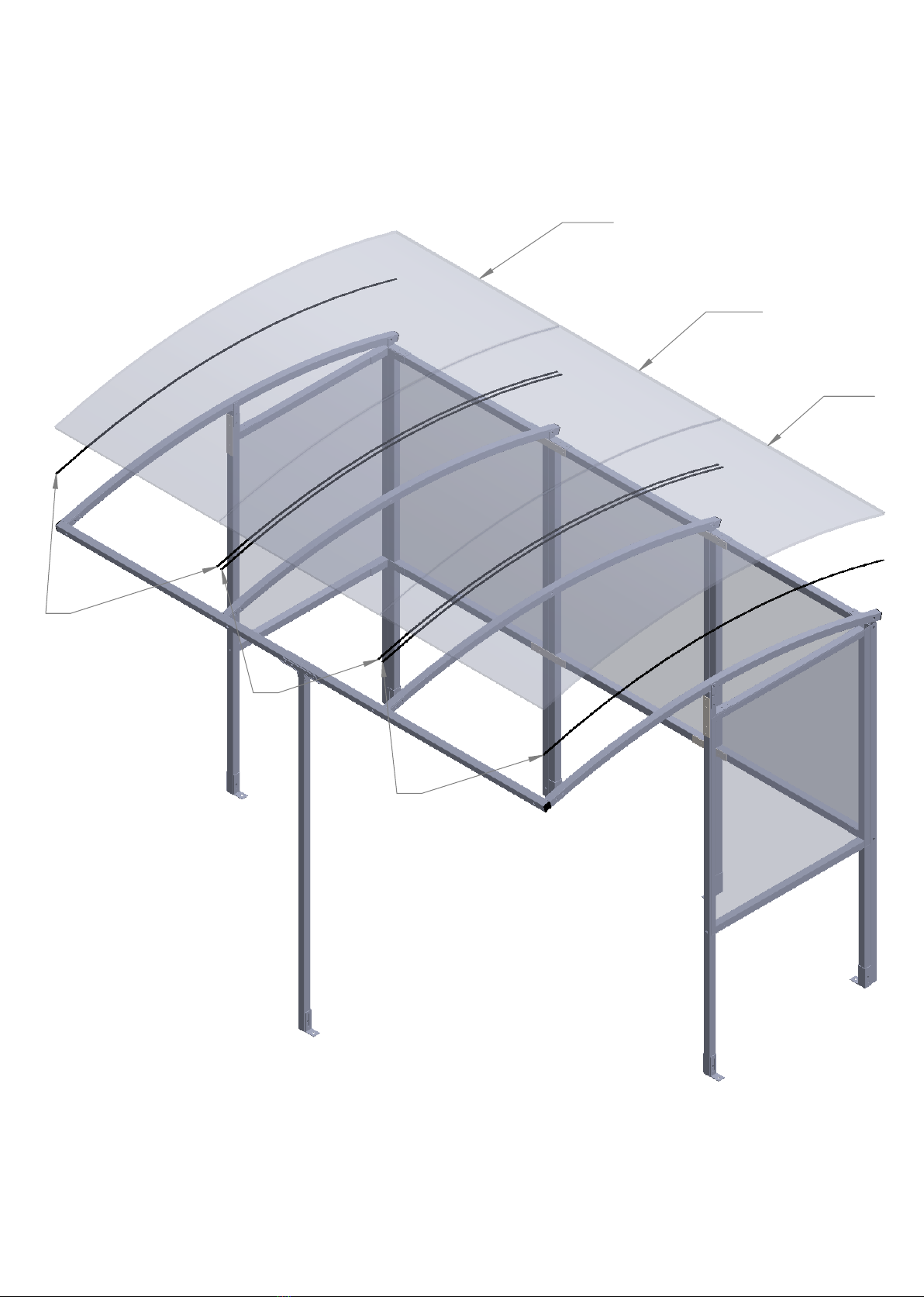

Step 5

Stick sealing strips

(SS)

to the rafters and align the

PCE2

panels to the outside

of the shelter and centralise the

PCC2

panel in the centre.

2MD

RC2

GENERAL NOTE:

THE 2" TECH SCREWS ARE

FOR FIXING ROOF STRIPS

(RC) ONLY

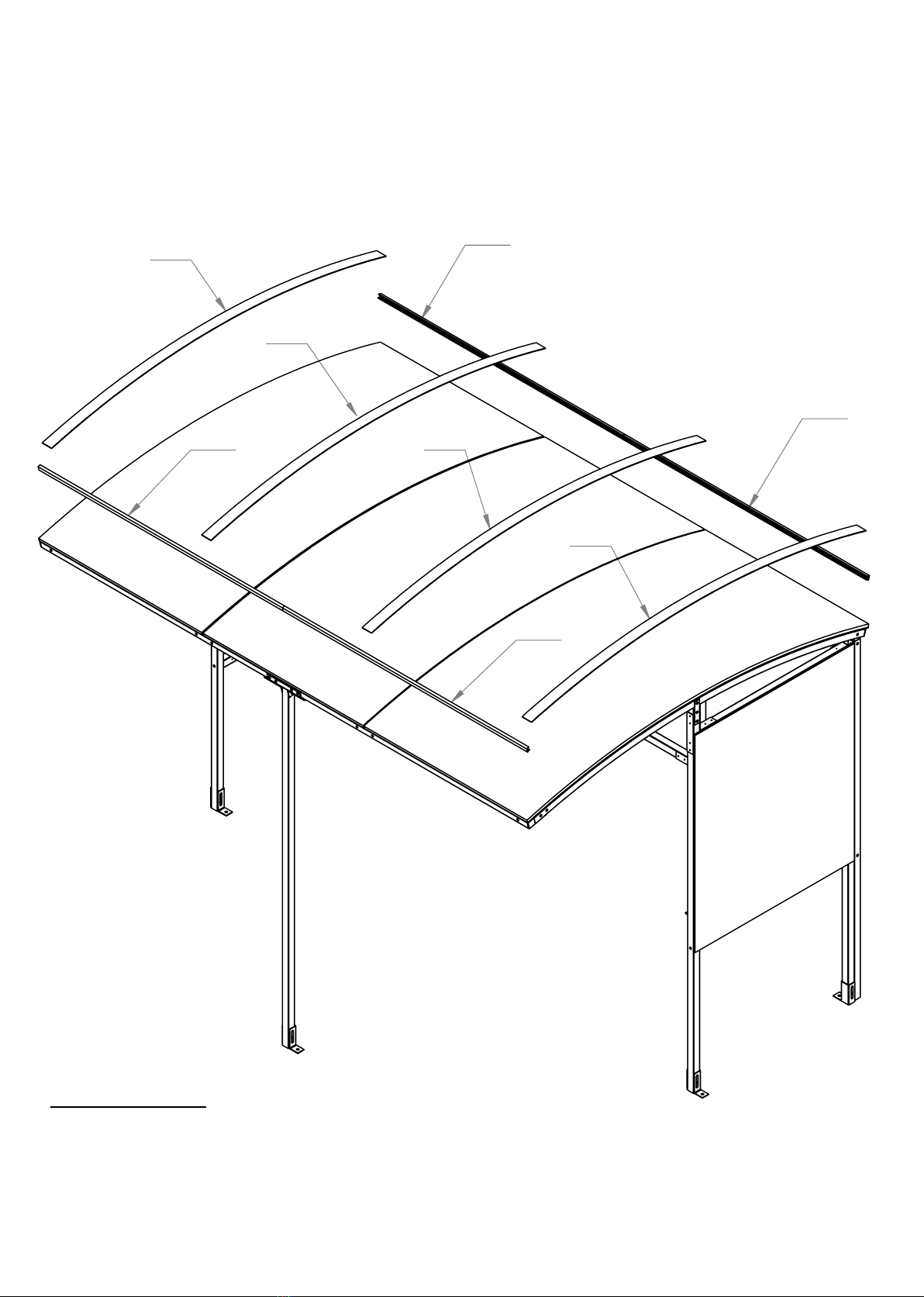

Step 6

Screw down the

RC2

strips to secure the roof panels and clip on the

2MD

edge trim to the bottom of the roof panels. Then fit the Black

plastic caps on exposed nuts and bolts. Fit the square end caps to any

open ends of box sections.

Notes:
