ARMPIVSTND

Adjustable Desktop Monitor Stand with

Cable Hook

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

Product Overview ..................................................................................2

Installation ..............................................................................................2

Stand Assembly ......................................................................................................................................... 2

Standard LCD / LED Monitor Mounting ............................................................................................ 4

iMac / Apple Cinema Display Mounting........................................................................................... 5

Adjusting Monitor Mount Resistance................................................................................................ 9

Specications..........................................................................................10

Technical Support ..................................................................................11

Warranty Information............................................................................11

Instruction Manual

Introduction

Packaging Contents

• 1 x Instruction Manual

Aluminum Base

Qty: 1

Support Post

Qty: 1

Monitor Mount

Qty: 1

Cable Clip

Qty: 1

Iron Position Ring

Qty: 1

M5x18mm Hex Screws

Qty: 4

Flange

Qty: 1

Plastic Caps

Qty: 4

Access Card

Qty: 1

3mm Allen Wrench

Qty: 1

4mm Allen Wrench

Qty: 1

Torx Tool

Qty: 1

Thumb Screws

Qty: 4

M6x16mm Screws

Qty: 2

Rubber Feet

Qty: 4

456

78 9

10 11 12

13 14 15

Instruction Manual

Product Overview

Installation

Stand Assembly

1. Attach the Aluminum Base (1) and Support Post (2) using 4 M5x18mm Hex Screws

(6) and the 3mm Allen Wrench (10).

+45º

-15º

Max

Note: The size and type of monitor

mounted may restrict tilt motion

102mm

330mm

122mm

260mm

Instruction Manual

2. Attach the Rubber Feet (15) to the Base (1).

3. Slide the Cable Clip (4) onto the Support Post (2) to your desired height. Hand-

tighten the set screw and then close the quick-release clamp to lock into place.

4. Slide the Iron Position Ring (5) onto the Cable Clip (4), with the anges facing

upward.

Instruction Manual

Warning: Ensure the Iron Position Ring is installed, and that the monitor is slid onto

the Support post facing forward (over the base). The Iron Position Ring limits the ability

to swivel the monitor around too far, causing the center of gravity to shift and possibly

fall over.

Standard LCD / LED Monitor Mounting

1. Carefully place your display face down on a protective surface to access the

mounting points.

2. Attach the display to the Monitor Mount (3) using the 4 Thumb Screws (13).

Warning: Do not over-tighten the screws and stop immediately if you encounter

resistance to avoid damage to your display. Ensure that all screws being used are the

same length and thread type.

Instruction Manual

3. Slide the Monitor Mount (3) onto the Support Post (2) until it rests on the Iron

Position Ring (5) and tighten the set screw using the M3 Allen Wrench (15).

iMac / Apple Cinema Display Mounting

1. Power o your iMac / Apple Cinema display and disconnect all cables.

2. Turn the display so the back is facing you, and tilt the display all the way forward.

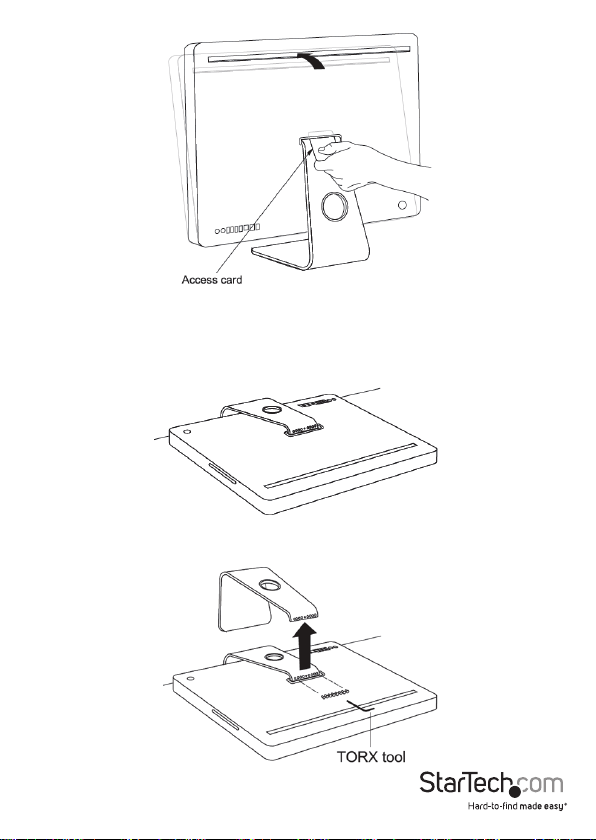

3. Insert the Access Card (9) into the space directly above the stand to release the

latch.

Note: The access card should go into the space approx. ¾”at a slight upward angle. If it

goes in further, you have missed the latch.

Instruction Manual

4. Once the latch is released, tilt the display forward another 10° to expose the 8

screws on top of the stand. The stand should lock into place.

5. When the stand is locked, hold the sides of the display and carefully place it face- down on

a protective surface, with the stand hanging over the edge of your work surface.

6. Using the Torx Tool (12), remove the 8 screws that attach the stand to the back of

your iMac and remove the stand.

Instruction Manual

7. Align the hole in the Flange (7) with the pin on the back of your iMac, then use the

Torx Tool (12) and the screws removed in the previous step to attach the Flange.

8. Place the 4 Plastic Caps (8) onto the ends of the Monitor Mount (3).

9. Place the Monitor Mount (3) over the Flange (8) and attach using the 2 M6x16mm

Screws (5) and the 4mm Allen Wrench (11).

Note: Keep the Flange in the locked position while you attach the Monitor Mount.
