StarTech.com 4POSTRACK42 Manuel utilisateur

Manual Revision: 01/07/2014

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

4POSTRACK42

42U Adjustable 4 Post Open Frame

Server Rack

*actual product may vary from photos

Instruction Manual

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Installation ..............................................................................................2

Optional Component Installation....................................................................................................... 4

Specications..........................................................................................5

Technical Support ..................................................................................6

Warranty Information............................................................................6

Instruction Manual

Introduction

ID Name Qty

Rack Components

1Left Vertical Rail 2

2Right Vertical Rail 2

3 Base Bracket 2

4 Corner Section 8

5 Center Section 4

6 Top Bracket 2

Rack Assembly Hardware

10 M8 Bolt 48

11 M8 Washer 48

Rack Assembly Tool

12 M8 (13mm) Wrench 1

Equipment Mounting Hardware

13 M6 Cage Nut 50

14 PVC Cup Washer 50

15 M6 Phillips-Head Screw 50

Cable Management Hardware

16 Cable Management Hook 24

17 Hook Mounting Screw 24

Casters and Hardware

18 Casters 4

19 Levelling Feet 4

20 M6 Screw 16

21 M6 Flat Washer 32

22 M6 Flange Nut 16

Instruction Manual

Installation

Verify packaging contents before proceeding with assembly.

1. Assemble the Top and Bottom Beams (4 total) as shown below, adjusting for your

desired mounting depth using the numbers indicated on the center section pieces

(see chart below)

Mounting Depth Index Numbers Mounting Depth Index Numbers

22 in. 0 and 0 31 in. 4 and 5

23 in. 1 and 0 32 in. 5 and 5

24 in. 1 and 1 33 in. 5 and 6

25 in. 1 and 2 34 in. 6 and 6

26 in. 2 and 2 35 in. 6 and 7

27 in. 2 and 3 36 in. 7 and 7

28 in. 3 and 3 37 in. 7 and 8

29 in. 3 and 4 38 in. 8 and 8

30 in. 4 and 4 39 in. 8 and 9

40 in. 9 and 9

NOTE: Depth from 22 to 40 inches is available by adjusting the beams at

corresponding silkscreen numbers on the beams.

Instruction Manual

2. Using two of the Beams assembled in the previous step, line up one set of Left

and Right Vertical Rails, followed by the Base and Top Bracket pieces and fasten as

shown.

NOTE: In order to ensure all of the screw holes will line up easily, it is recommended

to hand-tighten the nuts through the entire assembly process, and then fully

tighten using an adjustable wrench once all bolts have been inserted.

3. Using the remaining two Beams assembled in step 1, line up the other set of Left

and Right Vertical Rails and fasten them to the Base and Top Brackets as shown.

Instruction Manual

Optional Component Installation

1. Install the Casters (4pcs) and Leveling Feet (4pcs) as shown.

2. Stand the rack upright and install the included Cable Management Hooks in your

desired locations as shown.

WARNING! Please ensure that the rack is fully assembled with all included parts and

fasteners before attempting to mount any rack equipment. Failure to install and fully

tighten any hardware could severely compromise the structural integrity of the rack. If

any hardware is missing, please contact StarTech.com customer service immediately.

Instruction Manual

Specications

U Height 42U

Material Steel

Rack Type 4-Post

Frame Type Open Frame

Colour Black

Minimum Mounting Depth 22in (558.8mm)

Maximum Mounting Depth 40in (1016mm)

Dimensions (WxHxD) 26 x 80.5 x 23.6in (662 x 2045 x 600mm)

Weight 84.9lbs (38.5kg)

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.

StarTech.com is your one-stop source for every connectivity part you need. From

the latest technology to legacy products — and all the parts that bridge the old and

new — we can help you nd the parts that connect your solutions.

We make it easy to locate the parts, and we quickly deliver them wherever they need

to go. Just talk to one of our tech advisors or visit our website. You’ll be connected to

the products you need in no time.

Visit www.startech.com for complete information on all StarTech.com products and

to access exclusive resources and time-saving tools.

StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology

parts. StarTech.com was founded in 1985 and has operations in the United States,

Canada, the United Kingdom and Taiwan servicing a worldwide market.

Table des matières

Autres manuels StarTech.com Support et étagère

StarTech.com

StarTech.com RK1236BKF Manuel utilisateur

StarTech.com

StarTech.com WALLMOUNT6 Manuel utilisateur

StarTech.com

StarTech.com PROJCEILMNT2 Manuel utilisateur

StarTech.com

StarTech.com WALLSTSI1 Manuel utilisateur

StarTech.com

StarTech.com HSB100SATBK Manuel utilisateur

StarTech.com

StarTech.com RK12WALLOA Manuel utilisateur

StarTech.com

StarTech.com ARMPIVOT Manuel utilisateur

StarTech.com

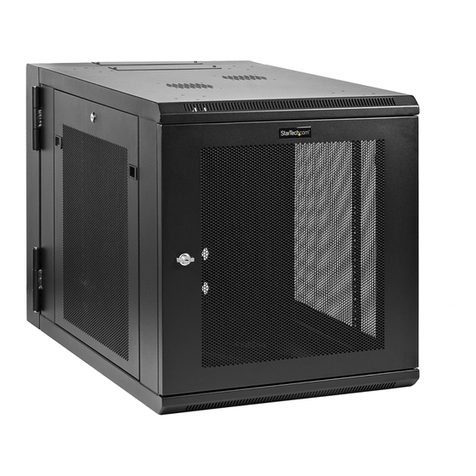

StarTech.com 12U Manuel utilisateur
