StarTech.com ARMBARDUOG Manuel utilisateur
Manual Revision: 11/06/2018
User Manual
For the latest information and specications visit
www.startech.com/ARMBARDUOG
Dual-Monitor Desk Mount - with
Grommet/Desk-Clamp Mount
SKU#: ARMBARDUOG
*actual product may vary from photos
User Manual
i
Compliance Statements
Use of Trademarks, Registered Trademarks, and other
Protected Names and Symbols
This manual may make reference to trademarks, registered trademarks, and
other protected names and/or symbols of third-party companies not related in
any way to StarTech.com. Where they occur these references are for illustrative
purposes only and do not represent an endorsement of a product or service
by StarTech.com, or an endorsement of the product(s) to which this manual
applies by the third-party company in question. Regardless of any direct
acknowledgement elsewhere in the body of this document, StarTech.com
hereby acknowledges that all trademarks, registered trademarks, service marks,
and other protected names and/or symbols contained in this manual and
related documents are the property of their respective holders.
PHILLIPS® is a registered trademark of Phillips Screw Company in the United
States or other countries.
ii
Safety Statements
Safety Measures
• Product installation and/or mounting should be completed by a certied
professional as per the local safety and building code guidelines.
Mesures de sécurité
• L’installation et/ou le montage du produit doit être réalisé par un
professionnel certié et dans le respect des normes locales et du code de
construction local.
安全対策
• 製品の設置やマウントは、使用地域の安全ガイドラインおよび建築基準に
従い、有資格の専門業者が行うようにしてください。
Misure di sicurezza
• L’installazione e/o il montaggio dei prodotti devono essere eseguiti da un
tecnico professionale certicato che conosca le linee guida locali sulle norme
edilizie e sulla sicurezza.
Säkerhetsåtgärder
• Installation och/eller montering får endast göras av behöriga yrkespersoner
och enligt gällande lokala förordningar för säkerhet och byggnormer.
Warning Statements
• Make sure to assemble this product according to the instructions. Failure to
do so might result in personal injury or property damage.
• Never use this product if parts are missing or damaged.
User Manual
User Manual
Table of Contents
Compliance Statements........................................................................i
Safety Statements..................................................................................ii
Warning Statements ..............................................................................iii
Product Information ..............................................................................1
Package Contents ..................................................................................................................................... 1
Product Dimensions ..............................................................................2
Front View.................................................................................................................................................... 2
Side View ..................................................................................................................................................... 2
Top View ....................................................................................................................................................... 3
Angled View (Includes Tilt Angles)...................................................................................................... 3
Grommet Mount ....................................................................................................................................... 4
VESA Mount ............................................................................................................................................... 4
Technical Specications ........................................................................5
Requirements .........................................................................................6
Installation ..............................................................................................7
Attach the ARMBARDUOG to Your Mounting Surface................................................................. 7
Attach Monitor Arms to the Column ................................................................................................. 12
Attach Monitors......................................................................................................................................... 14
Attach the Cable-Management Clips ................................................................................................ 17
Operation ................................................................................................18
Adjust the Position of the Monitors ................................................................................................... 18
Warranty information............................................................................21
User Manual 1
Product Information
Package Contents
Column x 1 VESA Adapter x 2
Cable-
Management Clips
(Column) x 2 Monitor Arms x 2
End Caps x 2
Cable-
Management Clips
(Monitor Arm) x 2
End-Cap Screws
x 2
Desk-Mount
Clamp x 1
Hex Key x 1 Hex Key
Screwdriver x 1
M4x14 mm Screws
x 8 (narrow)
M5x14 mm Screws
x 8 (wide)
Flat Washers x 8
Grommet-
Mounting Adapter
x 1
Grommet-
Mounting Plate x 1 Rubber Pads x 5 Instruction Manual
x 1
1 1
2
3
4
User Manual
2
Product Dimensions
Front View
1. Monitor Arms
2. Cable-Management Clips (Column)
3. Column
4. Desk-Mount Clamp
Side View
1. End Caps
1
User Manual
3
Top View
1. Cable-Management Clips (Monitor Arm)
Angled View (Includes Tilt Angles)
11
368mm (14.49’’)
User Manual
4
Grommet Mount
1. Mounting Cover
2. Grommet-Mounting Adapter
3. Grommet-Mounting Plate
VESA Mount
1. VESA Adapter
1
2
3
1
User Manual
5

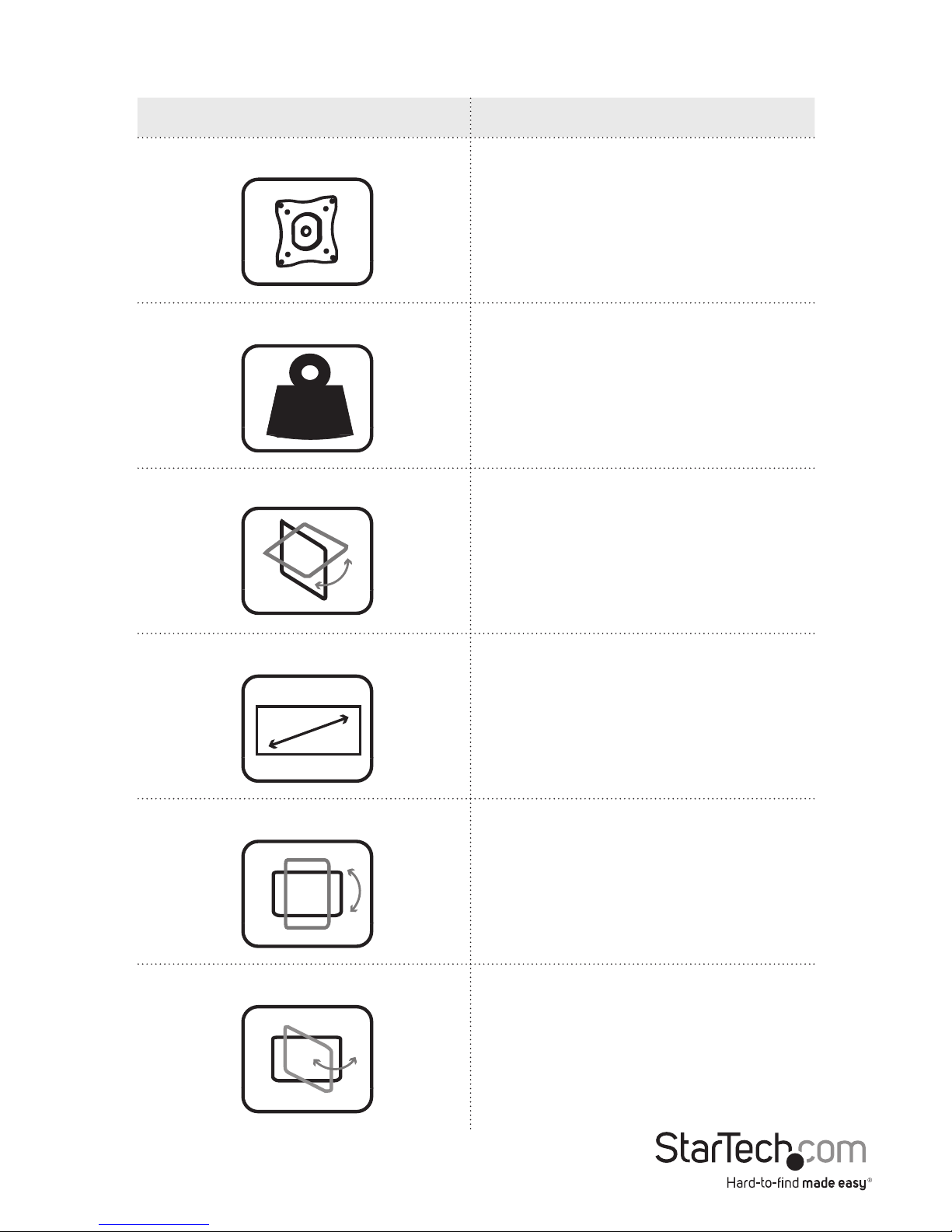

Technical Specications
Type of Measurement Measurement
VESA mounting hole pattern
75x75
100x100
Weight capacity
Up to 17.6 lb. (8 kg)
per monitor mount
Tilt
+30 to -30
Screen size
330 to 686 mm
(13 to 27 in.)
Rotate
360
Swivel
+30 to -30
kg
User Manual
6
Requirements
• Two People for Installation
• Mounting Surface
• Desk-Mount Clamp (on Desk Edge) or Grommet Mount (in Desktop Grommet)
• Two Monitors
Note: Both Monitors must conform to the size, weight and VESA pattern require-
ments (see Technical Specications).
• Phillips Head Screwdriver
