ST X-NUCLEO-OUT05A1 Manuel utilisateur

Introduction

The X-NUCLEO-OUT05A1 industrial digital output expansion board for STM32 Nucleo provides a powerful and flexible

environment for the evaluation of the driving and diagnostic capabilities of the IPS1025H single high-side smart power solid

state relay, in a digital output module connected to 2.5 A industrial loads.

The X-NUCLEO-OUT05A1 interfaces with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by GPIO pins

and Arduino R3 connectors.

The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.

It is also possible to evaluate a system composed of up to four stacked X-NUCLEO-OUT05A1 expansion boards.

As an example, a system with four X-NUCLEO-OUT05A1 expansion boards allows you to evaluate a quad channel digital

output module.

Figure 1. X-NUCLEO-OUT05A1 expansion board

RELATED LINKS

For further details on configuration resistors, refer to UM2864

Getting started with X-NUCLEO-OUT05A1 industrial digital output expansion

board for STM32 Nucleo

UM2865

User manual

UM2865 - Rev 1 - March 2022

For further information contact your local STMicroelectronics sales office. www.st.com

1Getting started

1.1 Overview

The X-NUCLEO-OUT05A1 embeds the IPS1025H intelligent power switch (IPS), featuring overcurrent and

overtemperature protection for safe output load control.

The board is designed to meet application requirements in terms of galvanic isolation between user and power

interfaces. This requirement is satisfied by an optical isolation implemented through three optocouplers (ISO1,

ISO2, and ISO3) for signal forward to the device and FLT pins for feedback diagnostic signals.

The expansion board features:

• Based on the IPS1025H single high-side switch, which features:

– Operating range up to 60 V

– Low-power dissipation (RON(MAX) = 25 mΩ)

– Fast decay for inductive loads

– Smart driving of capacitive loads

– Under-voltage lock-out

– Overload and over-temperature protection

– PSSO24 package

• Application board operating range: 8 to 33 V/0 to 2.5 A

• Extended voltage operating range (J3 open) up to 60 V

• Green LED for output on/off status

• Red LEDs for overload and overheating diagnostics

• 5 kV galvanic isolation

• Supply rail reverse polarity protection

• EMC compliance with IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-8

• Compatible with STM32 Nucleo development boards

• Equipped with Arduino UNO R3 connectors

• CE certified:

– EN 55032:2015 + A1:2020

– EN 55035:2017 + A11:2020

• RoHS and China RoHS compliant

1.1.1 Digital section

The digital section is associated with the STM32 interface and digital supply voltage to and from the X-NUCLEO-

OUT05A1 expansion board.

UM2865

Getting started

UM2865 - Rev 1 page 2/18

Figure 2. X-NUCLEO-OUT05A1 expansion board: digital interface section

Dotted green line indicates the whole digital interface section. Pink rectangles identify Arduino UNO R3 connectors

The four Arduino UNO R3 connectors:

•allow expansion board communication with the STM32 Nucleo development board microcontroller accessing

STM32 peripheral and GPIO resources;

• provide digital supply voltage between the STM32 Nucleo development board and the X-NUCLEO-

OUT05A1 expansion board, in either direction.

Normally, the STM32 Nucleo development board supplies the expansion board by a 3v3 or 5v0 generated by the

USB. You can select the preferred voltage on the expansion board via SW3 (3v3 closing pins 1-2; 5v0 closing

pins 2-3).

Alternatively, it is possible to supply the STM32 Nucleo development board by the expansion board. In this case,

an external supply voltage (7-12 V) should be connected to CN2 connector (not mounted by default) on the

expansion board and the ground loop should be closed by mounting D2 (enabling the reverse polarity protection)

or by closing J2 (without reverse polarity).

To supply the VIN voltage rail, it is necessary to:

• close jumper JP5 between pins 2 and 3 and open jumper JP1 on the NUCLEO-F401RE;

• open jumper JP5 between pins 1 and 2 and close jumper JP5 between pins 3 and 4 on the NUCLEO-

G431RB.

UM2865

Overview

UM2865 - Rev 1 page 3/18

1.1.2 Power section

The power section involves the power supply voltage (CN1, pins 4 and 5 for VCC, pin 3 for GND), load connection

(a load can be connected between pins CN1.1 and CN1.3 or CN1.2, and CN1.3; both output pins are connected

to the single output channel as shown in Section 2 Schematic diagrams) and electromagnetic compatibility

(EMC) protection.

Figure 3. X-NUCLEO-OUT05A1 expansion board: power section components

1. Overtemperature red LED

2. Overload red LED

3. IPS1025H

4. Output channel - green LED

5. Output and power supply connector

For EMC:

•The SM15T39CA transient voltage suppressor (TR1), enabled by closing J3, is placed between VCC and

GND tracks to protect the IPS1025H against surge discharge on the supply rail path up to ±1 kV/2 Ω

coupling;

• in common mode surge testing, two single-layer capacitors (C1 and C2 - not included) must be soldered at

the predisposed locations;

• the IPS1025H output stages do not require additional EMC protections with respect to the IEC61000-4-2,

IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-8 standards.

UM2865

Overview

UM2865 - Rev 1 page 4/18

1.2 Hardware requirements

The X-NUCLEO-OUT05A1 expansion board is designed to be used with the NUCLEO-F401RE or NUCLEO-

G431RB STM32 Nucleo development boards.

To function correctly, the X-NUCLEO-OUT05A1 must be plugged onto the matching Arduino UNO R3 connector

pins on the STM32 Nucleo board as shown below.

Figure 4. X-NUCLEO-OUT05A1 and STM32 Nucleo stack

1.3 System requirements

To use the STM32 Nucleo development boards with the X-NUCLEO-OUT05A1 expansion board, you need:

•a Windows PC/laptop (Windows 7 or above)

• a type A to mini-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

F401RE development board

• a type A to micro-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

G431RB development board

• the X-CUBE-OUT5 firmware and software package installed on your PC/laptop

1.4 Board setup

Step 1. Connect the micro-USB or mini/USB cable to your PC to use the X-NUCLEO-OUT05A1 with NUCLEO-

F401RE or NUCLEO-G431RB development board

UM2865

Hardware requirements

UM2865 - Rev 1 page 5/18

Step 2. Download the firmware (.bin) onto the STM32 Nucleo development board microcontroller through

STM32 ST-LINK utility, STM32CubeProgrammer and according to your IDE environment as detailed in

the table below.

Table 1. NUCLEO-F401RE development board supported IDEs - bin files

NUCLEO-F401RE

IAR Keil STM32CubeIDE

EWARM-OUT05_06-

STM32F4xx_Nucleo.bin

MDK-ARM-OUT05_06-

STM32F4xx_Nucleo.bin

STM32CubeIDE-OUT05_06-

STM32F4xx_Nucleo.bin

Table 2. NUCLEO-G431RB development board supported IDEs - bin files

NUCLEO-G431RB

IAR Keil STM32CubeIDE

EWARM-OUT05_06-

STM32G4xx_Nucleo.bin

MDK-ARM-OUT05_06-

STM32G4xx_Nucleo.bin

STM32CubeIDE-OUT05_06-

STM32G4xx_Nucleo.bin

Step 3. Connect the IPS1025H device supply voltage via CN1 (see Section 1.1.2 Power section).

Step 4. Provide the digital supply voltage (see Section 1.1.1 Digital section).

Step 5. Connect the load on the output connector (see Section 1.1.2 Power section).

Step 6. Reset the example sequence using the black push button.

Step 7. Push the STM32 Nucleo blue button to select the example provided in the firmware package.

1.5 Multiple board configuration

It is also possible to evaluate a four channel digital output module by stacking four X-NUCLEO-OUT05A1 with

shared or independent supply rail and independent loads.

In this case, the four expansion boards (board 0, 1, 2, 3 as shown in the table below) must be properly configured:

for board 1, 2 and 3, it is necessary to unsolder three resistors for each board from the default position and solder

them back in the alternate positions according to the following table.

Table 3. Configuration of a stack of four expansion boards

Board no. IN1 FLT1 FLT2

Board 0 R101 R103 R114

Board 1 R102 R104 R117

Board 2 R115 R116 R107

Board 3 R120 R119 R118

UM2865

Multiple board configuration

UM2865 - Rev 1 page 6/18

2Schematic diagrams

Figure 5. X-NUCLEO-OUT05A1 circuit schematic (1 of 2)

CN2

691214110002

4700pF

FLT1

(7V-12V NUCLEO supply voltage)

MH2

M3 HOLE NOT PLATED

PB0

PB9

IOREF

PA10

VCC

R103 100

SM15T39CA

TP2

5001

FIDUCIAL2

Fiducial

D13

IN1

D11

PA6

PA3

FLT2

R107 100

N.M.

DEFAULT

N.M.

R102

ALTERNATE USE

FLT1

VIN

default open

FLT1

R114 100

IN1

R101

OUT1

CN5

SSQ-110-04-F-S

PB6

VCC

FIDUCIAL3

Fiducial

R119 100

FLT2

N.M.

D15

TP4

5001

MH3

M3 HOLE NOT PLATEDA4

TR1

D10

AVDD

ST morpho connectors

(N.M.)

R118 100 FLT2

ALTERNATE USE

DEFAULT

IN1

N.M.

OUT

FLT2

R104 100

IN1

FLT1

EARTH

IN1

N.M.

default closed

PA1

PC0

PB5

PA0

ALTERNATE USE

PA8

3V3

N.M.

D14

5v0

4700pF

R115

N.M.

C10

100uF

MH4

M3 HOLE NOT PLATED

CN1

691137710005

N.M.

MH1

M3 HOLE NOT PLATED

Analog supply

8-60 V

DEFAULT

ALTERNATE USE

N.M.

D1STPS1H100A

FIDUCIAL4

Fiducial

Arduino connectors

TR2

ESDA15P60-1U1M

FLT1

3v3

default open

N.M.

R120 100

R116 100

CN7

SSQ-119-04-L-D

OUT

VCC

CN9

SSQ-108-04-F-S

PB4

PA5

PC7

PB10

PA9

PA2

PB3

NRST

PB8

PA7

IN1

Alternate Nucleo supply

7-12 V

N.M.

FIDUCIAL1

Fiducial

N.M.

GND

BAT48JFILM

FLT1

CN10

SSQ-119-04-L-D

N.M.

R117 100

D12

CN8

SSQ-106-04-F-S

CN6

SSQ-108-04-F-S

N.M.

PA4

PC1

FLT2

2.2uF

FLT2

VIN

100

UM2865 - Rev 1 page 7/18

UM2865

Schematic diagrams

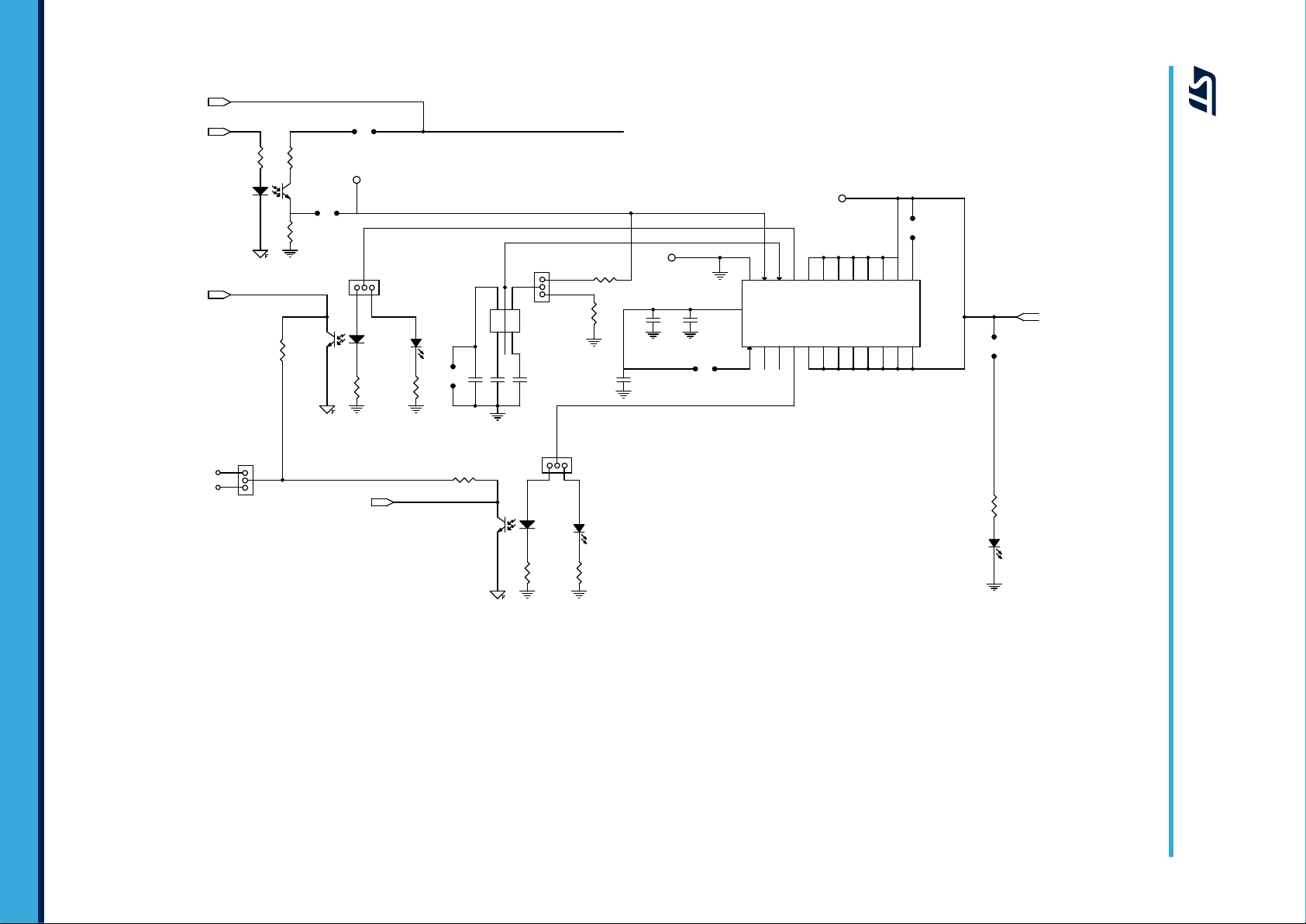

Figure 6. X-NUCLEO-OUT05A1 circuit schematic (2 of 2)

OUT14

R11

2.2K

VCC

NC2

TP5

5001

OUT1

IPD1

default closed

IN1

NC3

OUT9

150060RS75000

TP1

5001

OUT19

J10

150060RS75000

OUT13

DR2

223

DG1

default: CLOSE 1-2

3v3

OUT8

IN1

22k

150060VS75000

R12

22k

ISO2

TLP383

SW2

con3-strip-male

OUT18

FLT2

OUT5

default closed

SW3

con3-strip-male

default: CLOSE 1-2

TP3

5001

5v0

ISO1

TLP383

R62.2K

OUT6

default closed

C7 470pF

OUT12

con6-2x3-strip-male

0.1uF

default closed

0.1uF

10k

FLT1

ISO3

TLP383

default:

closed

R10

0.1uF

27K

FLT1

default: CLOSE 1-2

OUT11

OUT20

OUT7

OUT15

IPS1025H

390

25 VCC

OUT17

GND

OUT16

SW1

con3-strip-male

DR1

C9 470nF

VCC

OUT10

VCC

R710k

VCC

FLT2

SW4

con3-strip-male

C8 47nF

default: CLOSE 1-2

UM2865 - Rev 1 page 8/18

UM2865

Schematic diagrams

3Bill of materials

Table 4. X-NUCLEO-OUT05A1 bill of materials

Item Q.ty Ref. Part/value Description Manufacturer Order code

1 0 C1 C2 4700 pF 1825 (4564 metric) 3000

V (3kV) ±10% X7R

Ceramic capacitors

(not mounted) Vishay Vitramon HV1825Y472KXHATHV

2 3 C3 C4

0.1 µF 0805 (2012 metric) 100 V

±10% X7R Ceramic capacitors Würth Elektronik 885012207128

3 1 C6 2.2 µF 1206 (3216 metric) 100 V

±10% X7R Ceramic capacitor AVX Corporation 12061C225KAT2A

4 1 C7 470 pF 0603 (1608 metric) 50 V

±5% C0G/NP0 Ceramic capacitor Würth Elektronik 885012006061

5 1 C8 47 nF 0603 (1608 metric) 50 V

±10% X7R Ceramic capacitor

Murata

Electronics North

America

GCM188R71H473KA55D

6 1 C9 470 nF 0603 (1608 metric) 25 V

±10% X7R Ceramic capacitor Würth Elektronik 885012206075

7 0 C10 100 µF radial, can 100 V ±20% Ceramic capacitor

(not mounted) Würth Elektronik 860130878011

8 1 CN1 5 positions, side entry, 5 mm Terminal block Würth Elektronik 691137710005

9 0 CN2 2 positions, 7.4X7 pitch 3.5 mm,

side entry

Terminal block (not

mounted) Würth Elektronik 691214110002

10 1 CN5 TH 2.54 mm 10 ways, 1 row Samtec Inc.

4UCONN ESQ-110-14-T-S 17896

11 2 CN6 CN9 TH 2.54 mm 8 ways, 1 row Samtec Inc.

4UCONN ESQ-108-14-T-S 15782

12 0 CN7

CN10 38 positions, 0.1 mm, gold PCB

Connector

receptacles (not

mounted)

Any Any

13 1 CN8 TH 2.54 mm 6 ways, 1 row Samtec Inc.

4UCONN ESQ-106-04-T-S 15781

14 1 D1 STPS1H100A, SMA 100 V, 1 A power

Schottky rectifier ST STPS1H100A

15 0 D2 BAT48JFILM, SOD323

40 V, 350 mA

axial general

purpose signal

Schottky diode (not

mounted)

ST BAT48JFILM

16 1 DG1 0603 (1608 metric) 20 mA SMD Green LED Würth Elektronik 150060GS75000

17 2 DR1 DR2 0603 (1608 metric) 20 mA SMD Red LEDs Würth Elektronik 150060RS75000

18 3

ISO1

ISO2

ISO3

LSOP04, 5 kV Optoisolators Würth Elektronik 140109146000

19 8

J1 J2 J3

J4 J5 J6

J8 J10

JUMPER-con2-strip-male TH

2.54 mm Jumpers Würth Elektronik 61300211121

20 0 J7 JUMPER-con2-strip-male Jumper (not

mounted)

21 1 J9 con6-2x3-strip-male Connector header Würth Elektronik 61300621121

22 1 R1 27 K 0603 (1608 metric) 0.1 W,

1/10 W ±1% SMD Resistor Yageo RC0603FR-0727KL

UM2865

Bill of materials

UM2865 - Rev 1 page 9/18

Item Q.ty Ref. Part/value Description Manufacturer Order code

23 1 R2 390 0603 (1608 metric) 0.1 W,

1/10 W ±1% SMD Resistor Yageo RC0603FR-07390RL

24 2 R3 R12 22 k 0603 (1608 metric) 0.1 W,

1/10 W ±1% SMD Resistors Yageo RC0603FR-0722KL

25 4 R4 R5

R9 R10

0 0603 (1608 metric) 0.1 W, 1/10

W ±1% SMD Resistors

Panasonic

Electronic

Components

ERJ-3GEY0R00V

26 2 R6 R11 2.2 K 0603 (1608 metric) 0.1 W,

1/10 W ±1% SMD Resistors Yageo RC0603FR-072K2L

27 1 R7 100k 0603 (1608 metric) 0.1 W,

1/10 W ±1% SMD Resistor Yageo RC0603FR-07100KL

28 1 R8 10 k 0603 (1608 metric) 0.1 W,

1/10 W ±1% SMD Resistor Yageo RC0603FR-0710KL

29 3

R101

R103

R114

100 0603 (1608 metric) 0.1 W,

1/10 W ±1% SMD Resistors Yageo RC0603FR-07100RP

30 0

R102

R104

R107

R115

R116

R117

R118

R119

R120

100 0603 (1608 metric) 0.1 W,

1/10 W ±1% SMD

Resistors (not

mounted) Yageo RC0603FR-07100RP

31 4

SW1

SW2

SW3

SW4

con3-strip-male TH 2.54 mm Connector headers Würth Elektronik 61300311121

32 5

TP1 TP2

TP3 TP4

TP5

5001 0.100" diameter 0.180" L

(2.54 mm x 4.57 mm) Test points Keystone

Electronics 5001

33 1 TR1 SM15T39CA, SMC C2 1500 W, 33.3 V

TVS in SMC ST SM15T39CA

34 0 TR2 ESDA15P60-1U1M, QFN-2L

High-power

transient voltage

suppressor (not

mounted)

ST ESDA15P60-1U1M

35 1 U1 IPS1025H, PSSO24

High-side switch

with smart driving

for capacitive loads

ST IPS1025H

36 13 - 2.54 mm Jumpers Würth Elektronik 60900213421

UM2865

Bill of materials

UM2865 - Rev 1 page 10/18

Table des matières

Autres manuels ST Matériel informatique

ST STEVAL-IFS013V2 Manuel utilisateur

ST X-NUCLEO-IDB04A1 Manuel utilisateur

ST X-NUCLEO-IKS4A1 Manuel utilisateur

ST M41ST85W Manuel utilisateur

ST AN5717 Instructions d'installation et d'utilisation

ST STEVAL-ETH001V1 Manuel utilisateur

ST X-NUCLEO-LED61A1 Manuel utilisateur

ST X-NUCLEO-OUT06A1 Manuel utilisateur

ST STM32 Nucleo Manuel utilisateur

ST X-NUCLEO-OUT02A1 Manuel utilisateur

ST STM32 Nucleo Manuel utilisateur

ST STM32U575 Series Instructions d'installation et d'utilisation

ST STM32G071B-DISCO Manuel utilisateur

ST X-NUCLEO-IHM07M1 Manuel utilisateur

ST X-NUCLEO-IDS01A4 Manuel utilisateur

ST UM2082 Manuel utilisateur

ST STM32F3DISCOVERY Manuel utilisateur

ST X-CUBE-OUT3 Manuel utilisateur

ST CLT01-38SQ7 Manuel utilisateur

ST STM32 Nucleo Manuel utilisateur

ST STEVAL-CCH002V1 Manuel utilisateur

ST X-NUCLEO-DRP1M1 Manuel utilisateur

ST X-NUCLEO-IDB04A1 Manuel utilisateur

ST STEVAL-IFP041V1 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
