ST X-NUCLEO-OUT02A1 Manuel utilisateur

Introduction

The X-NUCLEO-OUT02A1 industrial digital output expansion board for STM32 Nucleo is based on the ISO8200AQ galvanic

isolated octal high-side smart power solid state-relay.

It provides an affordable and easy-to-use solution for the development of 8-channel digital output modules, letting you easily

evaluate the ISO8200AQ communication and industrial load driving features.

The X-NUCLEO-OUT02A1 can be connected to a NUCLEO-F401RE, NUCLEO-F103RB or NUCLEO-F302R8 development

board via Arduino™ UNO R3 connectors.

You can also evaluate the 16-channel digital output modules by connecting two X-NUCLEO-OUT02A1 expansion boards and

activating the daisy chaining feature.

The X-NUCLEO-OUT02A1 interfaces with the STM32 controller via SPI and GPIO pins and is compatible with the Arduino™

UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.

Industrial PLC functionality with 8 inputs and 16 outputs can be added with the X-NUCLEO-PLC01A1 expansion board.

Figure 1. X-NUCLEO-OUT02A1 expansion board

Getting started with the X-NUCLEO-OUT02A1 industrial digital output expansion

board for STM32 Nucleo

UM2507

User manual

UM2507 - Rev 1 - November 2018

For further information contact your local STMicroelectronics sales office.

www.st.com

Downloaded from Arrow.com.

1Getting started

1.1 Overview

The X-NUCLEO-OUT02A1 expansion board features:

• Based on the ISO8200AQ whose main characteristics are:

– Embedded 4kV galvanic isolation

– Radio frequency communication between the logic and process sides for maximum noise immunity

– Very low power dissipation (RON(MAX) = 220 mΩ)

– Fast decay for inductive loads

– 20 MHz SPI I/F on logic side

– VCC power good diagnostics

– Overload and overheating protections with thermal shutdown and diagnostics

– QFN-32L (9x11x1 mm) package

• 10.5 to 33 V operating voltage range

• Green LED (x8) for output on/off status

• Red LED for process supply power good fault

• Red LED for overload and overheating

• Supply reverse polarity protection

• EMC compliance according to IEC61000-4-2, IEC61000-4-3, IEC61000-4-5

• Compatible with STM32 Nucleo boards

• Equipped with Arduino™ UNO R3 connectors

• CE certified

• RoHS and China RoHS compliant

• WEEE compliant

The SPI interface and the embedded power good detection allow a deeper diagnostics, daisy chaining and less

MCU GPIO resources on the PLC logic stage.

Note: The X-NUCLEO-OUT02A1 offers a digital output solution: each output stage is managed at microcontroller level.

As the board has no input stage, no sensors can be connected to it.

1.2 Hardware requirements

To use STM32 Nucleo development boards with the X-NUCLEO-OUT02A1 expansion board, match the boards

via the Arduino™ UNO R3 connector pins on the STM32 Nucleo development board.

UM2507

Getting started

UM2507 - Rev 1 page 2/14

Downloaded from Arrow.com.Downloaded from Arrow.com.

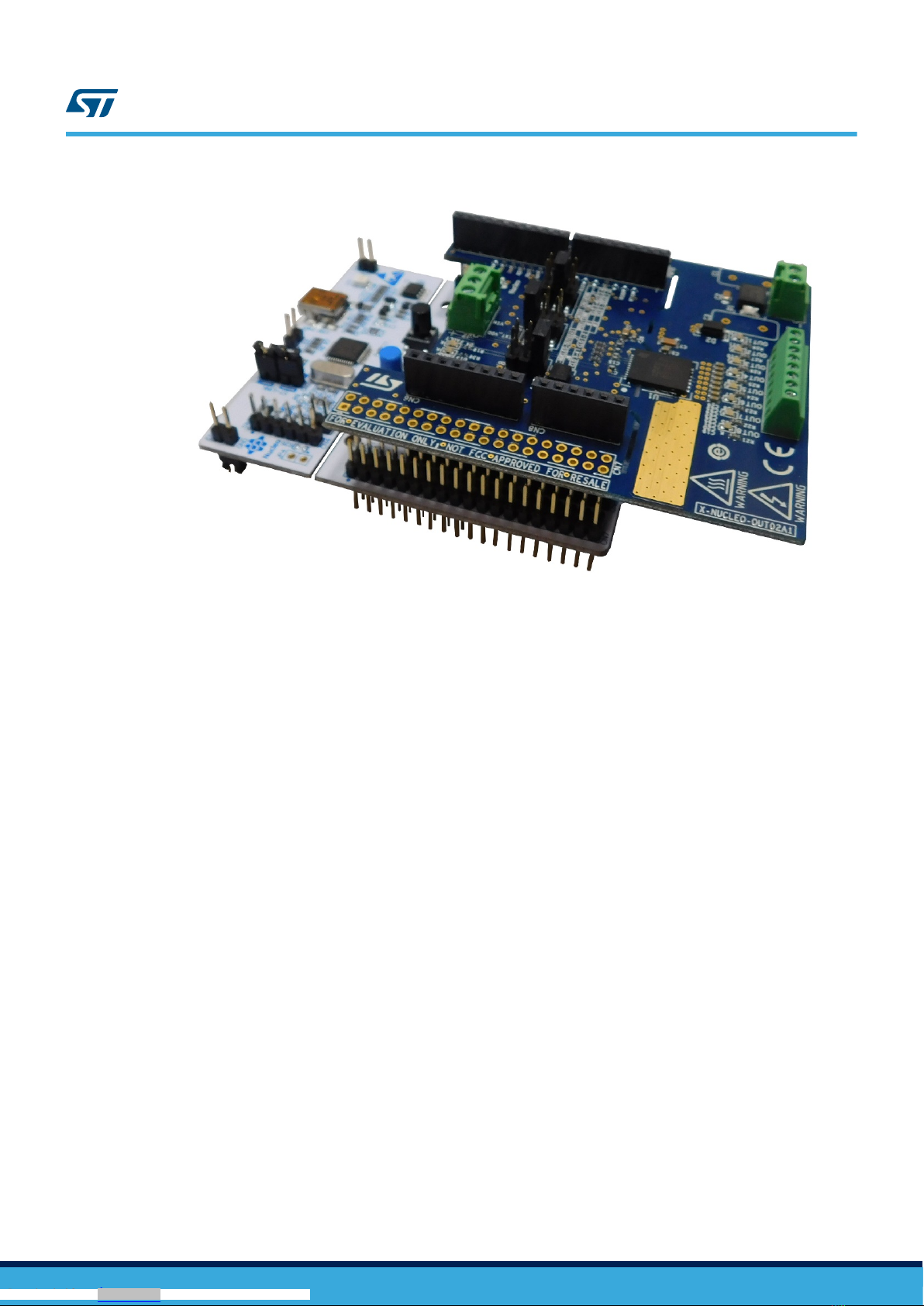

Figure 2. X-NUCLEO-OUT02A1 expansion board connected to an STM32 Nucleo development board

The X-NUCLEO-OUT02A1 has been designed to be used with

•NUCLEO-F103RB

•NUCLEO-F302R8

•NUCLEO-F401RE

1.3 System requirements

To use the STM32 Nucleo boards with the X-NUCLEO-OUT02A1 expansion board you need:

• a Windows PC/laptop (Windows 7 or above) to install the firmware package (X-CUBE-OUT02)

• a type A to Mini-B USB cable to connect the STM32 Nucleo board to the PC

• an STM32 Nucleo development board (NUCLEO-F103RB, NUCLEO-F302R8 or NUCLEO-F401RE)

• an X-NUCLEO-OUT02A1 expansion board

1.4 Board setup

Step 1. Connect the micro-USB cable to the PC.

Step 2. Download the firmware version onto the microcontroller.

Step 3. Set the following jumper configurations on the STM32 Nucleo board:

– Close SB62 and SB63 jumpers

– Open SB13 and SB14 jumpers

Step 4. Connect the ISO8200AQ device supply voltage to the X-NUCLEO-OUT02A1 via J1.

Step 5. Provide the digital supply voltage.

– when connected to the PC: keep the micro-USB cable connected and close jumper JP5 on the

STM32 Nucleo board between pins 1 and 2.

– in standalone mode: provide a 7 to 12 V external supply via J2 on the X-NUCLEO- OUT02A1 and

close jumper JP5 on the STM32 Nucleo board between pins 2 and 3.

Step 6. Connect the load on the output connector.

Step 7. Run the STM32 and push the blue button on the STM32 Nucleo board to select the example provided

in the firmware package.

UM2507

System requirements

UM2507 - Rev 1 page 3/14

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

2Hardware description and configuration

2.1 Digital section

The digital section is associated with the STM32 interface and digital supply voltage to and from the X-NUCLEO-

OUT02A1 expansion board.

Figure 3. X-NUCLEO-OUT02A1 expansion board: digital interface components

The four Arduino™ UNO R3 connectors:

• allow the ISO8200AQ communication with the STM32 Nucleo board microcontroller and access to the

STM32 peripheral and GPIO resources;

• provide digital supply voltage to/from the STM32 Nucleo development board and the X-NUCLEO-OUT02A1

expansion board.

To provide an external digital supply:

• close jumper JP5 between pins 2 and 3 on the STM32 Nucleo development board;

• connect a 7 to 12 V supply at screw connector J2 on the X-NUCLEO-OUT02A1 expansion board.

2.2 Power section

The power section involves the power supply voltage, load connection and electromagnetic compatibility (EMC)

protections.

UM2507

Hardware description and configuration

UM2507 - Rev 1 page 4/14

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Figure 4. X-NUCLEO-OUT02A1 expansion board: power section components

For EMC:

• a Transil™ diode SMC30J30CA is placed on VCC track to protect the ISO8200AQ against surge discharge;

• for common mode surge testing, two single-layer capacitors (C1 and C3, not mounted) must be soldered;

• 22 nF capacitors are included on the output lines for burst disturbance filtering.

To supply the load, connect the supply voltage to the J1 2-way screw connector. The load is connected to the 8-

way output.

UM2507

Power section

UM2507 - Rev 1 page 5/14

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

3Bill of materials

Table 1. X-NUCLEO-OUT02A1 bill of materials

Item Q.ty Ref. Part/Value Description Manufacturer Order code

1 1 U1 ISO8200AQ TFQFPN32

Galvanic isolated

octal high-side

smart power solid

state-relay

ST ISO8200AQ

2 8

C19, C20,

C21, C22,

C23, C24,

C25, 26

22 nF 50 V ±10% 0603 X7R Capacitors TDK C1608X7R1H223K080AA

3 8

D5, D6, D7,

D8 D9, D10,

D11, D12

0603 AlGaInP Green LEDs OSRAM LG L29K-G2J1-24

4 8

R21, R22,

R23, R24

R25, R26,

R27, R28

10 kΩ 0.1 W ±1% 0603 Resistors Bourns CR0603-FX-1002ELF

5 1 J5 8 ways, 1 row, screw

connector TH 2.54 mm Jumper Phoenix Contact 1725711

6 1 C2, C7 2.2 µF 50 V ±10% 1206 X7R Capacitors Murata GRM31C71H225KA88K

7 1 C5 100 nF 50 V ±10% 0603 X7R Capacitor TDK CGA3E2X7R1H104K080AA

8 1 C28 100 nF 16 V ±5% 0603 X7R Capacitor AVX 0603YC104JAT2A

9 1 C27 2.2 µF 16 V ±10% 0805 X7R Capacitor Murata GCM21BR71C225KA64L

10 1 R31 47 kΩ 63 mW ±5% 0402 Resistor Vishay CRCW040247k0JNED

11 1 C18 10 pF 50 V ±5% 0402 COG Capacitor YAGEO CC0402JRNP09BN100

12 4 R20, R29,

R30, R32 0 Ω 100 mW ±1% 0603 Resistors TE Connectivity CRG0603ZR

14 4 C8, C15,

C16, C17 33 pF 50 V ±5% 0402 Capacitors Phycomp 2.23887E+11

15 2 R16, R36 910 Ω 63 mW ±1% 0402 Resistors Vishay CRCW0402910RFKED

16 2 D13, D4 AlGaInP 0603 Red LEDs OSRAM LS L29K-G1 J2-1

17 3 J6, J7, J8 6 ways, 2 rows connector

SMD 2.54mm Jumpers Harwin M20-8760342

18 7

R1, R2, R3,

R4 R5, R6,

100 Ω 0.1 W ±0.5% 0603 Resistors Panasonic ERJ3BD1000V

19 0

R101, R102,

R103, R104,

R105, R106,

R107, R108,

R109, R110,

R111, R112,

R113, R114,

R115, R116

DNM 0603 Resistors (not

mounted) Any

20 1 CN5 10 ways, 1 row TH 2.54 mm Capacitor SAMTEC SSQ-110-04-F-S

21 2 CN6, CN9 8 ways, 1row TH 2.54 mm Capacitors SAMTEC SSQ-108-04-F-S

22 0 CN7, CN10 TH 2.54 mm Capacitors (not

mounted) SAMTEC SSQ-119-04-L-D

UM2507

Bill of materials

UM2507 - Rev 1 page 6/14

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

Item Q.ty Ref. Part/Value Description Manufacturer Order code

23 1 CN8 6 ways, 1 row TH 2.54 mm Capacitor SAMTEC SSQ-106-04-F-S

24 1 J1 2 ways, 1 row (ISO8200AQ

HV supply) TH 3.5 mm Jumper RS 790-1149

25 1 J2

3 ways, 1 row (STM32,

ISO8200AQ LV supply) TH

3.5 mm

Jumper RS 790-1143

26 0 C1, C3 4.7 nF 3.15 kV TH Capacitors (not

mounted) Murata DEBE33F472ZC3B

27 1 D1 SMC 3000 W TVS in

SMC package ST SMC30J36A

28 1 D2 1 A, 100 V SMA Power Schottky

rectifier ST STPS1H100A

29 1 D3 0.35 A, 40 V SOD-323 Small signal

Schottky diodes ST BAT48JFILM

30 1 D14 700 W VBR = 6.8 V; VCL =

10.2 V 1610

High-power

transient voltage

suppressor (TVS)

ST ESDA7P60-1U1M

31 1 D15 1200 W VBR = 6.8 V; VCL =

10.2 V 1610

High-power

transient voltage

supressor (TVS)

ST ESDA15P60-1U1M

32 1 D16 600 W VBR =14.3 V; VCL =

20.8 V SMB

600 W TVS in

SMB ST SMBJ5.0A-TR

UM2507

Bill of materials

UM2507 - Rev 1 page 7/14

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

4Schematic diagrams

Figure 5. X-NUCLEO-OUT02A1 circuit schematic (1 of 2)

GND_DEC

100R

ISO_PGOOD

NRST

CN9

uC_MISO

ESDA15P60-1U1M

BAT48JFILM

uC_MOSI

R110

100R N.M.

CN7

100R

3v3

D11

ISO_FAULT

GND

CON38

CN5

D10

uC_MOSI

GND

ISO_FAULT

100R N.M.

ISO_CLK

3V3

EARTH

Vcc supply

D13

ISO_SDIO1

R104

R113

ISO_CLK

AVDD

100R

CN10

ISO_SS

100R N.M.

PB8

PB9

PA5

PA6

PA7

PB6

PC7

PA9

PA8

PB10

PB4

PB15/PA7

PB14/PA6

(PF0)

PF1

PA10

ALTERNATE USE

DEFAULT

PC1

PB0

PA1

ALTERNATE USE

PC0

PA4

PA0

ALTERNATE USE

DEFAULT

PB5

PA10

ALTERNATE USE

PB10

PA2

PA8

PB4

PA3

PB3

PA5

PB6

PC7

PA9

PA7

PB8

PA6

PB9

ALTERNATE USE

DEFAULT

ALTERNATE USE

onnectors

100R N.M.

GND_DEC

ALTERNATE USE

uC_MISO

17 3v3

100R

100R N.M.

R111

100R N.M.

CON38

ISO_PGOOD

ESDA7P60-1U1M

SMC30J36A

ISO_SS

VIN

10.5 V - 30 V

ISO_PGOOD

(7-12 V STM32 Nucleo supply voltage)

PC12

PF7

USE

ALTERNATE

PC10

VDD

PF6

PA13

PB0

PD2

PB7

PC0

U5V

PA12

PB11

PA0

PF5PA2

PC6

PA14

PA4

D11

ISO_CLK

R116

Arduino

ISO_OUT EN

100R N.M.

R103

100R

ISO_SDIO1

R105

Analog supply

D12

AVDD

ISO_FAULT

ISO_OUT EN

100R

ISO_PGOOD

D10

Vcc supply

2.2µF/50V

ISO_OUT EN

100R N.M.

R107

4D15

ISO_PGOOD

D13

IOREF

uC_MISO

NRST

CN6

100R N.M.

R115

GND_DEC

Vcc supply

R109

R101 100R N.M.

uC_MOSI

ISO_SDIO1

orpho

ST m

ISO_SDIO1

D14

Main voltage

R112

D14

ISO_SDIO1

ISO_OUT EN

CN8

PC11

PC1

PD8

PF4

PB12

PA3

PC8

PA1

PC9

PA15

PC2

PC3

VBAT/VLCD

PC13

(PC14)

PB13/PA5

(PC15)

ISO_FAULT

ISO_SS

STPS1H100A

100R

100R N.M.

ISO_OUT EN

R102 100R N.M.

D14

IOREF

ISO_SS

GND

VIND7

4.7nF/3kV N.M.

uC_MISO

uC_MOSI

ISO_SDIO1

ISO_CLK

D15

ISO_SS

100R N.M.

R114

ISO_CLK

100R N.M.

R108

CON3

EXT_VDD

D12

E5v0

R106

D15

VIN

4.7nF/3kV N.M

34 D2

BOOT0

PB5

PB3

PA2

PC5

PB11

PB2

PB1

PC4

ISO8200AQ direct supply voltage:

- set to max. 3..3 V

when the X-NUCLEO-OUT02A1 is used with an STM32 Nucleo board

- can be set to max. 5.5 V

when the X-NUCLEO-OUT02A1 is used standalone

Figure 6. X-NUCLEO-OUT02A1 circuit schematic (2 of 2)

10k

C15

C22

ISO_OUT EN

ISO_SS

CON6A

33 GND2

R23

100nF

NC#29

30 NC#30

OUT8b

EXT_VDD

47k

R27

ISO_CLK

CON6A

10k

D4RED LED

R200R

22nF/50V

R30

CON6A

R29 0R

10k

R36

22nF/50V

10k

3534

GND3

CLK

ISO_FAULT

C23

2.2µF/50V MLCC

D13RED LED GND_DEC

GND_DEC

ISO8200AQ

TAB Vcc

R22

Vcc supply

GND1

NC#28

C18

C19

C16

100nF/50V

R21

33pF/6.3V

C24

910R

OUT4b 13

OUT3a 14

10k

OUT6b

OUT5a 10

ISO_PGOOD

22nF/50V

SMBJ5.0A

2.2µF

SDI

GND_DEC

27 NC#27

OUT7b

R16

D11

C20

CON8

10k

OUT3b 15

ISO_SS

D16

FAULT

OUT6a

ISO_PGOOD

Vdd

SDO

Vcc supply

R32 0R

22nF/50V

uC_MISO

R28

31 OUT7a

GNDdd

10pF

ISO_SDIO1

Vdd 20

ISO_FAULT

ISO_OUT EN

22nF/50V

10k

22nF/50V

OUT2b 17

C17

GND4

22nF/50V

C28

PGOOD

26 NC#26

ISO_SDIO1

OUT4a

33pF/6.3V

R25

3v3

D12

NC#2

OUT1a

OUT1b 19

ISO_SDIO1

uC_MISO

uC_MOSI

C26

Vdd

C25

OUT2a

R26

C27

ISO_CLK

OUT5b 11

R31

OUT8a

10k

OUT EN

C21

910R

ISO_SDIO1

uC_MOSI

D10

R24

33pF/6.3V

UM2507

Schematic diagrams

UM2507 - Rev 1 page 8/14

Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.Downloaded from Arrow.com.

A References

Freely available on www.st.com:

•ISO8200AQ datasheet

•X-CUBE-OUT02A1 user manual

•X-NUCLEO-PLC01A1 user manual

•ST-PLC data brief

UM2507

References

UM2507 - Rev 1 page 9/14

Revision history

Table 2. Document revision history

Date Revision Changes

08-Nov-2018 1 Initial release.

UM2507

UM2507 - Rev 1 page 10/14

Autres manuels pour X-NUCLEO-OUT02A1

Table des matières

Autres manuels ST Matériel informatique

ST STM32 Nucleo Manuel utilisateur

ST ST7-EMU3 Series Manuel utilisateur

ST X-NUCLEO-NFC01A1 Manuel utilisateur

ST X-NUCLEO-EEPRMA1 Manuel utilisateur

ST FP-SNS-FLIGHT1 Manuel utilisateur

ST X-STM32MP-MSP01 Manuel utilisateur

ST STNRG328S Manuel utilisateur

ST STM32Cube Manuel utilisateur

ST AN5717 Instructions d'installation et d'utilisation

ST STEVAL-MIC008A Manuel utilisateur

ST X-NUCLEO-IKS4A1 Manuel utilisateur

ST STM32F405 Series Manuel utilisateur

ST ZigBee SNDEV-260 Manuel utilisateur

ST AEK-LCD-DT028V1 Manuel utilisateur

ST STM32 ODE Manuel utilisateur

ST Nomadik NHK-15 Manuel utilisateur

ST AN1235 Instructions d'installation et d'utilisation

ST ST8034T Manuel utilisateur

ST STR9 Manuel utilisateur

ST STM32H573I-DK Manuel utilisateur

ST X-NUCLEO-6283A1 Manuel utilisateur

ST STM32U5G9J-DK2 Manuel utilisateur

ST STM32H5 Manuel utilisateur

ST STM32U5 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
