ST B-WB1M-WPAN1 Manuel utilisateur

Introduction

The B-WB1M-WPAN1 STM32WB connectivity expansion board provides an affordable and flexible way for users to try out new

concepts and build prototypes with the STM32WB series STM32WB1MMC microcontroller module.

The B-WB1M-WPAN1 product requires a separate probe for programming and debugging. The STLINK-V3SET debugger can

be connected through a MIPI10/STDC14 cable.

The B-WB1M-WPAN1 STM32WB connectivity expansion board is provided with a USB Type-C® connector (for power only) on

an add-on STMod+ adapter board.

The B-WB1M-WPAN1 product is provided with the STM32WB comprehensive software HAL library and various packaged

software examples available with the STM32CubeWB MCU Package.

Figure 1. B-WB1M-WPAN1 main board (top view)

Figure 2. B-WB1M-WPAN1 main board (bottom view)

Pictures are not contractual.

STM32WB connectivity expansion board

UM3200

User manual

UM3200 - Rev 1 - November 2023

For further information contact your local STMicroelectronics sales office. www.st.com

1 Features

• STM32WB connectivity expansion board embedding an STM32WB1MMC module including:

–Ultra‑low‑power STM32WB15CCY dual‑core Arm® Cortex®‑M4/M0+, Bluetooth® Low Energy 5.4,

AES‑256, featuring 320 Kbytes of flash memory and 48 Kbytes of SRAM in a WLCSP49 package

– RF transceiver multistandard radio Bluetooth® Low Energy, compliant with Bluetooth® specification

5.4 with 1 and 2 Mbit/s transfer rates

• 256‑Kbit serial I2C bus EEPROM

• MEMS sensors from STMicroelectronics:

– Integrated high-accuracy temperature sensor

– 3D accelerometer and 3D gyroscope

• User LED

• User and reset push-buttons

• Board connectors:

–MIPI® debug

– STMod+

–USB Type-C® for power only on add‑on STMod+ adapter board

• Flexible power supply options: external sources, or USB VBUS from the add‑on board

• Comprehensive free software libraries and examples available with the STM32CubeWB MCU Package

• Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded

Workbench®, MDK-ARM, and STM32CubeIDE

Note: Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

UM3200

Features

UM3200 - Rev 1 page 2/38

2 Ordering information

To order the B-WB1M-WPAN1 STM32WB connectivity expansion board, refer to Table 1. Additional information is

available from the datasheet and reference manual of the target microcontroller.

Table 1. List of available products

Order code Board reference Target STM32

B-WB1M-WPAN1 • MB1868(1)

• MB1880(2) STM32WB1MMCH6TR

1. Expansion board

2. STMod+ adapter board

2.1 Codification

The meaning of the codification is explained in Table 2.

Table 2. Codification explanation

B-XXYY-ZZZZT Description Example: B-WB1M-WPAN1

B Expansion board Connectivity expansion board

XX MCU series in STM32 32-bit Arm Cortex MCUs STM32WB series

YY MCU product line in the series STM32WB1M line

ZZZZ Wireless network Wireless personal area network based

on Bluetooth® Low Energy 5.4 certified

T Sequential number First WPAN connectivity expansion

board

UM3200

Ordering information

UM3200 - Rev 1 page 3/38

3 Development environment

The B-WB1M-WPAN1 STM32WB connectivity expansion board runs with the STM32WB1MMC module including

the STM32WB15CCY 32-bit microcontroller based on the dual‑core Arm® Cortex®‑M4/M0+ processor.

Note: Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

3.1 System requirements

•Multi‑OS support: Windows® 10, Linux® 64-bit, or macOS®

•USB Type-A or USB Type-C® to USB Type-C® cable

Note: macOS® is a trademark of Apple Inc., registered in the U.S. and other countries and regions.

Linux® is a registered trademark of Linus Torvalds.

Windows is a trademark of the Microsoft group of companies.

3.2 Development toolchains

•IAR Systems® - IAR Embedded Workbench®(1)

• Keil® - MDK-ARM(1)

• STMicroelectronics - STM32CubeIDE

1. On Windows® only.

3.3 Demonstration software

The demonstration software, included in the STM32Cube MCU Package corresponding to the on-board

microcontroller, is preloaded in the STM32 flash memory for easy demonstration of the device peripherals in

standalone mode. The latest versions of the demonstration source code and associated documentation can be

downloaded from www.st.com.

UM3200

Development environment

UM3200 - Rev 1 page 4/38

4 Conventions

Table 3 provides the conventions used for the ON and OFF settings in the present document.

Table 3. ON/OFF convention

Convention Definition

Jumper JPx ON Jumper fitted

Jumper JPx OFF Jumper not fitted

Jumper JPx [1-2] Jumper fitted between Pin 1 and Pin 2

Solder bridge SBx ON SBx connections closed by 0 Ω resistor

Solder bridge SBx OFF SBx connections left open

Resistor Rx ON Resistor soldered

Resistor Rx OFF Resistor not soldered

Capacitor Cx ON Capacitor soldered

Capacitor Cx OFF Capacitor not soldered

UM3200

Conventions

UM3200 - Rev 1 page 5/38

5 Quick start

The B-WB1M-WPAN1 STM32WB connectivity expansion board is an easy-to-use and low-cost development kit

used to evaluate and start development quickly with an STM32WB1MMC module. Before installing and using the

product, accept the evaluation product license agreement from the www.st.com/epla webpage. For more

information on the B-WB1M-WPAN1 STM32WB connectivity expansion board and demonstration software, visit

www.st.com.

5.1 Getting started

Follow the sequence below to configure the B-WB1M-WPAN1 STM32WB connectivity expansion board and

launch the demonstration application (refer to Figure 4 for component location):

1. Check jumper positions on board, JP1 (IDD) ON. The default jumper position on the board is explained in

Table 4.

2. Choose one of the several possibilities to supply the B-WB1M-WPAN1 STM32WB connectivity expansion

board (MB1868) with power. For example, connect a supply cable to CN4 to supply the board with an

external 5 V supply source (E5V).

3. Press on the reset button (B2) of the B-WB1M-WPAN1 STM32WB connectivity expansion board (MB1868)

and the demonstration starts.

4. This demonstration application software is available on the www.st.com website.

Table 4. Jumper default configuration

Jumper Definition Position(1) Comment

JP1 IDD ON For STM32WB1MMC current

measurements (RF part)

1. The default jumper state is shown in bold.

UM3200

Quick start

UM3200 - Rev 1 page 6/38

6 Hardware layout and configuration

6.1 Connectivity expansion board (MB1868)

The CEB (connectivity expansion board) MB1868 is designed around the STM32WB1MMC module, which

includes an STM32WB15CCY microcontroller. Figure 3 shows the connections between the STM32WB1MMC

module and its peripherals, push-buttons, LEDs, USB, and sensors. Figure 4 and Figure 5 show the location of

these features on the CEB MB1868. The mechanical dimensions of the board are shown in Figure 6.

Figure 3. MB1868 hardware block diagram

DT59181V1

I2C

SPI

VCP SWD

GPIO

STM32WB15CCY

XTAL 32

MHz

XTAL 32

kHz SMPS

IPD Antenna

matching

Internal

antenna

STM32WB1MMC

(CN1)

(U4)

DEBUG

(CN3)

STMod+ connector

Temperature

sensor

(U1)

Accelerometer

Gyroscope

(U2)

EEPROM

(U3)

User

button

(B1)

User

blue LED

(LD1)

Reset

button

5V_PWR

green LED

(B2)

(LD2)

E5V

E3V3

(CN4) (CN5)

UM3200

Hardware layout and configuration

UM3200 - Rev 1 page 7/38

6.1.1 MB1868 layout

Figure 4. MB1868 top layout

DT59182V1

Product sticker

STM32WB1MMC (U4)

SMA (CN2)

USER button (B1)

RESET button (B2)

USER LED (LD1)

5V_PWR LED (LD2)

IDD jumper for current

measurement (JP1)

STDC14 programming and

debug connector (CN3)

E3V3 connector supply (CN5)

E5V connector supply (CN4)

Temperature sensor (U1)

3D accelerometer

and 3D gyroscope (U2)

I2C EEPROM (U3)

STMod+

connector

(CN1)

Figure 5. MB1868 bottom layout

DT59183V1

STMod+

connector

(CN1)

Board sticker

UM3200

Connectivity expansion board (MB1868)

UM3200 - Rev 1 page 8/38

6.1.2 MB1868 mechanical drawing

Figure 6. MB1868 mechanical drawing (in millimeters)

UM3200

Connectivity expansion board (MB1868)

UM3200 - Rev 1 page 9/38

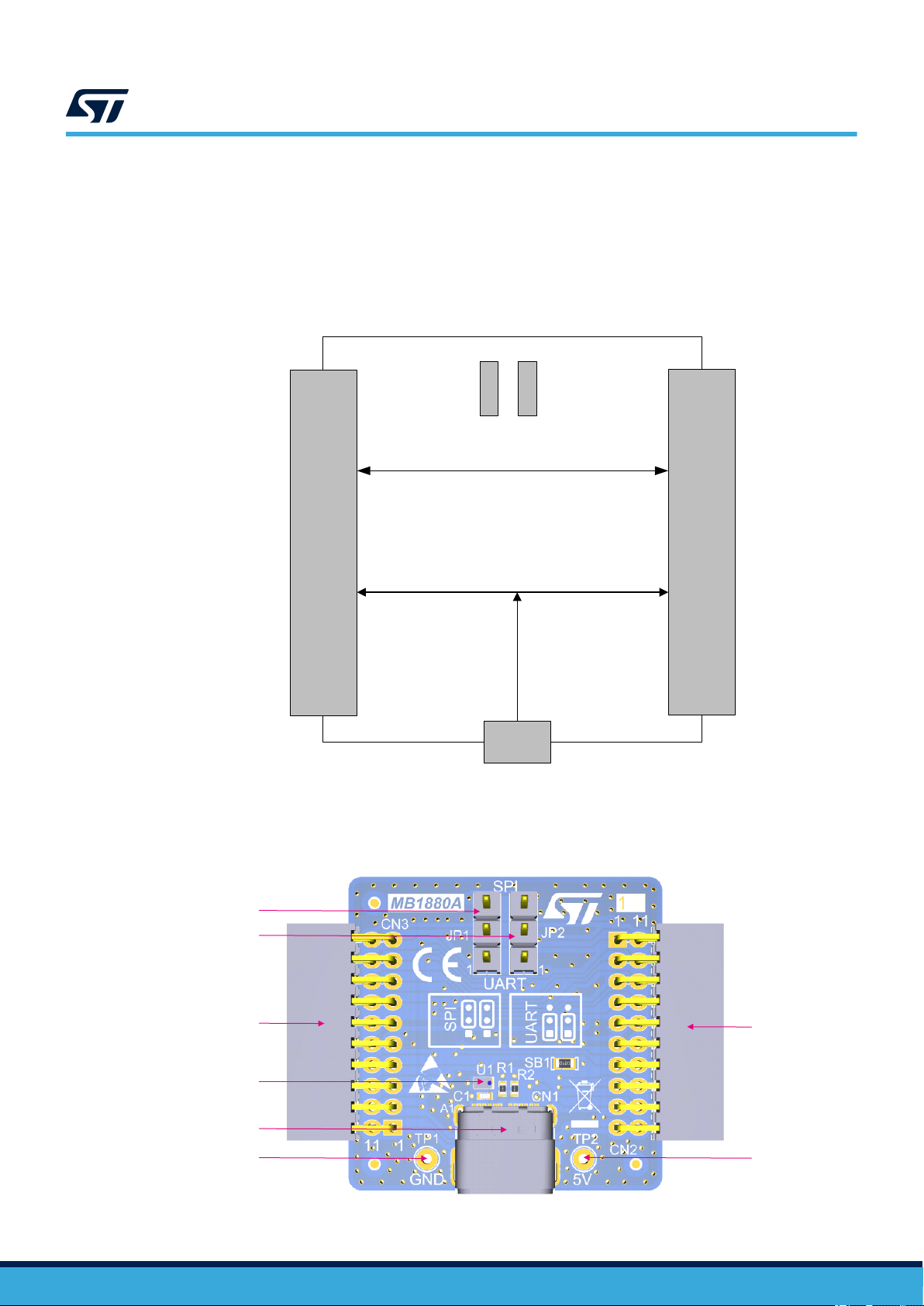

6.2 STMod+ adapter board (MB1880)

The MB1880 STMod+ adapter board is a very simple board that allows the MB1868 connectivity expansion board

to become a host with the add-on STMod+ connectors (female).

Figure 7 shows the basic hardware block diagram. Figure 1 and Figure 2 show the location of the main

components of the MB1880 board. The mechanical dimensions of the board are shown in Figure 10.

Figure 7. MB1880 basic hardware block diagram

DT59131V1

JP1

STMod+

connector

(CN2)

STMod+

connector

(CN3)

USB C

(CN1)

JP2

6.2.1 MB1880 layout

Figure 8. MB1880 top layout

DT59132V1

STMod+

connector

(CN2)

Jumper

(JP1)

5V test point

(TP2)

GND test point

(TP1)

Jumper

(JP2)

STMod+

connector

(CN3)

ESDA7P60-1U1M

ESD protection

(U1)

USB Type-C®

connector

(CN1)

UM3200

STMod+ adapter board (MB1880)

UM3200 - Rev 1 page 10/38
