ST X-NUCLEO-NFC02A1 Manuel utilisateur

Quick Start Guide

Dynamic NFC tag expansion board based on M24LR04E for STM32 Nucleo

(X-NUCLEO-NFC02A1)

Version 1.1.0 (May 30th, 2016)

Quick Start Guide Contents 2

X-NUCLEO-NFC02A1: Dynamic NFC tag expansion board

Hardware and Software overview

Setup & Demo Examples

Documents & Related Resources

STM32 Open Development Environment: Overview

Dynamic NFC tag –Type V expansion board

Hardware Overview 3

X-NUCLEO-NFC02A1 Hardware description

•The X-NUCLEO-NFC02A1 is a dynamic NFC tag –Type V

expansion board based on M24LR04E-R for STM32

Nucleo. The expansion board is equipped with a dynamic

NFC Type V/RFID tag contactless EEPROM featuring an

I2C interface.

•Main Features

•NFC Forum Tag Type V and I2C interface

•Up to 4-Kbit memory with NDEF support

•Analog output for Energy Harvesting

•Digital Open Drain output to indicate Work in

Progress or RF Busy

•Compatible with Arduino™ UNO R3 connectors

•Compatible with STM32 Nucleo boards

M24LR04E-R

Key Product on board

M24LR04E-R

M24LR04E-R Dynamic NRC/RFID tag IC

Latest info available at www.st.com

X-NUCLEO-NFC02A1

Arduino UNO R3 connector

Etched Antenna

Latest info available at www.st.com

X-CUBE-NFC2

Dynamic NFC tag –Type V expansion software

Software Overview 4

X-CUBE-NFC2 Software Description

•The software runs on the STM32 microcontroller

and includes drivers for controlling an RFID/NFC

Type V tag. The expansion is built on

STM32Cube software technology to ease

portability across different STM32

microcontrollers.

•The software comes with sample

implementations of drivers running on the X-

NUCLEO-NFC02A1 plugged on NUCLEO-

F401RE or NUCLEO-L053R8.

Key features

•Cube driver to operate M24LR04E-R

•Complete middleware to build applications using

NDEF message for type V tags.

•Easy portability across different MCU families

thanks to the STM32Cube

•Sample applications that the developer can use

to start experimenting with the code

•Free user-friendly license terms

Hardware Abstraction Layer API Boards Support Packages

Drivers

Development Board

X-NUCLEO-NFC02A1 Expansion BoardSTM32 Nucleo Board

NDEF Library

Middleware

CMSIS

Utilities

HW Components

STM32 M24LR04

Applications

Write URI

Overall Software Architecture

Quick Start Guide Contents 5

X-NUCLEO-NFC02A1: Dynamic NFC tag expansion board

Hardware and Software overview

Setup & Demo Examples

Documents & Related Resources

STM32 Open Development Environment: Overview

Setup & Demo Examples

HW prerequisites

•1x Dynamic NFC tag IC expansion board

(X-NUCLEO-NFC02A1)

•1x STM32 Nucleo development board

(NUCLEO-F401RE or NUCLEO-L053R8)

•1x Laptop/PC with Microsoft Windows 7 or 8 installed

•1x USB type A to Mini-B USB cable

Mini USB Cable

NUCLEO-F401RE

NUCLEO-L053R8

X-NUCLEO-NFC02A1 X-NUCLEO-NFC02A1

plugged on a compatible

STM32 Nucleo development

board

Setup & Demo Examples

SW prerequisites 7

•STSW-LINK008: ST-LINK/V2-1 USB driver

•STSW-LINK007: ST-LINK/V2-1 firmware upgrade

•X-CUBE-NFC2

•copy the .zip file content into: “c:\Program Files (x86)\STMicroelectronics\”folder on

your Laptop/PC. The package will contain source code example (Keil, IAR, True

Studio) based on NUCLEO-F401RE or NUCLEO-L053R8.

X-CUBE-NFC2

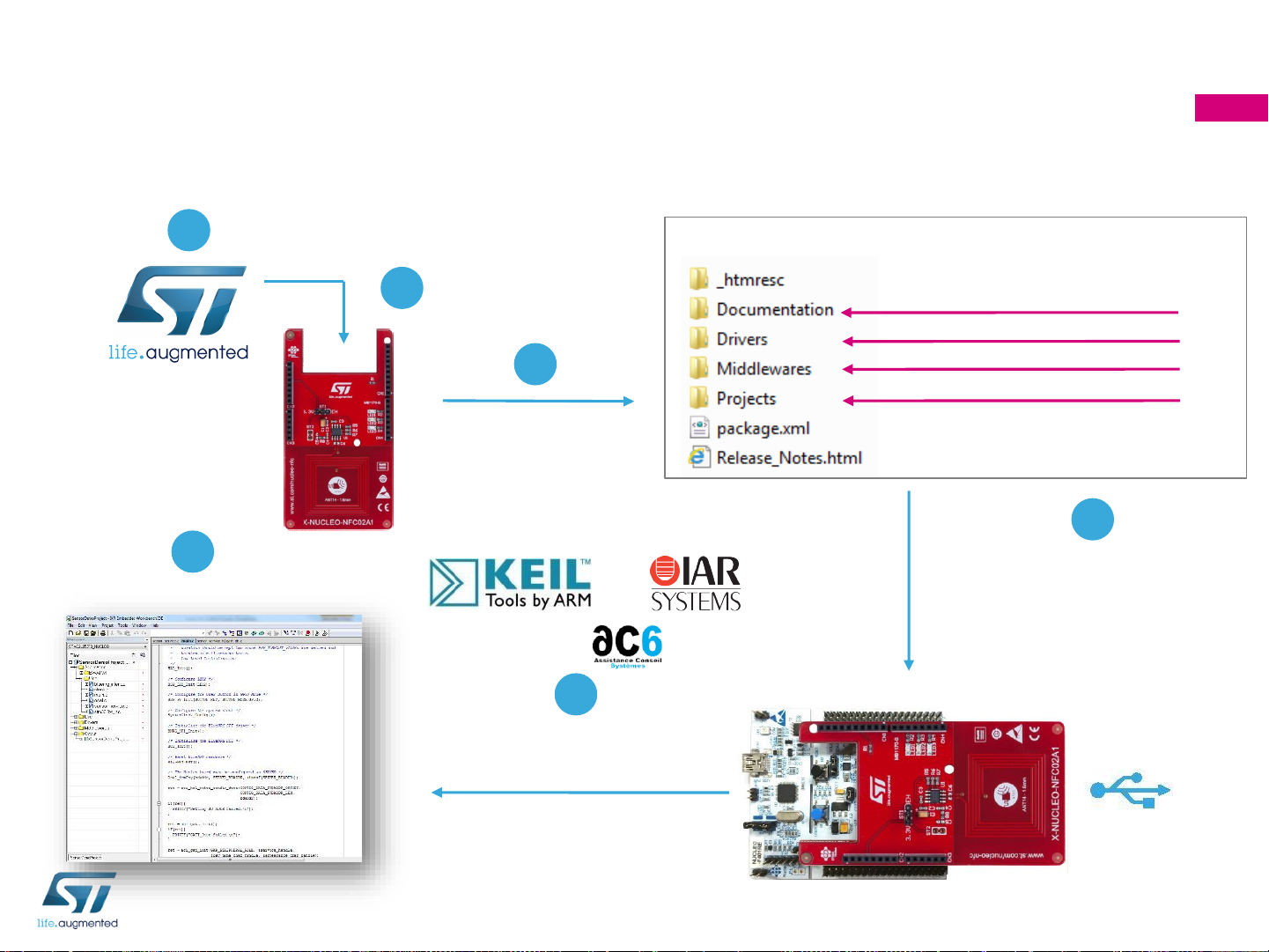

Start coding in just a few minutes with X-CUBE-NFC2 8

Download & unpack

X-CUBE-NFC2

Go to www.st.com/x-nucleo

Open project example

WriteUriApplication

Select

X-NUCLEO-NFC02A1

Modify, build application Download & install STM32

Nucleo ST-LINK/V2-1 USB driver

Generic Nucleo docs & Driver porting

Drivers

Serial Utility

Application examples

X-CUBE-NFC2 package

X-CUBE-NFC2

Evaluate using X-CUBE-NFC2 9

8Connect power supply (USB cable)

From X-CUBE-NFC2 SW

resource package

Drag and drop

STM32L053R8-Nucleo.bin

on STM32 Nucleo drive

X-CUBE-NFC2

Evaluate using X-CUBE-NFC2 10

10 Bring the phone close to the X-NUCLEO-NFC02A1Antenna.

You are directly redirected to st.com/st25 webpage.

9Enable NFC on your phone and make sure it is also connected to the internet.
