Introduction

The X-NUCLEO-OUT01A2 is an industrial digital output expansion board for STM32 Nucleo. It provides a powerful and flexible

environment for the evaluation of the driving and diagnostic capabilities of the ISO8200BQ octal high-side smart power solid

state relay, with embedded galvanic isolation, in a digital output module connected to 0.7 A industrial loads.

The X-NUCLEO-OUT01A2 directly interfaces with the microcontroller on the STM32 Nucleo driven by GPIO pins and Arduino®

R3 connectors.

The galvanic isolation between the microcontroller and the process stage is guaranteed by the ISO8200BQ.

The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.

It is also possible to evaluate a system composed of a X-NUCLEO-OUT01A2 stacked on other expansion boards.

The board can be configured as the former X-NUCLEO-OUT01A1 by a set of jumpers (open: J13, J14, J15, J16, J17) and

switches (close 1-2: SW1, SW28, SW29, SW30, SW31, SW32, SW33, SW35, SW37). In this case, the driving firmware can be

only the X-CUBE-OUT1 and the board can be connected to the X-NUCLEO-PLC01A1 to form a powerful industrial PLC with 8

inputs and 16 outputs. Also, wireless communication capabilities can be added with the X-NUCLEO-IDW01M1, which

establishes communication on a smart device to manage the PLC remotely. A dedicated ST-PLC app is available for Android™

and iOS™ systems for this purpose.

Figure 1. X-NUCLEO-OUT01A2 expansion board

Getting started with the X-NUCLEO-OUT01A2 industrial digital output expansion

board for STM32 Nucleo

UM3184

User manual

UM3184 - Rev 1 - July 2023

For further information contact your local STMicroelectronics sales office. www.st.com

1 Getting started

1.1 Overview

The X-NUCLEO-OUT01A2 embeds the ISO8200BQ intelligent power switch (IPS), which features galvanic

isolation, overcurrent and overtemperature protection for safe output loads control.

The board is designed to meet the application requirements for the galvanic isolation between the user and power

interfaces.

The galvanic isolation embedded by the ISO8200BQ satisfies this requirement, avoiding the necessity of external

optocouplers, with a consequent cost saving and a reduced application size.

The expansion board features:

• Based on the ISO8200BQ octal high-side switch, which features:

– Operating range 10.5 to 36 V

– Low power dissipation (RON(MAX) = 240 mΩ)

– Process side operating current: up to 0.7 A per channel

– Embedded 2.5k VRMS galvanic isolation

– Direct (jitter < 20us) and synchronous (jitter < 6us) control modes

– Fast decay for inductive loads

– Undervoltage lock-out

– Overload and overtemperature protections

– Loss of ground protection

– TFQFPN32 package

• Application board process side operating range: 11 (J10 open) to 33 V (J9 closed)

• Extended operating range of process side from 10.5 (J10 closed) up to 36 V (J9 open)

• Application board logic side operating voltage 3.3 to 5 V

• Green LEDs for outputs on/off status (J6 and J7 close 1-2, 3-4, 5-6, 7-8)

• Red LED for common overheating and communication error diagnostic (J3 close 1-2)

• Yellow LED for output enable status signalization (J3 close 5-6)

• Direct control mode (J1 and J2 closed, SW37 close 2-3, SW36 close 1-2)

• Synchronous control mode (J1 and J2 open, SW37 close 2-3, SW36 close 2-3)

• Process and logic supply rails reverse polarity protections

• Compatible with STM32 Nucleo development boards

• Equipped with Arduino® UNO R3 connectors

• RoHS and China RoHS compliant

• CE certified

• Radiated emission: class B according to the standard EN 55032

UM3184

Getting started

UM3184 - Rev 1 page 2/20

1.2 Board configuration

A set of jumpers and switches is available to configure the board. The Table 1 shows the standard configuration,

whereas the Table 2 shows how to configure the board to maintain the hardware compatibility with the previous

version. At last, in Table 3 is reported a list of switch and jumpers which configuration is common for both version

Table 1. X-NUCLEO-OUT01A2

Jumpers / Switches Default configuration

SW1, SW30, SW32, SW34 all open

SW28, SW29, SW31, SW33, SW35, SW37 close 2-3

J13, J14, J15, J16, J17 close

Table 2. X-NUCLEO-OUT01A1

Jumpers / Switches Default configuration

SW1, SW28, SW29, SW30, SW31, SW32, SW33, SW34, SW35, SW37 close 1-2

J13, J14, J15, J16, J17 open

Table 3. A1 and A2 version

Jumpers / Switches Default configuration

SW36 close 1-2

J1, J2, J10 open

J3 close 1-2, 5-6

J4 close 5-6

J6, J7 close 1-2, 3-4, 5-6, 7-8

J9 close

UM3184

Board configuration

UM3184 - Rev 1 page 3/20

1.3 Digital section

The digital section is associated with the STM32 interface and the digital supply voltage to and from the X-

NUCLEO-OUT01A2 expansion board.

Figure 2. X-NUCLEO-OUT01A2 expansion board: digital interface section

The dotted green line indicates the whole digital interface section. The pink rectangles identify the Arduino® UNO

R3 connectors.

The four Arduino® UNO R3 connectors:

• allow the expansion board to communicate with the STM32 Nucleo development microcontroller board

accessing the STM32 peripheral and GPIO resources;

• provide the digital supply voltage between the STM32 Nucleo development board and the X-NUCLEO-

OUT01A2 expansion board, in either direction.

Usually, the STM32 Nucleo development board supplies the expansion board by a 3.3 V or 5.0 V generated by

the USB.

Alternatively, it is possible to supply the STM32 Nucleo development board from the expansion board. In this

case, an external supply voltage (7-12 V) should be connected to the CN11 connector (not mounted by default)

on the expansion board and the ground loop should be closed by mounting D2 (enabling the reverse polarity

protection) or by closing J5 (without reverse polarity). In this scenario, the logic side of the ISO8200BQ can be

supplied by the 3.3 V supply rail generated by the expansion board: in this case, on the X-NUCLEO-OUT01A2, J4

must be closed between pins 5 and 6.

To supply the VIN voltage rail, it is necessary to:

• close the JP5 jumper between pins 2 and 3 and open the JP1 jumper on the NUCLEO-F401RE;

• open the JP5 jumper between pins 1 and 2 and close the JP5 jumper between pins 3 and 4 on the

NUCLEO-G431RB.

The pin 3 of the connector CN11 can be used to supply the logic side of the ISO8200BQ independently by the

expansion board. In this case, on the X-NUCLEO-OUT01A2, the pins 1 and 2 of J4 must be closed (pins 5-6

open).

UM3184

Digital section

UM3184 - Rev 1 page 4/20

1.4 Power section

The power section involves the power supply voltage (CN1, pin 1 for VCC, pin 2 for GND), the load connection

(eight loads can be connected between each pin of CN2, CN3, CN4, and CN12 and pin 2 of CN1), EMC

protections (U2), and supply reverse polarity protection (D1).

Figure 3. X-NUCLEO-OUT01A2 expansion board: power section

1. ISO8200BQ

2. Output and power supply connector

3. Output channels - green LEDs

4. Status (overtemperature) red LED

5. Output Enable yellow LED

For EMC:

• the SM15T39CA transient voltage suppressor (U2), enabled by closing J9, is placed between VCC and

GND tracks to protect the ISO8200BQ against surge discharge on the supply rail path up to ±1 kV/2 Ω

coupling;

• in the common mode surge testing, two single-layer capacitors (C11 and C12 - not included) must be

soldered at the predisposed locations;

• the ISO8200BQ output stages do not require additional EMC protections with respect to the IEC61000-4-2,

IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-8 standards.

The EMC performance of the X-NUCLEO-OUT01A2 is detailed below:

• for emission (when the DC input port of the board is powered by an AC-DC, DC-DC or battery with a cable

that does not exceed a three-meter length), compliance with standards:

– EN IEC 61000-6-3:2021

– EN 55032:2015 +A1:2020

• for immunity, compliance with standards:

– EN IEC 61000-6-1:2019

– EN 55035:2017 +A11:2020

UM3184

Power section

UM3184 - Rev 1 page 5/20

1.5 Hardware requirements

The X-NUCLEO-OUT01A2 expansion board is designed to be used with the NUCLEO-F401RE or NUCLEO-

G431RB STM32 Nucleo development boards.

To function correctly, the X-NUCLEO-OUT01A2 must be plugged onto the matching Arduino® UNO R3 connector

pins on the STM32 Nucleo board as shown below.

Figure 4. X-NUCLEO-OUT01A2 and STM32 Nucleo stack

1.6 System requirements

To use the STM32 Nucleo development boards with the X-NUCLEO-OUT01A2 expansion board, you need:

• a Windows PC/laptop (Windows 7 or above)

• a type A to mini-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

F401RE development board

• a type A to micro-B USB cable to connect the STM32 Nucleo board to the PC when using a NUCLEO-

G431RB development board

• the X-CUBE-IPS firmware and software package installed on your PC/laptop

UM3184

Hardware requirements

UM3184 - Rev 1 page 6/20

1.7 Board setup

If the board is configured as X-NUCLEO-OUT01A1, refer to UM2209 and X-CUBE-OUT1 as the control firmware.

When the board is configured as X-NUCLEO-OUT01A2, refer to the following steps:

Step 1. Connect the mini-USB or micro-USB cable to your PC to use the X-NUCLEO-OUT01A2 with NUCLEO-

F401RE or NUCLEO-G431RB development board

Step 2. Download the firmware (.bin) provided with the X-CUBE-IPS software package as detailed in Table 4.

The X-NUCLEO-OUT01A2 must be configured coherently to the selected control mode for ISO8200BQ

through SW37 and SW36. These switches define the level of ISO_DRV signal: according to the level of

this signal (high or low), the firmware will properly manage respectively the synchronous or the direct

control mode.

Table 4. Nucleo development boards binary files

Nucleo board Binary path

NUCLEO-F401RE Projects\STM32F401RE-

Nucleo\Examples\OUT01A2\EightChannels\Binary\EightChannels.bin

NUCLEO-G431RB Projects\STM32G431RB-

Nucleo\Examples\OUT01A2\EightChannels\Binary\EightChannels.bin

Step 3. Connect the ISO8200BQ device supply voltage via CN1 (see Section 1.4 Power section).

Step 4. Provide the digital supply voltage (see Section 1.3 Digital section).

Step 5. Connect the load on the output connector (see Section 1.4 Power section).

Step 6. Reset the example sequence by pushing the black button on the STM32 Nucleo board.

Step 7. Push the blue button on the STM32 Nucleo board to choose among the examples provided in the

default firmware package.

UM3184

Board setup

UM3184 - Rev 1 page 7/20

2 Schematic diagrams

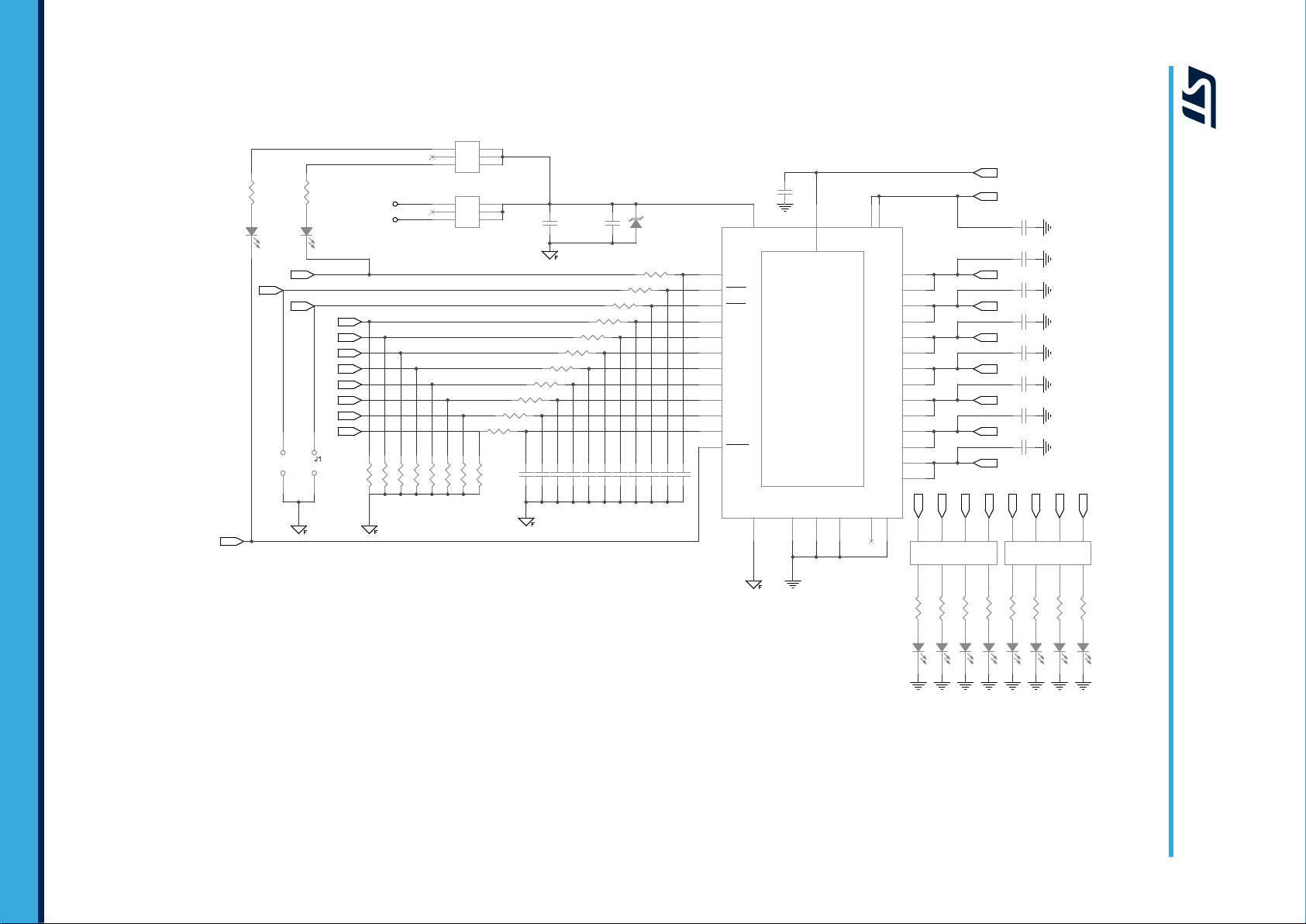

Figure 5. X-NUCLEO-OUT01A2 circuit schematic (1 of 2)
